Product type	Wood stove
Brand	Jøtul
Model	F 272
Main material	Cast iron
Fuel	Wood (logs only)
Maximum log length	30 cm
Nominal heat output	6.5 kW
Efficiency	77% at 6.7 kW
CO rate at 13% O2	0.10%
Flue gas temperature	327 °C
Recommended draft	12 Pa
Flue gas mass flow	5.5 g/s
Operating mode	Intermittent
Flue pipe diameter	150 mm (section 177 cm²)
Connection flue	Top or rear
Weight (firebox only)	Approx. 120 kg
Weight (with options)	Up to 160 kg
Finish	Black or grey paint
Standard	EN 13240
Routine maintenance	Empty ash pan, check seals
Spare parts available	Deflectors, lining plates, glass door, etc.
Options	Rotation kit, soapstone/glass decorations

Frequently Asked Questions - F 272 Jøtul

How to install the F 272 stove?

Installation must comply with national regulations. Ensure the floor is non-combustible or protected by a metal plate. Respect minimum distances to combustible walls (see fig. 1 of the manual). The connection to the flue must be airtight and carried out according to DTU 24.2.1 and 24.2.2.

What type of wood should be used?

Use exclusively dry wood with moisture content below 20%. Logs must measure at most 30 cm in length. For kindling, prefer diameters of 2 to 5 cm. Avoid resinous wood and treated waste.

How to adjust the air supply?

The stove has two controls: the top air intake (fig. 10A) and the bottom air intake (fig. 10B). For nominal heat output, open the top air to 50% and pull the bottom handle 1-2 cm. The exact position depends on draft quality.

How to clean the firebox and remove ashes?

Wait until the embers have died down. Operate the bottom air intake handle several times to drop ashes into the ash pan. Remove the ash pan and empty it into a non-combustible container. Always leave a layer of ashes at the bottom to protect the cast iron.

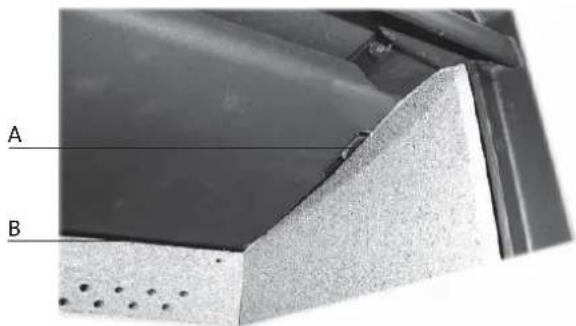

How to replace the deflectors?

Lift the front edge of the deflector, push it to the right, lower the left edge, and tilt it to remove it. The upper deflector is removed by lifting and tilting. To reassemble, reverse the order. Ensure they rest properly on the side and rear ribs.

What are the safety distances to observe?

Respect the distances shown in fig. 1 of the manual. At the ceiling, a clearance of at least 1000 mm is required. For combustible walls, the distance varies depending on whether an insulated flue is present or not. Consult local regulations.

Can I use coal or other fuels?

No. The Jøtul F 272 stove is designed exclusively for wood. Use of coal, lignite, or waste is prohibited and could damage the appliance and void the warranty.

How to connect the external air intake?

If using an external air intake, push the intake damper to the forward position (fig. 10A). Connect a flexible hose Ø100 mm to the air inlet opening (fig. 4C) and secure it with a hose clamp. Ensure the hose length is sufficient.

Where is the serial number located?

The serial number and manufacturing year are indicated on a heat-resistant label located on the heat shield, under the appliance. Note this number and mention it for any claim or spare parts order.

What to do in case of malfunction?

Refer to section 10.0 of the manual for causes and troubleshooting. Common problems include poor draft, incomplete combustion, or worn seals. Check air settings, seal condition, and have the chimney swept if necessary.

USER MANUAL F 272 Jøtul

GB - Installation Instructions with technical data 18

Exterior view of a modern office building (no signage)

Jøtul F 271

Exterior view of a modern office building (no signage)

Jøtul F 272

Exterior view of a modern portable stove with visible flames and a base (no text or symbols)

Jøtul F 273

Exterior view of a modern office building (no signage)

Jøtul F 274

Exterior view of a modern office building (no signage)

Jøtul F 275

Jautel produkter/ Jautel's products 100% Concatikäk - opentilistätigkeit 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

GB - Before use, please read the general users and maintenance manual carefully.

Product Eventual
Item: Particular (Refrasyschafter)
Material
Material name and type of material used in the material.
Material type and type of material used in the material.
Material properties
Material knowledge
Ordering
Type of ordering
Type knowledge
the equipment is used in a software.
Country	Classification	Not-for-service	Approve by
Norway	Eventual
Website	dev	p	2" Stages from one's to two's, but not more than 40
E.R.	Institute	p	2" Stages from one's to two's, but not more than 40

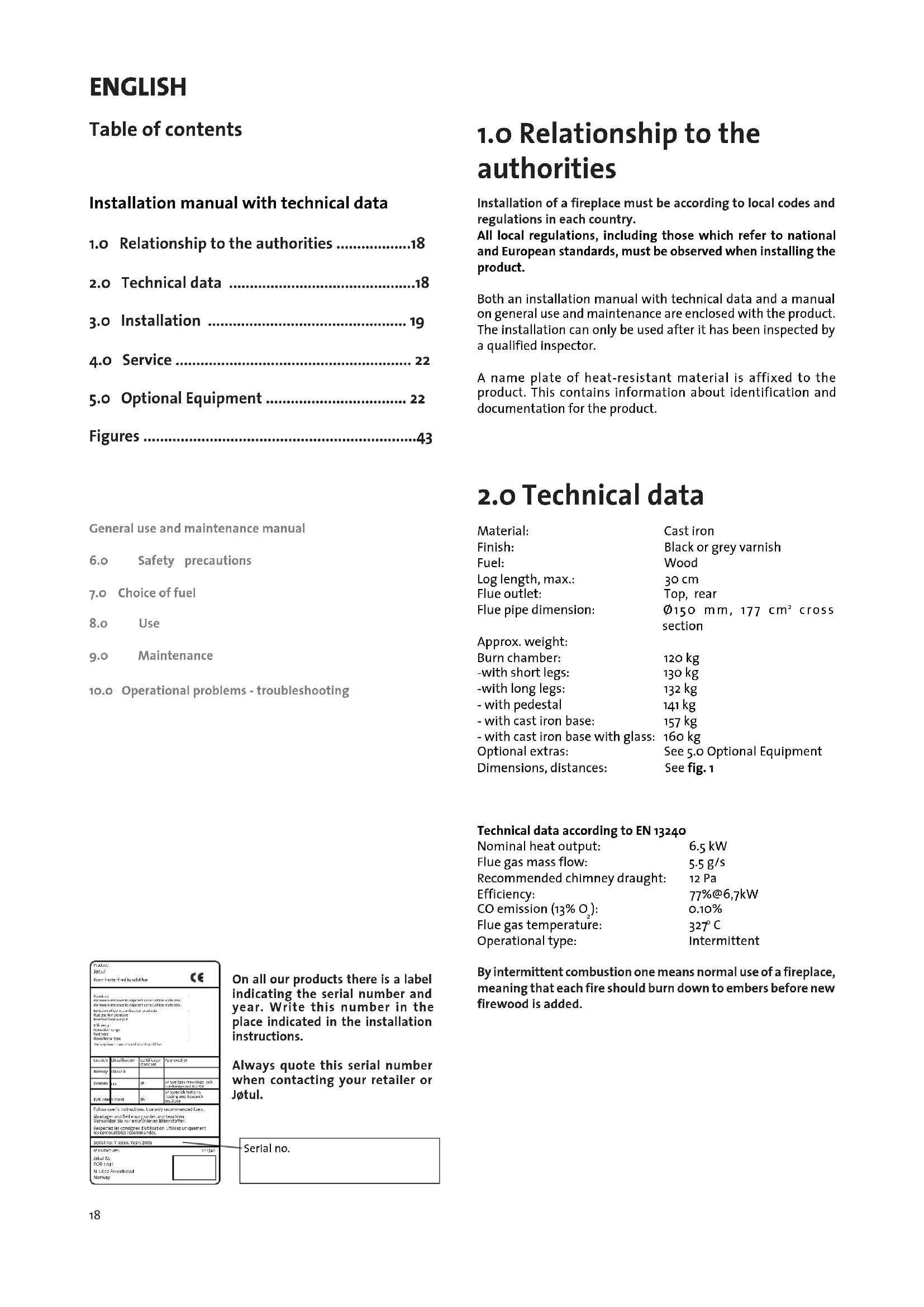

Installation manual with technical data

1.0 Relationship to the authorities .....18
2.0 Technical data ....18
3.0 Installation 19
4.0 Service 22
5.0 Optional Equipment 22

Figures 43

General use and maintenance manual

6.0 Safety precautions
7.0 Choice of fuel
8.0 Use
9.0 Maintenance
10.0 Operational problems - troubleshooting

Product Detail Exhibit: Historic Realty and Sale CE Material: With material used to recommend existing materials. With material used to recommend existing materials. In order of material used in accordance with the requirements. Material not applied: Storage Storage unit: Line type: Line thickness: The equipment is designed as a material. Country Classification: No. 1-First Material Molecule: Enerel Material type: Type Oil treatment: Type Follow-up's instructions: Unless only recommended files: Morphs and Bedienungsanleitung brücher. Received file is not required by the manufacturer. Recommended conditions for location: Stowe uncompliant. No. 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Sediment Version, Year 26/26 Manufactured: 322419 Jaguar 45 POB 1444 No. 14441 (Copyright) Norway

On all our products there is a label indicating the serial number and year. Write this number in the place indicated in the installation instructions.

Always quote this serial number when contacting your retailer or Jøtul.

Serial no.

1.0 Relationship to the authorities

Installation of a fireplace must be according to local codes and regulations in each country.

All local regulations, including those which refer to national and European standards, must be observed when installing the product.

Both an installation manual with technical data and a manual on general use and maintenance are enclosed with the product. The installation can only be used after it has been inspected by a qualified inspector.

A name plate of heat-resistant material is affixed to the product. This contains information about identification and documentation for the product.

2.0 Technical data

Material:	Cast iron
Finish:	Black or grey varnish
Fuel:	Wood
Log length, max.:	30 cm
Flue outlet:	Top, rear
Flue pipe dimension:	150 mm, 177 cm ^2 cross section

Approx. weight:

Burn chamber:	120 kg
-with short legs:	130 kg
-with long legs:	132 kg
- with pedestal	141 kg
- with cast iron base:	157 kg
- with cast iron base with glass:	160 kg
Optional extras:	See 5.0 Optional Equipment
Dimensions, distances:	See fig. 1

Technical data according to EN 13240

Nominal heat output:	6.5 kW
Flue gas mass flow:	5.5 g/s
Recommended chimney draught:	12 Pa
Efficiency:	77%@6,7kW
CO emission (13% O_2 ):	0.10%
Flue gas temperature:	327°C
Operational type:	Intermittent

By intermittent combustion one means normal use of a fireplace, meaning that each fire should burn down to embers before new firewood is added.

Wood consumption

Jøtul F270 has a nominal heat output of 6,5 kW. This is equivalent to a consumption of approximately 2,0 kg of quality firewood per hour.

Kindling:

Length: 20-30 cm

Diameter: 2-5 cm

Amount per fire: 6-8 pieces

Firewood (split logs):

Length: Ca 25 cm

Diameter: Approx. 8 cm

Intervals for adding wood: Approximately every 45 minutes

Size of the fire: 1.5 kg

Amount per load: 3 pieces

Nominal heat emission is achieved when the air wash vent is open approximately 50% (fig. 10A), and the handle for the lighting valve is pulled out approximately 1-2 cm (fig. 10B). In this position the ignition vent is now completely closed but the grate is open.

3.0 Installation

3.1 Floor

Foundations

It must be ensured that the foundations are dimensioned for the fireplace. Cf. «2.0 Technical data» for specification of weight. It is recommended that flooring which is not fastened to the foundations – so-called floating flooring – is removed during installation.

Combustible floor protection

If the fireplace is to be mounted on a combustible floor, cover the floor under and in front of the fireplace with a plate made of metal or other non-combustible material. The recommended minimum thickness is 0.9 mm.

Any flooring made of combustible material, such as linoleum, carpets, etc. must be removed from under the floor plate.

Requirement for protecting combustible flooring in front of fireplace

The front plate must be in accordance with national laws and regulations.

Contact your local building authority regarding restrictions and installation requirements.

3.2 Walls

Distance to wall made of combustible material - see fig. 1.

You may use the fireplace with an uninsulated flue pipe provided the distances to walls made of combustible materials are as shown in fig. 1.

Distance to walls covered by a firewall

Contact your local building authority regarding restrictions and installation requirements.

Firewall requirement

The firewall must be at least 100 mm thick and be made of brick, concrete-stone or light concrete. Other materials and constructions with satisfactory documentation may also be used.

3.3 Ceiling

There must be a minimum distance of 1000 mm to a combustible ceiling above the fireplace.

ENGLISH

3.4 Chimneys and flue pipes

• The fireplace can be connected to a chimney and flue pipe approved for solid fuel fired appliances with flue gas temperatures specified in «2.0 Technical data.
• The chimney's cross-section must be at least as big as the flue pipe's cross-section. See «2.0 Technical data» when calculating the correct chimney cross-section.
• Several solid fuel fired appliances can be connected to the same chimney if the chimney's cross-section is sufficient.
• Connection to the chimney must be carried out in accordance with the installation instructions from the supplier of the chimney.
• Before making a hole in the chimney the fireplace should be test-mounted in order to correctly mark the position of the fireplace and the hole in the chimney. See fig. 1 for minimum dimensions.
• Ensure that the flue pipe is inclined all the way up to the chimney.
• Use a flue pipe bend with a sweeping hatch that allows it to be swept.

Be aware of the fact that it is particularly important that connections have a certain flexibility in order to prevent movement in the installation leading to cracks. N.B. A correct and sealed connection is very important for the proper functioning of the product.

Chimney draught; See «2.0 Technical data». If the draught is too strong you can install and operate a flue damper to control the draught.

3.5 Assembly prior to installation

N.B. Check that the fireplace is free of any damage prior to commencing installation.

The product is heavy! Make sure you have assistance when erecting and installing the fireplace.

• The standard product is delivered in two packing cases. One containing the fireplace itself and one containing optional legs, short/long or pedestal.
• Once you have unpacked the product, remove the fire grate and the heat shield.
• Lift off the top plate and the air grid and bowl.
• Lift off the rear heat shield (cast iron). This hangs on 3 screws, two above and one below. See fig. 9A.
• Check that the product does not have any visible damage and that the operating handles work.
• Unfold the cardboard packing and place the wooden pallet on top. Carefully place the fireplace on its back.

Jøtul F 271/F 272 - Attaching the legs

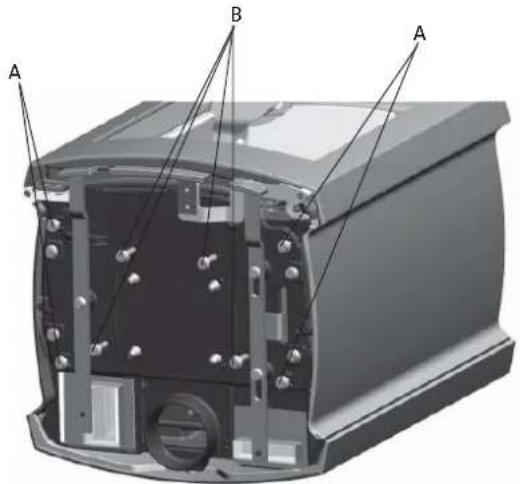

1. Unscrew the screws that are screwed in the corners of the fireplace, and attach the legs to the screws (fig. 2A).

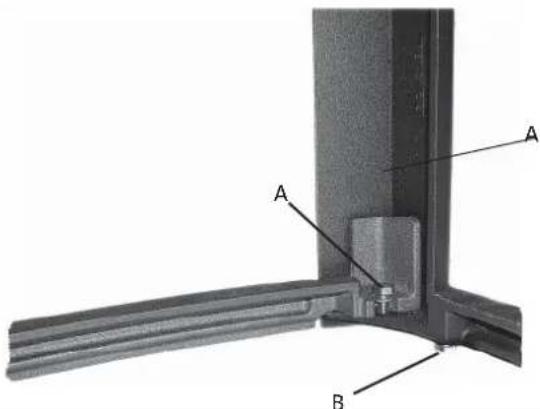

2. Attach the stiffener between the rear legs - see fig. 3A.
3. The floor shall be protected from heat from the product using the supplied heat shield. Attach it to the 4 screws as shown in fig. 4.
4. Make sure to have assistance and lift the product carefully up.
5. Adjust the product with the aid of the 4 adjusting screws in each corner (see fig. 3B).
6. Re-attach the rear heat shield (cast iron) by first hanging it on the top screws. Lift it up slightly and then lower it onto the lower screw.
7. Replace the top plate with the air grid and bowl.

Jøtul F 273 - Attaching the column

1. The pedestal consists of 4 parts, the pedestal foot, 2 pedestal parts and an air chamber.

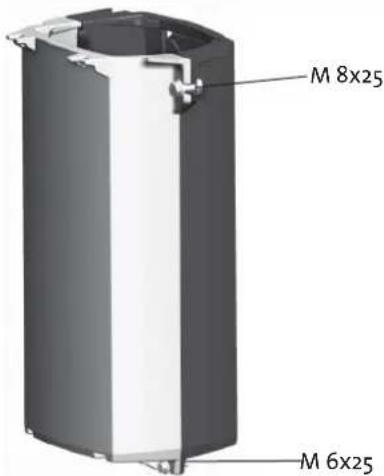

2. Screw the pedestal sections together using 2 bolts M8 x 25 and 2 bolts M6 x 25, as shown in fig. 5A.

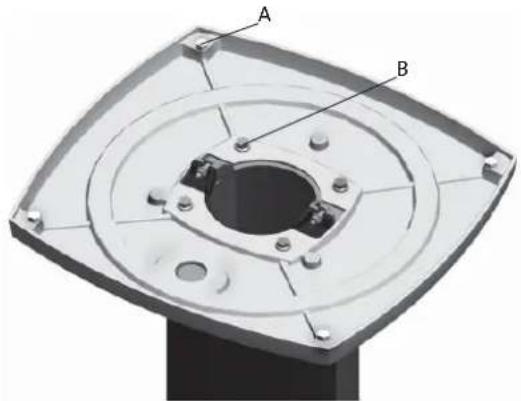

3. Screw the pedestal to the foot plate using 4 bolts (M8 x 25), see fig. 5B-6B.

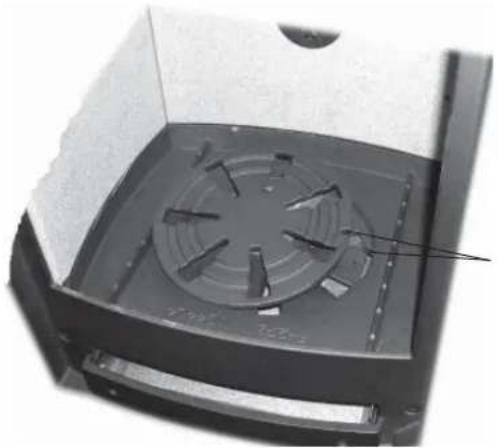

Turn plate

If the turn plate shall be mounted, this shall be done now before the base plate is attached to the fireplace. See the installation instructions that are included with the turn plate.

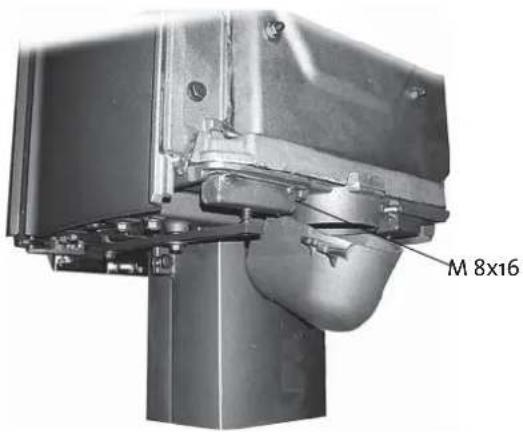

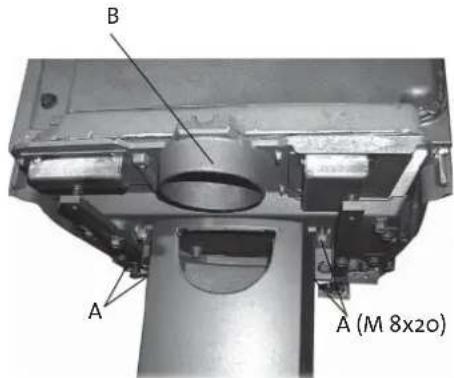

1. Attach the pedestal to the fireplace's base plate using 4 bolts (M8 x 20), see fig. 5C. The seams on the pedestal shall face the sides of the product and the opening for outdoor air shall face backwards (see: «Fresh air supply through the base»).

2. Make sure to have assistance and lift the product carefully up.

6 Adjust the product with the aid of the 4 adjusting screws in each corner (see fig. 6A).

1. Re-attach the rear heat shield (cast iron) by first hanging it on the top screws. Lift it up slightly and then lower it onto the lower screw.

2. Place the top plate in position with the air grid and bowl.

1. Unscrew the screws that are screwed in the corners of the fireplace, and attach the legs to the screws (fig. 2A).
2. The floor shall be protected from heat from the product using the supplied heat shield. Attach it to the 4 screws as shown in fig. 4.
3. Make sure to have assistance and lift the product carefully up.
4. Adjust the product with the aid of the 4 adjusting screws in each corner (see fig. 3B).
5. Re-attach the rear heat shield (cast iron) by first hanging it on the top screws. Lift it up slightly and then lower it onto the lower screw.
6. Replace the top plate with the air grid and bowl.

If external air supply through the external air vent is to be used, connect a flexible hose, ∅ 100 mm, to the external air vent (Fig. 4C) on the product at this stage.

Installation with external air supply

1. Push the lever on the external air vent to its forward position (Fig. 10 A).
2. Attach the hose to the external air vent using a hose clip. NB! Make sure the hose is long enough so that joints are not necessary.
3. Push the cast iron base toward the burn chamber and, at the same time, push the external air hose through the foot and, if necessary, through the opening in the back edge of the cast iron base.
4. Attach the base to the burn chamber using the 4 screws (M8 x 30 mm) from the bag of screws.
5. With the help of another person, carefully raise the product and position it correctly over the external air supply.
6. Adjust the height of the product, if necessary, using the adjustment screws beneath the foot (Fig. 3B).

Installation without external air supply

1. Attach the base to the burn chamber using the 4 screws (M8 x 30 mm) from the bag of screws.
2. With the help of another person, carefully raise the product.
3. Adjust the height of the product, if necessary, using the adjustment screws beneath the foot (Fig. 3B).

Jøtul F 275 – Cast iron base with glass door (Fig. 15 and 16)

1. The floor shall be protected from heat from the product using the supplied heat shield. Attach it to the 4 screws as shown in fig. 4.
2. Assemble the cast iron base as described under "Jøtul F 274 – Cast iron base."
3. Attach the hinge for the glass door to the base using the M6x20 mm screws, which are in the bag of screws for the glass door (Fig. 15 A).
4. Insert the spring between the threaded holes and the hinge before tightening the screws (Fig. 15 B).
5. Screw the other end of the spring firmly in position (Fig. 16 A).
6. Attach the door damper on the inside of the glass door in the middle (Fig. 16 D). NB! There must be an even gap between the door and the base to allow the door to hang straight. Adjust the door, if necessary, by tightening or loosening the two screws (Fig. 16 C).

Supply of outdoor air

With the F 270 it is possible to have outdoor air directly in the product through the base, or through the flexible supply tube from the exterior/chimney and to the connecting pipe on the product.

Fresh air supply through the base

• Mark where the product will stand, and make a hole in the floor for insertion of tube from outdoor air.
• Punch out the opening in the back of the pedestal from the inside (fig. 5A), and mount the air channel as fig.7A shows.

Fresh air supply direct from the exterior or from the chimney with air vents.

• Attach a flexible tube 100 mm directly to the fireplace's connecting pipe (fig. 5C-B) by using a hose clamp and attach it to the wall outlet/chimney. If the product shall be turned, this must be taken into consideration in terms of the length of the tube
• Make sure to have assistance and lift the product carefully up.

Mounting the flue pipe

The product is delivered from the factory with the smoke outlet mounted for top flue outlet. If one wants the pipe to come out of the rear the following should be done:

• Lift off the top plate

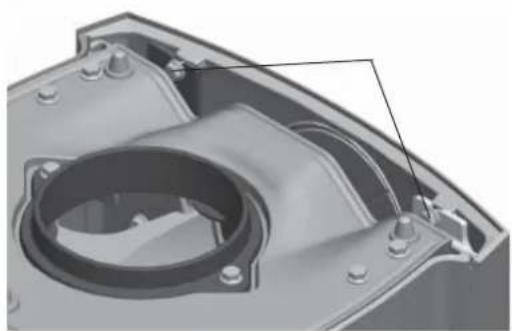

• Lift off the back heat shield (cast iron). This hangs on 3 screws, two above and one below. See fig. 9.
• Use a ball-pane hammer and knock out the cut-out in the heat shield from the inside.

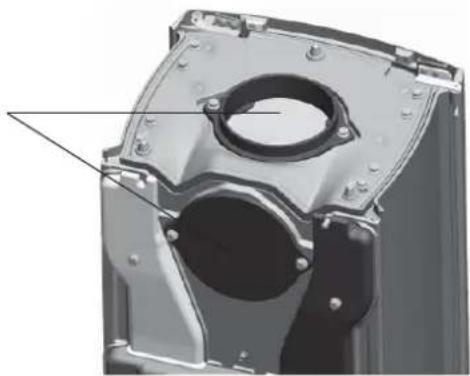

• Swap the cover and the smoke outlet (fig. 8) and attach these.
• Re-attach the rear heat shield (cast iron) by first hanging it on the top screws. Lift it up slightly and then lower it onto the lower screw.
• Put the flue pipe into place inside the smoke outlet and seal tightly with a gasket.

Be aware of the fact that connections must have a certain flexibility in order to prevent movement in the installation leading to cracks.

N.B. A correct and sealed connection is very important for the proper functioning of the product.

The chimney draught, see «2.0 Technical data». If the draught is too strong you can install and operate a flue damper to control the draught.

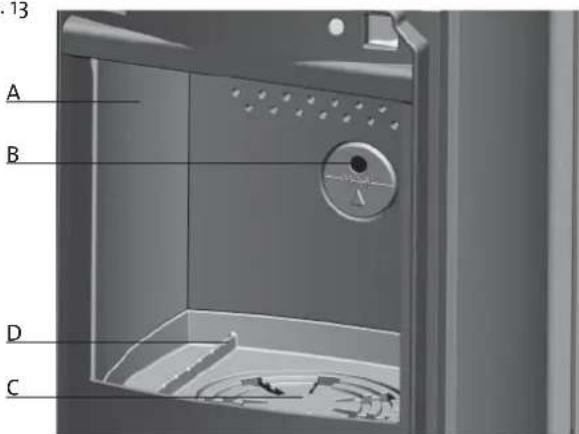

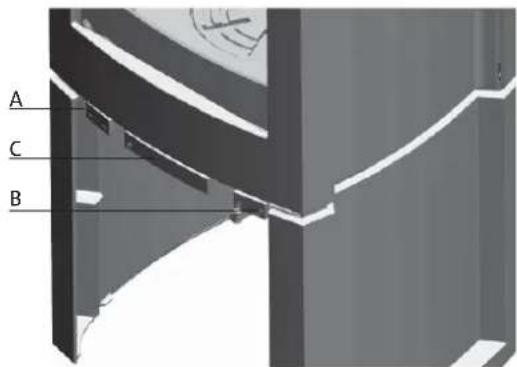

3.6 Control of functions (fig. 10)

When the product is set up, always check the control functions. These shall move easily and function satisfactorily.

Jøtul F 270 is equipped with the following controls:

Air vent fig. 10A

Left position: Closed.

Right position: Open.

Ignition vent, fig. 10B)

Pushed in: Closed.

Pulled out: Open.

Oscillating grate fig. 10A

Right handle is pushed in and out

is opened by pulling handle out.

3.7 Ash removal

Jøtul F 270 has an ash pan which makes it easy to remove the ashes.

• Only remove ashes when the fireplace is cold.
• Push/pull the handle for the ash grate/ignition vent out and in several times so that the ashes fall down into the ash pan.
• Pull out the ash pan and empty the ash into a non combustible container.

- Ideally some ash should be left as a protective layer for the bottom of the fireplace.

For the rest, see description of how to handle ash in the Manual on general use and maintenance in Point «6.1 Fire preventive measures».

ENGLISH

4.0 Service

Warning! Any unauthorised change to the product is illegal. Only use original spare parts.

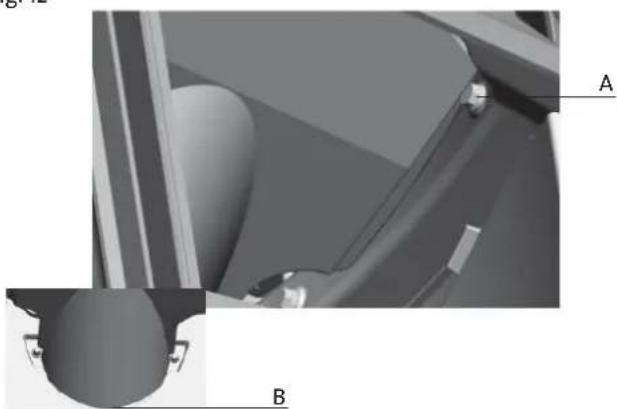

4.1 Replacing the baffle/exhaust deflector, fig. 11 and 12

• The baffle plates rest on ribs in the side (11A) and on the burn plate on the back edge (11B). Lift the front edge of the baffle, push it to the right, lower the left edge and then tilt it out.
• The exhaust deflector, in cast iron - that is located above the baffle plate, rests on two screws in the front (12A) and in the groove by the rear flue outlet (12B). Lift the exhaust deflector slightly up, pull it forward and tilt it out.
• For reassembly follow the same procedure for installation, but in reverse.

4.2 Changing the burn plates/base plate fig. 13

• Lift out the baffle plates as described above.
• Remove the side burn plates (A) by lifting them up slightly and forward - move them towards the middle and lift them out. (N.B. If you use tools be aware that the vermiculite plates may be damaged by rough treatment).
• Unscrew the screw back on the rear burn plate (B) and lift the burn plate out.
• Then lift up the grate(C) and the base plate (D) and take it out.
• Follow the same procedure for installation, but in the opposite sequence.
• When reassembling the grate and the base plate make sure that the tab that moves the fire grate is placed in the slot on the right edge of the base plate, and in the groove in the fire grate. (See fig. 14)

5.0 Optional equipment

5.1 Rotation set - cat. no. 350997

Assembly instructions are included with the product

5.2 Decoration

Soapstone decoration, top-cat. no. 350949

Glass decoration, top plate- cat. no. 350946

Glass decoration, sides-cat. no. 350947

Assembly instructions are included with the product

Glass decoration, door-cat. no. 350948

Assembly instructions are included with the product

Glass door kit, for Jøtul F 275 - cat. no. 361003

Soapstone complete, for Jøtul F 273 - cat. no. 361007

Soapstone complete, for Jøtul F 274 - cat. no. 361008

Soapstone top, 50 mm complete - cat. no. 361009

Heat shield for soapstone (Jøtul F 273 / Jøtul F 274) - cat. no. 224042

Sommaire

Product Detail Exhibit: Historic Realty and Sale CE Material: With material used to recommend existing materials. With material used to recommend existing materials. In order of material used in accordance with the requirements. Material not applied: Storage Storage unit: Line Line type: Special type: The equipment is designed as a material. Country Classification: No. 1-First Material Apply by: Material: Advanced Material: Type: Pb 2" Stages from first part of the material, including the material in line. B.R. requirement: Pb Follow us with instructions. Use only recommended files. Morphs and Bedienungsanleitung brücher. Received file is not recommended for any additional. Recommended requirements for the location. Since uncorrected. No. 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Sealment: Vancor, Vener, 2676 Manufactured: 232419 Jaguar 45 POB 1444 No. 1444/Industrial Norway

Jøtul F 274 – Base in ghisa

Product Detail Exhibit: Historic Realty and Sale CE Material: With material used to recommend existing materials. With material used to recommend existing materials. In order of material used in accordance with the requirements. Material not applied: Storage Storage unit: Line type: Line thickness: The equipment is designed as a material. Country Classification: No. 1-First Material Mogeneity: Standard Sensitivity: Yes R & m (m) [0,1] [2] Stamps from first section of the material for the R & m (m) [48] R & m (m) [0,1] [2] Stamps from second section of the material for the R & m (m) [49] Follow-up's instructions: Unless only recommended files: Montage and Bedingenanleitung brother, Recommended by the reemploymenter of the following: Recommended for the use of the material: No. 1-50000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Sealment: Vancor, Vener, 2676 Manufactured: 322143 Jaguar 45 POB 1444 No. 1-5/2-1 Manufactured: Norway

Stookopening, afb. 10B

Ingeduwd: gesloten

Uitgetrokken: open

Schudrooster afb. 10B

3D rendering of a mechanical housing component with internal components and mounting holes (no text or symbols visible)

Fig. 5 B

3D rendered image of a cylindrical mechanical component mounted on a base plate (no text or symbols visible)

Fig. 2

A B A

Fig. 3

A A B

Fig. 5 A

M 8x25 M 6x25

Fig. 5 C

B A A (M 8x20)

Fig. 6

3D mechanical component diagram showing a flanged housing with labeled points A and B (no text or symbols beyond labels)

Fig.7

M 8x16

Fig. 8

3D mechanical component diagram showing internal cavities and mounting holes (no text or symbols)

Fig. 9

3D mechanical component diagram showing internal cavity and mounting holes (no text or symbols)

Fig. 10

A C B

Fig. 11

A B

Fig. 12

Close-up of a mechanical component with labeled parts A and B, showing internal structure and mounting points (no text or symbols beyond labels)

Fig. 13

A B D C

Fig. 14

Interior view of a mechanical device with a circular fan or vent, showing internal blades and mounting holes (no text or symbols visible)

Fig. 15

Mechanical assembly diagram showing two labeled components A and B connected by rods, mounted on a curved panel (no text or symbols beyond labels)

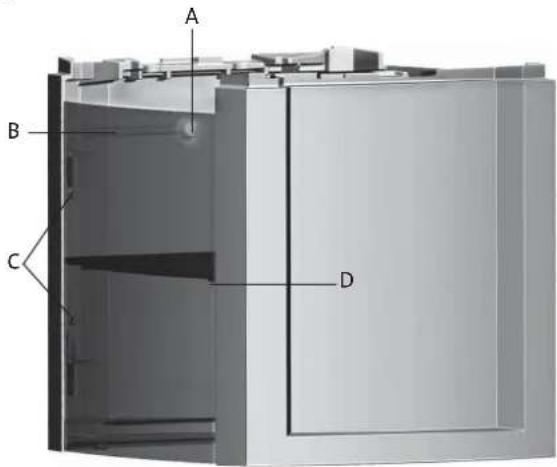

Fig. 16

A B C D

Checked
