USER MANUAL F 371 Jøtul

1.0 Relationship to the authorities ................... 2

1.0 Relationship to the

authorities Installation of a fireplace must be according to local codes and regulations in each country. All local regulations, including those which refer to national and European standards, must be observed when installing the product. The installation can only be put into use after it has been checked by a qualified inspector. Contact your local building authorities before installing a new fireplace. A product data plate of heat-resistant material is affixed to the product. This contains information about identification and documentation for the product.

cross section Approx. weight: - with cast iron base: Approx. 163 kg - with cast iron pedestal: Approx. 156 kg - with cast iron leg: Approx. 154 kg - with cast iron base and glass door: Approx. 165 kg - with glass base: Approx. 158 kg - Jøtul F 377 with soapstone: Approx. 220 kg - Jøtul F 377 HT with soapstone: Approx. 270 kg - Jøtul F 377 with heat storage system and soapstone: Approx. 330 kg - with three legs: Approx. 149 kg Optional extras: Decoration plates, cover for side windows, rotating set (Jøtul 373), glass decoration - top/sides/front, soap stone - top, wood store, cast iron door for base (Jøtul F 371), High Top, Jøtul F 377 soapstone, Jøtul F 377 HT soapstone, convection kit, heat storage system Dimensions, distances: See fig. 1 Technical data according to EN 13240 Nominal heat output: 5,5 kW Flue gas mass flow: 5,9 g/s Recommended chimney draught: 12 Pa Efficiency: 73%@5,8 kW CO emission (13% O

Operational type: Intermittent Intermittent combustion in this context means normal use of the fireplace, i.e. fuel is added as soon as the fuel has burnt down to a suitable amount of embers. On all our products there is a label indicating the serial number and year. Write this number in the place indicated in the installation instructions. Always quote this serial number when contacting your retailer or Jøtul. les combustibles recommandés.Respectez les consignes d'utilisation. Utilisez uniquementVerwenden Sie nur empfohlenen Brennstoffen.Montage- und Bedienungsanleitung beachten. Follow user`s instructions. Use only recommended fuels.standardCertificate/The appliance can be used in a shared flue.Minimum distance to adjacent combustible materials:Emission of CO in combustion productsSerial no: Y-xxxx, Year: 200xManufacturer:N-1602 FredrikstadNorwayJøtul ASPOB 1441SwedenEUR IntermittentNominal heat output NorwayCountryOperational typeFuel typeOperation rangeEfficiencyKlasse IIClassificationStandardFlue gas temperature Room heater fired by solid fuelProduct: Jøtul SP Sveriges Provnings- och221546Forskningsinstitut ABSP Swedish National Testing and ResearchInstitute Approved by

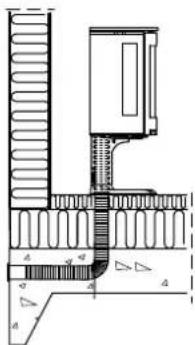

Serial no. ENGLISH3 ENGLISH Air supply The outside air connection may be fitted directly to the Jøtul F 370 Series through:

• The base/pedestal/leg or

• through a flexible supply hose from the outside/chimney (only if the chimney has its own duct for external air) and to the product’s outside air connector. Through an outside wall Through the floor and ground plate Through the floor and basement Indirectly through an outside wall

NB! To guarantee optimal performance and safety, Jøtul stoves must be fitted by a qualified installer. Any modifications to the product by the distributor, installer or consumer may result in the product and safety features not functioning as intended. The same applies to the installation of accessories or optional extras not supplied by Jøtul. This may also be the case if parts that are essential to the functioning and safety of the fireplace have been disassembled or removed. In all these cases, the manufacturer is not responsible or liable for the product and the right to make a complaint becomes null and void.

3.1 Fire Prevention Measures

There is a certain element of danger every time you use your fireplace. The following instructions must therefore be followed:

• The minimum safety distances when installing and using the fireplace are given in fig. 1.

• Ensure that furniture and other flammable materials are not too close to the fireplace. Flammable materials should not be placed within 1 metre of the fireplace.

• Allow the fire to burn out. Never extinguish the flames with water.

• The fireplace becomes hot when lit and may cause burns if touched.

• Only remove ash when the fireplace is cold. Ash can contain hot embers and should therefore be placed in a non- flammable container.

• Ash should be placed outdoors or be emptied in a place where it will not present a potential fire hazard. In case of chimney fire:

• Close all hatches and vents.

• Keep the firebox door closed.

• Check the loft and cellar for smoke.

• Call the fire service.

• Before use after a fire an expert must check the fireplace and the chimney in order to ensure that it is fully functional.

Foundation You need to make sure the foundation is suitable for a fireplace. See “2.0 Technical Data” for specified weight. We recommend the removal of any flooring that is not attached to the foundation (“floating floors”) beneath the installation. Requirements for protection of wooden flooring beneath the fireplace Jøtul F 370 Series (except from Jøtul F 374) has a heat shield underneath which protects the base from radiation. The product (except Jøtul from F 374 and Jøtul F 379) has an integrated floor protection and may therefore be placed directly on a wooden floor. Any inflammable floor coverings, such as linoleum, carpets, etc. must be removed from under the product.4 ENGLISH

• If a steal chimney is used the measure will be 100mm

Med halvisolert skorstein / With half insulated steel chimney With side cover, plain With decor glass sides Basic model Min. distance to combustible wall by different configurations, fig. 1a Measure Configuration Jøtul F 370 Jøtul F 370 C (product with convection kit with side glasses and half insulated chimney) Jøtul F 377 (product with soap stone sides and top)5 ENGLISH

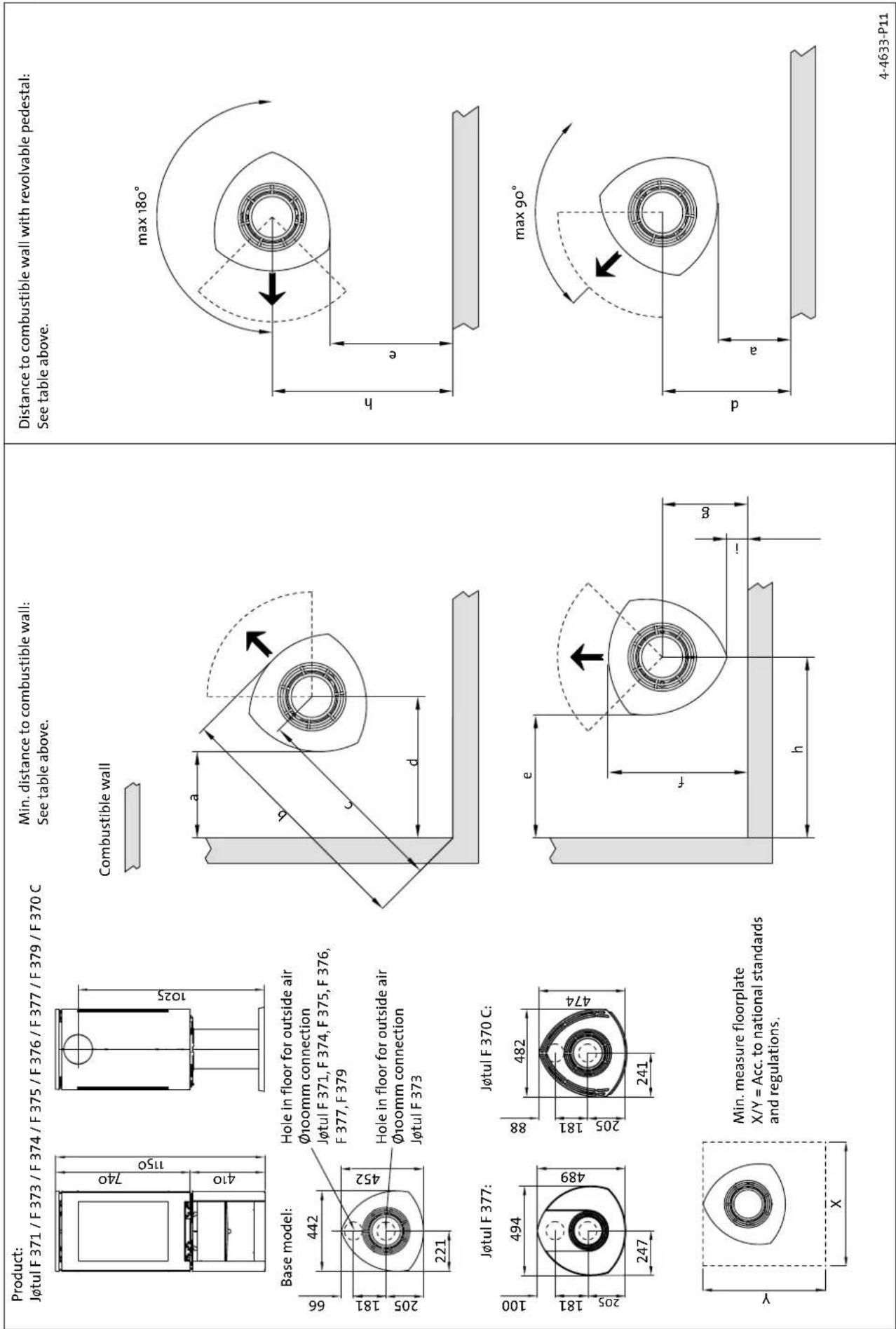

max 90° Distance to combustible wall with revolvable pedestal: See table above.

Hole in floor for outside air Ø100mm connection Jøtul F 371, F 374, F 375, F 376, F 377, F 379 Min. measure floorplate X/Y = Acc. to national standards and regulations

• If a steal chimney is used the measure will be 100 mm

100 703 498 354 200 539 334 447 50 550 400 250 892 - 885 961 - 960 - - Min. distance to combustible wall protected by firewall in different configurations, fig. 1b Measure Configuration Jøtul F 370 Jøtul F 372, F 375, F 376, F 379 with ext. air through wall With side cover plain Basic model Jøtul F 370 C (product with convection kit andhalf insulated chimney) Jøtul F 377 (product with soap stone sides and top) Fig. 1 c Minimum distance to wall for Jøtul F 375, F 376 and F 379 with external air supply through wall min 100 min 3477 ENGLISH 4-4633-P11

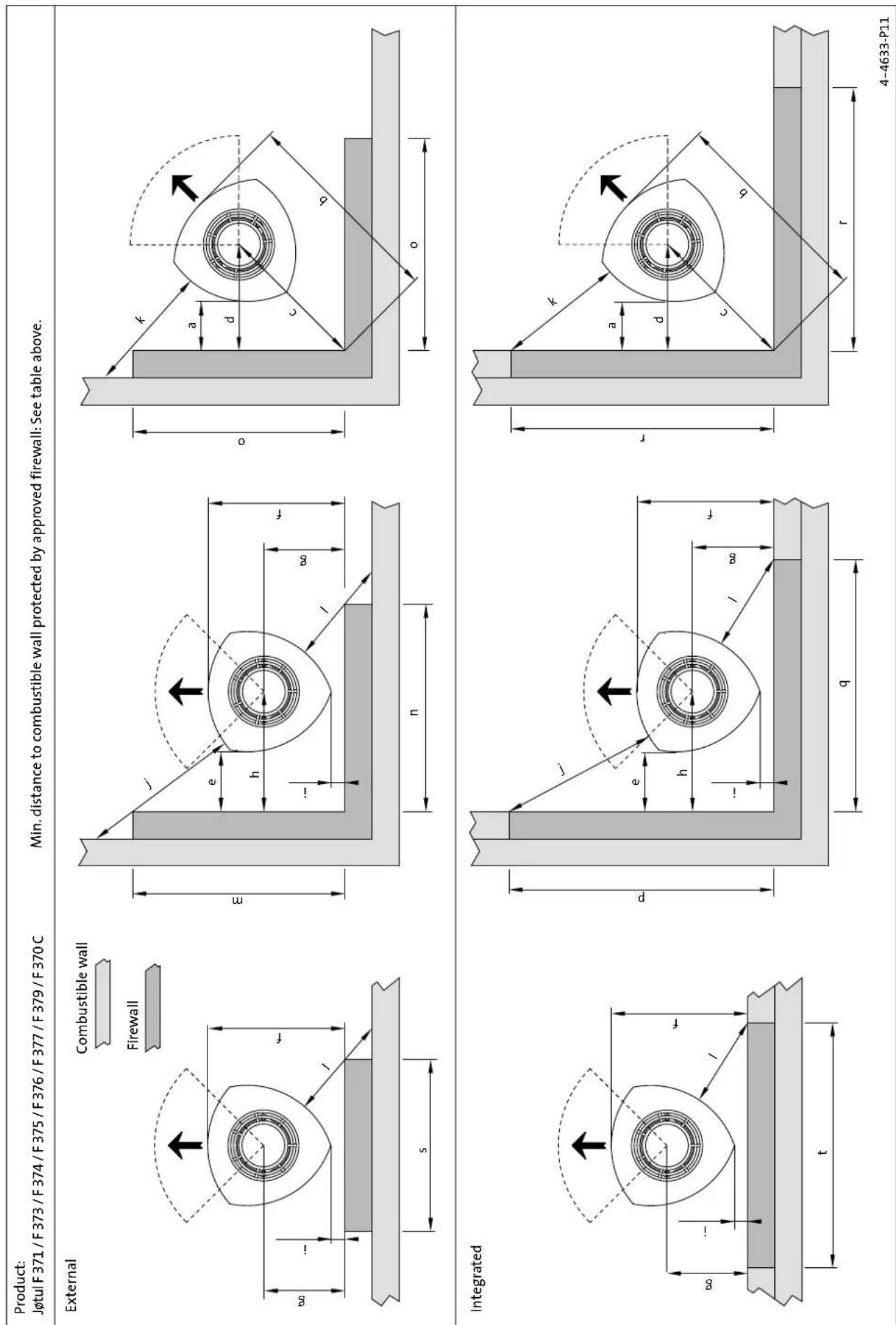

Fig. 1b Min. distance to combustible wall protected by approved firewall: See table above. Integrated External Product: Jøtul F 371 / F 373 / F 374 / F 375 / F 376 / F 377 / F 379 / F 370 C Firewall Combustible wall8 Requirements for protection of inflammable floors in front of the fireplace The front plate must comply with national laws and regulations. Contact your local building authorities regarding restrictions and installation requirements.

Distance from the wall of flammable material The fireplace is authorised for use with an uninsulated flue with the distances to the wall of flammable material as shown in fig 1.

There must be a minimum distance of 1000 mm to a combustible ceiling above the fireplace.

N.B. Check that the fireplace is free of any damage prior to commencing installation. The product is heavy! Make sure you have assistance when erecting and installing the fireplace.

4.1 Prior to installation

1. Standard product supplied in two packages. One with the

fireplace itself and one with optional base in cast-iron/ concrete/glass or pedestal in cast-iron.

2. When the product is unpacked, the burn plates, baffle plate,

exhaust deflector, base plate, ash pan and riddling grate are removed. Also remove the small side burn plates and gasket for flue pipe which are in the ash pan. Fig. 3

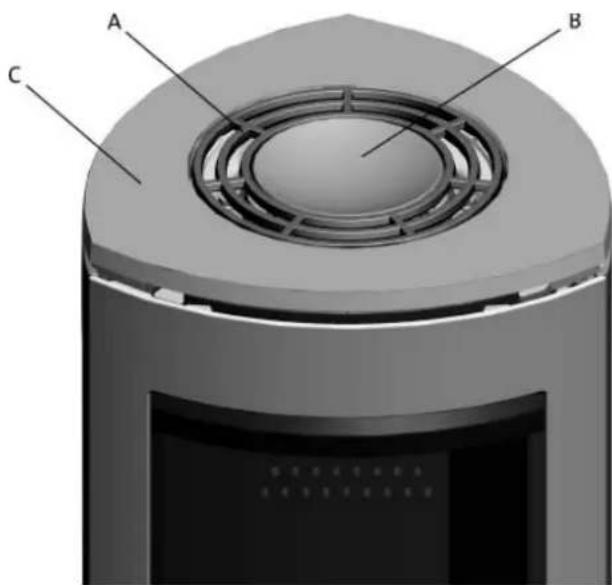

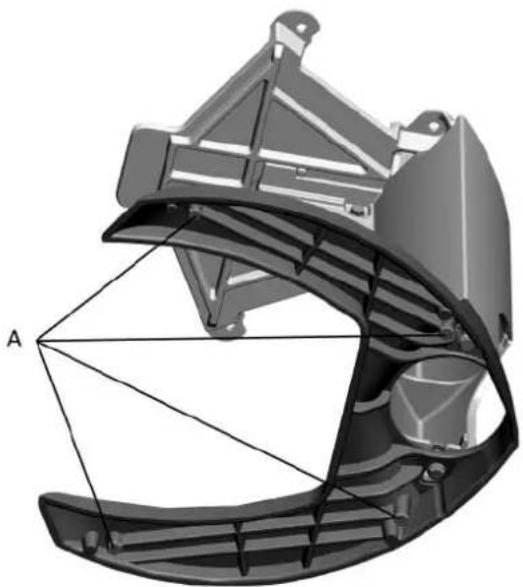

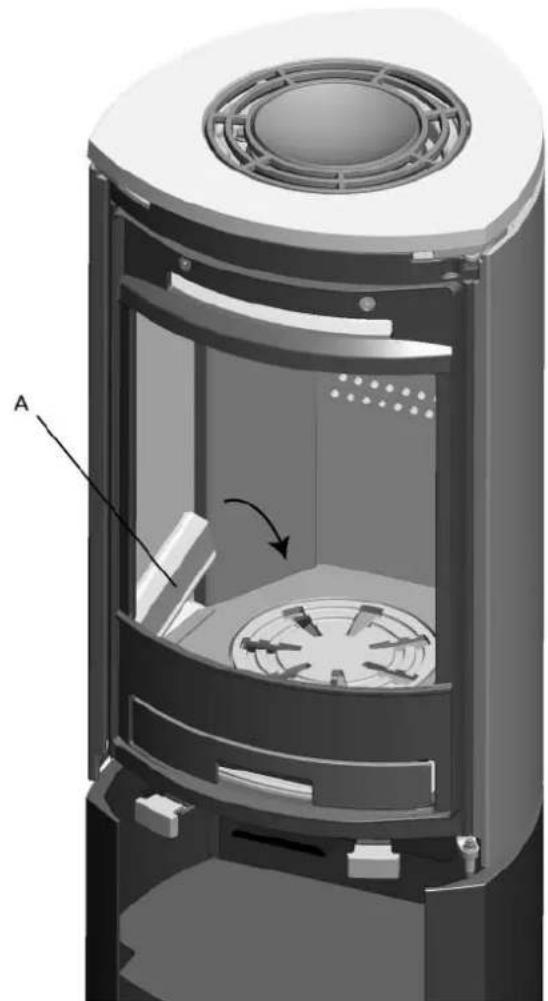

3. Lift off the top plate with the top grid (fig. 3 A) and bowl (fig. 3 B).

4. Check that the operating handles work.

5. If the rear flue pipe outlet is used, first drill holes (fig. 5 A) in

the cut-out covers for the flue pipe before they are knocked out with the aid of e.g a ball-pane hammer.

6. Place the wooden block (fig. 5 B) that holds the exhaust

deflectors in position so that the side plates are supported when the cut-out covers are removed.

7. Spread out the cardboard packaging on the floor. Lay the

stove carefully on its side. ENGLISH9 ENGLISH Fig. 4

8. If the glass décor set (optional extras) is to be used, the 4

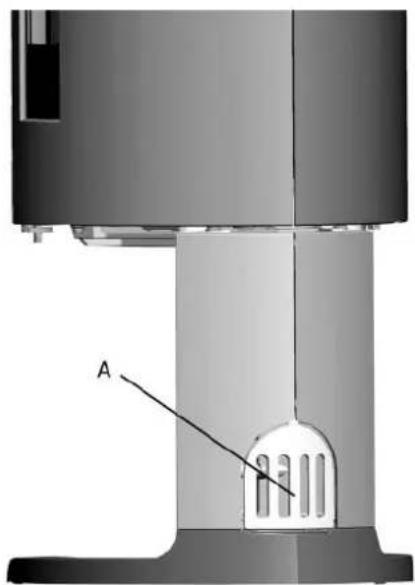

recessed head screws on the bottom are removed (fig. 4B) with the aid of the key included with the glass décor set.

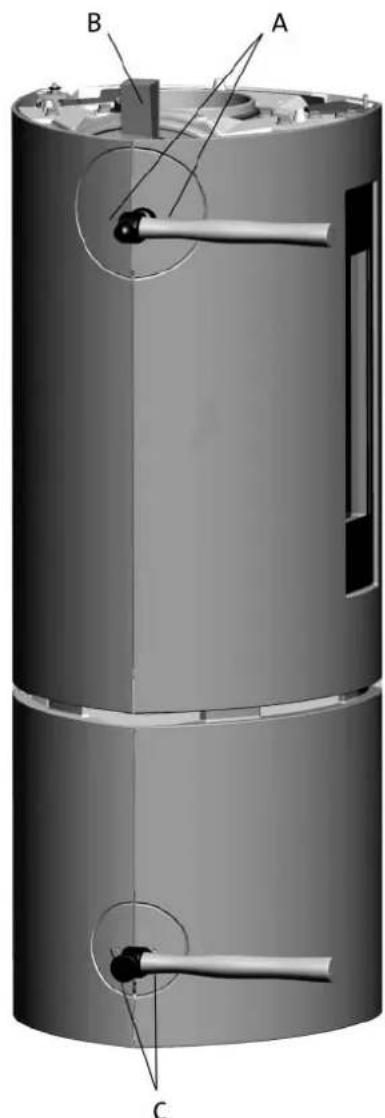

Jøtul F 371 - cast-iron base N.B. If the flexible hose is to be connected through a hole in the floor, the knock out covers are not knocked out/removed. Fig. 5

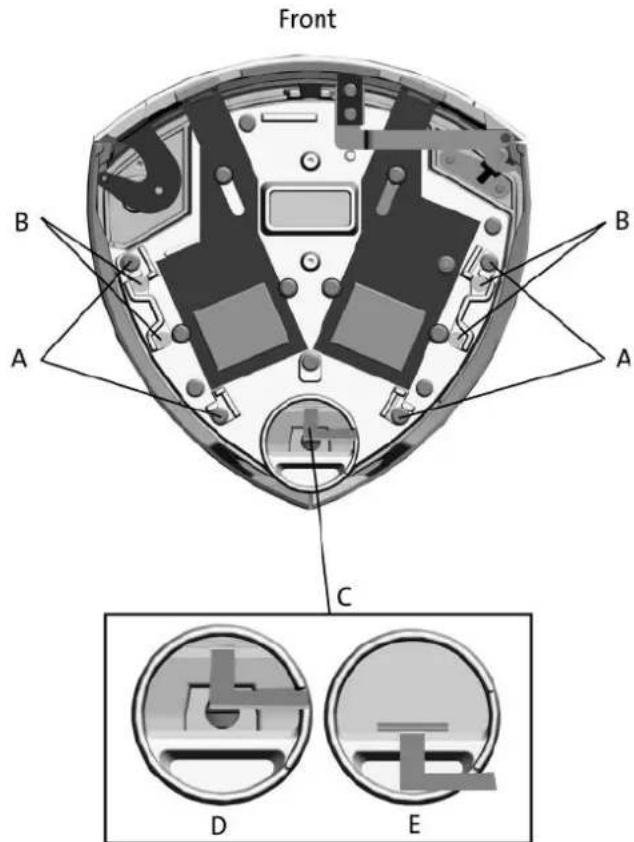

1. If flexible hose, 100 mm diameter, for external air supply is

to be connected to the outlet under the burn chamber (fig. 4 C), drill one hole (fig. 5 C) in each cut-out cover at the lower part of the base and knock them out. N.B. Make sure the rear plate (fig. 6 A) in the base is positioned, when the cut-out cover is being knocked out.10 Fig. 6

2. Remove rack and rear plate in the base. Check that the handle

in the external air vent (fig. 4D) is in the foremost position.

3. Assemble the base with the burn chamber with the aid of

the 4 screws (M8x30 mm) from the screws bag (fig. 4 A).

4. Get assistance and carefully lift the product up.

5. Adjust the product with the help of the 4 adjusting screws

6. Draw the flexible hose through the hole and fasten it to the

outlet with the aid of a hose clip. N.B. Make sure that the hose is long enough to avoid any joints.

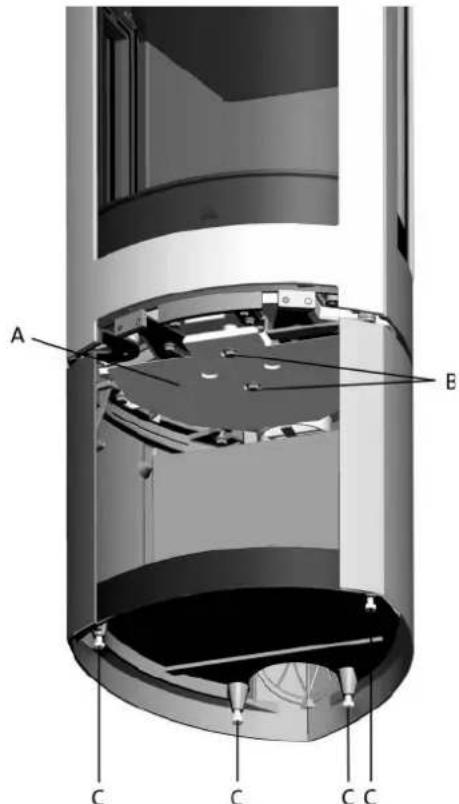

7. The base area must be protected from heat radiation from

the product with the aid of the accompanying heat shield (fig. 7 A). Fasten this with the 2 screws as shown in fig. 7 B.

8. Reassemble the the rack and the rear plate in the base.

ENGLISH11 ENGLISH Jøtul F 373 - pedestal Important! If the rotating set is to be assembled, this must be done now before the pedestal is fastened to the hearth. See assembly instructions which accompany the rotating set. Fig. 11

1. Adjust the product with the help of the 3 adjusting screws

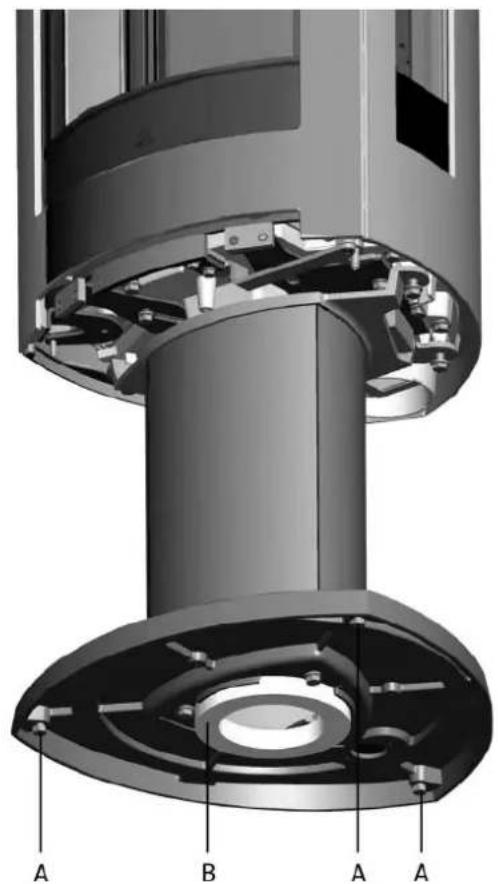

2. Assemble the pedestal to the hearth’s bottom plate with the

aid of the 4 screws from the bag of screws ( (fig. 4 A).

3. If the external air supply via the external air vent is to be used,

the flexible hose, 100 mm diameter, is connected to the vent on the product (fig. 4 C) now.

4. Push the handle in the external air vent to the foremost

position (fig. 4 D).

5. Fasten the hose to the external air vent with the aid of a

hose clip. N.B. Make sure that the hose is long enough to avoid any joints.

6. If the external air is to be supplied through the floor, place the

flexible gasket (fig. 11 B) around the hose, 100 mm diameter, that is drawn through the hole in the floor. Note! The hole is in the center of the pedestal/flue pipe.

7. Push the handle in the external air vent to the rear position

8. Get assistance and carefully lift the product up and place it

directly above the external air supply. Important! Check that the handle in the external air vent is in the foremost position if the external air is not to go through the pedestal. Jøtul F 374 - Cast iron leg If external air supplied via the external air vent is to be used, connect a flexible hose, Ø 100 mm, to the external air vent (fig. 4 C) on the product. Installation with external air

1. Push the lever on the external air vent to its forward position

2. Attach the hose to the external air vent using a hose clip.

NB! Make sure the hose is long enough to avoid any joints being necessary. Fig. 12

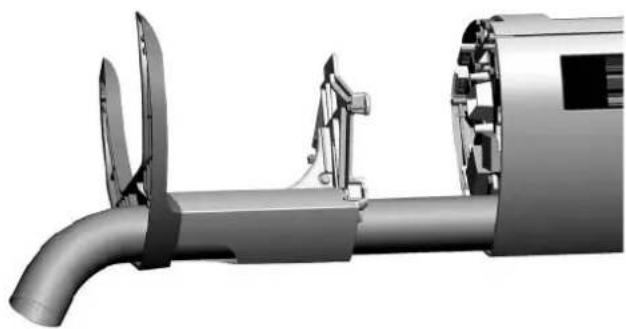

3. Move the cast iron leg towards the burn chamber as the

external air hose is passed through the leg and, if appropriate, through the opening in its back (fig. 12). Fig. 13

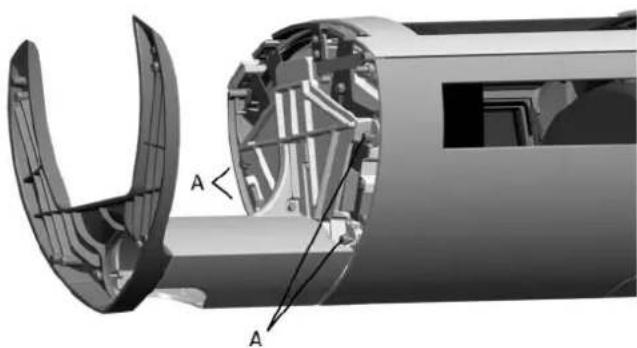

4. Attach the base to the burn chamber using the 4 screws (M8

x 30 mm) from the bag of screws (fig. 13 A).

5. With the help of another person, carefully raise the product

and position it correctly over the external air supply.12 Fig. 14

6. Adjust the height of the product if necessary, using the

1. Attach the base to the burn chamber using the 4 screws (M8

x 30 mm) from the bag of screws (fig. 13A).

2. With the help of another person, carefully raise the product

and position it correctly over the external air supply.

3. Adjust the height of the product if necessary, using the

adjustment screws beneath the leg (fig. 14A).

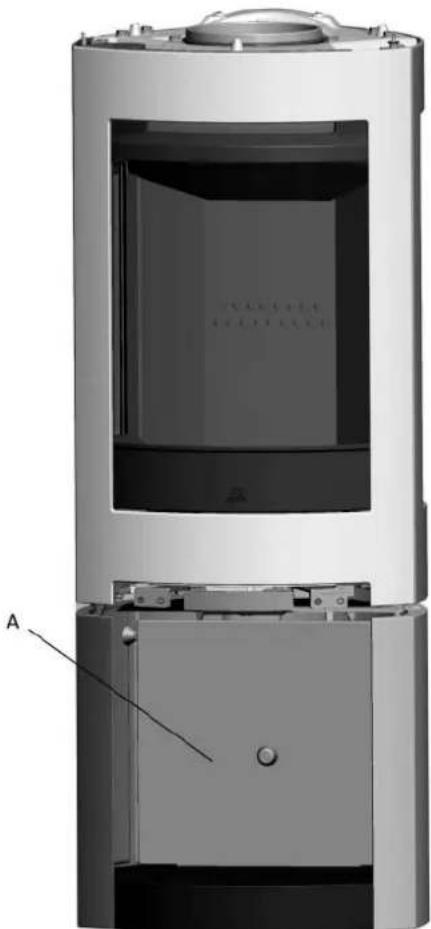

4. Replace the cover (fig. 15 A).

Jøtul F 375 - Cast iron base with glass door

1. Assemble the cast iron base as described under point

“Jøtul F 371 - cast iron base”. Fig. 16

2. Attach the hinge for the glass door to the base using the

M6 x 20 mm screws, which are in the bag of screws for the glass door (fig. 16 A).

3. Insert the spring between the threaded holes and the hinge

before tightening the screws (fig. 16B). Fig. 17

4. Screw the other end of the spring firmly in position (fig. 17 A).

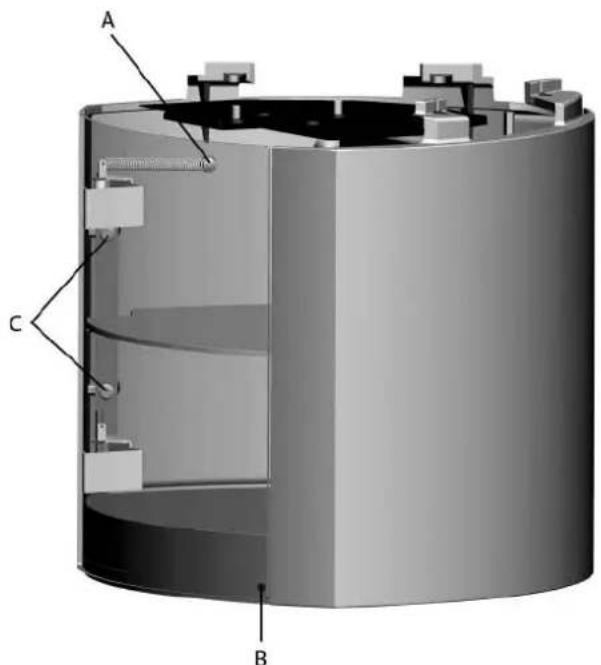

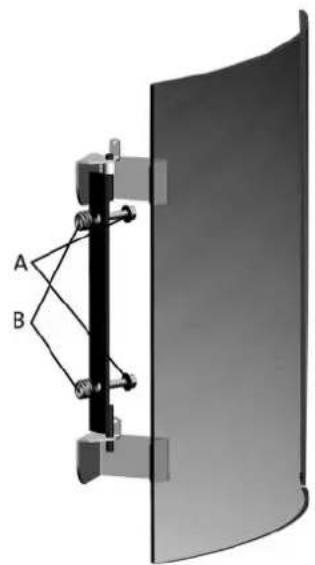

5. Attach the door damper to the inside of the glass door in the

bottom right-hand corner (fig. 17 B). NB! There must be an even gap between the door and the base to allow the door to hang straight. Adjust the door if necessary, by tightening or loosening the two screws (fig. 17 C). ENGLISH13 Jøtul F 376 – Glass base NB! If connecting the flex hose through a hole in the floor, do not knock out the removable cover plates (Fig. 18 A). Fig. 18

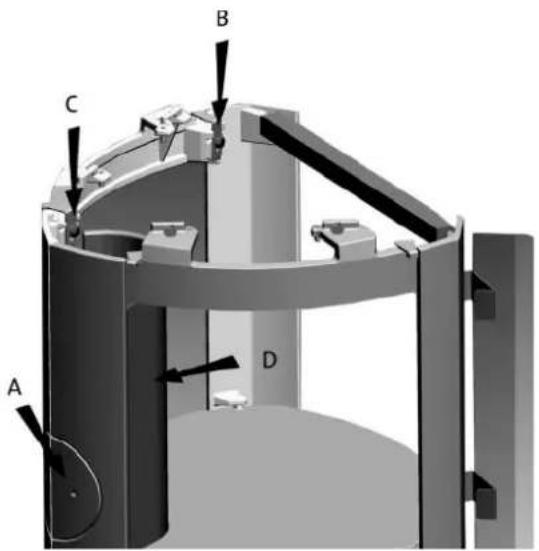

1. Loosen the screws holding the upper glass clips on either

side (Figs. 18 B and C). Check that the lever on the external air vent is in the forward position (Fig. 4D).

2. If connecting a flex hose (Ø 100 mm) for external air supply

to the external air vent/outlet (Fig. 4 C) beneath the burn chamber, first drill a hole (Fig. 18 A) in the removable cover plates before they are knocked out. NB! Leave the rear plate in the base (Fig. 18 D) in place when the cover plates are knocked out.

3. Remove the rear plate (Fig. 18 D) in the base.

4. Place the base in the correct position on the floor plate (if

any). Level the product using the 4 adjustment screws (Fig. 19 A).

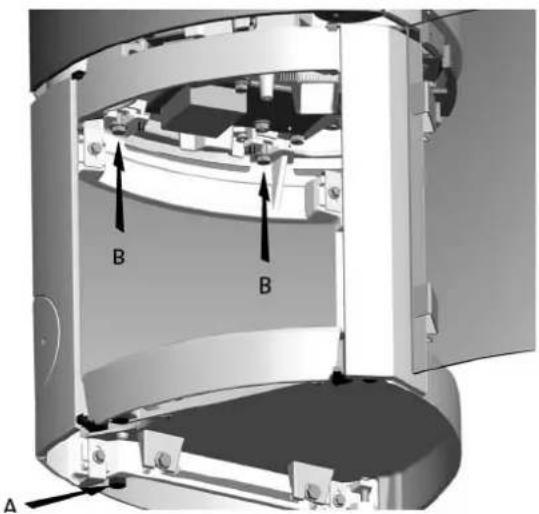

5. Attach the base to the burn chamber using the 4 screws

(M8 x 30 mm) from the bag of screws (Fig. 19 B).

6. Carefully raise the product with the help of another person.

7. Adjust the glass door, if necessary, with the screws as shown

in Fig. 17 C. There must be an even gap between the door and the base to allow the door to hang straight. Fig. 20

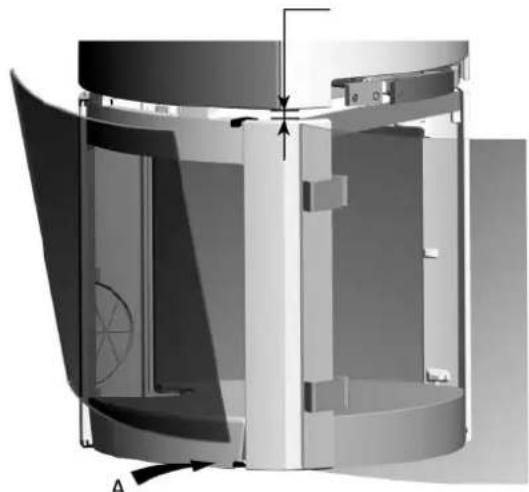

8. Install the side glass panels by positioning them in the lower

glass clips (Fig. 20 A). Lift up the upper clips and press them down onto the side glass. Make sure there is an even gap between the side glass and the side plate at both the front and back. Tighten the front screw for the side glass (Fig. 18 B). The back screw (Fig. 18 C) should be loosened just sufficiently to allow the glass clip to be raised without removing the screw (this makes it easier if replacing the glass later on).

9. Pull the flex hose (if any) through a hole in the floor or rear

of the base (Fig. 18 A) and attach it to the outlet using a hose clip. NB! Make sure the hose is long enough to make it unnecessary to have any joints.

10. Replace the rear plate (Fig. 18 D).

11. The base area must be protected from heat radiation from

the product with the aid of the accompanying heat shield (fig. 7 A). Fasten this with the 2 screws as shown in fig. 7 B. Jøtul F 377 - with soapstone Se separate installation manual (cat. no. 10043560). ENGLISH14 Jøtul F 379 - with three legs NB! If connecting the flex hose through a hole in the floor, do not knock out the removable cover plates (fig. 21 A). Fig. 21

1. If connecting a flex hose (Ø 100 mm) for external air supply

to the external air vent (fig. 4 C) beneath the burn chamber, first drill a hole (fig. 21 A) in the removable cover plates before they are knocked out. NB! Place the parts on a suitable surface before the cover plates are knocked out. Fig. 22

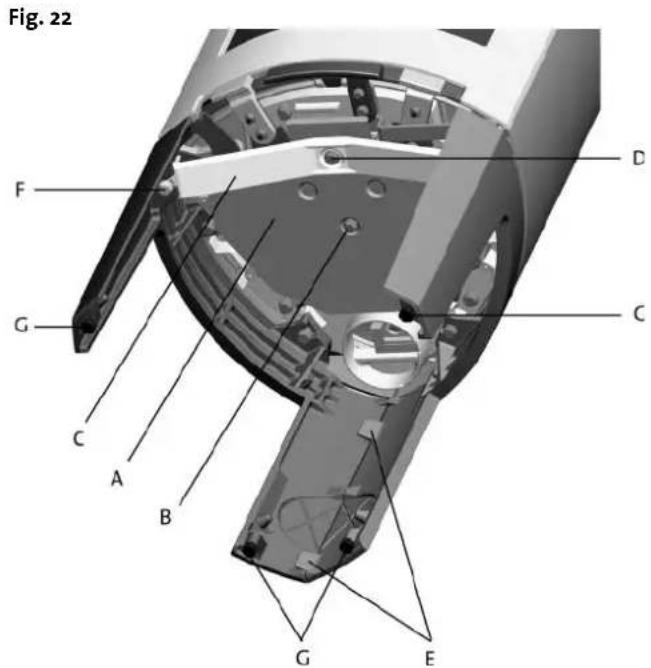

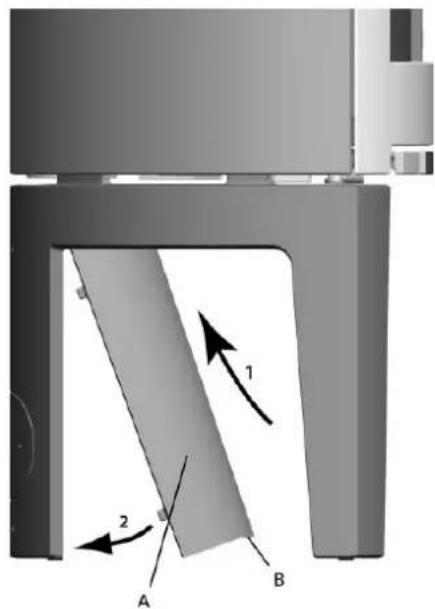

2. The accompanying heat shield (fig. 22 A) should be used to

protect the base from the heat radiating from the product. Secure this first with a screw (fig. 22 B).

3. Secure the brace (fig. 22 C) loosely into place with a screw

4. Attach the base to the burn chamber using the 4 screws

(M8 x 30 mm) from the bag of screws (fig. 4 A).

5. Screw the legs together at the back edge using 2 screws that

are in the screw holes (fig. 22 E).

6. Secure the brace (fig. 22 C) into place with a screw (fig. 22 F)

and nut at both ends.

7. With the help of another person, carefully raise the product.

on each side. Adjust the legs and tighten the screws again.

10. Tighten the screw (fig. 22 D).

11. Pull the flex hose through the hole and attach it to the outlet

using a hose clip. NB! Make sure the hose is long enough so that joints are not necessary. Fig. 23

12. Place the cover (fig. 23 A) into place. Make sure that the pin

(protrusion) B is facing down.

4.3 Chimneys and flue pipes

• The fireplace can be connected to a chimney and flue pipe approved for solid fuel fired appliances with flue gas temperatures specified in «2.0 Technical data”.

• The chimney’s cross-section must be at least as big as the flue pipe’s cross-section. See «2.0 Technical data» when calculating the correct chimney cross-section.

• Several solid fuel fired appliances can be connected to the same chimney if the chimney’s cross-section is sufficient.

• Connection to the chimney must be carried out in accordance with the installation instructions from the supplier of the chimney.

• Before making a hole in the chimney the fireplace should be test-mounted in order to correctly mark the position of the fireplace and the hole in the chimney. See fig. 1 for minimum dimensions.

• Ensure that the flue pipe is inclined all the way up to the chimney.

• Use a flue pipe bend with a sweeping hatch that allows it to be swept. Be aware of the fact that it is particularly important that connections have a certain flexibility in order to prevent movement in the installation leading to cracks. Chimney draught; See «2.0 Technical data». If the draught is too strong you can install and operate a flue damper to control the draught. Assembly of flue pipe with top outlet The product is supplied from the factory with the smoke outlet mounted for top outlet.

1. Put the top plate (fig. 3 C) on the product.

2. Obtain assistance in lifting the top grate (fig. 3 A) and holding

it up while the flue is fastened.

3. Thread the flue pipe through the grate of the top plate and

place it on the smoke outlet of the top outlet.

4. Tighten well with gasket.

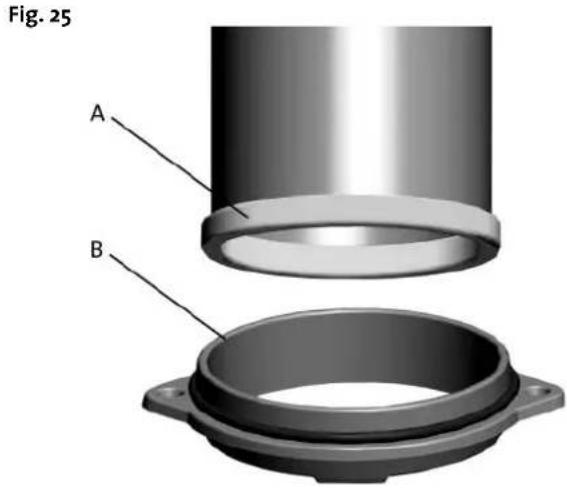

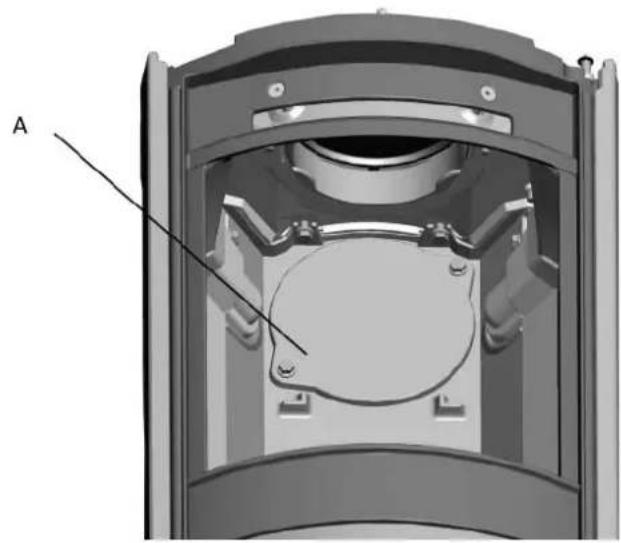

ENGLISH15 Assembly of flue pipe with rear outlet The product is supplied from the factory with the smoke outlet mounted for top outlet. If you want a rear outlet, do the following:

1. Place the product in correct position (fig. 1).

2. When changing to rear outlet, the smoke outlet (fig. 24 B) is

unscrewed from the top outlet.

3. Unscrew the cover for the rear outlet from the inside of the

that is fitted with the gasket.

6. Mount the flue pipe and smoke outlet from the inside of the burn

chamber and attach the smoke outlet using M8x30 mm screws. N.B. If the flue pipe is longer than 350 mm it has to be assembled into the smoke outlet from the outside of the product.

7. Fasten the cover to the top outlet (fig. 24) with the screws

that fastened the smoke outlet. N.B. It is important that the joints/flue pipes are completely sealed. Air leaks can prevent the flue pipe from functioning properly.

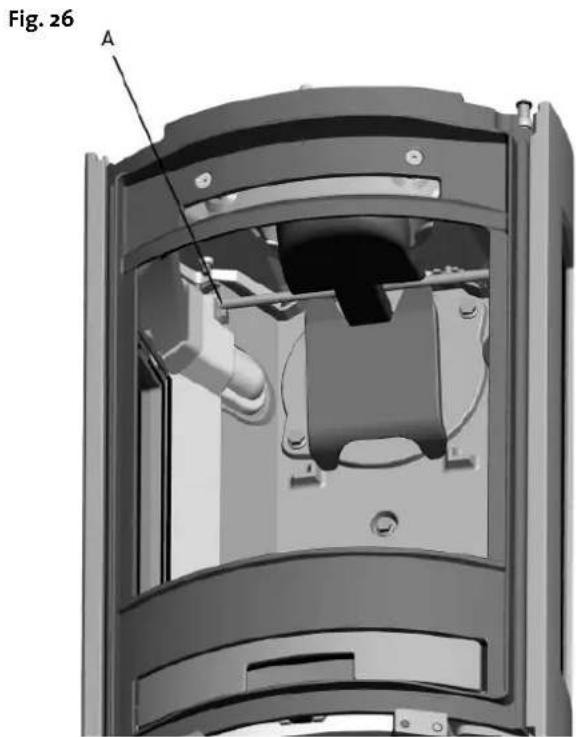

4.4 Mounting of the product

1. Place the baffle plate with the bar in the groove on the ribs

2. Move the base plate through the opening and place it on

the bottom. ENGLISH16 Fig. 27

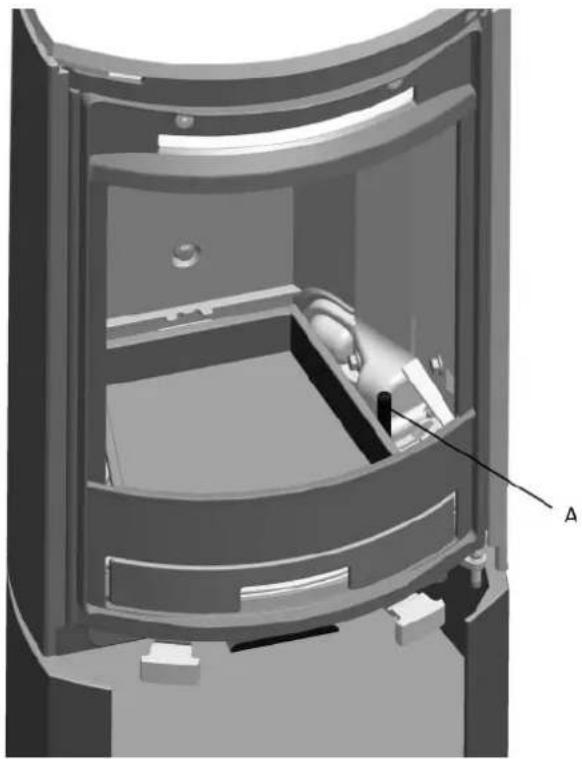

3. Place the riddling grate in position on the base plate. Check

that the riddling grate’s slot on the right side is entered into the riddling bar (fig. 27 A).

4. Place the ash pan at the bottom of the product.

5. Place the rear burn plate in the base plate’s rear groove.

6. Place the side burn plates on each side in the base plate’s side

grooves. Move the baffle plate in and place it so that it rests on the side and rear burn plates.

7. Hold the baffle plate while the other side burn plate is

8. Let the baffle plate rest on the burn plates.

10. Replace the top plate with the top grid and bowl.

11. Place the product data plate which is in the ash pan,

underneath the burn chamber. ENGLISH17

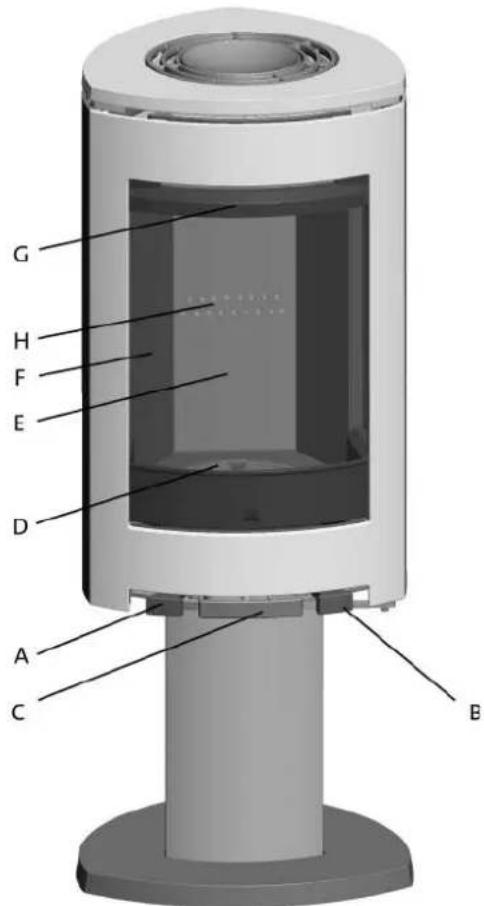

4.5 Control of functions

When the product is set up, always check the control functions. These shall move easily and function satisfactorily. Jøtul F 370 is equipped with the following controls: Fig. 29 Air vent fig. 29 A Pushed in: Closed Pulled out: Open Ignition vent, fig. 29 B Pushed in: Closed Pulled out: Open Riddling grate (same handle as for the ignition vent) (Fig. 29 B) Right handle is pushed in and out. Handle for door fig. 29 C: Is opened by pulling handle out.

• Open the air vent and the ignition vent by pulling it out all the way (fig. 29 A & B). If necessary, keep the door slightly open. (Use a glove, for example, as the handle can become hot.)

• Place two medium sized logs in/out on each side of the base. N.B. In order to avoid sooting on the glass, it is important that the log is not placed adjacent to the glass on the product.

• Crumple some newspaper (or birch bark) between these and add some kindling wood in a criss-cross pattern on top and light the newspaper. (Fig. 30)

• Gradually increase the size of the fire, but the wood should not be stacked higher than the horizontal holes on the back burn plate. See fig. 29 H.

• Finally, place a medium-sized log on the top of the pile.

• Place 2 or 3 briquettes or kindling sticks under the top layer of kindling and light the fire.

• NB: The maximum height of the pile of the wood should be just below the horizontal holes. The holes must not be covered.

• Close the ignition vent (fig. 29 B) when the firewood has ignited and the fire is burning well.

• Check that the afterburning (secondary combustion) starts. This is best indicated by yellow, flickering flames under the baffle.

• Then regulate the rate of combustion to the desired level of heating by adjusting the air vent (fig. 29 A). Fig. 30 Adding firewood Stoke the stove frequently but only add small amounts of fuel at a time. If the stove is filled too full, the heat created may cause extreme stress in the chimney. Add fuel to the fire in moderation. Avoid smouldering fires as this produces the most pollution. The fire is best when it is burning well and the smoke from the chimney is almost invisible.

4.7 Danger of overheating

The fireplace must never be used in a manner that causes overheating Overheating occurs when there is too much fuel and/or too much air so that too much heat develops. A sure sign of overheating is when parts of the fireplace glow red. If this happens, reduce the air vent opening immediately. Seek professional advice if you suspect that the chimney is not drawing properly (too much/too little draught). For further information, see «4.0 Installation» (Chimney and flue pipe). ENGLISH18

Jøtul F 370 has an ash pan which makes it easy to remove the ashes. 1. Only remove ashes when the fireplace is cold.2. Push/pull the handle for the ash grate/ignition vent out and in several times so that the ashes fall down into the ash pan. Use something like a glove to grab the handle on the ash pan.3. Make sure that the ash pan doesn’t fill up so high that it keeps ash from coming through the grate into the pan.

Odours when using the fireplace for the first time When the fireplace is used for the first time, it may emit an irritating gas which may smell slightly. This happens because the paint dries.The gas is not toxic but the room should be thoroughly ventilated. Let the fire burn with a high draught until all traces of the gas have disappeared and no smoke or odours can be detected. Heating advice NB: Logs that have been stored outdoors or in a cold room should be brought indoors 24 hours before use to bring them up to room temperature.There are various ways of heating the stove but it is always important to be careful about what you put in the stove. See the section on “Wood quality”. Wood quality By quality wood we mean most well-known types of wood such as birch, spruce and pine.The logs should be dried so that the moisture content is no more than 20%.To achieve this, the logs should be cut during the late winter. They should be split and stacked in a way that ensures good ventilation. The wood stacks should be covered to protect the logs from rain. The logs should be brought indoors during early autumn and stacked/stored for use in the coming winter.Be especially careful never to use the following materials as fuel in your fireplace:• Household rubbish, plastic bags, etc.• Painted or impregnated timber (which is extremely toxic).• Laminated wooden planks.• DriftwoodThese may harm the product and are also pollutants.NB: Never use petrol, paraffin, methylated spirit or similar liquids to light the fire. You may cause serious injury to yourself and damage to the product. Wood consumption Jøtul F 370 has a nominal heat output of 5,5 kW. Use of wood, with nominal heat emission: Approx. 1,9 kg/h. Another important factor for proper fuel consumption is that the logs are the correct size. The size of the logs should be:Kindling:Length: 30 cmDiameter: 2-5 cmAmount per fire: 6-8 piecesFirewood (split logs):Length: Ca 20 - 30 cmDiameter: Approx. 8 cmIntervals for adding wood: Approximately every 45 minutesSize of the fire: 1.4 kg Amount per load: 2 piecesNominal heat emission is achieved when the air vent (fig. 29 A) is open approximately 100% and the handle for the ignition vent pulled out approximately 1-2 cm (fig. 29 B).

6.1 Cleaning the glass

The product is equipped with an air wash for the glass. Air is sucked in through the air vent on the top of the product and down along the inside of the glass.However, some soot will always stick to the glass, but the quantity will depend on the local draught conditions and adjustment of the air vent. Most of the soot layer will normally be burned off when the air vent is opened all the way and a fire is burning briskly in the fireplace.Good advice! For normal cleaning, moisten a paper towel with warm water and add some ash from the burn chamber. Rub it over the glass and then clean the glass with clean water. Dry well. If it is necessary to clean the glass more thoroughly we recommend using a glass cleaner (follow the instructions on the bottle).

6.2 Cleaning and soot removal

Soot deposits may build up on the internal surfaces of the fireplace during use. Soot is a good insulator and will therefore reduce the fireplace’s heat output. If soot deposits accumulate when using the product, they can be easily removed by using a soot remover. In order to prevent a water and tar layer from forming in the fireplace you should regularly allow the fire to burn hot in order to remove the layer. An annual internal cleaning is necessary to get the best heating effect from the product. It is a good idea to do this in connection with the sweeping of the chimney and flue pipes.

6.3 Sweeping of flue pipes to the chimney

On certain free-standing fireplaces the top plate can be lifted off and the pipe swept through the top.Otherwise, flue pipes must be swept through the flue pipe sweeping hatch or through the product’s door opening. Then, the baffle must be removed. ENGLISH19

6.4 Inspection of the fireplace

Jøtul recommends that you personally inspect your fireplace carefully after sweeping/cleaning. Check all visible surfaces for cracks. Also check that all joints are sealed and that the gaskets are in the correct position. Any gaskets showing signs of wear or deformation must be replaced. Thoroughly clean the gasket grooves, apply ceramic glue (available from your local Jøtul dealer), and press the gasket well into place. The joint will dry quickly.

6.5 Exterior maintenance

Painted products may change colour after several years usage. The surface should be cleaned and brushed free of any loose particles before new paint is applied.

Warning! Any unauthorised change to the product is illegal. Only use original spare parts.

7.1 Replacing the baffle/exhaust

deflector (N.B. If you use tools, be aware that the vermiculite plates may be damaged by rough treatment).

1. Lift up the front edge of the baffle plate and tilt it out

(fig. 29 G). Remove the side burn plates (fig. 29 F) and the rear burn plate (fig. 29 E).

2. The exhaust deflector, in cast-iron - that is located above the

baffle plate, rests with the bar on the ribs at the rear flue outlet (fig. 26 A). Lift the exhaust deflector slightly up, pull it forward and tilt it out.

3. For reassembly follow the same procedure for installation,

plate (N.B. If you use tools, be aware that the vermiculite plates may be damaged by rough treatment).

1. Lift up the front edge of the baffle plate and tilt it out. Remove

the side burn plates (fig. 29 F) and the rear burn plate (fig. 29 E).

2. Then lift up the grate and the base plate and take it out (fig.

3. Follow the same procedure for installation, but in the opposite

4. When reassembling the grate and the base plate, make sure

that the riddling bar (fig. 27 A) that moves the riddling grate is threaded into the slot on the right edge of the grate.

1. Lift up the front edge of the baffle plate and tilt it out Remove

the side burn plates (fig. 29 F) and the rear burn plate (fig. 29 E).

2. The exhaust deflector, in cast-iron - that is located above the

baffle plate, rests with the bar on the ribs at the rear flue outlet (fig. 26 A). Lift the exhaust deflector slightly up, pull it forward and tilt it out.

3. Remove riddling grate, base plate and ash pan (fig. 29 D).

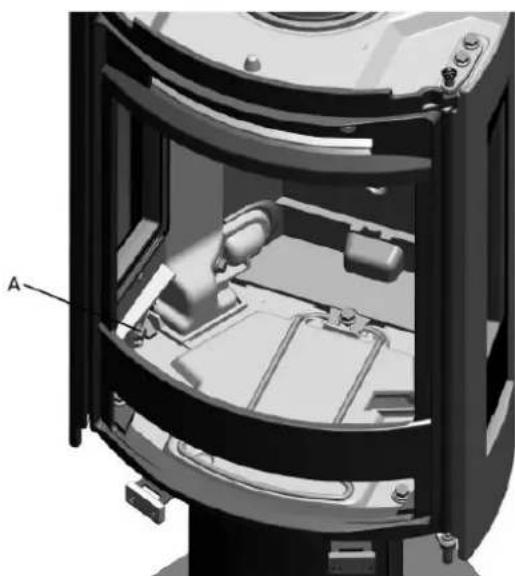

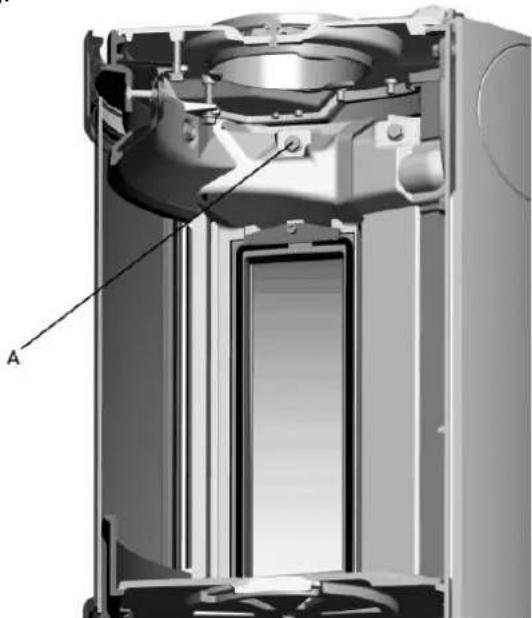

4. Unscrew the upper and lower screws (fig. 31 A and 32 A), and

tilt the glass holder with the glass carefully out through the door. N.B. The glass holder also keeps the outer glass in place

5. Remove the glass and possibly replace gaskets. If needed

replace the external glass.

6. For reassembly follow the same procedure for installation,

but in reverse. ENGLISH20

8.0 Operational problems -

troubleshooting Poor draught

1. Check the length of the chimney and that it complies with

national laws and regulations. (See also «2.0 Technical data» and «4.0 Installation» (Chimney and flue pipe) in the installation manual for information.)

2. Make sure that the minimum cross section on the chimney is

according to «2.0 Technical data» in the installation manual.

3. Make sure that there is not anything preventing the smoke

gasses from escaping: branches, trees, etc.

4. Upon suspicion of excessive/poor draught in the chimney,

seek professional help for measurement and adjustment. The fire extinguishes after a while

1. Make sure that the firewood is sufficiently dry.

2. Find out whether there is negative pressure in the house, close

mechanical fans and open a window close to the fireplace.

3. Check that the air vent is open.

4. Check that the flue outlet is not clogged by soot.

Unusual amount of soot accumulates on the glass Some soot will always stick to the glass, but the quantity depends on:

1. Moisture in the fuel.

2. The local draught conditions.

3. Air vent opening.

Most of the soot will normally burn off when the air vent is opened all the way and a fire is burning briskly in the fireplace. (See «6.1 Cleaning the glass».)

9.0 Optional equipment

9.1 Decoration plates

Decoration plates, cover for side windows (2 units), black paint - cat. no. 50037271 (350990). Decoration plates, cover for side windows (2 units), grey paint - cat. no. 50037272 (350991). Soapstone, top 25 mm one-piece - cat. no. 50012988 (350992). Soapstone, top 25 mm three-piece - cat. no. 50013013 (361011) (substitute for 50012988 (350992) installed with steel chimney).

9.2 Glass decoration, top, sides and front

(see separate installation manual) Glass set for rear smoke outlet, black paint, - cat. no. 51012250 (350993) Glass set for rear smoke outlet, grey paint, - cat. no. 51012251 (350994) Glass set for top smoke outlet, black paint, - cat. no. 51012252 (350995) Glass set for top smoke outlet, grey paint, - cat. no. 51012253 (350996)

9.5 Cast iron door for base (Jøtul F 371)

9.7 Heat storage system

Jøtul AS provides its customers with a ten-year warranty with the right to return external cast-iron items if they show defects as a result of faulty materials and/or manufacturing after the initial purchase/installation of the fireplace. The buyer is entitled to return the goods provided that the fireplace has been installed in compliance with current laws and regulations and in compliance with Jøtul’s installation and operating instructions. The warranty does not cover: The installation of optional extras, for example, to rectify local draught conditions, air supply or other circumstances beyond Jøtul’s control. The warranty does not cover consumables, such as burn plates, smoke baffles, fire grates, bottom grates, brick refractories, dampers and gaskets as they deteriorate over time due to normal wear and tear. The warranty does not cover damage caused as a result of using unsuitable fuel when lighting the fire, such as driftwood, impregnated and painted wood, plank offcuts, chipboard, etc. Overheating may easily occur if unsuitable fuel is used, i.e. the fireplace becomes red hot, which causes the paint to discolour and the cast iron parts to crack. The warranty is not valid for damage caused while the product is in transit from the distributor to the delivery address. The warranty is not valid either for damage caused by the use of non-original parts. ENGLISH22 Sommaire
