USER MANUAL RHB2919E Redmond

Product photo of a kitchen blender with a whisk, a side brush, and a clear cup (no visible text or symbols)

A1
			✓	✓	✓	✓	✓	✓
			✓	✓	✓					✓
	✓	✓	✓	✓

A1

RHB-2923-E RHB-2919-E 1 2 3 4 5 6 7 8 9 10 11

GBR 3
FRA 9
CEO 16 NILD 27
ITA 29
ESP 35
PRT 41 DNK 47
DNR 47 NOR 52
SWE 57
FIN....63
L10 69
LVA 73 EST R1
ROU 87
HUN....93
BGR 99 HPV 106
SRB 112
SVK 118
CZE 124
POL 130 BUS 137
GRC 143
TUR 150
ARE 158

Carefully read all instructions before operating the unit and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance.

Important Safeguards

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is a versatile device intended for cooking food in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. Do not use the appliance for anything other than its intended use outlined in this user manual. Failure to follow product instructions may result in damage that will not be covered by the warranty. The manufacturer is not responsible for the consequences of improper use.
• Before installing the appliance, ensure that its voltage corresponds with the supply voltage in your home (refer to specifications on the appliance rating plate or technical data).

REDMOND

• When using the extension cord, ensure that its voltage is the same as specified on the appliance. Using different voltage may result in a fire or another accident, causing device damage or short circuit.
• Always unplug the unit after use, before cleaning, or moving. Never handle the plug with wet hands. Do not pull the power cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Keep the power cord away from hot surfaces or sharp edges. Do not let the cord hang over the edge of a table or a counter. Do not bend, twist, stretch, or bind the power cord by force.

NOTE: a damaged cord may cause a shock, fire, or lead to a failure that will not be covered by the warranty. If the cable is damaged or requires replacing, contact an authorized service centre only to avoid all risks.

• Do not operate the unit on soft or unstable surfaces.
• Be very careful with the S-shaped blade, it is extremely sharp.
• Never touch moving parts while the appliance is in use.
• Do not operate the appliance outdoors, to prevent damages that

could be caused by foreign liquids or bodies. Failure to do so may cause the appliance failure or malfunction.

- Always unplug the unit and let it cool down before cleaning. Follow cleaning and maintenance guidelines when cleaning the appliance.

STOP

DO NOT immerse the unit in water or wash it under running water!

- This appliance can be used by children and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance, its cord, and all packaging materials out of reach of children. Cleaning and user maintenance shall not be made by children without supervision.

- Any modifications or adjustments to the product are not allowed. All the repairs should be carried out by an authorized service center. Failure to do so may result in the device and property damage or injury.

STOP

CAUTION! Do not use the appliance in case of any malfunctions.

REDMOND

Technical Specifications

Rated power	500 W
Maximum power	1000 W
Voltage	220-240 V, 50/60 Hz
Smooth speed control	yes
Turbo mode	yes
Speed	9000-16000 rpm
Chopper bowl with lid (RHB-2919-E)	800 ml
Beaker	800 ml
Blending attachment	yes
Whisk attachment	yes
Chopper blade (RHB-2919-E)	yes
Power cord length	1 m

Package Includes

Motor unit	1 pc.
Chopper bowl with lid (RHB-2919-E)	1 pc.
S-shaped blade (RHB-2919-E)	1 pc.
Blending attachment	1 pc.
Whisk attachment	1 pc.
Whisk gear box	1 pc.
Beaker	1 pc.
User manual	1 pc.
Service booklet	1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice.

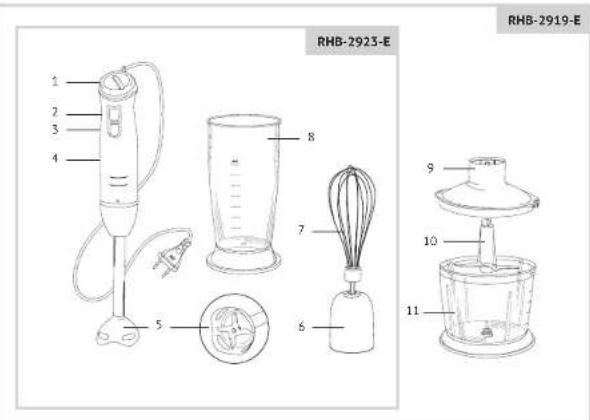

Hand Blender Parts A1

1. Speed control knob
2. Power button
3. Turbo mode button
4. Motor unit
5. Blending attachment
6. Whisk gear box
7. Whisk attachment
8. Beaker
9. Chopper bowl lid (RHB-2919-E)
10. S-shaped chopper blade (RHB-2919-E)
11. Chopper bowl (RHB-2919-E)

I. PRIOR TO FIRST USE

Carefully remove the unit and its accessories from the packaging. Dispose of all packaging materials and promotional stickers.

Keep all warning labels and the serial number identification label located on the housing. The absence of the serial number will deprive you of your warranty benefits!

Unwind the power cord. Wipe the housing with a damp cloth. Wash removable parts with warm soapy water and dry thoroughly before connecting the appliance to an electrical outlet.

After transporting or storing at low temperatures allow the appliance to stay at room temperature for at least 2 hours before using.

• Do not fill the food vessel more than 2/3 full to prevent splattering.
• For best results, fill the vessel at least 14 full before using the whisk attachment.
• When using the whisk or blending attachment first place the attachment into food and then press the Power of Turbo mode button. Always release the button before removing the hand blender from the vessel.
• Start operating at a low speed and gradually increase it by rotating the speed control knob on the handle. The control knob has a dial: select an optimal operating speed setting by rotating the speed control knob.
• To process at a maximum speed (when blending tough ingredients or for the final whipping stage) press and hold down the Turbo mode button.

Do not immerse the blender above the joint between the motor unit and the attachment.

• Defrost, de-bone, clean, and cut meat into 1-1.5 cm cubes before processing.
• Remove the pits and cut fruits and berries into pieces before processing.
• Do not use the hand blender to mash potatoes.
• Remove the pot from the stove top and let cool down before processing hot meals. Do not process meals or liquids at a temperature higher than 80°C.

Start processing at a low speed to avoid splatter. Do not use the blender to process coffee beans, ice cubes, sugar, grain, beans, and other tough meals. Do not use the chopper bowl for blending or whisking. The central pin at the bottom of the chopper bowl can damage the attachment. Use the beaker provided with the appliance.

To Operate the Blender

1. Fill the beaker or a similar vessel with food.
2. Connect the blending attachment to the motor unit and turn counterclockwise until it clicks into place.
3. Plug in the appliance. Select the required speed setting.
4. Hold the vessel steady and place the blending attachment in the food. Press and hold down the Power button. When processing raw vegetables, fruits, and other hard meals turn the speed control knob to increase the speed or press and hold down the Turbo mode button.
5. Blend foods using circular up-and-down motion.
6. After use unplug the appliance. Turn the blending attachment clockwise to disconnect from the motor unit. Clean the appliance following the procedure outlined in A2 section.

To Operate the Whisk

1. Fill the beaker or a similar vessel with food.
2. Insert the whisk attachment to the gear box until it clicks into place.
3. Connect the gear box to the motor unit and turn counterclockwise until it clicks into place.
4. Plug in the appliance. Turn the speed control knob clockwise to setting 1 (minimum speed).
5. Hold the vessel steady and place the whisk attachment in the food. Press and hold down the Power button. Turn the speed control knob counterclockwise to increase the speed if necessary (from 1 to 5). To whisk at a maximum speed press and hold down the Turbo mode button.
6. Whisk the meal using clockwise circular motion.
7. After use unplug the appliance. Disconnect the attachment and the gear box from the motor unit by turning clockwise. Clean the appliance following the procedure outlined in A2 section.

To Operate the Chopper (RHB-2919-E)

1. Place the chopper bowl on a flat and stable surface.

2. Fit the blade on the central pin at the bottom of the chopper bowl. Note: the blade is very sharp, handle with caution! Always hold the blade by the plastic collar.

3. Fill the bowl with food. Do not fill above the maximum fill mark. Follow the procedures outlined in "General Guidelines" section.

4. Fit the lid onto the bowl, aligning the crosspiece of the plastic collar with the corresponding notches in the center of the lid. Gently press the lid down and rotate clockwise until it clicks into place.
5. Connect the motor unit with the chopper gear box.
6. Plug in the appliance. Select the speed setting: harder meals require higher chopping speed. Turn the speed control knob clockwise to increase the speed.
7. Steadily holding the vessel with one hand press and hold down the Power or Turbo mode button. Use Turbo mode for meat and other tough meals.
8. After use unplug the appliance. Disconnect the motor unit. Turn the lid counterclockwise to remove. Remove the blade holding it by the plastic collar.
9. Clean the appliance following the procedure outlined in A2 section.

III. BEFORE CONTACTING SERVICE CENTER

Problem Possible cause Solution
Appliance does not work	Power cord is not connected to an electrical outlet	Connect the power cord to an electrical outlet
	Electrical outlet is not working properly	Connect to properly working electrical outlet
Strong vibration during operation	Food pieces are too large Cut	food into smaller pieces
Plastic smell during use	Appliance is overheated	Reduce continuous operation time. Increase time intervals between uses.
	Appliance is new, the smell is coming from protective cover	Thoroughly clean the appliance (refer to section A2). The smell will disappear after few uses.

IV. PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge. This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate

REDMOND

impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in accordance with the instructions on the proper use and maintenance of the product, or any kind of repair works. Do not try to disassemble the appliance and keep all package contents. This warranty does not cover normal wear of the appliance and its parts (filters, bulbs, non-stick coating, gaskets, etc.).

Service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established).

You can determine manufacture date by serial number, located on the identification label on the housing of the appliance. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture.

Service life of the product, established by the manufacturer is 3 years from the date of purchase, provided that the unit is used and maintained in accordance with the user manual and applicable technical standards.

The packaging, user manual and the appliance itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste with household trash to help protect the environment.

Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of REDMOND INDUSTRIAL GROUP is prohibited.

|
—
|
|
—
