RHB2908E - Mixer Redmond - Free user manual and instructions

Product type	Immersion blender with accessories (blender, whisk, chopper)
Brand and model	Redmond RHB2908E
Rated power	750 W
Maximum power	1200 W
Supply voltage	220-240 V, 50/60 Hz
Motor type	DC motor
Speed range	12,000 - 17,500 rpm, progressive adjustment
TURBO function	Yes, ultra-fast speed for hard foods
Mixing beaker capacity	600 ml
Chopper bowl capacity	500 ml
Attachment material	Blender and whisk attachments in stainless steel, chopper blade in stainless steel
Power cord length	1.4 m
Dimensions (approx.)	40 x 10 x 10 cm (motor unit + shaft)
Weight (approx.)	1.2 kg (with accessories)
Main functions	Blending, whisking, chopping, mincing
Care and cleaning	Wipe motor unit with damp cloth, accessories washable in soapy water. Do not immerse motor unit.
Safety	Automatic shut-off in case of overheating, accessory release buttons
Spare parts and repairability	Removable accessories (blender, whisk, chopper, adapter). Replacement blade available. Repair at authorized center.
Warranty	2 years
General information	Non-professional domestic use. Supplied with manual and service booklet.

Frequently Asked Questions - RHB2908E Redmond

How to use the TURBO mode on the Redmond RHB2908E blender?

The TURBO mode is activated by pressing the dedicated button on the handle. It allows you to reach maximum speed for chopping hard foods or finishing a whisking. Keep the button pressed during use.

What is the maximum capacity of the chopper bowl?

The chopper bowl has a capacity of 500 ml. Do not exceed the maximum graduation to avoid overflow and ensure efficient chopping.

Can I blend hot foods with this blender?

Yes, but let the food cool to a temperature below 80°C. Always start at minimum speed to avoid splashes.

How to clean the motor unit?

Never immerse the motor unit in water. Wipe it with a soft, damp cloth. The accessories (blender, whisk, chopper) can be washed in warm soapy water.

The blender does not work, what should I do?

Check that the cord is properly plugged in and the outlet works. If the problem persists, refer to the troubleshooting chapter in the manual. Overheating may also temporarily lock the appliance.

What accessories are included with the Redmond RHB2908E?

The delivery includes: a motor unit, a chopper bowl with lid, a 600 ml mixing beaker, a chopper blade, a blender attachment, a whisk attachment, a whisk adapter, a manual and a service booklet.

Can I chop ice with this blender?

No, it is not recommended to chop ice, coffee, sugar or very hard cereals. This could damage the blades or the motor.

How to assemble the whisk?

Insert the whisk into the adapter until it clicks, then screw the assembly onto the motor unit by turning counterclockwise until it stops.

What is the estimated lifespan of the appliance?

The lifespan determined by the manufacturer is 3 years from the date of purchase, subject to use in accordance with the manual.

What to do if there is a plastic smell during first use?

This is normal for a new appliance. The smell comes from the protective coating. Thoroughly clean the accessories and run the appliance empty for a few seconds. The smell will disappear after a few uses.

USER MANUAL RHB2908E Redmond

Product photo of a kitchen brush and blender with a whisk, no visible text or symbols

User manual

REDMOND

A1

RHB-2908-E

GBR

GBR 4

FRA....10

DEU 17

NLD 24

ITA....30

ESP 36

PRT 43

DNK 49

NOR....55

SWE....61

FIN....67

LTU 73

LVA....79

EST 86

ROU....92

HUN....98

BGR 105

HRV....112

SRB 118

SVK 124

CZE 130

POL....136

RUS 143

GRC....150

TUR 157

ARE 165

REDMOND

Carefully read all instructions before operating the unit and save them for future reference. By carefully following these instructions you can considerably prolong the service life of your appliance.

Important Safeguards

• The manufacturer is not responsible for any failures arising from the use of this product in a manner inconsistent with the technical or safety standards.
• This appliance is a versatile device intended for cooking food in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. Do not use the appliance for anything other than its intended use outlined in this user manual. Failure to follow product instructions may result in damage that will not be covered by the warranty. Manufacturer is not responsible for the consequences of improper use.

• Before installing the appliance, ensure that its voltage corresponds with the supply voltage in your home (refer to specifications on the appliance rating plate or technical data).

• When using the extension cord, ensure that its voltage is the same as specified on the appliance. Using different voltage may result in a fire or other accident, causing device damage or short circuit.

• Always unplug the unit after use, before cleaning, or moving. Never handle plug with wet hands. Do not pull the power cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Keep the power cord away from hot surfaces or sharp edges. Do not let the cord hang over the edge of a table or a counter. Do not bend, twist, stretch, or bind the power cord by force.

NOTE: damaged cord may cause a shock, fire, or lead to a failure that will not be covered by the warranty. If the cable is damaged or requires replacing, contact an authorized service center only to avoid all risks.

• Do not operate the unit on soft or unstable surfaces.
• Be very careful with the S-shaped blade, it is extremely sharp.
• Never touch moving parts while the appliance is in use.
• Do not operate the appliance outdoors, to prevent damages that

REDMOND

could be caused by foreign liquids or bodies. Failure to do so may cause the appliance failure or malfunction.

- Always unplug the unit and let it cool down before cleaning. Follow cleaning and maintenance guidelines when cleaning the appliance.

DO NOT immerse the unit in water or wash it under running water!

- This appliance can be used by children and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance, its cord, and all packaging materials out of reach of children. Cleaning and user maintenance shall not be made by children without supervision.

- Any modifications or adjustments to the product are not allowed. All the repairs should be carried out by an authorized service center. Failure to do so may result in the device and property damage or injury.

CAUTION! Do not use the appliance in case of any malfunctions.

Technical Specifications

Model RHB-2908-E

Type of appliance hand blender

Rated power 750 W

Maximum power....1200 W

Voltage....220-240 V, 50/60 Hz

Motor ....DC (direct current)

Speed 12 000-17 500 rpm

Speed control.....smooth

Beaker capacity 600 ml

Chopper bowl capacity 500 ml

Blending attachment....stainless steel

Whisk attachment....stainless steel

S-shaped blade....stainless steel

Power cord length 1.4 m

Package Includes

Motor unit....1 pc.

Chopper bowl with lid 1 pc.

Beaker 1 pc.

Chopper blade 1 pc.

Blending attachment....1 pc.

Whisk attachment....1 pc.

Whisk gear box....1 pc.

User manual....1 pc.

Service booklet....1 pc.

Manufacturer reserves the right to make any modifications to design, packaging, or technical specifications of the product without prior notice.

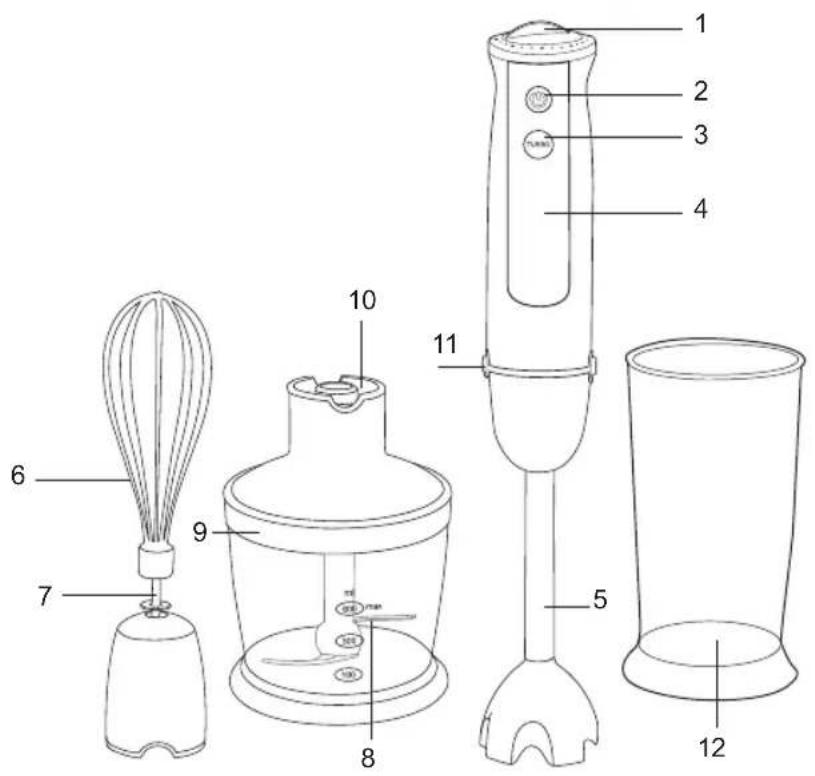

Hand Blender Parts A1

1. Speed control knob
2. Power button
3. TURBO mode button
4. Motor unit
5. Blending attachment
6. Whisk attachment
7. Whisk gear box
8. Chopper blade
9. Chopper bowl
10. Chopper bowl lid
11. Attachment release buttons
12. Beaker

I. PRIOR TO FIRST USE

Carefully remove the unit and its accessories from the packaging. Dispose of all packaging materials and promotional stickers.

Keep all warning labels and serial number identification label located on the housing. The absence of the serial number will deprive you of your warranty benefits!

Unwind the power cord. Wipe the housing with a damp cloth. Wash removable parts with warm soapy water and dry thoroughly before connecting the appliance to an electrical outlet.

After transporting or storing at low temperatures allow the appliance to stay at room temperature for at least 2 hours before using.

• Do not fill the food vessel more than 2/3 full to prevent splattering.
• For best results, fill the vessel at least 14 full before using the whisk attachment.
• When using the whisk or blending attachment first place the attachment into food and then press the Power of Turbo mode button. Always release the button before removing the hand blender from the vessel.
• Start operating at a low speed and gradually increase it by rotating the speed control knob on the handle. The control knob has a dial: select an optimal operating speed setting by rotating the speed control knob.
• To process at a maximum speed (when blending tough ingredients or for the final whipping stage) press and hold down the Turbo mode button.

Do not immerse the blender above the joint between the motor unit and the attachment.

• Defrost, de-bone, clean, and cut meat into 1-1.5 cm cubes before processing.
- Remove the pits and cut fruits and berries into pieces before processing.
- Do not use hand blender to mash potatoes.
- Remove pot from the stove top and let cool down before processing hot foods. Do not process foods or liquids at a temperature higher than 80^ .

Start processing at a low speed to avoid splatter. Do not use the blender to process coffee beans, ice cubes, sugar, grain, beans, and other tough foods.

Do not use the chopper bowl for blending or whisking. The central pin at the bottom of the chopper bowl can damage the attachment. Use the beaker provided with the appliance.

REDMOND

To Operate the Blender

1. Fill the beaker or a similar vessel with food.
2. Connect the blending attachment to the motor unit and turn counterclockwise until it clicks into place.
3. Plug in the appliance. Select the required speed setting.
4. Hold the vessel steady and place blending attachment in the food. Press and hold down the Power button. When processing raw vegetables, fruits, and other hard foods turn the speed control knob to increase the speed or press and hold down the Turbo mode button.
5. Blend foods using circular up-and-down motion.
6. After use unplug the appliance. Turn the blending attachment clockwise to disconnect from the motor unit. Clean the appliance following the procedure outlined in "Cleaning and Maintenance" section.

To Operate the Whisk

1. Fill the beaker or a similar vessel with food.
2. Insert the whisk attachment to the gear box until it clicks into place.
3. Connect the gear box to the motor unit and turn counterclockwise until it clicks into place.
4. Plug in the appliance. Turn speed control knob clockwise to setting 1 (minimum speed).
5. Hold the vessel steady and place whisk attachment in food. Press and hold down the Power button. Turn the speed control knob counterclockwise to increase the speed if necessary (from 1 to 5). To whisk at a maximum speed press and hold down the Turbo mode button.
6. Whisk foods using clockwise circular motion.
7. After use unplug the appliance. Disconnect the attachment and the gear box from the motor unit by turning clockwise. Clean the appliance following the procedure outlined in "Cleaning and Maintenance" section.

To Operate the Chopper

1. Place the chopper bowl on a flat and stable surface.
2. Remove the protective plastic cover from the chopper blade. Fit the blade on the central pin at the bottom of the chopper bowl. Note: the blade is very sharp, handle with caution! Always hold the blade by the plastic collar
3. Fill the bowl with food. Do not fill above the maximum fill mark (500 ml).
4. Fit the lid onto the bowl, aligning the crosspiece of the plastic collar with the corresponding notches in the center of the lid. Gently press the lid down and rotate clockwise.
5. Connect the motor unit with the chopper gear box until it clicks into place.

6. Plug in the appliance. Select the speed setting: harder foods require higher chopping speed.

7. Holding the bowl with one hand press and hold down the Power button or TURBO mode button. Use TURBO mode to chop meat and other hard foods. Maximum continuous operation time must not exceed 1 minute.

8. After use unplug the appliance. Press release buttons on the motor unit and disconnect the motor part. Twist the lid counterclockwise to remove. Remove the blade, holding it by the plastic collar.
9. Clean the blade and put protective plastic cover back on.

III. CLEANING AND MAINTENANCE

Wipe the motor unit with soft damp cloth.

DO NOT immerse in water or wash the motor unit under running water.

Wash the removable parts in warm soapy water. Mix water with lemon juice to add extra shine to metal parts of the appliance. Exercise caution when cleaning the blades, they are extremely sharp. Rinse the blades under hot running water.

Do not use sponge with hard or abrasive surface or abrasive and solvent-based cleaners (gasoline, acetone, etc.).

Let all parts of the appliance dry thoroughly before use.

Thoroughly clean and dry all parts of the appliance before storing. The appliance must be stored in a dry well-ventilated location away from direct sunlight or heating appliances.

Some foods (such as carrot and beet) may stain the plastic. Apply bleach-based solution immediately after use to remove the stains.

IV. BEFORE CONTACTING SERVICE CENTER

Problem Possible cause Solution
Appliance does not work	Power cord is not connected to an electrical outlet	Connect the power cord to an electrical outlet
	Electrical outlet is not working properly	Connect to properly working electrical outlet
Strong vibration during operation	Food pieces are too large Cut food into smaller pieces
Plastic smell during use	Appliance is overheated	Reduce continuous operation time. Increase time intervals between uses.
	Appliance is new, the smell is coming from protective cover	Thoroughly clean the appliance (refer to “Cleaning and Maintenance” section). The smell will disappear after few uses.

V. PRODUCT WARRANTY

We warrant this product to be free from defects for a period of 2 years from the date of purchase. If the appliance fails to operate properly within the warranty period and is found to be defective in material or workmanship, we will repair or replace it free of charge. This warranty comes into force only in case an original warranty service coupon with a serial article number and an accurate impress of the company of the seller proves the purchase date. This limited warranty does not cover damage caused by the failure to use this product for its normal purpose or in accordance with the instructions on the proper use and maintenance of the product, or any kind of repair works. Do not try to disassemble the appliance and keep all package contents. This warranty does not cover normal wear of the appliance and its parts (filters, bulbs, non-stick coating, gaskets, etc.).

Service life and the applicable product warranty period start on the date of purchase or the date of manufacture (if the purchase date cannot be established).

You can determine manufacture date by serial number, located on the identification label on the housing of the appliance. The serial number consists of 13 digits. 6th and 7th digits of the serial number identify the month, 8th digit the year of manufacture.

Service life of the product, established by the manufacturer is 3 years from the date of purchase, provided that the unit is used and maintained in accordance with the user manual and applicable technical standards.

The packaging, user manual and the appliance itself shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. Do not throw away the electronic waste with household trash to help protect the environment.

REDMOND

III. RENG∅RING AF APPARATET

Motordelen skal aftørres med soft fugtig klud.

و therapeutic applicating on the pasti in the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of the health of 8.

Environmentally friendly disposal (WEEE)

This appliance is labelled in accordance with European Directive 2012/19/EU – concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

© REDMOND. ALL RIGHTS RESERVED. 2014.

Reproduction, transfer, distribution, translation or other reworking of this document or any part thereof without prior written permission of the legal owner is prohibited.

Produced by Redmond Industrial Group LLC

One Commerce Plaza, 99 Washington Ave, Ste. 805A,

Albany, New York, 12210, United States

www.redmond.company

www.multicooker.com

Made in China

RHB-2908-E-UM-2
