USER MANUAL EVM440 Perel

NON-CONTACT INFRARED THERMOMETER WITH LASER CONTACTVRIJE IR-THERMOMETER MET LASERPOINTERS THERMOMÉTRE IR SANS CONTACT AVEC POINTEUR LASI TERMOMÉTRO IR DE BOLSILLO CON PUNTERO LÁSER INFRAROT-THERMOMETER MIT LASERPOINTERS TERMOMÉTRO COM INFRAVERMELHOS E LASER

USER MANUAL 2

GEBRUIKERSHANDLEIDING 6

MODE D'EMPLOI 10

MANUAL DEL USUARIO 14

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

First use: laser warning sticker

The device is labelled with a laser warning sticker in English. The package contains stickers in other languages. If the user does not understand English, put the sticker with the language on the device.

1. Refer to the safety instructions before using the device.
2. Make sure the device does not contain batteries.
3. Put the sticker in your language on the device.
4. When done, insert batteries (see section Battery below).

2. Safety Instructions

	Keep out of reach of children.
	When device is in use, NEVER look directly or indirectly (reflectance) into the laser beam. Never point the beam toward people's or animals' eyes or allow the beam to strike the eye from a reflective surface. Use extreme caution when the laser pointer beam is on. Do not use the laser near explosive gases or in other potentially explosive areas.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	DO NOT disassemble or open the cover. No user-serviceable parts inside. Refer to an authorized dealer for service and/or spare parts.
	Warning! Visible laser radiation. Do not stare into the beam as eye damage will occur. This device contains a class 2 laser. Output power does not exceed \( 1\mathrm{{mW}} \) ,wavelength \( {650}\mathrm{\;{nm}} \) .

• Inspect the housing before using the device. Do not use it if it appears damaged. Look for cracks or missing plastic.
• Replace the battery as soon as the battery indicator appears on the display.
• Do not use the thermometer if it operates abnormally.
• Do not operate the thermometer around explosive gas, vapour, or dust.
• To avoid burn hazard, remember that highly reflective objects will often result in lower than actual temperature measurements.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  Note that damage caused by user modifications to the device is not covered by the warranty.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Only use the device with appropriate batteries (see Technical Specifications below).
• Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Protected the device against extreme heat (see Technical Specifications below), dust and moisture.

• Familiarise yourself with the functions of the device before actually using it.

• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of about 3 volts per meter, but the performance of the instrument will not be permanently affected.
• Operating temperature: see technical specifications.

4. Features

• laser sight technology
  temperature readout in ^ C or ^ F
  large LCD display with blue backlight
  real-time maximum temperature reading
• auto power-off function

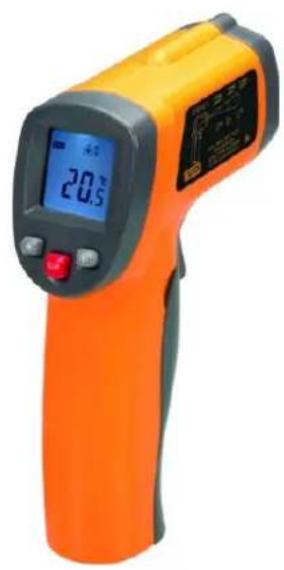

5. Overview

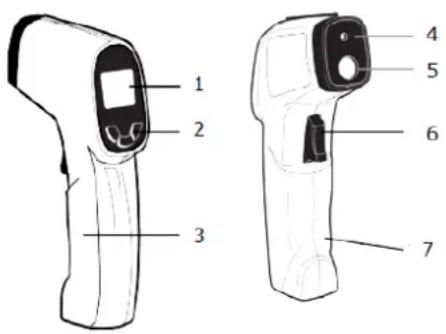

Device

1 LCD display
2 function buttons
3 handle grip
4 IR sensor
5 laser pointer beam
6 measurement trigger
7 battery compartment

Display

8 data hold icon
9 scanning icon
10 laser on icon
11 backlight on icon
12 battery power icon
13 temperature unit
14 temperature reading

Display buttons

15 laser on/off button
16 Celsius/Fahrenheit switch
17 back light switch

15 16 17

6. Operation

1. Hold the meter by its grip and point it toward the surface to be measured. Read the section Distance-to-spot ratio below for distance to target ratio information.
2. Pull and hold the trigger to turn the meter on and begin testing. The display will light if the battery is good.
3. While measuring temperature, you can:

Push the Laser button to switch the laser pointer ON. The laser pointer is only used for aiming. When the laser is on, the laser icon appears appear on the LCD. Aim the red beam approximately 1 cm below the point of test. Pressing the Laser button again turns the laser off.
- Select the temperature units using the ^ C / ^ button.

1. Release the trigger. The reading will hold for approximately 7 seconds. The devices shuts off automatically after 20 seconds.

Backlight

When backlight is on, any operation activates the backlight for about 7 seconds.

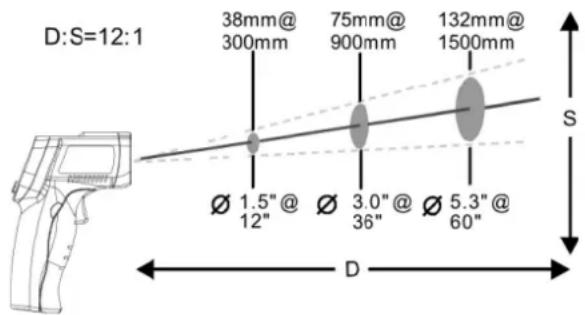

Distance-to-spot ratio (D:S)

The device's distance-to-spot ratio is 12:1.
- The distance-to-spot ratio (D:S) is the ratio of the distance to the object and the diameter of the temperature measurement area.
- For instance if the D:S ratio is 12:1, measurement of an object 120cm away will average the temperature over a 10cm area.

7. Battery

Replace the battery when the battery low icon appears on the display or if the device does not light when you pull the trigger.

The battery is located in the hand grip.

1. Pull open the hand grip.
2. Insert a battery.

Only use appropriate batteries (see Technical Specifications below).

Respect the polarity.

1. Close the battery cover.

Warning

• Keep batteries away from children.
• Do not puncture batteries or throw them in fire as they may explode.
• Do not attempt to recharge non-rechargeable batteries (alkaline).
• Dispose of batteries in accordance with local regulations.

8. Cleaning and Maintenance

The sensor lens is the most delicate part of the thermometer and should be kept clean at all times.
To do this, only use a soft cloth or cotton bud with a little water or medical alcohol.
- Allow the lens to fully dry before using the thermometer.
- Wipe the other parts of the thermometer regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
- Do not submerge the thermometer in water or any other liquid.
There are no user-serviceable parts.
- Contact your dealer for spare parts if necessary.
Storage temperature: see technical specifications.

9. Technical Specifications

measurement range	-32 °C to 350°C (-26 °F to 662 °F)
operating temperature	0-50 °C (32-122 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
accuracy	± 1.5 % or 1.5 °C (2.7 °F)
resolution 0.1 °C / 0.2 °F
response time (90 %)	0.5 second
emissivity range	0.95 fixed

EVM440

auto switching-off and data hold	7 seconds
distance-to-spot ratio D: S	12:1
power supply	1 x 9 V (not incl.)
dimensions 48.8 x 133 x 146 mm
weight 130 g without battery

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
