Product type	Wireless doorbell
Brand	Perel
Model	EDB7
Receiver power supply	90-240 V~, 50/60 Hz, 2.2 W
Transmitter power supply	1 CR2032 3 V lithium battery (included)
Maximum range	About 100 m in open field
Operating frequency	433.92 MHz
Number of ringtones	36 melodies
Adjustable volume	Yes (high / medium / low)
Visual indication	Yes
Sound level	>80 dB at 0.5 m
Reception sensitivity	≥ 80 dBm
Transmission power	≤ 10 mW
Transmission current	<10 mA
Digital code	Auto learning
Receiver dimensions (HxWxD)	110 x 70 x 45 mm
Transmitter dimensions (HxWxD)	85 x 32 x 20 mm
Installation	Wireless, wall mounting or double-sided adhesive tape
Warranty	24 months (according to conditions)
Protection	Indoor use, protect from humidity and extreme temperatures
Maintenance	Clean with a dry cloth, avoid abrasive products
Battery (transmitter)	CR2032, remove if not used for a long time

Frequently Asked Questions - EDB7 Perel

How to install the battery in the transmitter?

Open the battery compartment on the back of the transmitter using a small flathead screwdriver by lifting the tab. Insert the CR2032 battery respecting polarity, then close the compartment.

How to pair the transmitter with the receiver?

Turn on the receiver and transmitter. Press the auto learning button on the receiver, then press the push button on the transmitter. A beep confirms registration. The receiver can memorize up to 4 transmitters.

What is the range of the doorbell?

The range is about 100 m in open field. It can be reduced by walls, PVC or metal objects.

How to adjust the volume and melody?

Use the volume (high/medium/low) and melody buttons on the receiver. You can also activate visual indication.

What to do if the range is reduced?

Bring the transmitter closer to the receiver or avoid metal obstacles. Test the range before final installation.

Can I use multiple transmitters?

Yes, the receiver can memorize up to 4 transmitters. Repeat the pairing procedure for each transmitter.

How to clean the device?

Clean with a soft dry cloth. Do not use abrasive products or solvents. Protect from humidity.

What to do in case of unwanted beeping?

This may be due to interference. Reset the code by repeating the pairing procedure.

What battery to use in the transmitter?

Use a CR2032 lithium 3 V battery. A spare battery is included. Do not recharge alkaline batteries.

Is the device guaranteed?

Yes, the warranty is 24 months against manufacturing defects (terms apply). Keep the proof of purchase.

USER MANUAL EDB7 Perel

WIRELESS DOOR CHIME WITH VISUAL INDICATION DRAADLOZE DEURBEL EN ONTVANGER MET VISUELE SONNETTE ET RÉCEPTEUR AVEC INDICATION VISUELLE TIMBRE Y PULSADOR INALÁMBRICOS FUNK-TÜRGLOCKE UND FUNK-KLINGELTASTER BEZPRZEWODOWY DZWONEK DO DRZWI I GONG Z SYGNALIZACJĄ WIZUALNĄ CAMPAINHA SEM FIOS COM INDICADOR VISUAL

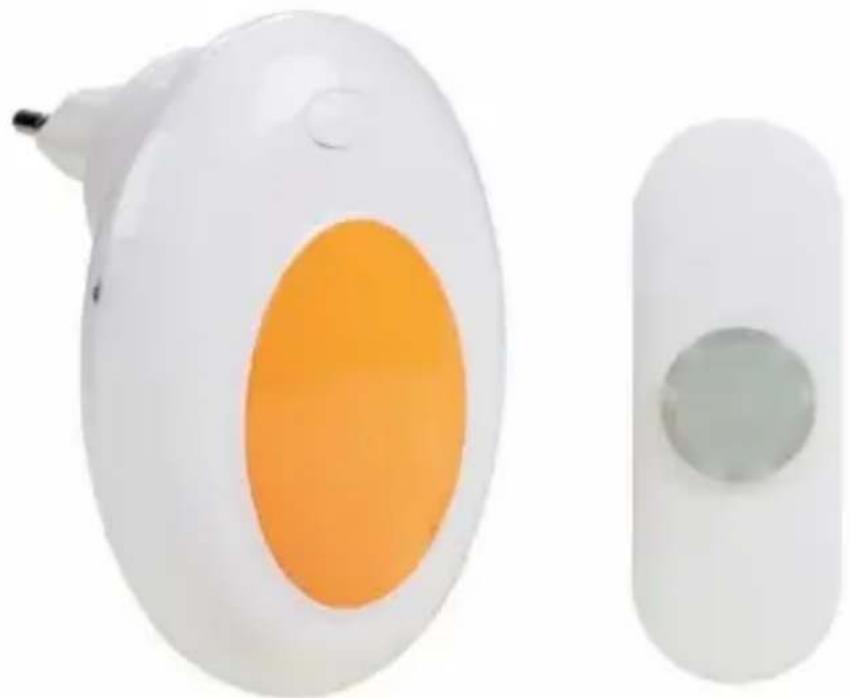

Two white electronic devices with orange and gray highlights, one with a small probe tip and the other a circular button (no text or symbols visible)

USER MANUAL 3 GEBRUIKERSHANDLEIDING 7 MODE D'EMPLOI 12 MANUAL DEL USUARIO 16 BEDIENUNGSANLEITUNG 21 INSTRUKCJA OBSŁUGI 25 MANUAL DO UTILIZADOR 30

CE

4 1 2 3 5

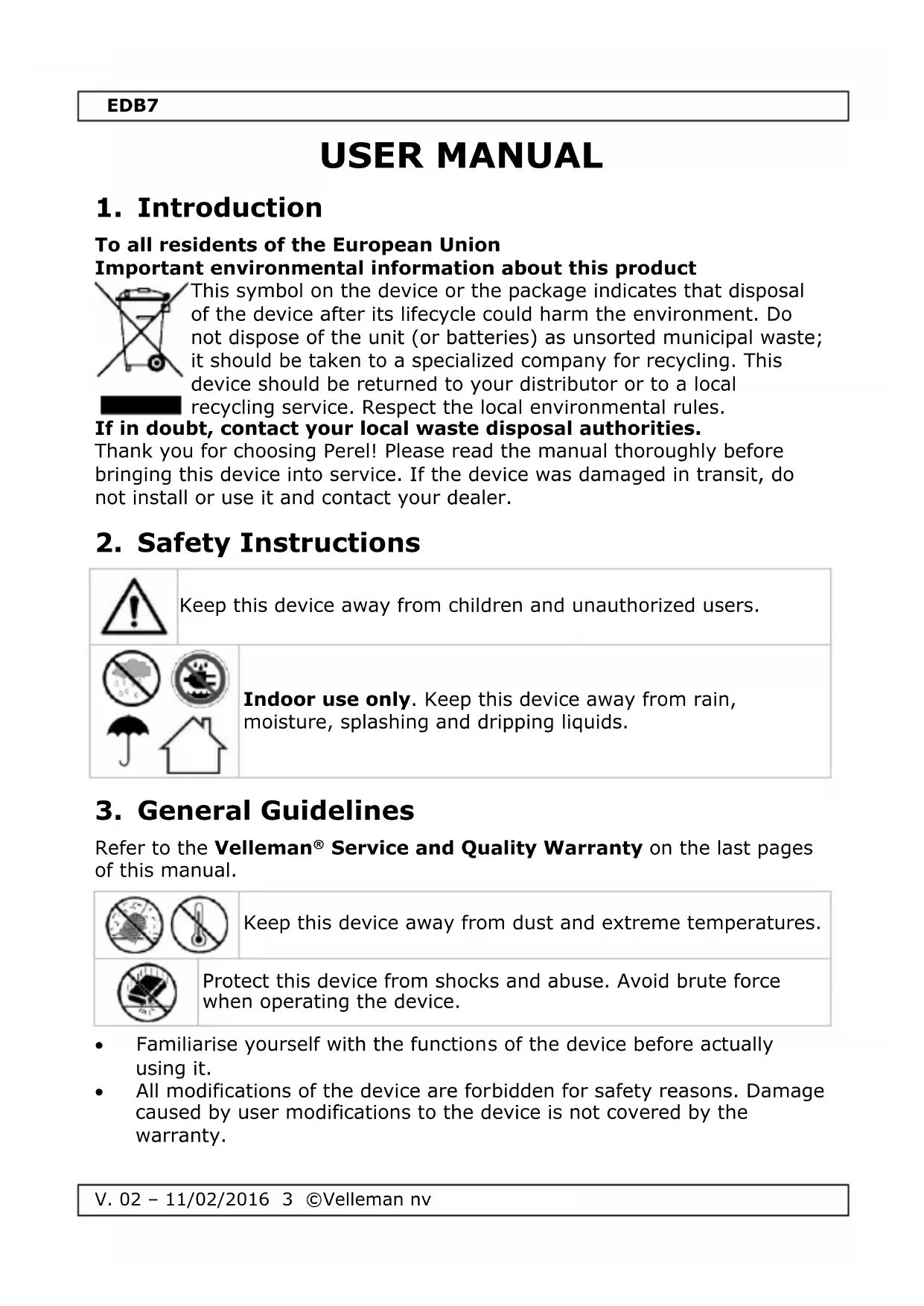

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

Symbol of a trash bin crossed with no visible text or labels

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Four symbolic icons: no cloud, no weather, umbrella, and house outline (no text or labels)

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

EDB7

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

• easy installation without any damage thanks to the wireless system
  • 36 melodies and adjustable volume (high - medium - low)
• comes with visual indication function

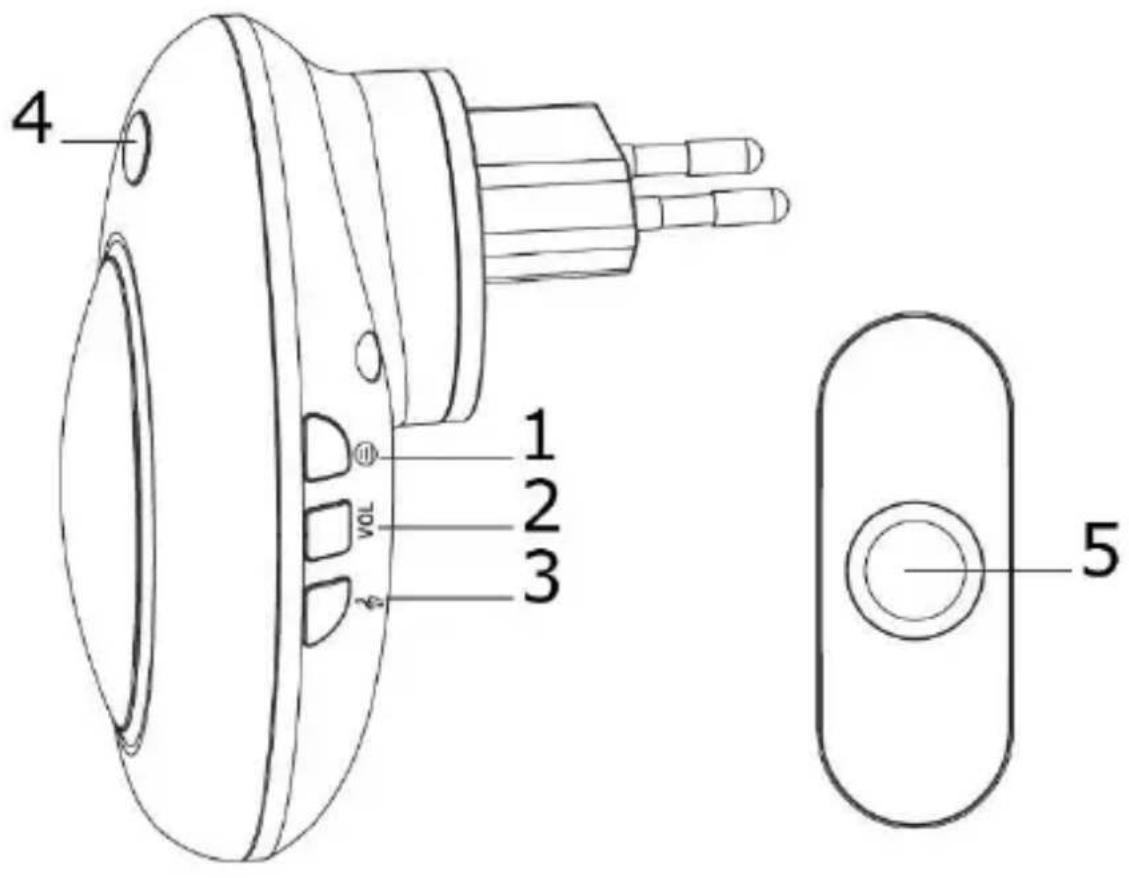

5. Overview

Refer to the illustrations on page 2 of this manual.

1	auto-learning code
2	volume
3	melody

4	visual indication
5	push button

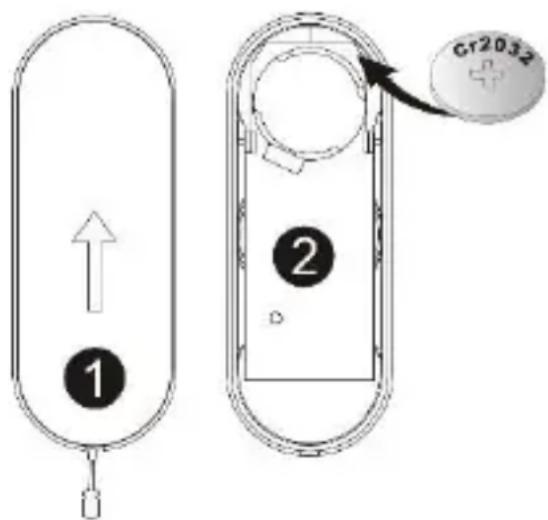

6. Battery Installation

1. Open the transmitter to reveal the battery compartment. To do so, slightly push the tab at the bottom of the transmitter using a small flat-bladed screwdriver.
2. Install the CR2032 battery according to the correct polarity.
3. Close the battery compartment.

1 2 C12032

Remark: Remove the batteries if the transmitter will not be used for a longer period.

EDB7

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

7. Installation

Test the operating range between the receiver and the transmitter. The operating range is 100 m in the open air, but may be less due to walls and other obstructions such as PVC or metal frames.

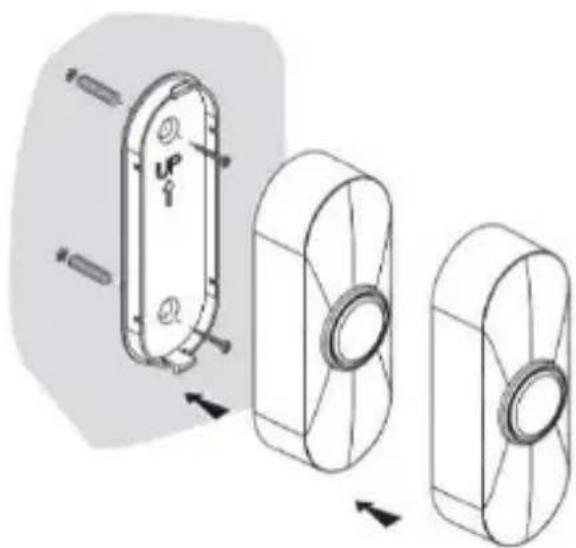

7.1 Installing the Transmitter

1. Carefully open the housing of the transmitter and use the back plate as a template. Mark the drilling holes at the required height.
2. Drill the holes using a drill and the appropriate drill bit (not included).
3. Insert a nylon plug (included) into each hole.
4. Fix the back plate with the included screws. Click the front plate onto the back plate.

Technical line drawing of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

Remark: You can also fix the transmitter using double-sided tape.

7.2 Installing the Receiver

Simply plug the receiver into the mains.

8. Operation

8.1 Pairing the Transmitter to the Receiver

1. Make sure both the receiver and transmitter are powered.
2. Press the auto-learning code button on the receiver. Then, press the push button on the transmitter.

The receiver will sound to indicate that the operation code has been registered. One single receiver can memorize up to four different transmitters. Note that you also can pair one transmitter to multiple receivers.

If the receiver sounds for no reason during pairing, it could be due to interference. In this case, please reset the code as per above.

8.2 Other Functions

Adjust the volume level, select the melody and activate the visual indication by pressing the appropriate button.

9. Technical Specifications

operating distance		± 100 m (in open field)
frequency		433.92 MHz
ringing volume		>80 dB (within 0.5 m)
reception sensitivity		≥ 80 dBm
transmitting power		≤ 10 mW
transmitting current		< 10 mA
digital code		auto-learning
dimensions
	chime (H x W x D)	110 x 70 x 45 mm (without socket)
	transmitter (H x W x D)	85 x 32 x 20 mm
power supply
	receiver	90-240 V~, 50/60 Hz, 2.2 W
	transmitter	1 x CR2032 3 V lithium battery (incl.)
options		lithium CR2032 3.0 V, 230 mAh battery (CR2032C)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

EDB7

R&TTE Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [EDB7] is in compliance with Directive 1999/5/EC.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Four symbolic icons: weather circle, no cloud, sun, umbrella, and house outline (no text or labels)

1 2 Cr2032

Technical illustration of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

Four symbolic icons: no rain, weather, umbrella, and house outline (no text or labels)

1 2 CT2032

Technical line drawing of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

1 2 Cr2032

Technical line drawing of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

1 2 Cr2032

Technical line drawing of a mechanical component with three views showing internal features and assembly (no text or symbols)

© INFORMACJA O PRAWACH WŁASNOŚCI

Four symbolic icons: no cloud, no smoke, umbrella, and house (no text or labels)

1 2 C120.32

EDB7

Technical line drawing of a mechanical component with three views showing internal features and mounting holes (no text or symbols)

7.2 Instalar o Receptor

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
