USER MANUAL RG 610 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

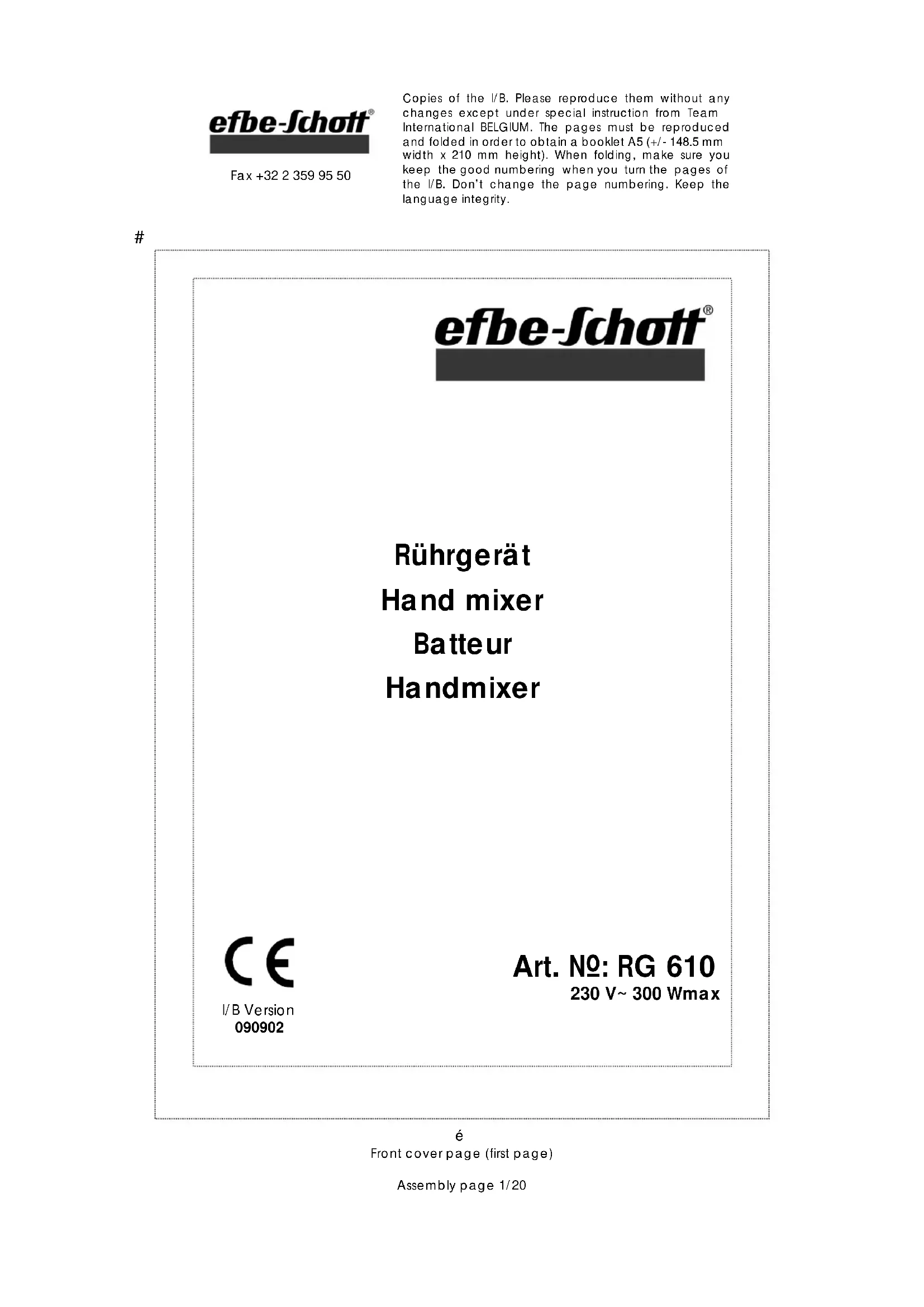

Art. Nr.: RG 610 230 V~ 300 Wmax# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

SC RG 610 – 090902 Assembly page 2/20 Fax [phone]# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

SC RG 610 – 090902 Assembly page 3/20 Fax [phone]# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

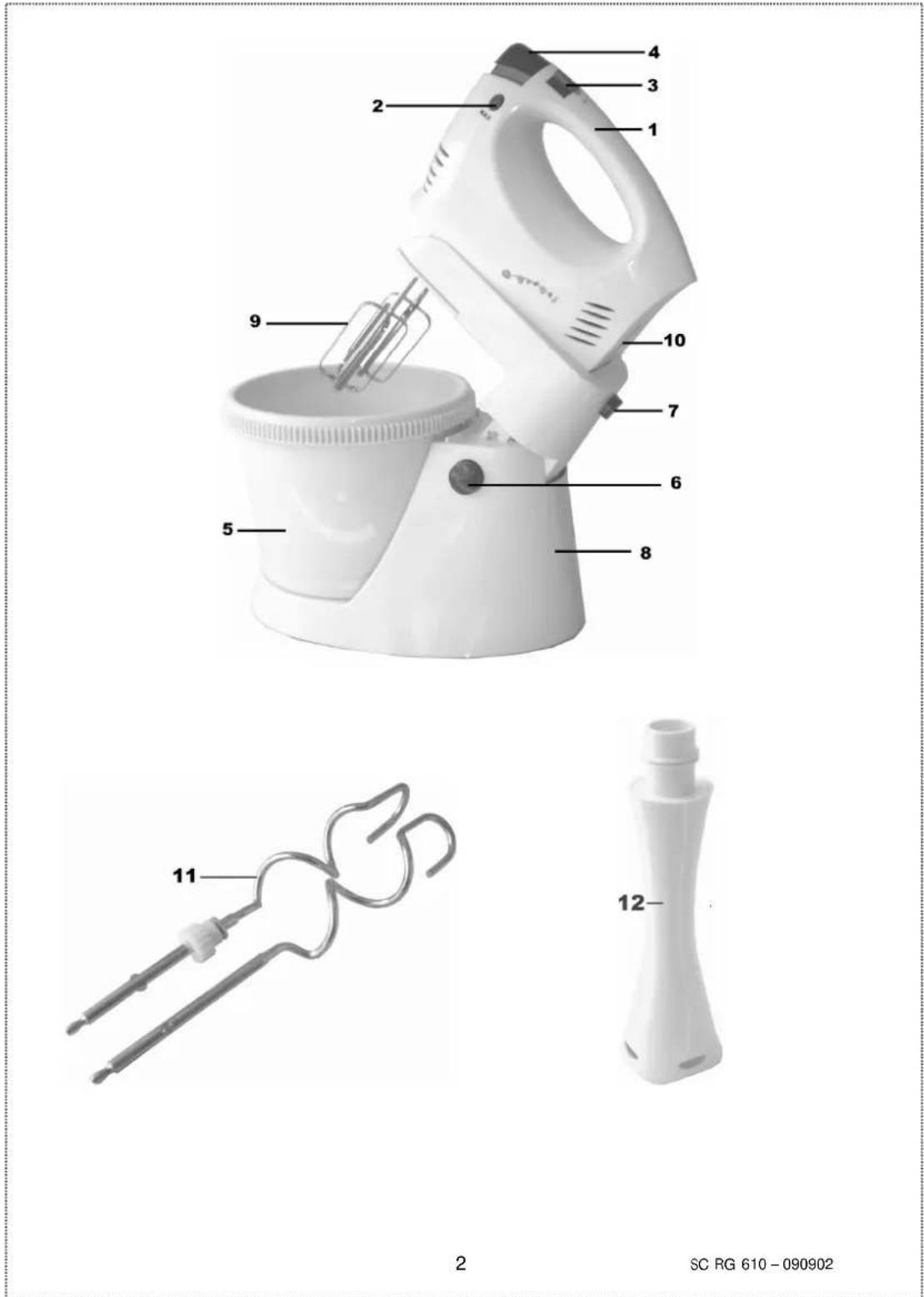

3. On/off and speed switch

7. Release button of the hand mixer

10. Opening for stick mixer

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Please read these instructions carefully before using the appliance.

Only use the appliance in the way indicated in this instruction manual.

Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.

Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using the appliance.

Never leave the appliance unsupervised when in use.

People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.

Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.

From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician(*). Never use the appliance if it shows visible damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions. Only use this mixer for cooking purposes.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Always unplug the appliance from the power supply when it is not in use.

Never use the appliance outside and always place it in a dry environment.

Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual.

It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

Make sure the appliance is unplugged before inserting, removing or cleaning one of the accessories. It is absolutely necessary to remove the accessories before cleaning them.

If your appliance is equipped with a stick mixer, be careful not to get cut, handle it with care, as the blade of this accessory is extremely sharp.

Make sure the accessory is always solidly and correctly tightened at the motor bloc before starting the appliance.

Make sure your hands and/or any kind of utensil stay clear of the mixing bowl when the appliance is in use in order to avoid serious injuries.

When mixing warm liquid, be particularly careful as a projection of warm liquid could cause serious burns.

The appliance is designed for the preparation of small quantities of food that have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.

Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

Never use several accessories simultaneously.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. IMPORTANT INFORMATION This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes. ASSEMBLING THE BEATERS AND DOUGH HOOKS (see page 3)

• Make sure that the on/off and speed switch (2) is in "0" position so that the appliance is switched off and also make sure that the appliance is unplugged.

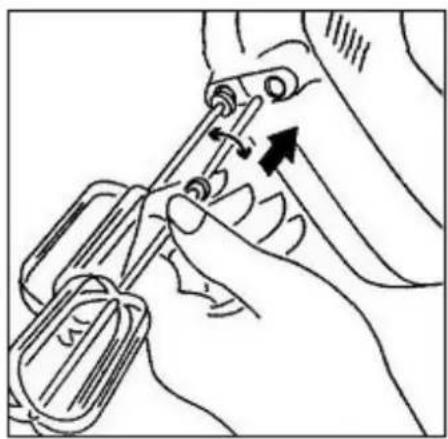

• Beaters/Hooks: Insert the beaters (9) or hooks (11) under the body of the mixer and turn slightly until you hear a clicking sound. Pull gently at the accessories to check if they have been properly mounted.

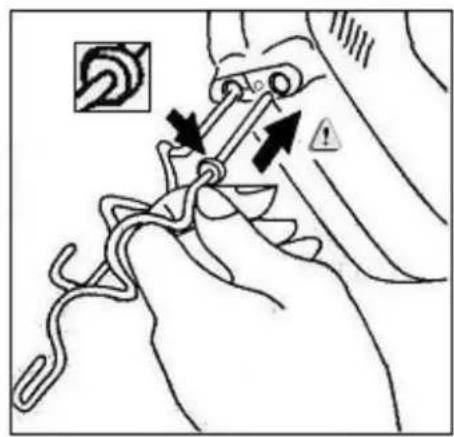

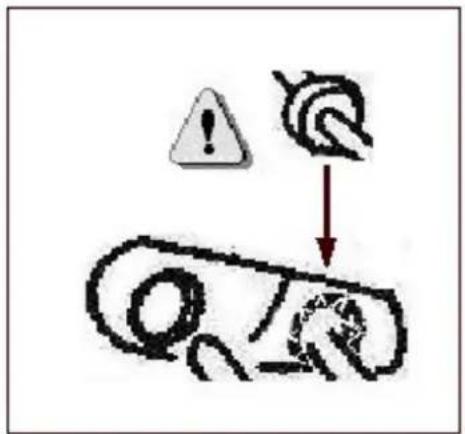

• When mounting the hooks, watch the mark at the openings. Spiky circle – dough hook with ring (see mounting on page 3). This way, no dough gets sucked into the appliance.

• Press the ejection button (4) on top of the mixer to release the accessories. Assembling the mixer on the base and bowl

• Make sure that the appliance is switched off and unplugged from the power supply.

• You have to assemble the beaters/dough hooks before starting the appliance.

• Beaters/dough hooks: put either the beaters (9) or the dough hooks (11) into the propulsion openings and turn them slightly until they click into place. Pull gently at the accessories to check if they have been properly mounted.

• Put the arm of the base in horizontal position and slot the appliance into it. By pushing on the back of the appliance, the appliance can be fixed tightly onto the arm of the base.

• You can now plug in the appliance and select a low speed. The bowl turns automatically.

• Unplug the appliance when you want to disassemble the appliance from the base.

• You can take the appliance from the base by pressing the release button (7) and tilting the appliance slightly. SPEED SETTINGS Speeds: 0 OFF 1-2 Dry ingredients: butter, potatoes, flour 2-3 Liquids, sauces, spices 3-4 Dough: cake, biscuits; desserts (creams) 4-5 Egg white, whipped cream To use the appliance punctually at maximum speed, press the turbo switch (only when the speed switch is in position 1 to 5) Assembling the stick attachment

• Place the switch to the position “0” and unplug the appliance.

• Pay attention that the other accessories are to be removed from the appliance.

• Open the valve on the back side of the appliance by sliding the valve upwards. Then you will see the opening for the stick attachment.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• Lock the stick attachment (12) in the opening (10) by turning it until it stops.

• To disassemble the stick attachment, switch off the appliance and unplug it.

• Turn the stick attachment to take it away from the appliance. And then replace the valve on the opening at the back side/bottom of the appliance.

USE OF THE STICK ATTACHMENT

The stick attachment can be used to: − mix liquids (milk, juice, yoghurt …) − blend soup or tomatoes − make mayonnaise, remolade. To use the stick attachment, put the on/off and speed switch (3) on a setting between 1 and 5 and then press the turbo button. CLEANING

• Unplug the appliance before cleaning it.

• Remove the accessories before washing them in soapy water.

• Wipe the outside with only a slightly moistened cloth, ensuring that no moisture enters the cooling slots.

• Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish.

• Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Back cover page (last page) Assembly page 12/20 Fax [phone] Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• N'immergez pas l'appareil dans de l'eau ou tout autre liquide.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Gebruik nooit verscheidene toebehoren op hetzelfde ogenblik.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
