ZN 3.1 - Fondue, raclette and wok appliance Efbe-Schott - Free user manual and instructions

Product type	Fondue, raclette and wok appliance
Brand	Efbe-Schott
Model	ZN 3.1
Power supply	220-240 V, 50/60 Hz
Power	Approx. 1000 W
Dimensions (approx.)	30 x 20 x 15 cm
Weight (approx.)	2 kg
Main functions	Waffle maker, party cake baking (magic nuts)
Indicator lights	Red (on) and green (temperature reached)
Cooking plates	Interchangeable (waffles, party cakes, Christmas plates)
Lock	Locking latch with release button
Material	Plastic and metal, non-stick coating on plates
Safety	Do not immerse, do not use metal utensils, hot surfaces
Care and cleaning	Damp cloth for exterior, removable plates washable with water (not dishwasher)
Spare parts and repairability	Replacement plates available on order, repairs by authorized service
Warranty	Legal warranty, extension possible depending on retailer

Frequently Asked Questions - ZN 3.1 Efbe-Schott

What should I do if smoke comes out during first use?

This is normal: the non-stick coating produces smoke for about 30 seconds. It is harmless and disappears quickly. Make sure you are in a well-ventilated room.

How to use the appliance in waffle maker mode?

Preheat the appliance closed until the green light goes out. Open, pour the batter in the middle, close and tighten the handle. Let it cook for 5 to 6 minutes according to your taste. Remove the waffle with a wooden or plastic spatula.

Can I wash the plates in the dishwasher?

No, never put the plates in the dishwasher. Wash them under running water after removing them from the appliance, then dry them thoroughly. The exterior can be cleaned with a damp cloth.

How to change the cooking plates?

Press the release button (4) located near the handle, then remove the plate. Place the new plate by pressing until it clicks. You can use waffle, party cake or Christmas plates.

Does the appliance have a switch?

No, the appliance plugs directly into the outlet. To turn it off, unplug it. It does not have an on/off switch.

What safety precautions should be taken?

Never immerse the appliance in water. Do not touch hot surfaces, use handles. Do not use metal utensils to avoid damaging the non-stick coating. Supervise children.

Can I use the appliance for something other than waffles?

Yes, with the special plates you can prepare sweet or savory party cakes (magic nuts). The manual includes recipes for sweet and savory batter and filling suggestions.

Where can I order replacement plates?

Contact Efbe-Schott customer service at 036741/70268 or via their website. Replacement plates are available for this model.

What to do if the appliance does not heat up?

Check that the outlet works and the cord is not damaged. If the lights do not come on, contact a qualified service. Do not attempt to repair it yourself.

How to store waffles or cakes?

Let them cool on a rack. Store them in an airtight container at room temperature for a few days. You can also freeze them.

USER MANUAL ZN 3.1 Efbe-Schott

Party Pastries Maker

1. Locking clip
2. Red pilot light
3. Green pilot light
4. Release button
5. Miracle nut plates
6. Waffle plates
7. X-Mas plates

1/2 Päckchen Backpulver

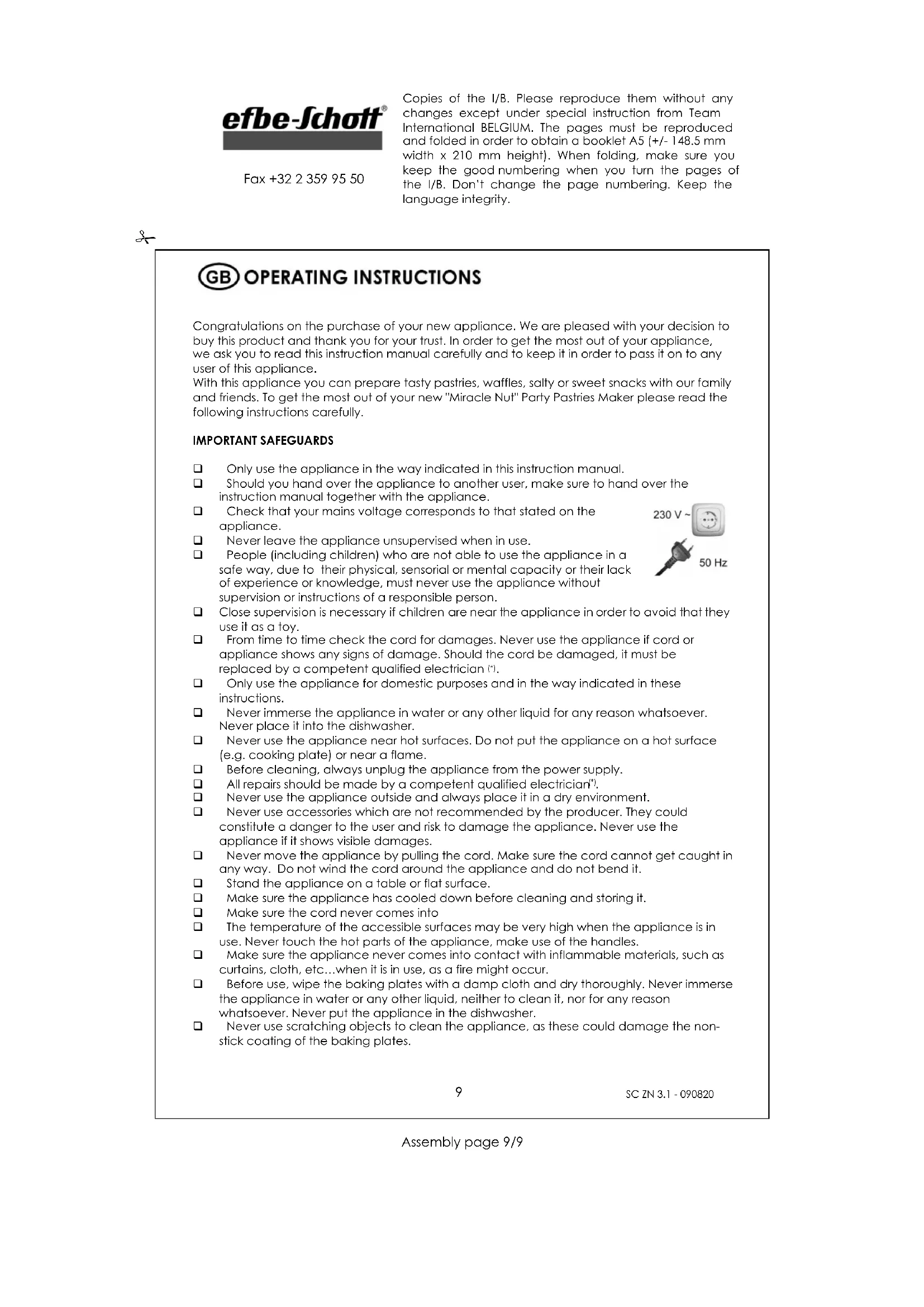

Congratulations on the purchase of your new appliance. We are pleased with your decision to buy this product and thank you for your trust. In order to get the most out of your appliance, we ask you to read this instruction manual carefully and to keep it in order to pass it on to any user of this appliance.

With this appliance you can prepare tasty pastries, waffles, salty or sweet snacks with our family and friends. To get the most out of your new "Miracle Nut" Party Pastries Maker please read the following instructions carefully.

IMPORTANT SAFEGUARDS

Only use the appliance in the way indicated in this instruction manual.
Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces. Do not put the appliance on a hot surface (e.g. cooking plate) or near a flame.
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician.
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never use the appliance if it shows visible damages.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch the hot parts of the appliance, make use of the handles.
Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc...when it is in use, as a fire might occur.
Before use, wipe the baking plates with a damp cloth and dry thoroughly. Never immerse the appliance in water or any other liquid, neither to clean it, nor for any reason whatsoever. Never put the appliance in the dishwasher.
Never use scratching objects to clean the appliance, as these could damage the non-stick coating of the baking plates.

Use a wooden spatula or a heat resistant plastic spatula to take the food out of the appliance.
Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.
Only use the appliance for food that is supposed to be cooked.
Repairs, such as changing a damaged mains cable, must be made by an authorized repair shop or the Efbe-Schott Service Center (tel. no. ++49 36741 70268).

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

USE

• Protective coating burn off will cause smoking on first use. However, this does not indicate any defect of the appliance. After about 30 seconds the smoke will disappear and you will be able to use the appliance normally. This smoke is NOT harmful.
• When using for the first time, wipe the surface of the plates with a damp cloth, then dry. Season the plates with butter, margarine or cooking fat.
• Place the desired plates in the appliance. By pressing the release button (4) you can take the plates out or put them in.
• Close the appliance, you can hear the locking clip snap shut, plug the appliance in and let it preheat.
• The red and green pilot lights (2 and 3) will go on to indicate that the appliance is plugged in and that it is heating.
• The green pilot light will go out when the cooking temperature is reached. Now you can pour the dough.
• Caution: during operation, the appliance becomes hot. Be careful as you might get burned.

Waffle maker mode

• Open the heated appliance (to do so, release the locking clip 1)
• Pour dough evenly onto the bottom grid but not all the way to the edges. Then close the appliance. Press the lid down for a short moment so that the dough spreads evenly. Do not overfill as the dough might come out through the sides of the appliance.
• Bake until golden brow, about 5 to 6 minutes. When the waffles are ready, remove them with a wooden or heat resistant plastic spatula. Never use sharp objects as these could damage the non-stick coating.
• When you have finished baking, unplug the cord from the outlet and leave the grids open to cool.

WAFFLE RECIPES

SHORTBREAD WAFFLES

200 g butter

200 g sugar

4 eggs

twist of lemon

200 g plain flour

10

SC ZN 3.1 -090820

YEAST WAFFLES

25 g yeast

1/41 milk

125 g butter

50 g sugar

6 eggs

twist of lemon

pinch of salt

375 g plain flour

TRADITIONAL WAFFLES

125 g butter

150 g sugar

twist of lemon

pinch of salt

3 eggs

1/4 I milk

250 g plain flour

1 tsp baking powder

CRISP WAFFLES

200 g butter

150 g sugar

4 eggs

350 g plain flour

1 tsp rum

few drops vanilla essence

150-200 ml water (not milk)

APPLE WAFFLES

150 g butter

200 g sugar

4 eggs

1 tsp baking powder

250 g plain flour

pinch of salt

small pinch of ground cloves

1 tsp cinnamon

2 apples peeled and diced

Making party pastries

• Open the heated appliance (to do so, release the locking clip 1)
• Pour dough evenly onto the lower party pastries plate (for recipes, see below). Do not overfill as the dough might come out through the sides of the appliance. For best results we advise you to roll the dough into small balls of hazelnut size and to put these in the notches of the plate.
• Close the lid and the locking clip (1).
• Slightly grease the baking surfaces (top and bottom). You can remove the pastries easier.
• Plug in the appliance. The appliance starts heating. There are two lamps. Red: Mains voltage is fed/appliance is heating. Green: You can use the appliance. This means when the green lamp lights, you can fill dough.
• Open the appliance (release the grip lock).
• The appliance needs about 3 minutes to bake the dough. Open the cover and remove the baked snacks with a suitable tool (Caution! No metal tool.)
• Carefully remove the dough around the rims with a knife.
• Allow the snacks to cool, then fill and put the halves together.
  The pastries are shaped like nuts. This explains why we named it "miracle nut". Proceed the same way to make pastries of another shape.

RECOMMENDATIONS AND RECIPES

We recommend the following pastries. Of course there are no limits to your own imagination and creative mind.

Recipe for the dough:

Ingredients: 400 g flour

100 g sugar

250 g margarine

2 eggs

1/4 teaspoonful baking powder

1 bag vanilla sugar

Preparation: 1. Mix the margarine, sugar and eggs

1. Mix baking powder, vanilla sugar and flour

2. Knead everything thoroughly

Recipe for sweet dough:

Ingredients: 500-600 g flour

220 g sugar

200 g margarine or butter

200 g cream

1 egg, 2 egg whites

1 teaspoon of baking powder

1 bag vanilla sugar

Preparation: 1. Mix the margarine, 1 egg and vanilla sugar thoroughly and add 2 egg whites

1. Add the cream and mix.

2. Mix the baking powder with the flour and add it to the dough, together with the mixture of butter and sugar.

Recipe for salty dough:

Ingredients: 200 g flour

125 g margarine

1 egg

1/4 teaspoonful baking powder

1 pinch of sugar

3 pinches of salt

Preparation: 1. Mix the egg, salt and sugar with the melted margarine

1. Mix flour and baking powder

2. Knead everything thoroughly

You can fill the miracle nuts with different fillings, e.g., jam, cream, nougat cream, sweet curd, apple puree, vanilla cream, honey, pudding, small berries, caramel, cheese cream.

Refine the filling with almonds, raisins, and the like.

12

SC ZN 3.1 -090820

More tips:

Christmas ornaments: Place a thread between the half nuts before putting them together. Then wrap the nuts in silver or gold foil and use them as decoration on your Christmas tree. For you children's birthday parties: Place cups with different ingredients in the middle of a table and then allow the children to fill their own "miracle nuts". Similarly, you can use the appliance to add spice to your party.

Of course, you can fill and eat the half nuts as appetizers or decorate your cold buffet with them.

CLEANING

• Before cleaning, unplug and wait for the appliance and the plates to cool down.
• Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
• To clean the plates you can let them in the appliance or remove them from the appliance (therefore press on the release button (4) near the handle and remove them. If you let them in the appliance, wipe the plates with a damp cloth or towel. If you remove them from the appliance, you can wash them under running water. Dry them afterwards. Never place the plates into the dishwasher.
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
• Do not immerse in water or any other liquid.

REMARK: You can order spare baking plates from our customer service.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
