Product type	Mini chopper / Food processor
Brand	Moulinex
Model	Illico Y92
Power supply	220-240 V, 50-60 Hz
Power	Approx. 250 W (estimated)
Bowl capacity	Approx. 500 ml
Bowl material	Plastic
Blade material	Stainless steel
Main functions	Chopping, sprinkling, making mayonnaise
Control type	Manual by pressing the motor unit (pulses)
Safety	Lid locking with a click, unplug after use, do not use empty
Maintenance	Motor unit cleanable with a damp sponge; bowl, lid and blades washable in soapy water; blades very sharp, handle with care
Included accessories	Sprinkler lid, bowl, knife, standard lid
Spare parts	Available from Moulinex service (knife, bowl, lid, etc.)
Warranty	1 year parts and labor
Net weight	Approx. 1.2 kg
Dimensions (L x W x H)	Approx. 15 x 15 x 25 cm
Cord length	Approx. 1 m
Color	White

Frequently Asked Questions - Illico Y92 MOULINEX

How to assemble the Illico Y92 mini chopper?

Fit the knife onto the bowl spindle, add the ingredients, place the lid turning until it clicks into place, then put the motor unit on. Plug in and press the top of the motor to start.

Can I chop nuts or almonds?

Yes, the Moulinex Illico Y92 can chop walnuts, hazelnuts or almonds. Respect recommended quantities (50 g max) and operate in 10-15 second pulses.

How to make mayonnaise with this food processor?

Put 1 egg yolk, 1 teaspoon mustard, 1 tablespoon water, 1 teaspoon vinegar and 1 tablespoon oil in the bowl. Blend for 20 seconds, then add the remaining oil (100 ml) and blend for 40 seconds. All ingredients must be at room temperature.

The sprinkler lid, how to use it?

After chopping, replace the standard lid with the sprinkler lid. Use the small holes for sugar, salt, pepper, breadcrumbs, hazelnuts; the large holes for parsley, garlic, ham, egg yolks.

How to clean the motor unit?

Never put the motor unit under water or in the dishwasher. Clean it with a slightly soapy damp sponge, then wipe dry.

Are the blades and bowl dishwasher safe?

Yes, the bowl, standard lid, sprinkler lid and blades can be washed in the dishwasher. Caution: blades are very sharp, handle with care.

What to do if the appliance does not start?

Check that the lid is properly locked (click) and the motor unit is correctly positioned. Make sure the appliance is plugged in and the voltage matches your installation.

Can I chop onions without crying?

Yes, the closed system allows chopping onions quickly (10 seconds in pulse) without the vapors making you cry. Be careful not to overfill the bowl.

Where to buy spare parts such as the knife or bowl?

You can purchase original spare parts from your usual retailer or the nearest Moulinex approved service center.

What is the warranty period?

Your Moulinex Illico Y92 appliance has a full one-year parts and labor warranty from the date of purchase. Refer to the Moulinex Service booklet for detailed conditions.

USER MANUAL Illico Y92 MOULINEX

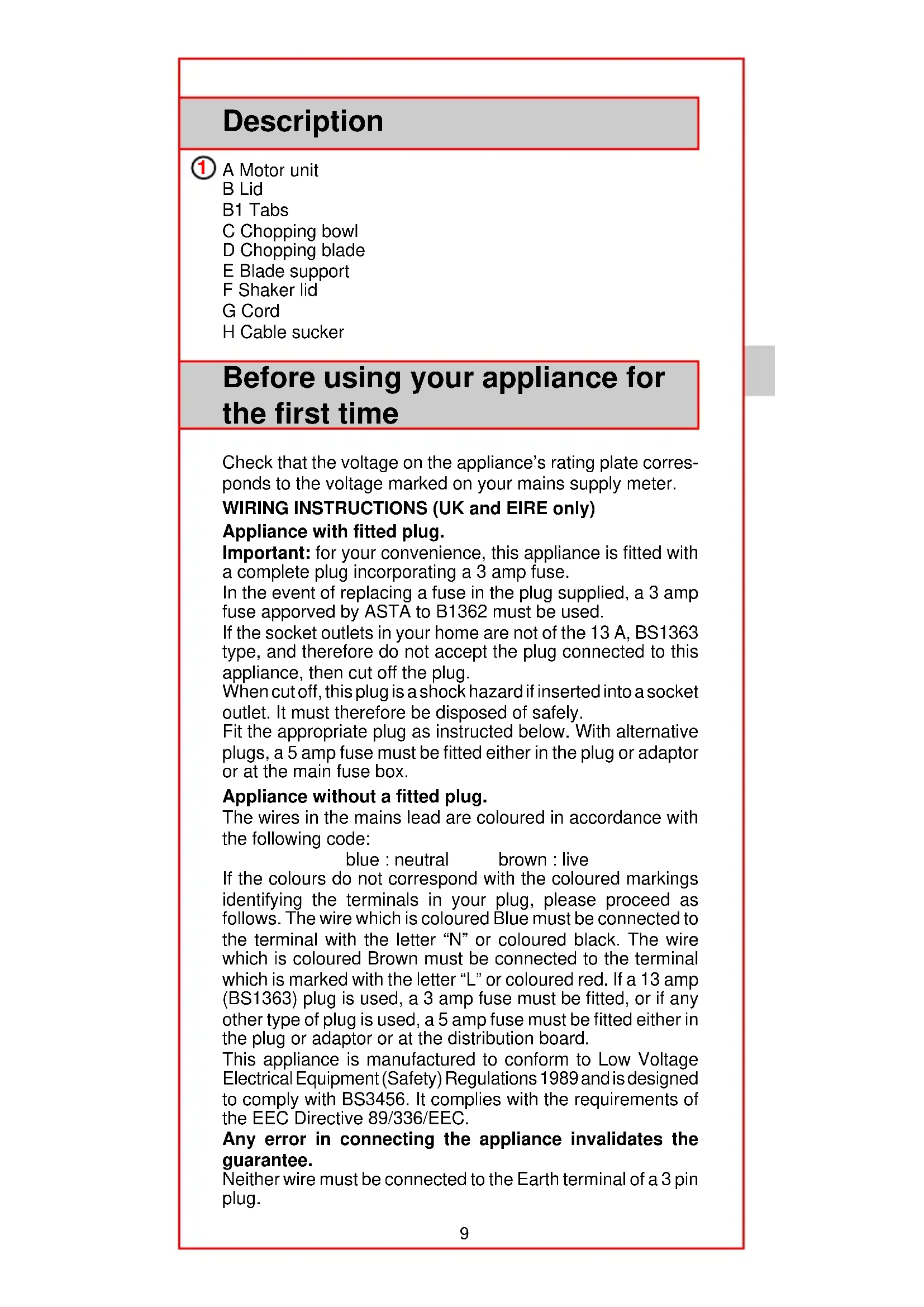

Before using your appliance for the first time

Check that the voltage on the appliance's rating plate corresponds to the voltage marked on your mains supply meter.

WIRING INSTRUCTIONS (UK and EIRE only)

Appliance with fitted plug.

Important: for your convenience, this appliance is fitted with a complete plug incorporating a 3 amp fuse.

In the event of replacing a fuse in the plug supplied, a 3 amp fuse approved by ASTA to B1362 must be used.

If the socket outlets in your home are not of the 13 A, BS1363 type, and therefore do not accept the plug connected to this appliance, then cut off the plug.

When cut off, this plug is a shock hazard if inserted into a socket outlet. It must therefore be disposed of safely.

Fit the appropriate plug as instructed below. With alternative plugs, a 5 amp fuse must be fitted either in the plug or adaptor or at the main fuse box.

Appliance without a fitted plug.

The wires in the mains lead are coloured in accordance with the following code:

blue:neutral brown:live

If the colours do not correspond with the coloured markings identifying the terminals in your plug, please proceed as follows. The wire which is coloured Blue must be connected to the terminal with the letter "N" or coloured black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter "L" or coloured red. If a 13 amp (BS1363) plug is used, a 3 amp fuse must be fitted, or if any other type of plug is used, a 5 amp fuse must be fitted either in the plug or adaptor or at the distribution board.

This appliance is manufactured to conform to Low Voltage Electrical Equipment (Safety) Regulations 1989 and is designed to comply with BS3456. It complies with the requirements of the EEC Directive 89/336/EEC.

Any error in connecting the appliance invalidates the guarantee.

Neither wire must be connected to the Earth terminal of a 3 pin plug.

If the mains lead is damaged, it should be replaced by a Moulinex approved Service Agent, as special tools are required.

Safety advice

Please follow the instructions below carefully as a security measure when using the Illico mini chopper:

• unplug the appliance after each use,
• do not clean the motor unit under running water nor wash it in a dishwasher; clean it with a damp cloth,

Warning : handle the blade with care: it is very sharp, Important:

• do not use the appliance when it is empty,
• in order to obtain smooth and finely chopped meat, distribute the meat evenly in the bowl with a spatula,
• the blade may need replacing after heavy long term use: a new blade will give you first class results from your appliance,
• allow the appliance to cool down for 2 minutes after each use.

Using your Illico Mini Chopper

(2)

• inside the bowl (C), place the blade (D) on the blade support (E) and the ingredients to be chopped,
• place the lid (B) in the bowl (C) and turn to lock (until you hear it click into place),
• place the motor unit on the lid-bowl assembly by twisting it slightly, so that the blade axis fits into the motor unit axis,
• plug in your appliance,
• press down on the motor unit (A), and the mini-chopper starts up immediately,
• unplug the appliance, and wait for the blade to stop completely
• remove the motor unit (A), the lid (B), by pressing down on the two tabs (B1) and the blade (D)

. Shaker lid:

(3)

After chopping, you can sprinkle your ingredients directly on to a plate; you simply have to replace the lid (B) with the shaker lid (F). You can now sprinkle according to the ingredients:

. small holes: biscuits, hazelnuts, sugar, salt, pepper,
. big holes: parsley, garlic, ham, yolk,

Food Maximum Quantity Maximum	mTime
Parsley 5 g 15 secs
Onions 50 g 10 secs in pulse
Shallots 50 g 10 secs in pulse
Garlic 30 g 10 secs in pulse
Biscuits 10 g 15 secs
Almonds 50 g 15 secs
Hazelnuts 50 g 15 secs
Walnuts 50 g 15 secs
Gruyere, Cheddar 50 g 15 secs
Hard Boiled Eggs 2 yolks	5 secs in pulse
Meat (lean)	50 g 15 secs
Ham	50 g 15 secs

How to make a success of your mayonnaise?

Ingredients: 1 yolk, 1 teaspoonful of mustard, 1 tablespoonful of water, 1 tablespoonful of vinegar, 100ml of oil, salt, pepper.

• put the ingredients into the bowl and add 1 tablespoonful of the oil,
• premix the ingredients in your mini chopper for 20 secs,
• add the remaining oil and operate for 40 secs.

It is important that all the ingredients are at the same temperature.

Storage

After use, you can store your mini chopper by wrapping the cord around the motor unit (G) and attaching the sucker (H).

Maintenance

Spare parts and accessories can be obtained from our Moulinex Approved Service Agents listed in the "Moulinex Service" leaflet, or from your local stockist. Important: If the mains lead is damaged, take it to a Moulinex Service Agent to be replaced, as special tolls are required.

Our team of Moulinex Service Agents is available to :

• Repair or check Moulinex appliances in or out of the guarantee period,
• Sell spare parts and accessories,
• Give advice about the use and maintenance of Moulinex products.

The guarantee

Your Moulinex appliance is covered by a one-year guarantee including parts and labour.

See conditions of guarantee detailed in the "Moulinex Service" leaflet.

After sales service

If your appliance is not functioning correctly, consult your "Moulinex Service" leaflet for a list of our professional team of service agents and addresses.

Accessories and spare parts

Spare parts as well as accessories can be obtained from our Moulinex Approved Service Agents listed in the "Moulinex Service" leaflet.

Customer services

Contact the Customer Service department indicated in the "Moulinex Service" leaflet.

A team of specialists is available to advise you and to help you get the most out of your Moulinex appliance.

Moulinex products

This product is only one of a wide range of high quality Moulinex products designed to make everyday tasks simpler. From food processors to vacuum cleaners and from microwaves to irons, covering a wide range of food preparation products to suit every requirement, all produced to a high standard and with the Moulinex guarantee of quality.

Beschreibung

A Motorblock

B Deckel

B1 Laschen

C Arbeitssschüsse

D Hackmesser

E Zentrierachse

F Streudeckel

G Zuleitung
