Albert little - Dehumidifier STADLERFORM - Free user manual and instructions

Product type	Air dehumidifier
Brand	STADLERFORM
Model	Albert little
Dimensions (W x H x D)	298 x 555 x 216 mm
Weight	10.5 kg
Power supply	220 - 240 V, 240 W max
Tank capacity	2.0 L
Max dehumidification capacity	10 L/day (at 35 °C, 90% RH)
Max coverage area	40 m² (100 m³)
Noise level	32 - 43 dB(A)
Refrigerant	R134a (120 g)
Main functions	On/Off switch, adjustable hygrostat, speed selector (2 levels), Swing function, night mode, automatic defrost mode, continuous drainage possible
Safety	Automatic shut-off when tank full, anti-freeze protection (defrost), child safety (use by children over 8 years under supervision)
Maintenance	Clean the casing with a damp cloth, vacuum clean the air filter
Spare parts / Accessories	Air filter, water tank, continuous drainage hose (included)
Warranty	2 years
Usage	Indoor only
Operating temperature	10 °C to 35 °C
Recommended safety distance	50 cm from objects, 60 cm from sanitary blocks, 120 cm from fixed water outlets

Frequently Asked Questions - Albert little STADLERFORM

How to turn on the Albert little dehumidifier?

Place the unit on a flat surface, plug the power cord into an electrical outlet, then press the On/Off switch (3) to turn it on.

What to do when the water tank is full?

When the tank is full, a symbol flashes on the control panel and the unit turns off automatically. Empty the tank, then replace it. The unit restarts automatically.

How to use continuous drainage?

Connect the drainage hose (included) to the unit through the hole at the back, then place the end of the hose in a water drain. Make sure the end of the hose is below the tank to avoid flooding.

What is the Swing function for?

The Swing function distributes dry air optimally in the room by directing the air outlet. It is also useful for drying clothes quickly.

How to reduce the brightness of the control panel?

Press the night mode (7) to reduce the intensity of the LED light, ideal in a bedroom.

What is the recommended operating temperature?

The recommended temperature range is 10 °C to 35 °C. Below 10 °C, the defrost mode activates frequently, reducing efficiency.

Can I use an extension cord?

No, it is forbidden to use an extension cord or a power strip according to safety instructions. Plug the unit directly into a grounded wall outlet.

How to clean the air filter?

Remove the filter at the air intake and vacuum the dirt with a vacuum cleaner. Do not wash the filter with water. Clean it regularly to maintain performance.

What to do if the unit does not work after transport?

After transport, place the unit upright and wait at least 60 minutes before turning it on. Before first use, let it rest upright for 24 hours.

Where should I place the unit for optimal efficiency?

Place it on a flat, water-resistant surface, at least 50 cm from obstacles (curtains, furniture) and 60 cm from sanitary blocks. Avoid direct sunlight and water sources.

USER MANUAL Albert little STADLERFORM

Operating instructions

Gebrauchsanweisung

Mode d'emploi

Albert little

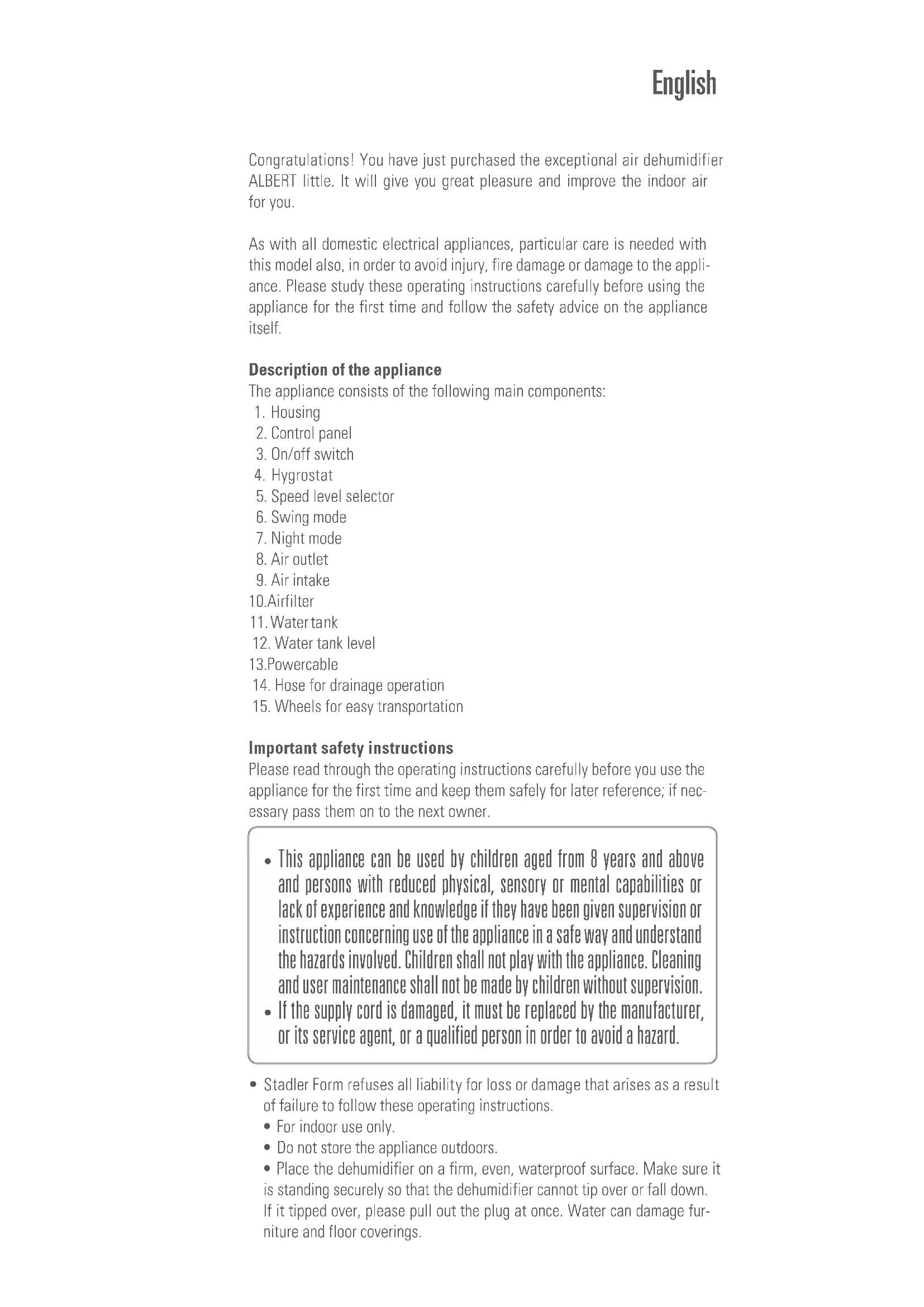

Congratulations! You have just purchased the exceptional air dehumidifier ALBERT little. It will give you great pleasure and improve the indoor air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

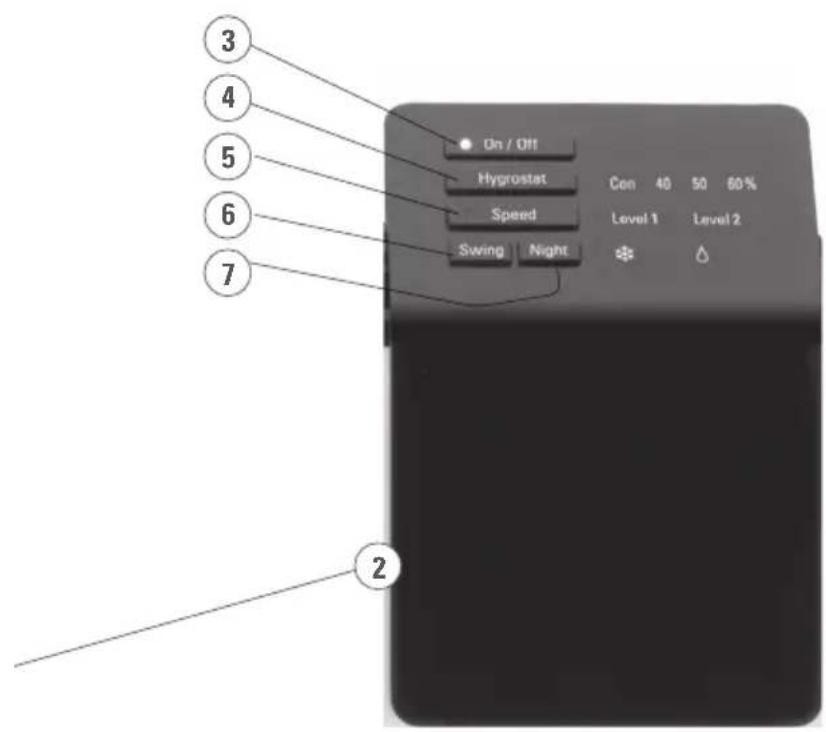

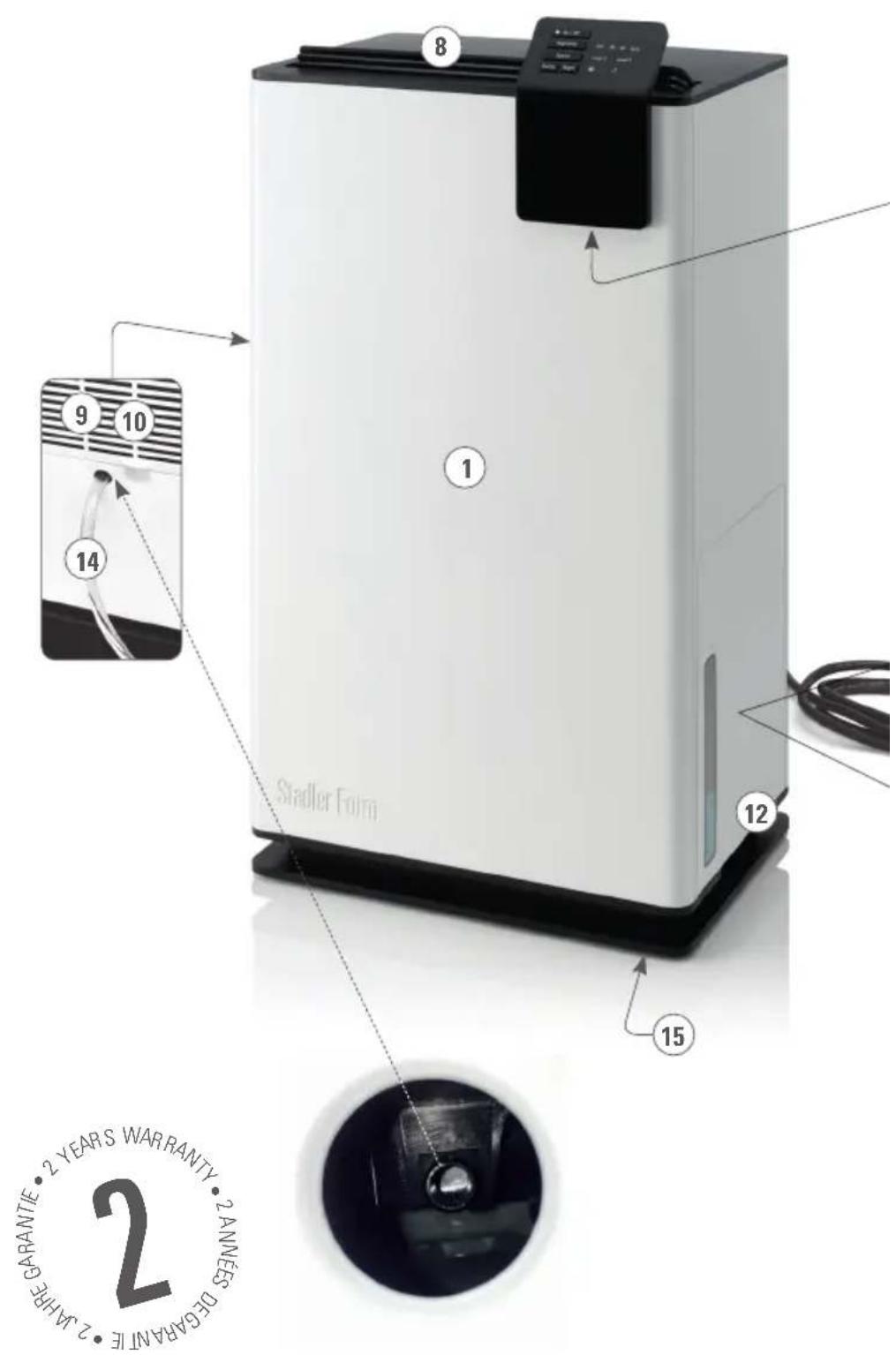

Description of the appliance

The appliance consists of the following main components:

1. Housing
2. Control panel
3. On/off switch
4. Hygrostat
5. Speed level selector
6. Swing mode
7. Night mode
8. Air outlet
9. Air intake
   10.Airfilter
10. Water tank

11. Water tank level
    13.Powercable

12. Hose for drainage operation

13. Wheels for easy transportation

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.

- Stadler Form refuses all liability for loss or damage that arises as a result of failure to follow these operating instructions.

• For indoor use only.
• Do not store the appliance outdoors.
• Place the dehumidifier on a firm, even, waterproof surface. Make sure it is standing securely so that the dehumidifier cannot tip over or fall down. If it tipped over, please pull out the plug at once. Water can damage furniture and floor coverings.

- Unwind the cord completely. An incompletely unwound cord can lead to overheating and cause a fire.

- Do not use an extension cord, a multiway connector, or a continuously adjustable speed controller. This can cause overheating, fire, or electric shock.

- Connect the dehumidifier only to a single-phase socket with the supply voltage as stated on the type plate.

- Always switch the dehumidifier off with the power key and always disconnect the plug from the power socket when the dehumidifier is not in use, or when it is moved, handled or cleaned. Do not tug at the cord to disconnect the plug. Do not disconnect the plug when the dehumidifier is running. Always first switch the dehumidifier off with the power key.

- The dehumidifier functions optimally at a room temperature of between 13 °C and 35 °C. The specified dehumidifying performance is only achievable in the higher temperature range (from 22 °C) and with higher room humidity (from 70 %). The lowest recommended operating temperature is 10 °C. In case of lower temperatures, the DEFROST mode is activated too frequently. The highest operating temperature is 35 °C and the relative humidity is 90 %.

- Do not use the dehumidifier anywhere near easily inflammable gases or substances, near an open fire, or at a location where oil and water could splash. Do not spray insecticides or similar substances onto the dehumidifier. Make sure that the dehumidifier is not exposed to direct sunlight. Do not use the dehumidifier in a hothouse or near a bathtub, shower or swimming pool. Do not put any hot or heavy objects on the dehumidifier.

- The air intake and air outflow vents must always be kept open during de-humidification. Make sure that no objects can get into the air intake or air outflow vents. This can lead to overheating, fire or electric shock. The de-humidifier must not be installed behind curtains, drapes or other objects and obstacles that could impair the air circulation. A safety distance of at least 50 cm from other objects must be maintained. In addition, a safety distance of at least 60 cm from wet areas such as showers, washbasins, sinks, bathtubs etc. must be maintained. A safety distance of 120 cm from the water supply, e.g. a water tap, is necessary.

- When operating to dry clothes keep the clothing at least 50 cm away from the unit and do not allow water to drip onto the unit.

- Do not remove the water tank while the dehumidifier is running. Drops of remaining water could damage furniture and floor-coverings.

- Wait for 3 – 5 minutes after switching the dehumidifier off before you switch it back on again.

- Do not immerse the dehumidifier into water or any other liquids and do not pour water or any other liquids onto the appliance or into the air intake and air outflow vents.

- Clean the dehumidifier regularly, following the cleaning instructions.

- Always transport the dehumidifier in an upright position. Before using the dehumidifier for the first time, leave it standing in an upright position for 24 hours. Always stand the dehumidifier in an upright position immediately after transporting the appliance, and wait for at least 60 minutes before switching it back on. The water tank must be emptied every time before transport.

- The dehumidifier must always be operated according to this instruction manual. Non-observance of these instructions can lead to injuries, a fire, electric shock or faults in the appliance.

• The dehumidifier is designed for private use indoors and is not intended for commercial use.
• Do not use the dehumidifier if it is faulty or could show signs of damage, or if it is not functioning correctly. Disconnect the plug from the power socket.
• The appliance shall be installed in accordance with national wiring regulations.

Setting up / operation

1. Place Albert little on a flat surface in the desired area. Plug the power cable (13) into an electric socket.
2. Press the on/off switch (3) to turn on the dehumidifier.
3. You can select the speed of the fan in the dehumidifier by pushing the speed level selector (5). There are 2 speed levels. If the speed is higher, the dehumidifying performance also increases.
4. With the hygrostat (4) the desired humidity level can be set (Con = continuos). A humidity level not higher than 60 % is suggested in general. If the dehumidifier reached the selected humidity it will turn off and after that check the humidity level in constant intervals by turning on the fan for a short time.
5. The swing mode (6) allows to optimally distribute the dry air in the room. This mode is also suitable for example to dry clothes fast and efficient.
6. If you find the control panel and LED too bright (in a bedroom for example), you may reduce the light intensity by pressing the night mode (7).

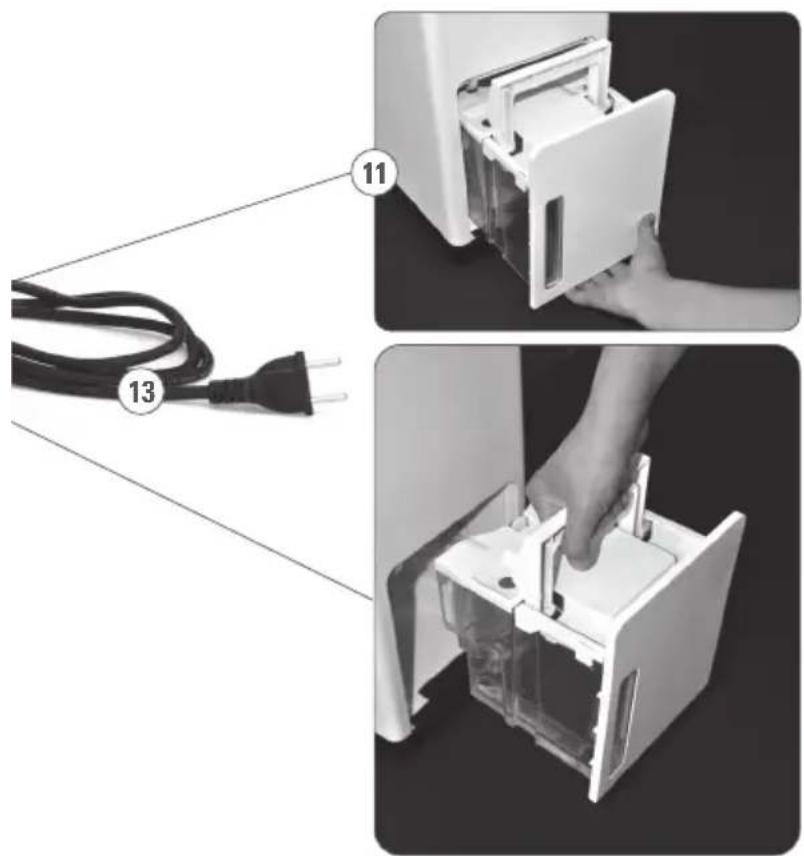

7. Once the water tank is full, the blinking symbol will appear on the control panel and the dehumidifier turns off automatically. Please empty the tank. Once you put back the tank, the unit will automatically restart.
8. Defrost function: If the temperature in the room is below 10° C, the dehumidifier automatically runs in defrost mode. This mode is shown on the control panel and frost build up in the unit will be avoided during dehumidification. This function will be activated every 25 minutes for a duration of 7 minutes.
9. If desired, it is possible to connect a drainage hose to the unit for permanent water drainage. In this case connect the hose (2 m) (14) to the unit through the hole in the back of the dehumidifier and place the end of the drainage in a water outlet. Please make sure the end of the hose is lower than the spout, otherwise the water will not drain and flooding may occur.
10. For easy side movement of the unit there are hidden wheels (15) attached. Empty the tank first before moving the dehumidifier.

Cleaning

Before servicing the appliance and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

• Attention: Never immerse the appliance in water (danger of short-circuit).
• To clean the appliance, only wipe it down with a damp cloth and then dry it carefully.
• In case the filter (10) at the air inlet (9) is dirty or dusty, take the filter out and remove the dirt/dust with a vacuum cleaner.

- If you don't use the dehumidifier for some time, empty the water tank and dry the unit fully before storing it in its original carton.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Rated voltage 220 - 240 V

Power output 240 W (35 °C 90 % RH) max.

Room size (up to) 40 m ² /100 m ³

Dimensions 298 x 555 x 216 mm

(width x height x depth)

Weight 10.5 kg

Tank capacity 2.0 L

Max. capacity per day 10 L

Sound level 32 - 43 dB(A)

Refrigerant: R134a (120 g)

Complies with EU

regulations CE / WEEE / RoHS / EAC

All rights for any technical modifications are reserved

Français

normative UE CE / WEEE / RoHS / EAC

Español

Dansk

Suomi

Norsk

Svenska

Русский

Warranty/Garantie/Garantie/Garanzia/Garantía Garantie/Garanti/Takuu/Garanti/Garanti

2 Years warranty

This warranty covers defects of construction, manufacturing and material. Excluded are all wearing parts and improper usage, or consequential damages due to lack of cleaning and/or descaling of the appliance.

2 Jahre Garantie

Design by Matti

Thanks to all people involved in this project: Stanley Chen for his engagement and translations, Vincent Hsu for the vast knowledge and main engineering, Tao Xu for his CAD work, Claudia Fagagnini for the photos, Matti Walker for the timeless design and graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
