Flupow - Power bank HAMA - Free user manual and instructions

Brand	Hama
Model	Flupow
Product type	Portable battery (Power Pack)
Battery capacity	2 600 mAh
Battery technology	Lithium-ion
Output voltage	5 V DC
Max output current	1 000 mA
Operating temperature range	0 °C to 40 °C
Charging input	Micro USB
Charging output	USB-A port
Package contents	Power Pack, USB cable, user manual
Charge indicator	Red LED (charging), blue LED (charged)
Cleaning and maintenance	Slightly damp lint-free cloth, avoid harsh detergents
Safety instructions	Protect from moisture, do not open, do not expose to shocks, do not overload
Recycling	Do not dispose of with household waste, follow local guidelines
Warranty	Warranty exclusion in case of misuse
Customer service	Hotline: [phone], website: www.hama.com

Frequently Asked Questions - Flupow HAMA

How do I charge the Flupow portable battery?

Connect the included USB cable to the micro USB input of the battery and to a computer USB port or a suitable USB charger. The red LED indicates charging, the blue LED indicates charging is complete. Fully charge the battery before first use.

Can I charge my smartphone with this battery?

Yes, connect the USB cable to the USB output of the battery and to your smartphone. Charging starts automatically. Preferably use the cable provided with your phone if the included one is not compatible.

What is the capacity of the Flupow battery?

The battery capacity is 2 600 mAh with lithium-ion technology.

Is it possible to charge the battery and a device at the same time?

No, it is not recommended to simultaneously connect the charging cable to the input and output of the battery, as this may damage the battery.

How long does it take to fully charge the battery?

The charging time depends on the charger used. With a 1 A charger, allow approximately 3 to 4 hours for a full charge.

Can I use the battery continuously while charging?

No, it is not recommended to charge and discharge simultaneously. Wait until the battery is fully charged before using it to charge a device.

How to clean the Hama Flupow portable battery?

Use a slightly damp lint-free cloth to clean the surface. Avoid any harsh detergents or solvents.

What to do in case of prolonged non-use?

Recharge the battery at least once every quarter to prevent deep discharge. Store it in a dry place at moderate temperature.

Is the battery covered by a warranty?

The warranty may be excluded in case of damage resulting from improper use. For any questions, contact Hama customer service at [phone] or visit www.hama.com.

How to recycle the Hama Flupow battery?

Do not throw the battery in household waste. Take it to a designated collection point or to your retailer. Follow local recycling guidelines in accordance with the European directive.

USER MANUAL Flupow HAMA

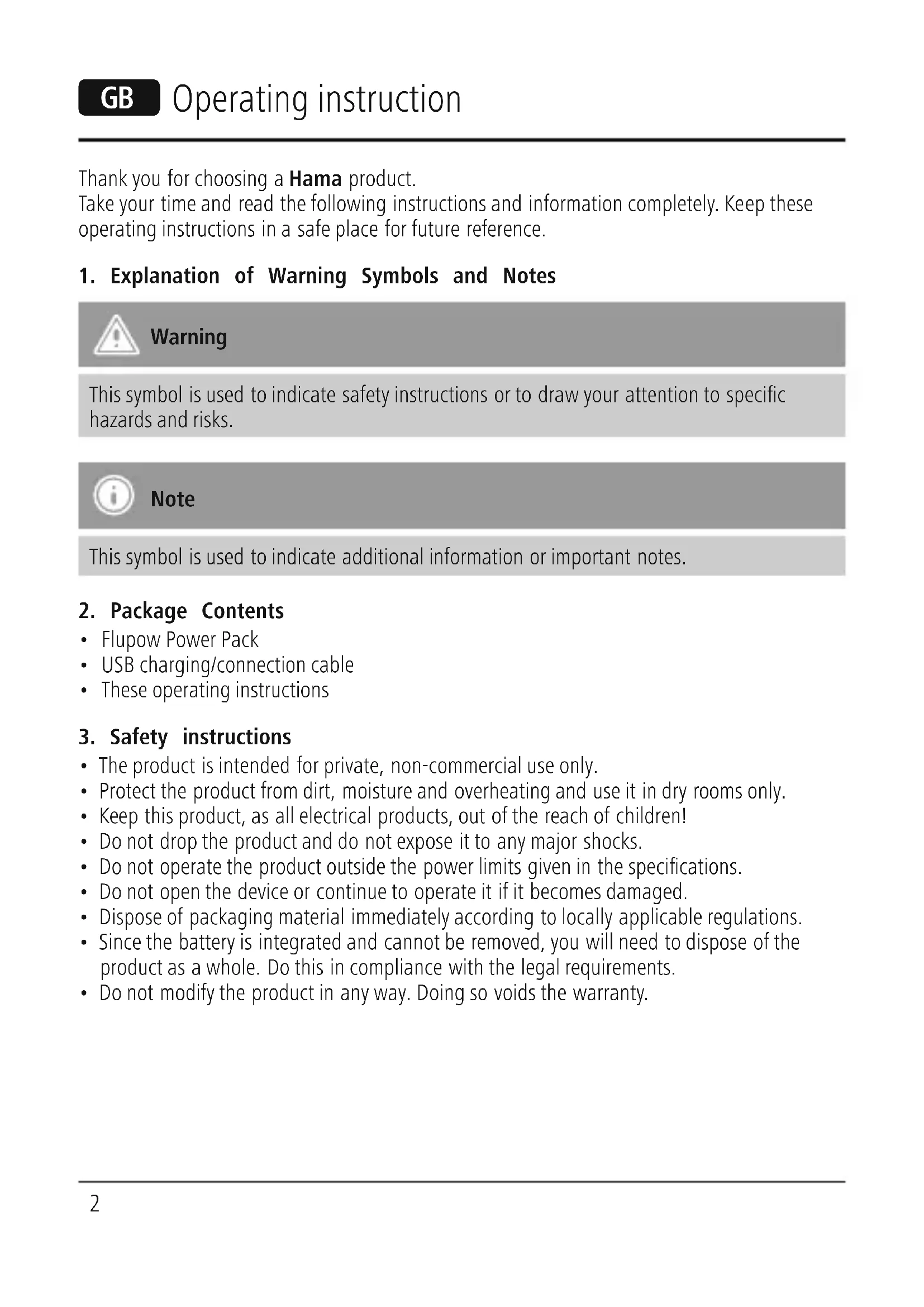

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Keep these operating instructions in a safe place for future reference.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2. Package Contents

• Flupow Power Pack
  • USB charging/connection cable
  • These operating instructions

3. Safety instructions

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• Keep this product, as all electrical products, out of the reach of children!
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Do not open the device or continue to operate it if it becomes damaged.
• Dispose of packaging material immediately according to locally applicable regulations.
• Since the battery is integrated and cannot be removed, you will need to dispose of the product as a whole. Do this in compliance with the legal requirements.
• Do not modify the product in any way. Doing so voids the warranty.

4. Operation

4.1 Charging the Power Pack

• Begin charging the Power Pack by connecting the USB charging/connecting cable included to the microUSB input on the Power Pack as well as the USB connection on a PC/notebook.
• Alternatively, you can charge the Power Pack using a suitable USB charger. Please refer to the operating instructions for the USB charger used.
• Charging begins and ends automatically.
• The LED capacity indicator is red during the charging process. As soon as the charging process is completed, the LED capacity indicator turns blue.
• Charge the Power Pack fully before using it for the first time.

Warning - Battery

• Only use suitable charging devices or USB connections for charging.
• As a rule, do not charge devices or USB connections that are defective and do not try to repair them yourself.
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging or using batteries in extreme temperatures.
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

4.2 Charging terminal devices

• Connect the USB charging/connecting cable included to the USB port on the Power Pack and to the microUSB port on your terminal device (smartphone, MP3 player, etc.).
• The included USB charging/connection cable may not be suitable for the USB connection on your terminal device. In this case, use the USB cable that was included with your terminal device.
• Charging begins automatically.
• Charging stops automatically when the terminal device is fully charged.
• The current battery status of your terminal device will appear on this device.

Warning

Never connect the charging cable of the Power Pack to both the input and the output of the Power Pack at the same time. This could damage the battery.

5. Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:

www.hama.com

8. Specifications

Power consumption: max. 500 mA
Power Pack voltage: 5 V DC
Typ. capacity: 2600 mAh
Min. capacity: 2500 mAh
Technology: Lithium-ion
Power output: max. 1000 mA
Temperature range: 0°C – 40°C

9. Recycling Information

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

86652 Monheim/Germany

www.hama.com
