Design Line 178217 - Power bank HAMA - Free user manual and instructions

Product type	Portable battery
Brand	Hama
Model	Design Line 178217
Battery capacity	5200 mAh
Battery type	Lithium-ion (integrated)
Input voltage	5 V DC (Micro-USB)
Input current	500 mA max
Output voltage	5 V DC (USB)
Output current	2100 mA max
Capacity display	4 LEDs (25% per LED)
Functions	Battery charging, device charging, LED flashlight, charge optimization
Flashlight	Built-in LED, activation by double press
Material	Plastic (estimated)
Dimensions	Approximately 100 x 60 x 20 mm (estimated)
Weight	Approximately 150 g (estimated)
Operating temperature range	0 °C to 45 °C
Maintenance and cleaning	Slightly damp lint-free cloth, no harsh detergents
Safety	Do not open, do not expose to moisture, do not short-circuit, do not use a defective charger
Package contents	Power bank, Micro-USB cable, instruction manual
Warranty	Legal warranty, modifications void warranty
Recycling	Do not dispose of with household waste, follow local regulations

Frequently Asked Questions - Design Line 178217 HAMA

How to charge the Hama Design Line 178217 portable battery?

Connect the provided Micro-USB cable to the battery\'s Micro-USB input (IN 5V/500mA) and to a USB port on a computer or a suitable USB wall charger. Charging starts automatically and the LEDs indicate capacity.

How long does it take to fully charge the battery?

Charging time depends on the power source. With a standard USB port (500 mA), full charge takes about 10 hours. With a 2A charger, it can take about 3 hours.

How do I know when the battery is fully charged?

All four LED indicators stay on continuously when the battery is full (100%). Each LED represents 25% capacity.

What devices can I charge with this battery?

You can charge smartphones, mobile phones, tablets, and other devices compatible with USB charging, as long as their consumption does not exceed 2100 mA. Use the cable suitable for your device.

How to use the built-in flashlight?

Press the button on top of the battery twice quickly to turn the LED flashlight on or off. Prolonged use quickly reduces remaining capacity.

Can I charge the battery and a device at the same time?

No, it is not recommended to connect a device while the battery is charging, as this may damage the battery or connected devices.

What to do if the battery does not charge?

Check that the Micro-USB cable and power source are working properly. Try another cable or USB port. If the problem persists, the battery may be defective.

How to clean the portable battery?

Use a soft, lint-free cloth slightly dampened. Avoid harsh detergents or solvents. Never immerse the device in water.

Can I take this battery on an airplane?

Portable batteries of 5200 mAh are generally allowed in cabin luggage, but check your airline\'s regulations. Carry it in your carry-on baggage.

How to recycle the battery at the end of its life?

Do not dispose of the battery with household waste. Take it to a collection point for batteries or return it to a retailer in accordance with European Directive 2006/66/EC.

USER MANUAL Design Line 178217 HAMA

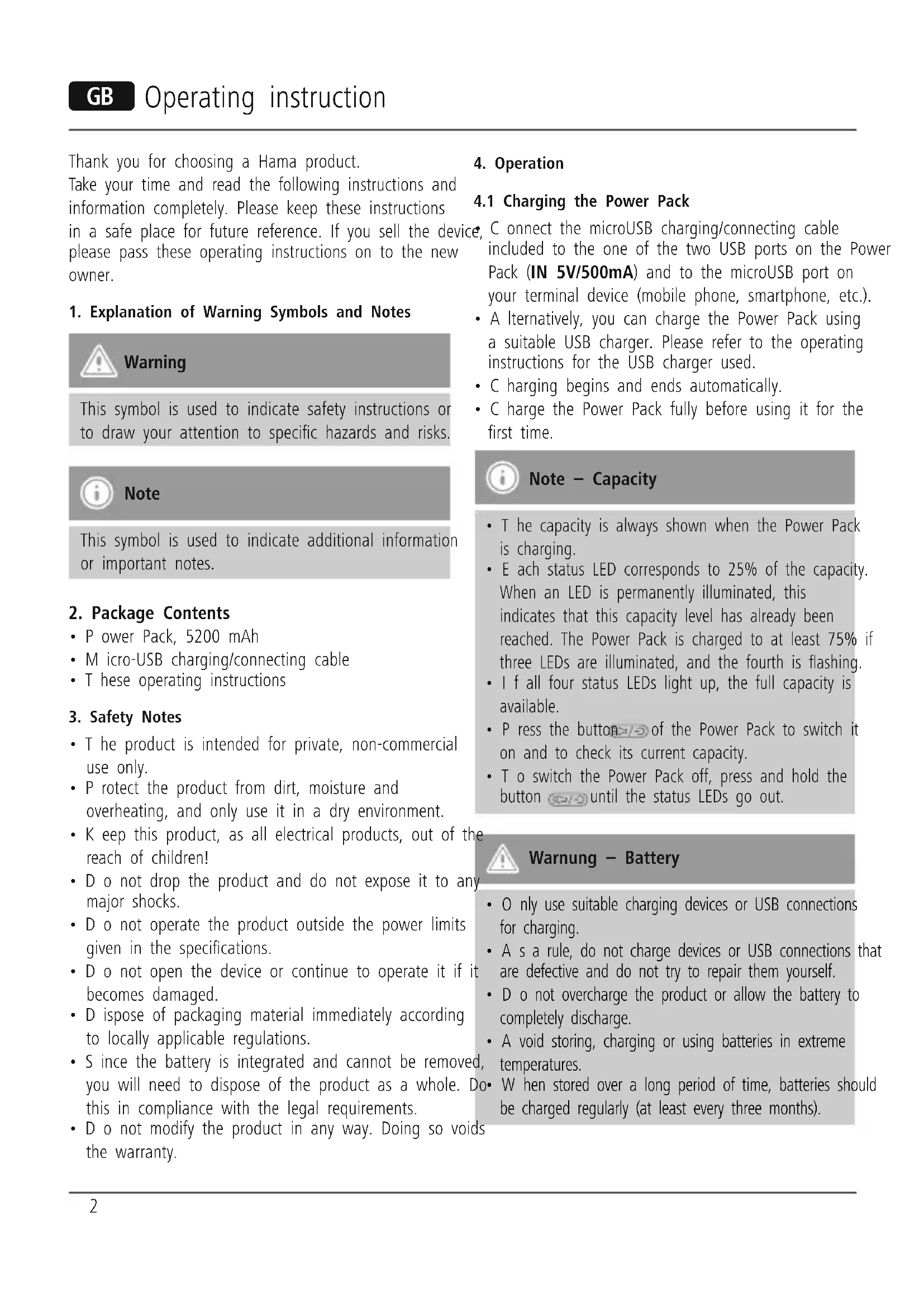

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2. Package Contents

• Power Pack, 5200 mAh
- M micro-USB charging/connecting cable
• These operating instructions

3. Safety Notes

• The product is intended for private, non-commercial use only.
• P rotec the product from dirt, moisture and overheating, and only use it in a dry environment.
• Keep this product, as all electrical products, out of the reach of children!
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Do not open the device or continue to operate it if it becomes damaged.
• D ispose of packaging material immediately according to locally applicable regulations.
• Since the battery is integrated and cannot be removed, you will need to dispose of the product as a whole. Do this in compliance with the legal requirements.
• Do not modify the product in any way. Doing so voids the warranty.

4. Operation

4.1 Charging the Power Pack

C onnect the microUSB charging/connecting cable included to the one of the two USB ports on the Power Pack (IN 5V/500mA) and to the microUSB port on your terminal device (mobile phone, smartphone, etc.).

• A Internatively, you can charge the Power Pack using a suitable USB charger. Please refer to the operating instructions for the USB charger used.
• C harging begins and ends automatically.
• Charge the Power Pack fully before using it for the first time.

Note - Capacity

• The capacity is always shown when the Power Pack is charging.
• E ach status LED corresponds to 25% of the capacity. When an LED is permanently illuminated, this indicates that this capacity level has already been reached. The Power Pack is charged to at least 75% if three LEDs are illuminated, and the fourth is flashing.
• If all four status LEDs light up, the full capacity is available.
• Press the button of the Power Pack to switch it on and to check its current capacity.
• To switch the Power Pack off, press and hold the button until the status LEDs go out.

Warnung – Battery

• Only use suitable charging devices or USB connections for charging.
• A s a rule, do not charge devices or USB connections that are defective and do not try to repair them yourself.
• Do not overcharge the product or allow the battery to completely discharge.
• A void storing, charging or using batteries in extreme temperatures.
• When stored over a long period of time, batteries should be charged regularly (at least every three months).

4.2 Charging terminal devices

• Connect the included Micro-USB charging/connecting cable to the USB port on the power pack (OUT 5V/2,1A) and to the Micro-USB port on your terminal device (mobile phone, smartphone, etc.).
• The Micro-USB charging/connecting cable included may not be suitable for the USB connection on your terminal device. In this case, use the USB cable that was included with your terminal device.
• To start charging, press the button of the Power Pack. The status LEDs show the remaining capacity when the Power Pack is charging.
• The current battery status of your terminal device will appear on this device.
• Press the button of the Power Pack to stop charging and to switch it off. The status LEDs should switch off.
• The Power Pack will automatically switch off after 10 seconds if it is not connected to a terminal device.

Warning - Connecting terminal devices

• B efore connecting a terminal device, check whether the power output of the charger can supply sufficient power for the device.
• Ensure that the total power consumption of the connected terminal device does not exceed 2100 mA.
• P lease refer to the instructions in the operating manual of your terminal device.
• I t is essential that you observe these specifications and the safety instructions regarding the power supply of your devices.

Note – Optimised charging

- Optimised charging means that the Power Pack recognises the connected terminal device and supplies it with the optimal current to minimise charging time. Please note that the maximum power output of the power pack is 2100 mA.

Warning

• N ever connect the charging cable of the Power Pack to both the input and the output of the Power Pack at the same time. This could damage the battery.
• Do not connect any terminal devices while the Power Pack is charging. This could damage the Power Pack and the connected device.

4.3. Torch function

- Press the button twice to switch the integrated LED torch on/off.

Note

• We recommend that you only use the torch for brief periods.
• Longer periods of use negatively affect the Power Pack capacity.
• This product is only intended for use as a torch. This product is not suitable for lighting rooms in domestic households. Due to the brightness of its LED lamp, this product is a special lamp.

5. Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

1. Technical Data

Power consumption max.	500 mA
Power Pack voltage 5 V DC
Typ. capacity: 5200 mAh
Min. capacity: 5000 mAh
Power output max. 2100 mA
Temperature range 0°C –	45°C
Battery type Lithium Ion

9. Recycling Information

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

Remarque – Optimised charging

Avertizare – Acumulator

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
