Product type	Portable battery (Powerbank)
Brand	FRESH N REBEL
Model	2PB100IN
Battery capacity	2600 mAh
Output power	5 W
Input voltage	5 V / 1.5 A (max)
USB output voltage	5 V / 1 A
Dimensions (L x W x H)	31 x 95 x 24 mm
Weight	72 g
Charge indicator	4 LEDs (25%, 50%, 75%, 100%)
Charging LED	Red (charging) / off (completed)
Built-in protections	Overcurrent, overvoltage, overheating, overpower, short circuit
Operating temperature	5 °C to 35 °C (41 °F to 95 °F)
Warranty	2 years against manufacturing defects
Care and cleaning	Clean with a dry cloth; do not use abrasive products
Safety	Do not open, do not expose to moisture or heat sources
Spare parts and repairability	Not user-repairable; contact customer service
General information	Rechargeable lithium-ion battery

Frequently Asked Questions - 2PB100IN FRESH N REBEL

How to charge the portable battery?

Use a micro USB cable (not included) and plug it into a power source (wall adapter or computer). The red LED lights up during charging and turns off once the battery is full. Charging time is about 2 to 3 hours.

How to use the powerbank to charge a device?

Connect your device to the powerbank's USB port, then press the button to start charging. The red LED lights up and turns off when your device is fully charged.

What do the LED indicators mean?

The 4 LEDs indicate the remaining battery level: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%. The red charging LED lights up when the powerbank is charging or charging a device.

What safety precautions should be taken?

Do not open the device, do not expose it to moisture, extreme temperatures (outside 5-35°C), or direct sunlight. Use only compatible cables and adapters to avoid damage.

What is the battery capacity?

The capacity is 2600 mAh, which can fully charge a typical smartphone once or partially depending on the device's battery size.

Is the powerbank compatible with all smartphones?

Yes, it is compatible with most smartphones, tablets, and other devices that charge via USB. Make sure your cable is suitable.

Can I take the powerbank on a plane?

Yes, because its capacity of 2600 mAh is less than 100 Wh (about 9.62 Wh). It is allowed in carry-on luggage, but check airline regulations.

How to store the portable battery when not in use?

Store it in a cool, dry place away from sunlight. Ideally, maintain a charge level of about 50% to extend its lifespan.

What to do if the powerbank does not charge my device?

Check that you pressed the button to start charging. Try another cable or device. If the problem persists, contact Fresh 'n Rebel customer service.

Does the warranty cover accidental damage?

No, the 2-year warranty only covers manufacturing defects under normal use conditions. Accidental damage, wear and tear, or failure to follow instructions are not covered.

USER MANUAL 2PB100IN FRESH N REBEL

Abstract black-and-white symmetrical shape resembling a stylized letter or symbol (no text or symbols present)

FRESH 'N REBEL

POWERBANK 2600mAh

manual

POWER UP!

1. Fully charge your Powerbank before use.

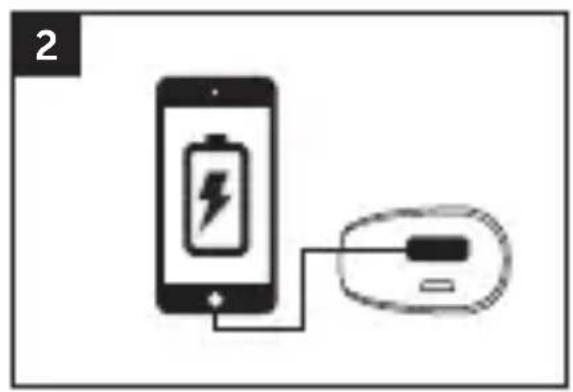

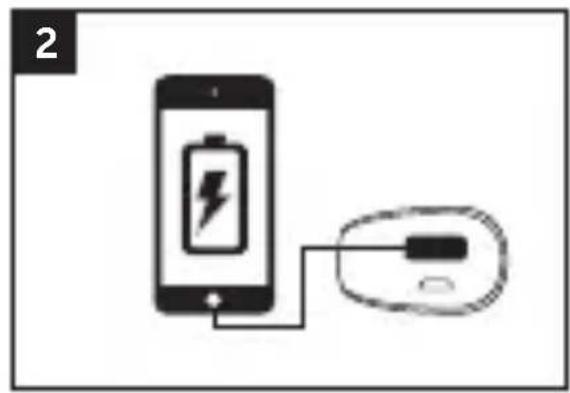

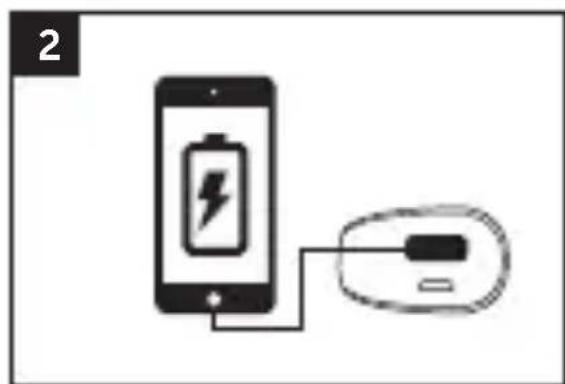

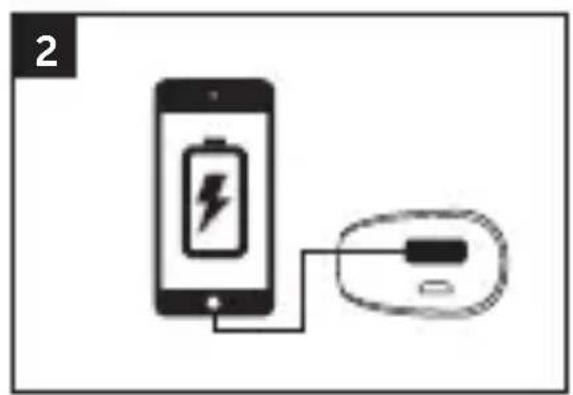

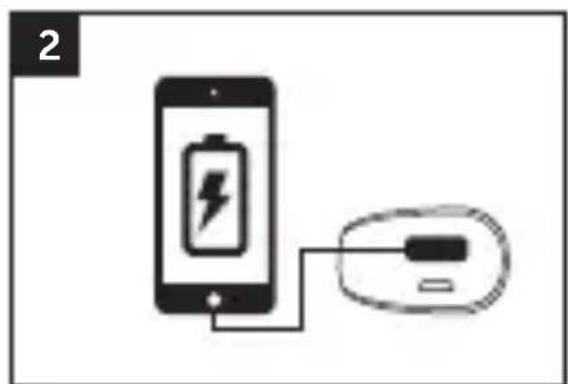

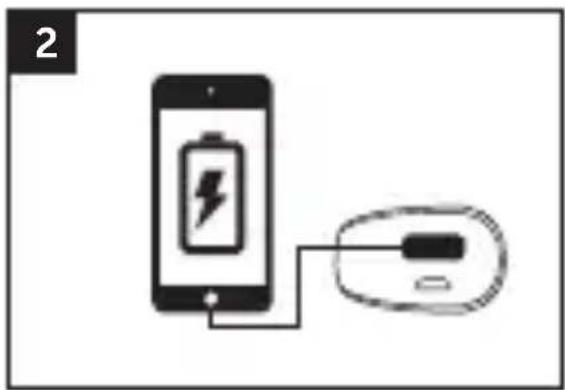

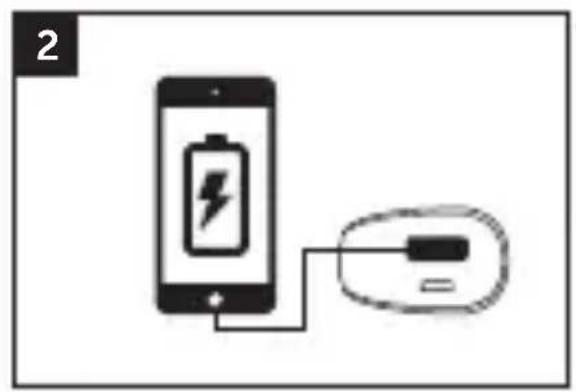

2. Connect the Powerbank to the device you would like to charge.

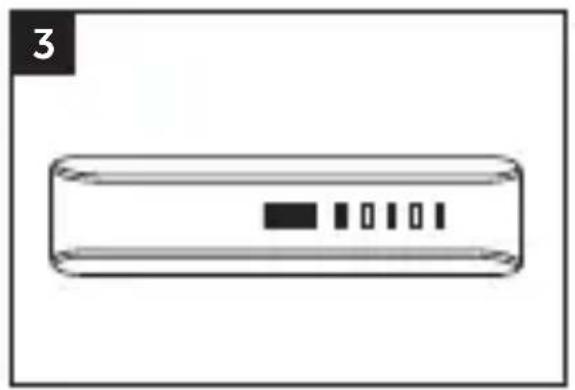

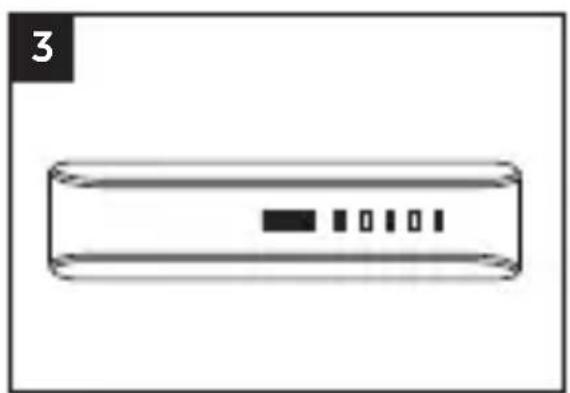

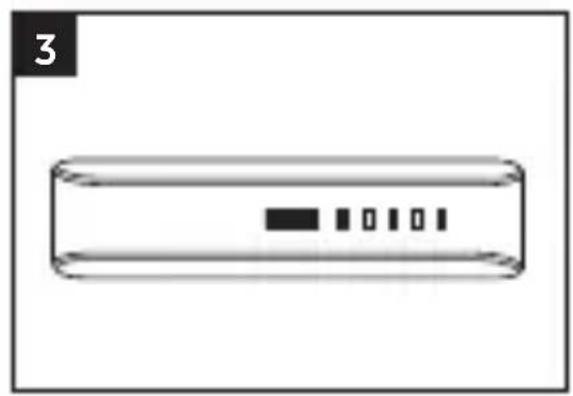

3. Push the button to start charging. The charging LED will light up red.

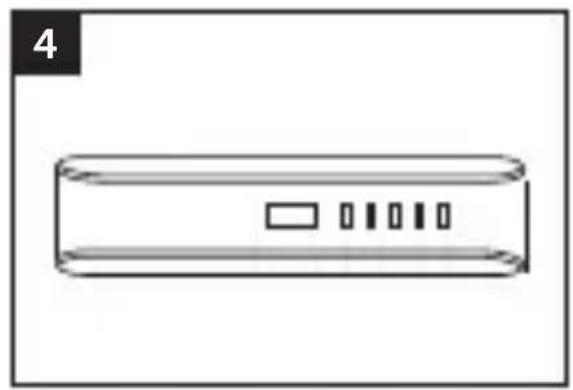

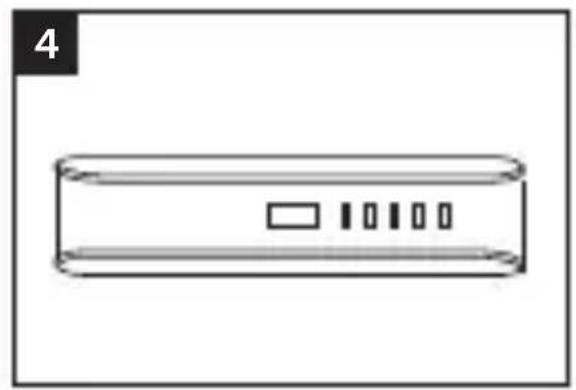

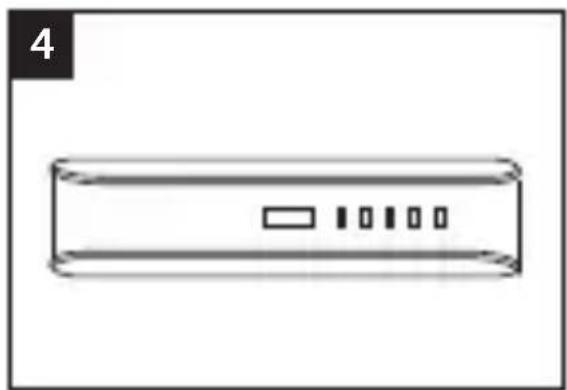

4. When your device is fully charged the charging LED will turn off.

Line drawing of a server with a laptop and ports, no text or symbols present

Diagram showing a smartphone connected to a battery and a USB drive (no text or symbols)

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with four vertical slots and a label '4' in the top-left corner (no text or symbols on the device itself)

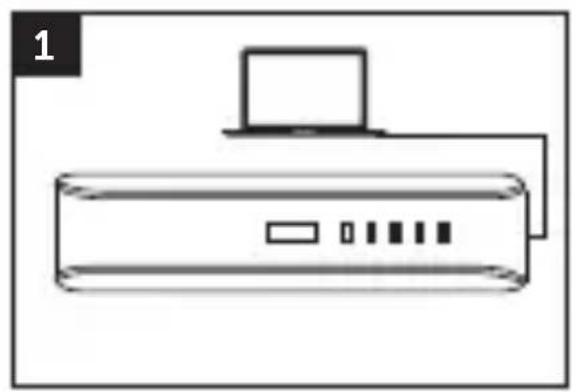

Charge your Powerbank

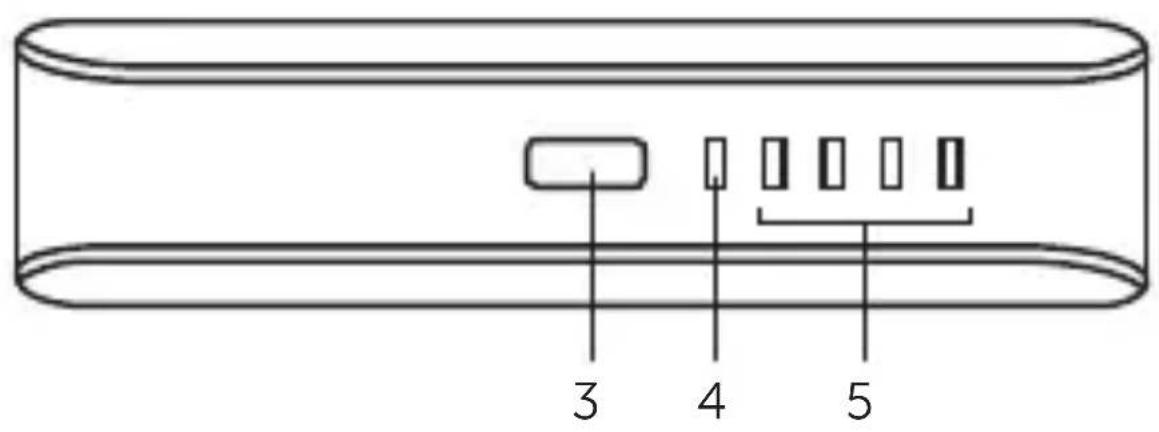

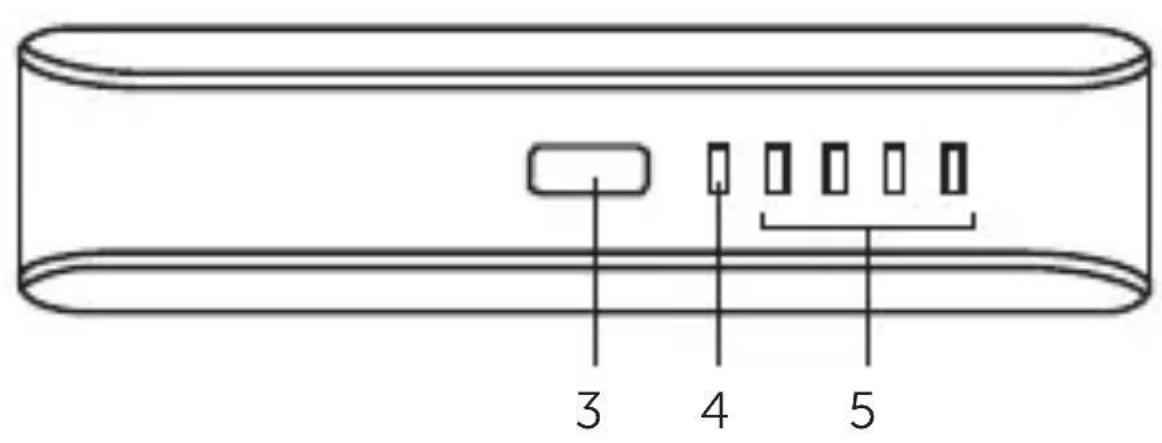

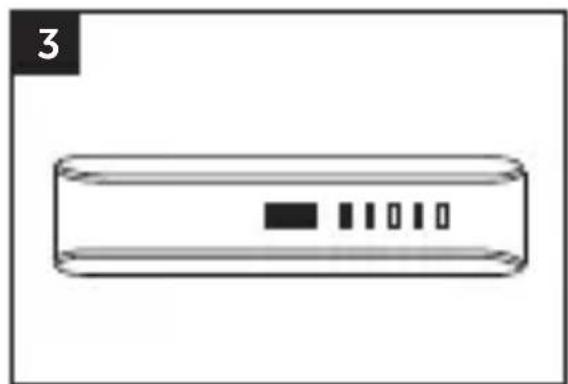

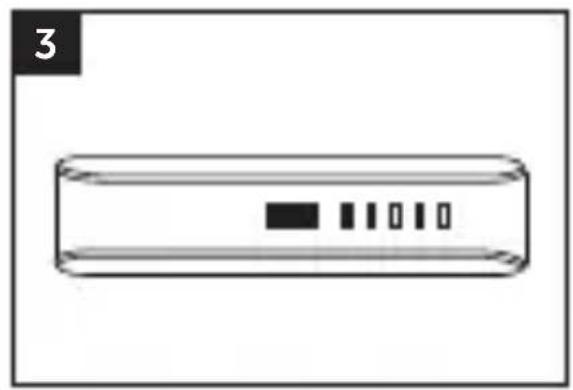

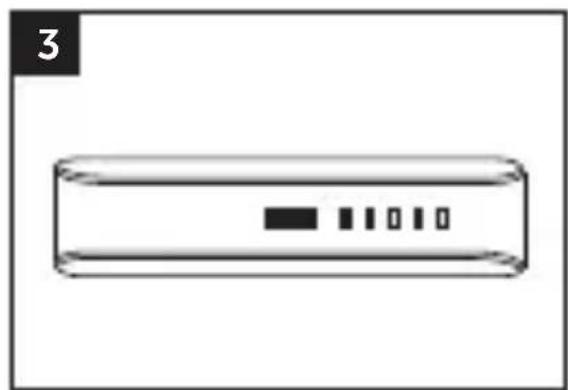

3. Button

Push to start charging

Push to read battery status

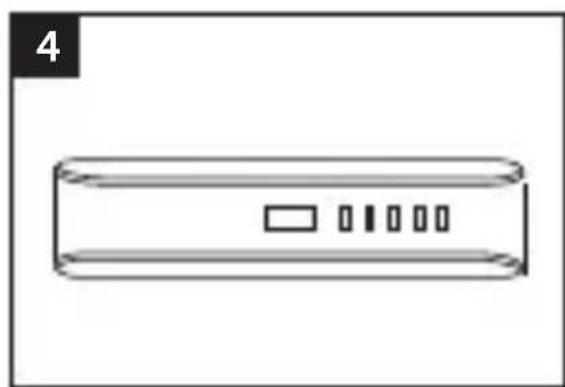

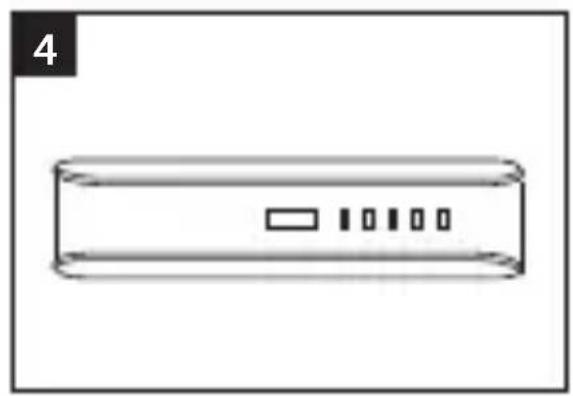

4. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

5. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

• Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5 °C - 35°C (41°F - 95°F).
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 2600mAh
  • DC Input: 5V / 1.5A (max.)
  • Output Power: 5W
• USB Output: 5V / 1A
  • Dimensions: 31 X 95 X 24 mm
  • Product Weight: 72 g

- Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

Simple line drawing of a printer with a laptop above it (no text or symbols)

Diagram showing a smartphone connected to a battery and a device (no text or symbols present)

Simple line drawing of a rectangular device with four vertical slots inside, no text or symbols present.

Simple line drawing of a rectangular device with four small rectangular buttons on the side (no text or symbols)

JE APPARAAT KAN ER NU WEER VOL TEGENAAN!

1 2

3 4 5

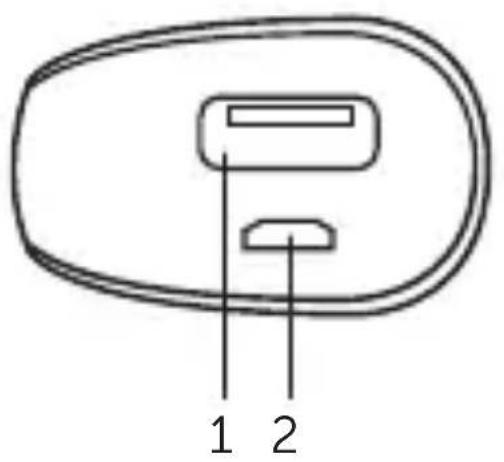

1. 1 Amp USB poort

Apparaten opladen

2. Micro-USBpoort

Je Powerbank opladen

3. Knop

Productspecifications

Simple line drawing of a device with a laptop above it, no text or symbols present

Diagram showing a smartphone connected to a battery and a USB device (no text or symbols present)

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with four internal slots and a label '4' in the top-left corner (no text or symbols on the device itself)

Simple line drawing of a server with a laptop and ports (no text or symbols)

Diagram showing a smartphone connected to a battery and an electronic device (no text or symbols present)

Simple line drawing of a rectangular device with internal components (no text or symbols)

Simple line drawing of a rectangular device with internal components and a label '4' in the top-left corner (no text or symbols on the device itself)

Simple line drawing of a printer with a laptop above it (no text or symbols)

Diagram showing a smartphone connected to a battery and a USB device (no text or symbols present)

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with four internal slots and a label '4' in the top-left corner (no text or symbols on the device itself)

Simple line drawing of a server with a laptop above it, no text or symbols present

Diagram showing a smartphone connected to a battery and an electronic device (no text or symbols present)

Simple line drawing of a rectangular object with internal vertical lines and a black rectangle at the center (no text or symbols)

Simple line drawing of a rectangular device with internal components and a label '4' (no text or symbols on the device itself)

VOTRE APPAREIL EST ALORS PRÊT POUR LA FÊTE!

1 2

3 4 5

1. 1 Amp USB port

Simple line drawing of a device with a laptop and ports (no text or symbols)

Diagram showing a smartphone connected to a battery via a cable (no text or symbols present)

Simple line drawing of a rectangular device with a black square and five vertical lines inside, no text or symbols present.

Simple line drawing of a rectangular device with four vertical slots and a label '4' in the top-left corner (no text or symbols on the device itself)

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB100

Product description: Powerbank 2600mAh

Low Voltage Directive (LVD)

• EN 60950-1:2006
• EN 60950-1:2006/A12:2011
• EN 60950-1:2006/A1:2010
• EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

• EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

• ETSI EN 301 489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
