USER MANUAL S4000 INTENSO

Simple black-and-white icon of an umbrella with scattered seeds (no text or symbols)

Black and white flame symbol inside a square frame with diagonal lines (no text or numbers)

Simple line drawing of a block with vertical bars and diagonal line, no text or symbols present

Stoß, Fall:

Symbolic black-and-white diagram of a mountain with cross lines, no text or labels present

Symbol of a trash bin crossed out by diagonal lines, indicating no waste or disposal.

Prohibition sign with crossed-out trash bin and no text or symbols

Read this manual carefully and observe, read and follow all instrucons menoned in this to ensure the long life and reliable use of the device.

Please keep this manual handy for future reference and pass it on to other users of the device.

Intended use

This Powerbank is meant solely for the purpose of power supply to devices with an operang voltage of 5V DC (mobile phones, MP3 player etc.). Any other use is considered as unintended use and may lead to damages and injuries. Claims of any type resulting from unintended use are ruled out.

To avoid dysfuncons do not connect the USB starng compound of the device with the USB conncons of computers of other devices. They are only designed to charge devices.

Do not dissemble the device into its single parts and do not try to repair it. It does not contain user serviceable parts and in this case the warranty becomes void.

Do not enter objects which are not designed for use into the openings of the product. There is a danger of short circuit.

Do not handle this device with wet hands.

Do not use water or chemical soluons to clean the device. Only use a dry cloth.

It is normal that the device produces heat while used. Do not cover the product while used.

Do not use the device if there is visible damage or in case it is wet.

Safety Instrucons:

Simple black-and-white icon of an umbrella with raindrops falling (no text or symbols)

Operang conditions:

Operate the device at 0 to 40 degree Celsius at max. 90% relave humidity. If you do not use Powerbank for long periods of me, store the device at a temperature range of -10 to 45 degree Celsius at max. 90% relave humidity (for short period) and charge the device every three months to maintain the total performance of the device.

Black and white flame symbol inside a square frame with diagonal lines (no text or numbers)

Do not use the device in extremely cold, hot, humid or dusty areas; also do not expose to direct sunlight. Avoid contact with open ame. Risk of Explosion!

Pure electrical circuit lines without any symbols

Shock, drop:

Please protect the device against shock and drops in all operang modes.

Abstract black-and-white geometric symbol with intersecting lines and a central figure (no text or symbols)

Electrostac discharge:

This device is sensitive to electrostac discharge. Please protect the device against any possible electrostac discharge.

Prohibition sign with crossed-out trash bin and number 7, commonly used in waste sorting or disposal methods

Disposal of old baeries

The devices marked with this symbol are subject to the European Directive 2006/66/EG. All the old baeries must be disposed separated from household garbage through the government agencies designated for that purpose.

By disposing the baeries in this prescribed manner, you can avoid environmental damages.

Symbol of a trash bin crossed out by diagonal lines, enclosed in a square frame (no text or numbers present)

Disposal of Used Electronic Equipment

Equipment marked with this symbol is subject to the European Direcve 2012/19/EG.

All electrical devices and used electrical equipment must be disposed of separately from household waste over the appropriate government agencies.

Proper disposal of old electronic equipment helps avoid environmental damage.

Scope of delivery

• Intenso Powerbank S4000
• Micro USB - Charging cable
• Operang instrucons

Technical data

Dimensions:	116 x 59 x 12.5 mm
Max power consumpon (Input):	5V 2.1 A
Max charging current output (Output):	5V 2.1 A
Internal Baery:	4.000 mAh / 3.7 V Lithium-Polymer baery
Status display:	4 LED lights
Built-in overcharge/discharge protecon	Yes
Simultaneous charging of the Powerbank and a connected device:	Yes
Standby me:	Up to 3 months

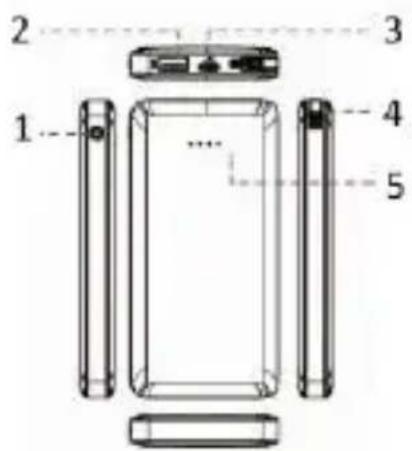

Device Overview

1 2 3 4 5 ...

1 Funcon key
2 USB OUT max. 2.1A
3 Micro USB IN
4 Integrated micro USB cable (max. 2A)
5 Status LEDs

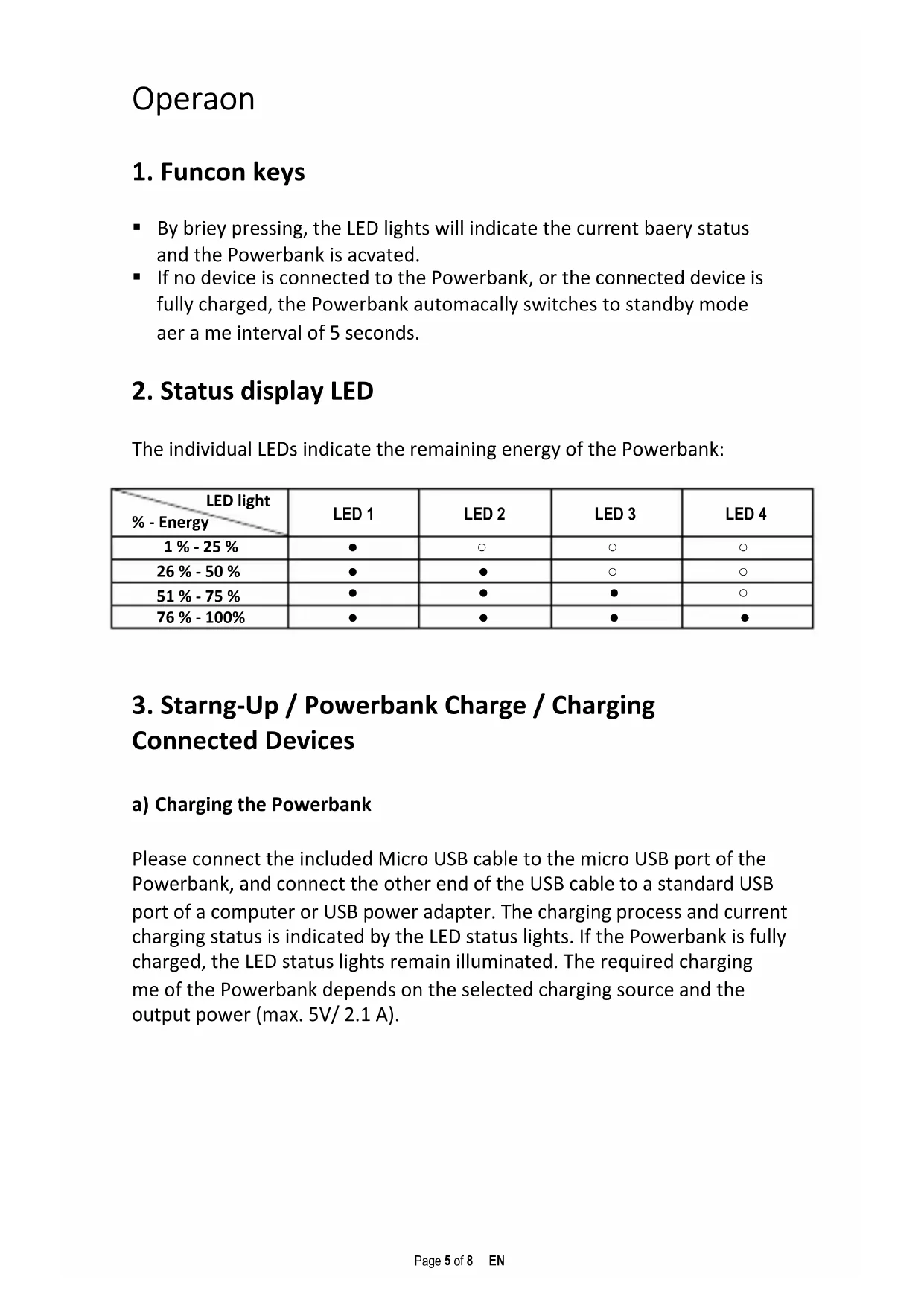

Operaon

1. Funcon keys

• By briefy pressing, the LED lights will indicate the current baery status and the Powerbank is acvated.
• If no device is connected to the Powerbank, or the connected device is fully charged, the Powerbank automacally switches to standby mode aer a me interval of 5 seconds.

2. Status display LED

The individual LEDs indicate the remaining energy of the Powerbank:

% - Energy\LED light	LED 1	LED 2	LED 3	LED 4
1 % - 25 %	●	○	○	○
26 % - 50 %	●	●	○	○
51 % - 75 %	●	●	●	○
76 % - 100%	●	●	●	●

3. Starng-Up / Powerbank Charge / Charging Connected Devices

a) Charging the Powerbank

Please connect the included Micro USB cable to the micro USB port of the Powerbank, and connect the other end of the USB cable to a standard USB port of a computer or USB power adapter. The charging process and current charging status is indicated by the LED status lights. If the Powerbank is fully charged, the LED status lights remain illuminated. The required charging me of the Powerbank depends on the selected charging source and the output power (max. 5V/2.1 A).

b) Charging devices through the Powerbank

- This Powerbank has a USB entry (output max. 2.1A) and an integrated USB cable with micro-USB plug (output max. 2A).

- There are two possibilities to charge a device through Powerbank: Possibility 1: Connect the micro-USB conncon of the integrated cable with the micro-USB entry of the device to be charged. The charging process will start automacally.

Possibility 2: Connect the supplied USB-cable with the USB A entry of Powerbank and the other ending of the USB cable with the micro-USB entry of the device to be charged. Within 4 hours approx. the charging process will start automacally. If you want to connect aer, press the funcon key to start the charging process manually.

- If you rst connect the device to be charged and then Powerbank with the USB-cable, Powerbank will always start automacally.

- With Powerbank you can charge two devices contemporaneously, for ex. a table at the USB A entry and a smartphone by the integrated cable with the micro-USB plug.

- Of course, you can also use your own USB charging cable to connect the Powerbank with your device. Please note, however, that devices can be charged only through the USB A port of the Powerbank.

- If a device is charged with the Powerbank and the Powerbank has almost reached its capacity limits, this is signalled by ashing of the last status LED. Please charge the Powerbank again.

- Please note that, when charging a device with a Powerbank nearly 30% of total capacity is consumed by the charging process alone. This is caused for example by the loss of power from circuit heat and voltage conversion.

- For opmal performance, the Powerbank must be used regularly. If this is not the case, fully charge the Powerbank at least every three months.

Limited warranty conditions

The warranty only covers the replacement of this Intenso product. The warranty is not applicable for normal wear & tear resulting from erroneous, improper use of the device, negligence, accident or incompatibility.

There are no warranty claims if the Intenso user manual is not followed and if the device is damaged through improper use or defects caused by other devices.

We are not liable for damage or data loss (of the device to be charged) caused by dysfuncon, wrong handling, repairs or baery change made by you.

There are no warranty claims if the product is exposed to shocks, electrostac discharges, heat or humidity eects beyond the product specicaons.

Intenso is not liable for any collateral damages or consequential losses, for violaon of warranty conditions or any other losses irrespective of the cause.

Important note:

Please note that any warranty claim shall expire if the housing of the Powerbank has been opened.

This product is not meant for a commercial use or for medical and special applicaons, where the failure of the product may cause injuries, death or significant material damages.

(Intenso) ^®

49377 Vechta

Germany

www.intenso.de

Intenso Warranty conditions

Dear Intenso customer,

Thank you for opting for a high-quality Intenso product. All Intenso products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase. Please be sure therefore to save the sales receipt as proof of purchase.

Warranty conditions

The warranty only covers material and production defects. Intenso GmbH is not liable for the loss of data in units sent to us. The free of charge warranty service covers the repair or replacement of defective parts. Please understand that we cannot render any warranty services, e.g. in case of:

• Misuse or improper handling, installation or use
  ■ Damages, scratches or wear
  ■ Modifications, manipulation or repairs by third parties
  ■ Damages through force majeure or transport

Your Intenso GmbH

CLAIM PROCEDURE

In case of a claim, please proceed as follows:

1. Only returns accompanied with all accessories and sales receipt are accepted.
2. In addition, a RMA number is absolutely required for return shipments. You can request this RMA number via e-mail or through the service hotline.
3. Please package the product including all accessories and the sales receipt safe for transport. Please stamp the package.
4. Please affix the RMA number clearly visible on the outside of the package.

Please send to the following service address:

INTENSO GMBH Service Hotline: +49 (0) 900 - 1 50 40 30

Service Center (your RMA-No.) (0.39 € / min. from the

landline in Germany.
