MS 344 CB - Milk frother BOMANN - Free user manual and instructions

Brand	BOMANN
Model	MS 344 CB
Manufacturer reference	603441
EAN	4004470034417
Device type	Battery-operated manual milk frother
Power supply	2 x 1.5 V AA (LR6 / UM3), batteries not included
Whisk material	Stainless steel anti-corrosion
Casing finish	Soft touch (velvet coating)
Color	Black and silver
Dimensions (L x W x H)	23 x 4 x 6 cm
Weight	99.8 g
Drink compatibility	Hot milk, cold milk, hot chocolate, matcha
Cleaning	Whisk rinsable under running water, body wipe only

Frequently Asked Questions - MS 344 CB BOMANN

How to use the BOMANN MS 344 CB?

Pour the milk into a glass or bowl (fill it up to half to avoid splashes). Immerse the whisk into the milk, press the on/off button, then slowly move the whisk up and down until the desired froth is achieved. Remove the whisk before releasing the button.

What batteries are required for the MS 344 CB?

The frother operates with 2 AA (LR6 / UM3) 1.5 V batteries, which are not included in the box. Use good quality alkaline batteries for optimal lifespan and rotation power.

How to clean the whisk of the BOMANN MS 344 CB?

After each use, immediately rinse the stainless steel whisk under hot running water while holding the button down for a few seconds. Then wipe the body with a damp cloth. Never immerse the body (battery section) in water.

Can you froth cold milk?

Yes, the MS 344 CB works with cold or room temperature milk. For a cappuccino or latte, first heat the milk separately (in a saucepan or microwave), then froth it. Whole semi-skimmed milk and plant-based milk (soy, oat) also yield good results.

The frother doesn't spin anymore or the froth is insufficient, what should I do?

First, check that the batteries are not depleted and replace them if necessary. Ensure that the whisk is properly attached to the shaft. If the motor runs but the froth is thin, use colder and fattier milk, filling the container less to allow air to incorporate.

How long does it take to get froth?

The BOMANN MS 344 CB creates milk froth in approximately 15 to 30 seconds depending on the type of milk and its temperature. Cold whole milk well whisked will give a firmer and quicker froth than plant-based or low-fat milk.

Can the MS 344 CB be used to prepare something other than milk froth?

Yes, the rotating whisk can also be used to mix hot chocolate, beat eggs, emulsify light sauces, or dissolve matcha and cocoa powder in a hot liquid. Avoid too thick preparations that could block the whisk.

Can the body or whisk go in the dishwasher?

No. The body part (which contains the batteries and motor) should never be immersed or put in the dishwasher. The stainless steel whisk can be rinsed under running water but is not meant for the dishwasher. A simple rinse after each use is sufficient.

Which milk gives the best froth with this frother?

Whole cow's milk (3.5% fat) provides the densest and most stable froth. Semi-skimmed milk also works well. Among plant-based milks, barista oat milk and soy milk give decent results, but the froth is less firm and less stable.

How to replace the batteries of the BOMANN MS 344 CB?

Remove the battery compartment cover located at the back of the handle (usually screwed or clipped). Insert 2 new AA batteries respecting the polarity indicated inside the compartment, then close the cover before using the device.

Is the MS 344 CB suitable for people with intensive daily use?

This device is an entry-level battery-operated frother, designed for regular domestic use but not professional. For multiple uses per day, replace the batteries regularly and ensure the whisk is rinsed well after each use to extend the motor's lifespan.

USER MANUAL MS 344 CB BOMANN

MILCHSCHÄUMER MS 344 CB

Black and white photo of a hairless stand with a spool, no visible text or symbols

D-47906 Kempen/Germany

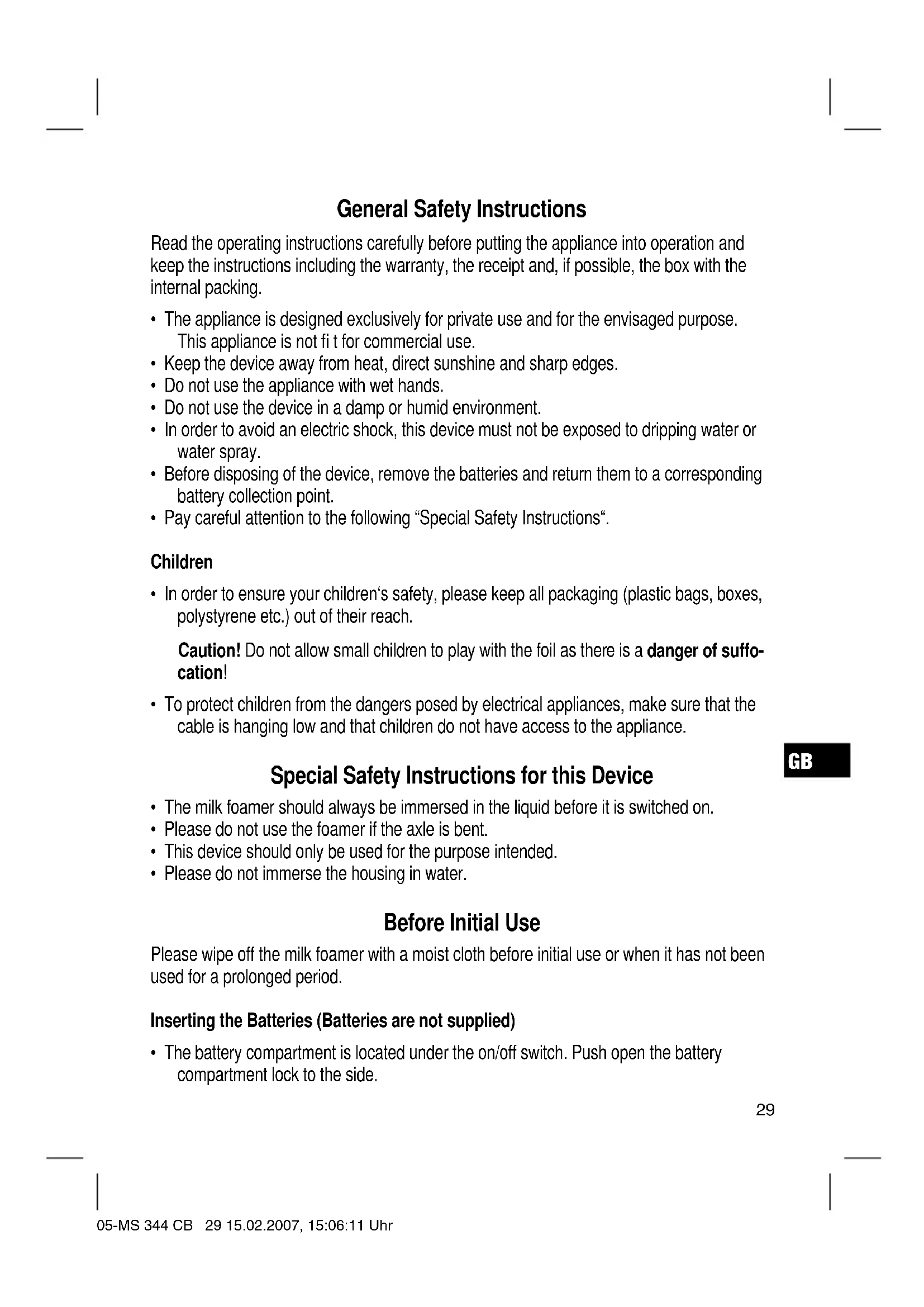

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Keep the device away from heat, direct sunshine and sharp edges.
• Do not use the appliance with wet hands.
• Do not use the device in a damp or humid environment.
• In order to avoid an electric shock, this device must not be exposed to dripping water or water spray.
• Before disposing of the device, remove the batteries and return them to a corresponding battery collection point.
• Pay careful attention to the following "Special Safety Instructions".

Children

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

Special Safety Instructions for this Device

• The milk foamer should always be immersed in the liquid before it is switched on.
• Please do not use the foamer if the axle is bent.
• This device should only be used for the purpose intended.
• Please do not immerse the housing in water.

Before Initial Use

Please wipe off the milk foamer with a moist cloth before initial use or when it has not been used for a prolonged period.

Inserting the Batteries (Batteries are not supplied)

- The battery compartment is located under the on/off switch. Push open the battery compartment lock to the side.

• Insert 2 batteries of type UM3 „AA“ 1.5 V. Ensure the correct polarity (see the floor of the battery compartment or the imprint on the outside)! If the device is not used for a prolonged period, please remove the batteries in order to prevent battery acid from leaking.
• Different battery types or new and used batteries must not be used together.
• Then close the battery lid.

Note: Batteries should not be disposed of in normal domestic waste. Please return used batteries to the appropriate collection points or to the dealer where you bought them.

Never throw batteries into a fi re.

Operation

Foaming Milk

Please use only fresh milk (preferably full-cream milk). The vessel should not be preheated. Please ensure that the vessel is only a quarter full as the volume of the milk will increase greatly during foaming.

1. Pour a little milk into a suitable narrow vessel (e.g. a glass).
2. Immerse the foaming coil completely in the milk.
3. In order to start the milk foamer, please keep the on/off switch on the top of the device pressed down.
4. Move the foamer smoothly up and down inside the vessel until the milk has foamed sufficiently. Please ensure that the coil always remains immersed in the milk.
5. When the switch is released the device turns off automatically. Are only then should you remove the foaming spiral from the vessel.
6. Transfer the foam to the coffee using a spoon.

With your milk foamer you can also prepare small quantities of salad dressing, mixed drinks, shakes and egg white.

Cleaning and Care

• You can also remove the foaming spiral to clean it. To do so, pull the spiral out of the device.
• Please clean the device immediately after use under warm running water. It is also possible to switch the machine on briefly. In order to avoid splashes, hold the foamer in the sink or wash basin.
• Please do not immerse the housing in water. If necessary, the housing should only be wiped off with a moist cloth.
• Please do not use any caustic detergents or abrasives.

Technical Data

Model: MS 344 CB

Battery operation: 2x 1,5 V UM 3, AA

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

GB
