USER MANUAL MS 479 CB BOMANN

Black BOMANN brand brush press with metallic top and black body (no visible text or symbols on device)

CE

Overview of the Components ......Page 3

Instruction Manual......Page 30

Technical Data......Page 34

Technical diagram of a portable air conditioner with labeled parts including lid, spool, and control unit

Bedienungsanleitung

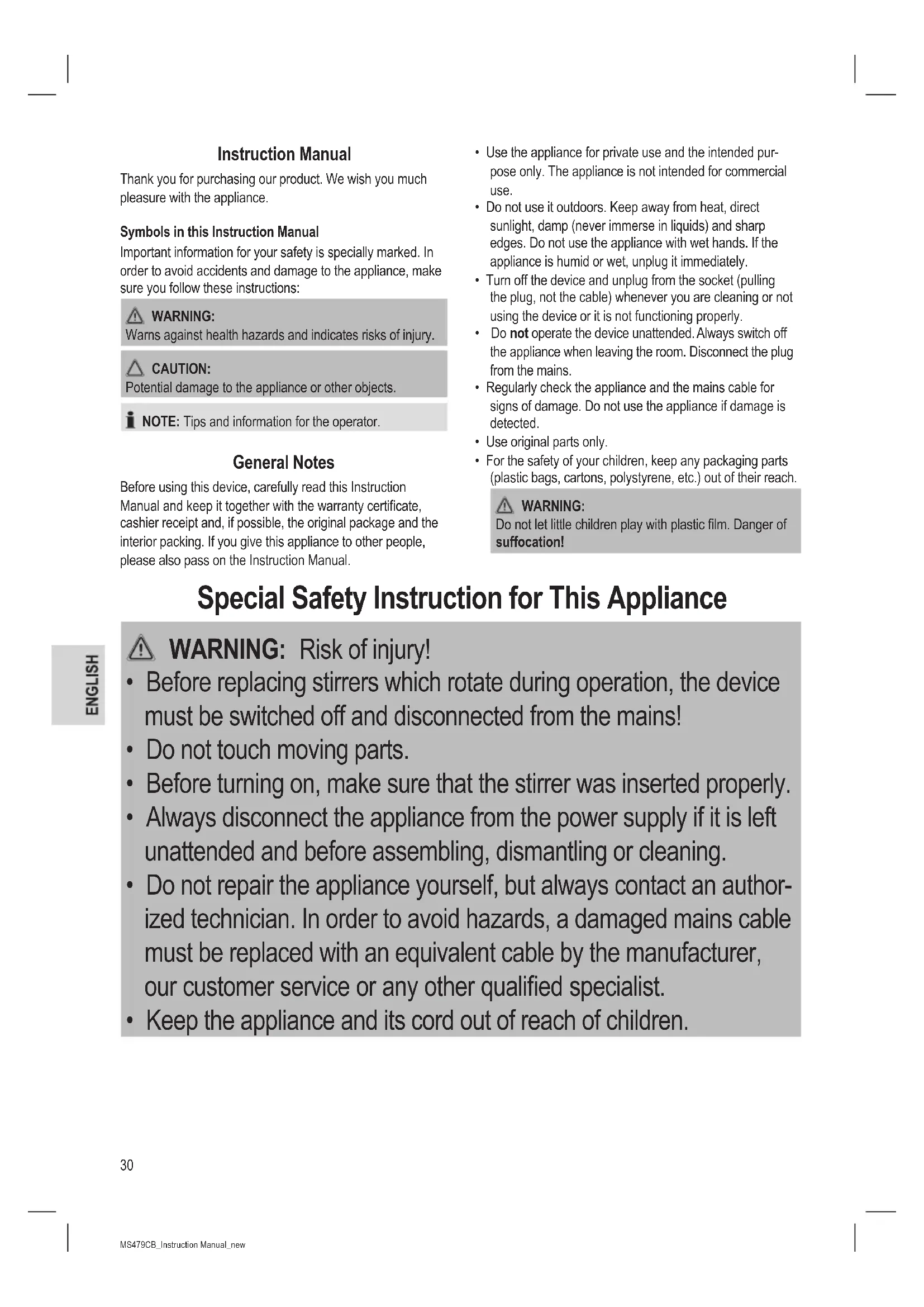

Thank you for purchasing our product. We wish you much pleasure with the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. In order to avoid accidents and damage to the appliance, make sure you follow these instructions:

WARNING:

Warns against health hazards and indicates risks of injury.

CAUTION:

Potential damage to the appliance or other objects.

NOTE: Tips and information for the operator.

General Notes

Before using this device, carefully read this Instruction Manual and keep it together with the warranty certificate, cashier receipt and, if possible, the original package and the interior packing. If you give this appliance to other people, please also pass on the Instruction Manual.

• Use the appliance for private use and the intended purpose only. The appliance is not intended for commercial use.
• Do not use it outdoors. Keep away from heat, direct sunlight, damp (never immerse in liquids) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Turn off the device and unplug from the socket (pulling the plug, not the cable) whenever you are cleaning or not using the device or it is not functioning properly.
• Do not operate the device unattended. Always switch off the appliance when leaving the room. Disconnect the plug from the mains.
• Regularly check the appliance and the mains cable for signs of damage. Do not use the appliance if damage is detected.
• Use original parts only.
• For the safety of your children, keep any packaging parts (plastic bags, cartons, polystyrene, etc.) out of their reach.

WARNING:

Do not let little children play with plastic film. Danger of suffocation!

Special Safety Instruction for This Appliance

WARNING: Risk of injury!

• Before replacing stirrers which rotate during operation, the device must be switched off and disconnected from the mains!
• Do not touch moving parts.
• Before turning on, make sure that the stirrer was inserted properly.
• Always disconnect the appliance from the power supply if it is left unattended and before assembling, dismantling or cleaning.
• Do not repair the appliance yourself, but always contact an authorized technician. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• Keep the appliance and its cord out of reach of children.

WARNING: Risk of burns!

- During use do not touch the hot surfaces of the appliance. Use the buttons or handles.

CAUTION:

- Do not immerse the appliance into water for cleaning. Pay attention to the instructions provided in the Chapter “Cleaning”.

• The device should be used for food processing purposes only.
• Improper use of the appliance may cause injury.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way, and if they understand the hazards involved.
• This device may not be used by children between 0 and 8 years of age.
• This unit can be used by children of 8 years and older, if they are constantly supervised.
• The device and its connecting cable must be kept away from children younger than 8 years.
• The cleaning and the user maintenance must not be carried out by children.
  • Children should not play with the appliance.
• Cooking utensils should be set down in a stable position using the handles (if available) in order to prevent spilling of hot liquids.
• Do not operate the appliance on a separate timer or a separate remote control system.

• This appliance is intended for use in a household and in similar applications such as

• in staff kitchens of shops, offices and other commercial areas. It is not designed for use

• by visitors in hotels, motels and other residential facilities;
• on agricultural property;
• in bed and breakfast type environments.

Overview of the Components

1 Cover
2 Foam tank
3 Hot plate with safety switch
4 Motor/heating unit
5 Power cord
6 Reheat button with red LED
7 Cold button with blue LED
8 Stirrer for frothing milk
9 Stirrer for hot drinks without foaming

Preparation

• Remove the appliance and all included accessories from the box.
• In order to remove any production residue, clean all accessories before initial use as described in "Cleaning".
• Place the device on a stable, flat and dry surface.

Electrical Connection

• Check if the mains voltage to be applied matches the voltage of the appliance. Refer to the rating label for detailed specifications.
• The redundant length of the connecting cable can be wound up at the bottom of the motor/heating unit. Connect the power cord into a grounded outlet (If foam tank (2) is not attached the LEDs in both buttons flash (6 and 7)).

Instructions for Operation

1. Open the lid (1): Pull the cover (1) upwards from the foam tanks (2).
2. Insertion of a stirrer: At the bottom of the tank (2) you see the axle of the stirrer (8 or 9). Insert the stirrer (8 or 9) on the axle and check to make sure it can rotate freely.

3. Filling the foam tank (2): Fill the desired quantity of milk or a hot drink in the foam tank (2). Note the corresponding MIN and MAX markers in the foam tank (2) (lower MAX marking for frothing milk, upper MAX marker for drinks without foam).

4. Function selection:

Function Button Stirrer
Frothing cold milk		Stirrer (8) for frothing
Frothing hot milk		Stirrer (8) for frothing
Warm milk or cocoa (without foaming)		Stirrer (9) for hot drinks without foaming

1. The selected button is lit continuously while the stirrer (8 or 9) stirs drinks or foams. After about 2 minutes, the device switches off automatically and the respective button flashes about 8 times.

i NOTE:

If the foam tank (2) has been lifted from the motor/heating unit (4), the LEDs in the two buttons (6 and 7) blink.

Finish the operation and empty the foam tank (2)

• Turn off the illuminated button and unplug the power cord (6).
• Wait until the stirrer (8 or 9) has come to a standstill.
• Remove the foam tank (2) from the motor/heating unit (4) and pour the contents into a cup or into coffee.
• Clean all used components as described in Chapter "Cleaning".

Recipes

Hot drinks:

Cappuccino

• Use the stirrer to foam (8) the milk for a cappuccino and prepare hot frothed milk as described in the Chapter "Instructions for Operation".
• Fill your cappuccino cup first with espresso and then add milk foam and cold milk. We recommend a proportion of 1/3 espresso to 2/3 milk froth.

Latte Macchiato

- Use the stirrer to foam (8) the milk for a latte macchiato and prepare hot frothed milk as described in the Chapter "Instructions for Operation".

- Fill your latte macchiato glass with the warm milk and milk foam. Then add the espresso. We recommend a proportion of 2/3 milk and 1/3 frothed milk and 1 cup of espresso.

Caffè Latte

• Use the stirrer to foam (8) the milk and prepare a small quantity of hot milk as described in the Chapter "Instructions for Operation".
• Cover a double espresso in a large cup of hot milk with a little froth.

Cold drinks:

Cappuccino Freddo

• Use the stirrer to foam (8) the milk for a cappuccino freddo and prepare cold frothed milk as described in "Instructions for Operation".
• Fill your cappuccino cup first with espresso and then add milk foam and cold milk. We recommend a proportion of 1/3 espresso, 1/3 milk froth and 1/3 milk.

Cleaning

WARNING:

• Unplug the power plug before cleaning (6).
• Never immerse the motor/heating unit (4) into water. It could result in an electric shock or fire.

CAUTION:

• Do not immerse the appliance in water: the electronic components can be damaged.
• Do not use a wire brush or any abrasive items.
• Do not clean in the dishwasher.

Motor/heating unit (4)

- To clean the outside of the motor/heating unit (4), use only a damp dishcloth with a little dishwasher detergent.

Stirrer (8 or 9) and foam tank (2)

• The stirrer (8 or 9) and the foam tank (2) can be cleaned in soapy water.
• Let the components dry well before reassembly.

Troubleshooting

Problem Cause Solution
The appliance does not turn on or stops operating.	Appliance without power supply.	- Check the outlet with another appliance.- Insert mains plug (6).- Check the house fuse.
	The foam container (2) was not set properly on the motor/heating unit (4).	Set the foam tank (2) correctly on the motor/heating unit (4) so that the safety switch is depressed.

Problem Cause Solution
	The device is too hot. Overheating protection is activated.	Allow the appliance to cool.
	Appliance defective.	Contact our service center or a specialist.
The milk foams a little or not at all.	The milk is too hot.	Use milk at refrigerator temperature.
	The stirrer for making foam (8) was not used.	Insert the stirrer for creating foam (8) and prepare the milk again.
	The load capacity is exceeded.	Fill the tank up to the MIN level.
Milk escaping from the lid.	The load capacity is too large.	Reduce the load capacity.
The LEDs flash when apparatus is switched on.	The device was turned on without a properly inserted foam tank (2).	Insert the foam tank (2) on the motor/heating unit (4) and turn on the unit again.

Storage

• Clean the appliance as described and allow it to dry.
• The power cord (5) can be wound up on the back of the unit.
• During longer periods of non-use we recommend storing the appliance in its original packaging.
  • Always keep the appliance at a well-ventilated and dry location, out of the reach of children.

Technical Data

Model: MS 479 CB

Power supply: 220 - 240 V\~, 50 Hz

Power: 550 - 650 W

Capacity: 700 ml (Milkfoam about 500 ml)

Protection class:......II

Dimensions (approx. W x H x D)....105 x 240 x 105 mm

Net weight: 0,826 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste

disposal.

This will contribute to the recycling and other forms of re-utilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
