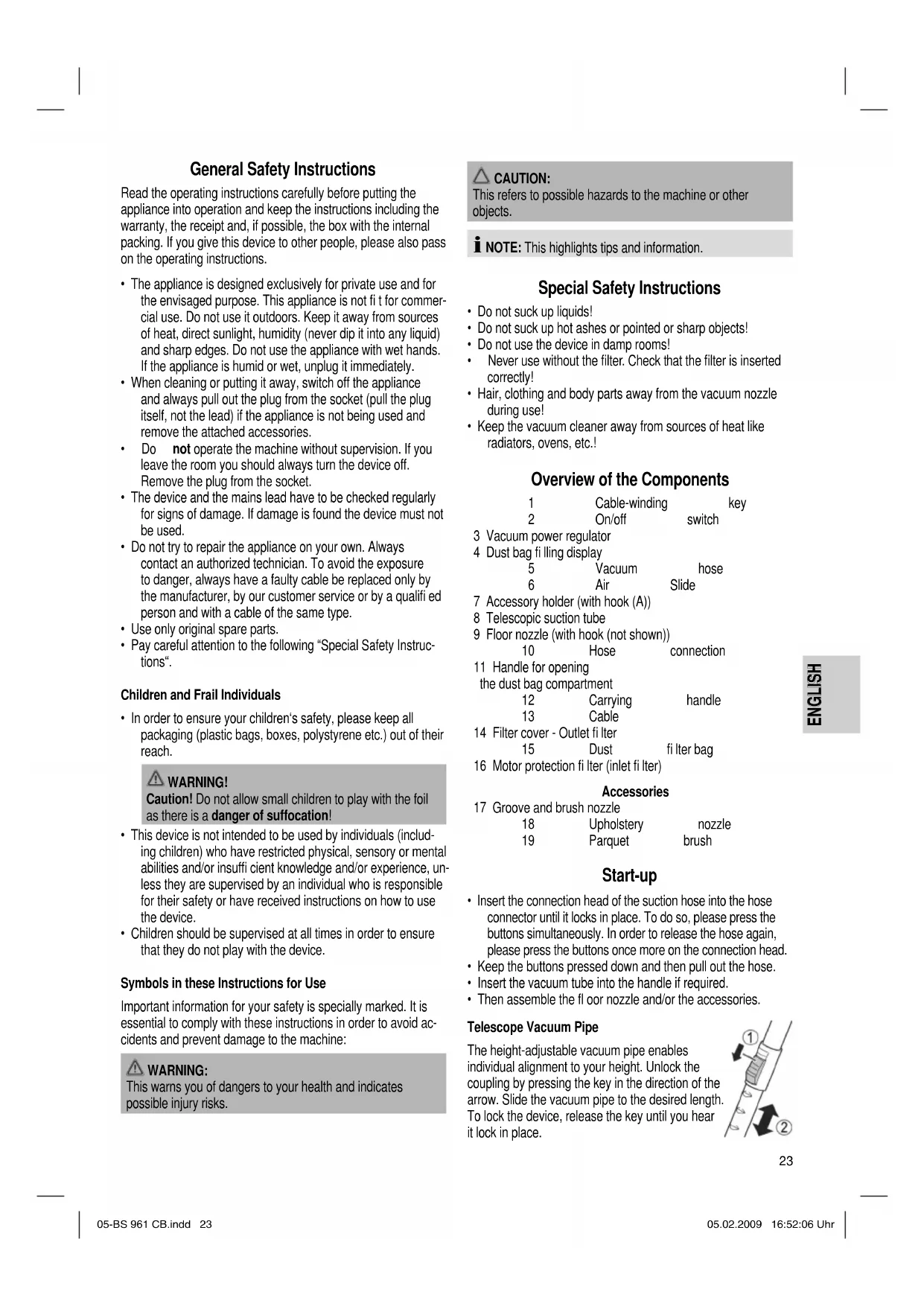

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insuffient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special Safety Instructions

• Do not suck up liquids!
• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the device in damp rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• Hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!.

Overview of the Components

1

Cable-winding

key

2

On/off

switch

3 Vacuum power regulator

4 Dust bag filling display

5

Vacuum

hose

6

Air

Slide

7 Accessory holder (with hook (A))

8 Telescopic suction tube
9 Floor nozzle (with hook (not shown))

10

Hose

connection

11 Handle for opening

the dust bag compartment

12

Carrying

handle

13

Cable

14 Filter cover - Outlet filter

15

Dust

fi lter bag

16 Motor protection filter (inlet filter)

Accessories

17 Groove and brush nozzle

18

Upholstery

nozzle

19

Parquet

brush

Start-up

• Insert the connection head of the suction hose into the hose connector until it locks in place. To do so, please press the buttons simultaneously. In order to release the hose again, please press the buttons once more on the connection head.
• Keep the buttons pressed down and then pull out the hose.
• Insert the vacuum tube into the handle if required.
• Then assemble the floor nozzle and/or the accessories.

Telescope Vacuum Pipe

The height-adjustable vacuum pipe enables individual alignment to your height. Unlock the coupling by pressing the key in the direction of the arrow. Slide the vacuum pipe to the desired length. To lock the device, release the key until you hear it lock in place.

Using the Appliance

1. Unwind the length of cable you require.

CAUTION:

• Pull out the cable up to the maximum length indicated with the yellow mark.
• Never pull the cable out up to the red mark as the cable winding can be damaged.

I NOTE:

If the red mark is visible, pull in the cable with the help of the cable winding button back to the yellow mark.

1. Insert the mains plug into a correctly installed 230V 50Hz power socket. Switch the device on by the on/off switch.
2. Set the "carpet/hard floor" switch, depending on the floor covering.
3. Set the vacuum power with the vacuum power regulator ( (Min) to (Max))
4. Vacuum at a steady speed. There is no need to exert pressure.

I NOTE:

Pay attention to the range that can be covered with the cable length!

Vacuum power regulator

Low vacuum power: For curtains and delicate fabrics.

Medium vacuum power: For long-pile velour carpets and textile flooring.

High vacuum power: For sturdy rugs and floors.

Air Slide

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Switching off and Winding up the Mains Lead

1. Turn the vacuum cleaner off by the on/off switch and remove the plug from the socket.
2. Keep the plug in your hand.
3. Press the cable winding button and guide the cable. Hold the cable to avoid wrapping.

Nozzle Attachment

Crevice and

jointed nozzle: For vacuuming upholstery, curtains and in corners and crevices etc.

NOTE: "2-in-1" nozzle:

When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place.

Upholstery nozzle: For cleaning upholstery, curtains etc.

Floor nozzle: To clean carpets or smooth surfaces.

Smooth floors: Press down the lever with the brush symbol with your foot. The brush is now visible.

Carpets:

Press the lever In the opposite direction. The brushes are now retracted.

The floor nozzle is fitted with rollers for improved manoeuvrability.

Parquet brush: For large areas such as parquet, laminate or tiles etc.

Releasing

the nozzles:

Pull these off while turning slightly.

Maintenance

Dust bag replacement display (4)

Hold the hose up into air. If the display for changing the dust bag appears, the bag is full. Please change it.

Changing the dust bag

• Pull the plug out of the socket.
• Open the lid of the dust bag compartment by the handle (11).
• Remove the bag by pulling the retainer carefully upwards so that you have easier access to the bag. Then remove the dust bag by pulling it upwards.
• Insert a new bag. Please ensure that the bag is located correctly in the guide mechanism. Then reinsert the retainer. Close the cover so that it snaps into place.

Filter

Your appliance has two fi filters.

Motor protection filter (inlet filter) (16)

The inlet filter is located in the dust bag compartment. The filter is located vertically in the rear section of the dust housing. Remove the filter by pulling upwards.

Cleaning the Filter Element

Clean the engine protection filter after 10 dust bag changes. If necessary, the filter can also be washed in warm water without any additives. Place it back into place only once it is completely dry!

Outlet filter

The appliance is also equipped with an outlet fi liter. This fi liter is to be found under the fi liter cover (14).

• Press down the lever above the ventilation grille in order to open the filter cover.
• Then pull the grille out towards the front. Remove the fi liter and clean as described above. Please re-insert the fi liter correctly and close the ventilation grille (until it clicks in place).

Cleaning and storage

Cleaning

• Pull the plug out of the socket before cleaning!
• Clean the casing with a dry cloth.

Storage

• Let the iron cool down completely.
• Wind the cable completely.
• If you position the device horizontally: Please insert the hook of the floor nozzle into the parking assistant on the rear of the device.
• If you place the vacuum cleaner in a vertical position: Please insert the hook on the accessory holder into the parking assistant on the underside of the device.

Troubleshooting

The Device Does Not Work.

Remedy:

Check the connection to the mains.

Check the position of the switch.

The device does not suck up anything.

Possible Cause:

The suction power is set too low.

Remedy:

Check the position of the control switch.

Possible Cause:

The dust bag is full.

Remedy:

Renew the dust bag.

or

Possible Cause:

The fi iters are dirty.

Remedy:

Clean the components.

Possible Cause:

There is a foreign body in the suction tube or the nozzle.

Remedy:

Check the accessories for foreign bodies.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 84.0 dB(A) (no limit)

Technical Data

Model: BS 961 CB

Power supply: 220-240 V, 50 Hz

Power consumption:

P. 1800W

Pmax 2300W

Dust fi t er bag.... Swirl Y 201

Protection class: II

Net weight: 5,90 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
