USER MANUAL FR 1206 CB BOMANN

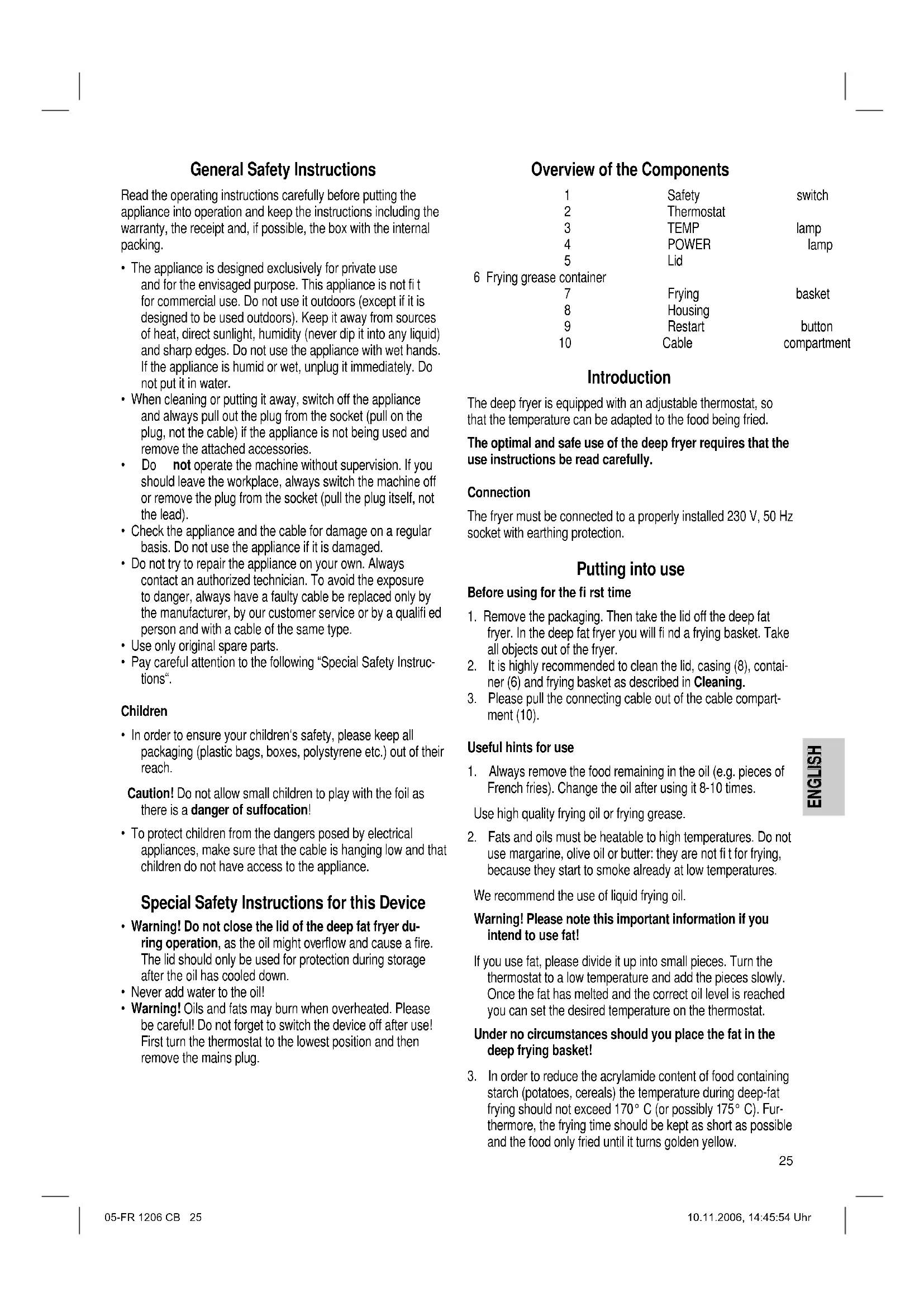

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc- tions“. Children

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Special Safety Instructions for this Device

• Warning! Do not close the lid of the deep fat fryer du- ring operation, as the oil might overfl ow and cause a fi re. The lid should only be used for protection during storage after the oil has cooled down.

• Never add water to the oil!

• Warning! Oils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! First turn the thermostat to the lowest position and then remove the mains plug. Overview of the Components 1 Safety switch 2 Thermostat 3 TEMP lamp (red) 4 POWER lamp (green) 5 Lid 6 Frying grease container 7 Frying basket 8 Housing 9 Restart button 10 Cable compartment Introduction The deep fryer is equipped with an adjustable thermostat, so that the temperature can be adapted to the food being fried. The optimal and safe use of the deep fryer requires that the use instructions be read carefully. Connection The fryer must be connected to a properly installed 230 V, 50 Hz socket with earthing protection. Putting into use Before using for the fi rst time

1. Remove the packaging. Then take the lid off the deep fat

fryer. In the deep fat fryer you will fi nd a frying basket. Take all objects out of the fryer.

2. It is highly recommended to clean the lid, casing (8), contai-

ner (6) and frying basket as described in Cleaning.

3. Please pull the connecting cable out of the cable compart-

ment (10). Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of

French fries). Change the oil after using it 8-10 times. Use high quality frying oil or frying grease.

2. Fats and oils must be heatable to high temperatures. Do not

use margarine, olive oil or butter: they are not fi t for frying, because they start to smoke already at low temperatures. We recommend the use of liquid frying oil. Warning! Please note this important information if you intend to use fat! If you use fat, please divide it up into small pieces. Turn the thermostat to a low temperature and add the pieces slowly. Once the fat has melted and the correct oil level is reached you can set the desired temperature on the thermostat. Under no circumstances should you place the fat in the deep frying basket!

3. In order to reduce the acrylamide content of food containing

starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170° C (or possibly 175° C). Fur- thermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow. 05-FR 1206 CB 25 10.11.2006, 14:45:54 UhrENGLISH ENGLISH

4. Please note that the safety switch (1) is operated when the

control element is inserted into the guide mechanism.

5. Choose the right frying temperature and check the conditi-

ons of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

6. Do not carry or move the deep fryer if the oil or grease is still

7. When frying dough-like foods scrape off the excess dough

and put the pieces carefully into the oil.

8. Please ensure that the handle of the deep fat frying basket

has been correctly attached.

• Press the ends of the wire together at the free end of the handle.

• Insert the brackets into wire hoops inside the basket.

• The deep fat frying basket must not be more than 2/3 full. Do not overfi ll the frying basket (The maximum fi lling quantity for chips is 200g per litre of oil/fat).

9. Rub dry humid foods with a cloth before frying.

Caution: In the case of foodstuffs which are too moist (e.g. frozen chips etc.) large amounts of foam may form, which under certain circumstances may cause the oil to overfl ow. Use

1. Make sure that the appliance is unplugged and switched off

(The control lamps are off.).

2. Take the lid off the deep fryer.

3. Remove the frying basket and fi ll the container with oil or

grease (maximum 3.3 l). The fi lling level must be located between the minimum and the maximum level. Put the lid back on.

4. Insert the plug into a 230 V, 50 Hz power socket. The green

control lamp (4) lights up. Set the desired temperature by turning the temperature control (2).

5. The red control lamp (3) lights up. Once the set temperature

has been reached the red control lamp goes off. Place the frying basket containing the items to be fried carefully into the hot fat.

6. The red control lamp switches on and off several times

during frying. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained. Once the frying time is over (the frying times are to be found on the packaging of the food or in the recipe), please take out the frying basket.

7. Let the oil drip from the food being fried.

8. In order to switch off the machine, please turn the tem-

perature regulator to OFF and remove the plug from the socket.Wind the mains lead up in the form of a spiral in the cable compartment. Cleaning

1. Make sure that the plug is pulled out.

2. Wait until the deep fryer is completely cool before cleaning.

Wait in any case for 1 to 2 hours after use before using again to avoid burns.

3. In order to change the oil, pull the deep frying container out

by the handles andpour the oil out at the side.

4. Please do not immerse the device in water.

5. Clean the deep frying fat container, the lid and the

housing with a damp clothand household detergent if necessary.Please do not immerse in water.

6. The deep frying basket can be cleaned in the usual way in

7. Avoid using abrasive materials or sharp objects. These may

damage the deep fryer! Troubleshooting Device is not working Troubleshooting:

• Check the mains connection.

• Check the position of the thermostat. Other possible causes: The device is fi tted with a safety switch (1). This prevents the heater being switched on accidentally. Troubleshooting: Check that the control element is correctly in place. Overheating Protection

• If you should accidentally switch on your deep fat fryer when there is no oil or fat in it the overheating protection is automatically turned on. The appliance is no longer ready to be used. Unplug the deep fryer.

• Only after the device has been left to cool down completely should the „RESTART“ button (9) on the rear of the control element be operated in order to use the deep fat fryer again. Please use a pointed object for this purpose. Technical Data Model: ........................................................................FR 1206 CB Power supply:............................................................230 V, 50 Hz Power consumption:..........................................................2000 W Protection class:........................................................................... Ι Filling quantity: .........................................................max. 3,3 Litre This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! 05-FR 1206 CB 26 10.11.2006, 14:45:56 UhrENGLISH ENGLISH ENGLISH

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisati- on of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-FR 1206 CB 27 10.11.2006, 14:45:58 Uhr28
