USER MANUAL FFR 1290 CB BOMANN

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for com- mercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regu- larly for signs of damage. If damage is found the device must not be used.

• Use only original spare parts.

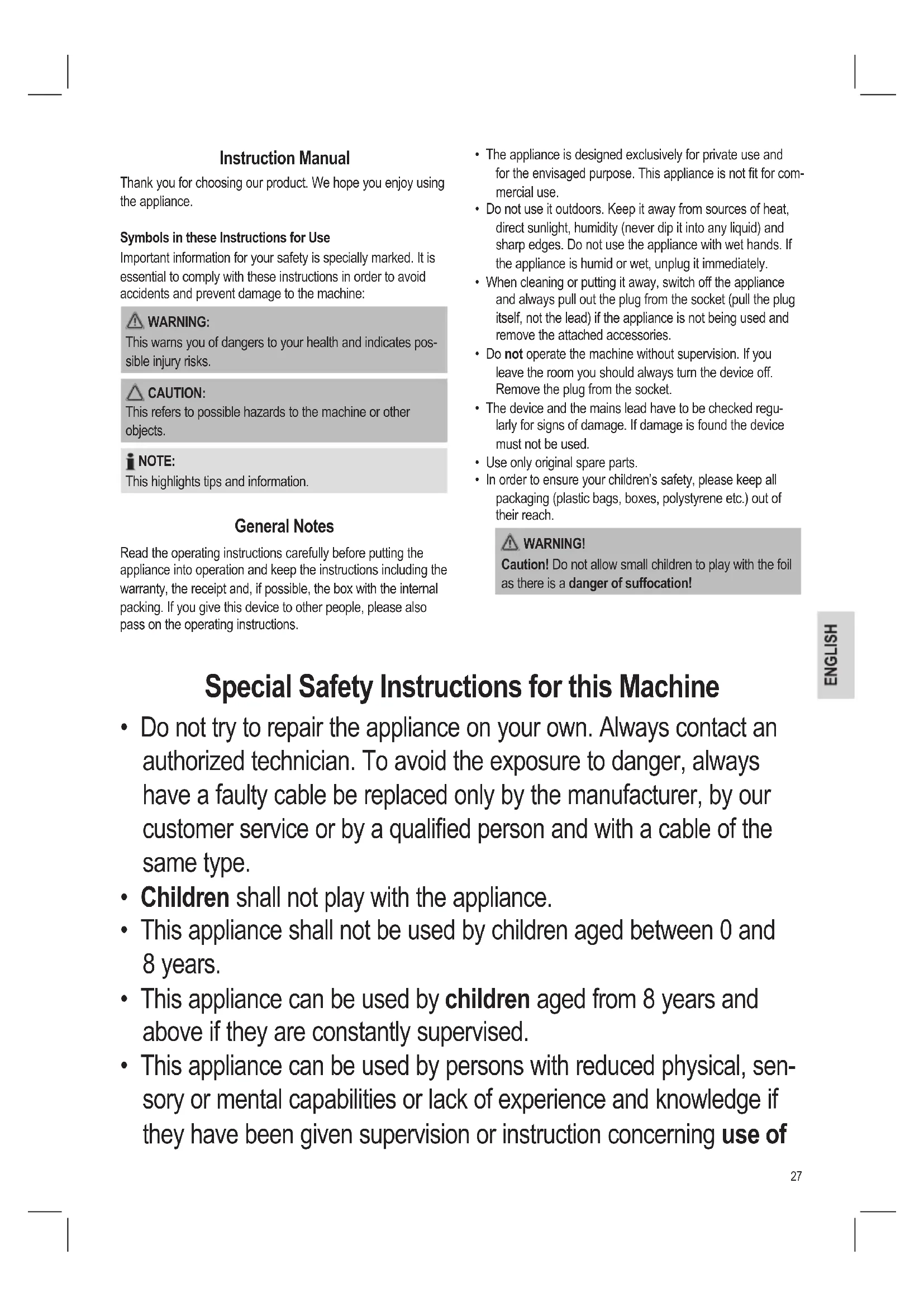

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation! Instruction Manual Thank you for choosing our product. We hope you enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates pos- sible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. Special Safety Instructions for this Machine

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualied person and with a cable of the same type.

• Children shall not play with the appliance.

• This appliance shall not be used by children aged between 0 and 8 years.

• This appliance can be used by children aged from 8 years and above if they are constantly supervised.

• This appliance can be used by persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of28 the appliance in a safe way and if they understand the hazards involved.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Cleaning and user maintenance shall not be made by children.

• Cooking pots should be set down in a stable position using the han- dles (if available) in order to prevent spilling of hot liquids. CAUTION:

• This appliance is not intended to be immersed in water during cleaning.

• Different surfaces will get into contact with food and oil. Observe our instructions in this regard in the chapter “Cleaning”.

• Do not operate the appliance on a separate timer or a separate remote control system.

• This appliance is intended to be used in a household and in similar applications such as - in staff kitchens of stores, ofces, and other industrial areas. It is not intended for use - by guests in hotels, motels, and other living arrangements; - in agricultural estates; - in bed and breakfasts. Scope of delivery 1 deep-fryer basic unit 1 frying basket with handle 1 lid, detachable 1 fork holder 6 fondue forks Instructions

• Risk of burning! Do not ll past the MAX mark! Hot oil may splatter out and cause injuries!

• Use frying oils. Frying oils are heat-resistant. Other oils/ fats start smoking at low temperatures. There is the risk of spontaneous ignition.

• Only use oil of one kind in one frying process. Mixtures of different oils/ fats can foam. In this case, oil may overow uncontrollably.

• If the appliance should catch re, do not try to extinguish the ames with water in any case. Close the appliance lid. Extinguish the ames with a moist towel.

• Only operate the appliance on a level and heat-resistant work surface.

• Do not move the appliance when it is in operation.

• Only grab the appliance by the intended handles.29

• Avoid splattering. Fill the basket outside of the deep-fryer.

• Only fry inside the frying basket.

• If the appliance is used as a deep-fryer, keep the lid closed. Electrical connection

1. Check if the mains voltage that you want to use matches

the one of the appliance. You will nd the information about this on the type plate on the appliance.

2. Connect the power cord to a properly installed protective

contact socket. Putting into use Before using for the rst time

1. Remove the packaging. The deep-fat frying basket with

handle is located in the deep-fat fryer. The handle can be inserted into the deep-fat frying basket.

2. We recommend cleaning the lid, housing and all accesso-

ries as described under “Cleaning”. Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of

French fries). Change the oil after using it 8-10 times.

2. Deep frying fat must be capable of being heated to high

temperatures. Use high quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not t for frying, because they start to smoke already at low temperatures. In order to reduce the acrylamide content of food containing starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170°C (or possi- bly 175°C). Furthermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow.

3. Choose the right frying temperature and check the condi-

tions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

4. Do not carry or move the deep fryer if the oil or grease is

5. When frying dough-like foods scrape off the excess dough

and put the pieces carefully into the oil.

6. Do not overll the frying basket.

7. Rub dry humid foods with a cloth before frying.

Using the unit Deep-Fat Frying

1. Make sure that the appliance is unplugged and switched

3. Remove the frying basket and ll the container with oil or

grease (maximum 1.0 l). The lling level must be located between the minimum and the maximum level. CAUTION:

• If you use fat, divide it up into small pieces and place it on the oor of the deep frying vessel.

• Under no circumstances should you place the fat in the deep frying basket!

4. Close the lid. Insert the plug into a properly installed power

socket. The “POWER” control lamp lights up.

5. Adjust the temperature control device to the desired tem-

perature. The “HEAT” control lamp lights up. Once the set temperature is reached, the LED switches off.

6. Now ll the deep-fry basket. Please ensure that the basket

is not lled above the hot fat.

7. Open the lid and ll the frying basket with the food to be

fried. Remove the handle from the deep-fat frying basket.

9. At the end of the frying time (the frying time is specied on

the package of the food or in the recipe) open carefully the lid (Warning! Hot steam may be released!). Now remove the deep-fat frying basket with the handle.

10. Let the oil drip from the food being fried.

• The device is not suitable for making cheese or chocolate fondue. These ingredients could burn or boil over in the deep-fat frying vessel.

1. Make sure that the appliance is unplugged and switched

2. The lid can be removed by pulling upwards. In order to do

so, open the lid and separate it from the hinge of the hous- ing.

3. Remove the frying basket and ll the container with oil or

grease (maximum 1.0 l). The lling level must be located between the minimum and the maximum level. CAUTION:

• If you use fat, divide it up into small pieces and place it on the oor of the deep frying vessel.

• Under no circumstances should you place the fat in the deep frying basket!

4. Put the fork holder in place.

5. Insert the plug into power socket. The “POWER” control

6. Adjust the temperature control to approx. 130°C. The

“HEAT” control lamp lights up. Once the set temperature is reached, the LED switches off. With a wooden stick (e.g. shashlik spit or wooden cooking spoon) you can test whether the correct temperature has been reached. When this is inserted into the oil, small air bubbles should rise up along the wooden stick. Alterna- tively, you can place a piece of the food to be fried into the hot oil. If bubbles are formed, the frying fat has reached the right temperature.30

7. Place the pieces of meat on the fondue forks and then dip

them into the oil. Depending on the size of the meat pieces, the cooking process takes between 4 and 7 minutes, i.e. the smaller the pieces of meat or other food are, the faster they are cooked. CAUTION:

• Place the ingredients carefully into the hot oil. Care is required as you are frying in an open vessel and it is not possible to avoid oil splashes.

• Dry off the ingredients beforehand with a cloth.

8. Adjust the temperature with the regulator such that the oil

simmers. After Use To switch the device off, rst turn the temperature regulator to OFF and remove the plug from the socket. Allow the frying oil a considerable time to cool down. Before continuing to use the full frying pot, please ensure that it is no longer at a dangerous temperature. Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

• Do not immerse the device in water! It could result in an electric shock or re. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents.

• Pour out the used oil to the side.

• Clean removable parts and accessories that have come in contact with food or oil by hand in a rinsing bath.

• Clean the deep-fry container with a moist towel and dish- washing detergent.

• Wipe out the deep-fry container with the moist towel from the inside.

• Wipe out the casing with the moist towel from the outside.

• You may pull off the lid upwards. This facilitates cleaning.

• Wipe off the appliance lid with the moist towel.

• To replace the lters, pull the lter cover in the lid of the appliance upwards. Storage

• Clean the appliance as described and allow it to dry.

• We recommend that you keep the appliance in the original packaging if it will not be used for long periods.

• Always store the appliance out of the reach of children in a dry, well ventilated place. Technical Data Model: ..................................................................... FFR 1290 CB Power supply: .................................................220-240 V~, 50 Hz Power consumption: ........................................................... 840 W Protection class: ...........................................................................I Filling quantity: ................................................... approx. 1.0 Litre Net weight: ........................................................... approx. 0.90 kg The right to make technical and design modications in the course of continuous product development remains reserved. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisa- tion of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority.31
