USER MANUAL FR 2224 CB BOMANN

D-47906 Kempen/Germany

Consommation: 1800 W

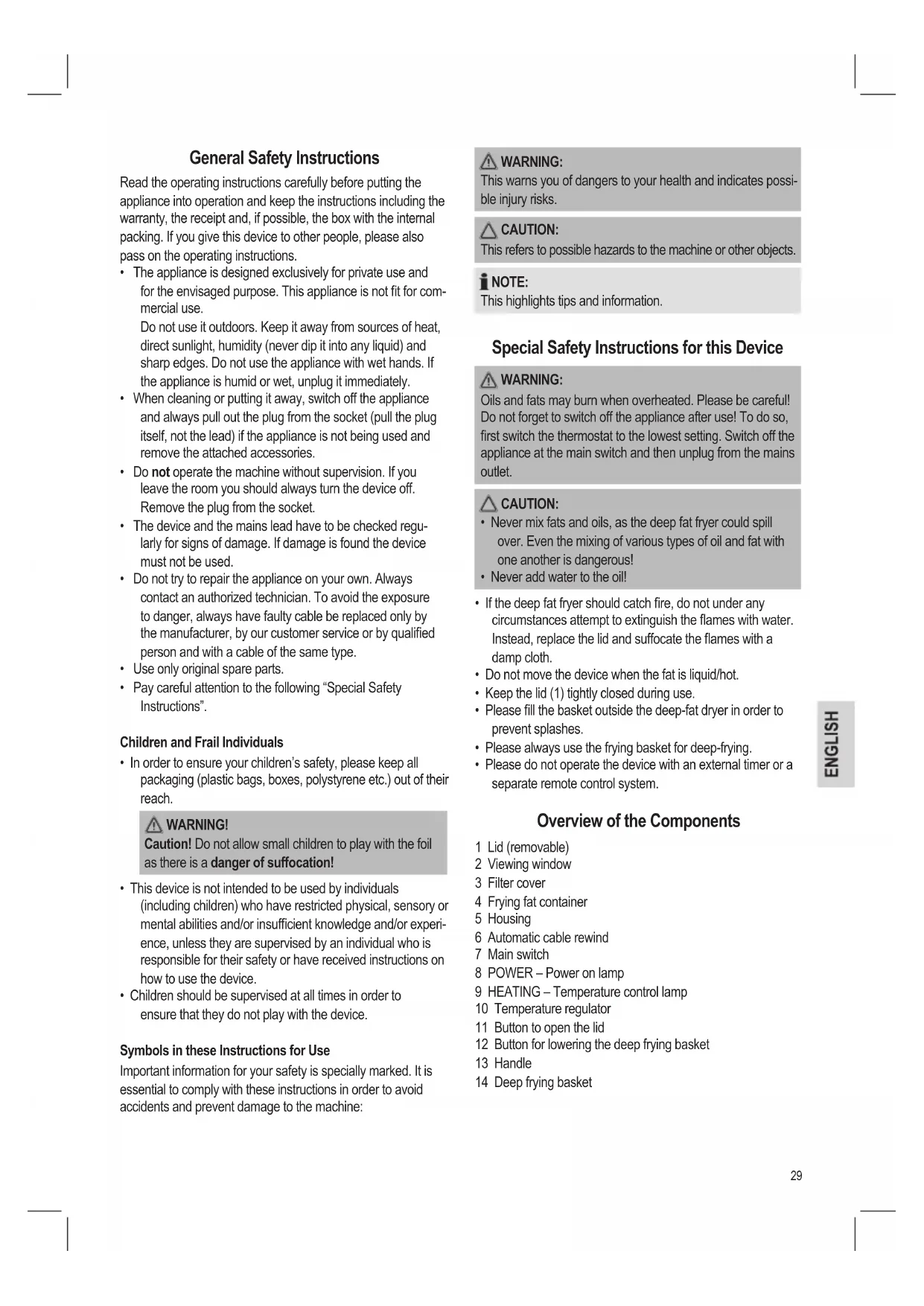

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

OTE:

This highlights tips and information.

Special Safety Instructions for this Device

WARNING:

Oils and fats may burn when overheated. Please be careful! Do not forget to switch off the appliance after use! To do so, first switch the thermostat to the lowest setting. Switch off the appliance at the main switch and then unplug from the mains outlet.

CAUTION:

• Never mix fats and oils, as the deep fat fryer could spill over. Even the mixing of various types of oil and fat with one another is dangerous!

• Never add water to the oil!

• If the deep fat fryer should catch fire, do not under any circumstances attempt to extinguish the flames with water. Instead, replace the lid and suffocate the flames with a damp cloth.

• Do not move the device when the fat is liquid/hot.
• Keep the lid (1) tightly closed during use.
• Please fill the basket outside the deep-fat dryer in order to prevent splashes.
• Please always use the frying basket for deep-frying.
• Please do not operate the device with an external timer or a separate remote control system.

Overview of the Components

1 Lid (removable)
2 Viewing window
3 Filter cover
4 Frying fat container
5 Housing
6 Automatic cable rewind
7 Main switch
8 POWER - Power on lamp
9 HEATING - Temperature control lamp
10 Temperature regulator
11 Button to open the lid
12 Button for lowering the deep frying basket
13 Handle
14 Deep frying basket

Instruction

The deep fryer is equipped with an adjustable thermostat, so that the temperature can be adapted to the food being fried.

Intended Use

This device is used for deep-frying food.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm C. Bomann GmbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Putting into use

Before using for the first time

1. Remove the packaging. Open the deep fryer by pressing the button (11). The frying basket is in the deep fryer.
2. It is highly recommended to clean the lid, casing, container and frying basket as described in "Cleaning".
3. Unwind the mains lead completely.

Electrical connection

• Make sure that the device voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 230V 50Hz socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 1800 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION:OVERLOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this device is too powerful.

Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of French fries). After the device has been used several times you should change the oil.

Use high quality frying oil or frying grease.

1. Fats and oils must be heatable to high temperatures. Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures.

We recommend the use of liquid frying oil.

WARNING:

Please note this important information if you intend to use fat!

If you use fat, please divide it up into small pieces. Tum the thermostat to a low temperature and add the pieces slowly. Once the fat has melted and the correct oil level is reached you can set the desired temperature on the thermostat.

Under no circumstances should you place the fat in the deep frying basket!

1. In order to reduce the acrylamide content of food containing starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170^ (or possibly 175^ ). Furthermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow.
2. Choose the right frying temperature and check the conditions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.
3. Do not carry or move the deep fryer if the oil or grease is still hot.
4. When frying dough-like foods scrape off the excess dough and put the pieces carefully into the oil.
5. The deep frying basket must not be more than two-thirds full. Do not overfill the basket.
6. Rub dry humid foods with a cloth before frying.

CAUTION:

In the case of foodstuffs which are too moist (e.g. frozen chips etc.) large amounts of foam may form, which under certain circumstances may cause the oil to overflow.

1. After use, unplug the deep fryer.
2. If you should switch on your deep fat fryer by accident when there is no oil or fat in it, the overheating protection device will switch on automatically. The device is then no longer operable. Remove the plug from the socket.

Use

1. Make sure that the appliance is unplugged and switched off (The control lamps are off.).
2. Open the deep fryer by pressing the button (11).
3. In order to remove the deep fryer, place your hands in the tub and pull the handle (13) upwards until it locks in place.
4. Fill oil or fat into the frying fat container. (maximum 2.5 l). The filling level must be located between the minimum and the maximum level.
5. Insert the plug in a duly installed 230V / 50Hz protective contact socket.
6. Switch on the appliance at the main switch (I). The POWER on lamp lights up.
7. Set the desired temperature on the temperature regulator (10). The HEATING control lamp lights up. Then close the lid during the heating-up phase.

i NOTE:

Once the set temperature has been reached, the HEATING control lamp goes off. The power on lamp remains on and shows that the device is working.

1. Now fill the deep-fry basket. Please ensure that the basket is not filled above the hot fat. Open the lid and insert the basket with the items to be fried carefully into the recess.
2. Now close the lid. Release the handle (by pushing the button (12) on the handle). The deep-fry basket is now in the hot fat.

i NOTE:

• During the deep-frying process the HEATING control lamp switches on and off several times. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained.

• The frying times are to be found on the packaging of the food or in the recipe.

• After the frying time has expired, you can allow the oil to drain off the deep-fried food. To do so, reach into the recess and pull the handle (13) up, until it latches. This will lift the basket.

• Open the lid carefully.

WARNING:

As it is possible that hot steam will be released.

1. Now remove the deep-frying basket.

Switching Off

• Set the temperature regulator to the minimum setting (OFF).
• Switch the appliance off at the main switch (O).
• Remove the mains plug from the socket.
• Allow the frying oil a considerable time to cool down. Before continuing to use the full frying pot, please ensure that it is no longer at a dangerous temperature.

Mains Lead Take-up Device

Wind the mains lead up again on the rear of the deep fat fryer.

Cleaning

WARNING:

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Deep frying fat container

• In order to change the oil, pull out the deep frying fat container and pour the oil out at the side.
• The frying fat container and deep frying basket can be cleaned in the normal way in soapy water.
• Reinsert the frying fat container in such a way that the MIN and MAX Mark is located at the rear end of the deep fat fryer.

Housing

• The lid of the deep fryer can be removed. This makes it easier to clean.
• Clean the housing and lid after use with a damp cloth and domestic washing-up liquid if necessary. Do not remove the lid seal. It might tear.
• Replace the lid after cleaning. Make sure that the spring sits in the recess.
• Ensure that the parts are completely dry before re-using the appliance and before storage.

Changing the Odour and Fat Vapour Filter

The filter in the lid can be replaced.

• Remove filter cover (3).
• Replace the filter.
• Then reassemble the cover.

NOTE:

When these filters have been used up it is possible to cut universal filters to size, e.g. from cooker hoods.

Technical Data

Model: FR 2224CB

Power supply: 230 V, 50 Hz

Power consumption: 1800 W

Protection class:

Filling quantity: max. 2.5 l

Net weight: 2.80 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
