USER MANUAL D931S Libra+ FRIEDLAND

Installation and Use

Contents

Checking pack contents..... Pg. 2

Safety......

Quick start......

Open push..... Pg. 3

Fit battery ....

Mount push ....

Troubleshooting..... Pg. 4

Specifications..... Pg. 5

Disposal and recycling......

Guarantee......

Declaration......

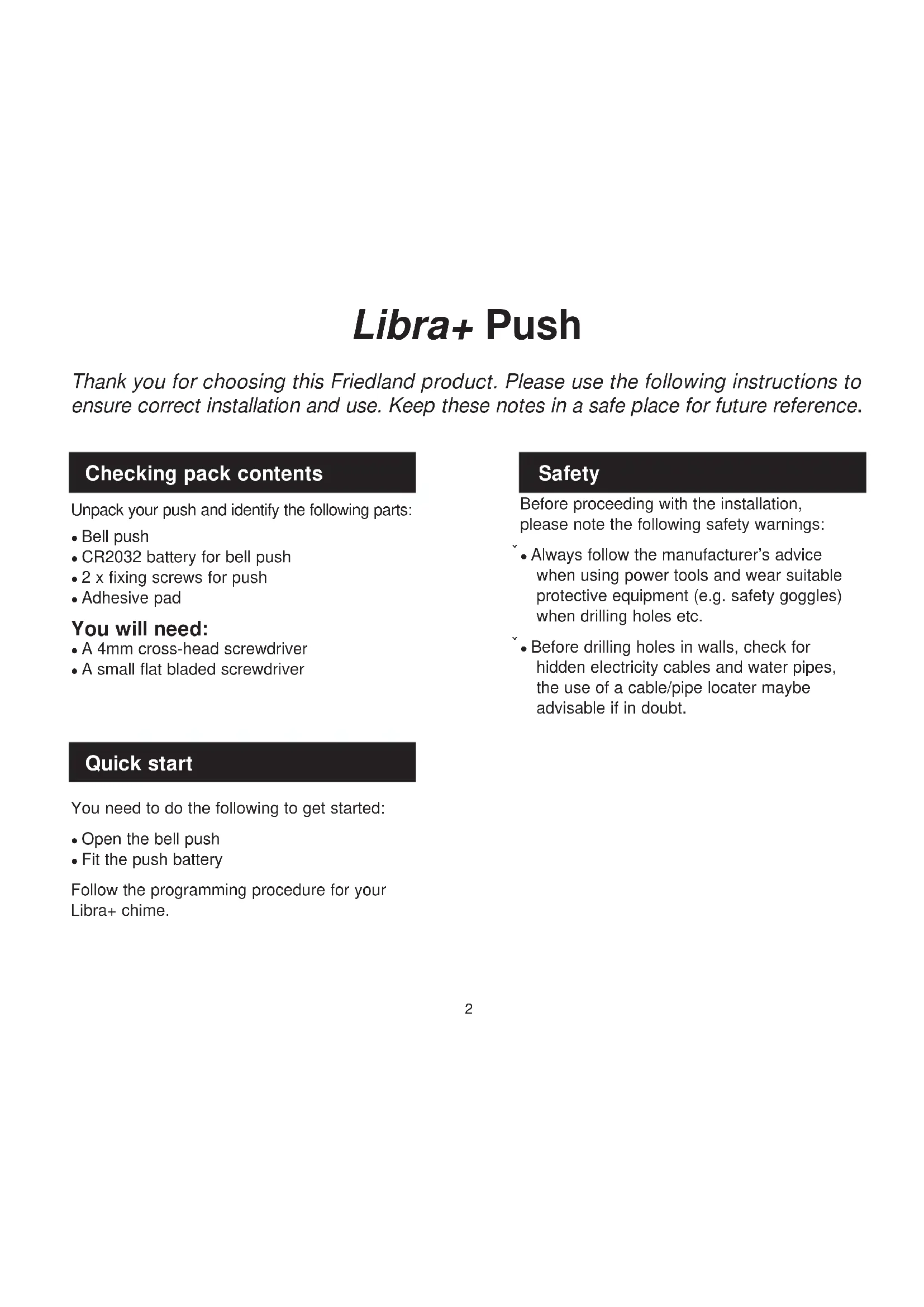

Libra+ Push

Thank you for choosing this Friedland product. Please use the following instructions to ensure correct installation and use. Keep these notes in a safe place for future reference.

Checking pack contents

Unpack your push and identify the following parts:

• Bell push
  • CR2032 battery for bell push
• 2 x fixing screws for push
• Adhesive pad

You will need:

• A 4mm cross-head screwdriver
• A small flat bladed screwdriver

Quick start

You need to do the following to get started:

• Open the bell push
• Fit the push battery

Follow the programming procedure for your Libra+ chime.

Safety

Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes, the use of a cable/pipe locater maybe advisable if in doubt.

Open the bell push

Insert a flat bladed screwdriver into the slot A at the base of the push. Carefully lever the cover and base apart (Fig. 1).

Fig. 1

Tofit the push battery

Insert the CR2032 coin cell. Ensure the face marked ‘+’ is uppermost (Fig. 2).

Fig. 2

Mount the bell push

Mount using either the double sided adhesive pad, or the screws provided (see Fig 3). Test your push before fixing. Avoid fixing to metal structures.

Fig. 3

Technical line drawing of a mechanical device with internal components (no text or symbols)

Troubleshooting

A ‘beep’ sound is heard in learn mode...The push you are programming has already been learnt by the chime.If you want to change the icon associated with the push, use the un-learn procedure, then programme the push again.

Two ‘beep’ sounds are heard after the normal chime sound...This indicates a low battery in the bell push that activated the chime. Fit a new battery, type CR2032.

When the bell push is operated, the amber confidence light does not turn on, or is only on for a short time...In normal operation, the amber light will turn on for 1 second. When the battery is weak, the light will only turn on for a short time. Fit a new battery, type CR2032.

The chime does not work...Check that the batteries are the correct type. Only use alkaline batteries.Check that the batteries are fitted correctly.The chime could be out of range of the bell push. Try the chime in a different location.The chime might not have learnt the identity of the bell push. Follow the programming procedure.

The chime does not sound...Check that the volume control is not at the minimum setting.

Range is reduced...Metal structures, including uPVC door frames can reduce the range of the product.Avoid mounting the push or chime on or near metal structures.Other equipment can cause radio interference that affects your chime.Walls and ceilings will reduce the range.Weak batteries will reduce range. Replace every 12 –18 months. In cold conditions (below 5°C), batteries may need to be replaced more often.

Push does not work with my older Libra equipment ...Libra + is not compatible with the earlier Libra system.Only use accessories marked Libra+.

Specifications

Specification Bell push
Operating Temperature -10 to 40°C
RF Frequency – UK/Europe 868MHz
RF Power <10mW
Battery Type CR2032
Battery Life (5 activations/day)	18 months
IP Rating IP55

Declaration

Novar ED&S hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment (R&TTE) directive, 1999/5/EC.

Disposal & Recycling

Batteries and waste electrical products should not be disposed of with household waste. Please recycle where these facilities exist. Check with your local authority or retailer for recycling advice.

Guarantee

Friedland guarantees this product for 2 years from the date of purchase. Proof of purchase is required; this does not affect your statutory rights. If you require further information about your product, call the Friedland helpline on 01268 563066.

Libra + Funktaster

Inbetriebnahme

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a cylindrical object with labeled point A and internal horizontal lines (no text or symbols beyond label)

Fig. 1

Technical line drawing of a mechanical device with no visible text or symbols

Friedland, The Arnold Centre, Paycocke Road, Basildon, Essex, SS14 3EA

www.friedland.co.uk

Libra + belknop

Installatie

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a cylindrical electronic component with labeled section A (no text or symbols on the object itself)

Fig. 1

Technical line drawing of a device casing with internal components (no text or symbols)

Friedland, The Arnold Centre, Paycocke Road, Basildon, Essex, SS14 3EA www.friedland.co.uk

Libra + Pulsante

Simple line drawing of a cylindrical object with labeled point A and internal horizontal bar (no text or symbols beyond label)

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a cylindrical object with internal horizontal lines and labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Friedland, The Arnold Centre, Paycocke Road, Basildon, Essex, SS14 3EA

www.friedland.co.uk
