USER MANUAL D932S Libra+ FRIEDLAND

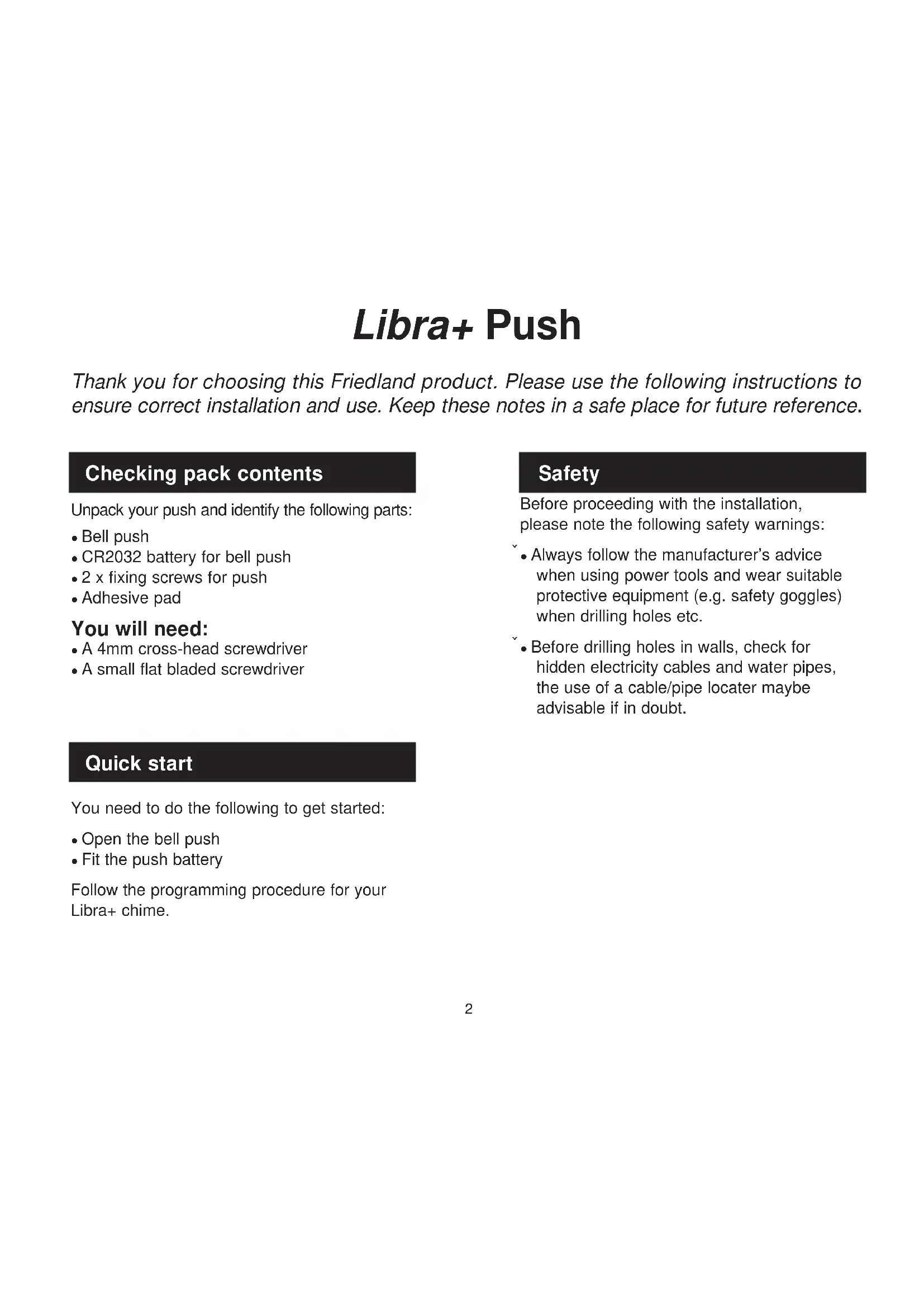

48337PL Ed1 Instruction Manual D930S/D931S/D932S/D933S Libra+ Push Bedienungsanleitung D930S/D931S/D932S/D933S Libra+ Funktaster Manuel d’utilisation D930S/D931S/D932S/D933S Libra plus bouton poussoir Instructie handleiding D930S/D931S/D932S/D933S Libra+ belknop Instruccione Manuel D930S/D931S/D932S/D933S Libra plus pulsador Manuel d’Instruzioni D930S/D931S/D932S/D933S Libra+ pulsante Manual de Instruções D930S/D931S/D932S/D933S Libra+ Botão1 Contents Checking pack contents..................... Pg. 2 Safety................................................. Quick start.......................................... Open push.......................................... Pg. 3 Fit battery ......................................... Mount push ....................................... Troubleshooting.................................. Pg. 4 Specifications..................................... Pg. 5 Disposal and recycling....................... Guarantee.......................................... Declaration......................................... Installation and Use Libra + Push ENGLISH2 Libra+ Push Thank you for choosing this Friedland product. Please use the following instructions to ensure correct installation and use. Keep these notes in a safe place for future reference. Unpack your push and identify the following parts: ● Bell push● CR2032 battery for bell push● 2 x fixing screws for push● Adhesive pad You will need: ● A 4mm cross-head screwdriver ● A small flat bladed screwdriver Checking pack contents Before proceeding with the installation, please note the following safety warnings: ¬● Always follow the manufacturer’s advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes etc. ¬● Before drilling holes in walls, check for hidden electricity cables and water pipes, the use of a cable/pipe locater maybe advisable if in doubt. Safety You need to do the following to get started: ● Open the bell push● Fit the push battery Follow the programming procedure for your Libra+ chime. Quick start3 Insert a flat bladed screwdriver into the slot A at the base of the push. Carefully lever the cover and base apart (Fig. 1). Open the bell push

Mount using either the double sided adhesive pad, or the screws provided (see Fig 3). Test your push before fixing. Avoid fixing to metal structures. Mount the bell push Fig. 34 A ‘beep’ sound is heard in learn mode… ¬● The push you are programming has already been learnt by the chime. ¬● If you want to change the icon associated with the push, use the un-learn procedure, then programme the push again. Two ‘beep’ sounds are heard after the normal chime sound… ¬● This indicates a low battery in the bell push that activated the chime. Fit a new battery, type CR2032. When the bell push is operated, the amber confidence light does not turn on, or is only on for a short time… ¬● In normal operation, the amber light will turn on for 1 second. When the battery is weak, the light will only turn on for a short time. Fit a new battery, type CR2032. The chime does not work… ● Check that the batteries are the correct type. Only use alkaline batteries. ● Check that the batteries are fitted correctly. ● The chime could be out of range of the bell push. Try the chime in a different location. ● The chime might not have learnt the identity of the bell push. Follow the programming procedure. The chime does not sound… ● Check that the volume control is not at the minimum setting. Range is reduced… ● Metal structures, including uPVC door frames can reduce the range of the product. Avoid mounting the push or chime on or near metal structures. ● Other equipment can cause radio interference that affects your chime. ● Walls and ceilings will reduce the range. ● Weak batteries will reduce range. Replace every 12 –18 months. In cold conditions (below 5ºC), batteries may need to be replaced more often. Push does not work with my older Libra equipment … ● Libra + is not compatible with the earlier Libra system. ● Only use accessories marked Libra +. Troubleshooting5 Specifications Specification Bell push Operating Temperature -10 to 40ºC RF Frequency – UK/Europe 868MHz RF Power <10mW Battery Type CR2032 Battery Life (5 activations/day) 18 months IP Rating IP55 Friedland guarantees this product for 2 years from the date of purchase. Proof of purchase is required; this does not affect your statutory rights. If you require further information about your product, call the Friedland helpline on
