SF5062 - Humidifier ALPINA - Free user manual and instructions

Product type	Ultrasonic humidifier
Brand	Alpina
Model	SF5062
Power supply	220-240 V ~ 50 Hz
Power	31 W
Technology	Ultrasonic (cold mist)
Mist type	Cold
Water tank	Removable with handle
Diffusion nozzle	Adjustable direction
Built-in night light	Yes
Water level indicator	Yes (sight glass)
Auto shut-off	When tank is empty
Mist output adjustment	Yes, via continuous rotary knob
Control	On/off button and output adjustment
Recommended water temperature	Below 40 °C (pure water preferred)
Weekly maintenance	Cleaning with bleach solution
Nebulizer cleaning	With a soft cloth, no abrasive detergents
Safety	Do not immerse the base in water; do not use without water
Warranty	2 years
Country of origin	Not specified

Frequently Asked Questions - SF5062 ALPINA

How to fill the water tank?

Stop the appliance and unplug it if possible. Remove the tank by the handle, turn it upside down, unscrew the cap counterclockwise, fill with cold water (max 40 °C), then screw the cap back on firmly. Place the tank back on the base.

Why is the humidifier not producing mist?

Check that the appliance is plugged in and the on/off knob is turned. Ensure the tank has enough water. If the green indicator light is off, the appliance may be in standby or there may be a power failure.

What to do in case of abnormal odor?

The odor may come from a new tank or stagnant water. For a new tank, let it soak in water for 12 hours. If water has been sitting for a long time, empty, clean, and replace the water.

How to clean the humidifier?

Clean the tank weekly: use a bleach solution (1 teaspoon of bleach for 4.5 L of water). Let it sit for 20 minutes, rinse with clean water. Wipe the base with a damp cloth without immersing it in water.

Can I use additives or essential oils?

No, never add additives to the water. This could damage the appliance and void the warranty. Use only clear water.

Where to place the humidifier?

Place it on a flat, solid, horizontal surface. Keep it at least 2 meters away from electronic devices (TV, instruments). Do not place it near heat sources, curtains, or directly against a wall.

The appliance makes an abnormal noise, what to do?

Fill the water tank because noise may come from low water level. If the noise persists, check that the appliance is level and clean the nebulizer.

How to adjust the mist output?

Turn the on/off knob clockwise to increase output, from left to right from minimum to maximum. Use maximum if the air is very dry.

The humidifier turns off by itself, why?

This is normal: the appliance automatically turns off when the tank is empty (safety shut-off). Simply refill the tank and restart the appliance.

What to do if the night light does not work?

Check that the appliance is powered on and the night light button is activated. If the night light remains off, contact customer service.

USER MANUAL SF5062 ALPINA

EN SF-5062 Ultrasonic Cool Mist Humidifie

DE SF-5062 Ultraschall Cool Mist Luftbefeuchter

EN: For your own safety read these instructions carefully before using the appliance.

1. Mist Nozzle
2. Handle
3. Water tank
4. Ultrasonic nebulizer
5. Water dumping indicator
   6.Flume
6. Night light
7. Night light indicator
8. Power knob
9. Water refill indicator
10. Two arrow heads in a line
11. Water tank cap
12. Base

FR

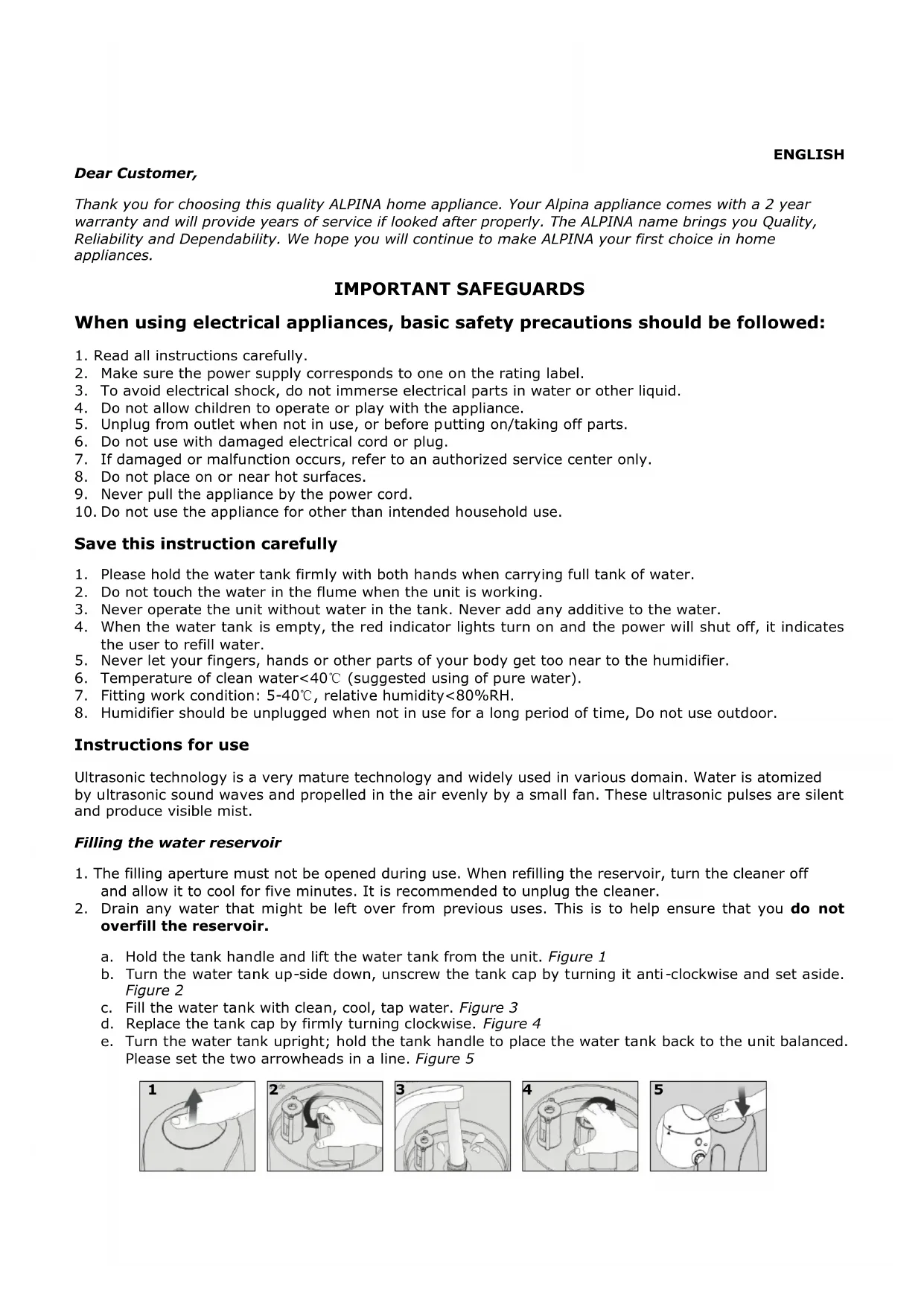

Thank you for choosing this quality ALPINA home appliance. Your Alpina appliance comes with a 2 year warranty and will provide years of service if looked after properly. The ALPINA name brings you Quality, Reliability and Dependability. We hope you will continue to make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the power supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in water or other liquid.
4. Do not allow children to operate or play with the appliance.
5. Unplug from outlet when not in use, or before putting on/taking off parts.
6. Do not use with damaged electrical cord or plug.
7. If damaged or malfunction occurs, refer to an authorized service center only.
8. Do not place on or near hot surfaces.
9. Never pull the appliance by the power cord.
10. Do not use the appliance for other than intended household use.

Save this instruction carefully

1. Please hold the water tank firmly with both hands when carrying full tank of water.
2. Do not touch the water in the flume when the unit is working.
3. Never operate the unit without water in the tank. Never add any additive to the water.
4. When the water tank is empty, the red indicator lights turn on and the power will shut off, it indicates the user to refill water.
5. Never let your fingers, hands or other parts of your body get too near to the humidifier.
6. Temperature of clean water < 40^ (suggested using of pure water).
7. Fitting work condition: 5 - 40^ relative humidity < 80% RH.
8. Humidifier should be unplugged when not in use for a long period of time, Do not use outdoor.

Instructions for use

Ultrasonic technology is a very mature technology and widely used in various domains. Water is atomized by ultrasonic sound waves and propelled in the air evenly by a small fan. These ultrasonic pulses are silent and produce visible mist.

Filling the water reservoir

1. The filling aperture must not be opened during use. When refilling the reservoir, turn the cleaner off and allow it to cool for five minutes. It is recommended to unplug the cleaner.
2. Drain any water that might be left over from previous uses. This is to help ensure that you do not overfill the reservoir.

a. Hold the tank handle and lift the water tank from the unit. Figure 1
b. Turn the water tank up-side down, unscrew the tank cap by turning it anti-clockwise and set aside. Figure 2
c. Fill the water tank with clean, cool, tap water. Figure 3
d. Replace the tank cap by firmly turning clockwise. Figure 4
e. Turn the water tank upright; hold the tank handle to place the water tank back to the unit balanced. Please set the two arrowheads in a line. Figure 5

ENGLISH

Place and Operation

1. Always place the humidifier on a firm, clean and flat level surface. Figure 6
2. Place the unit at least 2 meters away from TV, sound box and other home appliances; do not allow the moisture outlet to face directly the wall and home appliances. Figure 7
3. Never place the humidifier near combustible materials such as curtain etc. Figure8
4. Do not place the unit near the stove and other heat sources and do not expose the humidifier under direct sunshine. Figure 9

How to use function key:

Power knob: Plug in, the unit is on stand by position. Turn the power knob clockwise then the green indicator light will turn on. Turning the knob will adjust the quantity of mist from left to right becomes bigger and bigger until it reach the maximum quantity of mist. It is suggested to choose the maximum quantity of mist when air in the room is very dry.

Warning:

This appliance is equipped with a grounded, Type G, 3-pin power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

Troubleshooting: Please check the following item before having it repaired

Problem

1. Power light is off

Reason

a. Check if the unit is plugged in

Solution

a. Plug in the unit and turn the power knob

b. The unit is new

b. Open the water tank cap and keep it in shady and cool place for 12 hours.

a. Change the water

1. Unusual Smell

a. The water is dirty or keep too long

a. Fill the water tank

1. Unusual Noise

a. It might be caused by lack of water

Cleaning & Maintenance

1. Lift the Water Tank from the Base, remove the tank cap and drain any water from the Water Tank. Rinse the Water Tank with lukewarm water after each use.
2. DO NOT immerse the Base in water. Gently wipe the reservoir with a soft, clean, wet cloth.
3. DO NOT use detergent, abrasive cleansers or brushes to clean the nebulizer that is not produced or not under the supervision of the manufacturer.
4. DO NOT leave water in the Water Tank or reservoir when the unit is not in use as it could result in the buildup of mineral deposits and bacteria that can inhibit the output efficiency of the humidifier. Please note that if water remains in the Water Tank for more than a day, bacterial growth is possible.
5. Weekly Maintenance: Thoroughly clean the humidifier every week using a solution of bleach and water (one teaspoon of bleach in one gallon of water). Fill the Water Tank partially with this solution, let it remain in the water tank within twenty (20) minutes, shake it every few minutes. Drain and rinse with clean water.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product.

Specification

Model No.: SF-5062

Voltage: 220 - 240V 50Hz

Wattage : 31watts

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, provided the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and that it has not been modified, repaired or interfered with by any unauthorized person, or damaged through misuse.

This guarantee does not cover wear and tear, or breakables such as ceramic items, etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase

E-mail Service Address

[e-mail]
