CL Pocket Mountain 10x25 B - Binoculars SWAROVSKI OPTIK - Free user manual and instructions

Product type	Binoculars
Brand	Swarovski Optik
Model	CL Pocket Mountain 10x25 B
Magnification	10x
Objective lens diameter	25 mm
Diopter adjustment	Yes, correction wheel
Interpupillary distance	Adjustable
Eyecups	Rotating, adjustable for eyeglass wearers
Focusing	Central focusing wheel
Power supply	None (manual operation)
Included accessories	Strap, functional case, waterproof cover, cleaning cloth
Warranty	10 years (subject to conditions)
Care	Clean with microfiber cloth, avoid dirt and oil
Safety	Do not look at the sun, do not use while walking
Repairs	Only by Swarovski Optik Absam (Austria) or North America
Country of manufacture	Austria (Swarovski Optik KG, Absam)
Minimum focusing distance	Not specified (see technical data sheet)

Frequently Asked Questions - CL Pocket Mountain 10x25 B SWAROVSKI OPTIK

How to adjust the eyecups for eyeglass wearers?

For use with glasses, turn both eyecups clockwise to the stop. Without glasses, turn them counterclockwise.

How to adjust the interpupillary distance?

Spread the two barrels of the binoculars until a single circular image is obtained without disturbing shadows. Adjust until shadows disappear.

How to perform diopter correction?

Set the diopter correction wheel to zero if visual acuity is identical. Otherwise, focus with the left eye using the focusing wheel, then with the right eye turn the diopter correction for optimal sharpness.

How to attach the strap?

The strap is not attached from the factory. Attach it quickly and easily to the designated points on the binoculars as needed.

How to clean the lenses?

Use the provided microfiber cleaning cloth. First remove large particles with a brush, then lightly moisten the surface with your breath and wipe with the cloth. Use only on glass.

How to store the binoculars?

Store them in their case in a dry, well-ventilated place. If wet, dry them first. In humid areas, use a waterproof case with a moisture absorber (like Silicagel).

What to do in case of high ambient humidity?

In tropical or very humid regions, store the binoculars in an airtight case with a moisture absorbing product (Silicagel).

What are the important safety instructions?

Never look directly at the sun with the binoculars, as this can cause eye damage. Do not use them while walking to avoid hitting obstacles. Protect them from impacts.

What is the warranty period and its conditions?

The worldwide warranty is 10 years from the purchase date. For the first 5 years, labor costs are included. The warranty does not cover damage due to improper use or wear parts (eyecups, strap, case). Repairs must be carried out by Swarovski Optik.

How to obtain warranty repair?

Return the device with the duly completed warranty/service card to your Swarovski Optik dealer or send it postage-paid to the Swarovski Optik address in Austria. Out-of-warranty repairs are charged. Transport insurance is recommended.

USER MANUAL CL Pocket Mountain 10x25 B SWAROVSKI OPTIK

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical component with two rotating parts and a central shaft (no text or symbols)

Illustration showing two bird surveillance cameras with one open and the other with three flying birds inside (no text or symbols)

6

CL POCKET MOUNTAIN / DE

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Technical diagram illustrating eye contact and mechanical assembly with labeled parts and directional arrows

Illustration of a hand holding a cylindrical container with a rotating knob, alongside a mechanical component (no text or symbols)

Illustration of a person using a megaphone to interact with a sun (no text or symbols)

Illustration of a person with a prohibition sign crossed out by a circular arrow and a small explosion (no text or symbols)

Diagram of a car with a circular cross symbol indicating no change or restriction, surrounded by geometric lines (no text or labels)

Illustration of a hand holding a circular object with a diagonal line, no text or symbols present

We thank you for choosing this product from SWAROVSKI OPTIK. If you have any questions, please consult your specialist dealer or contact us directly at WWW.SWAROVSKIOPTIK.COM.

1 Twist-in eye cups
2 Focusing wheel
3 Dioptric compensation
4 Carrying strap

Supplied with the CL Pocket Mountain:

Field bag, raincover, lens-cleaning cloth.

The strap is not attached to the CL Pocket Mountain during delivery. You can easily attach the strap or special accessories.

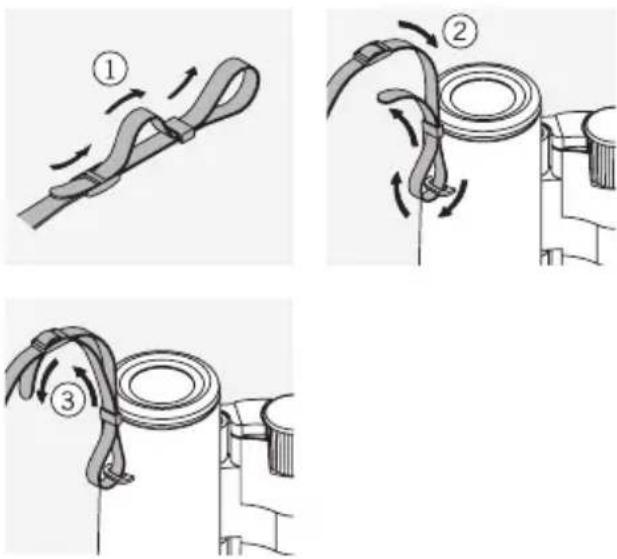

2. ATTACHING THE STRAP

Diagram illustrating three steps of tying a rope knot, labeled ①, ②, and ③ with directional arrows indicating sequence.

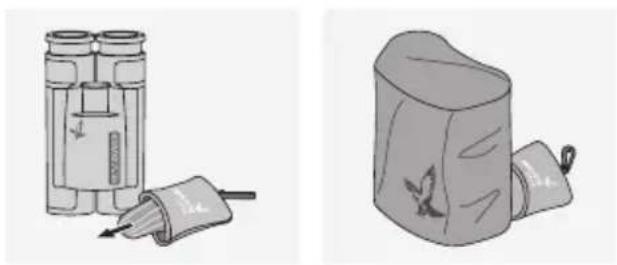

3. ATTACHING THE RAINCOVER

Illustration of two types of binoculars and a bag with bird motifs (no text or symbols)

4. OPERATION

4.1 ADJUSTMENT OF THE TWIST-IN EYE CUPS

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Use without eyeglasses:

Turn both eye cups (counter-clockwise) until they stop.

Diagram of a mechanical component with two rotating parts and a central shaft (no text or symbols)

Use with eyeglasses:

Turn both eye cups clockwise until they stop.

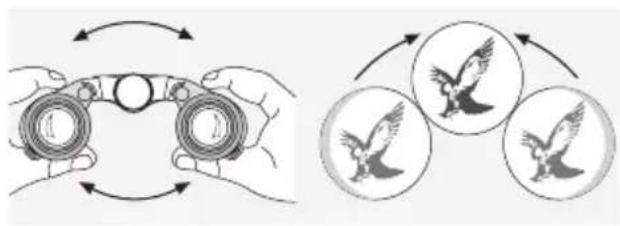

4.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

Illustration showing two hands holding binoculars and three birds inside a circular diagram (no text or symbols)

4.3 ADJUSTMENT OF FOCUSING

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to

infinity by turning the focusing wheel.

4.4 DIOPTRIC COMPENSATION

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

Use with equal acuity of both eyes:

+ • -

The dioptric compensation is set to "zero".

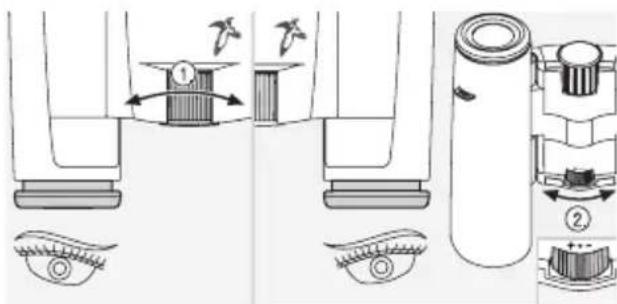

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.

2. Now, using your right eye, look at the same object through the right eyepiece and use the dioptric compensation to set the optimal image sharpness.

Technical diagram illustrating eye contact mechanism with labeled components and directional arrows

5. MAINTENANCE AND CARE

5.1 LENS-CLEANING CLOTH

You can clean high sensitive lens surfaces with the enclosed special microfibre cloth. It is suitable for objective lens, ocular lens and spectacles.

Please keep the cloth clean, as dirt can damage the lens surface. If the cloth becomes soiled it can be washed in lukewarm soapy water and left to dry. Please only use for cleaning lens surfaces!

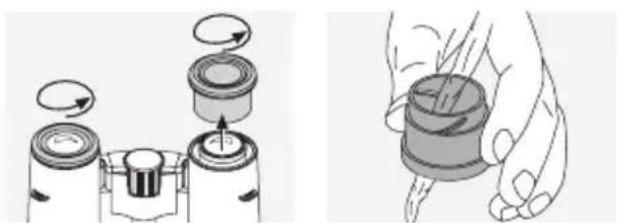

5.2 CLEANING

We have designed all elements and surfaces to require little care.

To ensure the long-lasting optical brilliance of your binoculars, you should keep the

glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

Illustration showing a hand holding a cylindrical container with a rotating knob, alongside a mechanical component (no text or symbols)

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned easily.

5.3 STORAGE

You should keep your binoculars in their bag in a dry, well ventilated place.

SUCAGR

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high humidity the best

place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

6. FOR YOUR SAFETY!

Illustration of a person using a protractor to measure sun exposure (no text or symbols)

Never look directly at the sun with the binoculars! This will damage your eyes!

Illustration of a person walking with a prohibition symbol (no text or labels)

Never look through the binoculars when walking, you could encounter obstacles!

Illustration of two stacked cylindrical objects with a diagonal line crossing through them, no text or symbols present.

Please protect your binoculars from jolts and jars.

Diagram of a hand holding a device with a circular symbol overlay (no text or symbols present)

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America and

any work by non-authorised parties shall render the warranty void.

All data are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical component with two rotating arms and a central shaft (no text or symbols)

4.3 REGLAGE DE LA NETTETE DE L'IMAGE

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with a central vertical bar and plus/minus symbols, no readable text or labels

Technical diagram illustrating eye contact mechanism with labeled components and directional arrows

5. MAINTENANCE ET ENTRETIEN

5.1 TISSU DE NETTOYAGE

Illustration of a hand holding a cylindrical container with a spring, alongside a battery holder with rotating top (no text or symbols)

Illustration of a person lighting a sun with a prohibition symbol (no text or symbols present)

Illustration of a person holding a magnifying glass with a diagonal no-smoking symbol, next to a broken explosion (no text or symbols present)

Illustration of binoculars with a circular object on a grid background (no text or symbols)

Illustration of a hand holding a device with a circular symbol overlay (no text or symbols present)

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Uso senza occhiali:

Diagram of a mechanical component with two rotating parts and a central shaft, showing rotational arrows (no text or symbols)

Uso con occhiali:

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with a central shaded region and plus/minus symbols, no readable text or labels

Technical diagram illustrating eye alignment and mechanical assembly with labeled components

Illustration of a hand holding a cylindrical component with a rotating knob, alongside a mechanical assembly diagram (no text or symbols)

Illustration of a person using a radio with a star-shaped signal symbol (no text or symbols present)

Illustration of a person holding a camera with a prohibition symbol (no text or symbols present)

Simple line drawing of binoculars with a circular object crossed out, no text or symbols present.

Illustration of a hand holding binoculars with a circular device overlay (no text or symbols)

Diagram illustrating two steps of tying a rope knot, labeled ① and ②, with arrows indicating motion direction.

Mechanical assembly diagram showing a rope being inserted into a ring, with no visible text or symbols

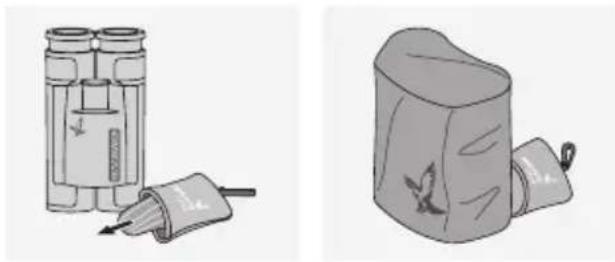

3. COLOCAR LA FUNDA PARA LLUVIA

Two grayscale illustrations of binoculars and a cylindrical device (no text or symbols)

4. FUNCIONAMIENTO

4.1 AJUSTE DEL ANILLO GIRATORIO DEL OCULAR

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Empleo sin gafas:

Diagram of a mechanical component with two rotating parts and a central shaft (no text or symbols)

Empleo con gafas:

Illustration showing two bird surveillance cameras with one open and the other with three birds flying around them (no text or symbols)

4.3 AJUSTE DEL ENFOQUE DE IMAGEN

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a curved structure with a central vertical bar and plus/minus symbols above it, no readable text or labels present.

Technical diagram illustrating eye alignment and adjustment of a mechanical component, labeled with parts ① and ②.

Diagram of mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a spool of thread (no text or symbols)

Illustration of a person using a radio with a star-shaped signal symbol (no text or symbols present)

Simple line drawing of a person holding a camera with a no-smoking symbol (no text or labels)

Illustration of binoculars with a diagonal line crossing through them (no text or symbols)

Illustration of a hand holding binoculars with a circular symbol overlay (no text or symbols present)

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical component with two rotating arms and a central shaft (no text or symbols)

Gebruik met bril:

Illustration showing two bird surveillance cameras with one open and the other with three flying birds inside (no text or symbols)

4.3 INSTELLING VAN DE BEELDSCHERPTE

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with a central dark region and positive/− symbols, no readable text or labels

Technical diagram illustrating eye contact and mechanical assembly with labeled components and directional arrows

5. REINIGING EN ONDERHOUD

5.1 REINIGINGSDOEKJE

Illustration of a mechanical device with rotating components and a hand holding a cylindrical component (no text or symbols)

Illustration of a person lighting a sun with a prohibition symbol (no text or labels)

Illustration of a person holding a camera with a prohibition symbol (no text or labels)

Simple line drawing of binoculars with a circular object crossed out, no text or symbols present.

Illustration of a hand holding binoculars with a circular device overlay (no text or symbols)

Diagram illustrating two steps of a rope knot or rope winding, labeled ① and ②, with directional arrows indicating motion.

Illustration of a rope being twisted with a circular component, no text or symbols present

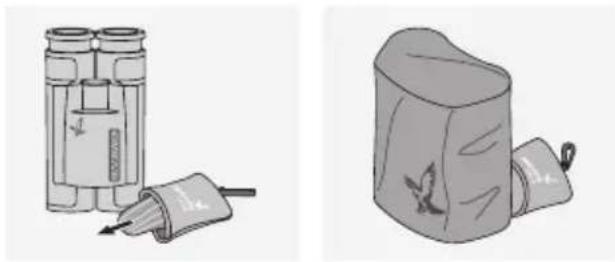

3. SÄTTA FAST REGNSKYDDET

Illustration of two types of binoculars and a cylindrical device (no text or symbols)

4. BETJÄNING

4.1 INSTÄLLNING AV DE VRIDBARA ÖGONMUSSLORNA

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Bruk utan glasögon:

Vrider du ut ögon- musslan helt motsols.

Diagram of a mechanical component with two rotating parts and a central shaft (no text or symbols)

Bruk med glasögon:

Illustration of two hands holding binoculars and three birds inside circular frames (no text or symbols)

4.3 FOKUSERING

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with a central vertical bar and plus/minus symbols, no readable text or labels

Technical diagram illustrating eye contact mechanism with labeled components and directional arrows

5. SKÖTSEL OCH VÅRD

5.1 DUK FÖR LINSPUTSNING

Illustration of a hand holding a cylindrical object with a rotating knob, alongside a mechanical component (no text or symbols)

Illustration of a person lighting a sun with a prohibition symbol (no text or symbols present)

Simple line drawing of a person walking with a prohibition sign (no text or symbols)

Titta aldrig genom instrumentet medan du gar! Du kan missa nagot hinder!

Diagram of a car with a circular cross symbol, no text or labels present

Skydda ditt instrument mot stotar.

Illustration of a hand holding a device with a circular overlay (no text or symbols)

Diagram illustrating two steps of tying a rope knot, labeled ① and ②, with directional arrows indicating movement.

Illustration of a rope being twisted with a circular component, no text or symbols present

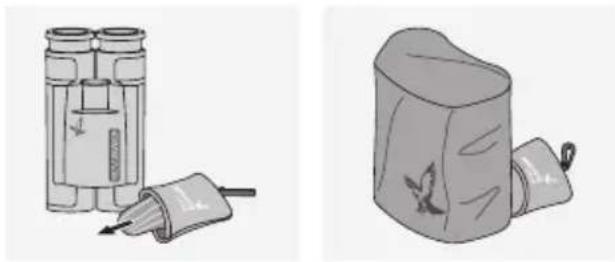

3. SADESUOJUKSEN ASENTAMINEN

Two grayscale illustrations of binoculars and a cylindrical device (no text or symbols)

CL POCKET MOUNTAIN / DE

4. KÄYTTÖ

4.1 KIERRETTÄVIEN OKULAARIEN SÄÄTÖ

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical device with two rotating components and a central shaft (no text or symbols)

Illustration showing two bird surveillance cameras with one open and the other with three flying birds inside (no text or symbols)

4.3 TARKENNUS

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Technical diagram illustrating eye alignment and mechanical assembly with labeled components and directional arrows

5. HUOLTO JA HOITO

5.1 PUHDISTUSLIINA

Illustration of a hand holding a cylindrical container with a rotating knob, alongside a mechanical device (no text or symbols)

Illustration of a person using a protractor to stop sun, with no text or symbols present

Simple line drawing of a person standing with a prohibition symbol (no text or labels)

Simple line drawing of a mechanical device with a circular component and diagonal lines, no text or symbols present.

Illustration of a hand holding a device with a circular overlay (no text or symbols)

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical component with two rotating parts and a central shaft (no text or symbols)

Illustration showing two hand positions: one with binoculars and the other with three birds inside a circular frame (no text or symbols)

4.3 INDSTILLING AF BILLEDSKARPHEDEN

Illustration of two hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with positive and negative charges, no text or symbols present

Det dioptriske justeringsområde er nulstillet.

Technical diagram illustrating eye alignment and adjustment of a mechanical component, labeled with parts ① and ②.

5. VEDLIGEHOLDELSE OG PLEJE

5.1 RENG∅RINGSKLUD

Illustration of a hand holding a cylindrical object with a rotating knob, alongside a mechanical component (no text or symbols)

Illustration of a person reacting to a ringing phone with a sun symbol above, no text or symbols present

Simple line drawing of a person with a prohibition sign, no text or symbols present

Diagram of a mechanical device with a circular component and intersecting lines, no text or symbols present.

Illustration of a hand holding a car with a circular symbol overlay (no text or symbols present)

Diagram illustrating two steps of a rope knotting technique, labeled ① and ②, showing how to draw or move the rope.

Illustration of a rope being twisted with a circular component, no text or symbols present

Illustration of two types of binoculars and a cylindrical device (no text or symbols)

4. ПРИМЕНЕНИЕ

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or labels)

Diagram of a mechanical component with two rotating arms and a central shaft (no text or symbols)

Illustration showing two bird surveillance windows and a bird flying through three circular frames (no text or symbols)

4.3 НАСТРОЙКА РЕЗКОСТИ ИЗОБРАЖЕНИЯ

Illustration of hands holding binoculars with a circular head and rotation arrow (no text or symbols)

Diagram of a layered structure with a central dark region and two positive charges above, no text or symbols present.

Technical diagram illustrating eye contact mechanism with labeled components and directional arrows

5. УХОД И ОБСЛУЖИВАНИЕ

Diagram of a mechanical assembly with rotating components and a central component (no text or symbols)

Illustration of a hand holding a cylindrical object with a pointed tip (no text or symbols)

Illustration of a person using a radio with a sun symbol above, no text or symbols present

Illustration of a person with a prohibition symbol crossed out by a ring and explosion (no text or symbols present)

Diagram of a mechanical device with a circular component and diagonal lines, no text or symbols present.

Illustration of a hand holding binoculars with a circular overlay (no text or symbols)

You have purchased a high class quality product from SWAROVSKI OPTIK for which we grant a worldwide warranty of 10 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that the range of products is changed, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

This warranty is valid only when this warranty/service document has been duly dated, stamped and signed by the Authorized dealer on the day of purchase.

In a warranty case and as well for service and/or repair work please present the instrument to your authorized SWAROVSKI OPTIK dealer together with this warranty/service document or send it, delivery-free, directly to our address. Instruments sent without the warranty/service document enclosed will be repaired and the costs charged to the customer. The return shipment of the instrument, insured (means of transport at our discretion), is free of charge in the case of repairs covered under warranty, otherwise charged to the customer. For shipments to foreign countries any foreign customs duties or fiscal charges are charged to the recipient.

This warranty is given by SWAROVSKI OPTIK KG, Absam, Austria. The place of jurisdiction is Innsbruck; Austrian law applies.

Insofar as other guarantees/warranties (whether legally or voluntary) are pledged in individual countries, these must be fulfilled by the respective importer or authorized dealer. SWAROVSKI OPTIK KG, Absam, Austria, can therefore accept liability only when a legal obligation exists to do so.

Remarks for the United States of America:

For warranty services all products purchased in the United States, our only warranty authorized service is through SWAROVSKI OPTIK North America. For further information please call 1-800-426-3089.

GARANTIE
