Product type	Stereo cassette deck
Brand	Sony
Model	TC-KB820S
Dimensions (W x H x D)	430 x 123 x 305 mm
Weight	4.6 kg
Power supply	AC 220-230 V, 50/60 Hz (Europe) or AC 240 V, 50/60 Hz (Australia)
Power consumption	20 W
Recording system	4-track, 2-channel stereo
Heads	1 F&F erase head, 1 SD playback/record head
Noise reduction	Dolby B/C/S, Dolby HX PRO
Signal-to-noise ratio (Dolby off)	Improvement: Dolby B +5 dB at 1 kHz, Dolby C +15 dB at 500 Hz, Dolby S +10 dB at 100 Hz
Harmonic distortion	0.4% (type I tape), 1.8% (type IV tape)
Wow and flutter	±0.13% W. peak (IEC), 0.07% W. RMS (NAB)
Line inputs	Sensitivity 0.16 V, impedance 47 kohms (RCA jacks)
Line outputs	Nominal level 0.5 V, load impedance 10 kohms (RCA jacks)
Headphone output	0.25 mW into 32 ohms (6.35 mm stereo jack)
Main functions	Playback, recording, Multi-AMS, auto calibration, recording mute, auto/memory playback
Maintenance and cleaning	Clean heads and tape path every 10 hours, demagnetize every 20-30 hours
Supplied accessories	Audio connecting cords (2)
Optional accessory	Remote control RM-J710

Frequently Asked Questions - TCKB820S SONY

How do I clean the heads of my Sony TC-KB820S cassette deck?

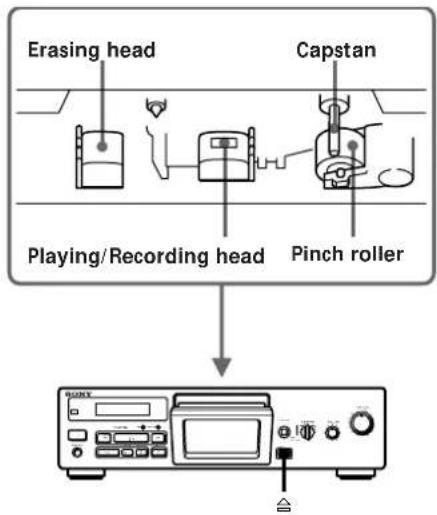

Clean the heads, pinch roller, and capstan with a cotton swab lightly moistened with alcohol or tape deck cleaning fluid. Perform this cleaning every 10 hours of operation to prevent sound loss or excessive wow and flutter.

Why doesn't playback start?

Check that the cassette is inserted correctly and the compartment is fully closed. Ensure the record-protect tab is not broken. If the tape is loose, tighten it. Clean the heads if necessary.

How do I use the Multi-AMS function to locate a track?

During playback, press ▶ (as many times as the number of tracks to skip) to go to the next track, or press ◀◀ to go back. The function detects blank spaces of at least 4 seconds between tracks.

How do I perform auto calibration?

Insert a blank cassette. Press AUTO CAL until 'CAL' appears, then press ■ PAUSE to start calibration. The deck records test tones, reads them back, and automatically adjusts bias current and recording level.

What types of cassettes can I use?

The deck accepts type I (normal), II (chrome), and IV (metal) cassettes. The type is detected automatically (ATS) and the equalization and bias settings are adjusted accordingly.

How do I activate Dolby noise reduction?

Turn the DOLBY NR switch to the desired position: B, C, or S. For recording FM broadcasts, use the positions with MPX FILTER to improve Dolby effectiveness.

What should I do if the tape stops before rewinding is complete?

The tape may be loose: tighten it manually. If the 'M' indicator is displayed, press MEMORY several times to turn it off. The cassette case may also be warped; use another one.

How do I insert a blank space during recording?

Press ○ REC MUTE at the desired point. A 4-second blank space is inserted automatically. For a different length, hold down the button or press ■ PAUSE to stop earlier.

What is the power consumption of the unit?

Consumption is 20 W. Power supply must be 220-230 V AC (50/60 Hz) for continental Europe and the UK, or 240 V AC for Australia.

How do I protect a recording from accidental erasure?

Break off the record-protect tab on the edge of the cassette, on the side corresponding to the side to be protected. To re-record, cover the hole with adhesive tape.

USER MANUAL TCKB820S SONY

Stereo Cassette Deck

Operating Instructions

Mode d'emploi

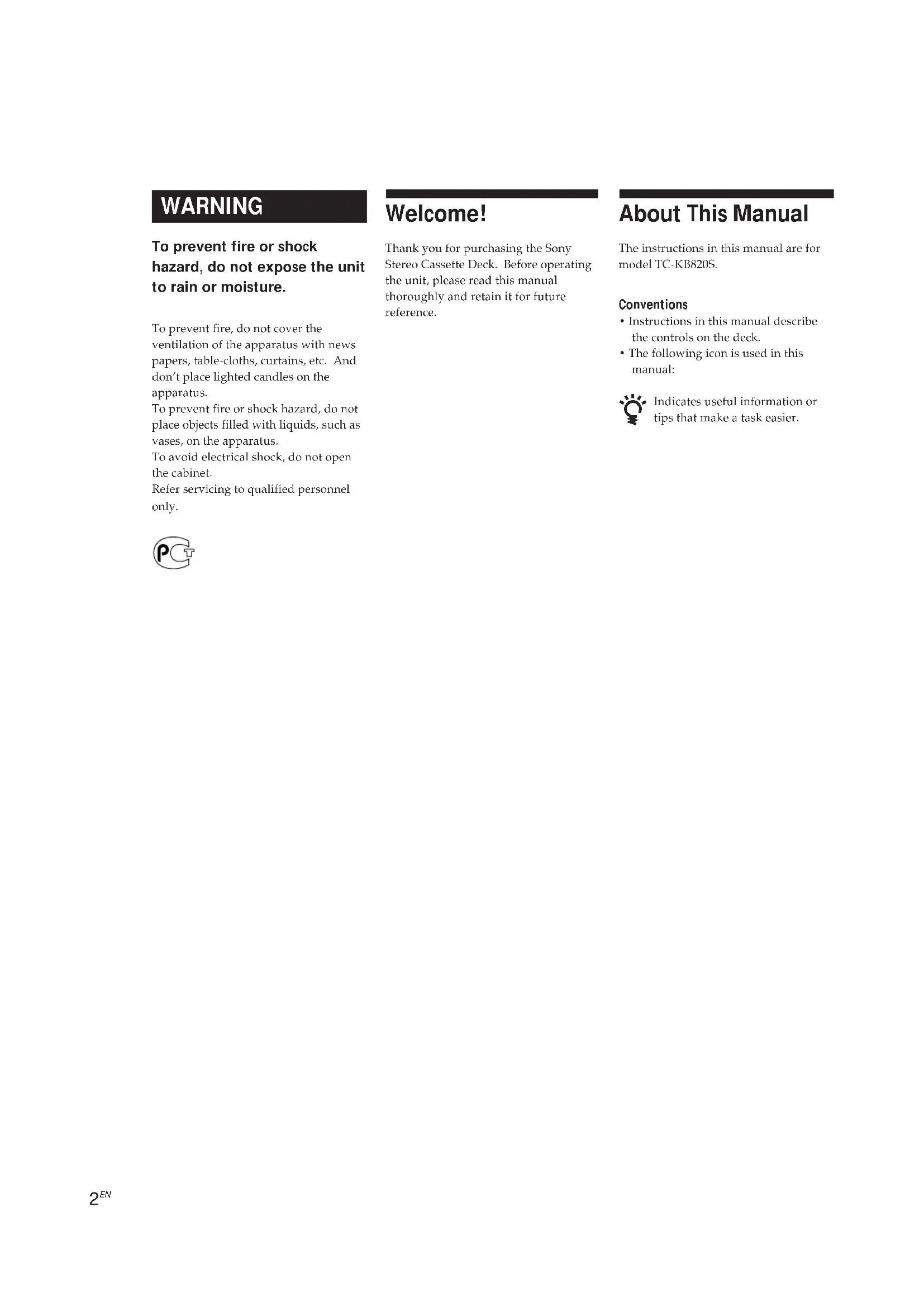

To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don't place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Welcome!

Thank you for purchasing the Sony Stereo Cassette Deck. Before operating the unit, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for model TC-KB820S.

Conventions

• Instructions in this manual describe the controls on the deck.
• The following icon is used in this manual:

Indicates useful information or tips that make a task easier.

TABLE OF CONTENTS

Getting Started

Unpacking 4

Hooking Up the System 4

Playing a Tape 5

Recording on a Tape 6

Advanced Playback Operations

Locating a Track (Multi-AMS/Auto Play/Memory Play) 8

Advanced Recording Operations

Adjusting Bias and Recording Level Calibration Automatically 9

Inserting a Blank Space During Recording (Record Muting) 10

Additional Information

Precautions 10

Notes on Cassette Tapes 11

Cleaning 11

Troubleshooting 12

Specifications 13

Glossary 14

Index 15

Unpacking

Check that you have received the following supplied item:

• Audio connecting cords (2)

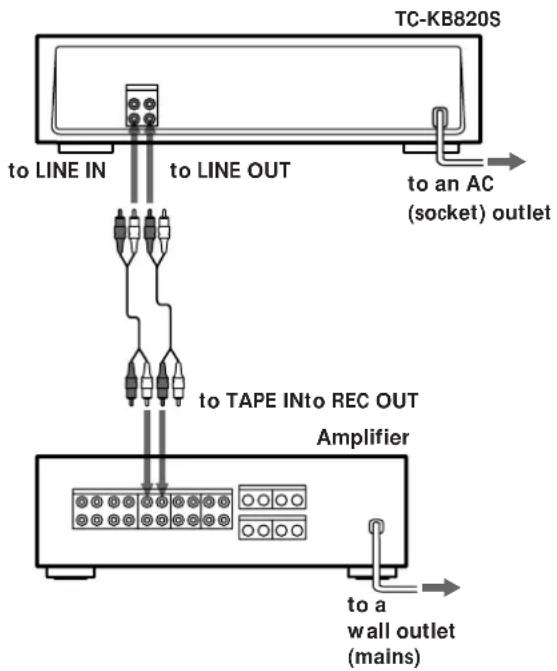

Hooking Up the System

This section describes how to hook up the tape deck to an amplifier. Be sure to turn off the power of each component before making the connections.

TC-KB820S to LINE IN to LINE OUT to an AC (socket) outlet to TAPE INto REC OUT Amplifier to a wall outlet (mains)

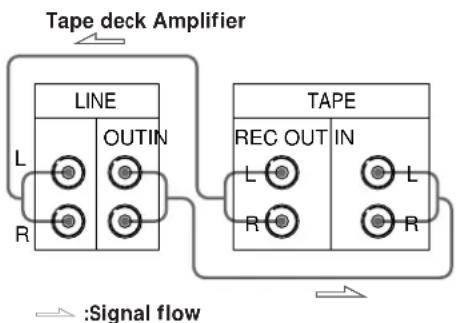

Hookups

When connecting an audio connecting cord, be sure to match the color-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise.

Connect the tape deck to the amplifier as shown below.
    note right of A: :Signal flow

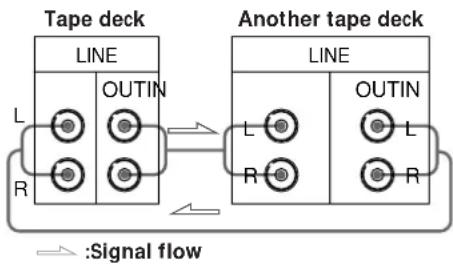

To connect your tape deck to another tape deck

Connect both tape decks as shown below.

Connecting the AC power cord

Connect the AC power cord to an AC outlet.

Where do I go next?

Now you're ready to use your tape deck.

For basic operations, go to pages 5 to 7; for advanced operations, go to the sections starting from page 8.

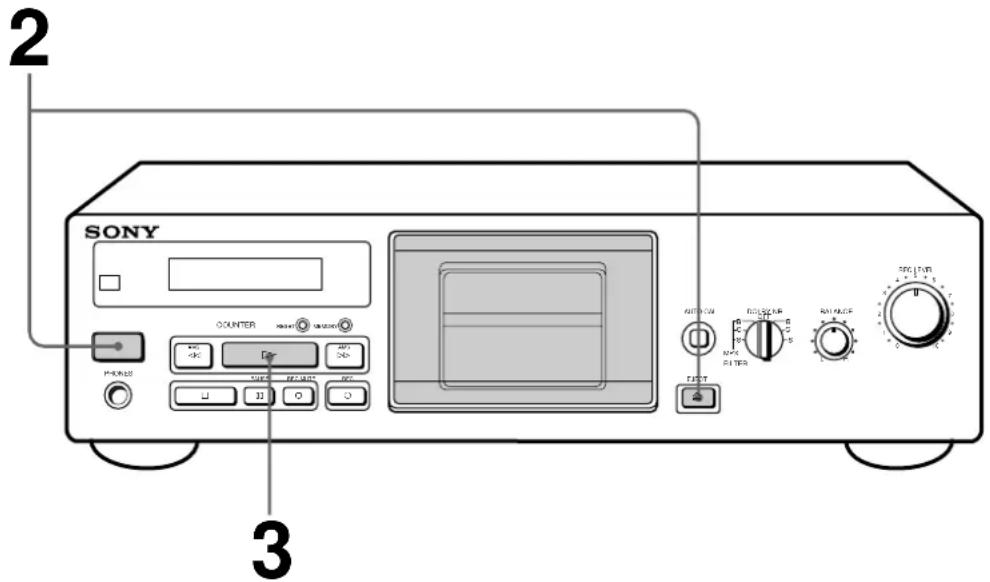

Playing a Tape

SONY 2 3

• See page 4 for hookup information.

To play a tape recorded with the Dolby NR\* system

Turn DOLBY NR to the same Dolby system that the tape was recorded in—B, C, or S. Please note that the B, C, and S settings on both sides are identical during playback since the MPX filter operates only during recording.

You can connect the headphones to PHONES.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY" and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

1 Turn on the amplifier and select the tape deck position.

2 Press POWER, and then press ≜. Insert a cassette and close the cassette holder.

The tape type (I, II, or IV) appears in the display.

With the side you want to play facing you

3 Press ▷.

The deck starts playing. Adjust the volume on the amplifier.

Do not press POWER or while the tape deck is operating. If you do so, the tape may be damaged.

To	Press
Stop playing ■
Pause ■ PAUSE. Press the button again toresume play.
Fast-forward or rewind	▶▶ or ◀◀ when the deck is stopped
	≡ after stopping playingTake out the cassette

Basic Operations

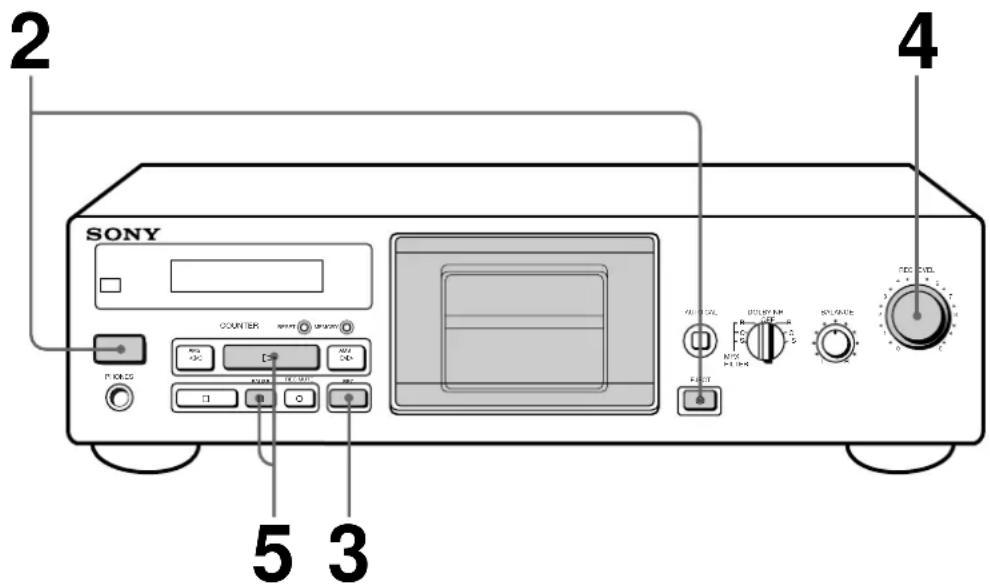

Recording on a Tape

2 SONY 4 5 3 COUNTER OFF ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON

• See page 4 for hookup information.

To protect recordings against accidental erasure Break out the record-protect tab(s) (see page 11).

Note

The treble or bass sound may be recorded at a high level depending on the music you are recording. In these cases, the recorded sound may be distorted even at the "recommended level" or lower, so be sure to adjust the recording level accordingly.

1 Turn on the amplifier and play the program source you want to record.

2 Press POWER, and then press ≜. Insert a cassette and close the cassette holder.

The tape type (I, II, or IV) appears in the display.

With the side you want to record facing you

e display. ord

3 Press ● REC.

Do not press POWER or while the tape deck is operating. If you do so, the tape may be damaged.

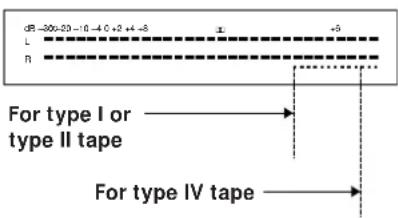

4 Turn REC LEVEL to adjust the recording level.

The recording level should not exceed the recommended level for the indicated tape type.

After doing the all adjustments, stop playing the program source.

dB -30x-20 -16 -40 +2 +4 -8 L R For type I or type II tape For type IV tape

5 Press II PAUSE or ▷. Recording starts.

6 Start playing the program source.

To	Press
Stop recording ■
Pause ■ PAUSE. Press the button again toresume recording.
Take out the cassette	△ after stopping recording

The Dolby HX PRO* system automatically works during recording

* HX Pro headroom extension originated by Bang & Olufsen and manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY," the double-D symbol and "HX PRO" are trademarks of Dolby Laboratories Licensing Corporation.

For details on DOLBY HX PRO, see "Glossary" on page 14.

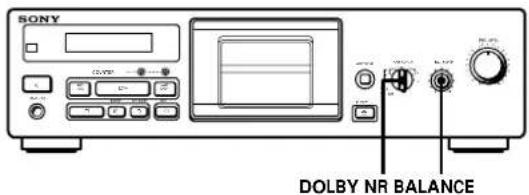

SONY DOLBY NR BALANCE

To adjust the recording balance

Turn BALANCE so that the L (left channel) and R (right channel) peak level meters in the display are at the levels you want.

To record with the Dolby NR system

Turn DOLBY NR clockwise to the position you want — B, C, or S before you start recording.

If you cannot get satisfying results when recording FM broadcasts with Dolby NR system

Turn DOLBY NR counterclockwise to the position you want (B, C, or S with MPX FILTER) before you start recording. The filter turns on to make the Dolby NR system work more effectively. (For details on the MPX filter, see "Glossary" on page 14.)

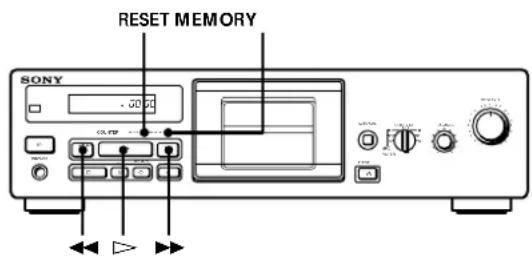

Locating a Track (Multi-AMS/Auto Play/Memory Play)

You can locate the following/previous tracks (Multi-AMS: Automatic Music Sensor) or the beginning of a tape quickly. You can even locate a specific point anywhere on a tape.

RESET MEMORY SONY 50.00 CLM ▶

To locate	Press
the beginning of the next or succeeding tracks (Multi-AMS*)	▶▶ as many times as you want while playing.For example, to locate 2 tracks ahead, press twice.
the beginning of the current track (Multi-AMS*)	◀◀ once while playing
the beginning of the preceding tracks (Multi-AMS*)	◀◀ as many times as you want while playing.For example, to locate 2 tracks behind, press three times.
the beginning of a tape (Auto Play)	MEMORY repeatedly until “M” disappears in the display. Then press ◀◀ while holding down ▷.
a particular point on a tape (Memory Play)	MEMORY repeatedly until “M” appears in the display.Find the point you want, and press RESET to reset the tape counter and to memorize the point.To locate the memorized point, press ◀◀ while holding down ▷>. (Press ◀◀ only to stop at “00 00.”)

* You can use the Multi-AMS to locate up to the 30th track after or before the current track.

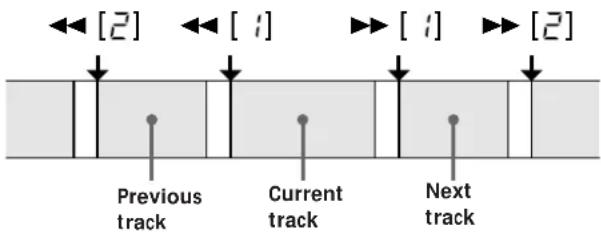

What happens during Multi-AMS operation

When Multi-AMS is operating, "PLAY" appears. And each time the deck detects a blank space, the indicated number decreases by one. After locating the beginning of the specified track, the counter indication appears again and the deck starts playing the track.

↓ : Beginning of track

[2] [1] [1] [2] Previous track Current track Next track

Notes

• The Multi-AMS function may not work correctly if:
  — the blank space between tracks is less than 4 seconds long.
  — the signal strength of the left and right channels are very different.
  — there is a passage of low frequencies or very low volume within a track.
• Since the counter is not a digital clock, it will differ from the actual elapsed playback or recording time.

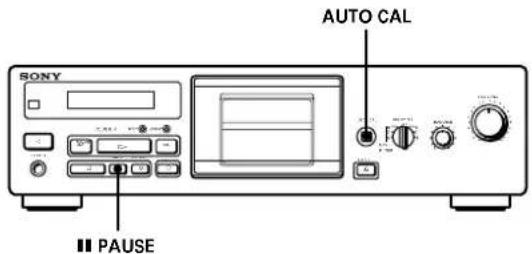

Adjusting Bias and Recording Level Calibration Automatically

Since there are many different types of cassettes on the market, your tape deck automatically sets the appropriate equalization characteristics and bias current for each tape type (ATS: Automatic Tape Selection). However, you can get better recording results by doing the automatic bias current and the recording level calibration.

SONY AUTO CAL ■■ PAUSE

1 Insert the cassette you want to record on. Make sure the record-protect tabs on the cassette have not been removed.
2 Press AUTO CAL until "CAL" appears in the display.

Note

If the record-protect tab for that size has been removed (see page 11), "AUTO CAL" in the display flashes three times and automatic calibration cannot be performed.

3 Press II PAUSE to start the automatic calibration procedure.

The automatic calibration procedure starts (i.e., recording test tones, rewinding, and playing back).

During the calibration, the counter changes from 9 to 0.

AUTO CAL BEC CA L9

When the automatic calibration procedure ends, the tape rewinds to the original position, the counter returns to normal and the tape deck stops.

4 Start the actual recording (see page 6).

To cancel the automatic calibration function

Press ■.

If "AUTO CAL" flashes continuously

The automatic calibration procedure has been interrupted by:

— The end of the tape. Turn the cassette over or rewind the tape to a new position that allows recording of the test tone.
— Damaged tape or dirty heads. Change the cassette or clean and demagnetize the heads (see page 11).

Updating the calibration setting

As long as the tape deck stays on, calibration data are saved and called up each time you insert a cassette of the same type (I, II or IV). "AUTO CAL" appears in the display when you insert a cassette to indicate that calibration data for that tape type exists. However, we recommend that you repeat the automatic calibraion procedure each time you insert a new cassette since cassettes of the same type also vary in their characteristics. Before recalibrating, be sure to clear the existing calibration data by pressing AUTO CAL until "AUTO CAL" disappears from the display. Then start from Step 2 of the automatic calibration procedure.

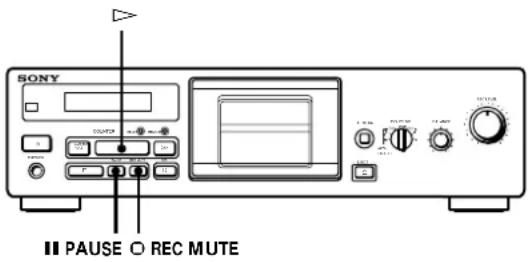

Inserting a Blank Space During Recording (Record Muting)

You can insert a blank space of 4 seconds between each track. The blank spaces between tracks let you locate the track easily with the Multi-AMS function (see page 8). Also, use this function to eliminate only unwanted portions on the tape.

SONY ■ PAUSE ○ REC MUTE

1 Start recording.
2 Press O REC MUTE once when you want to insert a blank space. "REC" in the display starts flashing and the tape moves on without recording any signals. After 4 seconds, "■" lights up and the tape deck is now ready to resume recording.
3 Press || PAUSE or ▷ to resume recording.

To insert a blank space longer than 4 seconds

Hold down ◎ REC MUTE as long as you want. After 4 seconds, "REC" in the display flashes faster. When you release the ◎ REC MUTE, "■" lights up and the tape deck is ready to resume recording. Press ■ PAUSE or ▷ to resume recording.

To insert a blank space of less than 4 seconds

After pressing ◦ REC MUTE, press ■ PAUSE at any time. The deck changes to recording pause. To resume recording, press ● REC instead of ■ PAUSE.

Precautions

On safety

• Do not disassemble the cabinet — this may result in an electrical shock. Refer servicing to qualified personnel only.
• Should any solid object or liquid fall into the cabinet, unplug the tape deck and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the tape deck, check that the operating voltage of the tape deck is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the tape deck.
• If you are not going to use the tape deck for a long time, be sure to disconnect the tape deck from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• AC power cord must be changed only at the qualified service shop.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

On operation

• Because of a safety mechanism, the function buttons will not operate if the cassette holder is not completely closed, if there is no cassette in the cassette holder, or if a cassette has been incorrectly inserted into the cassette holder.
• Be sure to stop the tape before turning off the tape deck. Otherwise, the tape may be damaged.

On placement

• Place the tape deck in a location with adequate ventilation to prevent heat build-up in the tape deck.
• Do not place the tape deck:
  — on a soft surface such as a rug that might block the ventilation holes on the bottom.
  — in a location near heat sources.
  — in a place subject to direct sunlight.
  — in an inclined position.
  — in a place subject to excessive dust or mechanical shock.

On cleaning the tape deck

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your tape deck, please consult your nearest Sony dealer.

Notes on Cassette Tapes

To protect the recording

Break off the record-protect tab for side A or B.

Side A Tab for side B Tab for side A

To record on a tape having a broken tab

Cover the record-protect tab hole for side A or B with adhesive tape.

Diagram of a CD tape with a magnified inset showing the cable (no text or symbols present)

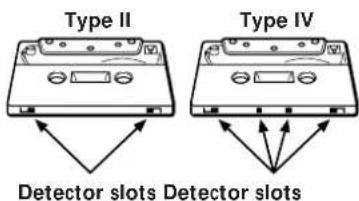

When you are using a type II or type IV tape, be careful not to cover the detector slots that the deck uses to determine the tape type.

Type II Type IV Detector slots Detector slots

On tapes longer than 90 minutes

We do not recommend the use of tapes longer than 90 minutes except for a long continuous recording or playback. They are very thin and tend to be stretched easily.

On handling cassettes

• To prevent the heads and tape path from getting dirty, avoid touching the tape surface of a cassette.
- Place cassettes away from equipment with magnets, such as speakers and amplifiers; it may cause tape distortion or erase the recordings.
- Do not expose cassettes to direct sunlight, extremely cold temperature or moisture.

Cleaning

Inside of the cassette holder

Erasing head Capstan Playing/Recording head Pinch roller SUNEX

Cleaning the heads and tape path

Clean the heads and tape path of the tape deck after every 10 hours of operation to guard against:

• a decrease in sound level
•excessive wow or flutter
• sound dropout
• incomplete erasure

To ensure better recording, we recommend that you clean the heads and tape path before every recording.

1 Press ≅ to open the cassette holder.
2 With the tape deck turned off, wipe the heads, the pinch roller, and the capstan with a cotton swab slightly moistened with alcohol or a commercially available cleaning fluid for tape decks.

Do not insert a cassette until the cleaned areas are completely dry.

Demagnetizing the heads

After 20 to 30 hours of use, or when you notice a hissing sound or loss of high frequencies, demagnetize the heads with a commercially available demagnetizer for tape decks. Please refer to the instructions of the demagnetizer.

Troubleshooting

If you've experienced any of the following difficulties while using the tape deck, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

The function buttons do not work.

The tape deck has just been turned on and does not operate for about 3 seconds. Wait until "II" stops flashing.
→Check that the cassette is inserted correctly and the cassette holder is closed completely.

The tape stops before the tape has been fully rewound.

→ The tape is slack. Take up the tape slack.
→If "M" is shown in the display, press MEMORY repeatedly until the indication disappears.
→The cassette shell is bent. Use another cassette.

The tape deck does not play or record.

→ The tape has reeled to the end.
→The tape is slack. Take up the tape slack.
→The record-protect tab has been removed from the cassette. Cover the slot with tape (page 11).
→Clean the heads and tape path and demagnetize the heads (page 11).
→Check that the tape deck is properly connected (page 4).
→Make sure the amplifier is correctly set.

There is excessive wow, flutter, or a sound dropout.

→ The capstans and pinch rollers are dirty. Clean them (see page 11).

There is a decrease in sound level or a sound dropout./The tape does not erase completely./Noise increases.

→ The heads and tape path are dirty. Clean them (see page 11).
→The heads are magnetized. Demagnetize them (see page 11).

There is hum or noise.

→The tape deck is placed near a TV or VCR. Place the tape deck away from the TV or VCR.
→The tape deck is placed on or under the amplifier. Place the tape deck away from the amplifier.

There is an unbalanced tone.

→ Check that the DOLBY NR control is set to the position where the tape was recorded.
→The tape deck is placed near a TV or VCR. Place the tape deck away from the TV or VCR.

The Multi-AMS function does not work properly.

→One of the tracks contains a long pause, a passage of low frequencies or very low volume, or a gradual increase or decrease in volume.
→The space before a track is less than 4 seconds long. Insert a blank space of 4 seconds using ○REC MUTE button.
→The signal strength of the left and right channels are very different.
→There is noise in the space before a track.
→ You pressed ▶ button immediately before the next track, or ◀ button immediately after the beginning of the current track.

Specifications

System

Recording system

4-track 2-channel stereo

Fast winding time (approx.)

90 sec. (with Sony C-60 cassette)

Bias

AC bias

Heads

Erasing head · 1 (F&F head)

Playing/Recording head · 1 (SD head)

Motors

Capstan motor · 1 (DC servo motor)

Reel motor · 1 (DC motor)

Signal-to-noise ratio (at peak level, weighted, and with Dolby NR off)

Type I tape, Sony Type I (NORMAL): 55 dB

Type II tape, Sony Type II (HIGH): 57 dB

Type IV tape, Sony Type IV (METAL): 58 dB

S/N ratio improvement (approximate values)

With Dolby B NR on: 5 dB at 1 kHz, 10 dB at 5 kHz

With Dolby C NR on: 15 dB at 500 Hz, 20 dB at 1 kHz

With Dolby S NR on: 10 dB at 100 Hz, 24 dB at 1 kHz

Harmonic distortion

0.4% (with Type I tape, Sony Type I (NORMAL):

160n Wb/m 315 Hz, 3rd H.D.)

1.8% (with Type IV tape, Sony Type IV (METAL):

250n Wb/m 315 Hz, 3rd H.D.)

Frequency response (Dolby NR off)

Type I tape, Sony Type I (NORMAL):

30 - 16,000 Hz (±3 dB, IEC)

20 - 17,000 Hz (±6 dB)

Type II tape, Sony Type II (HIGH):

30 - 17,000 Hz (±3 dB, IEC)

20 - 18,000 Hz (±6 dB)

Type IV tape, Sony Type IV (METAL):

30 - 19,000 Hz (±3 dB, IEC)

30 - 13,000 Hz (±3 dB, -4dB recording)

20 - 20,000 Hz (±6 dB)

Wow and flutter

±0.13% W. Peak (IEC)

0.07% W. RMS (NAB)

±0.18% W. Peak (DIN)

Inputs

Line inputs (phono jacks)

Sensitivity: 0.16 V

Input impedance: 47 kilohms

Outputs

Line outputs (phono jacks)

Rated output level: 0.5 V at a load impedance of

47 kilohms

Load impedance: Over 10 kilohms

Headphones (stereo phone jack)

Output level: 0.25 mW at a load impedance of

32 ohms

General

Power requirements

Where purchased	Power requirements
U.K and Continental Europe	220 - 230 V AC, 50/60 Hz
Australia	240 V AC, 50/60 Hz

Power consumption

20 W

Dimensions (approx.) (w/h/d)

incl. projecting parts and controls

Mass (approx.)

4.6 kg (10 lbs 3 oz)

Supplied accessories

Audio connecting cords (2)

Optional accessory

Remote commander RM-J710

For more information on the availability of the remote

commander, contact your nearest Sony dealer.

Design and specifications are subject to change without notice.

Glossary

ATS

Automatic Tape Selection. The tape deck automatically sets the appropriate equalization characteristics and bias current according to the tape type inserted in the deck.

Automatic calibration

The automatic adjustment of the bias current and recording level for the inserted tape.

This adjustment works together with the deck's ATS

(Automatic Tape Selection, see above) to get the best possible recording results on any tape.

Dolby HX PRO system

Distortion and noise reduction system. The Dolby HX PRO system reduces distortion and noise in high-frequency response while recording. A tape recorded with this system brings the same high-quality sound even when you play the tape on the other tape decks.

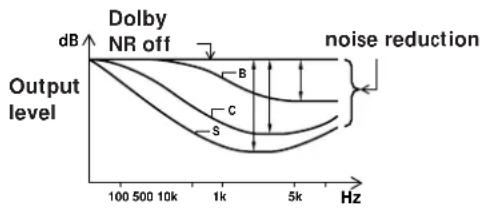

Dolby NR (noise reduction) system

Noise reduction system for eliminating hissing noise. The Dolby NR system boosts the low-level signals in high frequency during recording and restores them during playback.

There are 4 types in the Dolby NR system: A, B, C and S.

A-type is for professional use (not available on this tape deck), and B, C and S-types are for consumer use. S-type has the maximum noise reduction capability, followed by C and B.

MPX filter

Multiplex filter. A filter for eliminating the 19-kHz stereo carrier and the 38-kHz sub-carrier signals that may impair the Dolby NR system. Usually the tuner has an MPX filter. If you cannot get a satisfying result when recording FM broadcasts with Dolby NR system, your tuner does not have a filter or the filter is not working. In this case, turn the DOLBY NR switch counterclockwise to the position you want — B, C, or S with MPX FILTER.

Multi-AMS

Multi-Automatic Music Sensor is a function that locates the beginning of up to 30 tracks before or after the current track by detecting a blank space (of over 4 seconds) between tracks.

Tape counter

A four-digit readout for monitoring elapsed playing or recording time. Useful for editing tapes. Press RESET to zero the counter (00 00).

Test tones

10-kHz and 400-Hz signals produced by the tape deck when you do the automatic calibration.

Index

A

Adjusting bias and recording level calibration automatically. See Automatic calibration recording balance 7 recording level 6 ATS 9, 14 Auto play 8 Automatic calibration 9 Automatic Music Sensor. See Multi-AMS Automatic Tape Selector. See ATS

B

Balance 7

C

Cassette. See Tape Cleaning cabinet 11 heads and tape path 11 Connecting. See Hookups Counter. See Tape counter

D, E, F

Demagnetizing the heads 11 Dolby HX PRO system 7, 14 Dolby NR system 5, 7, 14

G

Glossary 14

H

Heads cleaning 11 demagnetizing 11 Hooking up the system 4 Hookups 4

I, J, K

Insert blank space 10 cassette 5,6

L

Locating beginning of the tape 8 particular point 8 tracks 8

M

Memory play 8 MPX filter. See Multiplex filter Multi-AMS 8, 14 Multiplex filter 7, 14

N, O

Noise reduction 7, 14 Notes on cassette tapes. See Tape notes

P, Q

Playing a tape 5 auto play 8 memory play 8 Precautions 10

R

Record muting 10 Recording on a tape 6

S

Searching. See Locating Specifications 13

T

Tape counter 8, 14 notes 11 path cleaning 11 protect the recording 11 type 5, 6, 11 Test tones 9, 14 Troubleshooting 12

U, V, W, X, Y, Z

Unpacking 4

Names of Controls

Buttons

AUTO CAL 9 MEMORY 8 RESET 8

◀◀/▶▶ AMS 8

◀◀ (rewind) 5,8

▷ (play) 5, 6, 8, 10

▶▶ (fast-forward) 5,8

(eject) 5 - 7

■ (stop) 5,7

■ PAÜSE 5 - 7, 10

☐ REC MUTE (record muting) 10

● REC (recording) 6, 10

Switches

DOLBY NR (noise reduction) 5, 7 POWER 5, 6

Controls

BALANCE 7 REC (recording) LEVEL 6

Jack

PHONES 5

Others

Cassette holder 5,6

AVERTISSEMENT

Diagram showing a device with an open screen and a downward arrow, labeled 'e' pointing to it.

Diagram of a device with a screen and cable, showing an open panel connected to a screen (no text or symbols present)

Diagram of a CD-ROM drive with a tape roll, showing no text or symbols on the device itself

Cassette type I, Sony Type I (NORMAL): 55 dB

Cassette type II, Sony Type II (HIGH): 57 dB

Cassette type IV, Sony Type IV (METAL): 58 dB

Cassette type I, Sony Type I (NORMAL):

30 - 16.000 Hz (±3 dB, IEC)

20 - 17.000 Hz (±6 dB)

Cassette type II, Sony Type II (HIGH):

30 - 17.000 Hz (±3 dB, IEC)

20 - 18.000 Hz (±6 dB)

Cassette type IV, Sony Type IV (METAL):

30 - 19.000 Hz (±3 dB, IEC)

30 - 13.000 Hz (±3 dB, -4 dB enregistrement)

20 - 20.000 Hz (±6 dB)

SONY 2 3 COUNTER OFF RESET P-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN F-MAIN SOLDEN ECONUTER RANGE RUNNING SOLDEN ECONUTER RANGE RUNNING

Diagram of a CD tape being inserted into a film reel, showing the cable being inserted (no text or symbols present)

Australia 240 V CA, 50/60 Hz

Consumo

20 W

Dimensiones (aprox.) (an/al/prf)

Diagram showing a device with a screen and directional arrow, labeled 'a' in the corner.

3 Pressione ▷.

O deck inicia a leitura. Ajuste o volume no amplificador.

Diagram showing a device with an arrow pointing to a screen (no text or symbols present)

Diagram of a cassette tape with a magnified inset showing the cable attachment (no text or symbols present)
