USER MANUAL WS02N THOMSON

in Mode » (mode Aux in).

USE AND KEEP FOR FUTURE REFERENCE. EN- EN 1 - Warnings and precautions The lightning bolt with an arrowhead within a triangle indicates the presence of uninsulated dangerous voltage within the product enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. Important safety instructions

• Read these instructions.

• Keep these instructions.

• Follow all instructions.

• Refer all servicing to qualied service personnel.

• Do not expose the unit to dripping or splashing and make sure that no objects lled with liquids, such as vases, are placed on it.

• Class I appliances must be connected to the mains socket outlet with a protective-earth connection.

• The mains plug connects the device and should remain operable during use.

• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.

• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply. INFORMATION ABOUT BATTERIES (applicable only if batteries included)

• Polarity must be respected when inserting batteries.

• The batteries should be inserted in such a way as to avoid any short circuit.

• Do not mix used and new batteries.

• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.

• Do not expose the battery to excessive heat such as sunshine or re.

• Remove the batteries when they have not been used for a long time.

• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.

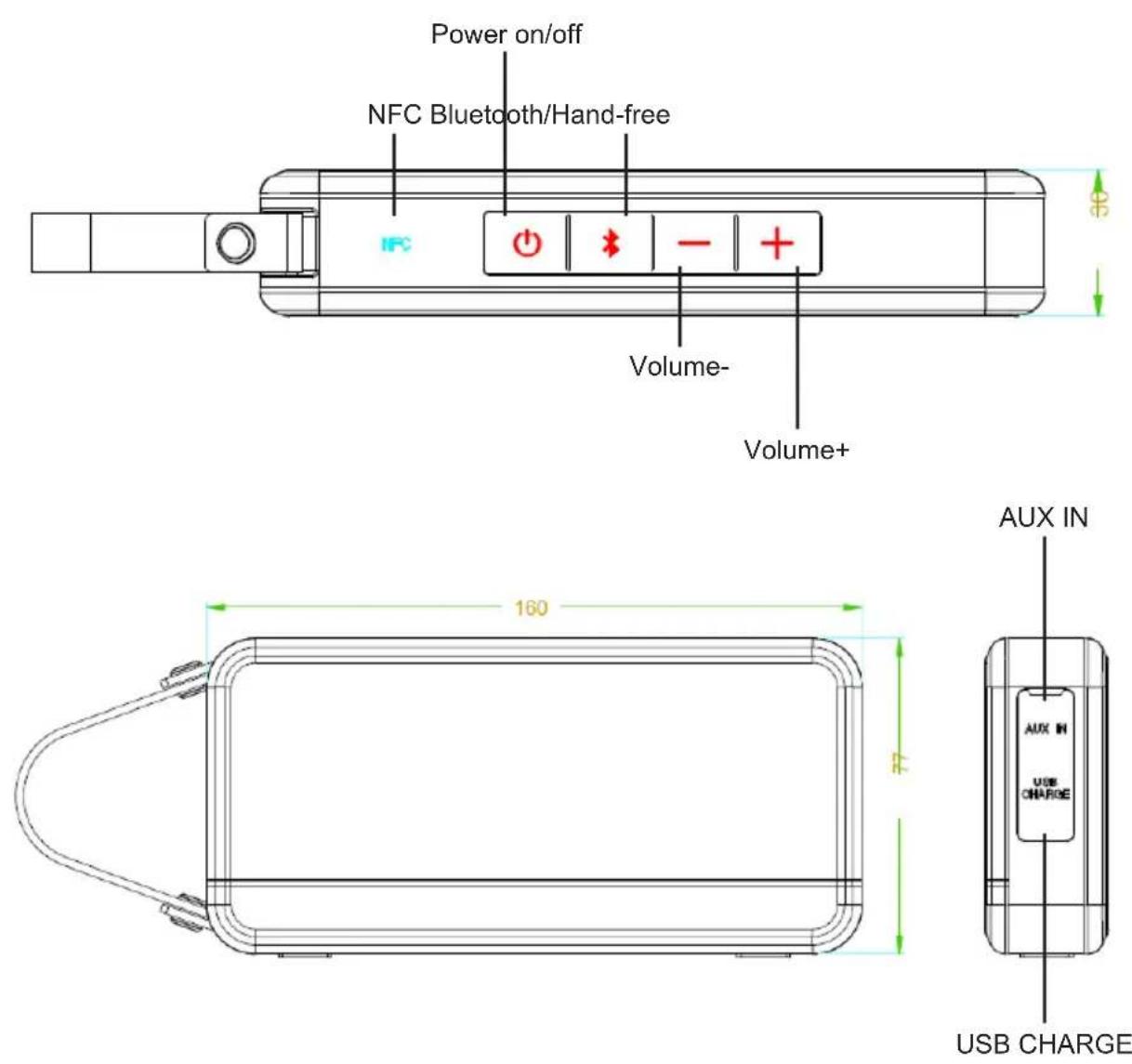

• The product/remote control may contain a coin/button type battery: WARNING Do not ingest the battery. Chemical burn hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. CAUTION Danger of explosion if battery is incorrectly replaced. Replace battery only with the same or equivalent type.- EN 2 - In the box 1 x Bluetooth speaker 1 x Micro USB charge cable 1 x User manual 1 x AUX cable Power on/off NFC Bluetooth/Hand-free Volume- Volume+ USB CHARGE

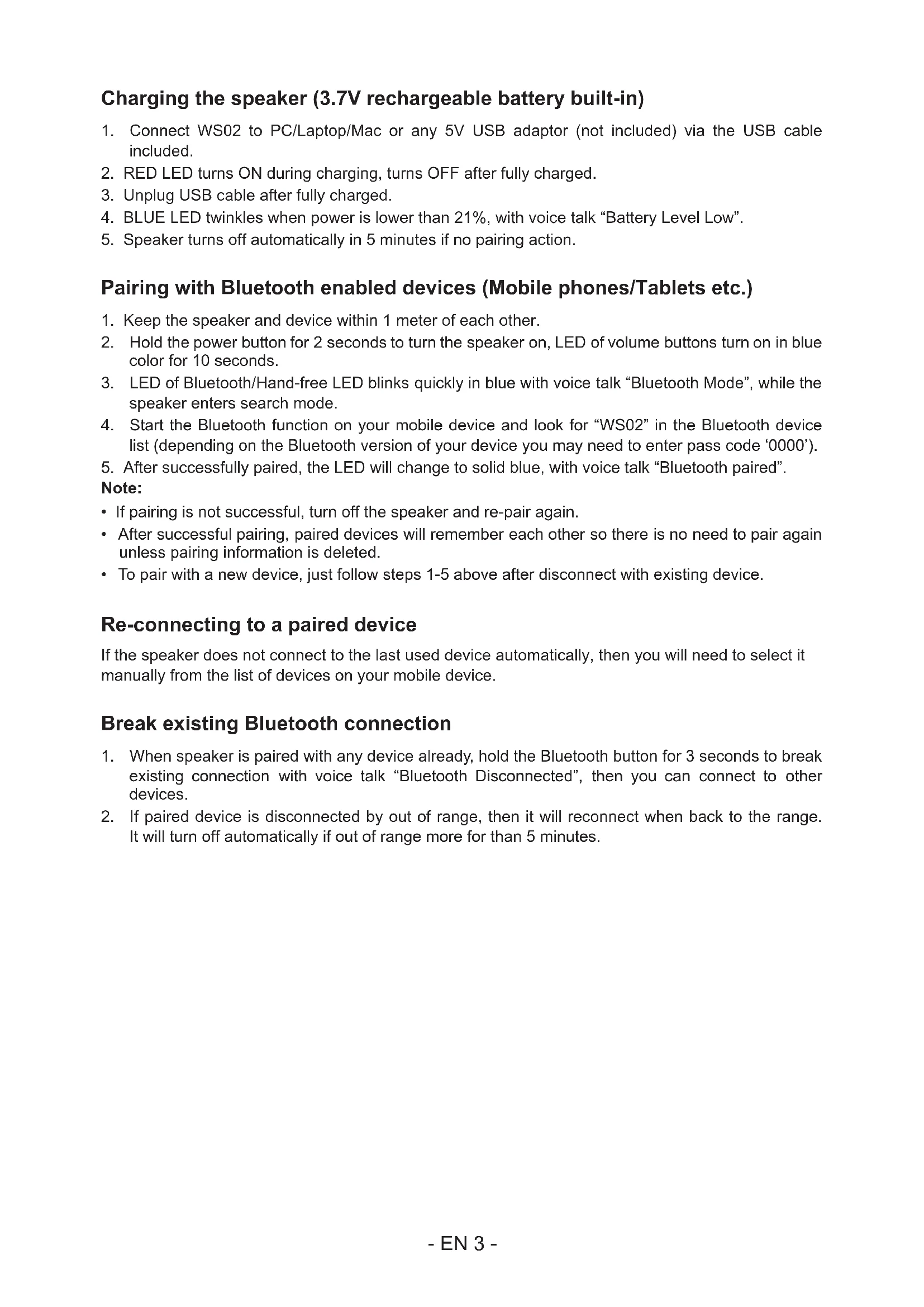

Charging the speaker (3.7V rechargeable battery built-in)

1. Connect WS02 to PC/Laptop/Mac or any 5V USB adaptor (not included) via the USB cable

2. RED LED turns ON during charging, turns OFF after fully charged.

3. Unplug USB cable after fully charged.

4. BLUE LED twinkles when power is lower than 21%, with voice talk “Battery Level Low”.

1. Keep the speaker and device within 1 meter of each other.

2. Hold the power button for 2 seconds to turn the speaker on, LED of volume buttons turn on in blue

color for 10 seconds.

3. LED of Bluetooth/Hand-free LED blinks quickly in blue with voice talk “Bluetooth Mode”, while the

speaker enters search mode.

4. Start the Bluetooth function on your mobile device and look for “WS02” in the Bluetooth device

list (depending on the Bluetooth version of your device you may need to enter pass code ‘0000’).

5. After successfully paired, the LED will change to solid blue, with voice talk “Bluetooth paired”.

• If pairing is not successful, turn off the speaker and re-pair again.

• After successful pairing, paired devices will remember each other so there is no need to pair again unless pairing information is deleted.

• To pair with a new device, just follow steps 1-5 above after disconnect with existing device. Re-connecting to a paired device If the speaker does not connect to the last used device automatically, then you will need to select it manually from the list of devices on your mobile device. Break existing Bluetooth connection

1. When speaker is paired with any device already, hold the Bluetooth button for 3 seconds to break

existing connection with voice talk “Bluetooth Disconnected”, then you can connect to other devices.

2. If paired device is disconnected by out of range, then it will reconnect when back to the range.

It will turn off automatically if out of range more for than 5 minutes.- EN 4 - Pairing WS02 via NFC with NFC enabled devices

2. Enable NFC and Bluetooth on your phone (NFC settings may be found under your devices’ “More/

Additional Settings”).

3. Lightly swipe your phone down the NFC logo on top of device, while making minimal contact. The

indicator shall turns solid ON that means successfully paired.

4. Compatibility: Most smartphones with NFC running Android 4.1 “Jellybean” and later.

Answer phone calls by Bluetooth/Hand-free button when there is a coming call

1. Press Bluetooth/Hand-free button to answer.

2. Long press to reject.

3. Press again to end the call.

How to Play/Pause when there is NOT a coming call

1. Press Bluetooth/Hand-free button to start the music.

2. Press again to pause.

2. Short Press volume+/- button to skip to next track or go back to previous one.

3. Either control volume by Bluetooth device.

Connecting external devices (AUX port)

1. You can connect any music device to the WS02 speaker via the AUX port using the cable included.

2. Bluetooth LED indicator blink slowly with voice talk “Aux in Mode”.

3. When disconnect Aux-in, it will go back to Bluetooth mode with voice talk “Bluetooth Mode”.

4. The speaker will not use the Bluetooth function while connected via this cable.- EN 5 -

Remarks: Don’t discard the electrical and electronic appliances in the regular waste disposal. a) Take them to a collection point. b) Some components in these appliances may be hazardous to health and the environment.

• If there is an incoming call while WS02 is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depends on your cell phone.)

• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

• THOMSON is a trademark of TECHNICOLOR SA or its afliates used under license to Bigben Interactive.

• Hereby, Bigben Interactive SA, declares that the WS02 device complies with the essential requirements of the directive 1995/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. To download the full statement, please visit our website: http://www.bigben-interactive.co.uk/support and the section “declaration of conformity”. Imported by BIGBEN INTERACTIVE SA 396, Rue de la Voyette
