USER MANUAL KOT 7424 IO BI Ariston Thermo

foyer induction simple

IO foyer induction ovale

ID foyer induction double

Attention: foyers ovaries

Advice and recommendations

• This appliance was designed for non-professional, household use.
• Before using the appliance, read the instructions in the owner's manual carefully since it contains all the instructions you require to ensure safe installation, use and maintenance. Keep this owner's manual in a safe place for future reference.
• When you have removed the packing, check whether the appliance is intact. If you have any doubts, contact a qualified professional before using the appliance.
• Never leave the packing components (plastic bags, polystyrene foam, nails, etc.) within the reach of children since these are a source of potential danger.
• The appliance must be installed by a qualified technician in compliance with the instructions provided by the manufacturer.
• The latter denies all responsibility for improper installation which may harm persons and animals and damage property.
• The electrical safety of this appliance can only be guaranteed if the latter is correctly and efficiently earthed, in compliance with regulations on electrical safety. Always ensure that this vital safety measure has been taken. If you have any doubts, call in a qualified technician to check the electrical system thoroughly.
• The manufacturer denies all responsibility for damage resulting from a system which has not been earthed correctly.
• Before powering the appliance, check whether the technical characteristics featured on the appliance data plate correspond with those of the mains electrical system.
• Check that the current load of the mains supply and of the power sockets is suitable for the maximum power of the appliance, indicated on the appliance data plate. If in doubt, contact a qualified professional.
• This appliance must only be used for the purpose for which it was expressly designed. Any other use (such as heating a room for example) is considered to be improper and consequently dangerous.

• The manufacturer denies all responsibility for damage resulting from improper or incorrect use of the appliance.

• Certain fundamental rules must be followed when using electrical appliances. The following are of particular importance:

• do not touch the appliance with wet or damp hands,
• never use the appliance when barefoot,
• never use extensions,
• never pull on the power supply cable or the appliance itself to unplug it from the mains socket,
• never leave the appliance exposed to atmospheric agents (rain, sun, etc.),
• do not allow children or persons who are not familiar with the appliance to use it without supervision.
• Always unplug the appliance from the mains or switch off the main switch before cleaning or performing any cleaning or maintenance operations.
• If the surface of the glass cracks, unplug the appliance immediately. For any repairs, contact only an authorised after-sales service centre and demand original spare parts. Failure to comply with the above may compromise the safety of the appliance.
• Cut the power supply cable after disconnecting it from the power mains when you decide not to use the appliance any longer. Also make all potentially dangerous parts of the appliance safe, above all for children who could play with the appliance.
• The glass ceramic hob is resistant to thermal and mechanical shocks. However, it may break due to a shock caused by a sharp object, such as a tool for example. In this case, unplug the appliance immediately and contact an authorised after-sales service centre to have it repaired.
• Remember that the heating area stays hot for at least half an hour after being turned off; please refrain from placing any cookware or other items on the cooking zone while still hot.
• Do not turn on the heating zones if aluminium foil or plastic items have been placed on the hob surface.
• Do not go near the heating zones when these are still hot.
• If you use small electric appliances near the hob, make sure their power supply cable does not come into contact with the hot parts of the hob.
• Make sure all pan handles are always pointing inwards towards the centre of the hob to prevent any accidental spills.

First use: the glue used on the hob seals may leave greasy traces on the glass surface. We recommend you wipe these off before using the appliance, with the aid of a non abrasive cleaner. During the first few hours of use, you may detect a smell of rubber, which will disappear quickly.

Installation and fastening

The following instructions are intended for a qualified fitter to guide him/her along the installation, adjustment and technical maintenance procedures as correctly as possible and in full compliance with the applicable norms in force.

Important : unplug the hob before all operations.

Installation

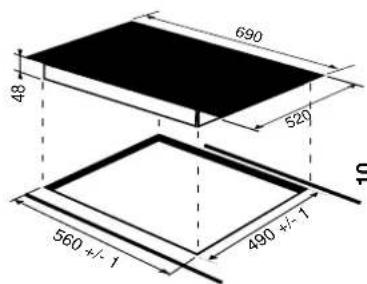

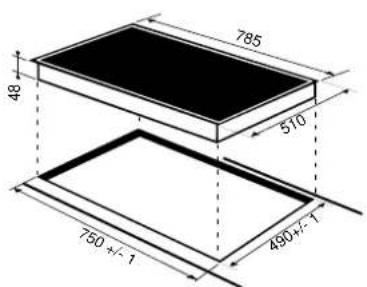

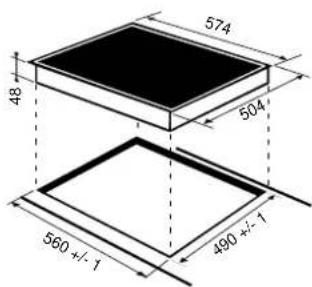

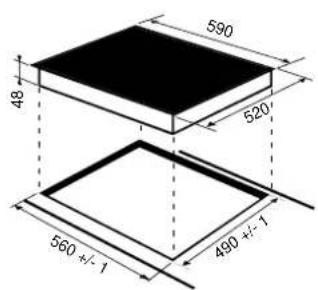

• This hob can be built into a worktop simply by cutting out the corresponding slot.
• The worktop must be made with a material designed to withstand a temperature of approximately 100^ .
• The hob should be positioned at least 40mm away from the back wall or any other vertical surface in order to allow for correct ventilation and to prevent the surfaces around the appliance from overheating.
  If you wish to install the hob on top of an oven, the latter must be fitted with a cooling fan.

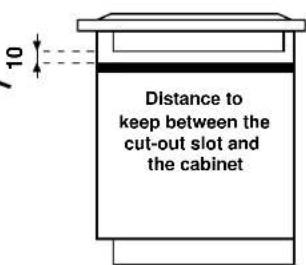

• Try to avoid installing the hob on top of a dishwasher; if this is unavoidable, place a watertight separating element between the two appliances.

Fastening

Very important: It is vital that you ensure the glass ceramic hob is built into a perfectly flat supporting surface. Deformations due to improper fastening could alter the characteristics of the hob and compromise its performance.

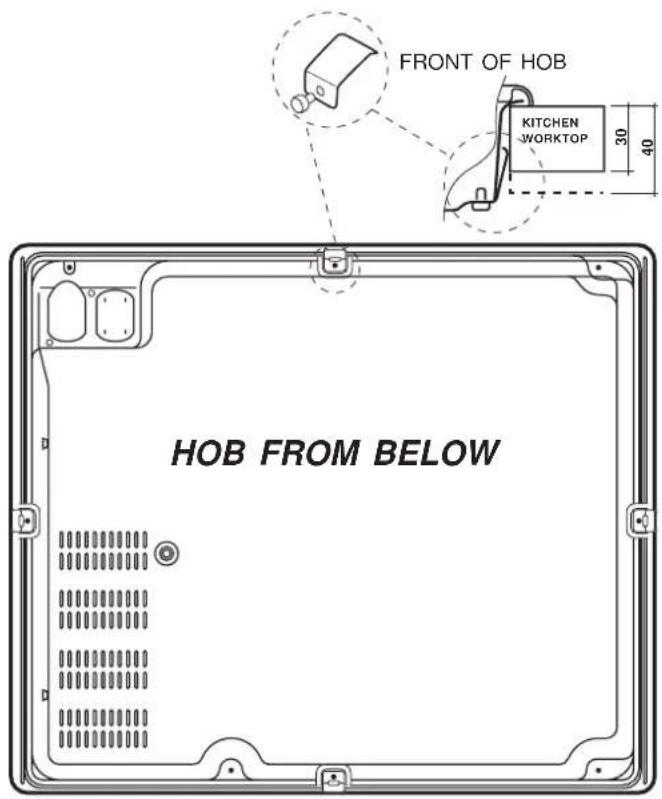

The fastening springs are fastened by screws (see diagram).

It is vital that these screws be kept accessible at all times.

Insert the hob into the cut-out slot, applying pressure all along the perimeter of the hob frame so that the latter adheres fully to the worktop.

REAR SPRING ASSEMBLY

Electrical connection

• The electrical safety of this appliance can only be guaranteed if the latter is correctly and efficiently earthed, in compliance with regulations on electrical safety. Always ensure that this vital safety measure has been taken. If you have any doubts, call in a qualified technician to check the electrical system thoroughly.
• The manufacturer denies all responsibility for damage resulting from a system which has not been earthed correctly.
• Before powering the appliance, check whether the technical characteristics featured on the appliance data plate correspond with those of the mains electrical system.
• Check that the current load of the mains supply and of the power sockets is suitable for the maximum power of the appliance, indicated on the appliance data plate. If in doubt, contact a qualified professional.

Disconnect the appliance from the electricity supply before all operations.

Connect your hob to the electrical system by means of a junction box: if the appliance is connected permanently to the mains, an omnipolar circuit breaker, accessible if necessary, with a minimum contact opening of 3mm should be installed.

Valid only for models with a power supply cable

Some models are supplied with a single-phase power supply cable, and should consequently only be connected to the single-phase mains. Observe the wire colours, as indicated in the diagram attached.

Valid only for models without a power supply cable

Some models are not fitted with a power supply cable, as the cable should be sized according to the type of electrical connection in use (see connection table below). To connect the cable, proceed as follows:

• Using a screwdriver, prise on the side tabs of the terminal board cover;
• Pull open the cover of the terminal board.

To install the cable, proceed as follows:

• unscrew the wire clamp screw and the contact screws.
• to make the desired electrical connection (see table), use the jumpers housed inside the box. Position the power supply cable wires according to the indications in the table.
• once the connections have been made, tighten all the terminal screws fully.
• Fasten the supply cable in place with the clamp and close the cover of the terminal board.

This appliance conforms with the following

European Community Directives:

• 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;
• 89/336/EEC of 03/05/89 (Electromagnetic compatibility) and subsequent amendments;
• 93/68/EEC of 22/07/93 and subsequent amendments;
  -2002/96/EC

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Warning: If the hob is fitted above a built-in oven, the hob and the oven must be connected to the mains separately for safety reasons and to simplify operations when it is necessary to pull the oven out for some reason.

Electrical connections	Voltage, Frequency	Fuses, Sections
1 2 3 4 5 N	FR-AT-BE-DE-GP--ES-IE-IL-IS-IT-LU-RE-FL-GB-GR-PT--SE-MA-NZ230V-1+N-50 Hz	25 A*2,5 mm²
1 2 3 4 5 L1 L2	FR-BE-NO230V-2~50/60 Hz	25 A*2,5 mm²
1 2 3 4 5 L1 L2 N	FR-BE-CH-DE-AT--ES-IL-IT-NZ-PT-MA-LU-SE-IS-NL400V2-N~50 Hz	16 A*1,5 mm²
1 2 3 4 5 L1 L2 L3	FR-BE-NO230V3~50 Hz	16 A*1,5 mm²
1 2 3 4 L1 L2 N2N1	NL230V2+2-N~50 Hz	16 A*1,5 mm²
1 2 3 4 5 LN	CY-AU-NZ-KW-MT240V-1+N~50 Hz	25 A*2,5 mm²
* Application of the simultaneity coefficient in accordance with cei 60335-2-6 norm

Cooking zone description

Induction is the fastest cooking method available.

Unlike traditional cooking zones, the induction zone does not heat up the glass surface. The pan itself is the heating element: the pan evenly transfers heat to its contents as long as it is made of ferromagnetic material.

HOBS KBT 8424 IDO	KBT 8424 IDO 400	KOT 7424 IO KOT 7424 IO 400	KBT 6124 ID KBT 6124 ID 400	KBT 6114 ID
Cooking zones Power (in W) Power (in W) Power	(in W) Power (in W)
Back Right (BR)	IO 1200/2400 – B 3000* I	2400 – B 3000* ID 1800 – E	3000* ID 1800 – B 3000*
Front Right (FR)	I 1200 – 600 if BR* I 1200 – 600	00 – 600 if BR* I 1200 – 600	if BR* I 1200 – 600 if	BR*
Front Left (FL)	I 1200 – 600 if BL* IO	200/2400 – B 3000* I 1800	1800
Back Left (BL)	ID 2400 – B 3000*	I 1200 – 600 if FL*	I 1200 I 1200
Overall power	7200	7200	6600	6600

HOBS	KBT 6004 I KBT 6104 I CL	KBT 6323 IO	KBT 6013 ID	KBT 6003 I
Cooking zones	Power (in W)	Power (in W)	Power (in W)	Power (in W)
Back Right (BR)	I 1800	I 1200 – 600 if F*
Front Right (FR)	I 1200	IO 1200/2400 – B 3000*
Front Left (FL)	I 1800		I 1200	I 1200
Back Left (BL)	I 1200	I 1800 - B 3000*	I 1200	I 1200
Central Right			ID 1800 – B 3000*	I 1800
Overall power	6000	6600	5400	4200

single induction zone

IO oval induction zone

ID dual induction zone

B 3000^* the zone can be boosted to 3000 W

600 if BR^* the power of the cooking zone is reduced to 600W as long as the BR zone is boosted

(for example)

Each zone is controlled:

• by a selector key whose silk screen printing reproduces the cooking zone drawing,
  and by a power adjustment set comprising two parts (+, - )

As long as the temperature of the cooking zones remains above 60^ , even after use, the residual heat indicators stay on (the power display indicates H) to prevent the risk of burns.

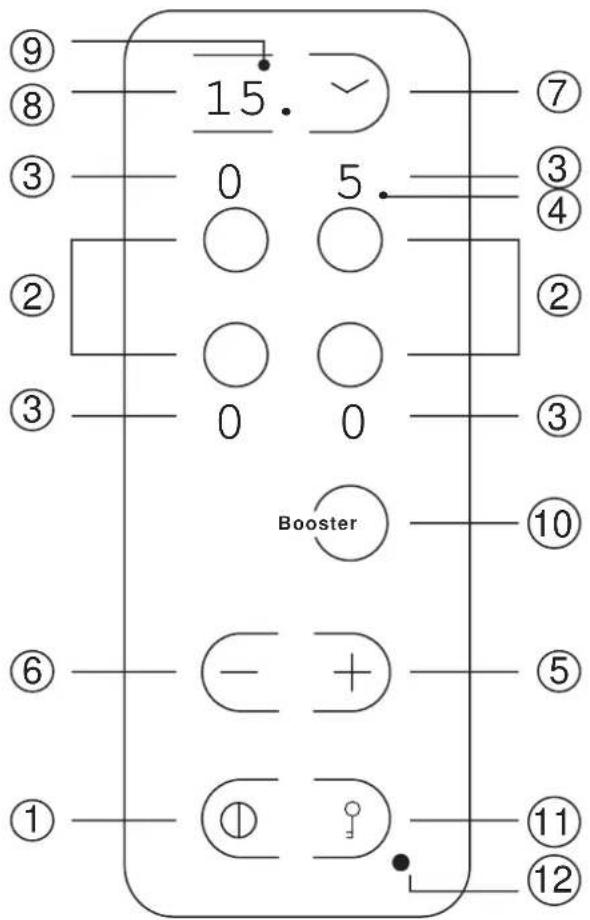

The controls

1. ON/OFF key
2. Cooking zone selector keys
3. Power (from 0 to 9) and residual heat indicators (H)

4. Zone selection indicator:

5. on: the corresponding zone is selected and can be modified,

6. off: the corresponding zone is not selected, no modification can be made.

7. Power increase key

8. Power decrease key
9. Timer control key for cooking time programming (only on hobs fitted with a timer)
10. Programmed cooking time indicator
11. Indicator light corresponding to the programmed cooking zone
    10.Booster key
    11.Controls lock key
    12.Lock indicator light

Note

• The timer control key (7), the cooking time indicator (8) and the zone indicator light (9) are only fitted on hobs featuring one or more timers (KBT 8424 IDO 400 - KBT 8424 IDO - KOT 7424 IO 400 - KOT 7424 IO - KBT 6114 ID - KBT 6124 ID 400 - KBT 6124 ID - KBT 6323 IO - KBT 6104 I CL).
• The booster key (10) is only fitted on hobs featuring a booster (KBT 8424 IDO 400 - KBT 8424 IDO - KOT 7424 IO 400 - KOT 7424 IO - KBT 6114 ID - KBT 6323 IO - KBT 6124 ID 400 - KBT 6124 ID - KBT 6013 ID).

When you connect the hob to the power supply, a beep will sound after a few seconds: you can now turn the hob on.

Turning on the hob

Press key ① to turn the hob on.

Cooking zone control

Each cooking zone is operated by a control key and by a power adjustment set (+ and -).

Turning on a cooking zone

• To turn a cooking zone on, press the corresponding control key and set the desired heating power (from 0 to 9) using the "+" and "-" keys.
• To set the maximum power directly (9), press key “-” briefly.

Turning off a cooking zone

To turn off a cooking zone, press the corresponding control key and:

• press both "+" and "-" simultaneously: the cooking zone power drops immediately to zero and the zone is turned off.
• or press the "-" key: the heating power drops progressively until the zone eventually turns off.

Turning off the hob

Press the ① key; the appliance has been turned off.

If you have locked the hob controls (see paragraph below), the same will still be locked when you turn the hob back on. Unlock the controls in order to operate the cooking zones.

The booster

The booster is only fitted on hobs KBT8424 IDO 400 - KBT8424 IDO -KOT7424 IO 400-KOT7424 IO-KBT6114 ID -KBT6323 IO -KBT 6013 ID -KBT 6124 ID 400 -KBT 6124 ID.

To speed up the rise in temperature of the cooking zones (see cooking zone table on the previous page), press the

Bacter key.

The power display will indicate "P". The booster function comes to an automatic stop after 4 minutes.

When the booster function is on, certain cooking zones (see the cooking zone table on the previous page) are limited to a maximum power of 600W.

Controls lock

When the hob is in use, you can lock the controls to avoid any accidental changes to the settings (by children or when cleaning, for example).

Just press the key, the indicator light next to the key lights up and the controls are locked.

To change the power level setting or stop cooking, the controls have to be unlocked: press the key, the indicator light turns off and the controls are unlocked.

To access the setting of a cooking zone again, select the zone by pressing the corresponding control key.

Cooking time programming

KBT 6114 ID - KBT 6013 ID - KBT 6124 ID 400 - KBT 6124 ID - KBT 6104 I CL: you may programme a single cooking zone (as you wish) for a maximum cooking time of 99 minutes.

KBT8424 IDO 400 - KBT8424 IDO - KOT7424 IO - KBT6323 IO: you may programme all the cooking zones simultaneously for a maximum cooking time of 99 minutes.

Proceed as follows:

• select the cooking zone by pressing the corresponding control key,
• set the desired heating power using the "+" and "-" keys,
• press the programming key
• set the desired cooking time using the "+" and "-" keys,
• confirm your programming by pressing the programming key again.

The countdown begins immediately.

The end of programmed cooking is signalled by a beep (one minute long) and the cooking zone concerned is turned off.

The safety devices

Pan recognition

Each induction cooking zone is fitted with a pan recognition device. The cooking zone only provides heat in the presence of a pan which is suitable for the cooking zone.

A blinking pan recognition indicator could signal:

• that the pan is made of unsuitable material, which is not ferromagnetic,
• that the diameter of the pan is too small,
  that the pan has been removed.

Always match the diameter of the pan with that of the cooking zones.

Warning: oval cooking zones

Oval cooking zones can only be boosted if the full oval is enabled.

Do not place two small saucepans on oval cooking zones.

What cookware to use

Given that induction only exists when the magnetic field is sealed by a metallic recipient, the pan stops being heated as soon as it is taken off the cooking zone.

Use cookware made of material which is compatible with induction (ferromagnetic material).

Cast iron, enamelled steel or special induction stainless steel saucepans are ideal.

Copper, ceramic, earthenware, glass, terracotta, aluminium and non magnetic stainless steel cookware is incompatible with induction cooking.

The easiest way to find out whether the pan is suitable is with a magnet. If the magnet is attracted by the pan bottom and stays "stuck" to the same, the pan is made of ferromagnetic material and can be used on your induction hob.

We recommend you use pans with a very flat and thick bottom and avoid at all costs all cookware with irregular rough bases which could scratch the glass surface.

SUITABLE

UNsuitABLE
Aluminium, Glass, Earthenware,
mic, non magnetic Stainless steel

Acoustic signal

Anomalies such as:

• an object (such as a saucepan or a lid, etc.) placed for more than 10 seconds on the control zone,
• boiled-over liquids or food spilled on the control zone,
  prolonged pressure on a key,...

could cause a beep to sound and the hob to turn off.

To stop the beep from sounding, remove the cause of the malfunction.

To use the hob, turn it back on and re-select the cooking zone(s) you wish to use. Set the desired heating power.

Safety cut out

Your appliance is fitted with a safety cut out which intervenes after a certain amount of time (see table below) depending on the power setting. When the safety cut out has intervened, the power display indicates "0".

for example: the back right cooking zone is set to 5 and the front left zone is set to 2. The back right zone will turn off after 3 hours of operation and the front left zone will turn off after 10 hours of operation.

To unlock the controls, turn the hob off by pressing the

key.

Power level	Maximum duration of operation
1210hours
35hours
44hours
563hours
782hours
91 hour

Overheating protection device

Should your appliance's electronic components overheat, the hob will turn off automatically and "—" will come up on the power level display.

The letter will disappear as soon as the temperature drops back down to an acceptable level.

For the attention of wearers of pacemakers or other active implants:

The hob complies with all current standards on electromagnetic interference.

Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation.

Your induction hob generates short-range magnetic fields. To avoid any interference between your induction hob and a pacemaker, the latter must be designed to comply with relevant regulations.

In this respect, we can only guarantee our own product conformity. Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility.

Advice on using your appliance

To get the best from your hob, it is vital that you follow a few fundamental rules during cooking and when preparing food.
- Use pans with a flat bottom so they adhere fully to the heating zone.

• Always use pans whose diameter covers the cooking zone fully so that all the available heat can be used.

• Make sure the pan base is always clean and dry, to guarantee good contact and long life for the cooking zones and pans alike.
• Avoid using pans used normally on gas burners. The concentration of heat on gas burners can warp the bottom of the pan, consequently you would never obtain the desired result when using the pan on the glass ceramic hob.
• Never leave a cooking zone on without a pan on it as the maximum heat level would be reached very quickly, which could damage the heating elements.
• The glass ceramic hob is resistant to thermal and mechanical shocks. However, it may break due to a shock caused by a sharp object. In this case, unplug the appliance immediately and contact an authorised after-sales service centre to have it repaired.

Always keep your hob clean. Before proceeding with maintenance operations, check that all the cooking zones are turned off and have cooled down completely.

Stainless steel frame (only on some models)

Stainless steel can stain as an effect of enduring contact with limescale in water or as an effect of highly aggressive detergents (containing phosphorus). We recommend you rinse and dry it thoroughly after maintenance. It is preferable to remove any water spills immediately.

Hob care

The vitroceramic glass used for the heating surface is smooth and poreless and it is also resistant to thermal shocks and to mechanical shocks under normal conditions of use. In order to preserve these properties, we recommend you care for your hob as follows:

• for ordinary maintenance, just wipe it with a damp sponge and dry it thoroughly using paper towels.
• If the hob is dirty, rub clean using a special cleaner suitable for vitroceramic glass, rinse off and dry thoroughly.
• food residue and dirt can be removed using a special scraper. Do this as soon as possible, do not wait for the hob to cool down in order to avoid incrustations. For excellent results, use a special stainless steel wool pad for vitroceramic glass cleaning soaked in soapy water.
• When the hob is clean, you can apply a special product for the care and protection of the same: this type of product leaves an invisible film on the surface of the hob to protect the same against any spills and boiled-over food. It is best if you do this when the hob is lukewarm or cold.
• Make sure you always rinse the hob with clean water and dry it thoroughly: otherwise the cleaning products could become encrusted onto the hob during subsequent cooking.

Recommendations

• Never use abrasive or corrosive substances, such as aerosol cleaners for grills and ovens, stain removers or rust removers, scouring powders and abrasive sponges: even the delicate ones could scratch the hob surface irreversibly.
• We recommend you keep all items which could melt away from the hob, such as plastic utensils, sugar or products with a high sugar content. Should liquid boil over onto the hob surface, remove it immediately (while the hob is still hot) using a razor blade scraper, in order to avoid damaging the surface.
• Use this hob exclusively for cooking. Do not place items on the hob when the same is not in use. Do not use the hob as a work surface (by placing lids, saucepans or dishcloths on it, for example), nor as a chopping board.
• Never leave aluminium wrappers, aluminium foil and plastic cookware on the hob when hot or still warm.
• Do not use steam cleaners or high pressure cleaners to clean your appliance.
• Do not place metal items on the hob (such as knives, spoons, lids, etc.).
• Never heat up unopened tins: they could burst.

The guarantee does not cover damage to the hob caused by incorrect use.

Para a instalacao do cabo efectue as segunte operations:
