USER MANUAL IP RoboCam 641 MARMITEK

o To prevent short circuits, this product should only be used inside and only in dry spaces.

Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.

o Do not expose the components of your systems to extremely high temperatures or bright light sources.

o In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.

o This product is not a toy. Keep out of reach of children.

o Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.

o Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter when it is damaged. In that case, contact your supplier.

1 Getting Started

Package Contents

Check the items contained in the package carefully. You should have the following items. Once any item contained is damaged or missing, contact the authorized dealer of your locale.

One IPRobocam 541 or 641 H.264/MPEG4/MJPEG Pan-Tilt Megapixel Network Camera
One AC Power Adapter
One Wall Mount Kit
One External Antenna
One Ethernet Cable (RJ-45 type)
One GPIO Connector
One Installation CD-ROM
One Quick Installation Guide

System Requirement

Networking

LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.
WLAN: IEEE 802.11b/g/n (for wireless model).

■ Accessing the Camera using Web Browser

Platform: Microsoft® Windows® XP/Vista/WIN 7/8 CPU: Intel Pentium III 800MHz or above

RAM: 512MB

Resolution: 800x600 or above

User Interface: Microsoft® Internet Explorer 6.0 or above; Apple Safari 2 or above; Mozilla Firefox 2.00 or above

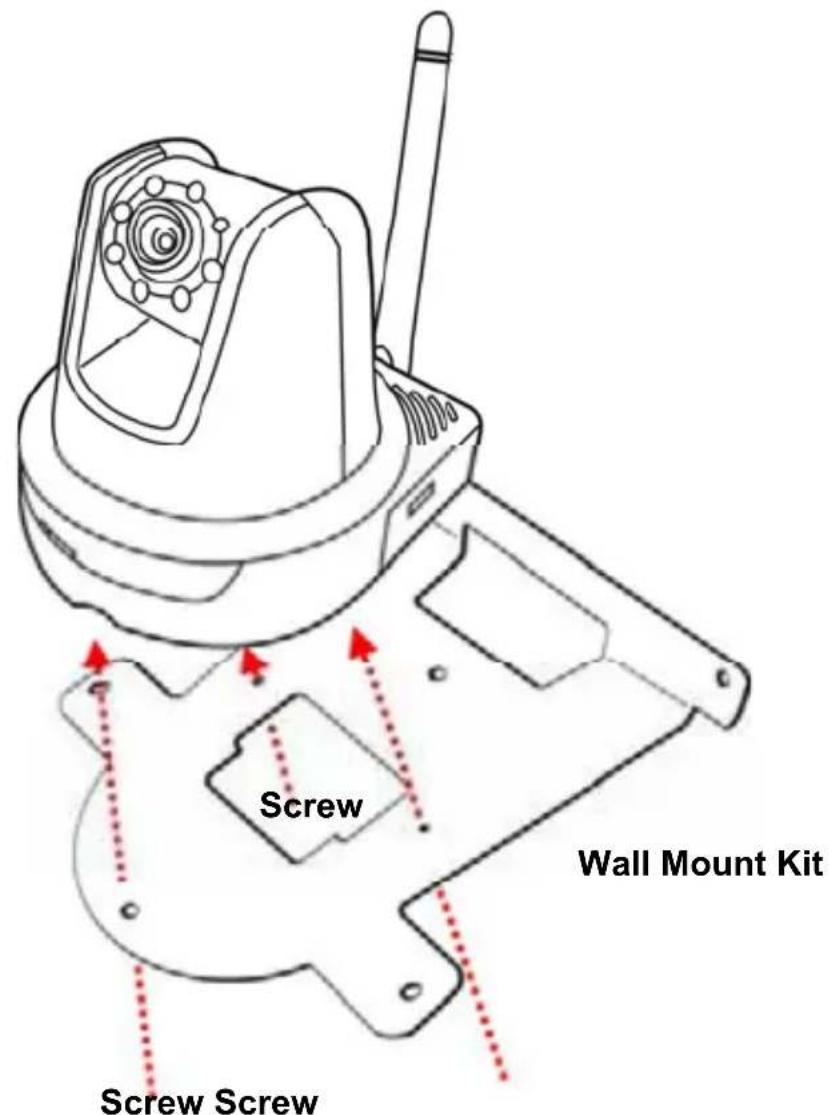

2 Setting Up the Camera Installing the Wall Mount Kit

The camera comes with a Wall Mount Kit, which allows you to place your camera anywhere by mounting the camera through the three screw holes located in the base of the Wall Mount Kit.

Connecting the Camera to LAN

Use the provided Ethernet cable to connect the camera to your local area network (LAN).

When you connect the AC power adapter, the camera is powered on automatically. You can verify the power status from the Power LED on the front panel of the camera.

Once connected, the Link LED starts flashing green light and the camera is on standby and ready for use now.

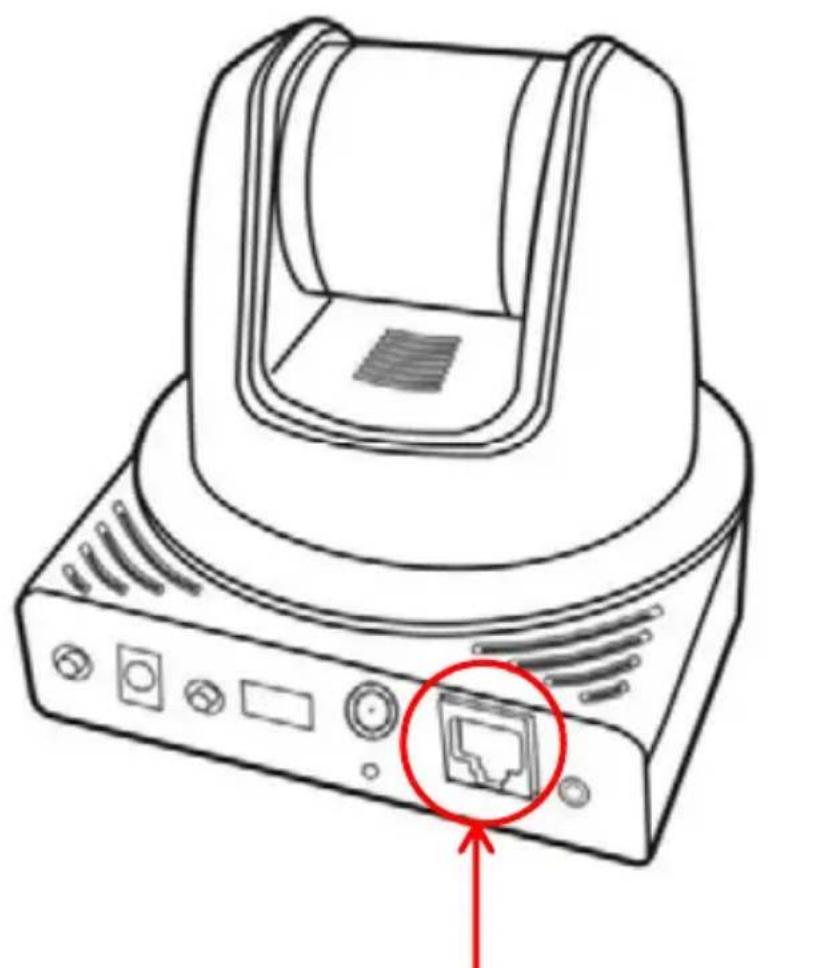

Connecting the Ethernet cable

Connecting the Camera to WLAN

If you use a wireless network in your application environment, you need to attach the included external antenna to the camera.

When the camera is powered on, the camera will automatically search any access point with "default" SSID.

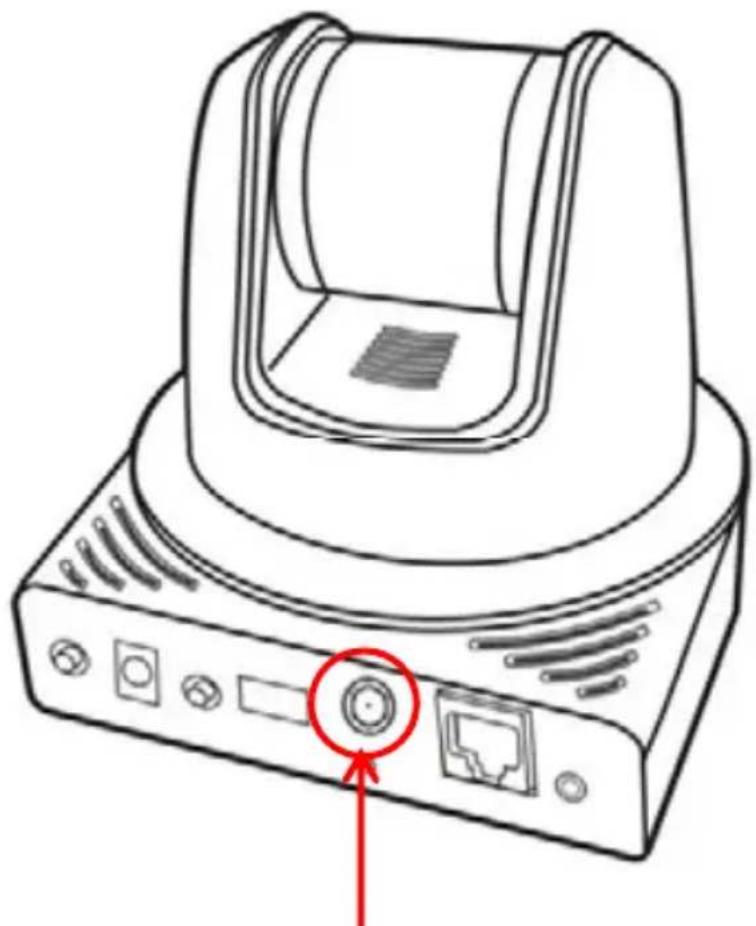

Attaching the external antenna

NOTE If the camera cannot to your wireless network, you need to install the camera in LAN and proceed with WLAN settings.

3 Accessing the Camera

Using IPFinder

1. Insert the Installation CD-ROM into your computer's CD-ROM drive to initiate the Auto-Run program.

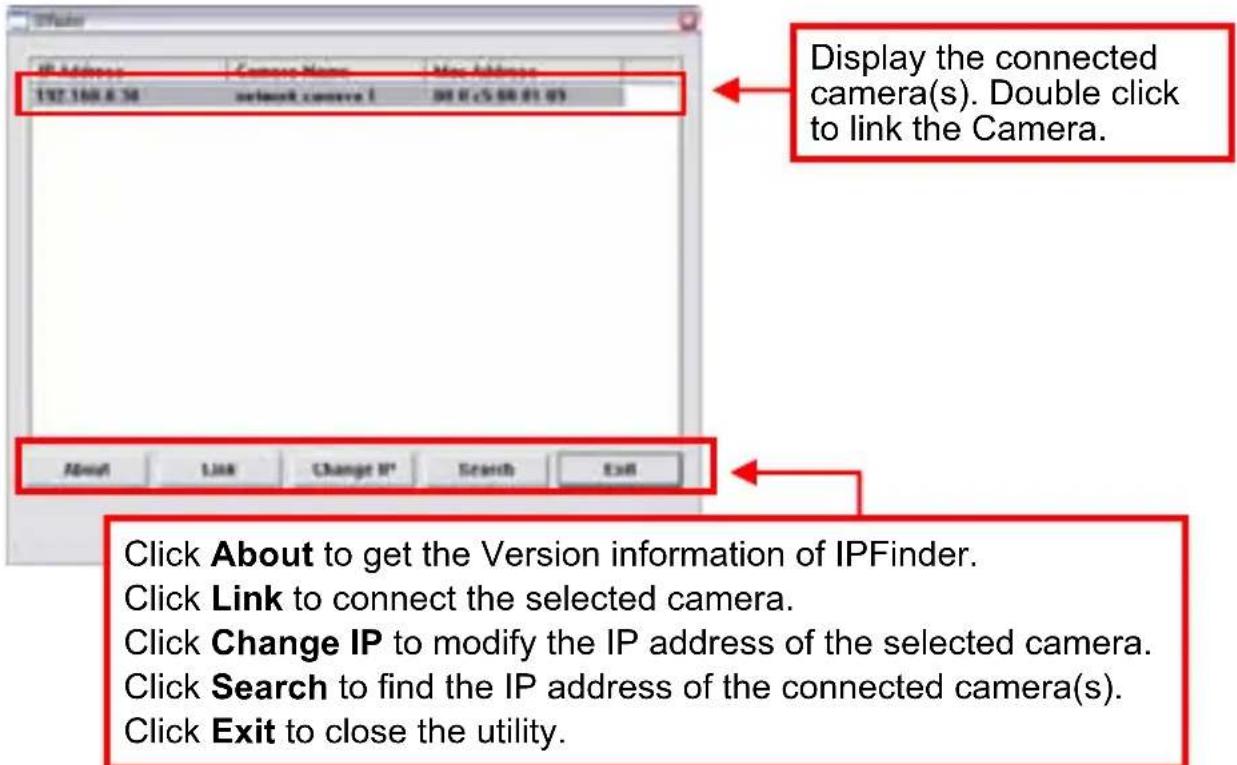

2. Click the IPFinder item to launch the utility. The control panel will appear as below.

1. Once you get the IP address of the camera, launch the Web browser or UltraView Pro to access your camera.

TIP The Installation CD-ROM provides a setup program that allows you to install IPFinder on your computer. To install IPFinder, click Install Software then select IPFinder on the Auto-Run screen.

Accessing to the Camera

1. Since the default configuration of the camera is DHCP mode enabled, you are recommended to launch IPFinder to search the IP address that is assigned to the camera by the DHCP server, and then click Link to access the camera via the Web browser.
2. If Network Camera can't get IP Address under DHCP mode, the default IP Address will be 192.168.0.30.

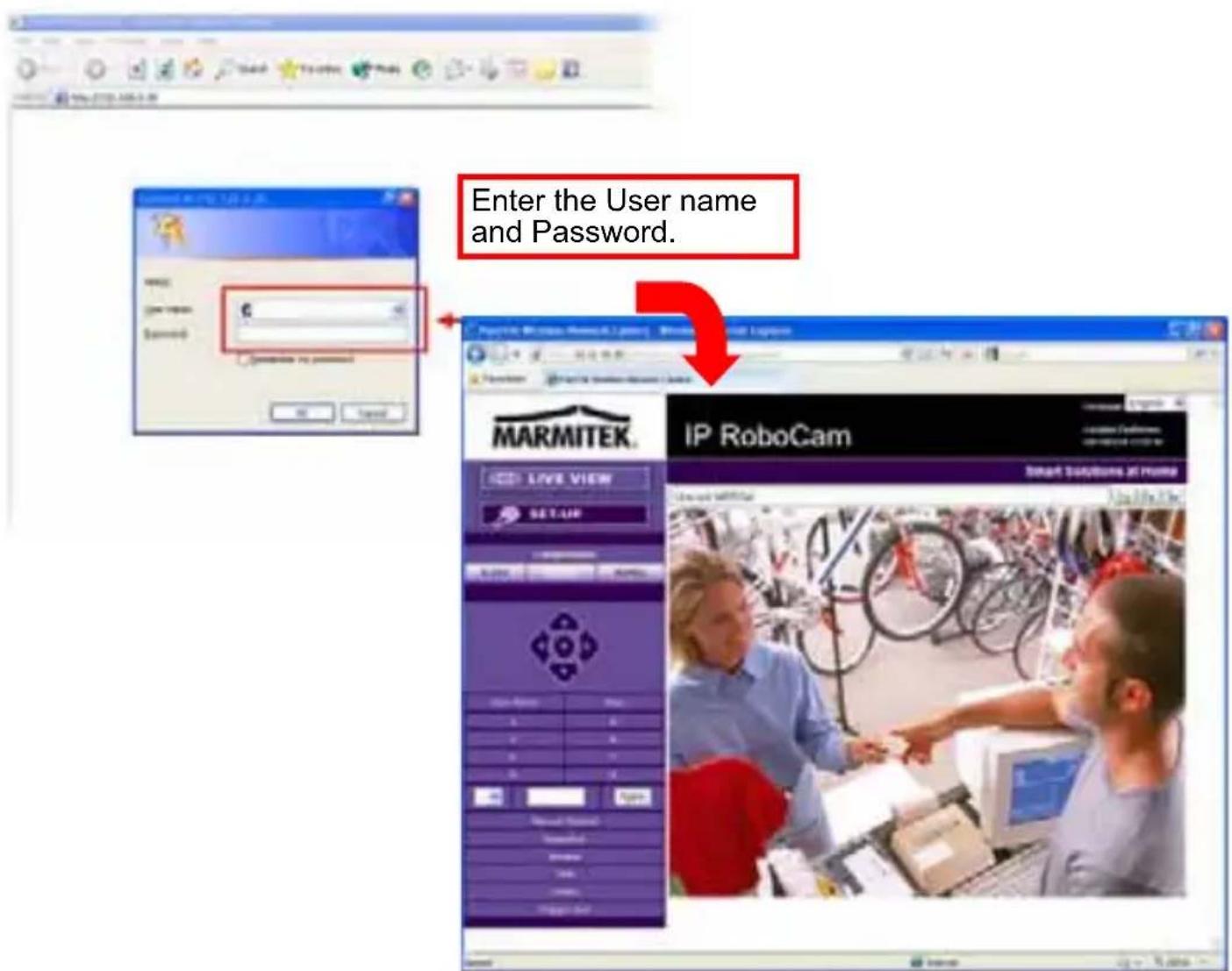

3. When the login window appears, enter the default User name (admin) and password (admin) and press OK to access to the main screen of the camera's Web Configuration.

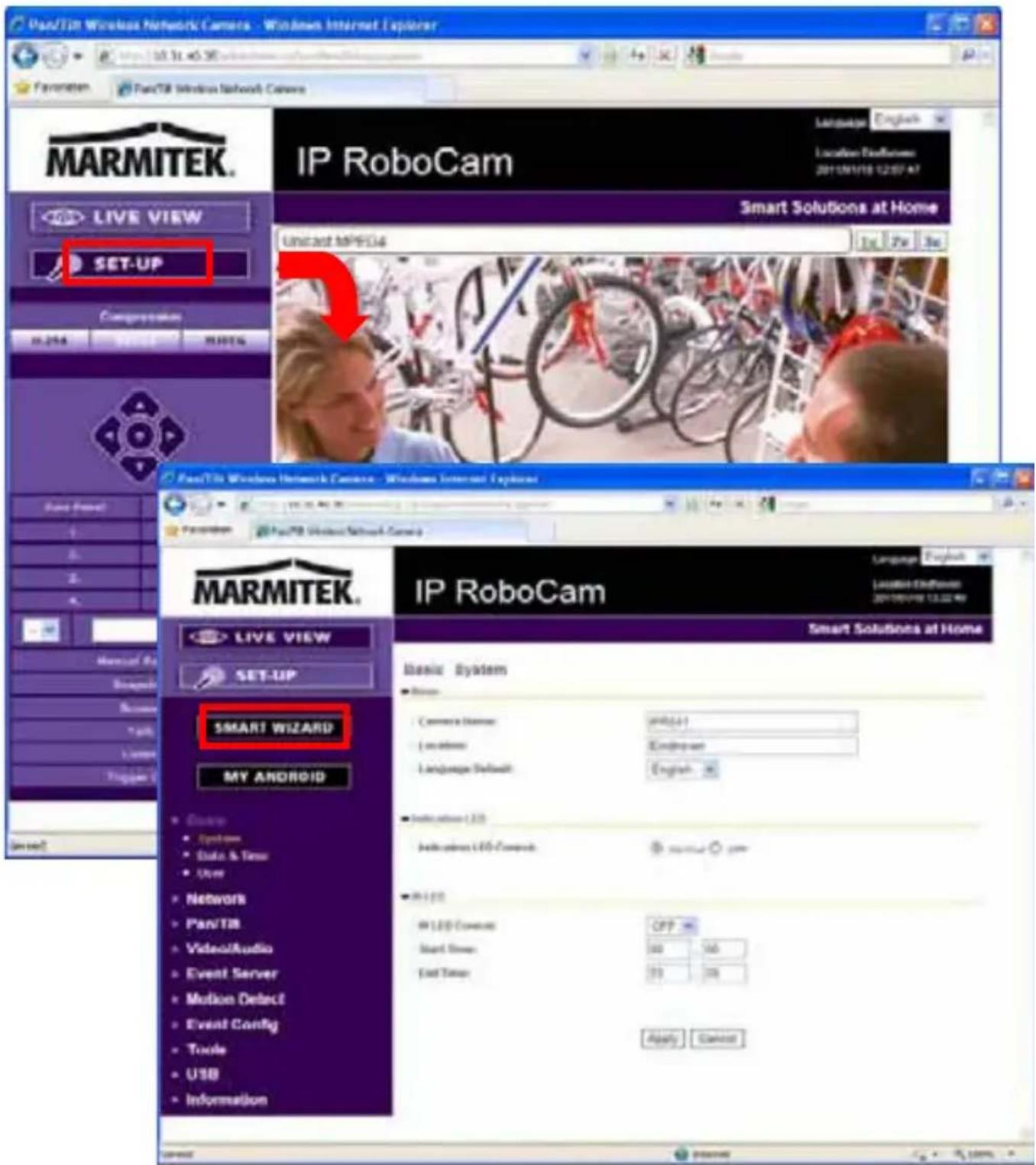

1. Click Setup and then Smart Wizard to set up your camera quickly. The Smart Wizard will guide you through the necessary settings with detailed instructions on each step.

4 Tips

For more information, please refer to the Advanced Installation Guide on the provided Installation CD-ROM.

For details of operating UltraView Pro, please refer to the Software User Guide on the provided Installation CD-ROM.

If you have any problem on the product(s), please contact your local authorized dealer.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or

local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

VEILIGHEIDSWAARSCHUWINGEN

Technical data
Image Sensor
Image Sensor	1/4" Color CMOS Sensor
Resolution	1280 x 1024, 640 x 480, 320 x 240, 160 x 120
Ligh Minimum Illumination	0.1 LUX
Lens
Lens Type	Board Lens
Aperture (F/No.)	2.8
Focus Length	4 mm
View Angle(Diagonal)	60 degree
Build in IR blocking filter	IPR 641
True Colour	IPR 641
Image Processing
compression	H.264 baseline, MPEG4 simple profile and MJPEG
Auto Exposure Control	Yes
Auto White Balance	Yes
Auto Gain control	Yes
Image Resolution and Frame rate	SXGA (1280 x 1024) : 15fps
	VGA (640 x 480) : 30 fps
	QVGA (320 x 240) : 30 fps
	QQVGA (160 x 120) : 30 fps
Multi-profile	H.264@SXGA/VGA/QVGA/QQVGA and MPEG4@VGA/QVGA/QQVGA and MJPEG@SXGA/VGA/QVGA/QQVGA
System
Network Processor	ARM9 base
System ROM	8MByte NOR Flash
System RAM	64MByte SDRAM
Power	DC12V, 230VAC 50 Hz
Power Consumption	< 10 watts
Environment Operation:	Operation: Temp: 0 ~ 45 Humidity: 20% ~ 85% non-condensing
	Storage: Temp: -15 ~ 60 Humidity: 0% ~ 90% non-condensing
Approvals	FCC/CE class B
Pan/Tilt
Pan	+165 ~ -165 degree
Tilt	+90 ~ -15 degree
Preset positions	8 positions
Audio
Audio in	Internal Omni-directional Microphone
Sensitivity:	more than -48dB +/- 3dB
Freq Response:	100~10000Hz
Audio Codec	PCM/AMR
Audio out	Line level out ;1 Vrms ; 3.5mm phone jack; Mono
Audio S/N ratio	More than 60dB
Communication
Ethernet	One RJ45 port; IEEE 802.3u compliant 10/100 Mbps Fast Ethernet with Auto-MDIX
Wireless	IEEE802.11n Wireless LAN
Supported Protocols	TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, TCP, BONJOUR
LED and Button
Power LED	Orange Color
Link/act. LED	Green Color
Reset button	Push and Release button will be Reboot Push and hold over 5 sec will be Factory reset
Others
Antenna	External Dipole Antenna
USB Port	One Type A receptacle Connector USB 2.0 Host port (Power distribution: 500mA Max.)
USB dismount button	Push and hold over 3 sec will be dismount USB device
GPIO	1 in / 1 out
Night vision	940nm IR LED (Switch by light sensor, manually and schedule control)
Night vision	940nm IR LED (Switch by light sensor, manually and schedule control, IPR 541)
Dimensions	106 x 112 x 98 mm
Feature
Image setting	Brightness
	Sharpness
	Saturation
Upside down and Mirror	Yes
Digital Zoom	1/4x,1/2x, 1x , 2x ,3x
Frame rate setting	Yes (1-30fps)
Compression Ratio Setting	5 levels setting : Lowest ,Low ,Normal ,High ,Highest
3GPP support	Yes (MPEG4)
Pre-buffer	Yes
Pre/Post buffer	Yes
IP Setting	Static IP Address
	DHCP
	PPPoe
	Bonjour
Email	Support SMTP mail
	Scheduling
	Two destination email account
	SSL suport
Time Management	Manual Time Setting
	Time Server and NTP Support
	Real Time Clock
event server	FTP
	Email
	Netstorage
	USB
	Instant Message
	Picasa
	YouTube
Event Management	Events Triggered by Motion detection or according to schedule or GPIO
Event Management	Image Upload/Send over email ,FTP, Picasa
Event Management	Trigger GPIO out
Event Management	Auto Lighting 7 IR LEDs when environment is low illumination
Event Management	Video Upload/Send to PC, Network Storage , USB Flash Disk, YouTube
FTP Upload	Schedule trigger
	Motion Trigger
	GPIO Trigger
Motion detection	3 scalable windows
IP Filter	Yes (deny, Allow)
System Management	Web Based Administration Application Software
Device Configuration	Backup/Restore to/from Configuration file
User Administration	Password protected and 3 levels of Authorization (Guest, User, Administrator)
User Administration	Guest User just have View video function only.
User Administration	General User have all authority in Live view page
User Administration	Administrator have View video and All configuration setting.(default: admin/admin)
Wireless Security	WPS button
Wireless Security	WEP 64/128 bit, WPA (TKIP), WPA2, WPS button
System log	100 items ( max) store in SDRAM
LED control	Normal / Off
Smart Setup Wizard	Quick Installation setup step by step
Reset Function	System reboot button.
Reset Function	Reset all configuration to factory default values button.
Browser	Internet Explore 6.0 above
Browser	Non IE Browser (MJPEG server push, QuickTime plug-in for MPEG4/H.264)
API	For developing application software
Browser Interface	6 languages
Software	UltraViewPro 32 Channels
Supported OS	Windows 2000/ XP/Vista/7/8
Application Software	UltraViewPro 32 Channels
Application Software	Record
Application Software	Playback
Application Software	Motion detect
Application Software	Audio support
Application Software	Backup/Restore to/from Configuration file
IPFinder	Auto search IP Address of Camera in LAN
Minimum system requirements
General
hardware	CD ROM drive
Operating system	Microsoft® Windows® 2000/XP/Vista/7/8
network	10Base-T Ethernet or 100Base-TX Fast Ethernet, IEEE 802.11b/g.
Camera
Processor Intel Pentium III 800MHz or above
Memory 512MB
Screen Resolution	800x600 or above
Web browser	Microsoft® Internet Explorer 6.0 or aboveApple Safari 2 or aboveMozilla Firefox 2.00 or above
UltraviewPro Software
Platform:	Microsoft® Windows® XP/Vista*, and Windows 7/8
Processor	1~8 cameras: Intel Core 2 Duo; 2GB RAM9~32 cameras: Intel Core 2 Quad; 4GB RAM
Screen Resolution	1024x768 or above
Memory	see processor

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this IPROBOCAM 541 / 641 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies
