This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3 A1 En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a A1 En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 25cm at top, 10cm at rear, and 5cm at each side).

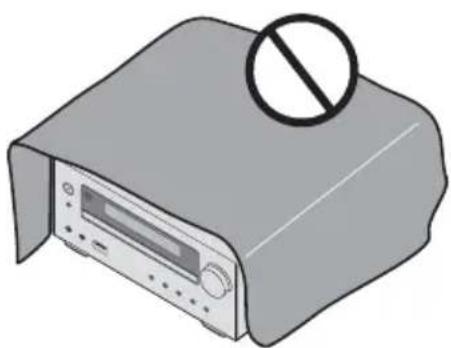

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1En

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

D3-4-2-1-7c*_A2_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

CAUTION

The OSTANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

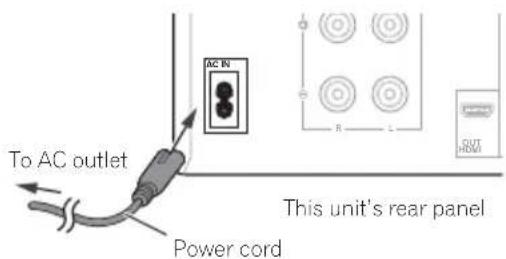

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

5002*A1En

Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.

SGK004_A1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

Symbol examples for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

• Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.
• A separate contract with payment to an Internet service provider is required to use the Internet.

For Norway customers

For Sweden customers

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 6

Loading the batteries in the remote control 6

Using the remote control 6

02 Part names and functions

Remote control 7

Detatching and replacing the front grille 9

Front panel 10

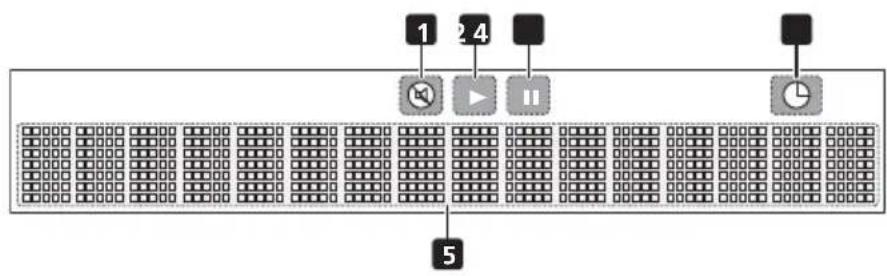

Display 11

03 Connections

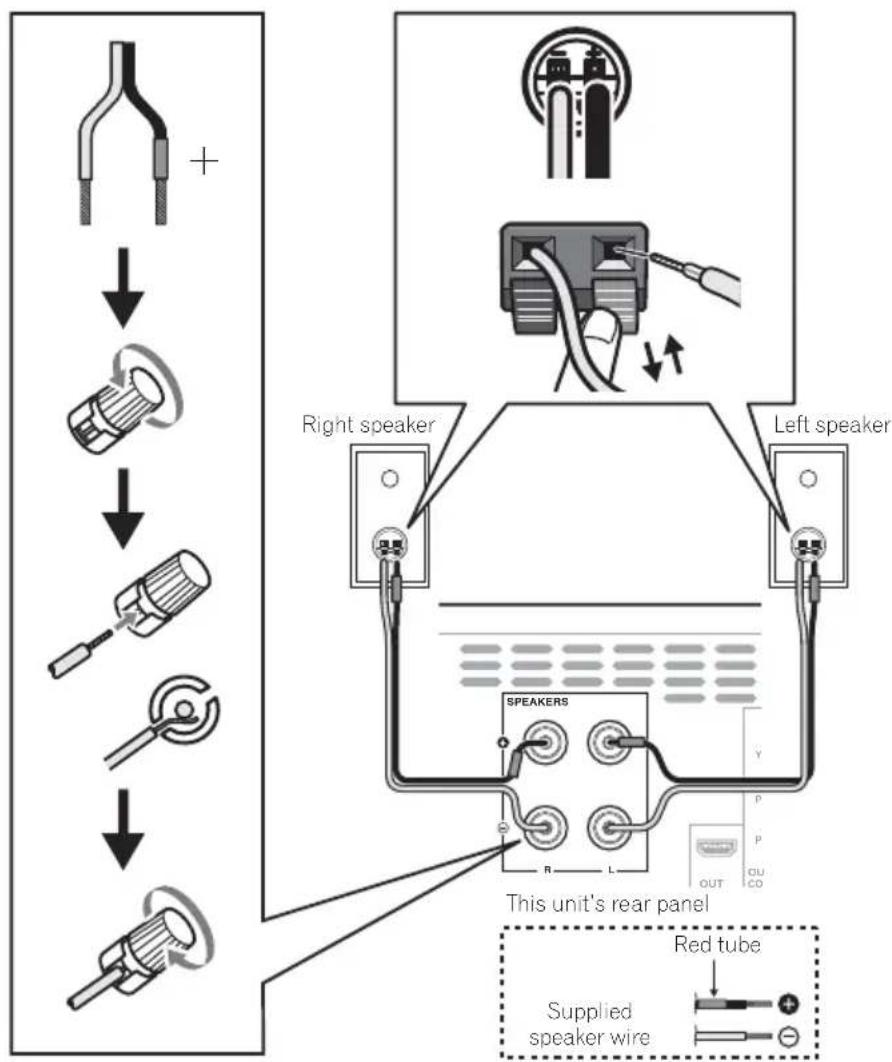

Speaker connection 12

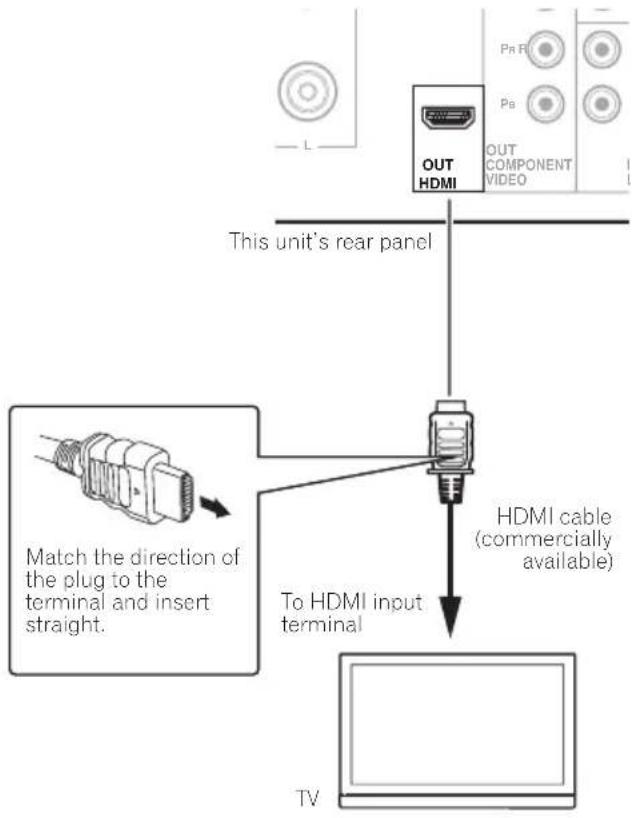

Connecting using an HDMI cable 13

Audio signals that can be output from this unit's HDMI

OUT terminal 14

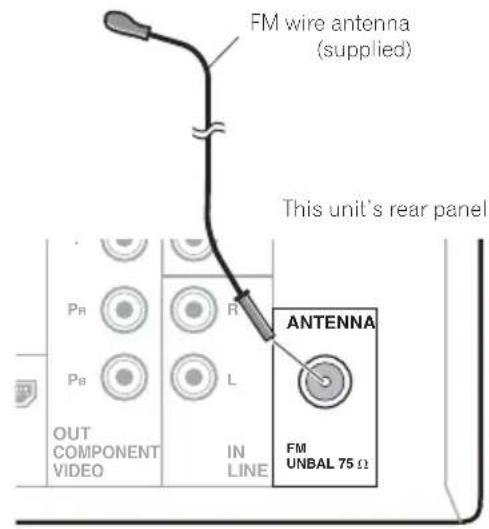

Connecting the FM antenna 14

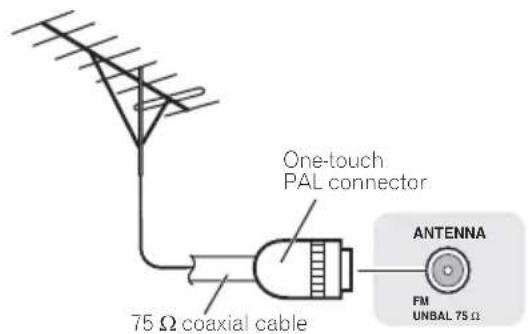

Using external antennas 15

Plugging in 15

04 Getting started

To turn the power on 16

Setting the clock 16

General control 16

Input function. 16

Display brightness control 16

Volume auto set-in. 16

Volume control. 16

Muting. 16

Sound controls 17

Equalizer. 17

P.BASS control 17

Bass/treble control 17

Setting the wake-up timer 17

Calling the wake-up timer 18

Cancelling the wake-up timer. 18

Using the wake-up timer. 18

Using the sleep timer 18

Using Headphones 18

05 iPod/iPhone/iPad playback

Confirming what iPod/iPhone/iPad models are

supported 19

Connecting your iPod/Phone/iPad 19

Connecting iPod/iPhone/iPad using supplied stand . . 19

Playing iPod/iPhone/iPad 20

06 Disc playback

Playing discs or files 21

Advanced DVD, CD disc playback 22

Direct track search 22

A-B Repeat play 22

Repeat play. 23

Random play 23

Programmed play 24

Search mode 25

About downloading MP3/WMA 25

About playback order 25

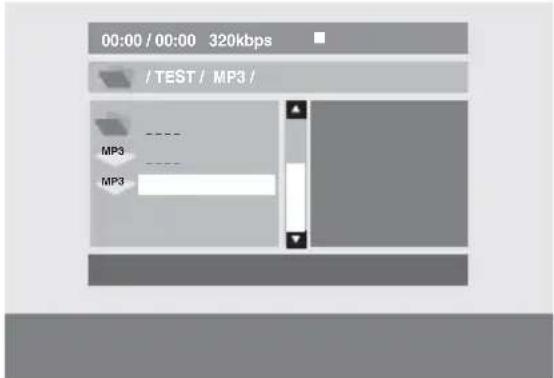

Procedure to playback DivX or MP3/WMA/JPEG file.. 26

07 USB playback

Playing USB storage devices 27

Procedure to playback DivX or MP3/WMA/JPEG file.. 27

Playing in the desired order (Programmed Play) 28

08 Using the tuner

Listening to the radio broadcasts 29

Tuning. 29

Saving station presets. 29

To recall a memorised station 30

To scan the preset stations. 30

To erase entire preset memory. 30

Using the Radio Data System (RDS) 30

An introduction to RDS. 30

Searching for RDS programs. 30

Information provided by RDS 31

Using the Auto Station Program Memory (ASPM). . . 31

Notes for RDS operation. 31

09 Other connections

Connecting auxiliary components 32

10 Bluetooth® Audio playback

Music playback using Bluetooth wireless

technology 33

Remote control operation 33

Pairing with the unit (Initial registration) 33

Listen to music on the unit from a Bluetooth

capable device 34

BT STANDBY 34

Radio wave caution 34

Scope of operation 35

Radio wave reflections 35

Precautions regarding connections to products supported by this unit 35

11 Changing the settings

Settings for DVD/CD and USB playback 36

Audio Settings parameters. 36

Video Adjust parameters 36

Initial Settings parameters. 36

Setting the HDMI Resolution settings back to their defaults. 37

12 Additional information

Troubleshooting 38

Language Code Table and Country/Area Code Table .41

Language Code Table 41

Country/Area Code Table 41

Playable discs and formats 42

Discs that cannot be played. 42

About region numbers 42

Regarding copy protected CDs 42

About playing DualDiscs 42

Playing discs created on computers or BD/DVD recorders 43

Playable files 43

Supported video file formats 43

Displaying external subtitle files 43

Supported image file formats 43

Supported audio file formats 43

Cautions on use 44

When moving this unit 44

Place of installation. 44

Do not place objects on this unit. 44

About condensation 44

Cleaning the product 44

Cleaning the lens 44

Handling discs 45

Storing 45

Cleaning discs. 45

About specially shaped discs. 45

About iPod/iPhone/iPad 45

Auto power off setting 45

Restoring all the settings to the defaults 45

Specifications 46

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

• Remote control
• Power cord
  Video cable (1.5 m)
  FM wire antenna
• AAA batteries (R03) x 2
• Speaker wire x 2
• iPhone/iPad stand
  Warranty card
• Operating instructions (this document)

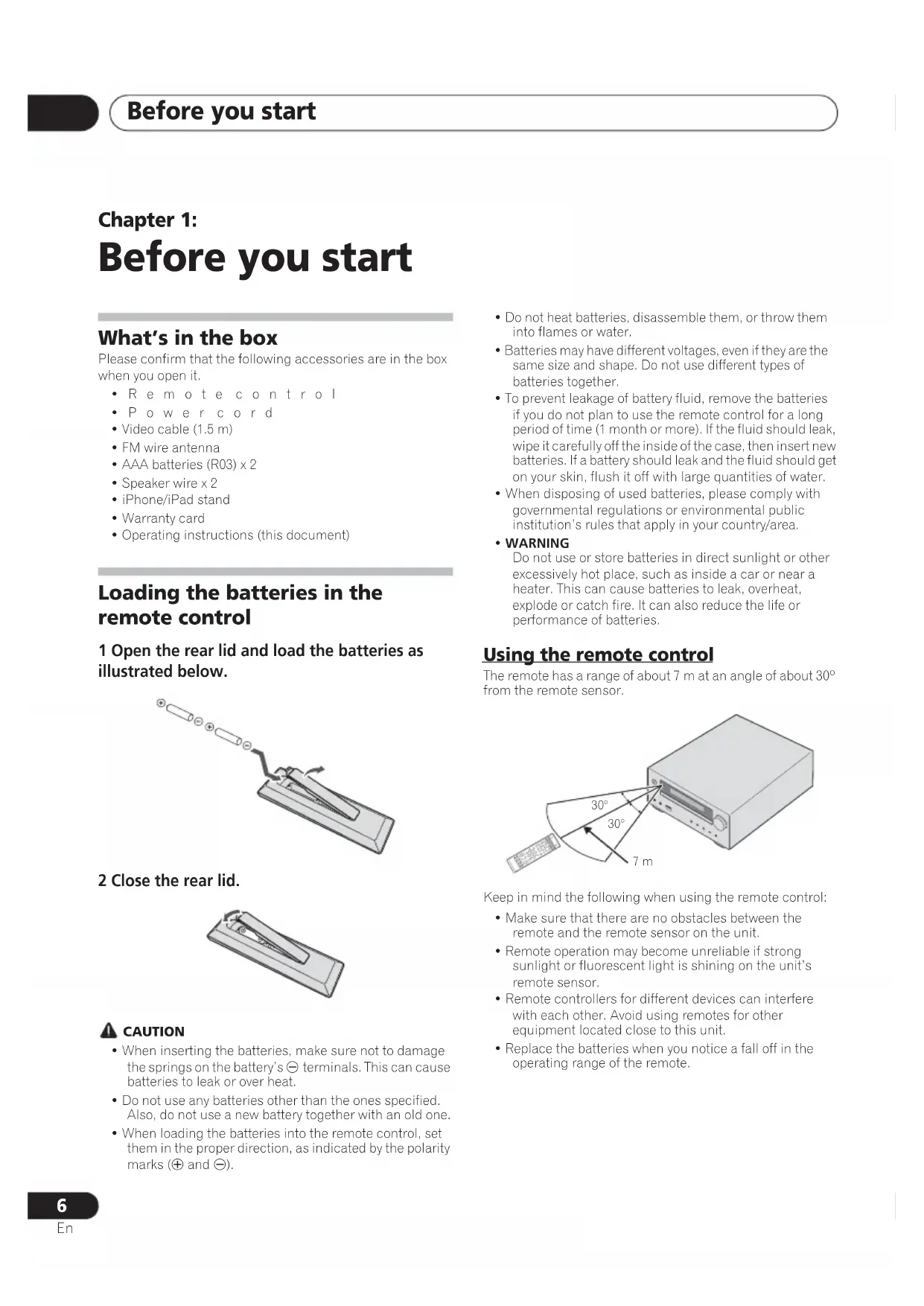

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

2 Close the rear lid.

CAUTION

• When inserting the batteries, make sure not to damage the springs on the battery's terminals. This can cause batteries to leak or over heat.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.

• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (⊕ and ⊙).

• Do not heat batteries, disassemble them, or throw them into flames or water.

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.

• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

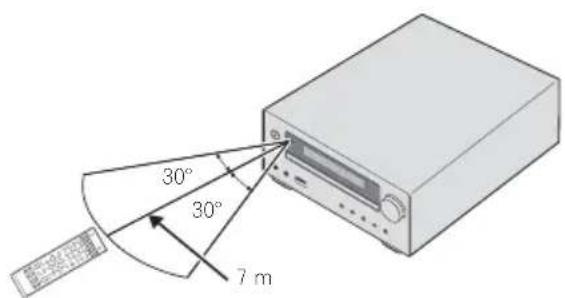

The remote has a range of about 7m at an angle of about 30^ from the remote sensor.

Keep in mind the following when using the remote control:

Make sure that there are no obstacles between the remote and the remote sensor on the unit.
- Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
- Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
- Replace the batteries when you notice a fall off in the operating range of the remote.

Chapter 2:

Part names and functions

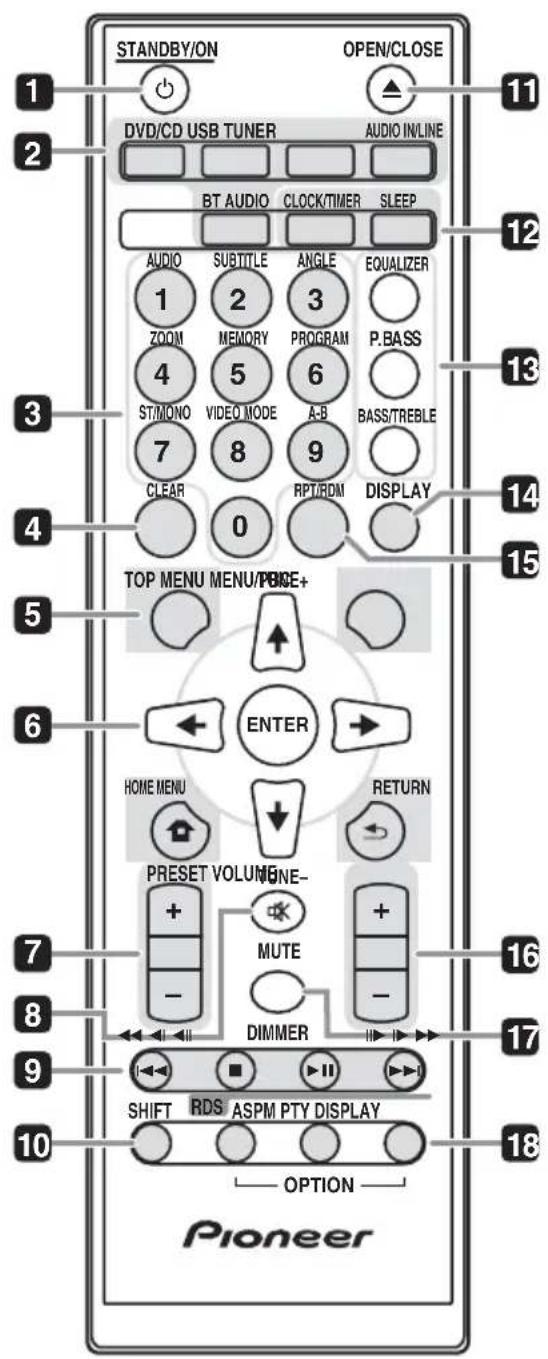

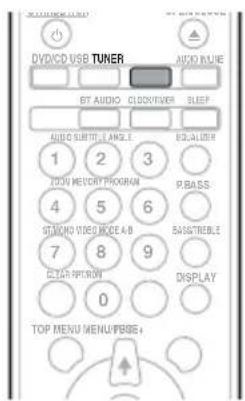

Remote control

1 STANDBY/ON

Switches the receiver between standby and on (page 16).

2 Input function buttons

Use to select the input source to this receiver (pages 20, 21, 27, 29, 32 and 33).

BT AUDIO

Use to set up or play the audio file using the Bluetooth network (pages 33).

3 Numeric buttons (0 to 9)

Use to enter the number (page 22).

AUDIO*

For discs or files including multiple audio streams/ channels, the audio stream/channel can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available.

SUBTITLE*

On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback. For files stored in iPod/iPhone/iPad, this button is not available.

ANGLE*

On DVD-Video discs containing multiple angles, the angle can be switched during playback.

ZOOM*

Zooming on the image. For images stored in iPod/ iPhone/iPad, this button is not available.

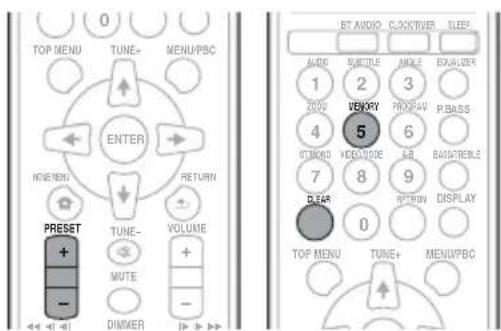

MEMORY*

Use to memory the radio station (page 29).

PROGRAM*

Use to program the DVD-Video, MP3/WMA disc or USB mass storage device (page 24).

ST/MONO*

Use to switch the sound mode between stereo and monaural (page 29).

VIDEO MODE*

Use to change the output resolution (HDMI only) (page 37).

A-B*

The specified section within a single title or track is played repeatedly.

4 CLEAR

Press to clear the selected item.

Use this for example if you use to clear the programmed play (page 24).

5 DVD Receiver control buttons TOP MENU

Press to display the top menu of the DVD-Video.

MENUPBC

Use to access the DVD menu or VCD PBC menu.

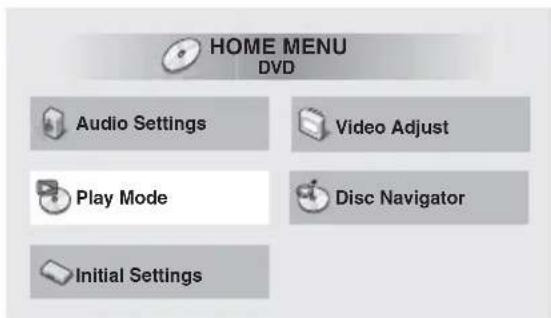

HOME MENU

Press to display the menu screen.

Use this to change initial settings of the unit (page 36).

Audio Settings (page 36)
Video Adjust (page 36)

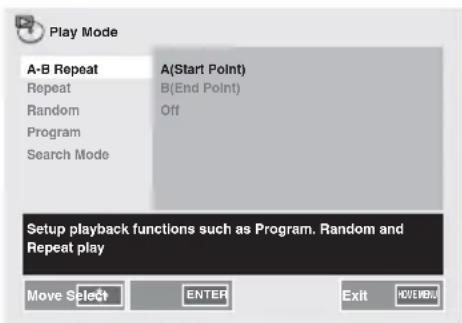

- Play Mode

The Play Mode function may not work for some discs or files. For files stored on iPod/iPhone/iPad, this function is not available.

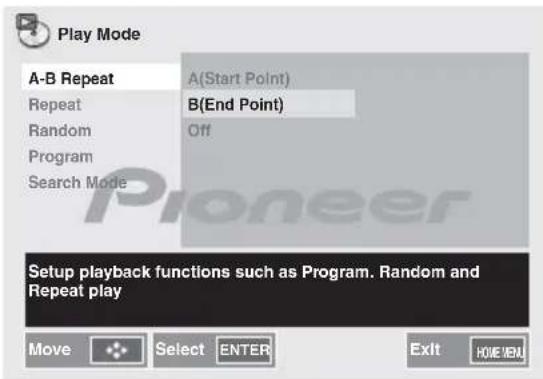

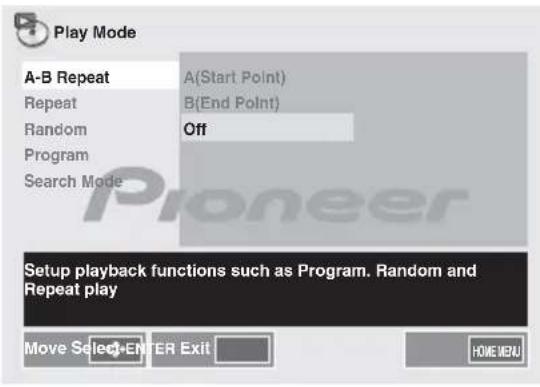

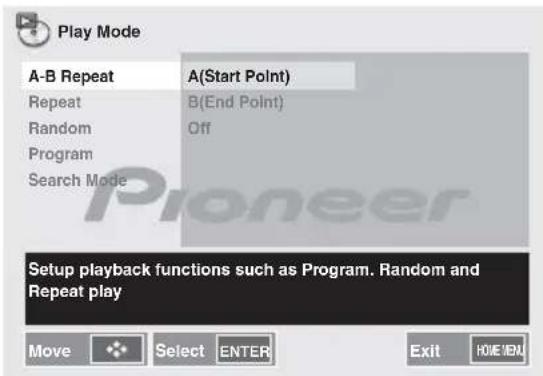

A-B Repeat (page 22)

The specified section within a single title or track is played repeatedly.

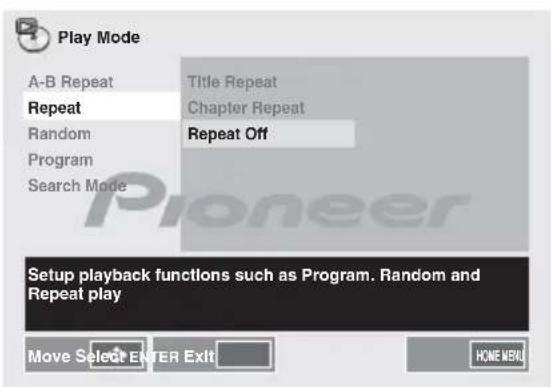

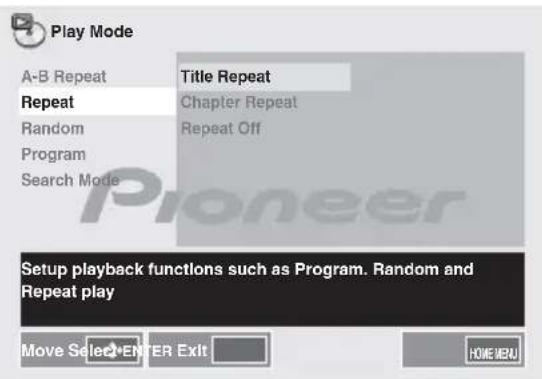

Repeat (page 23)

Plays titles, chapters, tracks or files repeatedly.

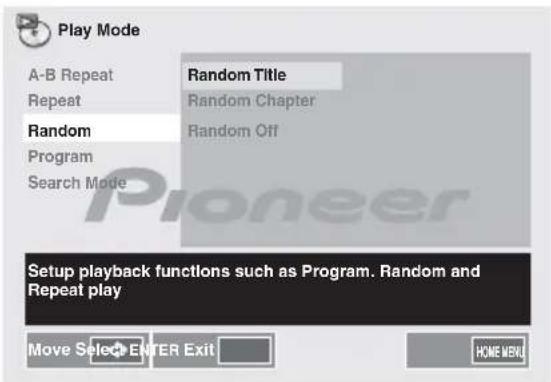

Random (page 23)

Plays titles, chapters or tracks in random order.

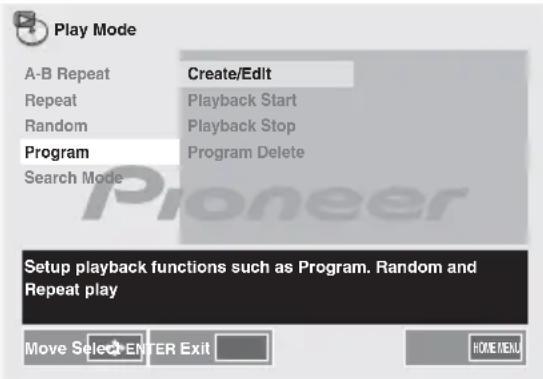

Program (page 24)

Plays titles, chapters, tracks or files in the order in which you program them.

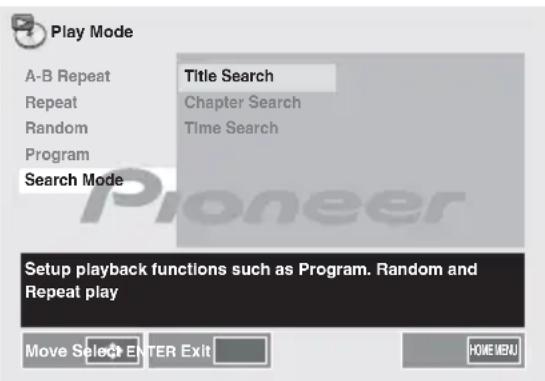

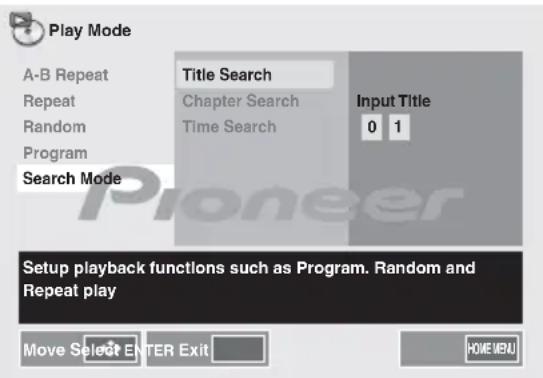

Search Mode (page 25)

Plays the specified number or time within the title, chapter, track or file.

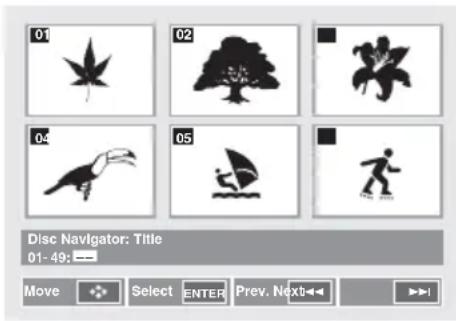

Disc Navigator

Select and plays title, chapter, track or file from the Disc Navigator.

Ex.: DVD-Video Disc Navigator

• Initial Settings (page 36)

RETURN

Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting.

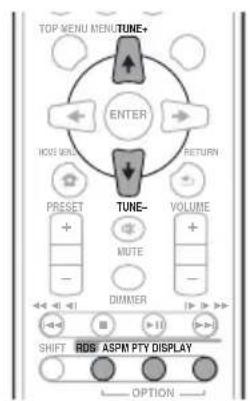

6 / / / (TUNE + / - ), ENTER

Use to select/switch system settings and modes, and to confirm actions.

Use TUNE + / - can be used to find radio frequencies (page 29).

7 PRESET + / -

Use to select preset radio stations (page 30).

8 MUTE

Mutes/unmates the sound (page 16).

9 Playback control buttons

Use to control each function after you have selected it using the input function buttons (page 21).

11

Press to start playback.

Press to stop playback.

• Press to return to the beginning of the currently playing track or file. Press twice to move back to the beginning of the previous track or file.
• Press and hold during playback to fast-reverse.
• Press in the pause mode to move backward frame-by-frame. (DVD-Video only)
• Press and hold in the pause mode for slow play in the reverse direction. (DVD-Video only)

• Press during playback to skip ahead to the beginning of the next track or file.
• Press and hold during playback to fast-forward.
• Press in the pause mode to move forward frame-by-frame. (DVD-Video, Video CD or DivX files only)
• Press and hold in the pause mode for slow play in the forward direction. (DVD-Video, Video CD or DivX files only)

10 SHIFT

Press to access the 'blue' commands (above the buttons) on the remote. These buttons are marked with an asterisk (*) in this section.

11 OPEN/CLOSE

Use to open or close the disc tray (page 21).

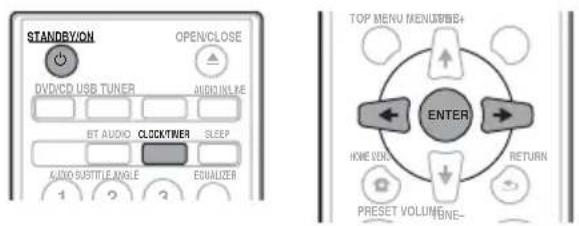

12 DVD Receiver control buttons CLOCK/TIMER

Use for setting the clock, as well as for setting and checking the timers (page 16).

SLEEP

See Using the sleep timer on page 18.

13 Sound control buttons

Adjust the sound quality (page 17).

14 DISPLAY

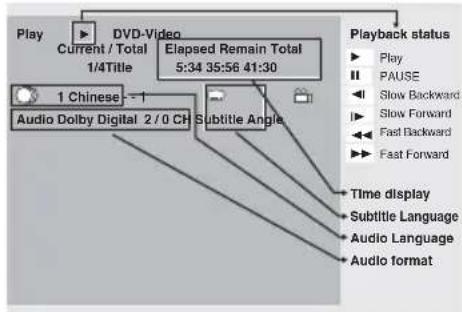

Press to change the display for DVD-Video, Video CD, CD or MP3.

Ex.: DVD-Video DISPLAY

15 RPT/RDM

Press to change the repeat play or randomize order play setting from a DVD-Video, Video CD, CD or iPod (page 22).

16 Volume control buttons

Use to set the listening volume (page 16).

17 DIMMER

Dims or brightens the display. The brightness can be controlled in four steps (page 16).

18 Tuner control buttons RDS ASPM

Use to search for RDS Auto station program memory (page 30).

RDS PTY

Use to search for RDS program types (page 30).

RDS DISPLAY

Press to change the RDS display for information mode (page 30).

Detatching and replacing the front grille

The front grille of this speaker system is removable. Proceed as follows:

1 Grab the bottom of the grille, and gently pull it toward you to remove the bottom portion.

2 Next, grab the top part of the grille and gently pull it toward you to remove the top portion.

3 To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place.

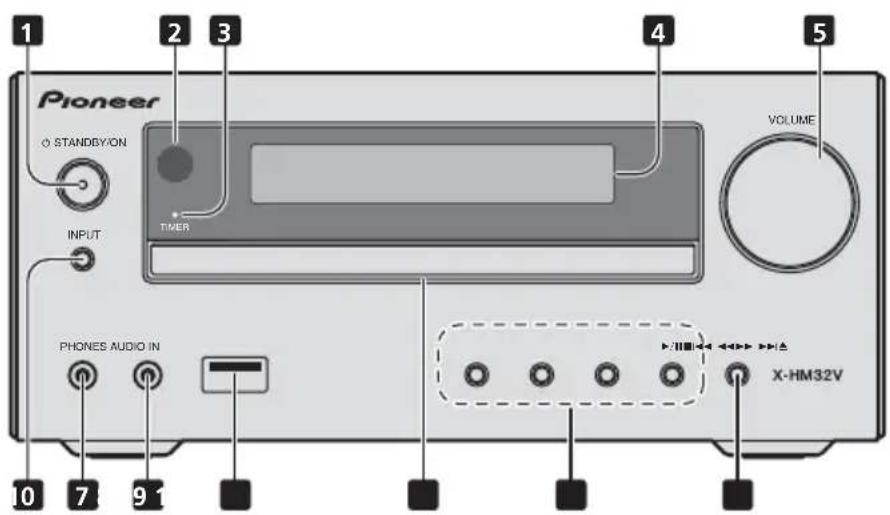

Front panel

1 STANDBY/ON button

Switches the receiver between standby and on (page 16).

2 Remote sensor

Receives the signals from the remote control.

3 T I Mdic@torR

Lights when the unit power is off but when the timer setting is activated.

4 Character display

See Display on page 11.

5 Volume control

Use to set the listening volume (page 16).

6 INPUT button

Selects the input source.

Long press to change to BT STANDBY mode.

7 Headphone socket

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 18).

8 AUDIO IN socket

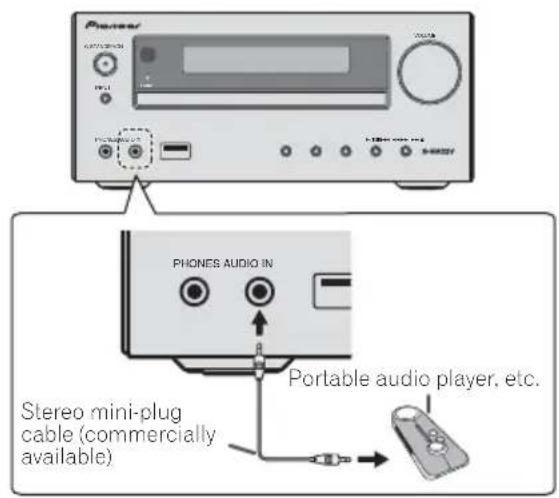

Use to connect an auxiliary component using a stereo minijack cable (page 32).

9 USB terminal

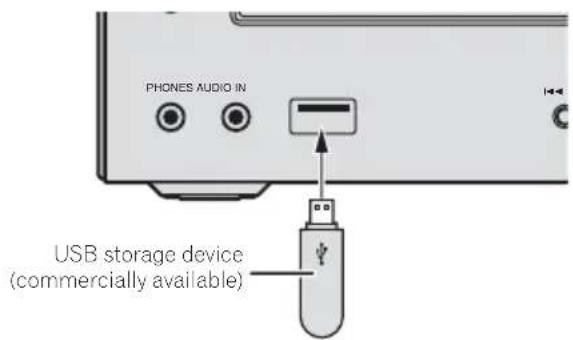

Use to connect your USB mass storage device or Apple iPod/ iPhone/iPad as an audio source (pages 20 and 27).

10 Disc tray

Place the disc, label side up (page 21).

11Playback control buttons

Select the desired track or file to be played back. Stop current playback. Stop playback or resume playback from the point where it was paused.

12 Disc tray open/close button

Use to open or close the disc tray (page 21).

Display

1

Lights when the sound is muted.

No

The mute icon will be displayed in red.

2

Start playback.

3 II

Pause playback.

4 ⑤

Timer function is set.

5 Character display

Displays various system information.

Chapter 3:

Connections

CAUTION

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

Speaker connection

• The provided speaker wire with the red tube is for the (+) terminal. Connect the wire with red tube the (+) terminal, and other wire to the (-) terminal.

CAUTION

These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not connect any speakers other than those supplied to this system.
- Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
- Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.
These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.
Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.
- Do not allow the speaker cable core to come into contact with the receiver body.

• If the speaker cable core comes into contact with any metal portion of the receiver's body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily.

Note

• There is no difference between L and R speakers.

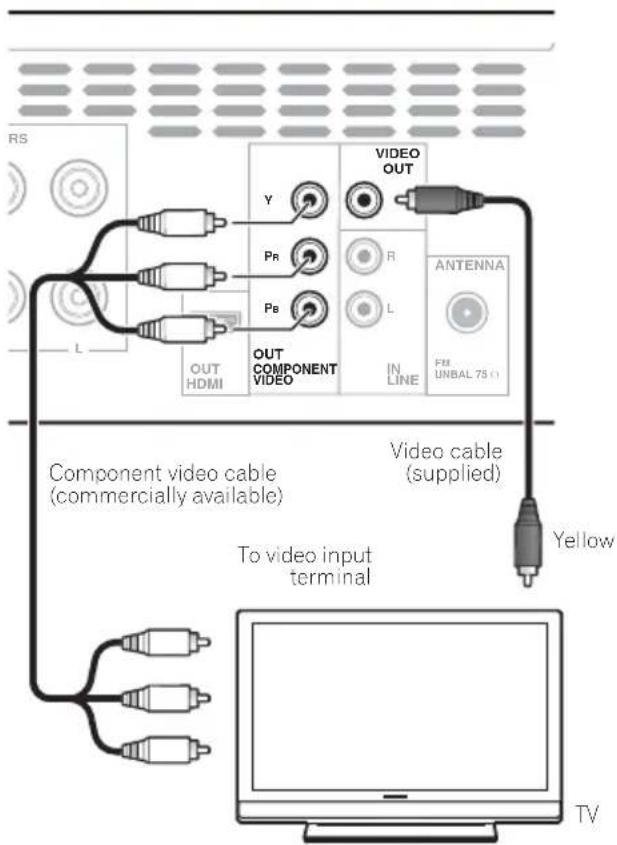

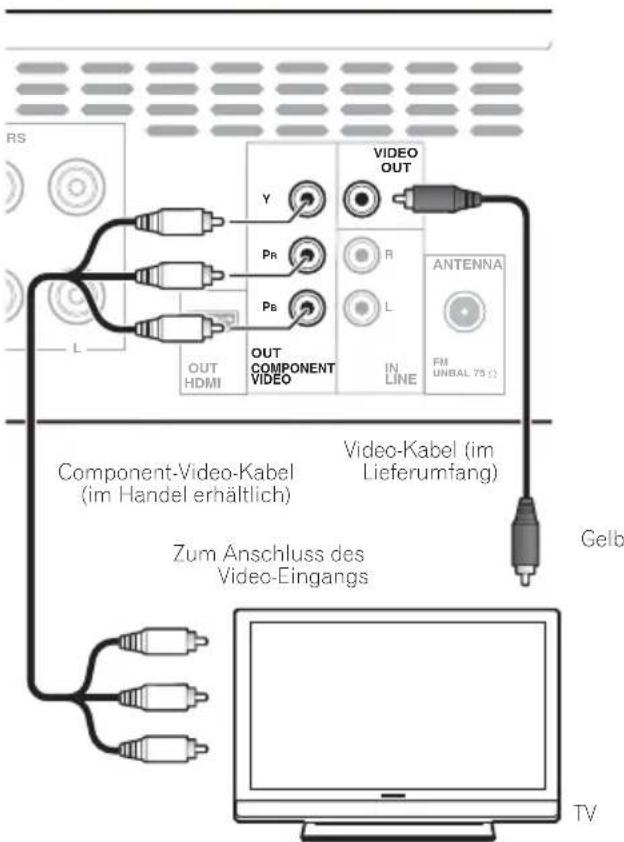

This unit's rear panel

Connecting using an HDMI cable

By using an HDMI cable, digital signals can be transferred to an HDMI-compatible TV on a single cable with no loss of picture or sound quality. After connecting, make this unit's resolution and HDMI color settings according to the HDMI-compatible TV. Also refer to the operating instructions with the HDMI-compatible TV.

Note

• When playing a disc or USB storage device content, this unit can transfer digital signals by the HDMI OUT terminal. Use the video cable for playing other content.
  This unit's interface is designed based on the High-Definition Multimedia Interface specification.
• When an HDMI-compatible device is connected, the resolution is displayed on the front panel display.

• The resolution of the video signals output from this unit's HDMI OUT terminal is changed manually. Change the HDMI Resolution setting (page 37).

• This unit is designed for connection to HDMI-compatible devices. It may not operate properly if connected to DVI devices.

HOMI

The term HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

Audio signals that can be output from this unit's HDMI OUT terminal

• 44.1 kHz to 96 kHz, 16-bit/20-bit/24-bit 2-channel linear PCM audio (including 2-channel downmixing)
• Dolby Digital 5.1-channel audio
  MPEGaudio

DOLBY. DIGITAL

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Connecting the FM antenna

Connect the FM antenna plug onto the center pin of the FM antenna socket.

Note

To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.

To customers in Norway and Sweden

CAUTION

Apparater som er koplet til beskyttelsensjord via nettplugg og/eller via annet jordtilkoplet utstyr - og er tilkoplet et koaksialbasert kabel-TV nett, kan forarsake brannfare. For a unnga dette skal det ved tilkoping av apparater til kabel-TV nett installereres en galvanisk isolator mellom apparatet og kabel-TV nettet."
Apparater som ar kopplade till skyddsjord via jordat vagguttag och/eller via annan utrustning och samtidigt ar kopplad till kabel-TV nat kan i vissa fall medfora risk for brand. For att undvika detta skall vid anslutting av apparaten till kabel-TV nat galvanisk isolator finnas mellan apparaten och kabel-TV natet.

Using external antennas

To improve FM reception

Use a PAL connector (not supplied) to connect an external FM antenna.

Plugging in

CAUTION

• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below.

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

After you've finished making all connections, plug the unit into an AC outlet.

Chapter 4:

Getting started

To turn the power on

Press the STANDBY/ON to turn the power on.

After use:

Press the STANDBY/ON to enter the power stand-by mode.

Note

• In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode.

Setting the clock

1 Press STANDBY/ON to turn the power on.

2 Press CLOCK/TIMER on the remote control. "CLOCK" is shown on the main display.

3 Press ENTER.

4 Press to set the day, then press ENTER.

5 Press / to set the hour, then press ENTER.

6 Press / to set the minute, then press ENTER to confirm.

7 Press ENTER

To confirm the time display:

Press the CLOCK/TIMER. The time display will appear for about 10 seconds.

To readjust the clock:

Perform "Setting the clock" from step 1.

Note

• When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

General control

Input function

When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function.

Display brightness control

Press DIMMER to dim the display brightness. The brightness can be controlled in four steps.

Volume auto set-in

If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30.

Volume control

Turn the volume knob towards VOLUME (on main unit) or press VOLUME + / - (on remote control) to increase or decrease the volume.

CAUTION

• The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Muting

The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

Sound controls

Equalizer

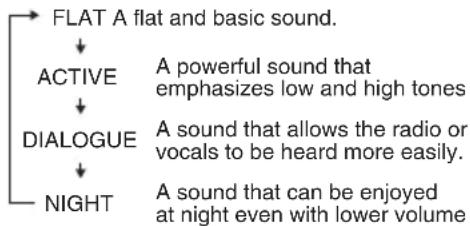

When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears.

P.BASS control

Each time the P.BASS button on the remote control is pressed, the bass frequency mode will change.

Note

P.BASS control is initially set to ON.

Bass/treble control

Press the BASS/TREBLE, then press / / / to adjust the bass or treble.

Note

The EQUALIZER and P.BASS cannot operate simultaneously. The most recently selected of these two functions will be the one used.
- BASS/TREBLE can operate alongside either the EQUALIZER or P.BASS.

When one of the above two functions is selected, the function that is not selected will be displayed as follows.

1 W h P.BAS setting (ON/OFF) is changed
- EQUALIZER:FLAT
2 W h EQJAbZER setting is changed
P.BASS:OFF

Setting the wake-up timer

Used to change the existing timer setting, or to set a new timer.

1 Press STANDBY/ON to turn the power on.

2 Press and hold CLOCK/TIMER.

3 Press / to select "ONCE" or "DAILY", then press ENTER.

ONCE - Works once only at a preset time.

DAILY - Works at the preset time on a preset day.

4 Press / to select "TIMER SET", then press ENTER.

5 Press / to select the timer playback source, then press ENTER.

DVD/CD, FM, USB/iPod, BT AUDIOO, AUDIO IN and LINE can be selected as the playback source.

6 Press / to select the timer day, then press ENTER.
7 Press to set the hour, then press ENTER.
8 Press / to set the minute, then press ENTER.
- Set the time to finish as in steps 7 and 8 above.
9 Adjust the volume press VOLUME + / - , then press ENTER.
10 Press STANDBY/ON to enter the power standby mode.
- The TIMER indicator lights up.

Getting started

Calling the wake-up timer

An existing timer setting can be reused.

1 Follow steps 1 to 3 in "Setting the wake-up timer".

2 Press / to select "TIMER ON", then press ENTER.

Cancelling the wake-up timer

Turn off the timer setting.

1 Follow steps 1 to 3 in "Setting the wake-up timer".

2 Press / to select "TIMER OFF", then press ENTER.

Using the wake-up timer

1 Press STANDBY/ON to turn the power off.

2 At the wake-up time, this unit will turn on automatically and play the selected input function.

Note

• If at the wake-up time iPod/iPhone/iPad is not connected to this unit or a disc is not inserted, this unit will be turned to on and not play back the track.
  Some discs may not be played automatically at the wake-up time.
• When setting the timer set at least one minute between the start and end time.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

1 Press SLEEP repeatedly to select a switch off time.

Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 5 seconds, and then the setting is completed.

Note

• The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

Using Headphones

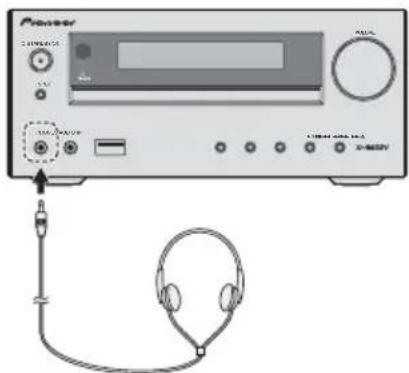

Connect the headphones plug to the PHONES terminal. When the headphones are connected, there is no sound output from the speakers.

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
  Before plugging in or unplugging the headphone, reduce the volume.
• Be sure your headphone has a 3.5 ~mm diameter plug and impedance between 16 and 50 . The recommended impedance is 32 .
  Audio from the iPod/iPhone/iPad cannot be heard via the headphones connected to the unit. "HP MUTE" will be displayed if you connect the headphones when the iPod/iPhone/iPad function is selected.

Chapter 5:

iPod/iPhone/iPad playback

Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad. This unit can not transfer music, movies and images from an iPod/iPhone/iPad via the HDMI OUT and COMPONENT
VIDEO terminal. Playback setting for iPod/iPhone/iPad music and images can be performed from this unit or the iPod/ iPhone/iPad itself.

Confirming what iPod/Phone/iPad models are supported

The iPod/iPhone/iPad playable on this unit are shown below.

iPod/iPhone/iPad USB Terminal (Audio only)

iPod nano (3/4/5/6/7G) √
iPod touch (1/2/3/4/5G) √
iPhone 5 √
iPhone 5s √
iPhone 5c √
iPhone 4s √
iPhone 4 √
iPhone 3GS √
iPhone 3G √
iPhone √
iPad mini √
iPad mini with Retina display √
iPad Air	√
iPad (3/4G)	√
iPad/iPad 2	√

Note

• Pioneer does not guarantee that this unit plays iPod/ iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of noncopyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.

• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).
• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.
• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad.

Connecting your iPod/iPhone/iPad

CAUTION

• When connecting iPod/iPhone/iPad devices, use the iPod/iPhone/iPad cable provided with iPod/iPhone/iPad devices, or a commercially available iPod/iPhone/iPad cable designed to support iPod/iPhone/iPad.
• An iPod/iPhone/iPad cable is not supplied with this unit.

Important

• If you are mounting the protective cover of a commercially available iPod/iPhone/iPad, you may not be able to connect iPod/iPhone/iPad to this unit.

Connecting iPod/Phone/iPad using supplied stand

1 Connect the unit to an iPod/iPhone/iPad with a iPod/iPhone/iPad cable.

2 Set up to stand the iPod/iPhone/iPad.

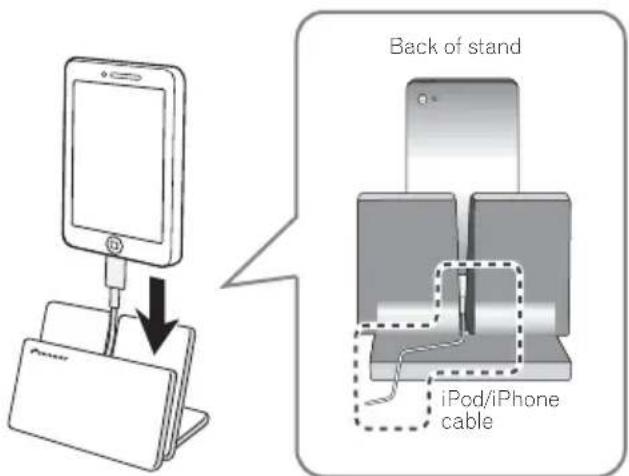

When using an iPod/iPhone

Make sure the iPod/iPhone cable is aligned along the groove for it on the back of the stand that comes with the unit.

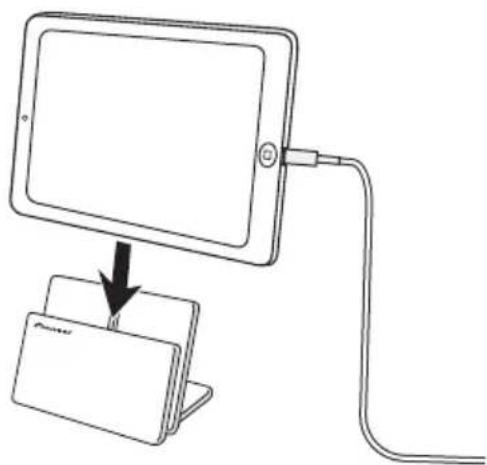

When using an iPad

Make sure to place the iPad in a horizontal direction on the stand.

Playing iPod/iPhone/iPad

1 Connect your iPod/iPhone/iPad.

• If an iPod/iPhone/iPad is connected while the unit is turned on, playback of the iPod/iPhone/iPad will not begin.

2 P r USB as the input source.

"USB/iPod" is shown on the main display.

3 When the recognition is completed, will begin playing automatically.

The available iPod/iPhone/iPad playback control from the unit are / / 口 1

CAUTION

• When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts.

Note

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.
• iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)
• When input is switched from USB/iPod to another function, iPod/iPhone/iPad playback is temporarily stopped.
• When iPod/iPhone/iPad is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.
• Auto power off can be switched to ON/OFF (page 45).

Important

If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:

• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn't seem to work, try resetting your iPod/iPhone/iPad.
• Check the iPod/iPhone/iPad software is supported by this unit.

If the iPod/iPhone/iPad cannot be operated, check the following items:

• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

Chapter 6:

Disc playback

Playing discs or files

1 Press STANDBY/ON to turn the power on.

The selected input is displayed on the front panel display.

• When playing discs or files, turn the TV on and switch TV input before starting.
• You can change the screen display language of the unit (Display settings on page 37).

2 Press DVD/CD on the remote control or INPUT repeatedly on the main unit to select DVD/CD input.

Please wait until you see the "NO DISC".

When a disc is already on the disc tray, press OPEN/CLOSE to eject the disc.

3 Press OPEN/CLOSE to open the disc tray.

4 Place the disc on the disc tray, label side up.

5 Press OPEN/CLOSE to close the disc tray.

6 Press to start playback.

CAUTION

• Do not place two discs in one disc tray.
• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.
• Do not push the disc tray whilst it is moving.
• If the power fails whilst the tray is open, wait until the power is restored.
• Be sure to place 8 cm disc in the middle of the disc tray.

Note

• Due to the structure of the disc information, it takes longer to read the disc has written by many files than a normal CD (approximately 20 to 90 seconds).
• When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.
• Rewritable multi-session discs with unfinished writing, can still be played.
• If TV or radio interference occurs during DVD/CD operation, move the unit away from the TV or radio.

Tip

• When no operation has done in DVD/CD mode and the audio file is not played for more than 20 minutes, the power will automatically turn off. In this case it is required that the Auto power off is switched to ON.
• Auto power off can be switched to ON/OFF (page 45).

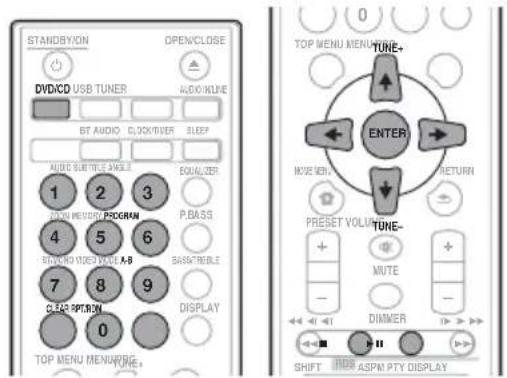

Advanced DVD, CD disc playback

Direct track search

By using the number buttons (0 to 9), you can specify and play the title, chapter, track or file you want to view/listen to.

Use the numeric buttons on the remote control to select the desired title, chapter, track or file whilst playing the selected disc.

Note

The title, chapter, track or file number higher than the number of titles, chapters, tracks or files on the disc cannot be selected.
- During random play, direct track search is not possible.

To stop playback:

Press

A-B Repeat play

The specified section within a single title or track is played repeatedly.

1 PRH@MBMENU.

The HOME MENU is displayed.

2 U /to select Play Mode, then press ENTER.

The Play Mode screen is displayed.

3 U / to select A-B Repeat, then press ENTER or .

4 U / to select the A(Start Point).

5 U / to select the B(End Point).

Note

• When A-B repeat playback starts, "A-B repeat" will be displayed on the screen.
  A-B repeat play is disabled on some discs.
  A-B repeat play for DVD is possible only within a title.
  A-B repeat play for CD is possible only within a track.
  Some scenes on DVD may not allow A-B repeat play.

To cancel A-B repeat play:

1 U / to select the Off.

Repeat play

Plays titles, chapters, tracks or files repeatedly.

1 Follow steps 1 to 2 in "A-B Repeat play".

2 U S / S to selectRepeat, then press ENTER or

3 U to select the Title Repeat.

"REPEAT TITLE" is displayed on the main display.

Note

The display shown is when DVD is played.
After performing repeat play, be sure to press Otherwise, the disc will play continuously.
- During repeat play, random play is not possible.

To cancel repeat play:

1 Use ↑/↓ to select the Repeat Off.

"REPEAT OFF" is displayed on the main display.

Random play

Plays titles, chapters or tracks in random order.

1 Follow steps 1 to 2 in "A-B Repeat play".

2 Use ↑/↓ to select Random, then press ENTER or →.

3 Use ↑/↓ to select the Random Title.

"RANDOM TITLE" is displayed on the main display.

Note

The display shown is when DVD is played.
- If you press the during random play, you can move to the track selected next by the random operation. On the other hand, the does not allow you to move to the previous track. The beginning of the track being played will be located.
- In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
- During random play, repeat play is not possible.

To cancel random play:

1 U to select the Random Off.

"RANDOM OFF" is displayed on the main display.

Programmed play

You can choose up to 24 selections for playback in the order you like.

1 Follow steps 1 to 2 in "A-B Repeat play".

2 U / to select Program, then press ENTER or .

3 U / to select Create/Edit, then press ENTER.

The Create/Edit screen differs according to the disc or file.

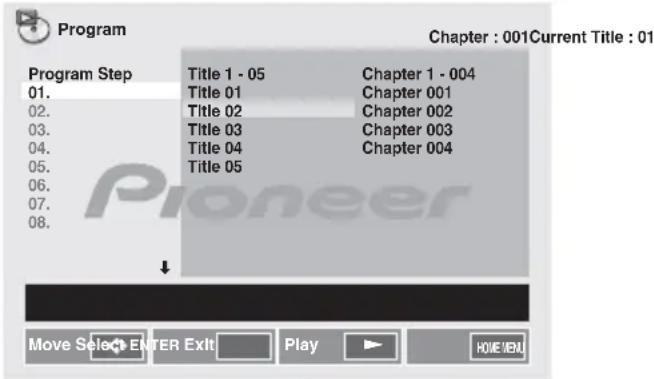

4 U 12 / 12 = 12 to select the title, chapter, track or file, then press ENTER.

• To add to a program, first select the place in the program (the program step), next select the title, chapter or track, then press ENTER (files are added at the end of program).
• Press RETURN to return to the previous screen. If you return to the previous screen when inputting it, the settings you have programmed are cleared.
  To delete a step, highlight it and press CLEAR.

5 P r e s s

Playback will start.

Note

To play a program that has already been set, select Playback Start from the program screen, then press ENTER.
- To resume normal playback, select Playback Stop from the program screen, then press ENTER. The program remains in memory.
- To cancel the entire program, select Program Delete from the program screen, then press ENTER.
- Programs can be played repeatedly. Select Program Repeat from Repeat on the Play Mode screen during programmed playback.
- Programs cannot be played in random order (random play is not possible during programmed play).

Search mode

Plays the specified number or time within the title, chapter, track or file.

1 Follow steps 1 to 2 in "A-B Repeat play".

2 U / to select Search Mode, then press ENTER.

3 U to select Title search, then press ENTER or .

4 Use the numeric buttons to select Input Title.

About downloading MP3/WMA

There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD/DVD disc.

• Your downloaded song/files are for personal use only. Any other usage of the song without owner's permission, is against the law.

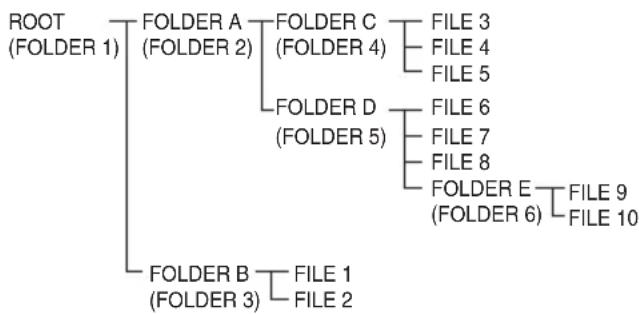

About playback order

Will be played in order from the file that is stored in the upper folder.

Ex.

The file will be played in order listed above.

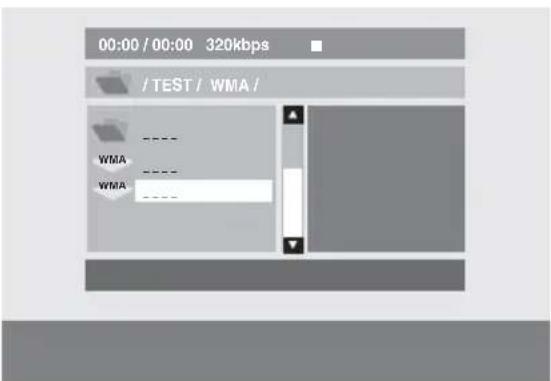

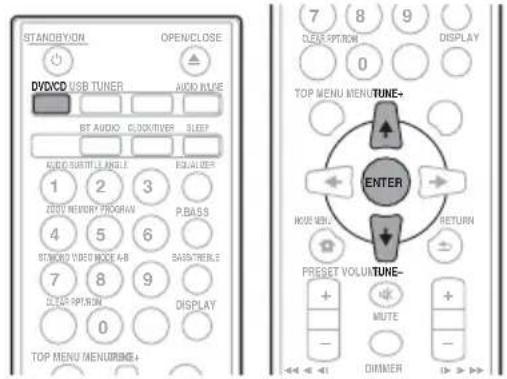

Procedure to playback DivX or MP3/WMA/JPEG file

To play by specifying a file.

1 Press DVD/CD.

2 Press ↑/↓ to select DivX or MP3/WMA/JPEG.

If DivX, MP3, WMA or JPEG files are mixed in the disc.

3 Press ↑/↓ to select desired playback the file.

4 Press ENTER. Playback will start

Chapter 7:

USB playback

Playing USB storage devices

It is possible to listen to two-channel audio using the USB interface on the front of this receiver.

• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press USB as the input source.

"USB/iPod" is shown on the main display.

2 Connect the USB storage device.

"GUI" appear on the main display automatically.

• This receiver does not support a USB hub.
• If an iPod/iPhone/iPad is connected to the unit, the unit will automatically begin charging it.

3 When the recognition is completed, press

/II to start playback.

• When changing to a different input source, stop the USB memory playback first before changing.

4 Disconnect USB storage device from the USB terminal.

Turn the power off before removing the USB storage device.

Note

• USB flash drive that supports USB 2.0 can be used.
• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 39.
• When a USB storage device is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.
• Auto power off can be switched to ON/OFF (page 45).

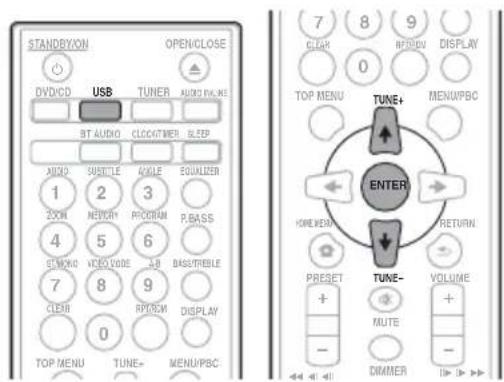

Procedure to playback DivX or MP3/WMA/JPEG file

To play by specifying a file.

1 Press USB.

2 Press ↑/↓ to select DivX or MP3/WMA/JPEG.

If DivX, MP3, WMA or JPEG files are mixed in the USB storage device.

3 Press ↑/↓ to select desired playback file.

4 Press ENTER.

Playback will start.

Playing in the desired order (Programmed Play)

This unit can play repeatedly folders stored in the USB storage device. For details, see Programmed play on page 24.

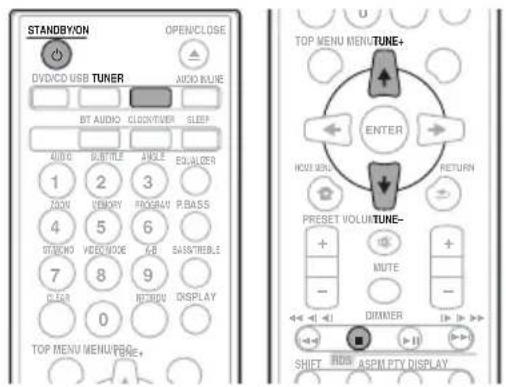

Chapter 8: Using the tuner

Listening to the radio broadcasts

The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this.

Tuning

1 Press the STANDBY/ON to turn the power on.

2 Press TUNER.

3 Press TUNE + / - on the remote control to tune in to the desired station.

Automatic tuning:

Press and hold TUNE +/-, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Manual tuning:

Press the TUNE + / - repeatedly to tune in to the desired station.

Note

• When radio interference occurs, automatic tuning may stop automatically at that point.
  Automatic tuning will skip weak signal stations.
• To stop the automatic tuning, press
• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first. Finally, the station name will appear.
  Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see page 31.

To receive an FM stereo transmission:

• Press ST/MONO to select stereo mode and "AUTO" will be displayed.

Improving poor FM reception:

1 Press ST/MONO repeatedly to select MONO.

This will change the tuner from stereo to mono and usually improve the reception.

Saving station presets

If you often listen to a particular radio station, it's convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 40 stations.

1 Tune to a station you want to memorize.

See Tuning above for more on this.

2 Press MEMORY.

The preset number will flash.

3 Press PRESET + / - to select the preset channel number.

4 Press MEMORY to store that station in memory.

If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.

• Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note

• The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.

To recall a memorised station

1 Press PRESET + / - to select the desired station.

To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press and hold PRESET + / -

The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press PRESET + / - again when the desired station is located.

To erase entire preset memory

1 Press TUNER on the remote control.

2 Press CLEAR until "MEMORY CLEAR" appears.

Note

All stations will be erased.

Using the Radio Data System (RDS)

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they're broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ.

You can search the following program types:

News - News

Current Affairs - Current Affairs

Information - General Information

Sport - Sport

Education-Educational Drama-Radio plays,etc

Cultures - National or regional culture, theater, etc.

Science - Science and technology

Varied Speech - Usually talk-based material, such as quiz shows or interviews.

Pop Music - Pop music Rock Music - Rock mus

Easy Listening - Easy listening

Light Classics M - 'Light' classical music

Serious Classics - 'Serious' classical music

Other Music - Music no fitting above categories

Weather & Metr - Weather reports

Finance -Stock market reports, commerce, trading, etc.

Children's Progs - Programs for children

Social Affairs - Social affairs Religion - Programs concerning religion

Phone In - Public expressing their views by Phone

Travel & Touring - Holiday-type travel rather than traffic announcements

Leisure & Hobby - Leisure interests and hobbies Jazz Music-Jazz

Country Music - Country music

National Music - Popular music in a language other than English

Oldies Music - Popular music from the '50s and 60s

Folk Music - Folk music

Documentary - Documentary

Alarm Test - Broadcasting when testing emergency broadcast equipment or receivers.

Alarm-Alarm!

Searching for RDS programs

You can search a program type listed above.

1 P r TUNER onthe remote control.

2 Press RDS PTY on the remote control.

"SELECT" will appear for about 6 seconds.

3 P r to select the program type you want to hear.

Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously.

4 Whilst the selected program type is displayed (within 6 seconds), Press RDS PTY again.

After the selected program type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.

Note

• If the display has stopped flashing, start again from step 2. If the unit finds a desired program type, the corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed.
• If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.

If no station can be found, "NOT FOUND" will appear for 4 seconds.

Information provided by RDS

Each time the RDS DISPLAY is pressed, the display will switch as follows:

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

Using the Auto Station Program Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored.

If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press TUNER on the remote control.

2 Press and hold down RDS ASPM on the remote control.

After "ASPM" has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MHz).

After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then "END" will appear for 4 seconds.

To stop the ASPM operation before it is complete:

Press whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Note

If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.
- Any station which has the same frequency as the one stored in memory will not be stored.
- If 40 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
- If no station have been stored in memory, "NOT FOUND" will appear for about 4 seconds.
If the RDS signals are very weak, station names may not be stored in memory.
The same station name can be stored in different channels.
- In a certain area or during certain time periods, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

• "PS", "NO PS" and a station name appear alternately, and properly.
  If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
• When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
• "NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

The first 16 characters of the radio text will appear and then they will scroll across the display.
If you tune in to an RDS station which is not broadcasting any radio text, "NO RT" will be displayed when you switch to the radio text position.
- Whilst radio text data is received or when the text contents change, "RT" will be displayed.

Chapter 9:

Other connections

CAUTION

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Connecting auxiliary components

Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.

• This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of the USB terminal.

1 Press AUDIO IN/LINE as the input source.

When AUDIO IN is selected, "AUDIO IN" will be displayed on the main display.

Note

• If the AUDIO IN mini Plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

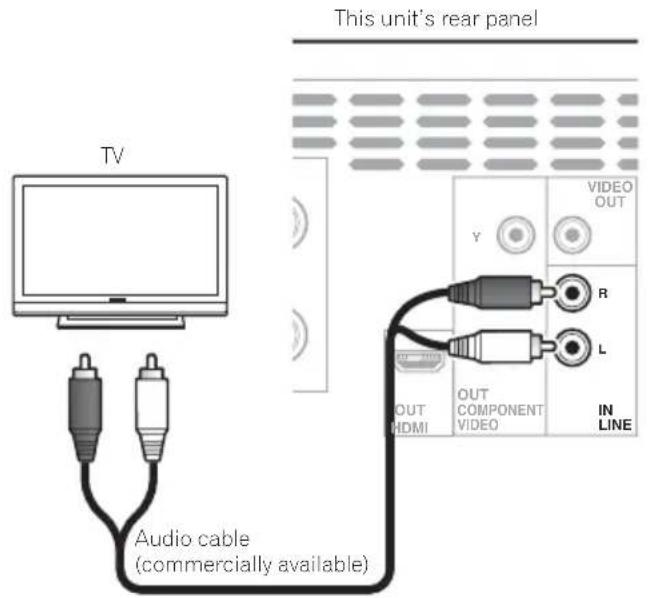

Connect the rear panel LINE IN audio jacks to your auxiliary playback component.

1 P r A u D i G I N L I N E twice as the input source.

When LINE is selected, "LINE" will be displayed on the main display.

Chapter 10:

Bluetooth® Audio playback

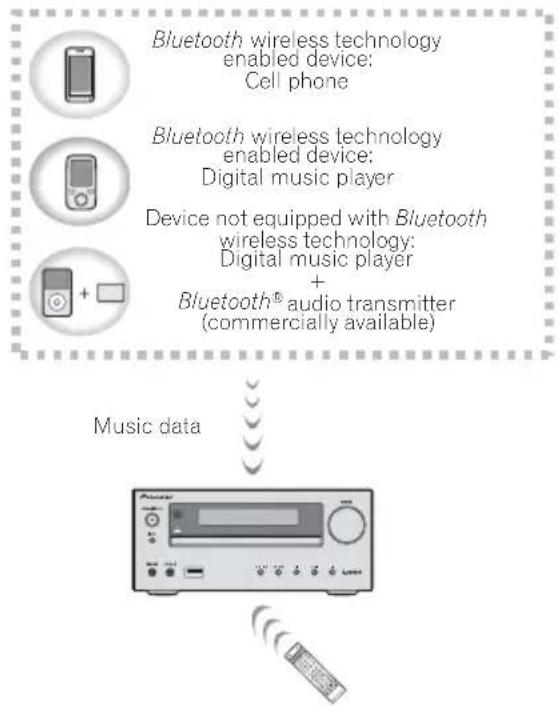

Music playback using Bluetooth wireless technology

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessly. You can also use a Bluetooth audio transmitter (sold separately) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user's manual for your Bluetooth capable device for more details.

Note

• The Bluetooth mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
• The Bluetooth wireless technology enabled device mus support A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.

Note

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

Pairing with the unit (Initial registration)

In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason.

Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out.

• Pairing is only performed the first time that you use the unit and the Bluetooth capable device together.
  In order to allow communication using Bluetooth wireless technology to take place, pairing must be performed on both the unit and the Bluetooth capable device.
  After pressing the BT AUDIO and switching to BT AUDIO input, perform the pairing procedure on the Bluetooth capable device. If pairing has been performed correctly, you will not need to perform the pairing procedures for the unit as shown below.

Please refer to the user's manual for your Bluetooth capable device for more details.

1 Press the STANDBY/ON and turn the power to the unit on.

2 Press the BT AUDIO.

The unit switches to BT AUDIO and PAIRING will be displayed.

3 Turn on the power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it.

Note

• This unit will be displayed as "X-HM32V" on all Bluetooth capable devices that you have.
  airing will start.

• Place the Bluetooth capable device close to the unit.

• Please refer to the user's manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing.

• When PIN code entry is requested, enter "0000." (This unit does not accept any PIN code setting other than "0000.")

4 Confirm on the Bluetooth capable device that pairing has been completed.

If pairing with the Bluetooth capable device has been completed correctly, the name of the Bluetooth capable device will be displayed on the front panel of the unit. (Only single-byte alphanumeric characters can be displayed. Any character that cannot be displayed will be indicated by a **

Listen to music on the unit from a Bluetooth capable device

1 Press the BT AUDIO.

The unit will switch to BT AUDIO input.

2 A Bluetooth connection will be created between the Bluetooth capable device and the unit.

Procedures for connecting to the unit should be performed from the Bluetooth capable device.

• Please refer to the user's manual for your Bluetooth capable device for details of the connection procedures.

3 Playback music from the Bluetooth capable device.

Note

• When Bluetooth capable devise is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.
• Auto power off can be switched to ON/OFF (page 45).

BT STANDBY

The following can be done when the unit is on standby with the BT STANDBY switched ON.
- By selecting a Bluetooth capable device that already has a connection history (pairing has already been conducted) with this unit, this unit will automatically turn on with the BT AUDIO function.

BT STANDBY settings

• Switch ON/OFF by long pressing the INPUT button located on the top of the unit for 3 seconds.
• When the power is ON, long press the INPUT button. This cannot be operated if the power is not on.
• The setting operation can only be performed by using the INPUT button on the unit. The setting cannot be performed using the remote control.

Note

• When the BT STANDBY is ON, "BT STANDBY ON" is displayed on the main display.
• When the BT STANDBY is OFF, "BT STANDBY OFF" is displayed on the main display.
• If the power cable has been removed and inserted again, the function will become effective after the power is turned ON for the unit.

Connection while in BT STANDBY mode with Bluetooth capable device

When connection history (pairing has already been conducted) with a Bluetooth capable device exists for the unit during BT STANDBY, the unit can receive a connection request directly from the connection history.

The unit will start using the BT AUDIO function, and connect with a Bluetooth capable device.

Even devices that have already been paired with this unit will not connect during BT STANDBY in the following cases. In such cases, delete pairing history from the Bluetooth wireless technology device and perform pairing again.

• Up to 8 pairing history can be recorded with this unit. If connecting to a Bluetooth wireless technology device over 8 units, the oldest pairing history will be deleted.
• If the settings are reset to the factory setting, all pairing history will be deleted.

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (see list below). To prevent noise or interrupted communication, do not use this unit nearby such devices, or make sure these devices are switched off during use.

• Cordless phones
• Cordless facsimiles
• Microwave ovens
  Wireless LAN devices (IEEE802.11b/g)
  Wireless AV equipment
• Wireless controllers for game systems
• Microwave-based health aids
  Some baby monitors

Other, less common, equipment that may operate on the same frequency:

• Anti-theft systems
• Amateur radio stations (HAM)
• Warehouse logistic management systems
• Discrimination systems for train or emergency vehicles

Note

• In the event noise appears in your television image, there is the possibility that a Bluetooth wireless technology enabled device or this unit (including products supported by this unit) are causing signal interference with the antenna input connector of your television,

video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and the Bluetooth wireless technology enabled device or this unit (including products supported by this unit).

• If there is something obstructing the path between this unit (including devices supported by this unit) and the device equipped with Bluetooth wireless technology (such as a metal door, concrete wall, or insulation containing tinfoil), you may need to change the location of your system to prevent signal noise and interruptions.

Scope of operation

Use of this unit is limited to home use. (Transmission distances may be reduced depending on communication environment).

In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped:

• In reinforced concrete buildings or steel framed or iron-framed buildings.
  Near large metallic furniture.
  In a crowd of people or near a building or obstacle.
• In a location exposed to the magnetic field, static electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as this unit, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g) or microwave oven.
• If you live in a heavily populated residential area (apartment, townhouse, etc.) and if your neighbor's microwave is placed near your system, you may experience radio wave interference. If this occurs, move your unit to a different place. When the microwave is not in use, there will be no radio wave interference.

Radio wave reflections

The radio waves received by this unit include the radio wave coming directly from the device equipped with Bluetooth wireless technology (direct wave) and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the device equipped with Bluetooth wireless technology a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between this unit and the device equipped with Bluetooth wireless technology.

Precautions regarding connections to products supported by this unit

• Complete connections for all devices supported by this unit, including all audio cords and power cables before connecting them to this unit.
  After completing connections to this unit, check the audio and power cables to confirm that they not twisted together.

• When disconnecting this unit, confirm that you have sufficient working space in the surrounding area.

• When changing connections of audio or other cables for products supported by this unit, confirm that you have sufficient working space in the surrounding area.

Chapter 11:

Changing the settings

Settings for DVD/CD and USB playback

1 Press HOME MENU.

HOME MENU screen appears.

2 U 12 / 12 to select the item, then press ENTER.
3 U / / / to change the setting, then press ENTER.

• Clos ing the HOME MENU screen.

Press HOME MENU.

The factory default settings are indicated in italic.

Important

The following settings are available for a disc or USB storage device content. They are not available for iPod/iPhone/iPad,
tuner, external input (AUDIO IN/LINE) and BT AUDIO.
- In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Audio Settings parameters

Settings What it does

Audio DRC (High/Medium/Low/Off)

·This makes loud sounds weaker and weak sounds louder. Change the setting for example when watching movies late at night. ·This setting only affects Dolby Digital sound. ·The effect depends on the volume of the connected TV, AV receiver or amplifier, speakers, etc. Try different settings, and choose the one providing the strongest effect.

Video Adjust parameters

Settings What it does

Sharpness (Fine/Standard/Soft)	Adjusts the picture's sharpness.
Brightness (-20 to +20)	Adjusts the picture's brightness.
Contrast (-16 to +16)	Adjusts the ratio of the brightness of the brightest and darkest portions of the picture.
Gamma (-3 to +3)	Adjusts the look of the dark portions of the picture.
Hue (green 9 to red 9)	Adjusts the balance between green and red.
Chroma Level (-9 to +9)	Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons.

Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0 upon purchase.

Initial Settings parameters

• Use these settings to make detailed unit settings.
• Initial Settings cannot be selected during playback. Stop the disc first.

Digital Audio Out settings
Video Output settings

Settings What it does
HDMI Out	Select the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)‘Auto/Off) according to the connected HDMI-compatible device.

Language settings

Settings What it does
TV Screen	Change the picture display format (4:3 (Letter Box)4:3 (Pan & Scan)/16:9 (Wide)/16:9 (Compressed)), according to the connected TV.
HDMI Resolution	Change the resolution of the video signals output from the HDMI OUT terminals (720x576i/720x576p/1280x720p/1920x1080i/1920x1080p). If the image does not appear correctly after changing the setting, return the setting to "720x576p." Refer to Setting the HDMI Resolution settings back to their defaults below.
HDMI Color	Change the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component).

Settings What it does
Audio Language	Change the language when listening to the sound of DVD-Video discs (English /available languages/ Other Language).
Subtitle Language	Change the language of the subtitles displayed for DVD-Video discs (English/available languages/ Other Language).
DVD Menu Lang.	Change the language used for the menu displays of DVD-Video discs (w/ Subtitle Lang./available languages/Other Language).
Subtitle Display	Select whether to display subtitles (On) or not (Off).

• If the above setting is used to select "Other Language," perform operations while referring to Language Code Table on page 41.

Display settings
Options settings

Settings What it does
OSD Language	Change the language of the operation messages (Play, Stop, etc.) displayed on the TV screen (English/available languages).
Angle Indicator	Select whether to display the angle mark on the TV screen (On) or not (Off).
On Screen Display	Select whether to display operation messages (Play, Stop, etc.) on the TV screen (On) or not (Off).

Settings What it does
Parental Lock	Restrict DVD-Video viewing (Password/ Level Change/ Country Code. See Language Code Table on page 41 in order to set the "Country Code.")
DivX(R) VOD	Display the registration code required for playing DivX(R) VOD files (Activate/Deactivate).

Setting the HDMI Resolution settings back to their defaults

1 Press and holdVIDEO MODE.

Chapter 12:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem Check Remedy

Settings you have made have been cleared.	Was the power cord unplugged? When power cord is unplugged, the settings you have made is cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord.
Difference in volume between DVDs, CDs, MP3, WMA, iPod/iPhone/iPad, Tuner, BT AUDIO, AUDIO IN and LINE.	This is not a problem with this unit. The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away? Operate within 7 m, 30° of the remote sensor on the front panel (page 6).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead? Replace the batteries (page 6).
Disc cannot be played or disc is ejected automatically.	Is the disc scratched? Scratched discs may not play.
	Is the disc dirty? Wipe the dirt off the disc (page 45).
	Is this unit placed in a humid location?	There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 44).
DVD VR cannot be played. Is the disc supported CPRM? This unit does not support CPRM. You can play only DVD VR of a non CPRM.
Picture is stretched, or aspect ratio cannot be switched.	Is the aspect ratio properly set on the connected TV?	Refer to the TV's operating instructions and set the TV's aspect ratio properly.
	Is TV Screen properly set? Set	TV Screen properly (page 36). This setting is available for a disc or USB storage device content. For movies and images stored in iPod/iPhone/iPad, operate your iPod/iPhone/iPad.
During playback, picture is disturbed or dark.	This is not a problem with this unit. This unit supports Rovi copy protection. With some TVs, the picture may not display properly when playing discs including copy prevention signals. This is not a malfunction.
	Are this unit and TV connected via a video deck?	When this unit and TV are connected via a video deck, this unit's analog copy protect function may cause the picture being played on the video deck not to display properly. Connect this unit and TV directly.
Sound and video are intermittent during disc playback.	Sound volume may be too high.	Sound and video may be unsteady if sound volume is set too high; in this case, lower the sound volume.
Problem Check Remedy
Folder or file names are not recognized. (DivX, WMA, MP3 and JPEG)	Have you exceeded the maximum number of folder or file names this unit can recognize?	Up to 255 folders can be recognized on one disc. Up to 648 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.
Time is required to play JPEG files.	Are you playing large files? Some time may be required to display large files.
Black bars are displayed when playing JPEG files.	Are you playing files with different aspect ratios?	Black bars may be displayed along the top and bottom or sides when JPEG files with different aspect ratios are played.
The unit turns off automatically.		If no play back and no operation has done for 20 minutes or more, the unit turns off automatically. In this case it is required that the Auto power off is switched to ON. Auto power off can be switched to ON/OFF (page 45).

When a USB storage device is connected

Problem Check Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
	Is the USB storage device supported by this unit?	This unit only supports USB mass storage class devices.
		This unit supports portable flash memory and digital audio playback devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported.
		USB flash drive that supports USB 2.0 can be used.
		This device does not support the use of external hard disc drives.
	This is not a problem with this unit. Turn the power off then back on.
			Some USB storage devices may not be recognized properly.
File cannot be played. Is the file copyright-protected (by DRM)?	Copyright-protected files cannot be played.
	This is not a problem with this unit. Files stored on a computer cannot be played.
			It may not be possible to play some files.
Folder or file names are not displayed or are not properly displayed.	Do the folder of file names contain more than 30 characters?	The maximum number of characters displayable for the folder and file names is 30.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit. The order of the folder and file names displayed Disc Navigator depends on the order in which the folders or files were recorded on the USB storage device.
Much time is required to recognize the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Is AUTH ERROR displayed on the front panel display? No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press INPUT to switch to the other input, then switch again to the USB/iPod input.

When connected to an HDMI-compatible device

Problem Check Remedy
Picture is not displayed. Is the resolution properly set? Set	HDMI Resolution properly for the connected device (page 37).
	Restore HDMI Resolution to the default setting (720x576p) (page 37).
	Is the HDMI cable properly connected?	Connect the cable securely (all the way in).
		With some cables, 1080p video signals will not be output.
Sound is not produced or is distorted.	Is HDMI Out properly set? Set	HDMI Out to LPCM (2CH) or Auto (page 37).
Multichannel audio signals are not output.	Is HDMI Out properly set? Set	HDMI Out to Auto (page 37).
Colors are not properly displayed on TV screen.	Is HDMI Color properly set? Change the	HDMI Color setting (page 37).

When an iPod/iPhone/iPad is connected

Problem Remedy
Can't operate the iPod/iPhone/iPad by the remote control.	Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 19).
Can't operate the iPod/iPhone/iPad. Make sure the iPod/iPhone/iPad is connected correctly (refer to Connecting your iPod/iPhone/iPad on page 19).If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

When the Bluetooth wireless technology device is connected or operated

Problem Remedy
TheBluetooth wireless technology device cannot be connected or operated. Sound from theBluetooth wireless technology device is not emitted or the sound is interrupted.	Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device orBluetooth wireless technology apparatus) is near the unit. If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.
	Check that theBluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetooth wireless technology device and the unit. Set the Bluetooth wireless technology device and the unit so that the distance between them is less than about 10 m* and no obstructions exist between them.
	* The distance given is to be used as a rough guide. The actual allowable distance between devices may vary depending on conditions in the surrounding environment.
	TheBluetooth wireless technology device may not be set to the communication mode supporting theBluetooth wireless technology. Check the setting of theBluetooth wireless technology device.

Language Code Table and Country/ Area Code Table

Language Code Table

Language names (codes) and input codes:

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (il), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab). 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie).0905

Inupiak (ik), 0911

Indonesian (in).0914

Icelandic (is), 0919

Hebrew (iw). 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km). 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (lt). 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Macri (mi). 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no). 1415

Occitan (oc), 1503

Oromo (am), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (m), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa).1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st). 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Country/Area Code Table

Country/Area name, Input codes and Country/ Area code

United States, 2119, us Chile

0312

Argentina, 0118, ar Denmark,

0411.dk

United Kingdom.0702,gb Germany

0405.de

Italy, 0920, it Japan

1016, jp

India, 0914, in New Zealand

1426.nz

Indonesia, 0904, id Norway

1415, no

Australia, 0121, au Pakistan

1611, pk

Austria, 0120, at Philippines,

1608,ph

Netherlands, 1412, nI Finland

1. fi

Canada. 0301, ca Mexico,

1324, mx

Korea, Republic of, 1118, kr Russian Federation, 1821, ru

Singapore, 1907, sg Brazil

0218.br

Switzerland, 0308.ch Fra

0618 fr

Sweden, 1905. se Belgium.

0205 be

Spain, 0519, es

Portugal, 1620 pt

Thailand, 2008, th

Hong Kong, 0811.hk

Taiwan. 2023 tw

Malaysia, 1325, my

China,0314, cn

Playable discs and formats

DVD-Video	·Commercially available DVD-Video discs ·DVD-R/ -RW/ -R DL and DVD+R/ +RW/ +R DL discs recorded in the Video mode
DVD VR	DVD-R/ -RW/ -R DL discs recorded in the VR mode This unit does not support CPRM
Super Video CD Super Video CDs
Video CD Video CDs
Audio CD	·Commercially available audio CDs ·CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format
JPEG	JPEG Files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
DivX®	DivX video files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
WMA	WMA files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
MP3	MP3 files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices

• Only the discs that have been finalized can be played.
• Discs recorded in packet write mode (UDF format) are not compatible with this unit.
  Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.
• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
• is a landmark of DVD Format/ Logo Licensing Corporation.

Note

• This unit does not support multisession discs or multiborder recording.
• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A "session" or "border" is one recording unit, consisting of a complete set of data from lead-in to lead-out.

Discs that cannot be played

• Blu-ray discs
  HD DVDs
  AVCHD
  AVCREC
  DVD-Audio discs
  DVD-RAM discs
  SACD s
  CD-G

About region numbers

DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold. This player's region number(s) is (are) as shown below.

DVD-Video: 2

Discs not including these numbers cannot be played. Discs playable on this player are as shown below.

DVDs: 2 (including 2) and ALL

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

About playing DualDiscs

A DualDisc is a new two-sided disc, one side of which contains DVD content - video, audio, etc. - while the other side contains non-DVD content such as digital audio material.

• The DVD side of a DualDisc can be played on this unit (excluding any DVD-Audio content).
• The non-DVD, audio side of the disc is not compatible with this unit.
• It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.
• For more detailed information on DualDisc specifications, please refer to the disc manufacturer or disc retailer.

Playing discs created on computers or BD/DVD recorders

• It may not be possible to play discs recorded using a computer due to the application settings or computer's environment settings. Record discs in a format playable on this unit. For details, contact the dealer.
• It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder's lens, etc.

Playable files

• Files protected by DRM (Digital Rights Management) cannot be played.
• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

Supported video file formats

DivX

• DivX is a media technology created by DivX, Inc. DivX media files contain image data.
• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/ audio tracks.

DivX Certified to play DivX® video, including premium content.
DivX, DivX Certified and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
- This item incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

File extensions: .avi and .divx (these must be used for this unit to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this unit.
- Files not containing DivX video signals cannot be played, even if they have the extension“.avi”.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Displaying external subtitle files

• The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 37 to match the subtitle file.
• This unit supports the following language groups:

Group 1	Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroeese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)
Group 2	Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)
Group 3	Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)
Group 4	Hebrew (iw), Yiddish (ji)
Group 5	Turkish (tr)

• Some external subtitle files may be displayed incorrectly or not at all.
• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Supported image file formats

JPEG

Resolution: Up to 3072 x 2048 pixels

File extensions: .jpg and .JPG (must be used for this unit to recognize JPEG files - do not use for other file types)

This unit supports baseline JPEG.
This unit supports Exif Ver.2.2.
- This unit does not support progressive JPEG.

Supported audio file formats

• This unit does not support lossless encoding.

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 64 kbps to 384 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time.

WMA:

WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time.

Cautions on use

When moving this unit

When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press STANDBY/ON, wait for "STAND BY" disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal, or AUDIO IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
• Humid or poorly ventilated places
• Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

• This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Storing

Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
- Be sure to read the cautions included with the disc.

Cleaning discs

• Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

About iPod/iPhone/iPad

Made for

iPhone

iPad

"Made for iPod," and "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Auto power off setting

Long press the on the unit for 3 seconds to switch auto power off setting ON/OFF. The operation can be conducted using only the on the unit. No need to set this using the remote control. Initial setting is set to ON.

Note

• When the auto power off is set to ON, "APD ON" will be displayed on the main display.
• When the auto power off is set to OFF, "APD OFF" will be displayed on the main display.

Restoring all the settings to the defaults

Use the steps below to restore the all settings to their defaults.

1 Press STANDBY/ONto turn the power on.

2 Press DVD/CD on the remote control or INPUT on the main unit repeatedly to select DVD/CD input.

3 Press OPEN/CLOSE to open the disc tray.

4 Press STANDBY/ON on the unit for 3 seconds while pressing.

• "DEFAULT" is displayed while the settings are being restored. Power is turned off.
• No need to set this using the remote control.

Specifications

- Amplifier section

RMS Power Output: 30 W + 30 W

(1 kHz, 10%, T.H.D., 4 Ω)

- Tuner section

Frequency Range (FM) 87.5 MHz to 108 MHz

Antenna Input (FM). 75Ω unbalanced

- Bluetooth

Version. Bluetooth Specification Ver. 3.0

Output. Bluetooth Specification Class 2

Estimated line-of-sight transmission distance*

About 10m

Frequency range. .2.4 GHz

Modulation .FH-SS (Frequency Hopping Spread Spectrum)

Supported Bluetooth profiles. A2DP, AVRCP

Supported Codec SBC (Subband Codec)

Supported contents protection .SCMS-T

• The line-of-sight transmission distance is an estimate.

Actual transmission distances supported may differ

depending on surrounding conditions.

Miscellaneous

USB terminal. 5V,2.1A

Power source. AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

Power on .35 W

Power stand-by. 0.5 W or less

Power stand-by (BT STANDBY ON). 0.5 W or less

Dimensions. 215 mm (W) x 95 mm (H) x 325 mm (D)

Weight (without package) 2.0 kg

- Speaker

Magnetically shielded speaker system

Type

2-way type speaker system

5 cm Tweeter

10 cm Woofer

Maximum input power .30 W

Impedance. 4Ω

Dimensions. 130 mm (W) x 211.5 mm (H) x 240 mm (D)

Weight 2.0 kg/each

- Accessories

Remote control 1

Video cable (1.5 m) 1

FM wire antenna 1

AAA batteries (R03) 2

Speaker wire 2

iPhone/iPad stand 1

Power cord

Warranty card

Operating instructions (This document)

Note

The specifications are applicable when the power supply is 230V
- Specifications and the design are subject to possible modifications without notice, due to improvements.

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

All rights reserved.

ATTENTION

POUR EVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRÈRE). AUCUNE PIECE RÉPARABLE PAR L'UTILISATEUR NE SE TROUVE À L'INTERIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT. D3-4-2-1-1 B1 Fr

D3-4-2-1-B1_Fr

AVERTISSEMENT

Parametres Initial Settings. 36

Cable iPod/Phone/iPad

La lecture commence.

Remarque

La lecture commence.

La lecture commence.

Education - Education

Drama - Pièces

Portuguese (pt), 1620

Croatian (hr), 0818

Swedish (sv), 1922

Hungarian (hu), 0821

Russian (ru), 1821

Armenian (hy), 0825

Korean (ko), 1115

Interlingua (ia), 0901

Greek (el), 0512

Interlingue (ie), 0905

Afar (aa), 0101

Inupiak (ik), 0911

Abkhazian (ab), 0102

Indonesian (in), 0914

Cambodian (km), 1113

Bulgarian (bg), 0207

Kannada (kn). 1114

Bihari (bh), 0208

Kashmiri (ks), 1119

Bislama (bi), 0209 Kurdish (ku), 1121

Bengali (bn), 0214

Kirghiz (ky), 1125

Tibetan (bo), 0215

Latin (la), 1201

Breton (br), 0218

Lingala (In), 1214

Catalan (ca), 0301 Laothian (lo), 1215

Corsican (co), 0315

Lithuanian (II), 1220

Czech (cs), 0319

Latvian (lv), 1222

Welsh (cy).0325

Malagasy (mg), 1307

Danish (da), 0401

Maori (mi), 1309

Bhutani (dz), 0426

Macedonian (mk), 1311

Esperanto (eo), 0515

Malayalam (ml), 1312

Estonian (et), 0520

Mongolian (mn), 1314

Basque (eu), 0521

Moldavian (mo), 1315

Persian (fa).0601

Marathi (mr), 1318

Finnish (fi), 0609

Malay (ms), 1319

Fiji (fj), 0610

Maltese (mt), 1320

Faroese (fo), 0615

Burmese (my), 1325

Nauru (na), 1401

Siswati (ss), 1919

Nepali (ne), 1405

Sesotho (st). 1920

Norwegian (no), 1415

Rhaeto-Romance (rm), 1813

Tagalog (tl), 2012

Kirundi (m), 1814

Setswana (tn), 2014

Romanian (ro), 1815

Tonga (to), 2015

Kinyarwanda (rw), 1823 Turkish (tr), 2018

Sanskrit (sa), 1901 Tsonga (ts), 2019

Sindhi (sd), 1904

Tatar (tt), 2020

Sangho (sg), 1907

Twi (tw), 2023

Serbo-Croatian (sh), 1908

Ukrainian (uk) 2111

Sinhalese (si), 1909

Urdu (ur), 2118

Slovak (sk), 1911

Uzbek (uz), 2126

Slovenian (sl), 1912

Vietnamese (vi), 2209

Samoan (sm), 1913

Volapuk (vo), 2215

Shona (sn), 1914

Wolof (wo), 2315

Somali (so), 1915

Xhosa (xh), 2408

Albanian (sq), 1917

Yoruba (yo), 2515

Serbian (sr).1918

Zulu (zu), 2621

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

Uber iPod/iPhone/iPad 45

Rückwand these Gerates

Audio DRC (High/Medium/Low/Off)

Finnish (fi), 0609 Malaysia (ms), 1319

Fiji (fj), 0610 Maltesisch (mt), 1320

Faroese (fo), 0615 Burmesisch (my), 1325

Nauru (na), 1401 Siswati (ss), 1919

Nepalesisch (ne), 1405 Sesotho (st). 1920

Oromo (om), 1513 Tamil (ta), 2001

Oriya (or), 1518 Telugu (te), 2005

Panjabi (pa), 1601 Tadschikisch (tg), 2007

Taiwan, 2023, tw Malaysia, 1325, my

China, 0314, cn

Uber iPod/iPhone/iPad

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

Cavo iPod/Phone/iPad

Education - Programmi educativi

Audio DRC (High/Medium/Low/Off)

Lithuanian (t), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedone (mk), 1311

Malayalam (ml), 1312

Mongolo (mn), 1314

Moldavo (mo), 1315

Marathi (mr), 1318

Malese (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepalese (ne), 1405

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Seroo-Croato (sh), 1908

Cingalese (si), 1909

Slovacco (sk), 1911

Sloveno (sl), 1912

Samoano (sm). 1913

Shona (sn), 1914

Somalo (so), 1915

Albanese (sq), 1917

Serbo (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

KLASSE 1 LASERPRODUCT

D58-5-2-2a A1 Nl

WAARSCHUWING NETSNOER

Auto Power Off-installing 46

Alle instellingen op de beginstand terugzetten 46

Specifications 46

Hoofdstuk 1:

Voordatu begint

Inhoud van de doos

timerfungie is ingesteld.

Japanese (ja), 1001 Frisian (fy), 0625

English (en), 0514 Irish (ga), 0701

French (fr), 0618 Scots-Gaelic (gd), 0704

German (de), 0405 Galician (gl), 0712

Italian (it), 0920 Guarani (gn), 0714

Spanish (es), 0519 Gujarati (gu), 0721

Chinese (zh), 2608 Hausa (ha), 0801

Dutch (nl), 1412 Hindi (hi), 0809

Portuguese (pt), 1620 Croatian (hr). 0818

Swedish (sv), 1922 Hungarian (hu), 0821

Russian (ru), 1821 Armenian (hy), 0825

Korean (ko), 1115 Interlingua (ia), 0901

Greek (el).0512 Interlingue (ie), 0905

Afar (aa), 0101 Inupiak (ik), 0911

Abkhazian (ab), 0102 Indonesian (in), 0914

Afrikaans (af), 0106 Icelandic (is), 0919

Amharic (am), 0113 Hebrew (iw), 0923

Arabic (ar), 0118 Yiddish (ji), 1009

Assamese (as), 0119 Javanese (jw), 1023

Czech (cs), 0319 Latvian (lv), 1222

Welsh (cy), 0325 Malagasy (mg), 1307

Danish (da), 0401 Maori (mi), 1309

Bhutani (dz), 0426 Macedonian (mk), 1311

Esperanto (eo), 0515 Malayalam (ml), 1312

Estonian (et), 0520 Mongolian (mn), 1314

Basque (eu), 0521 Moldavian (mo), 1315

Persian (fa), 0601 Marathi (mr), 1318

Finnish (fi), 0609 Malay (ms), 1319

Fiji (fj), 0610 Maltese (mt), 1320

Faroese (fo), 0615 Burmese (my), 1325

Nauru (na), 1401 Siswati (ss), 1919

Nepali (ne), 1405 Sesotho (st), 1920

Norwegian (no), 1415 Sundanese (su), 1921

Occitan (oc), 1503 Swahili (sw), 1923

Oromo (om). 1513 Tamil (ta), 2001

Oriya (or), 1518 Telugu (te), 2005

Panjabi (pa), 1601 Tajik (tg), 2007

Polish (pl), 1612 Thai (th), 2008

Pashto, Pushto (ps), 1619 Tigrinya (ti), 2009

Quechua (qu), 1721 Turkmen (tk), 2011

Rhaeto-Romance (rm), 1813 Tagalog (tl), 2012

Kirundi (rn), 1814 Setswana (tn), 2014

Romanian (ro), 1815 Tonga (to), 2015

Kinyarwanda (rw), 1823 Turkish (tr), 2018

Sanskrit (sa), 1901 Tsonga (ts), 2019

Sindhi (sd), 1904 Tatar (tt), 2020

Sangho (sg), 1907 Twi (tw), 2023

Serbo-Croatian (sh), 1908 Ukrainian (uk), 2111

Sinhalese (si), 1909 Urdu (ur), 2118

Slovak (sk), 1911 Uzbek (uz), 2126

Slovenian (sl), 1912 Vietnamese (vi), 2209

Samoan (sm), 1913 Volapuk (vo), 2215

Shona (sn), 1914 Wolof (wo), 2315

Somali (so), 1915 Xhosa (xh), 2408

Australie,0121,au Pakistan,1611,pk

Singapore, 1907, sg Brazilie, 0218, br

Auto Power Off-installing

iPod/iPhone/iPad Terminal USB (solo audio)

iPod nano (3/4/5/6/7G) √
iPod touch (1/2/3/4/5G) √
iPhone 5 √
iPhone 5s √
iPhone 5c √
iPhone 4s √
iPhone 4 √
iPhone 3GS √
iPhone 3G √
iPhone	√
iPad mini	√
iPad mini con PDTella Retina	√
iPad Air	√
iPad (3/4G)	√
iPad/iPad 2	√

Nota

Education - Material educativo

Drama - Radionovelas, etc.

Cultures - Cultura nacional o regional, teatro, etc.

Children's Progs - Programas infants

Social Affairs - Asuntos sociales

Portuguese (pt), 1620

Croatian (hr), 0818

Swedish (sv), 1922

Hungarian (hu), 0821

Russian (ru), 1821

Armenian (hy), 0825

Korean (ko), 1115

Interlingua (ia), 0901

Greek (el), 0512

Interlingue (ie), 0905

Afar (aa), 0101

Inupiak (ik), 0911

Abkhazian (ab), 0102

Indonesian (in), 0914

Cambodian (km), 1113

Bulgarian (bg), 0207

Kannada (kn), 1114

Bihari (bh), 0208

Kashmiri (ks), 1119

Bislama (bi), 0209 Kurdish (ku), 1121

Bengali (bn), 0214

Kirghiz (ky), 1125

Tibetan (bo), 0215

Latin (la), 1201

Breton (br), 0218

Lingala (In), 1214

Catalan (ca), 0301 Laothian (Io), 1215

Corsican (co), 0315

Lithuanian (t), 1220

Czech (cs), 0319

Latvian (lv), 1222

Welsh (cy), 0325

Malagasy (mg), 1307

Danish (da), 0401

Maori (mi), 1309

Bhutani (dz), 0426

Macedonian (mk), 1311

Esperanto (eo), 0515

Malayalam (ml), 1312

Estonian (et), 0520

Mongolian (mn), 1314

Basque (eu), 0521

Moldavian (mo), 1315

Persian (fa).0601

Marathi (mr), 1318

Finnish (fi), 0609

Malay (ms), 1319

Fiji (fj), 0610

Maltese (mt), 1320

Faroese (fo), 0615

Burmese (my), 1325

Nauru (na), 1401

Siswati (ss), 1919

Nepali (ne), 1405

Sesotho (st). 1920

Norwegian (no), 1415

Rhaeto-Romance (rm), 1813

Tagalog (tl), 2012

Kirundi (rn), 1814

Setswana (tn), 2014

Romanian (ro), 1815

Tonga (to), 2015

Kinyarwanda (rw), 1823 Turkish (tr), 2018

(tr), 2018

Sanskrit (sa), 1901 Tsonga (ts), 2019

2019

Sindhi (sol), 1904

Tatar (tt), 2020

Sangho (sg), 1907

Twi (tw). 2023

Serbo-Croatian (sh), 1908

Ukrainian (uk), 2111

Sinhalese (si), 1909

Urdu (ur), 2118

Slovak (sk), 1911

Uzbek (uz), 2126

Slovenian (sl), 1912

Vietnamese (vi), 2209

Samoan (sm), 1913

Volapuk (vo), 2215

Shona (sn), 1914

Wolof (wc), 2315

Somali (so), 1915

Xhosa (xh), 2408

Albanian (sq), 1917

Yoruba (yo), 2515

Serbian (sr), 1918

Zulu (zu), 2621

Taiwan, 2023, tw Malasia, 1325, my

China,0314.cn

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER HOME ELECTRONICS CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

EU Representative's:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer.eu

[ ] X-HM32V-K, X-HM32V-S

C E

English:

Hereby, Pioneer, declares that this [] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Suomi:

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

All rights reserved.

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

PIONEER HOME ELECTRONICS CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En

YOM200153-0015>
