USER MANUAL GSI6104D 1 BDA Eudora

Technical diagram of a multi-chamber refrigerator with numbered components for identification

4.2 DAATTITECONOCI

Technical line drawing of a mechanical assembly with a central circular component and horizontal supports (no text or symbols)

Diagram illustrating a processing setup with labeled components and a magnified view of a component labeled 'S'.

Technical diagram of a mechanical or electrical component with layered structure and internal components (no visible text or symbols)

Technical diagram of a mechanical device with layered components and a highlighted cylindrical component (no text or symbols)

Posate

3D rendering of a grid of cylindrical and threaded components, no text or symbols visible

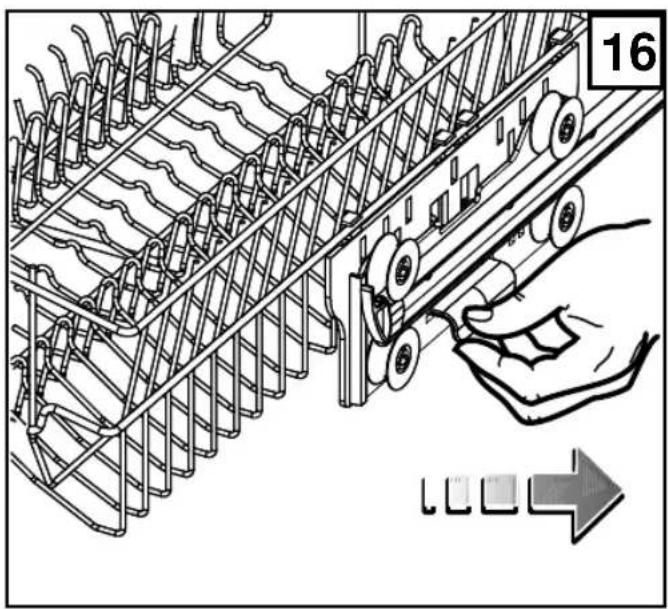

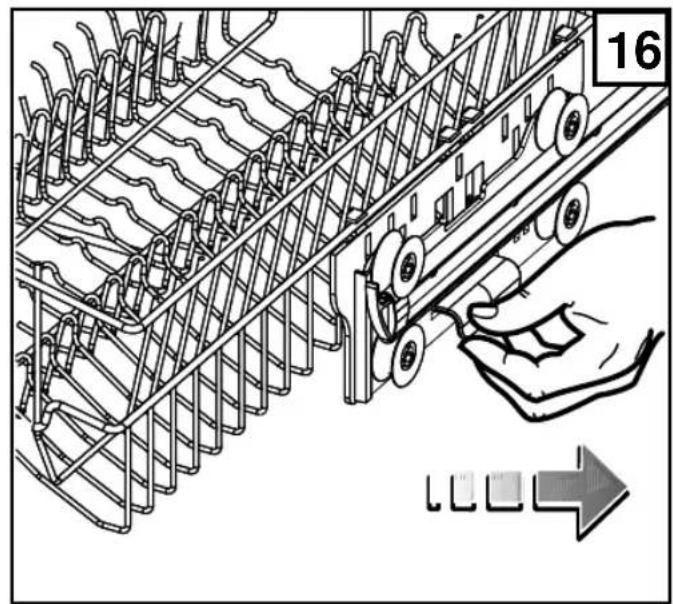

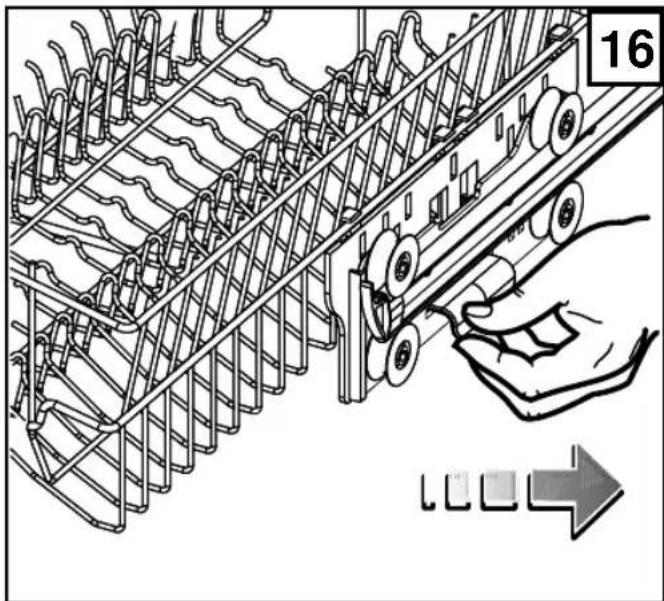

16 L L L

①

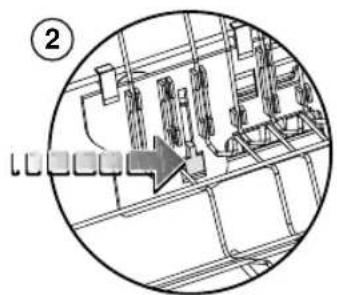

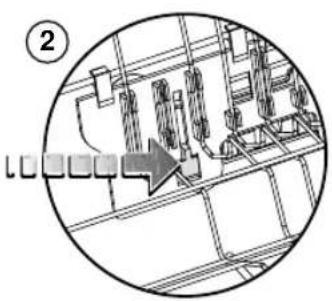

Diagram of a mechanical or electrical assembly with numbered label (2), showing internal components and connections without readable text or symbols.

Illustration of a hand operating a mechanical component with no visible text or symbols

Illustration of a hand operating a mechanical device with a valve and base, showing no text or symbols.

Line drawing of a hand pressing down on a mechanical component, no text or symbols present

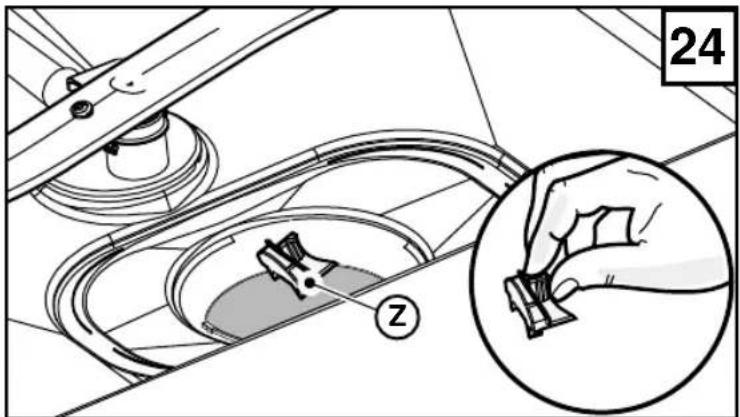

7.3 PULIZIA POMPA DI SCARICO

Diagram of a mechanical or electrical component assembly with multiple cylindrical components and a central circular component (no text or symbols)

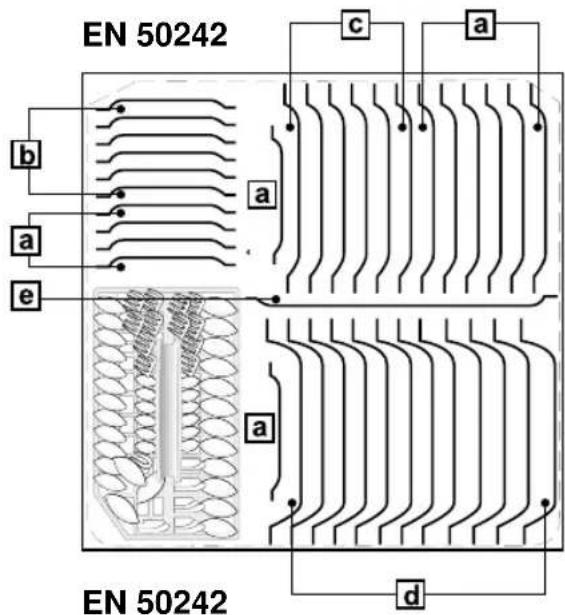

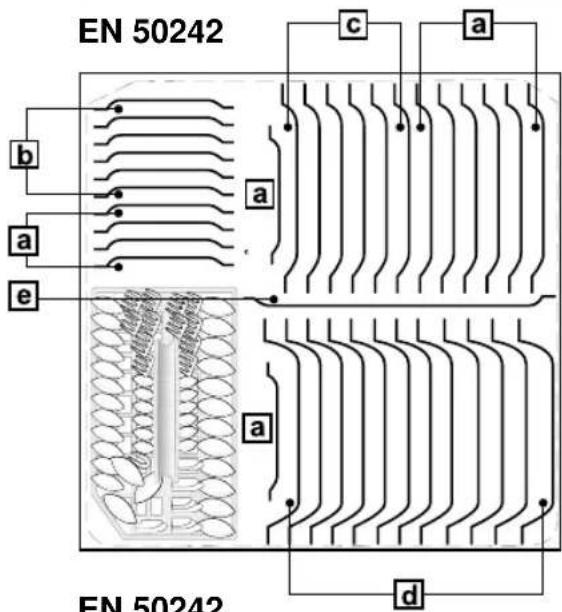

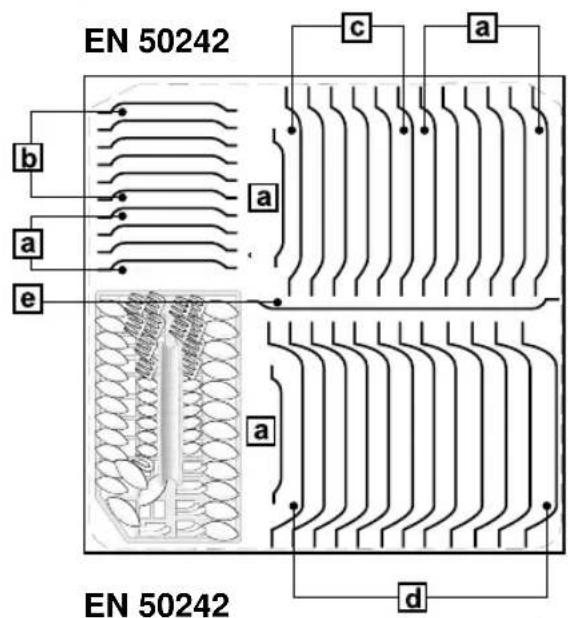

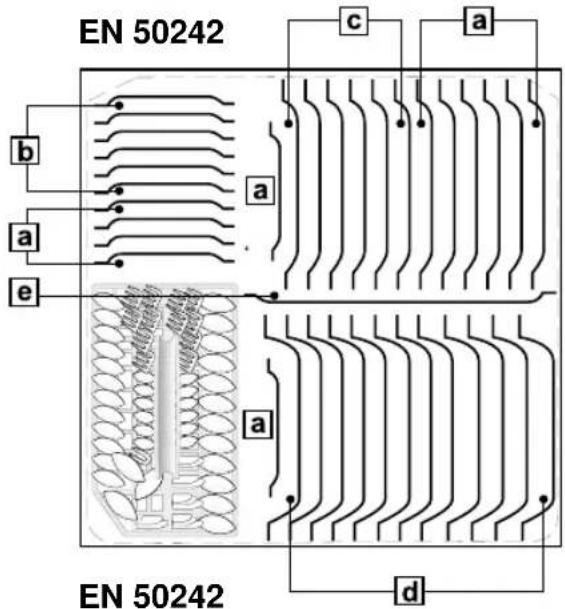

a Uovo
b Spinaci
c Carne macinata
d Fiocchi d'avena
e Margarina

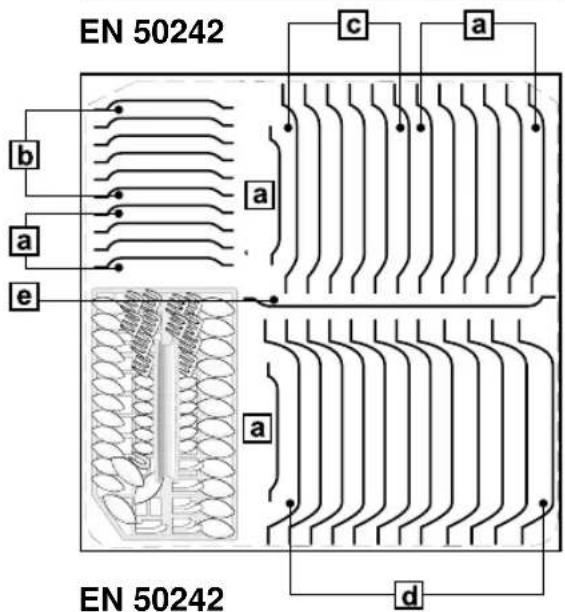

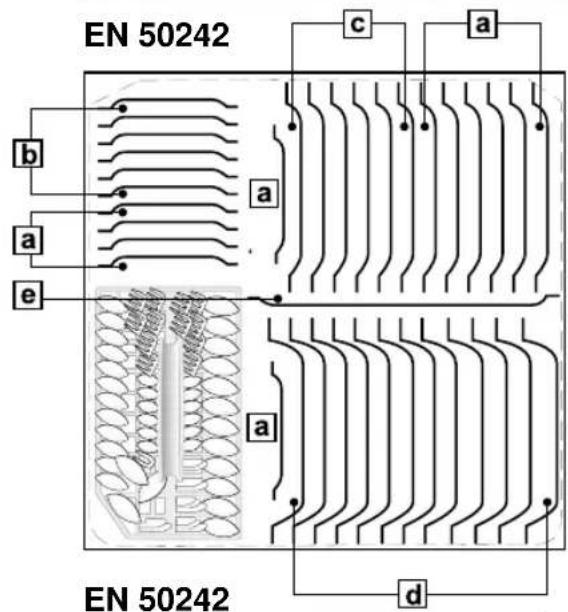

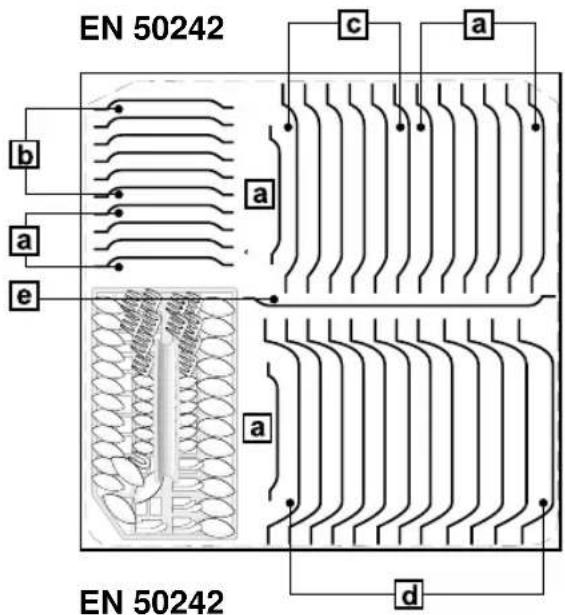

EN 50242 b a e c a a d EN 50242

8

RICERCA GUASTI

1.1 SAFETY INSTRUCTIONS

Norms and regulations to be respected

• The dishwasher may only be used to clean household dishes. If the appliance is used for other purposes or in a wrong manner, the manufacturer declines all responsibilities for possible damages.
• For safety reasons, no modifications must be carried out on the appliance.
• Before connecting the appliance to the electric power supply system, check that the power supply at the place of installation is compatible with the electric data indicated on the data tag.
• The installation must be carried out by qualified personnel.

Before running the appliance for the first time

- Make sure the dishwasher was not damaged during transport. Do not hook up the appliance if there is any damage. In case of damage, contact the vendor.

For the safety of children

• The appliance is not intended for use by young children or infirm persons without supervision, to make sure besides that it is not used as a game by the children.
• Warning: dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.
• Detergents can cause permanent damage to eyes, mouth and throat.
• The water in the dishwasher is not drinkable. Any residues of detergent in the appliance constitute a source of danger for children. They must therefore be kept away from the open dishwasher.

They should therefore be kept outside the reach of children.

Daily use

• Do not turn on the dishwasher if the electric cable, or the water supply or water drainage pipes are damaged, or if the control board, the work surface or the base are in very bad condition.
• In case of a malfunction, shut off the water supply, then turn off the appliance and pull the electric plug from the outlet. If there is a permanent electric connection, turn off the service switch (if present) or remove the fuse (or fuses).
• To remove the plug from the electric outlet, hold the plug itself and pull; never pull the cable.
• All repairs of the dishwasher must be carried out by specialised personnel. Inappropriate repairs can create a severe danger for the user. For repairs, you should therefore contact our technical customer assistance service or a specialised vendor.
• The replacement of the supply cable must be carried out only by the technical service staff.
• If the pipes and tubes are deteriorated, substitute them with new original parts before hooking up the appliance.
• Do not use detergent substances that could lead to an explosion.
• Do not sit or lean on the open door. The appliance might otherwise tilt over.
• Before adding special dishwasher salt, detergent and rinse aid, make sure that the manufacturer of these substances recommends their use for household dishwashers.
• Always shut off the water supply when the dishwasher is not in use for longer periods of time, e.g., during your vacations.

When loading and unloading the dishwasher, it must be left open for short periods of time only, in order to prevent injuries (tripping over the door, for example).

2 UN PACKING - DISPOSAL

2.1 UNPACKING

Remove the external plastic packaging material, the corner re-enforcements, and the styrofoam base.

Open the door and remove the styrofoam blocks from the inside baskets.

Collect and recycle the packaging materials. This will preserve primary materials and help reduce the amount of waste.

Take the packaging materials to specialised recycling centres.

When the appliance eventually has to be disposed of, it should be made non-functional before eliminating it.

Attention! Some packaging materials (e.g., plastic bags, styrofoam) can be dangerous for children. Children should therefore be kept away from them.

2.2 FINAL DISPOSAL OF APPLIANCE

At the end of its life span, the appliance must be eliminated by a specialised company, respecting all existing laws and regulations.

This will make it possible to dispose of the old appliance while at the same time recuperating and sorting synthetic materials that are fit for recycling, thus contributing to the protection of the environment.

3 GENERAL ADVICE

3.1 WASHING DISHES IN AN ECONOMIC AND ECOLOGICAL WAY

• Don't rinse your dishes under running water before placing them in the dishwasher
• Run the appliance only when it is full, because only like this the process becomes economical and respects the environment.
  • Always choose a programme that is adequate for the kind of dishes you want to wash and that corresponds to how dirty they are
• You should avoid to use too much detergent, dishwasher salt, and rinse aid. Refer to the dosages recommended in the usage instructions provided by the manufacturers of these substances.
• Make sure that the water softness regulator is set correctly.

3.2 DISHES NOT TO BE WASHED IN THE DISHWASHER

You must not wash in this appliance:

- Cutting boards or small containers in wood

- Plastic objects that are not heat resistant

- Lead crystal

- Objects made from tin or copper

- Dishes or cutlery with glued components

- Old cutlery with heat sensitive glue

- Steel objects that are oxidised easily

- Cutlery with handles in wood, horn, antler, porcelain, or mother of pearl.

When purchasing dishes, cutlery, or glasses, make sure that they are dishwasher resistant.

4 DESCRIPTION OF THE APPLIANCE

4.1 GENERAL PARTS

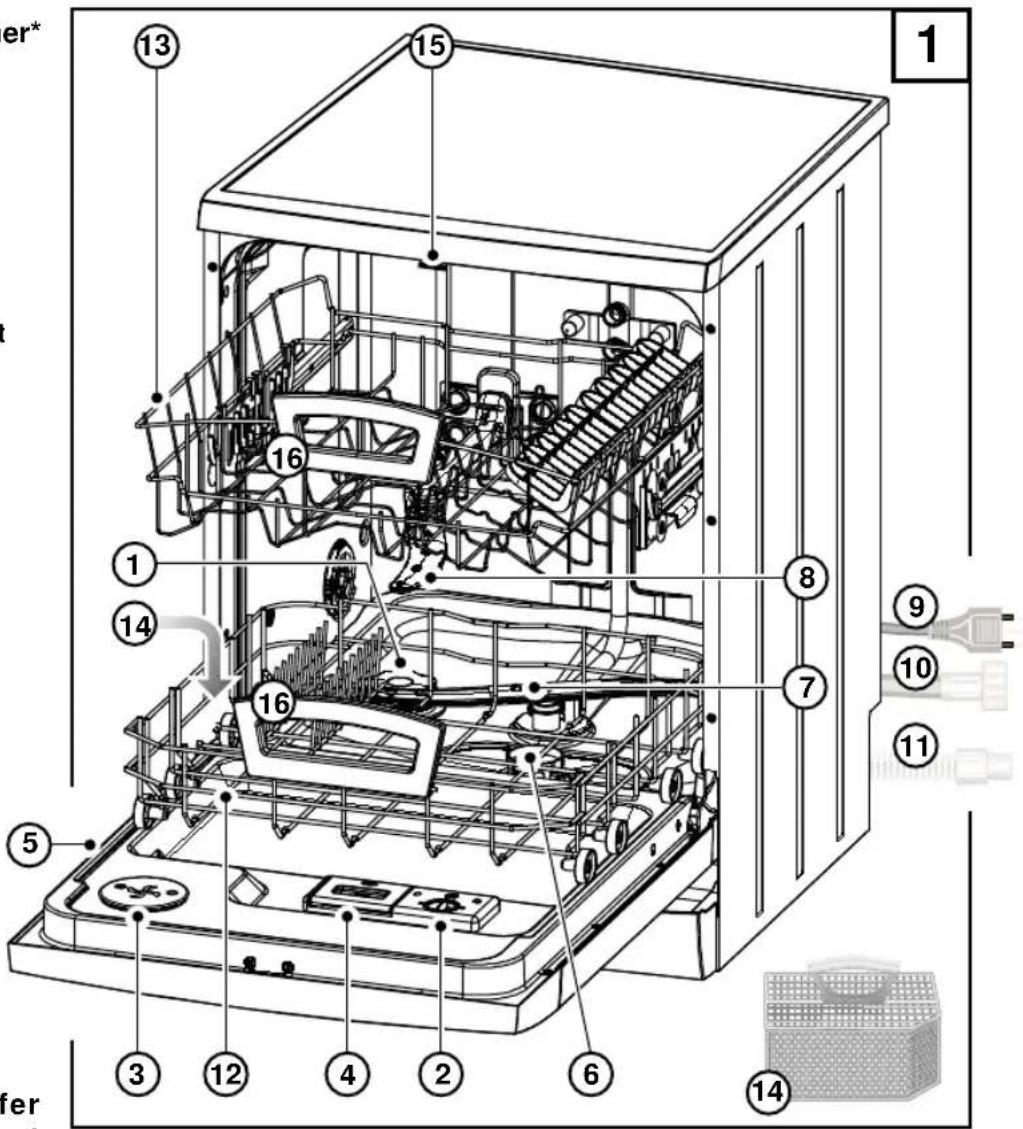

Parts of the dishwasher\*

1) saltatboinäner
2) rinsesaidicbotainener
3) drying ventilator (if included)
4) container for detergent
5) data tag
6) filters
7) lower spray-rotor
8) upper spray-rotor
9) electric cable
10) water supply tube
11) water drainage tube
12) lower basket
13) upper basket
14) cutlery container
15) hook for door closing mechanism
16) Drum handles (if provided)

* Details may differ depending on model and market!

1 13 15 16 8 7 9 10 11 14 1 16 5 3 12 4 2 6 14 er*

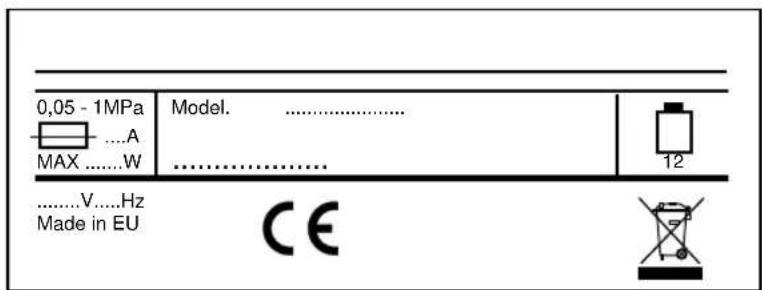

4.2 TECHNICAL DATA

capacity (standard settings): 12

pressure of water supply system minimum pressure: 0.05 Mpa maximum pressure: 1 Mpa

Attention: the necessary characteristics of the electric supply grid are indicated on the data tag.

0,05 - 1MPa MAX ....W Model. ...... .......... .......... 12 .....V.....Hz Made in EU CE

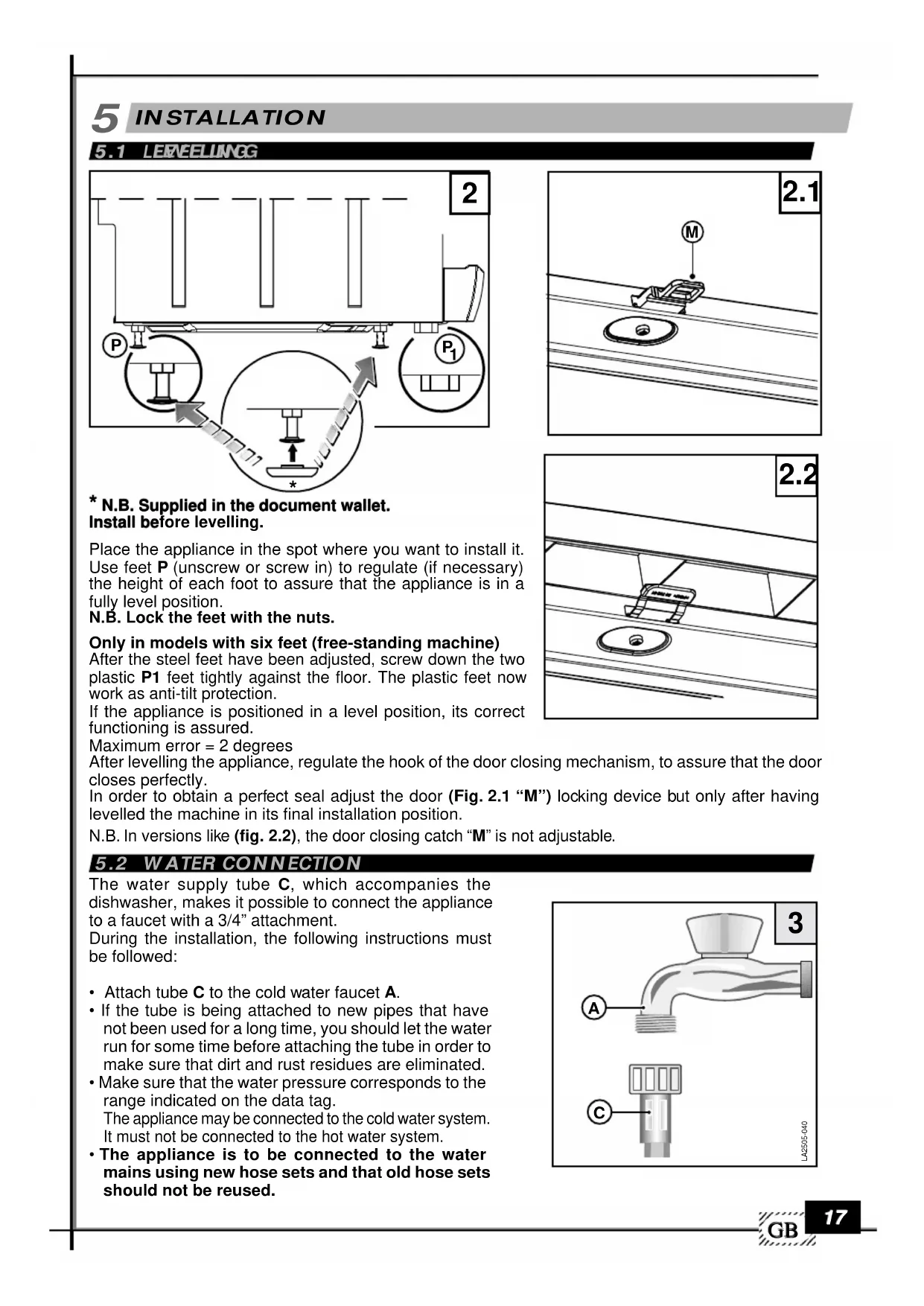

5 INSTALLATION

5.1 LEEELLUNG

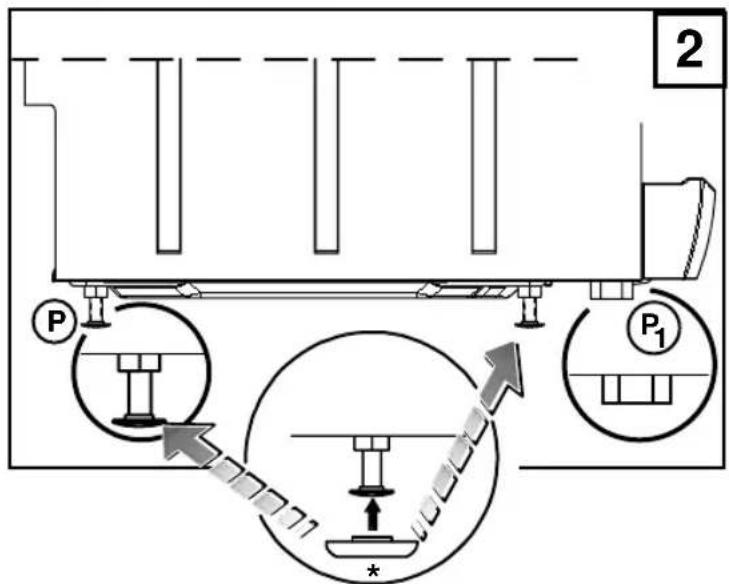

2 P P₁ *

* N.B. Supplied in the document wallet. Install before levelling.

Place the appliance in the spot where you want to install it. Use feet P (unscrew or screw in) to regulate (if necessary) the height of each foot to assure that the appliance is in a fully level position.

N.B. Lock the feet with the nuts.

Only in models with six feet (free-standing machine)

After the steel feet have been adjusted, screw down the two plastic P1 feet tightly against the floor. The plastic feet now work as anti-tilt protection.

If the appliance is positioned in a level position, its correct functioning is assured.

Maximum error = 2 degrees

After levelling the appliance, regulate the hook of the door closing mechanism, to assure that the door closes perfectly.

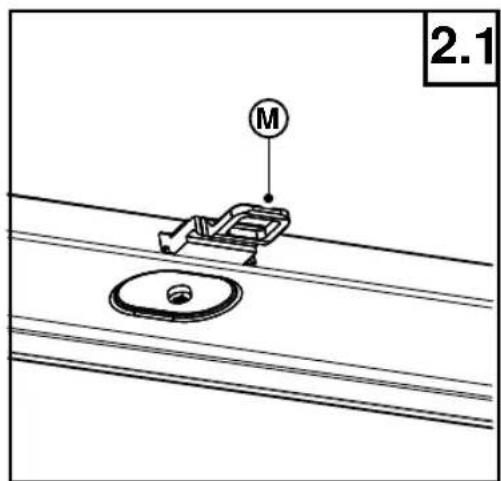

In order to obtain a perfect seal adjust the door (Fig. 2.1 "M") locking device but only after having levelled the machine in its final installation position.

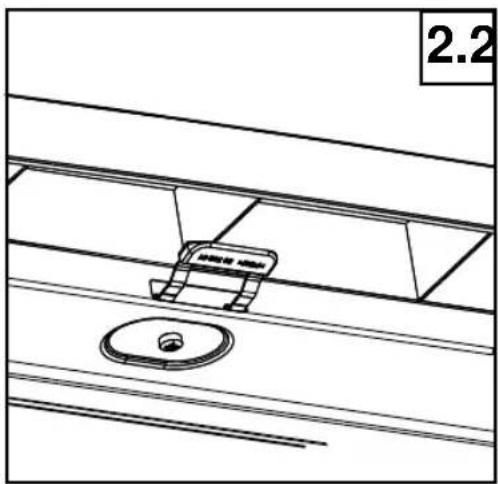

N.B. In versions like (fig. 2.2), the door closing catch "M" is not adjustable.

2.1 M

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

5.2 WATER CONNECTION

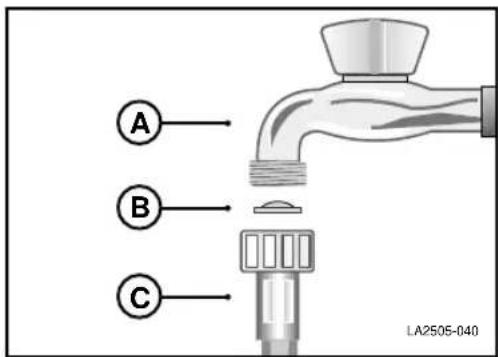

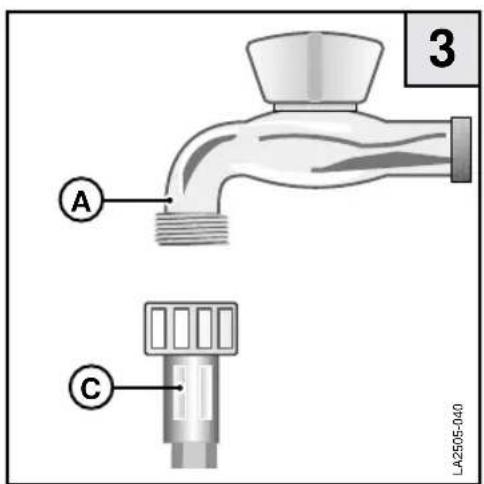

The water supply tube C, which accompanies the dishwasher, makes it possible to connect the appliance to a faucet with a 3/4" attachment.

During the installation, the following instructions must be followed:

• Attach tube C to the cold water faucet A.
• If the tube is being attached to new pipes that have not been used for a long time, you should let the water run for some time before attaching the tube in order to make sure that dirt and rust residues are eliminated.
• Make sure that the water pressure corresponds to the range indicated on the data tag.
  The appliance may be connected to the cold water system. It must not be connected to the hot water system.
• The appliance is to be connected to the water mains using new hose sets and that old hose sets should not be reused.

A C 3 LA2505-040

5.3 CONNECTIONNOG DBRANIMAGE EWAATER

The curved end of drainage tube T, which is being supplied with your appliance, should be hooked onto the edge of a sink or into a drainage pipe.

A special siphon should be used to prevent bad odours.

During the assembly, the following precautions should be taken:

• the drainage tube must not be bent to avoid blockages;
• the tube's end, relative to the top surface of the dishwasher (fig. 4), must be placed at a height between 32 and 80~cm ;
• the end of the tube must never be immersed in water;
• the drainage tube must not be extended to more than a maximum length of 1 metre. The extension must have the same internal diameter. Furthermore, the maximum height at which the tube's end can be placed (in the case of an extended tube) must be reduced from 80 to 50 cm.
• If you use a drainage pipe, make sure its internal diameter is not inferior to 4 cm.

LA501.059 T T min 32 cm max 80 cm 4

5.4 ELECTRIC CONNECTIONS

The appliance may only be connected to a properly installed electric outlet with an earth (ground) contact. The connection must be carried out in correspondence with existing laws and regulations and supplementary rules issued by the supplier of electric power.

The tension shown on the data tag must correspond to the power tension of the electric grid at the site of installation.

See data tag for the size and format of the electric outlet to be used.

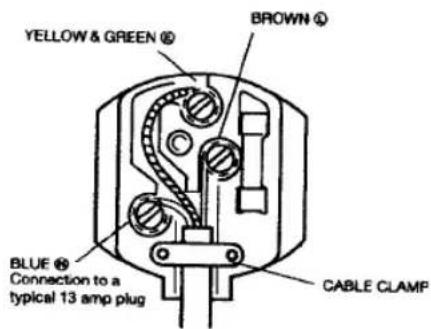

If the appliance has no plug attached, it must be connected to the electricity supply by installing a switch which is directly connected to the mains. This switch should ensure the appliance is disconnected from all the poles with a distance of at least 3 mm from the contacts.

6.1 BEEQREUSSNCGTTHEEAPPIPLANDEE

Before turning on the appliance, make sure that the plug attached to the electric cable is connected to the electric outlet, the water supply tube is connected to the faucet, the faucet is turned on, the drainage tube has been connected according to the instructions.

Opening of the door

Pull the handle forward. The door should open without effort. If you pull the handle while the dishwasher is running, a safety mechanism will turn off the appliance.

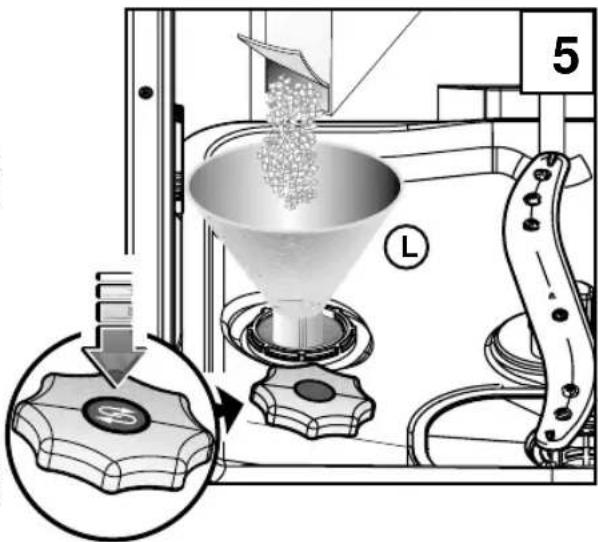

Adding special dishwasher salt (only in the salt container version)

• Open the door and take out the lower basket
• Remove the lid of the salt container by turning it anticlockwise

Only during the first time you carry out this operation: fill about 1/2 litre of water into the salt container

- Use funnel L to fill the special dishwasher salt into the container (use about 1.0-1.5 kg of salt).

- Remove possible salt residues from the opening of the container.

- Put the lid of the container back in its place by turning it clockwise.

- If you don't use the dishwasher immediately after filling the salt container, run the programme pre-wash to rinse away the water and salt particles that spilled over from the container.

Diagram illustrating a powder processing machine with labeled components and a magnified view of the process.

Indication of salt level (IF PRESENT)

The green mark under the cap indicates that there is still enough salt in the container. If the green mark is no longer visible, the salt container needs to be refilled with special dishwasher salt.

For safety reasons we recommend to refill the container after seven wash cycles – always at the beginning of a cycle.

Use only special dishwasher salt. Other types of salt (e.g., regular household salt) often contain substances that do not dissolve completely in water and can therefore obstruct the water softener, thus making it unusable.

For the washing process it is better to use soft water (with a low calcium content), to avoid calcium deposits on the dishes and on the inside of the dishwasher.

To find out the degree of hardness of your water contact your town administration or use a commercial testing kit.

Regulation of the water softener system (IF INCLUDED)

(control panel version with LEDs)

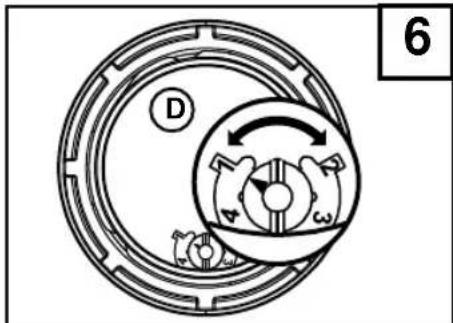

For this reason, the appliance is equipped with a water softener (fig. 6) which is automatically regenerated in regular intervals thanks to the saline solution. The salt consumption for the regeneration process depends on the hardness/softness of the local water that is being used.

To guarantee an optimal regeneration of the softener it is necessary to set device D according to your local hardness (see table) and to make sure that the salt container is always filled with special dishwasher salt.

Note: When the adjustment device is in the D1 position the low salt indicator light is deactivated.

D 6

Position of regulation device	French degrees 'fH	German degrees 'dH
1	<15	<8,4
2	>15 <25	>8,4 <14
3	>25 <40	>14 <22,4
4	>40 <90	>22,4 <50,4
	>=higher/<=lower

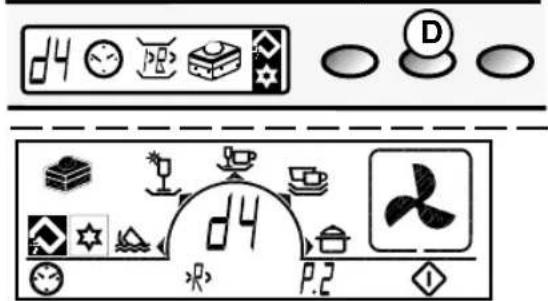

Regulation of the water softener system (IF INCLUDED) (control panel version with display)

'Hidden' control panel

d4 D P.2 P.2

'Exposed' control panel

Regeneration levels	French degrees °fH	German degrees °dH
d1	<15	<8,4
d2	>15 <25	>8,4 <14
d3	>25 <40	>14 <22,4
d4	>40 <60	>22,4 <33,6
d5	>60	>33,6
	>= higher / <=lower

Note: The salt level indicator on the Display is deactivated when position D1 is used.

To reach an optimal regeneration setting, keep the button DELAY (fig. 7) pressed when turning on the appliance. Now, the current setting is being displayed (e.g., d4). To modify the setting (within 6 seconds), press the same button again until the desired level is reached (see table).

Wait for 6 seconds without modifying the setting. A buzzer sound will indicate that the new setting was accepted. On the display, the request select programme will appear.

Only use rinse aids for dishwashers. Other products won't obtain the desired effect.

Refilling of rinse aid

The rinse aid, which is released automatically during the final phase of the wash cycle, guarantees that the dishes dry quickly and prevents the formation of stains and calcium sediments.

The rinse aid container S is located on the inside of the door.

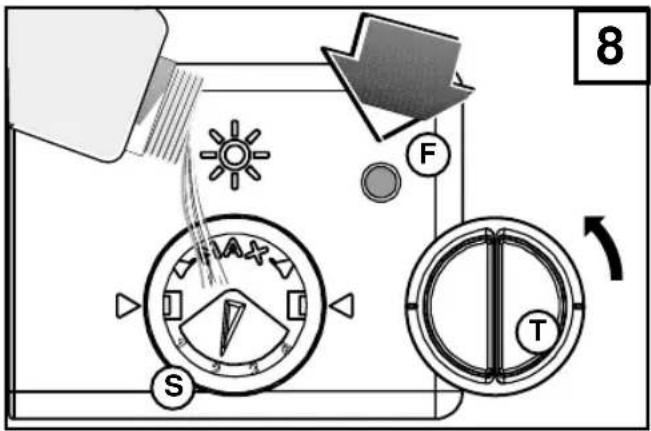

- Fig. 8, remove the container cap T by turning it 1/4 revolution anticlockwise.

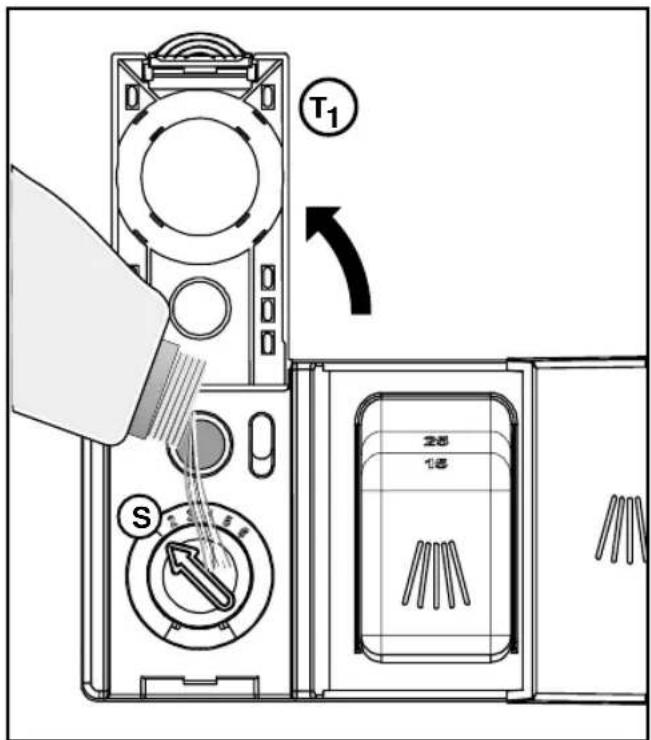

• Fig. 9, open cover T1.

- Fill container with rinse aid up to the broken line.

Maximum quantity: about 140 ml.

- Close the rinse aid compartment again.

- Clean off possible residues of rinse aid with a cloth, otherwise too much foam might be produced during the rinsing process.

Indication of rinse aid level

• Electric (if included) (fig. 18-18.a)

The appliance is equipped with a level indicator for the rinse aid. When it lights up, more rinse aid needs to be added.

- Mechanical (fig. 8)

More rinse aid needs to be added when the indicator (located on the container F) is clear (●).

When the container is full, the indicator has a dark coloration.

8 S F T

T₁ S

Regulation of rinse aid dosage

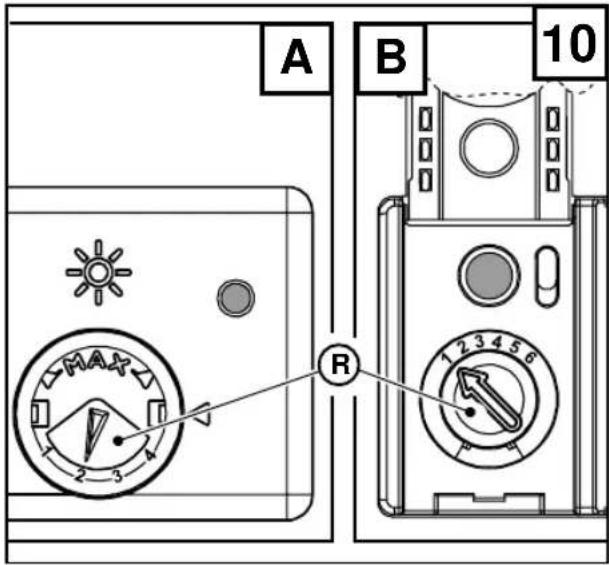

The regulation R of the quantity of rinse aid that is released can be found in the refill opening of the rinse aid container.

A screwdriver may be used to adjust it from a minimum position to a maximum position, depending on which version has been fitted in the dishwasher; see figure 10 (A-B).

The numbers correspond to the amount of rinse aid added, i.e. the number 1 = 1 ml.

A full rinse aid container is sufficient for about 50 wash cycles. The quantity of rinse aid to be released should be adjusted when the result of the wash process is not satisfactory.

• Always wipe off with a cloth any rinse aid that spilled over from the container.

It is important to check the level of rinse aid in the container periodically – if possible every 31 wash cycles.

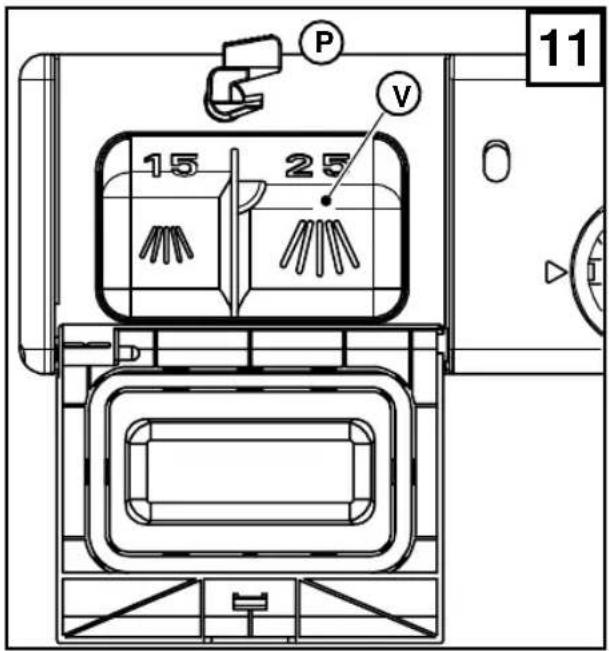

Adding the detergent

IMPORTANT! Do not use detergents in this dishwasher that are made for dish washing by hand! These substances produce large quantities of foam but they do not clean the dishes in a dishwasher. They can even lead to a malfunctioning of the appliance.

You should therefore only use detergents that are specifically made for household dishwashers.

Keep your detergent containers closed and in a dry place.

Only when you use the pre-wash programme no detergent is needed.

During a programme the detergent is automatically taken from the detergent container.

We recommend the use of about 25 g of detergent. Detergents vary in their strength and efficiency.

You should therefore pay attention to the dosage recommendations of each manufacturer.

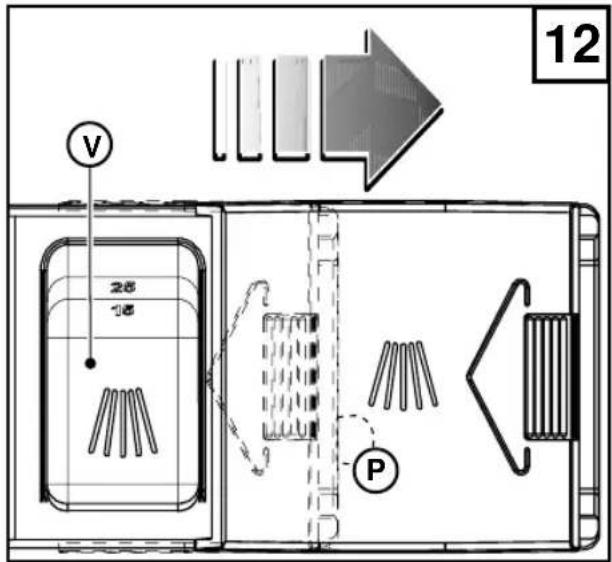

The container for the detergent is located on the inside of the door.

If the lid is closed:

- Push forward closing mechanism P. The lid will open with a "click".

- Fill the detergent into the container V.

- To close the lid, press until you hear a closing "click".

If your dishes are exceptionally dirty, you can also fill some detergent into the indentation of the lid. In this case, fill the indentation up to the edge. This detergent will be available and active during the pre-wash phase.

A B 10 R

15 25 P V 11

12 V 2.8 1.8 P

How to load and unload the dishwasher

There are two dish baskets that allow you to store all different kinds of dishes.

- Remove from the dishes any larger pieces of food to avoid an obstruction of the filter and the development of bad odours.

- If pots and pans are particularly dirty and contain crusts of food (after frying or roasting), soak them in a water bath before washing them in the dishwasher.

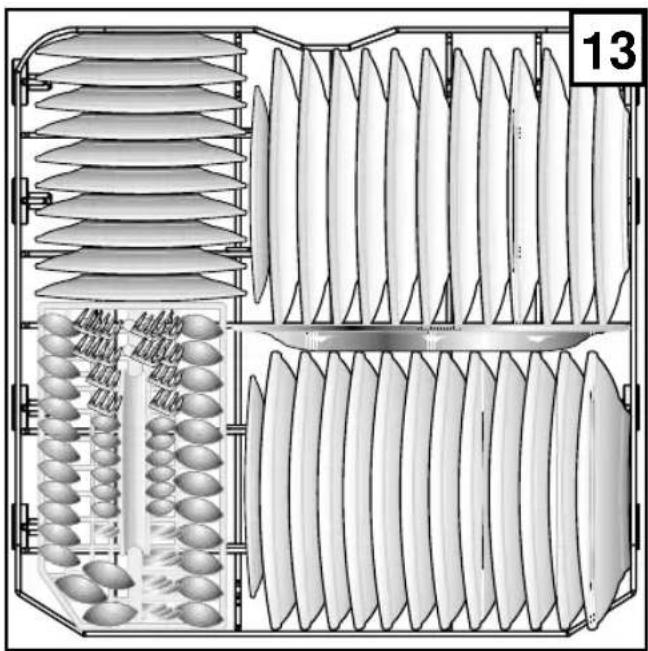

Use of the lower basket

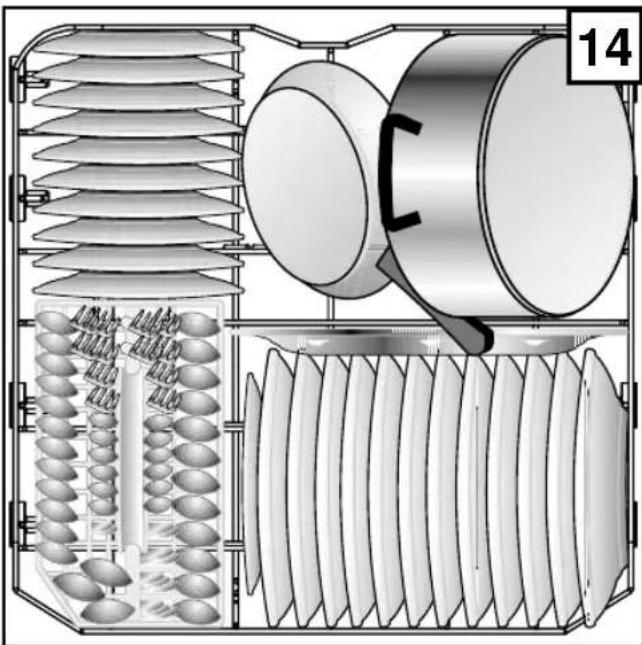

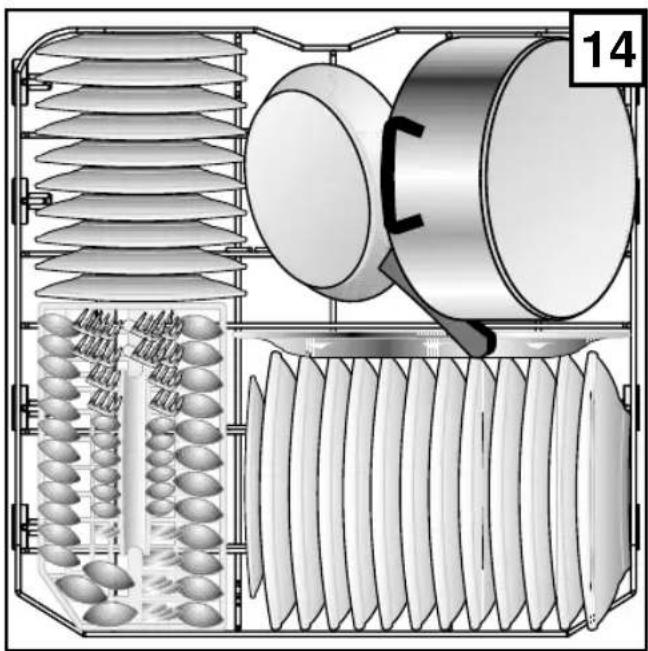

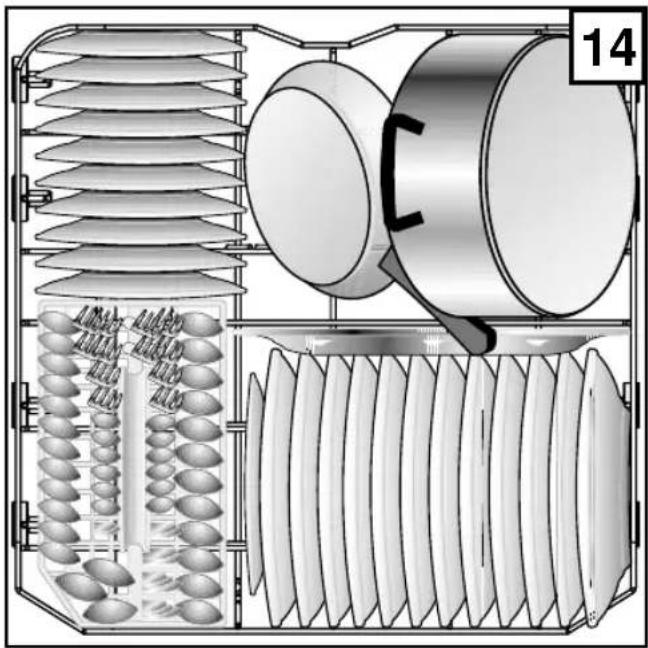

The lower basket is intended to hold dishes that are more difficult to clean, as well as the cutlery basket.

The lower basket holds regular plates, soup bowls, pans, soup tureens, lids, and serving dishes. Flat and deep plates must be placed in a way that leaves some space between the individual plates.

Technical diagram of a mechanical or electrical component with layered structure and internal components (no visible text or symbols)

All plates must be in a vertical position so that the water can pass freely.

Pans and pots must always be placed upside down. You can choose any kind of loading configuration, but you should make sure that the dirtiest surface of dishes, pots and pants faces the water spray and that the water can flow off without hindrances.

Technical illustration of a mechanical assembly with layered components and a numbered label (14), no readable text or symbols present.

Cutlery

For best cleaning results, cutlery should be inserted with its handles facing down. Spoons, forks, and knives must be placed in the specific areas of the cutlery basket that are designed for them.

ATTENTION:

Particularly long cutlery, specifically "long knives", should not be positioned pointing upwards but should be placed horizontally in the top tray or washed by hand.

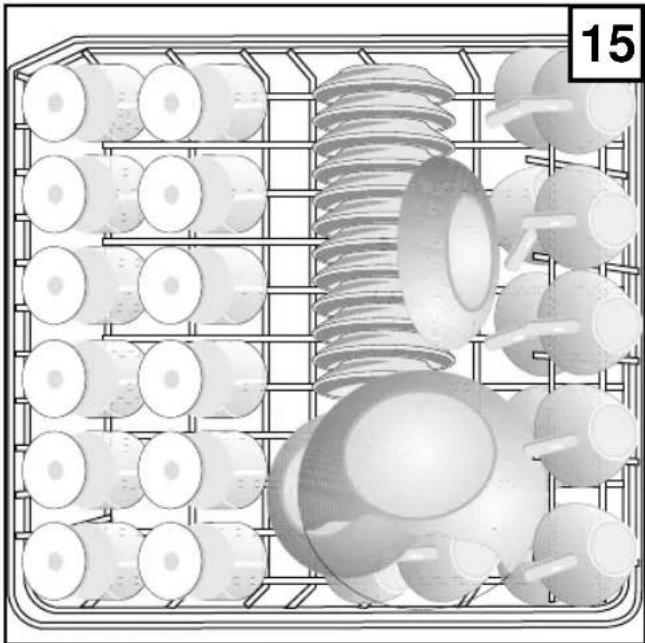

Use of the upper basket

The upper basket can be pulled out all the way. It holds small and medium sized dishes such as glasses, small plates, tea and coffee cups, small salad bowls, and small pans and pots that are not very dirty. Desert plates must always be placed vertically; glasses, cups, pots and pants must be placed upside down. Light dishes should be held by a support structure so that they don't get thrown around by the water jet. An optimal arrangement of dishes inside the dishwasher will guarantee best washing results, allowing the appliance will be able to develop its full effectiveness.

Because of the elevated temperature of the water used to wash the dishes and of potential chemical reactions with the detergent, it is recommended not to wash copper or aluminium dishes, cutlery with wood or horn handles, delicate porcelains, or non heat resistant glass or plastic dishes in the appliance.

If you possess decorated porcelain, you should test one single piece to make sure that the décor is not being damaged or altered.

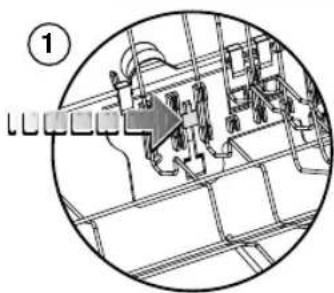

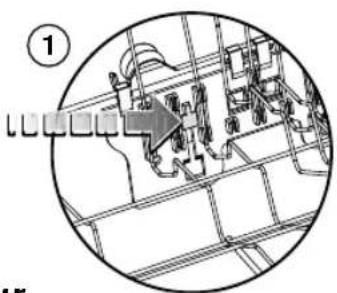

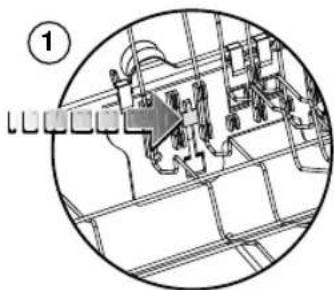

Height regulation of the upper basket (if included)

The position of the drum may be adjusted using the side handles (right and left).

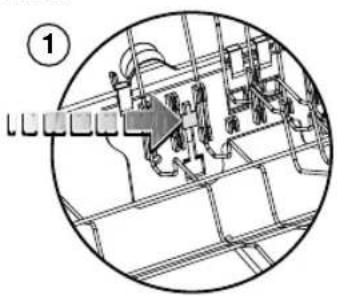

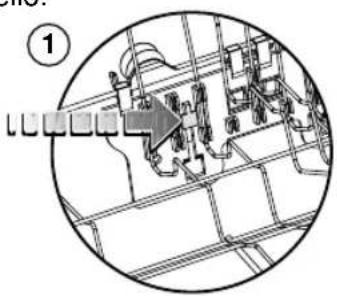

1 Adjusting the lower position

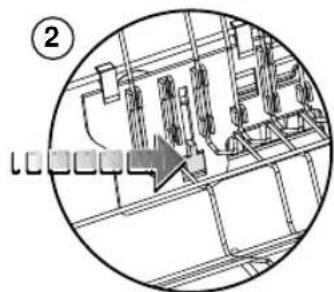

2 Adjusting the upper position

3D rendered diagram of a mechanical component with multiple bolts and a central threaded bolt, enclosed in a grid-like frame (no text or symbols)

16

Diagram of an electrical circuit board with components and wiring, no visible text or symbols

Diagram of a room layout with furniture and fixtures, no visible text or symbols

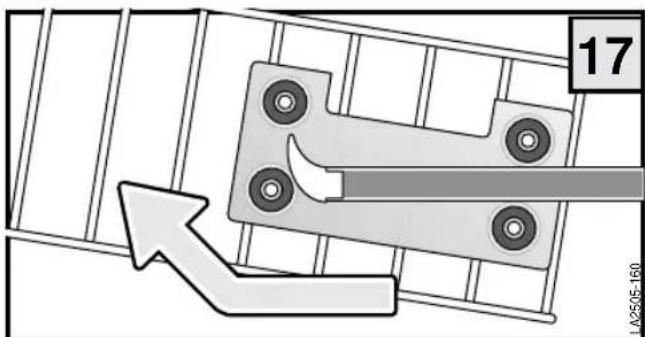

Pulling out the upper basket

The upper basket can be pulled out and removed as shown in the figure.

17 LA2605-160

7

MAIN TENANCE

7.1 CCEEANINGGOFFS#DAY-PROTORTS

CAUTION: Disconnect the appliance from the electricity supply (by pulling the plug out of the socket) before cleaning the appliance or performing any maintenance operations.

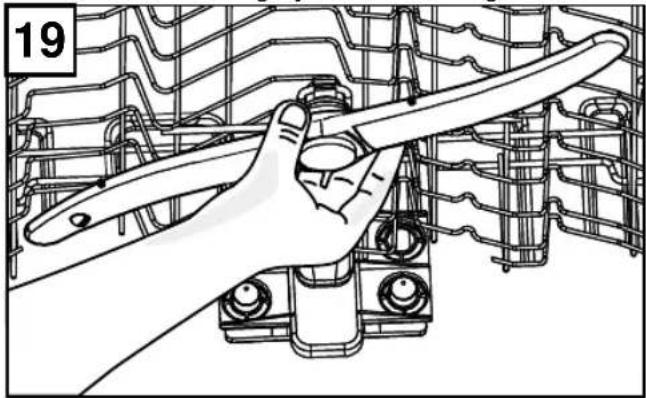

The spray-rotors can easily be removed for the periodic cleaning of the jets in order to prevent possible obstructions.

Wash them thoroughly under running water and put them back in their correct position.

Illustration of a hand operating a mechanical component with gears and shafts (no text or symbols)

To remove the upper spray-rotor: Unscrew anticlockwise the support of the spray-rotor.

Illustration of a hand operating a mechanical device with a valve and adjustment knob (no text or symbols)

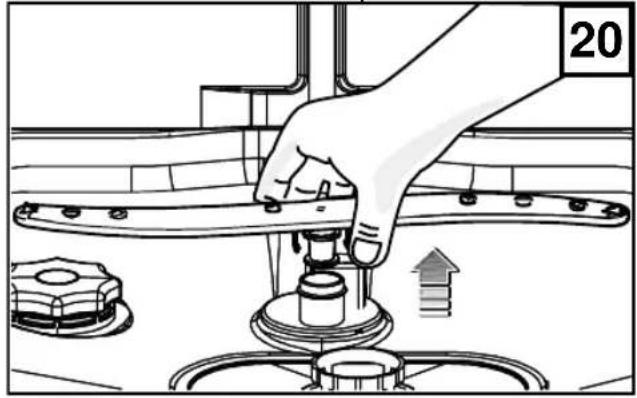

To remove the lower spray-rotor: Pull the spray-rotor upwards and take it out.

7.2 CLEANING OF FILTERS

After each wash the filter group should be checked in order to remove possible dirt residues. Proceed as follows:

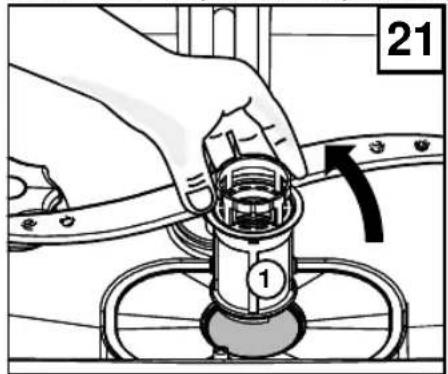

- Unscrew the external filter 1 by turning it in an anticlockwise direction.

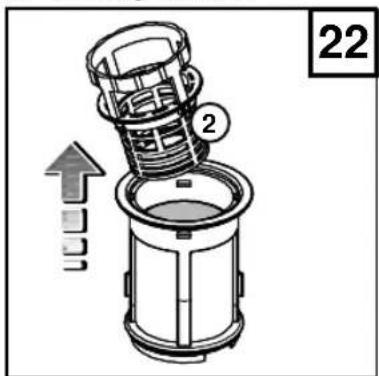

• Take out the central filter 2

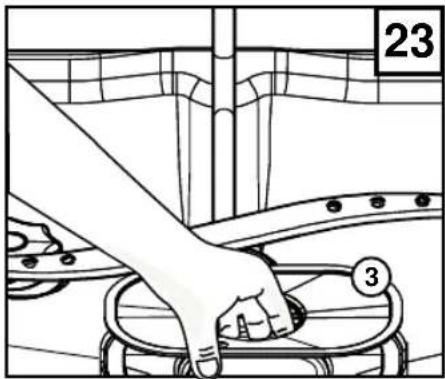

- Remove the fine filter 3.

Clean all these components under running water. It is important to clean all filters thoroughly because the dishwasher cannot function properly with obstructed filters.

We recommend to put the cleaned filters back in their positions immediately to avoid damage to the wash pump.

WARNING: Dirty filters may affect good washing results.

21 ①

22 ②

Line drawing of a hand operating a car wheel, no text or symbols present

7.3 CLEANING THE DRAINAGE PUMP

The pump may be accessed from inside the machine.

1. Always disconnect the plug from the mains socket before cleaning the pump.

2. Unscrew the external filter 1 by turning it in an anticlockwise direction (fig. 21).

3. Remove the fine filter 3 (fig. 23).

4. Finally, remove the small insert Z from the left part of the drainage hole in the base of the appliance.

5. By placing your finger inside the hole, it is possible to rotate the pump propeller and eliminate any blockages which may have occurred.

6. Replace the insert and the filters.

7. Plug the appliance back into the mains socket.

24 ②

CAUTION: Do not forget to replace insert Z.

7.4 CLEANING COG THE EWAABBENTRKRYFHLDER

You should also clean filter B periodically. It is located between the water faucet and the water entry tube.

• Close water faucet A.
• Unscrew attachment piece C, take out filter B, and clean it thoroughly under running water.
• Put the filter back in its place and screw the water entry hose on. Check that there are no water leaks.

A B C LA2505-040

7.5 CLEANING OF THE DISHWASHER'S EXTERNAL SURFACES

The dishwasher's surfaces (made of metal, and in the front of plastic) must be cleaned periodically. Use a clean and soft piece of fabric. Never use acids or abrasive detergents.

If you don't use the appliance for long periods of time

If the dishwasher is not being used for extended periods of time, you should proceed as follows:

• run the pre-wash programme twice
- remove the electric plug from the outlet
- disconnect the water supply tube
- leave the door slightly open to avoid the formation of bad odours.

7.6 PERFORMANCE DATA

Test measures

Normal

Main wash with 25 grams of standard detergent. (Type B)

Rinse aid measure 4. (Type III)

Energy class

Europe: EN 50242

Wash programme: Normal a 55°C

Connection: Cold water

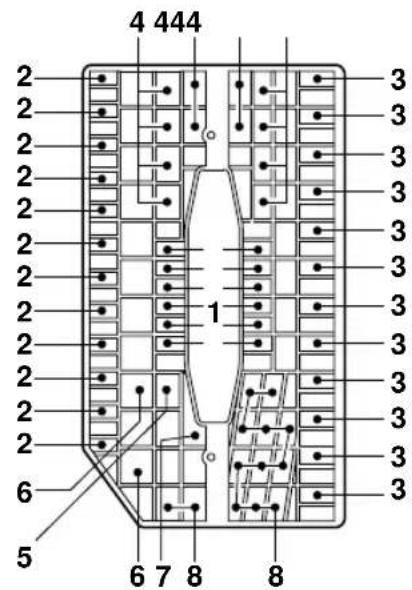

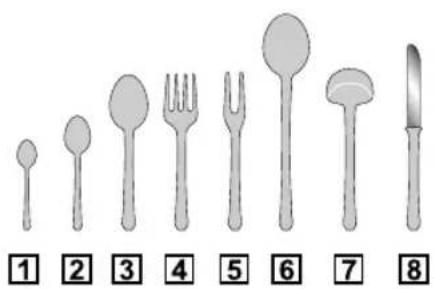

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

4 444 2 2 2 2 2 2 2 2 2 2 2 2 6 5 1 3 3 3 3 3 3 3 3 3 3 3 3 6 7 8 8

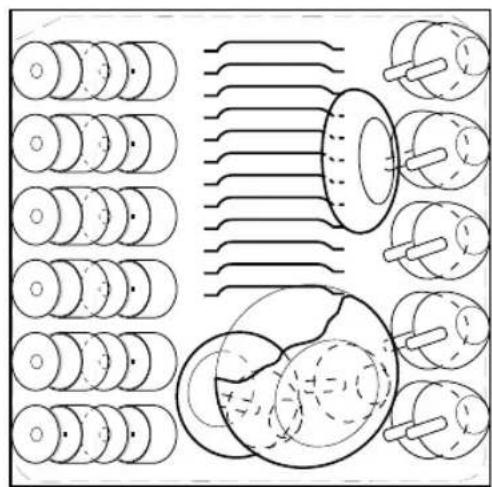

Dishwasher loading examples

Diagram of a mechanical or electrical component with multiple rollers and a central fan, no text or symbols present

a Egg b Spinach c Minced meat d Oatflakes e Margarine

EN 50242 b a e c a a d EN 50242

8

WHAT TO DO IN CASE OF MALFUNCTIONS

You should first check whether it is possible to rectify some minor problems yourself. Follow these instructions. If you are unable to identify or remove the problem, you should contact the technical client assistance service.

• The programme does not start

- Are the internal fuses broken? Is the dishwasher connected to the electric supply system?

- Is the door closed properly? Press on the door to close it completely.

- No water enters the appliance

- Is the water faucet open?

- Is the filter between the faucet and the water supply tube obstructed? If so, clean the filter.

- Is the water supply tube obstructed? Check the tube.

- The programme indicator does not move on from its starting position

- Is the water faucet completely open?

- Is the filter between the faucet and the water supply tube obstructed? If so, clean the filter.

- Is the water pressure lower than 0.05 Mpa?

- The used water is not removed from the dishwasher

- Is the waste disposal tube obstructed? Check the tube.

- The siphon is obstructed? Check the siphon.

• The dishes are not clean after washing them

- Did you choose an appropriate programme for the type of dishes and the degree of dirt you are dealing with?

- Are the dishes arranged in a way that allows the water-jet to reach all their surfaces?

- Are the dishwasher's baskets overloaded?

- Are the spray-rotors blocked by a dish or some cutlery?

- Are all filters at the bottom of the dishwasher clean? Are they all in their correct position?

- Did you add the correct amount of detergent?

- Is the water discharge tube connected properly?

- Is there still any special dishwasher salt in the appropriate container? (if present) Without salt the water is not being softened.

- Was the water softening system (if present) adjusted according to the local amount of calcium in the water?

- The dishes do not dry or they remain opaque

- Is there any rinse aid left in the appropriate container?

- Glasses and dishes show the formation of lines, spots, and stains or a shiny blue coloration

- During the rinse process too much rinse aid is being released. Adjust the rinse aid release.

- Glasses and dishes show stains of dried water

- During the rinse process too little rinse aid is being released. Adjust the rinse aid release.

Please note:

The appliance was tested and checked by the manufacturer. As a consequence, you may find some traces of water inside. These will disappear after the first use.

1 AVANT D'UTILISER L'APPARELL

1.1 INSTRUCTIONS DE SECURITE

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

5.2 RACCORDEMENT HYDRAULIQUE

5.3 RACCORDEMENT POUR L'EVACUATION DU PRODUIT NETTOYANT

6.1 COPEBATIONSSPIREELIMINAARESS

Diagram illustrating a processing setup with labeled components and a magnified view of a coin slot mechanism.

V 26 25 P 12

Technical diagram of a mechanical or electrical component with layered structure and internal components (no visible text or symbols)

Technical illustration of a mechanical device with internal components and a numbered label (14), showing no readable text or symbols.

Services

3D rendered diagram of a grid structure with multiple cylindrical components and a central threaded bolt (no text or symbols)

16

Diagram of an electrical circuit with components and wiring, no readable text or symbols present

Diagram of a mechanical assembly with numbered label (2), showing internal components and alignment lines without any readable text or symbols.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand operating a mechanical device with a valve and pump (no text or symbols)

Line drawing of a hand pressing down on a car wheel (no text or symbols)

7.3 NETTOYAGE DE LA POMPE DE VIDANGE

Diagram of a mechanical or electrical component assembly with multiple cylindrical parts and a central circular component (no text or symbols)

EN 50242 b a e c a a d EN 50242

8

RECHERCHE CAUSES PANNE

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

5.2 WASSERANSCHLUSS

Diagram illustrating a processing setup with labeled components and a magnified view of a coin slot mechanism.

Technical diagram of a mechanical or electrical component with layered structure and internal components (no visible text or symbols)

Technical illustration of a mechanical device with layered components and a cylindrical component (no visible text or symbols)

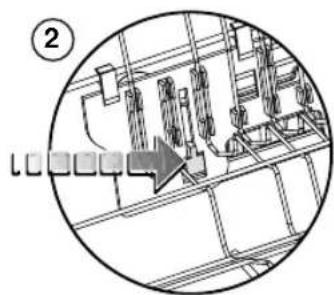

Besteck

3D rendered diagram of a mechanical component with multiple cylindrical parts arranged in a grid, no text or symbols visible

16

Technical diagram of an electrical circuit board with components and wiring, no visible text or symbols

Diagram of a room interior with furniture and fixtures, no visible text or symbols

Illustration of a hand operating a mechanical component with no visible text or symbols

Illustration of a hand operating a mechanical device with a valve and pump (no text or symbols)

Line drawing of a hand operating a mechanical device with numbered parts (no text or symbols)

7.3 REINIGUNG DER ABLAUFPUMPE

Diagram of a mechanical or electrical component assembly with multiple cylindrical components and a central circular component (no text or symbols)

a Ei b Spinat c Gehacktes d Haferflocken e Margarine

EN 50242 b a e c a a d EN 50242

Technical diagram of a multi-chamber refrigerator with numbered components for identification

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

5.2 CONEXION HIDRAULICA

Diagram illustrating a processing setup with labeled components and a magnified view of a device component with a coin symbol.

Simple diagram with four empty rectangular boxes and a circular icon labeled 'D' in the first corner (no text or symbols on boxes)

Panel de mandos visible

Technical diagram of a mechanical or electrical device with layered components and internal structures (no visible text or symbols)

Technical illustration of a mechanical device with layered components and a central cylindrical component (no text or symbols)

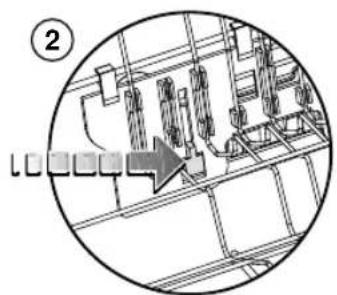

Cubiertos

3D rendered diagram of a grid structure with multiple bolt holes and a central screw (no text or symbols)

16

①

Diagram of a mechanical assembly with numbered label (2), showing components arranged in a grid-like structure without any readable text or symbols.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand operating a mechanical device with a valve and adjustment knob (no text or symbols)

Line drawing of a hand pressing down on a car wheel, no text or symbols present

7.3 LIMPIEZA DE LA BOMBA DE DESCARGA

Diagram of mechanical components and parts arranged in rows, including cylinders, gears, and a circular component (no text or labels)

EN 50242 b a e c a a d EN 50242

8 BUSQUEDA DE LAS AVERIAS

Technical diagram of a multi-chamber refrigerator with numbered components for identification

4.2 DADOS TÉCNICOS

Technical line drawing of a mechanical assembly with a central circular component and two horizontal supports (no text or symbols)

Diagram illustrating a processing setup with labeled components and a magnified view of a circular component labeled 'S'.

T₁ S 2.5 1.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 9

Technical diagram of a mechanical or electrical component with layered structure and internal components (no visible text or symbols)

Technical illustration of a mechanical assembly with layered components and a numbered label (14), no readable text or symbols present.

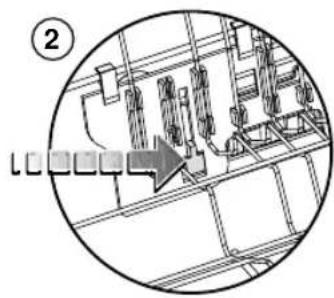

Talheres

3D rendered diagram of a mechanical component with multiple cylindrical parts arranged in a grid, no text or symbols present

16 L L L

Technical diagram of an industrial machine with control panel and conveyor system (no text or labels)

Diagram of a mechanical or electrical assembly with labeled components and an arrow indicating direction (no readable text or symbols)

Illustration of a hand holding a propeller inside a mechanical assembly (no text or symbols visible)

Illustration of a hand operating a mechanical device with a valve and adjustment knob (no text or symbols)

Line drawing of a hand operating a mechanical device with labeled parts (no text or symbols present)

7.3 LIMPEZA DA BOMBA DE DESCARGA

Diagram of mechanical components arranged in rows and columns, including rollers, a central gear, and a circular component with holes (no text or labels)

EN 50242 b a e c a a d EN 50242

8

4 BESCHRIJVING VAN HET APPARAAT

4.1 WOODRAMANZICHT

Technical line drawing of a mechanical assembly with a central circular component and a labeled section '2.2' (no text or symbols on the diagram itself)

Diagram illustrating a processing setup with labeled components and a magnified view of a gear mechanism with a 'S' symbol.

Technical diagram of a mechanical or electrical device with layered components and internal structure (no visible text or symbols)

Technical diagram of a mechanical device with internal components and a labeled part (14), showing no readable text or symbols.

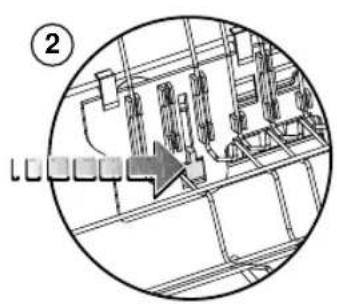

Bestek

3D rendered diagram of a grid structure with multiple circular components and a central threaded bolt (no text or symbols)

16 L L L

Technical diagram of an electrical circuit board with components and wiring, no visible text or symbols

Diagram of a mechanical or electrical assembly with no visible text, numbers, or symbols

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols present

Illustration of a hand operating a mechanical device with a valve and adjustment knob (no text or symbols)

Line drawing of a hand operating a mechanical device with labeled parts (no text or symbols)

7.3 REINIGEN AFVOERPOMP

Diagram of mechanical components arranged in rows and columns, showing shafts, gears, and a central circular component (no text or labels)

EN 50242 b a e c a a d EN 50242

8

DEFECTEN OPSPOREN

Electrical Connection (UK only)

IF THE MAINS LEAD OF THE APPLIANCE IS FITTED WITH A PLUG

WARNING - THIS APPLIANCE MUST BE EARTHED

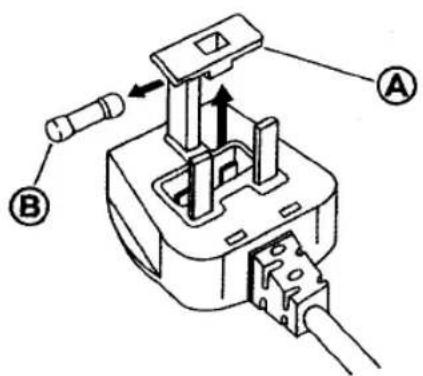

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13 amp fused plug, to change a fuse in this type of plug use an A. S. T. A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B)
2. Fit replacement 13A fuse into fuse cover
3. Refit both into plug.

Technical diagram of a mechanical switch or electrical component with labeled parts A and B, showing internal structure and directional arrows.

IMPORTANT:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted. Correct replacements are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

CONNECTION TO A REWIREABLE PLUG

If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of in order to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere. A suitable alternative plug should then be fitted to the cable.

The wires in this mains lead are coloured in accordance with the following code:

BLUE "NEUTRAL" ("N")

BROWN "LIVE" ("L")

GREEN AND YELLOW "EARTH" ("E")

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured green or green and yellow.
2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured black.
3. The BROWN wire must be connected to the terminal which is marked with the letter "L" or coloured red.

YELLOW & GREEN ® BROWN ® BLUE ® Connection to a typical 13 amp plug CABLE CLAMP

NOTES

NOTES

NOTES

NOTES
