USER MANUAL PFL 126 WE PROLINE

Downloaded from www.vandenborre.be

MACHINE À LAVER WASHING MACHINE WASMACHINE LAVADORA PRAČKA PRÁČKA

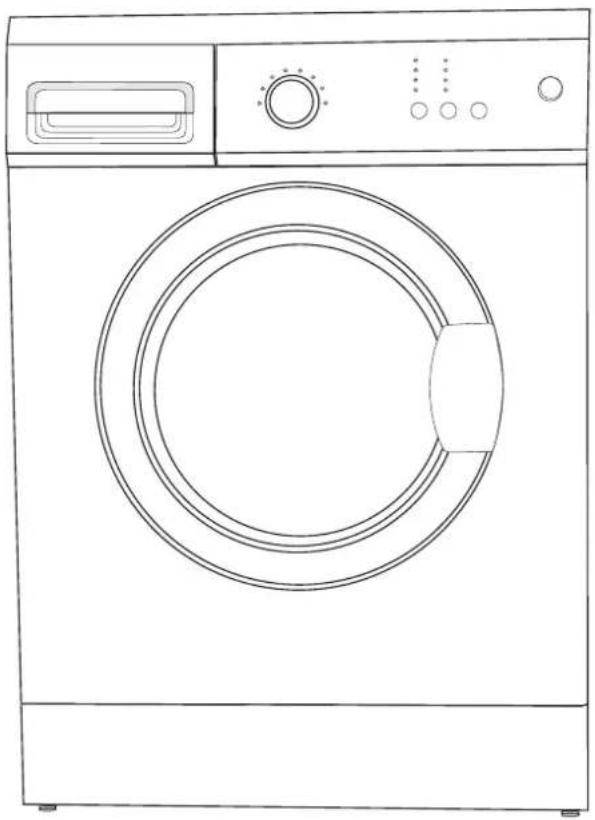

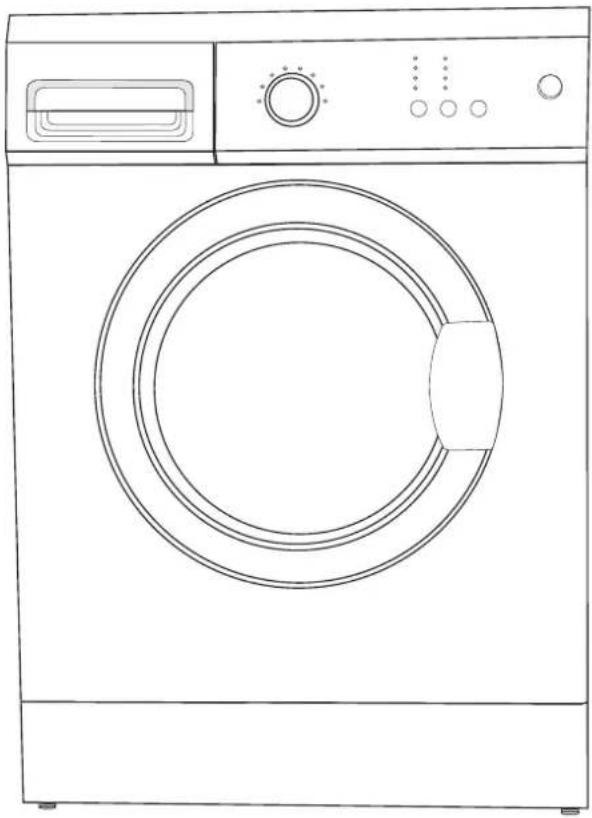

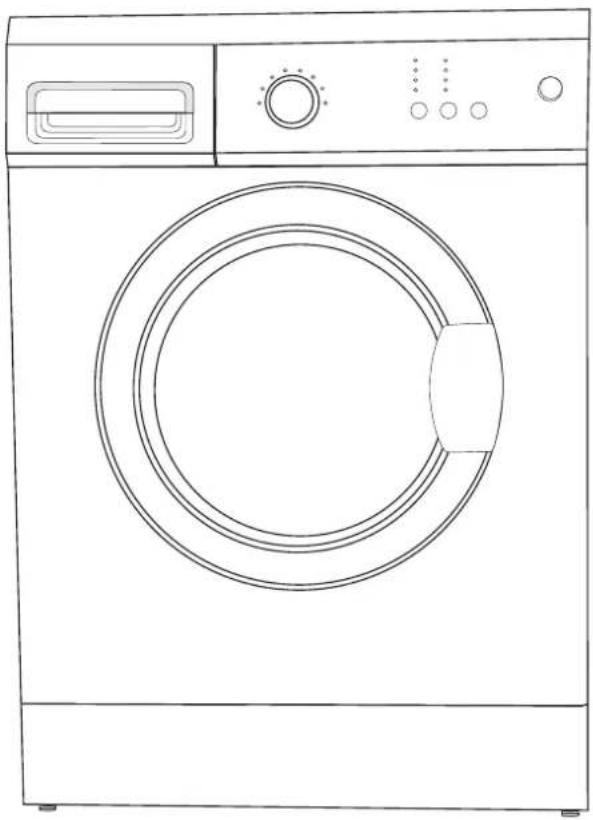

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

PROLINE

MACHINE À LAVER

Downloaded from www.vandenborre.be

MODÈLE :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

MANUEL D'UTILISATION

TABLE DES MATIÈRES

Downloaded from www.vandenborre.be

ATTENTION.... 3

MISES EN GARDE IMPORTANTES.... 3

DESCRIPTION DE L'APPAREIL.... 4

INSTALLATION.... 5

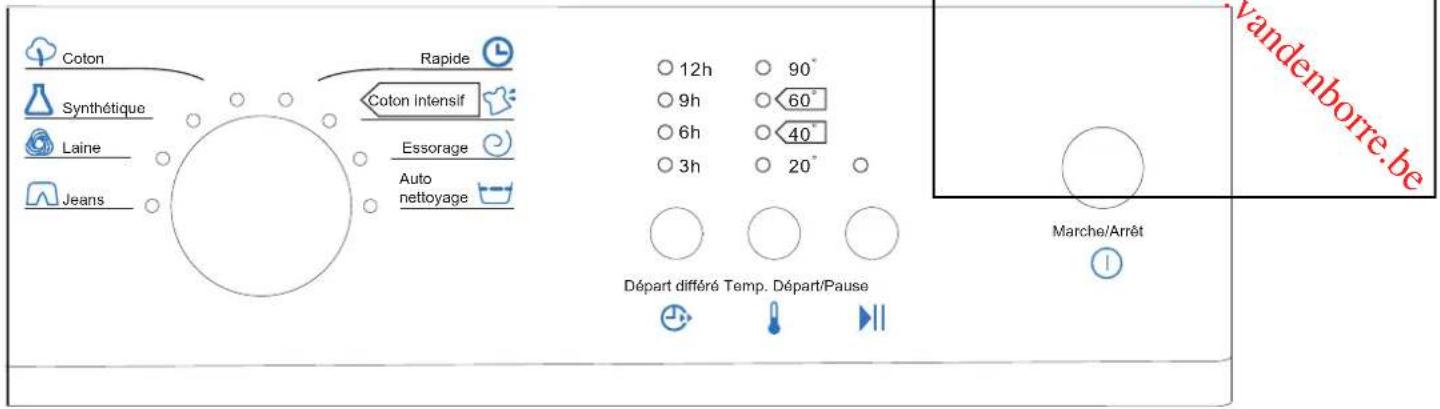

PANNEAU DE CONTRÔLE.... 6

UTILISATION....7

Premier lavage....7

Illustration of a car drawer with internal compartments, no text or symbols present

Downloaded from www.vandenbore.be

Emplacement

Mechanical assembly diagram showing a lever mechanism with a rotating knob (no text or symbols)

Diagram of a pipe fitting with a coiled spring, no text or symbols present

Évacuation de l'eau

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 90° 60° 40° 3h 20°

Downloaded from www.vandenborre.be II I

Illustration of a money bag with a ribbon and scattered items inside, no text or symbols present.

Two circular icons with X and V symbols, one containing a cross and the other filled with leafy material.

Downloaded from www.vandenborre.be

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Downloaded from www.vandenborre.be tez-le.

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Illustration of a faucet with a handle and arrow indicating direction, alongside a close-up of the handle (no text or symbols)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols visible)

Illustration of a faucet and drain valve assembly with hands performing maintenance (no text or symbols)

FR

Close-up of hands installing a white plastic bag with a black arrow pointing to the part (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine button with an arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

PFL 126 W-F, PFL 126 W-E

PFL 105 W-F, PFL 105 W-E

Kesa Electricals © UK: EC1N 6TE 12/12/2012

PROLINE

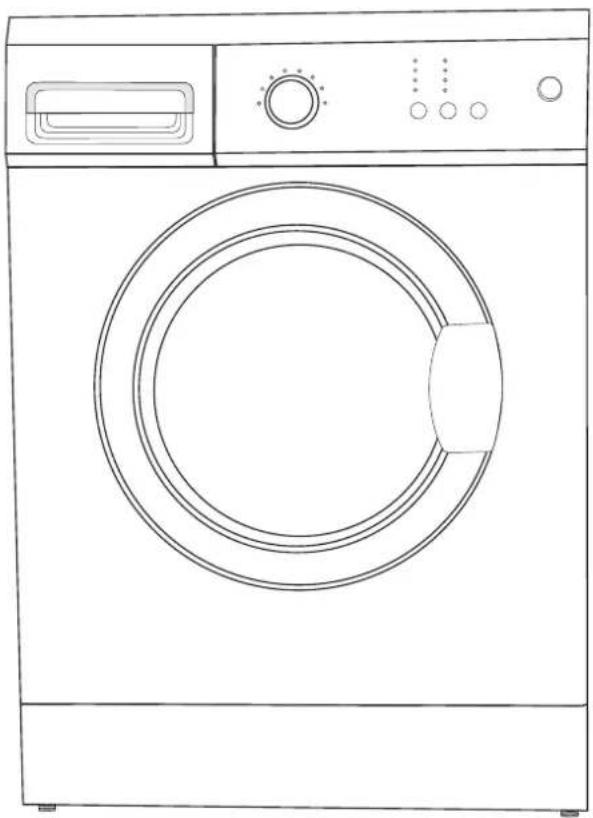

WASHING MACHINE

MODEL :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

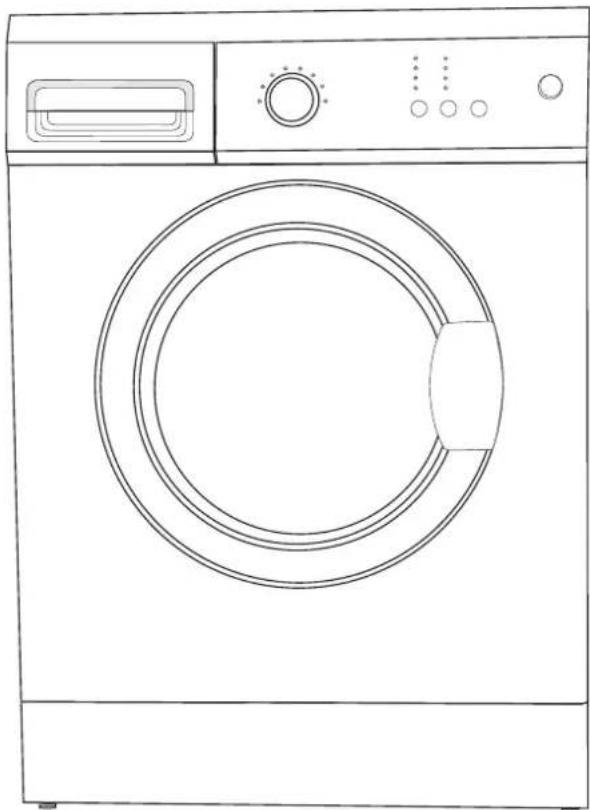

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

OPERATING INSTRUCTIONS

CONTENTS

Downloaded from www.vandenborre.be

WARNINGS.... 19

IMPORTANT SAFETY INSTRUCTIONS.... 19

DESCRIPTION OF THE APPLIANCE 20

INSTALLATION.... 21

CONTROL PANEL 22

OPERATION.... 23

Washing for the first time.... 23

Putting detergent in the appliance.... 23

Washing Clothes.... 24

Programme chart.... 25

Changing the programme and temperature during operation

26

Washing Tips and Hints.... 26

CLEANING AND MAINTENANCE 28

Cleaning the exterior.... 28

Cleaning the drum.... 28

Repairing a frozen washing machine.... 28

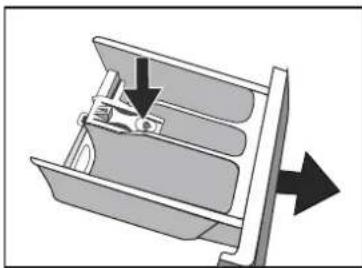

Cleaning the detergent drawer and recess.... 29

Cleaning the inlet hose and the inlet filter.... 29

Cleaning the drain pump.... 30

TROUBLESHOOTING 30

TECHNICAL DATA SHEET 31

WARNINGS

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

Downloaded from www.vandenborre.be ot be used for any or in a commercial n reduced physical, less they have been son responsible for

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION: Do not connect to the hot water supply.

The openings must not be obstructed by a carpet.

Do not install the machine on a carpet which can block the ventilation openings on the bottom of the appliance.

The water pressure must not be less than 0.05MPa and not greater than 1 Mpa.

IMPORTANT SAFETY INSTRUCTIONS

• Keep the packing materials of the appliance away from children to avoid hazards.
  -Do not plug the appliance to the power supply with wet hands.
  -Never touch the appliance with wet hands or feet.
  -In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agent.
  -Do not exceed the maximum loading capacity.
  -The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
  -Always unplug the appliance and turn off the water supply after use.

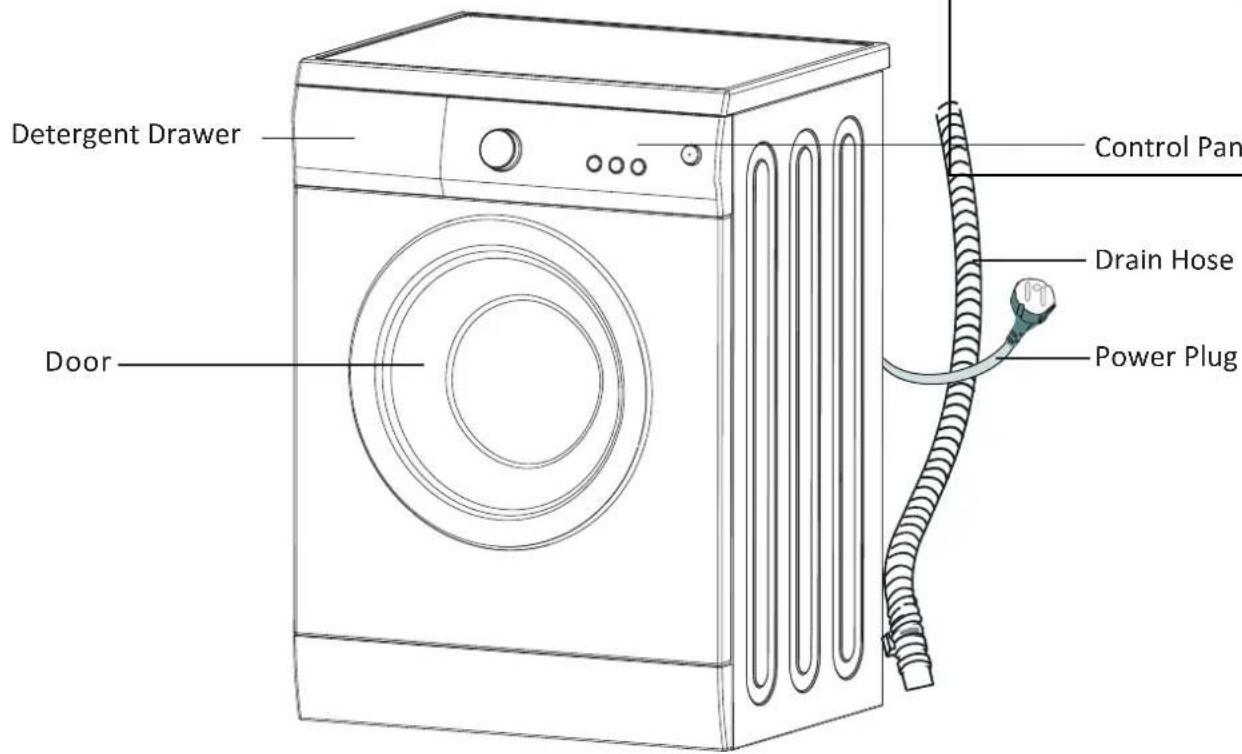

DESCRIPTION OF THE APPLIANCE

Detergent Drawer Door Control Pan Drain Hose Power Plug

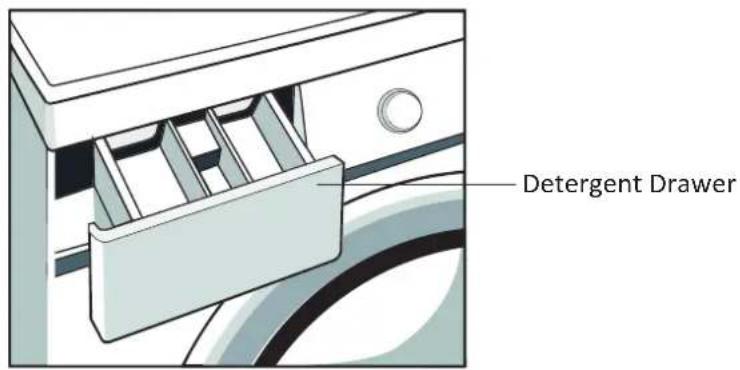

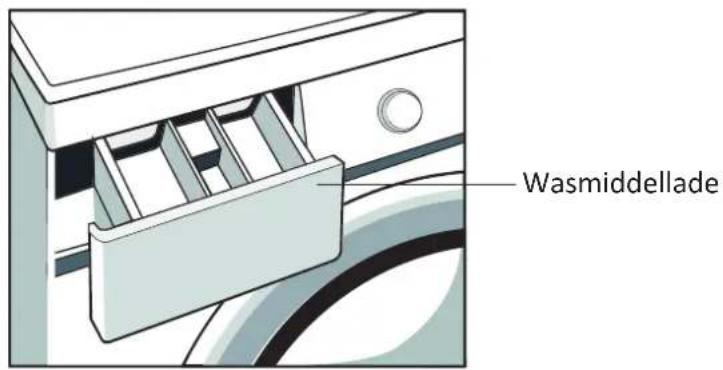

Detergent Drawer

Accessories

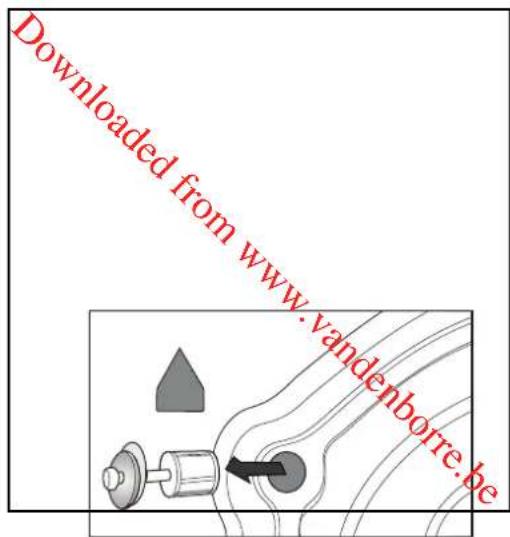

Transport hole plug

Water inlet pipe

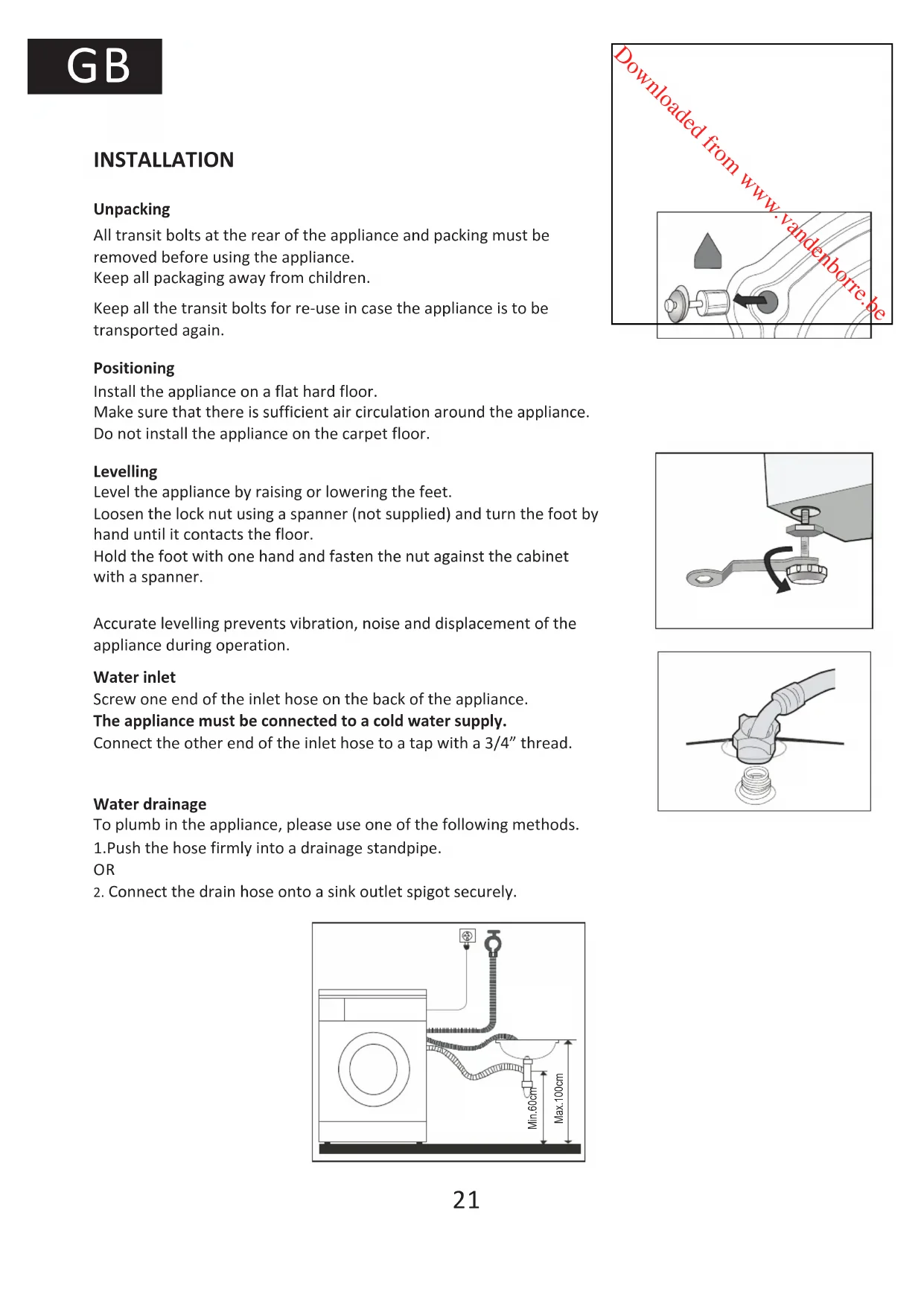

INSTALLATION

Unpacking

All transit bolts at the rear of the appliance and packing must be removed before using the appliance.

Keep all packaging away from children.

Keep all the transit bolts for re-use in case the appliance is to be transported again.

Positioning

Install the appliance on a flat hard floor.

Make sure that there is sufficient air circulation around the appliance.

Do not install the appliance on the carpet floor.

Levelling

Level the appliance by raising or lowering the feet.

Loosen the lock nut using a spanner (not supplied) and turn the foot by hand until it contacts the floor.

Hold the foot with one hand and fasten the nut against the cabinet with a spanner.

Accurate levelling prevents vibration, noise and displacement of the appliance during operation.

Water inlet

Screw one end of the inlet hose on the back of the appliance.

The appliance must be connected to a cold water supply.

Connect the other end of the inlet hose to a tap with a 3/4" thread.

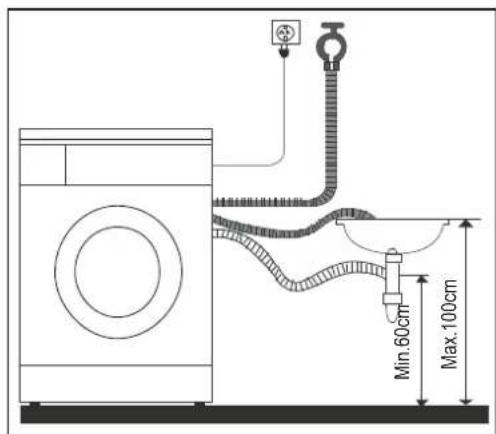

Water drainage

To plumb in the appliance, please use one of the following methods.

1. Push the hose firmly into a drainage standpipe.

OR

1. Connect the drain hose onto a sink outlet spigot securely.

Min. 60cm Max. 100cm

Downloaded from www.vandenbore.be

Mechanical assembly diagram showing a lever mechanism with a rotating knob (no text or symbols)

Diagram of a pipe fitting with a coiled spring, no text or symbols present

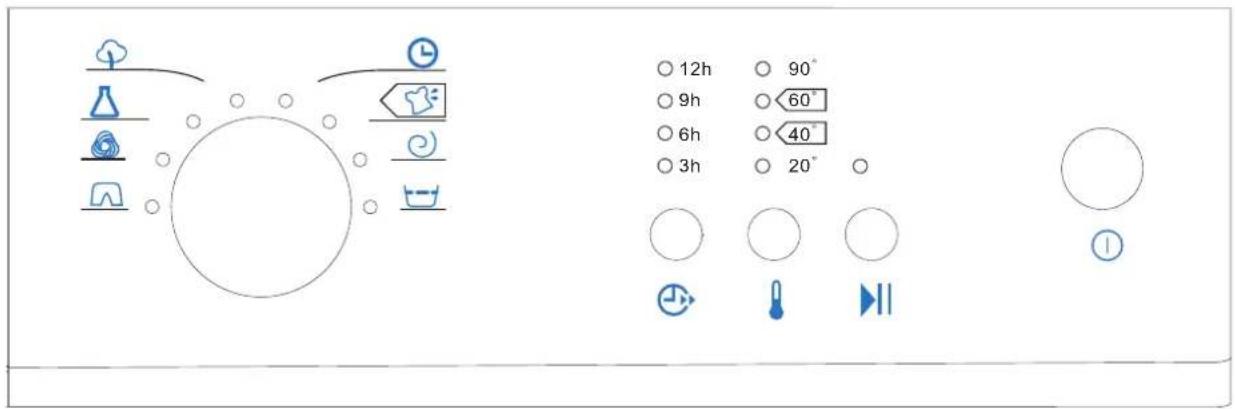

CONTROL PANEL

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 90° 60° 40° 3h 20° 1

Programme knob	Turn the knob to select the desired programme.There are 8 programmes available. After a programme is selected, the corresponding light will illuminate.
Delay button	Press the button repeatedly to select the delay time (3H, 6H, 9H or 12H) and the corresponding indicator light will illuminate. The appliance will start operation after the set time.
Temperature button	Press the button repeatedly to select the water temperature. The corresponding temperature indicator light will illuminate.
Start/Pause button	Press the button to start programmes and the indicator light will illuminate. Press again to pause, the indicator light will flash.
On/Off button	Press the button once to turn the appliance on. Press again to turn the appliance off.

OPERATION

Washing for the first time

Before washing clothes for the first time, you must run a complete cycle without clothes.

1. Press Ⓘ

2. Pour a little detergent into compartment II in the detergent drawer.

3. Turn on the water supply to the appliance.

4. Press ♩ repeatedly until 40°C is selected.

-The corresponding temperature indicator light will illuminate.

1. Press ||

Compartment I: Detergent for pre-wash.

Compartment II: Detergent for main wash, water softener, pre-soaking agent, bleach and stain removal product.

Compartment ✉ Additives, e.g. fabric softener or former

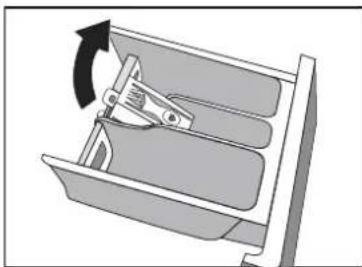

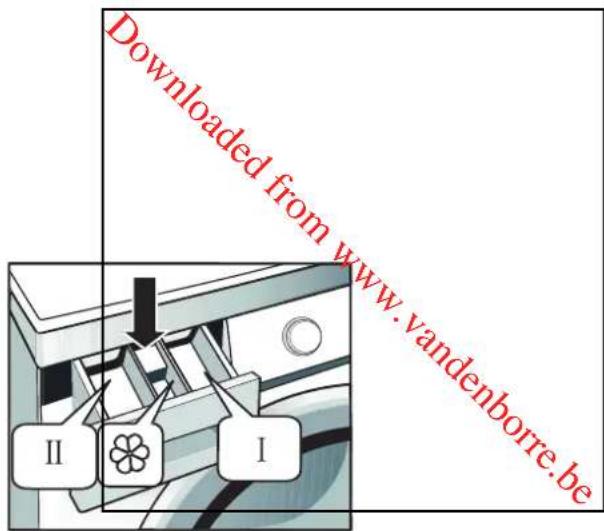

Putting detergent in the appliance

1. Pull out the detergent drawer.
2. Add laundry detergent into compartment II.
   3.Add softener into Compartment as desired.
   4.Add pre-wash detergent into compartment I as desired.

CAUTION: Concentrated detergent or additive shall be diluted with a little water before being poured into the compartment to prevent the overflow from becoming blocked.

Downloaded from www.vandenborre.be II I

Washing Clothes

1. Open the door to load the articles into the drum.

DO NOT OVERLOAD the appliance or your laundry may not wash properly. Please refer to the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type	Load Capacity
The maximum load of dry laundry:	PFL 105 W-F,PFL 105 W-E	PFL 126 W-F,PFL 126 W-E
Cotton	5kg	6 kg
Synthetic	2.5kg	3 kg
Wool	1.5kg	1.5 kg

1. Close the door.
2. Put the detergent and, if required, softener or pre-wash detergent, in the appropriate compartments.
3. Turn the water supply on and press ①

Delay timer: You can start the programme 3 hours, 6 hours, 9 hours or 12 hours later.

Repeatedly press 📋 to set a delay timer. The selected delay hours indicator light will illuminate.

1. Turn the programme knob to select the desired programme.
2. Press repeatedly to select the desired temperature.
3. Press ▶ and the appliance will begin the cycle.

-The start/pause indicator light will illuminate.

-To pause, press ▶ again but at the last 1 to 2 minutes before the end of a washing cycle, the pause function does not work.

1. When the cycle has finished, the start/pause indicator light will flash and the appliance will sound every 30 seconds for 5 minutes.
   9.Open the door.
2. Remove the laundry.

Programme chart

Programme	Max Load (Kg)		Detergent Compartment			Default Temperature / Maximum temperature (°C)	Default Running Time (Min)		Default Spin Speed (rpm)
			I II				5KG	6KG	5KG 6KG
Cotton	5	6	○	●	○	60/90	130	113	1000	1200
Synthetic		2.5	3	○	●	○	40/60	105	100	700
Wool		1.5	1.5	○	●	○	40/40	85	80	500
Jeans		5	6	○	●	○	40/90	108	110	1000
Quick		1.5	1.5	○	●	○	N/A / 40	15	15	1000
Cotton Intensive		5	6	○	●	○	40/90	140	130	1000
Spin		5	6	×	×	×	N/A	15	15	1000
Drum Clean		0	0	×	×	×	90 only	90	75	500

○ - Optional - Yes - NoX

NOTE:

The running time will vary depending on the water temperature and the load.

The standard 60°C cotton intensive programme and the standard 40°C cotton intensive programme are the standard washing programmes.

Washing Programme	Type of Laundry
Cotton	Bed sheets, quilt covers, pillowcases, gowns, underwear, etc.
Synthetic	Shirts, coats, curtains, laced textiles or similar other blends.
Wool	Only machine washable woollens.
Jeans	Jeans
Quick	Lightly soiled clothes
Cotton Intensive	Clothes for babies or people who have skin allergies

Temperature	Type of Laundry
90°C	Heavily soiled articles, pure white cotton or flax, e.g. coffee table cloths, canteen table cloths, towels, bed sheets.
60°C	Moderately soiled articles, colourful flax, cotton and synthetic articles with certain decolourising degree, e.g. shirts, pyjamas.Slightly soiled items, pure white flax, e.g. underwear
40°C, 20°C Cold water	Normally soiled articles, including synthetic and wool

Downloaded from www.vandenborre.be g. coffee table nd synthetic ds, pyjamas. ar

Changing the programme and temperature during operation

1. Press ▶ and the start/pause indicator light will flash.
   2.Turn the programme knob to select a new programme.
2. Press repeatedly to select the desired temperature.
3. Press ▶|to start washing. The start/pause indicator light will stop flashing.

Washing Tips and Hints

Sort your laundry according to the following characteristics:

-Type of fabric care label symbol: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayon.
-Colour: Divide whites and colours. Wash new, coloured items separately.
-Size: Placing articles of different sizes in the same load will improve the washing performance.
-Sensitivity: Wash delicate items separately. Check the labels on the items you are washing or refer to the fabric care chart below.

Graphic Symbol	Illustration	Graphic Symbol	Illustration
	Hand Wash	☒	No Machine Wash
	Washing (including Machine Wash and Hand Wash)	☒	Do not Wash
	Dry Clean	☒	No Dry Clean
	Warmly Dry Clean	☒	No Wring
	Bleach	☒	No Bleach
	Tumble dry	☒	Do not Tumble Dry
	Iron	☒	Do not Iron
	Steam Iron	☒	Iron with Cloth
	Medium Temperature and Max. Temperature 150 C	☐	Dry after Wash
	Line Dry	☐	Line Dry in Shade

-Empty pockets (key, coins, etc) and remove the harder decorative objects (e.g. brooches).

-Securing fasteners

Close zippers and fasten buttons or hooks; loose belts or ribbons should be tied together.

-Place small items such as socks, belts, etc. in a washing bag.

-When washing a single big and heavy dress such as Turkish towels, jeans, wadded jackets etc., it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

-Baby articles (baby clothes, towels and napkins) shall be washed separately.

If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.

Downloaded from objects (e.g. brooches). I be tied together. $,

Simple line drawing of a bag with internal objects, no text or symbols present

Two circular icons with X and V symbols, one containing a cross and the other filled with leafy greens.

-It is suggested that the items that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

-The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and thrum etc. Preferably, black clothes and cotton clothes shall be washed separately.

-Do not wash water-proof materials (ski suits, outside napkin pads, raincoats, umbrella, car covers, sleeping sacks, etc).

For fabrics that can not get soaked easily such as water-proof cushions and clothes, it is better not to wash in a washing machine. Otherwise there will be water bursting out or abnormal vibration to cause danger during rinsing and draining so that the clothes may be damaged.

-Detergent tips

The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, washing temperature, degree and type of soiling. Please use “low suds” laundry detergent.

NOTE: Do not add more detergent than needed. Please follow the usage recommendation on the detergent package.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, ask your water authority.

NOTE: Keep detergents and additives in a safe, dry place out of the reach of children.

CLEANING AND MAINTENANCE

Make sure that the appliance is unplugged from the mains socket.

Cleaning the exterior

Clean the appliance surface with a soft cloth dampened with soap liquid

Do not use organic chemicals or corrosive solvents.

Cleaning the drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Downloaded from www.vandenborre.be

Repairing a frozen washing machine

If the temperature drops below freezing and your washing machine is frozen:

1. Unplug the washing machine.
2. Pour warm water on the tap to loosen the water supply hose.
3. Remove the inlet hose and soak it in warm water.
4. Pour warm water into the drum and wait for 10 minutes.
5. Reconnect the inlet hose to the tap and check if the water supply and drain operations are normal.

NOTE: When the appliance is operated after repair, please make sure that the ambient temperature is above 0^ C.

Downloaded from www.vandenborre.be

Cleaning the detergent drawer and recess

1. Press the release lever inside of the detergent drawer and pull it out.

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

1. Remove the cap from compartment.

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

1. Clean all parts and drawer recess under running water.

2. Reinsert the cap by pushing it firmly into place.

5.Push the drawer back into place.

Diagram of a mechanical device with arrows indicating force or movement (no text or symbols)

Cleaning the inlet hose and the inlet filter

To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve filter regularly.

Diagram showing a pipe being inserted into a tank, with an inset close-up of the pipe (no text or symbols present)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols)

Illustration of a faucet and drain valve assembly with hands performing maintenance (no text or symbols)

Cleaning the drain pump

Close-up of hands installing a white plastic bag with a black arrow pointing to the part (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine with a circular arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

Drain the water out of the machine and then clean the drain pump.

Please inspect and clean the drain pump regularly.

Never remove the pump cover during a wash cycle. When replacing the pump cover, ensure it is securely tightened so as to stop leaks.

TROUBLESHOOTING

Problems Possible	Cause Possible Solutions
The washing machine will not start.	The door is not properly closed.	Close the door properly.
	Poor connection to the power supply.	Check connection to the power supply.
	Power failure Check the power supply.
	Machine has not been switched on.	Switch the machine on.
The door does not open.	Machine safety protection is working.	Unplug the machine from the mains socket.
Detergent remains in the detergent drawer after the programme is complete.	The detergent is not a low suds type.	Check if the detergent is appropriate.
	Excessive use of detergent	Reduce amount of detergent in the detergent drawer.
Washing machine vibrates or is too noisy.	Not all transit bolts have been removed.	Remove all transit bolts.
	Washing machine is located on an uneven surface or is not level.	Make sure the washing machine is set on an even surface and levelled.
	Machine load is over 5kg(for PFL 105) or 6 kg(for PFL 126).	Reduce amount of laundry in the drum.
The washing machine does not drain and/or spin.	Drain hose is blocked.	Unblock the drain hose.
	The filter is locked.	Unblock the filter.
	Drain hose end is higher than 100 cm above the floor.	Make sure the drain hose end is lower than 100 cm above the floor.
	Unbalance of the laundry	Add clothes or run a spinning programme again.

Error messages

Status of indicator light				Cause	Solution
90°C	60 °C	40°C	20°C
Off	Off Off		Flash	Door is not properly closed.	Close the door properly.
Off Off		Flash	Off	Water inlet error	Make sure the tap is turned on.Check the water pressure.Clean the water inlet filter.
Off Off		Flash Flash		Drainage error	Make sure the drain hose is not twisted or blocked.Make sure the drain hose is installed correctly.Clean the drain pump.

If error still exists, please contact the maintenance personnel.

TECHNICAL DATA SHEET

Below is the sheet of household washing machine according to EU Directive 1015/2010.

Manufacturer	Proline
Type/Description	PFL 126 W-F, PFL 126 W-E	PFL 105 W-F, PFL 105 W-E
Capacity	6 kg	5 kg
Spin Speed	1200 rpm	1000 rpm
Energy efficiency class 1	A^+	A^+
Annual energy consumption 2	196 kWh	169 kWh
Power consumption of off-mode	0.06 W	0.06 W
Power consumption of left-on mode	0.38 W	0.46 W
Annual water consumption 3	9900 L	9500 L
Spin-drying efficiency class 4	B	C
Standard washing cycle 5	Cotton intensive	Cotton intensive
Energy consumption of the standard 60° at full load	0.989 kwh	0.914 kwh
Energy consumption of the standard 60° at partial load	0.676 kwh	0.724 kwh
Energy consumption of the standard 40° at partial load	0.662 kwh	0.546 kwh
Programme duration of standard 60° at full load	215 min	217 min
Programme duration of standard 60° at partial load	161 min	208 min
Programme duration of standard 40° at partial load	178 min	202 min
Noise level of washing	62 dB	62 dB
Noise level of spinning	77 dB	75 dB
Mounting	Free standing	Free standing
Height	850 mm	850 mm
Width	595 mm	595 mm
Depth	470 mm	470 mm
Power consumption	2100 W	2100 W
Rate voltage/frequency	220-240V/50 Hz	220-240V/50 Hz
Water pressure	0.05-1 MPa	0.05-1 MPa

NOTE:

PFL 126 W-F, PFL 126 W-E

① A ^++ (highest efficiency) to D (lowest efficiency)
② Energy consumption 196 kWh per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption 9900 litres per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

4 Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)

5 The standard 60°C cotton intensive programme and the standard 40°C cotton intensive programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Downloaded from www.vandenborre.be ng cycles for standard option of the low-power is used. ng cycles for standard

PFL 105 W-F, PFL 105 W-E

① A ^++ (highest efficiency) to D (lowest efficiency)
② Energy consumption 169 kWh per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption 9500 litres per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class C on a scale from G (least efficient) to A (most efficient)
5 The standard 60°C cotton intensive programme and the standard 40°C cotton intensive programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Kesa Electricals © UK: EC1N 6TE 12/12/2012

PROLINE

WASMACHINE

MODEL :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

HANDLEIDING

Downloaded from www.vandenborre.be

INHOUDSOPGAVE

Downloaded from www.vandenborre.be

WAARSCHUWINGEN.... 34

BELANGRIJKE VEILIGHEIDSVOORZORGEN.... 34

BESCHRIJVING VAN HET APPARAAT.... 35

INSTALLATIE.... 36

BEDIENINGSPANEEEL.... 37

BEDIENING.... 38

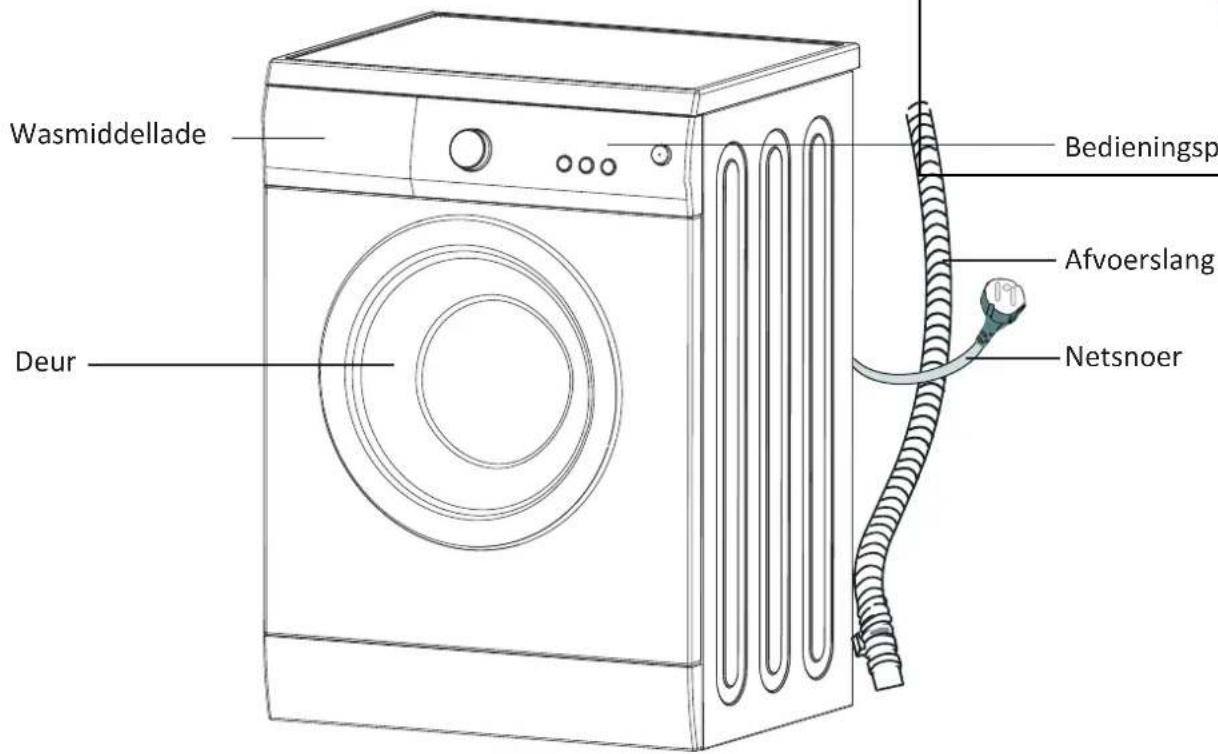

BESCHRIJVING VAN HET APPARAAT

Wasmiddellade Deur Bedieningsp Afvoerslang Netsnoer

Wasmiddellade

Accessoires

Downloaded from www.vandenbore.be

Mechanical assembly diagram showing a lever mechanism with a rotating knob (no text or symbols)

Diagram of a hand connecting a pipe to a spring, with no text or symbols present

BEDIENINGSPANEEEL

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 90° 9h 60° 6h 40° 3h 20°

Downloaded from www.vandenborre.be II I

Simple line drawing of a bag with a bag inside, containing a small object (no text or symbols)

Two circular icons with X and V symbols, one containing a cross and the other filled with food.

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Downloaded from www.vandenborre.be eze uit.

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Diagram showing a pipe being inserted into a tank, with an inset close-up of the pipe (no text or symbols present)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols)

Illustration of a faucet and drain valve assembly with hands performing maintenance (no text or symbols)

Close-up of hands installing a white plastic bag with a black arrow pointing to the part (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine with a circular arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

PFL 126 W-F, PFL 126 W-E

PFL 105 W-F, PFL 105 W-E

Kesa Electricals © UK: EC1N 6TE 12/12/2012

PROLINE

LAVADORA

MODELO :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

Downloaded from www.vandenborre.be

ADVERTENCIAS.... 50

Downloaded from www.vandenbore.be

Colocación

Mechanical assembly diagram showing a wrench inserted into a housing component with a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand connecting a pipe to a spring, no text or symbols present

Vaciado de agua

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 9h 6h 3h 90° 60° 40° 20°

Downloaded from www.vandenborre.be II I

Simple line drawing of a bag with a ribbon and small objects inside, no text or symbols present.

Two circular icons with X and V symbols, one containing a cross and the other filled with food.

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Downloaded from www.vandenborre.be la cubeta aigala.

2.Retire la tapa del compartimento.

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Illustration of a faucet with a handle and arrow indicating direction, alongside a close-up of the handle (no text or symbols)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols)

Illustration of a faucet and drain valve with hands performing a manual operation (no text or symbols)

ES

Close-up of hands installing a white plastic bag with a black arrow pointing to the part (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine with a circular arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

PFL 126 W-F, PFL 126 W-E

PFL 105 W-F, PFL 105 W-E

Kesa Electricals © UK: EC1N 6TE 12/12/2012

PROLINE

PRAČKA

MODEL :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

NÁVOD K OBSLUZE

Downloaded from www.vandenborre.be

OBSAH

UPOZORNĚNÍ......66

DŮLEŽITĚ BEZPEČNOSTNÍ POKYNY.... 66

POPIS PRÍSTROJE.... 67

MONTÁŽ 68

OVLÁDACÍ PANEL.... 69

PROVOZ....70

První praní.... 70

Illustration of a car drawer with internal compartments, no text or symbols present

Downloaded from www.vandenborre.be

Mechanical assembly diagram showing a lever mechanism with a rotating knob (no text or symbols)

Diagram of a pipe fitting with a coiled spring, no text or symbols present

OVLÁDACÍ PANEL

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 90° 60° 40° 3h 20° 1

Downloaded from www.vandenborre.be II I

Downloaded from www.vandenborre.be

Two circular icons with X and V symbols, each containing a leaf or vegetable inside, likely indicating selection or classification.

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Diagram showing a pipe being inserted into a tank, with an inset close-up of the pipe (no text or symbols present)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols visible)

Illustration of a faucet and drain valve assembly with hands performing maintenance (no text or symbols)

CZ

Close-up of hands installing a white plastic door panel with buttons and a black arrow pointing to the component (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine with a circular arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

PFL 126 W-F, PFL 126 W-E

PFL 105 W-F, PFL 105 W-E

Kesa Electricals © UK: EC1N 6TE 12/12/2012

PROLINE

PRÁČKA

MODEL :PFL 126 W-F

PFL 126 W-E

PFL 105 W-F

PFL 105 W-E

Line drawing of a front-loading washing machine with control panel and buttons (no text or symbols)

NÁVOD NA OBSLUHU

Downloaded from www.vandenborre.be

OBSAH

Downloaded from www.vandenborre.be

VAROVANIA....82

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY 82

POPIS ZARIADENIA.... 83

INŠTALÁCIA.... 84

OVLÁDACÍ PANEL 85

POUŽÍVANIE 86

Prvé pranie.... 86

Pridanie pracieho prostriedku do zariadenia.... 86

Pranie bielizne....87

Tabul'ka programov.... 88

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Illustration of a car drawer with internal compartments (no text or symbols)

Downloaded from www.vandenborre.be

Mechanical assembly diagram showing a lever mechanism with a rotating knob (no text or symbols)

Diagram of a pipe fitting with a coiled spring, no text or symbols present

OVLÁDACÍ PANEL

PFL 105 W-F/ PFL 126 W-F

PFL 105W-E/ PFL 126 W-E

12h 9h 6h 3h 90° 60° 40° 20°

Downloaded from www.vandenborre.be II I

Pridanie pracieho prostriedku do zariadenia

Simple line drawing of a money bag with a bag partially submerged in liquid, no text or symbols present.

Two circular icons with X and V symbols, each containing a leaf or vegetable inside, likely indicating a classification or comparison.

Diagram of a mechanical device with arrows indicating direction, no text or symbols present

Downloaded from vytiahnite ho. www.vandenborre.be

2.Vyberte kryt z priehradky.

Diagram of a mechanical device with a lever mechanism, showing rotational motion (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Diagram showing a pipe being inserted into a tank, with an inset close-up of the pipe (no text or symbols present)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols)

Illustration of a faucet and drain valve assembly with hands performing maintenance (no text or symbols)

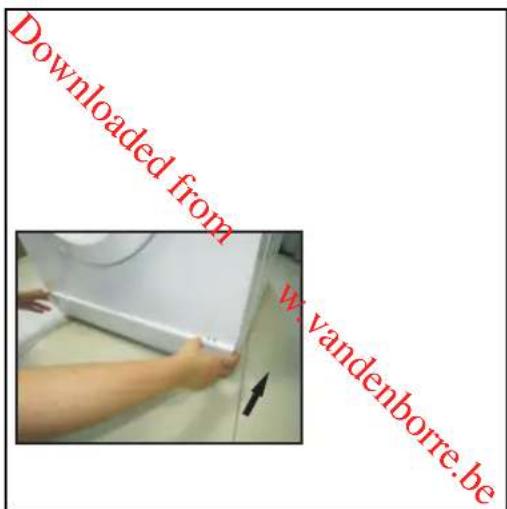

Close-up of hands installing a white plastic door panel with buttons and a black arrow (no visible text or symbols)

Hand pressing a button on a white electronic device with a circular arrow indicating rotation (no text or symbols visible)

Hand pressing down on a white washing machine button with an arrow indicating rotation (no text or symbols visible)

Downloaded from w.vandenborre.be

PFL 126 W-F, PFL 126 W-E

PFL 105 W-F, PFL 105 W-E

Kesa Electricals © UK: EC1N 6TE 12/12/2012
