USER MANUAL FP1012WH PROLINE

https://eprel.ec.europa.eu/screen/product/washingmachines2019/1244846

https://eprel.ec.europa.eu/screen/product/washingmachines2019/1244846

Child Lock. p. 104
Buzzer. p. 105
Drum Clean .p. 105
Power-off Memory Function.. p. 106

CLEANING AND MAINTENANCE. p. 107
TROUBLESHOOTING. p. 111
C REPAIR AND SPARE PARTS SERVICE. p. 120
DISPOSAL. p. 121

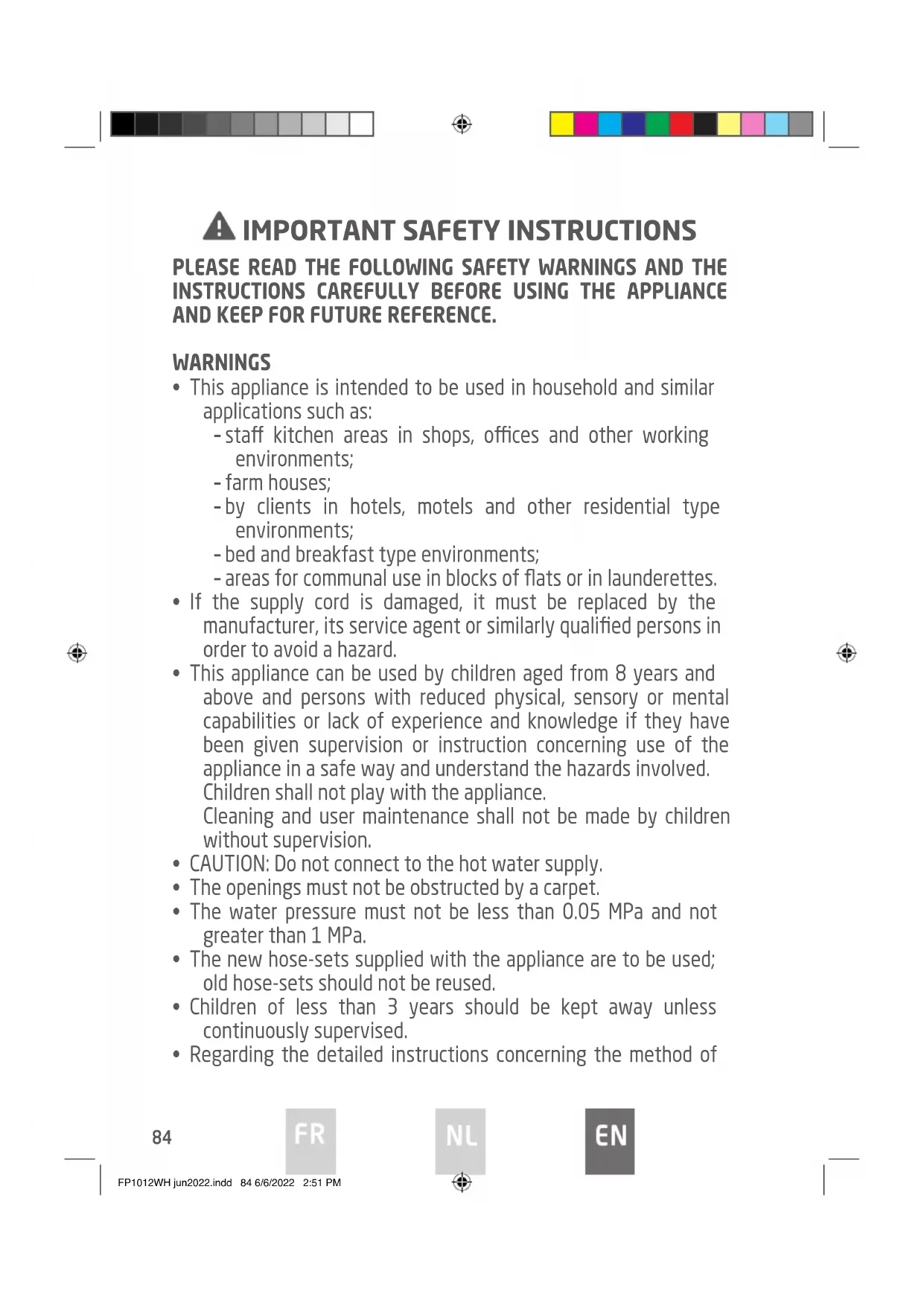

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

-farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• areas for communal use in blocks of flats or in launderettes.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• CAUTION: Do not connect to the hot water supply.

• The openings must not be obstructed by a carpet.

• The water pressure must not be less than 0.05MPa and not greater than 1MPa .

• The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

Children of less than 3 years should be kept away unless continuously supervised.

• Regarding the detailed instructions concerning the method of

cleaning, please see section "CLEANING AND MAINTENANCE" on page 107-110.

• The maximum mass of dry textile material that to be used in this appliance is 10kg .

Safety Precautions

The appliance is for indoor use only.
- Keep the packing materials of the appliance away from children to avoid hazards.
- Do not plug the appliance to the power supply with wet hands.
- Never touch the appliance with wet hands or feet.
- In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agent.
- Do not exceed the maximum loading capacity.
- The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
- Never force the door to open when the appliance is running. The door will unlock shortly after the end of a cycle.
- Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
- Do not leave children unattended near the appliance since they might lock themselves up into it.
Always unplug the appliance and turn off the water supply after use.
- Animals and children may climb into the machine. Check the machine before every operation.
- The plug must be remained easily accessible after installation of the appliance.
- Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning

solvents, kerosene, etc.). This may result in fire or explosion.

• The appliance shall not be installed in bath room or very wet rooms as well in the rooms with explosive or caustic gases.
• Do not operate the appliance at temperatures below 5^ .

• Before Transport :

• Bolts shall be reinstalled to the machine by a specialized person.

• Accumulated water shall be drained out of the machine.

• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer.

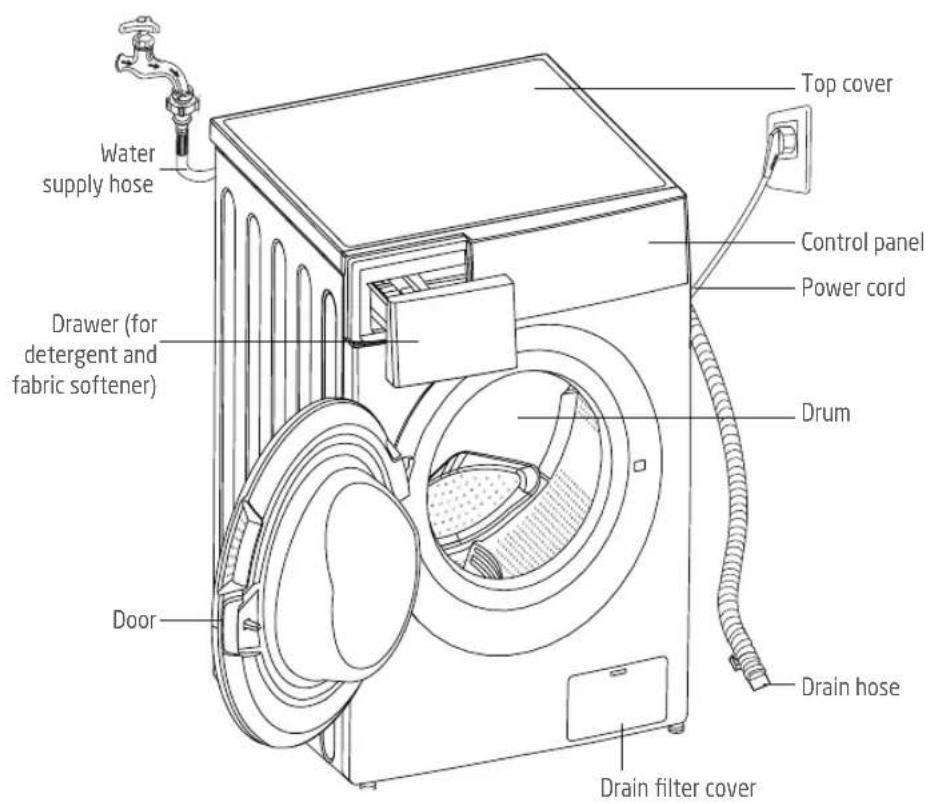

PRODUCT OVERVIEW

Accessories

Cover caps x 4 Water supply hose (cold water)

FR

NC

EN

INSTALLATION

Removing packing

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing. This will require 2 or more people.

Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.

1. Remove the tape securing the power supply cord and drain hose.
2. Remove the inlet hose from the drum.

WARNING:

Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

There is a risk of suffocation! Keep all packaging away from children.

Removing transit bolts

To prevent internal damage during transport, the 4 special bolts are locked.

Before operating the washing machine, remove the bolts along with the rubber bungs.

If they are not removed, it may cause heavy vibration, noise and malfunction.

1. Unscrew the bolts with a spanner.

1. Take out the bolts along with the rubber bungs by slightly twisting the bung. Keep the transit bolts for future use.

1. Close the holes with the caps supplied.

Positioning

Install the appliance on a flat hard floor.

Make sure that air circulation around the appliance is not impeded by carpets, rugs, etc.

Allow at least 2cm of clearance at each side of the appliance.

Make sure that the appliance does not stand onto the power cord.

Installation location requirements

Before installing the appliance, the location characterised as follows shall be selected:

Rigid, dry, and level surface
- Avoid direct sunlight
- Sufficient ventilation
- Room temperature is above 0^
- Keep far away from heat resources such as coal or gas burning appliances.

The ambient temperature of the washer should be 5 - 40^ . If used under 0^ , the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

Levelling the appliance

Levelling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface.

If the floor is uneven, turn the adjustable feet as required.

• Never put cartons, wooden blocks or similar materials under the feet.

1. Loosen the lock nuts with a spanner.
2. Turn the adjustable feet to adjust the height. Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level using a spirit level.
3. Tighten the lock nuts.

Electrical connection

Your washing machine works with 220-240V and 50Hz.

Electrical connections must be carried out by a qualified technician in compliance with the local safety regulations.

Your washing machine must be properly earthed. We will not be held responsible for any damage that may occur as a result of usage without correct earth connection.

Do not use extension leads or multi-sockets.

The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.

Do not pull the plug out of the mains outlet if there is flammable gas around.

Connecting the hoses

Connecting the water supply hose

1. Attach one end of the hose to the water inlet on the appliance and tighten by hand.

1. Attach the other end of the hose to the tap and tighten by hand.

90

FR

NC

EN

NOTE:

After completing connection, turn on the tap slowly and make sure there are no leak.

Do not twist, squash, modify or cut the hose.

Connecting the drain hose

To connect the drain hose, please use one of the following methods.

Make sure that the drain hose is not bent, crushed or extended.

• Put the hose into a drain hole.

• Connect the drain hose onto a sink outlet spigot securely.

The drain hose should not be placed higher than 100cm above the floor.

Water in the appliance does not drain or drains slowly if above this height.

BEFORE EACH WASHING

Please check your laundry care labels and the detergent use instructions before wash.

Use non-foaming or less-foaming detergent suitable for machine washing properly.

1. Read the care label of clothes.

This will tell you about the fabric content of your garment and how it should be washed.

1. Sort laundry according to colour, textile type, soiling and washing temperature.

Always sort dark colours from pale colours and whites.

Separate white fabrics from coloured fabrics.

Separate clothes according to amount of soil.

1. Check all pockets to make sure that they are empty.

Items such as nails, hair clip, matches, coins and keys can damage both your clothes and washing machine.

1. Tie strings on aprons, etc. Close zippers, hooks and strings to make sure that these items don't snag on other clothes.

1. Put small size clothes such as bras, nylon stockings and lace items in a laundry bag

1. Turn easy-pilling and long-pile fabric inside out.

NOTE:

Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.

Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.

FR

NL

EN

93

Detergent

Read instructions on the packet of detergent or other agent, for correct quantity depending on the amount of laundry, degree of soiling, and water hardness.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey

built-up of limescale deposits on the drum, the heating element and/or the laundry

Detergent recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60	40°C / 60°C	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton	20°C / 40°C	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Cotton, Synthetic	20°C / 40°C	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20°C Delicate textiles, silk, viscose
Special wool detergent	Wool	20°C / 40°C	Wool

NOTE:

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption.
  To achieve the best cleaning result a proper detergent dosing is important.
• If too many suds occur, please reduce the detergent amount.
• Always adjust the amount of detergent according to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

WASHING

NOTE:

• Before washing, please make sure the washing machine is installed properly.
• Your appliance is thoroughly checked before it leaves the factory. To remove any residual water and to neutralize potential odors, it is recommended to clean your appliance before first use. For this reason, start the Cotton program at 90^ without laundry and detergent.

Calibration :

It's recommended to calibrate the washing machine, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1. Remove all accessories from the drum and close the door.
2. Plug in the appliance.
3. Switch on the washing machine and press Départ Diffé ré Température simultaneously for 10 seconds until "t19" is displayed.
4. Press Depart to the appliance and wait till **** is displayed.

1. Turn on the tap.

2. Plug in the appliance.

1. Sort the laundry and put it into the dr

Do not get laundry caught in the door. It can cause damage to the door seal.

Do not put too much laundry into the drum. It can cause excessive vibration or damage to the appliance.

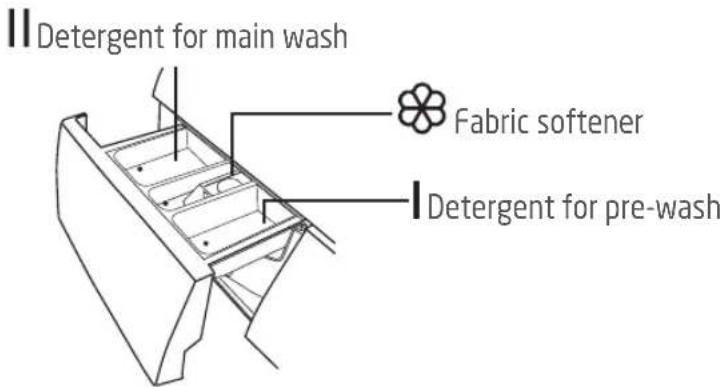

1. Add the detergent according to the amount of laundry, degree of soiling, water hardness and manufacturer's instructions.

Pour liquid detergent into the appropriate dispenser drawer and push in the appliance.

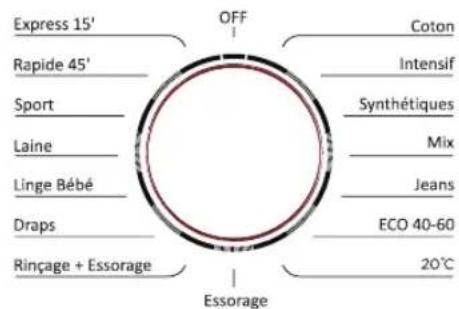

1. Select a programme by turning the programme selector.

The required time will be displayed.

The programme selector is also used for switching the machine on or off.

It can be rotated in either direction.

For detailed overview of programmes, see Programme Chart.

1. Temperature and spin speed can be selected individually.

The selected temperature and spin speed will be displayed.

Température

Repeatedly press this button to select the temperature.

(Cold, 20^ , 40^ , 60^ , 90^ )

Repeatedly press this button to select the spin speed. (0-400-600-800-1000-1200 rpm)

1. After selecting a programme, you can add the following optional functions.

Press this button to select the optional functions. The corresponding function indicator light will illuminate.

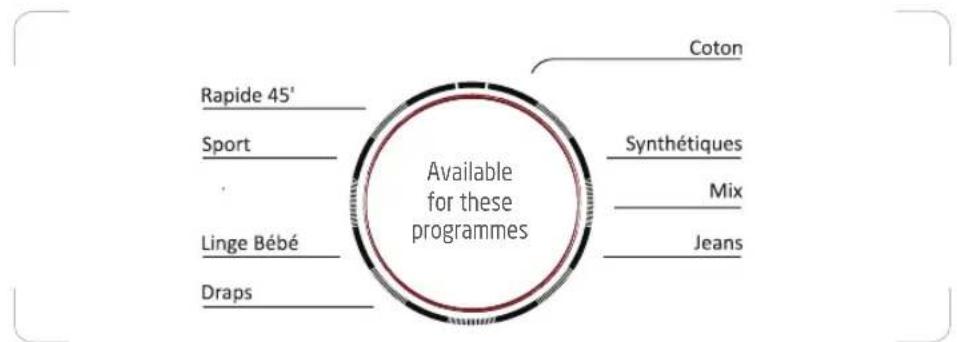

Prewash

You can use this function to wash laundry twice before main wash and it is suitable for heavily soiled, hard-wearing washing, e.g. made of cotton or linen.

When selecting this function, put detergent in the detergent compartment.

98

FP1012WH jun2022.indd 986/6/2022 2:51 PM

FR

NC

EN

Press this button to select the optional functions.

The corresponding function indicator light will illuminate.

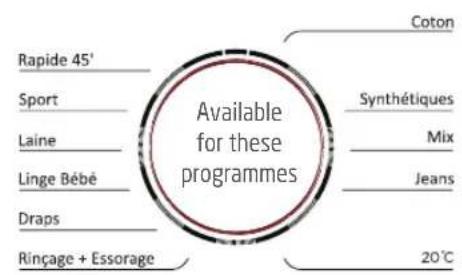

Extra rinse

If you can concerned that some detergent may remain in your laundry, you can add an extra rinse process.

1. You can use the delay start function to set the machine to start a cycle at a set time.

Départ Différé

Repeatedly press this button to set the desired delay start time up to 24 hours (in increments of 1 hour).

The set time will be displayed.

To cancel the setting, repeatedly press this button until the display shows "Oh". If the programme is already started, switch off the machine by turning the programme selector to the OFF position. Then turn the programme selector to select a desired programme.

1. Start a programme.

Press this button to start operation.

• If you set the delay start function, this function will be activated. When the set time has elapsed, the machine will automatically start running a cycle.

Change a programme

If you have mistakenly selected a wrong programme, please follow steps below to reselect a programme.

1. Turn the programme selector to the Off position.
2. Turn the programme selector to select a programme.
3. Press the Start/Pause button to start the programme.

100

R

NC

EN

Door lock

For safety reasons, the door will lock while the machine is in operation and this door lock indicator light will illuminate.

1. At the end of a programme, the machine will beep and the display will show "End".

Switch off the machine by turning the programme selector to the OFF position.

Turn off the tap.

When the door lock indicator light goes out, you can open the machine door and remove laundry.

FR

NC

EN

PROGRAMME CHART

Programme Load	(kg)	Default Temp.	Default spin speed (r/min)	Display time	Detergents and Additives
					Pre-wash	Main wash	Softener
Coton Cotton	10.0 40°C 800 3:39				○	●	○
Intensif Intensive	10.0 40°C 800 3:48					●	○
Synthétiques Synthetic	5.0 40°C 800 3:18				○	●	○
Mix Mix	10.0 40°C 1000 1:20				○	●	○
Jeans	10.0 60°C 1000 1:45				○	●	○
ECO 40-60	10.0 - 1200 3:59					●	○
20°	5.0 20°C 1000 1:01					●	○
Essorage Spin Only	10.0 - 1000 0:12
Rinçage + Essorage Rinse & Spin	10.0 - 1000 0:20						○
Draps Bulky/Bedlinen	5.0 40°C 1000 1:48				○	●	○
Linge Bébé Baby care	10.0 60°C 800 1:42				○	●	○
Laine Wool	2.0 40°C 600 1:07					●	○
Sport Sport Wear	10.0 20°C 800 0:47				○	●	○
Rapide 45' Rapid 45'	2.0 40°C 800 0:45				○	●	○
Express 15' Quick 15'	2.0 Cold 800 0:15					●	○
Nettoyage Tambour Drum clean	-90°C -1:18

= dosing required / optional

102

FP1012WH jun2022.indd 1026/6/2022 2:51 PM

FR

NC

EN

Programme Description
Coton Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Intensif Intensive	When washing heavily soiled laundry, you can select this programme to increase the washing effectiveness, and the washing time is increased.
Synthétiques Synthetic	Wash synthetic articles, for example: shirts, coats, blending. When washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix Mix	Mixed load consisting of textiles made of cotton and synthetics
Jeans	Select this programme when washing jeans.
ECO 40-60	Default 40°C, not selectable, suitabale for laundry washing at 40°C - 60°C.
20°	When washing brightly colored clothes, you can select this programme to protect colours from running.
Essorage Spin Only	Extra spin with selectable spin speed
Rinçage + Essorage Rinse & Spin	Extra rinse with spin
Draps Bulky / Bedlinen	Select this programme when washing bulky items / bedlinen.
Linge Bébé Baby care	When washing the baby's clothes, you can select this programme. This programme helps make the baby's clothing cleaner and make the rinse performance better to protect the baby skin.
Laine Wool	This programme is specially for washing hand or machine-washable wool or rich-wool textiles. You can select this particularly gentle wash programme to prevent laundry from shrinking, with longer pauses in the programme (during which the items rest in the water).
Sport Sport Wear	Select this programme when washing the activewear.
Rapide 45' Rapid 45'	Select this programme when quickly washing few clothes which are not very dirty.
Express 15' Quick 15'	Select this programme when washing lightly soiled clothes for a short period of time.

FR

NC

EN

ADDITIONAL FUNCTIONS

Child Lock

You can lock the buttons and programme selector to prevent children from tampering the washing cycle settings.

Activating this function

Température Options

Pres.3sec

Press and hold the two buttons simultaneously for 3 seconds.

Beeps will sound and the child lock indicator light will illuminate.

The remaining time and "CL" will flash alternately on the display.

NOTE:

When the child lock is set, all buttons are locked except the programme selector off position.

Deactivating this function

Température Options

Pres.3sec

Press and hold the two buttons simultaneously for 3 seconds.

104

FR

NC

EN

Beeps will sound and the child lock indicator light will go out.

NOTE:

Switching off the machine will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Buzzer

Essorage

Pres.3sec

Press this button for 3 seconds. Beeps will sound and the buzzer is cancelled.

To activate the buzzer, press this button for 3 seconds again. Beeps will sound and the buzzer is activated.

Drum Clean

It is important that you regularly clean the inside of your washing machine using the 'Drum Clean' cycle.

Nettoyage

Tambour

After about 25 cycles, the indicator light on the Drum Clean button will flash to remind you to perform the drum clean cycle. Press and hold this button for 3 seconds to cancel the remind. The indicator light will go out.

1. Remove any clothing or items from the washing machine and close the door.

2. Open the dispenser drawer and place drum cleaning detergent to the main wash compartment II.

3. Follow the instructions of the drum cleaning detergent.

4. Press the Drum Clean button and then press the Start/Pause button to start the cycle.

FR

NC

EN

Power-off Memory Function

Your washing machine has a memory function to ensure the smooth running of the washing programme by automatically resuming the last wash cycle when power is restored after a power-cut.

CLEANING AND MAINTENANCE

WARNING :

Always unplug the appliance and turn off the water tap before cleaning and maintenance.

Cleaning the Machine Housing

Wipe with a soft, damp cloth.

Do not use chemical or abrasive cleaning agents.

Immediately remove washing and cleaning agent residue.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

To descale the drum, run the Drum Clean cycle with the descending agent according to the manufacturer's instructions for correct detergent dosage.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the machine.

Cleaning the Inlet Filter

Clean the inlet filter if water is not supplied properly.

If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is recommended to clean the inlet filter from time to time.

1. Turn off the water tap. Remove the hose from the tap.

2. Clean the filter using a brush.

3. Unscrew

the supply

1. Pull out the filter with long nose pliers. Clean the filter using a brush.

Reinstall the filter to the water inlet and reconnect the water supply hose.

Reconnect the hose onto the tap.

Cleaning the Detergent Drawer

! NOTE:

It is recommended to clean the detergent drawer from time to time. Never use chemical or abrasive cleaning agents.

1. Press the release button to pull the detergent drawer out of the machine.

2. Clean the dispenser drawer under water.

1. Clean inside the recess with a brush.

2. Insert the dispenser drawer into the machine.

Cleaning the Drain Pump Filter

The drain pump filter collects threads and small objects left in the laundry.

Check regularly that the filter is clean to ensure smooth running of your machine.

FR

NC

EN

WARNING :

Be careful when draining if the water is hot. Allow the water to cool down before cleaning the drain pump filter. Risk of scalding! Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

1. Press the tab on the cover to open the cover.

2. Remove the filter by turning it anticlockwise.

1. Remove any extraneous matter from the filter.

2. After cleaning, replace the filter by turning it clockwise until it is in place. Close the cover until a click is heard.

TROUBLESHOOTING

Problem Possible Cause Solution
Appliance does not start.	Door is not closed properly.	Close the door properly and restart.
	Clothes are stuck. Check the laundry.
Door cannot be opened.	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet hose. Check and clean the outlet hose.
Detergent residues in the detergent drawer	Detergent is damp and/or clotted..	Clean and wipe the detergent drawer dry.
Indicator or display does not work.	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Transit bolts are still in place.	Check if the transit bolts have been removed.
	Floor is not solid or level.	Make sure the appliance is installed on a solid and level floor.

Error codes

Display Possible Cause Solution
E30	Door is not closed properly. Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter.
E21	Overtime water draining Check the drain hose for blockage.
E12	Water overflow Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and household washer-dryers

Supplier's name or trade mark: Etablissements Darty & fils © | Proline

Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France

Model identifier: FP1012WH

General product parameters:

Parameter Value Parameter Value
Rated capacity (a) (kg)	10,0		Dimensions in cm	Height 85
				Width 60
				Depth 59
Energy Efficiency Index(a) (EElw)	60,0		Energy efficiency class (a)		B
Washing efficiency index(a)	1,031		Rinsing effectiveness (g/kg) (a)		5,0
Energy consumption in kWh per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used.	0,593		Water consumption in litre per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.		52
Maximum temperature inside the treated textile(a) (°C)	Rated capacity	40	Weighted remaining moisture content (a) (%)		62,9
	Half	36
	Quarter	22

Spin speed (a)(rpm)	Rated capacity	1200	Spin-drying efficiency class (a)	C
	Half	1200
	Quarter	1200
Programme duration (a) (h:min)	Rated capacity	3:59	Type	free-standing
	Half	3:00
	Quarter	3:00
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (a) (spinning phase)	B
Off-mode (W) (if applicable)	0,50		Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4,00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier: 24 months
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found: www.darty.com

(a) for the eco 40-60 programme.
To find the model information in the product database :
Click the link
https://eprel.ec.europa.eu/screen/product/washingmachines2019/1244846

Values for the following programmes:

The eco 40-60 programme at the rated capacity
a. rated capacity in kg:	10 kg
b. programme duration, expressed in hours and minutes:	3:59
c. energy consumption, expressed in kWh/cycle:	1,015 kWh/cycle
d. water consumption, expressed in litres/cycle:	70,6 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	40°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	63% 1200 rpm

The eco 40-60 programme at half of the rated capacity
a. rated capacity in kg:	5 kg
b. programme duration, expressed in hours and minutes:	3:00
c. energy consumption, expressed in kWh/cycle:	0,635 kWh/cycle
d. water consumption, expressed in litres/cycle:	55,3 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	36°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	63% 1200 rpm

The eco 40-60 programme at a quarter of the rated capacity

a. rated capacity in kg:	2,5 kg
b. programme duration, expressed in hours and minutes:	3:00
c. energy consumption, expressed in kWh/cycle:	0,286 kWh/cycle
d. water consumption, expressed in litres/cycle:	38,8 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	22°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	63%1200 rpm

The 20^ programme at the rated capacity for this programme

a. rated capacity in kg:	5 kg
b. programme duration, expressed in hours and minutes:	1:01
c. energy consumption, expressed in kWh/cycle:	0,195 kWh/cycle
d. water consumption, expressed in litres/cycle:	51 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	20°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	65 %1000 rpm

One cotton programme at nominal temperature higher than or equal to 60^ (if present) at the rated capacity for this programme Coton

a. rated capacity in kg:	10 kg
b. programme duration, expressed in hours and minutes:	3:44
c. energy consumption, expressed in kWh/cycle:	1,708 kWh/cycle
d. water consumption, expressed in litres/cycle:	85 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	60°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	70% 800 rpm

One programme for other textiles than cotton or a mix of textiles (if present) at the rated capacity for this programme Mix

a. rated capacity in kg:	10 kg
b. programme duration, expressed in hours and minutes:	1:20
c. energy consumption, expressed in kWh/cycle:	0,871 kWh/cycle
d. water consumption, expressed in litres/cycle:	85 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	40°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	65% 1000 rpm
One programme for the quick washing of lightly soiled laundry (if present) at the rated capacity for this programme Express 15'
a. rated capacity in kg:	2 kg
b. programme duration, expressed in hours and minutes:	0:15
c. energy consumption, expressed in kWh/cycle:	0,03 kWh/cycle
d. water consumption, expressed in litres/cycle:	31 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	Cold
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	70% 800 rpm

One programme for heavily soiled textiles (if present) at the rated capacity for this programme Intensif
a. rated capacity in kg:	10 kg
b. programme duration, expressed in hours and minutes:	3:48
c. energy consumption, expressed in kWh/cycle:	1,13 kWh/cycle
d. water consumption, expressed in litres/cycle:	85 L/cycle
e. maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade:	40°C
f. remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved:	70% 800 rpm

NOTES :

• The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle.
• This programme is used to assess the compliance with the EU ecodesign legislation.
• The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
• The values given for programmes other than the eco 40-60 programme and the wash cycle are indicative only.

Ratings	220-240V~, 50Hz 2000W
Max. current	10A
Water pressure	0.05 – 1 MPa
Grade of waterproof	IPX4

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at:

Vanden Borre

in alle vertrouwen

www.darty.com

0978 970 970

24 Hours

7 Days a week

responsible retailer we care about the environment. As such we

urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

DRUM WASHING MACHINE

Proline

Marque -

Brand/Merk/Marca:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017/A11:2020

EN 55014-2:2015

ENIEC61000-3-2:2019

EN 61000-3-3:2013/A1:2019

LVD:

EN 60335-1:2012/A2:2019

EN 60335-2-7:2010/A2:2019

EN 62233:2008

ErP:

(EU) No 2019/2014
(EU) No 2019/2023
(EU) No 2021/340
(EU) No 2021/341
EN 60456:2016/A11:2020

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivy-sur-Seine, mai 25, 2022

PROLINE
