USER MANUAL FP 105 E PROLINE

Washing for the first time. 25
Putting detergent in the appliance. 25
Washing Clothes. 26
Programme chart. 27

Changing the programme and temperature during operation

28
Washing Tips and Hints 28

CLEANING AND MAINTENANCE 30

Cleaning the exterior. 30
Cleaning the drum. 30
Repairing a frozen washing machine 30
Cleaning the detergent drawer and recess 31
Cleaning the inlet hose and the inlet filter 31
Cleaning the drain pump. 32

TROUBLESHOOTING 32

TECHNICAL DATA SHEET 33

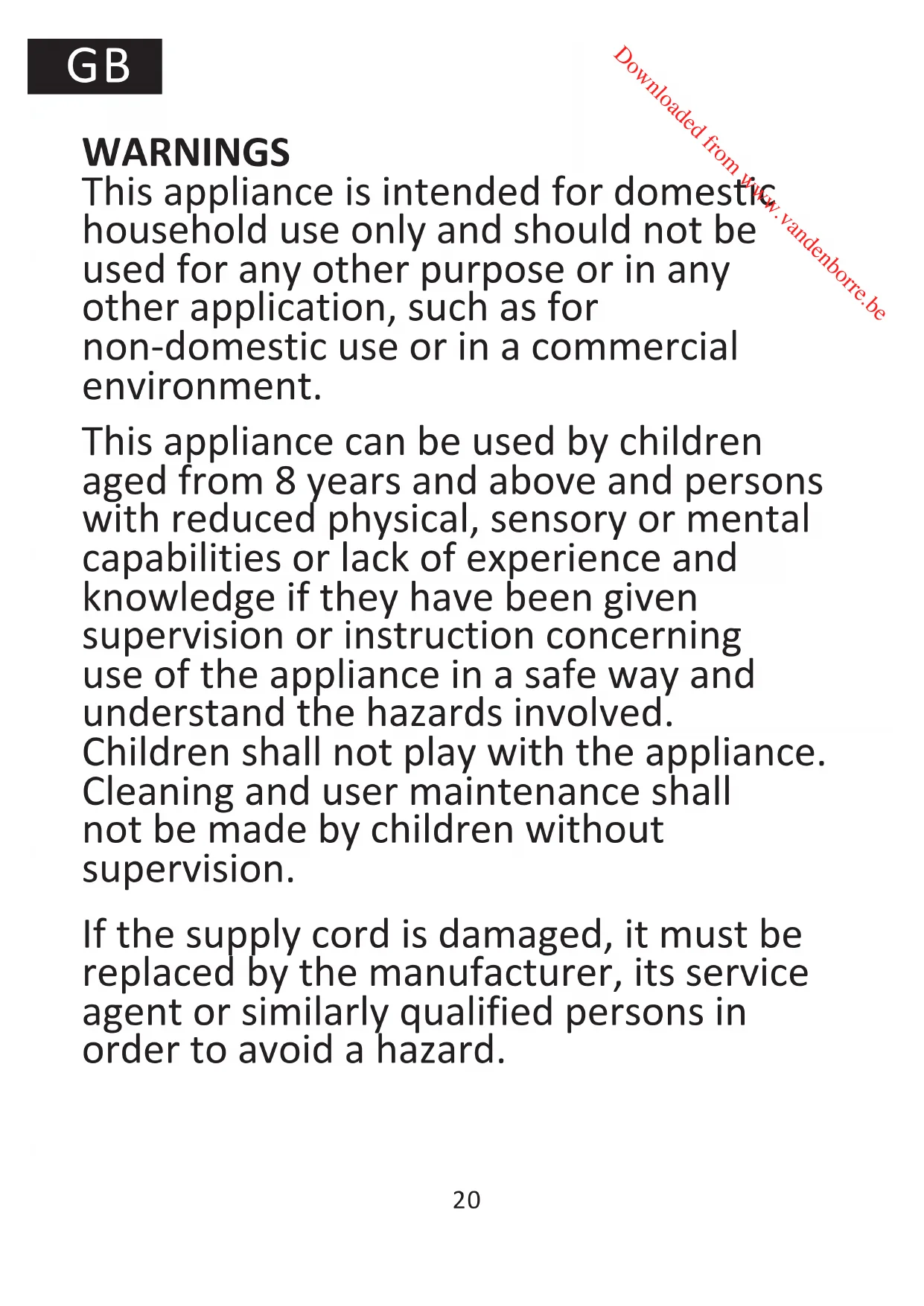

WARNING

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

For the details concerning the method of cleaning, please see section "Cleaning and maintenance" on pages 30 - 32.

CAUTION: Do not connect to the hot water supply.

The openings must not be obstructed by a carpet.

The water pressure must not be less than 0.05 MPa and not greater than 1 Mpa .

The maximum mass of dry clothes to be used in the washing machine is 5 ~kg .

IMPORTANT SAFETY INSTRUCTIONS

• Keep the packing materials of the appliance away from children to avoid hazards.

• Do not plug the appliance to the power supply with wet hands.

• Never touch the appliance with wet hands or feet.

• In the event of any failure, first unplug the appliance and close the water tap.

• Keep the packing materials of the appliance away from children to avoid hazards.

• Do not plug the appliance to the power supply with wet hands.
• Never touch the appliance with wet hands or feet.

• In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agen

• Do not exceed the maximum loading capacity.

• The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
• Always unplug the appliance and turn off the water supply after use.

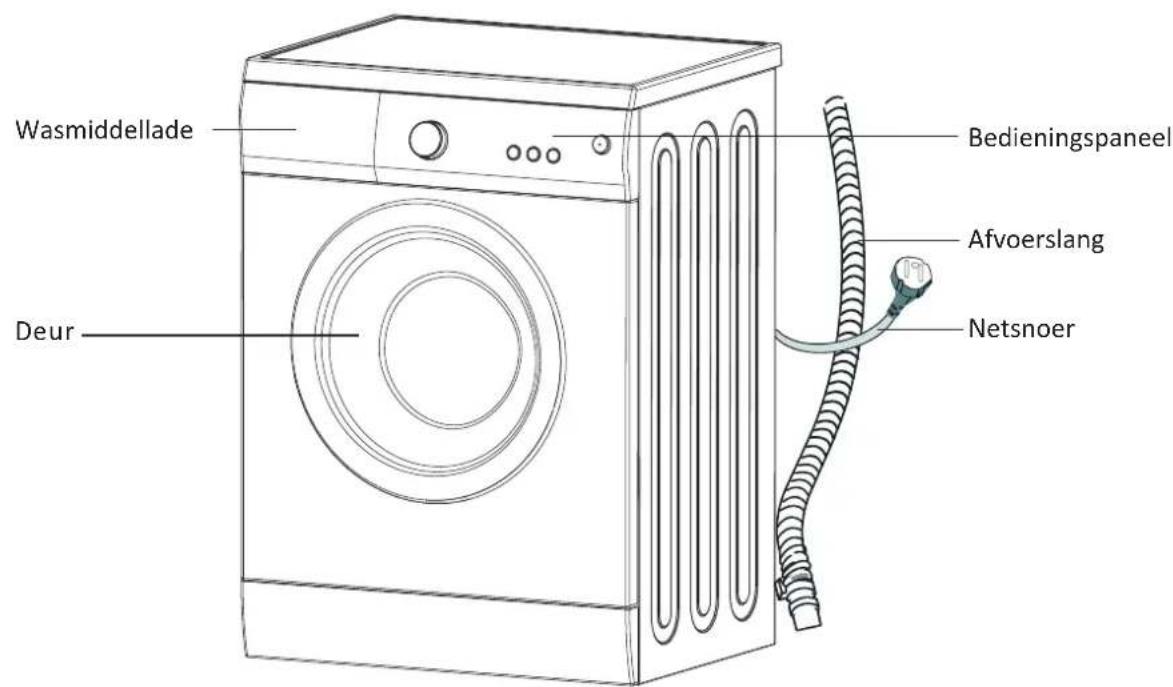

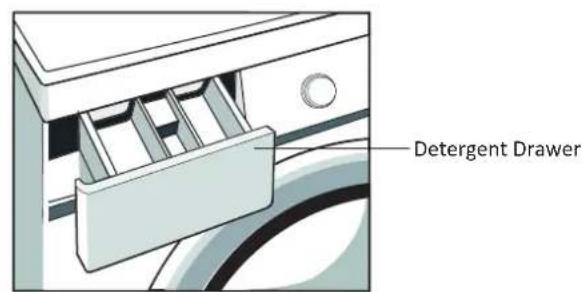

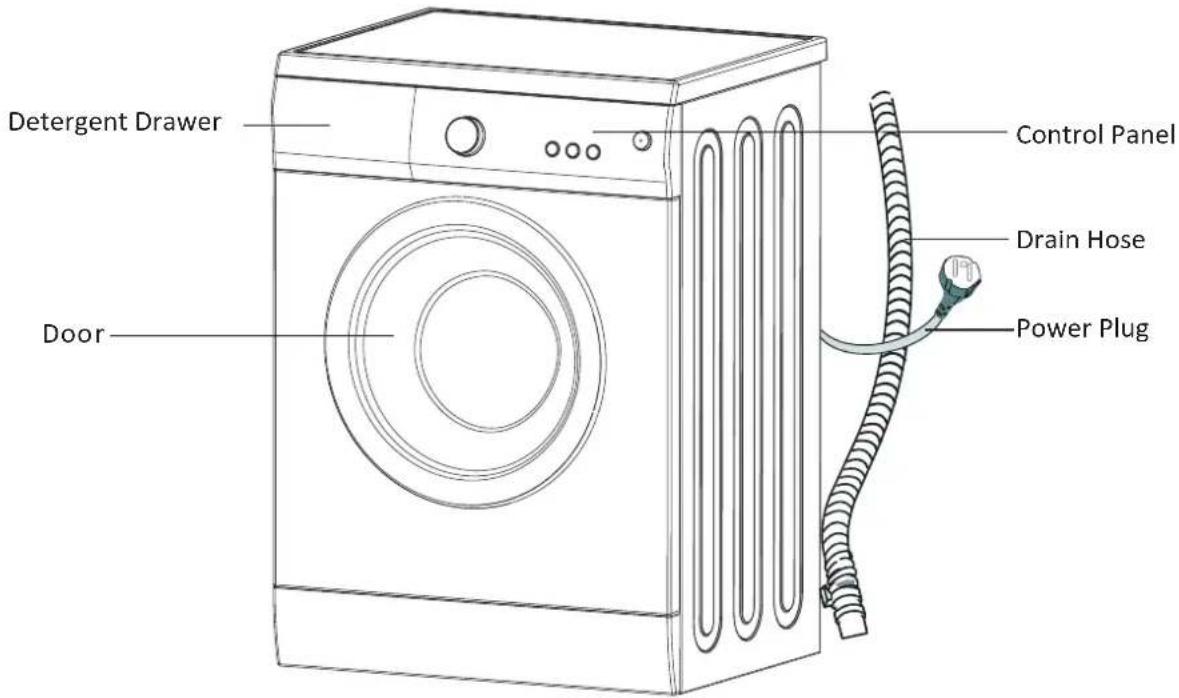

DESCRIPTION OF THE APPLIANCE

Accessories

Transport hole plug

Water inlet pipe

INSTALLATION

Unpacking

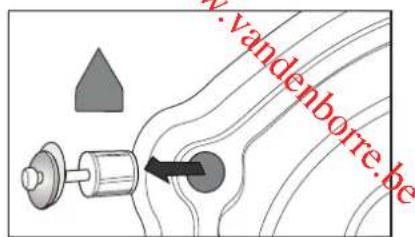

All transit bolts at the rear of the appliance and packing must be removed before using the appliance.
Keep all packaging away from children.

Keep all the transit bolts for re-use in case the appliance is to be transported again.

Positioning

Install the appliance on a flat hard floor.
Make sure that there is sufficient air circulation around the appliance.
Do not install the appliance on the carpet floor.

Levelling

Level the appliance by raising or lowering the feet.
Loosen the lock nut using a spanner (not supplied) and turn the foot by hand until it contacts the floor.
Hold the foot with one hand and fasten the nut against the cabinet with a spanner.

Accurate levelling prevents vibration, noise and displacement of the appliance during operation.

Water inlet

Screw one end of the inlet hose on the back of the appliance. The appliance must be connected to a cold water supply. Connect the other end of the inlet hose to a tap with a 3/4'' thread.

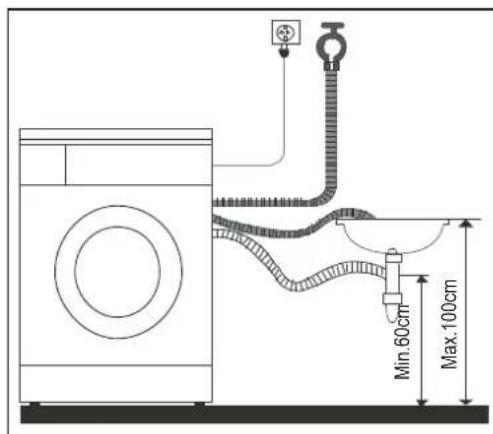

Water drainage

To plumb in the appliance, please use one of the following methods.

1.Push the hose firmly into a drainage standpipe.

OR

1. Connect the drain hose onto a sink outlet spigot securely.

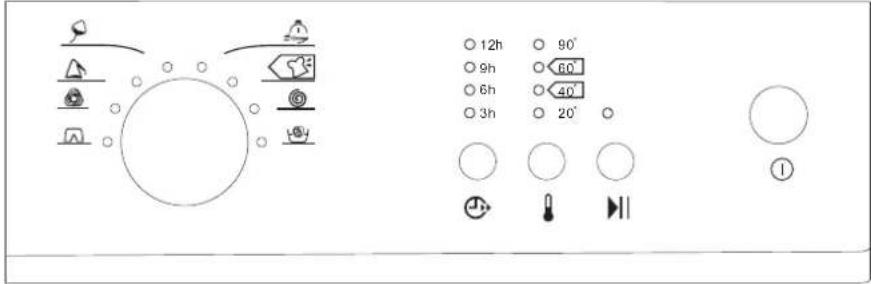

CONTROL PANEL

FP 105 E

Programme knob	Turn the knob to select the desired programme. There are 8 programmes available. After a programme is selected, the corresponding light will illuminate.
Delay button	Press the button repeatedly to select the delay time (3H, 6H, 9H or 12H) and the corresponding indicator light will illuminate. The appliance will start operation after the set time.
Temperature buttonActivation/ deactivation of signal function	Press the button repeatedly to select the water temperature. The corresponding temperature indicator light will illuminate.Press and hold the button for 3 seconds, a beep will be heard and then signal function will be disabled. To activate this function, press and hold the button again for 3 seconds.
Start/Pause button	Press the button to start programmes and the indicator light will illuminate. Press again to pause, the indicator light will flash.
On/Off button	Press the button once to turn the appliance on. Press again to turn the appliance off.

OPERATION

Washing for the first time

Before washing clothes for the first time, you must run a complete cycle without clothes.

1. Press ①.
2. Pour a little detergent into compartment II in the detergent drawer.
3. Turn on the water supply to the appliance.
4. Press repeatedly until 40^ is selected.

-The corresponding temperature indicator light will illuminate.

1. Press

Compartment I: Detergent for pre-wash.

Compartment II: Detergent for main wash, water softener, pre-soaking agent, bleach and stain removal product.

Compartment Additives, e.g. fabric softener or former

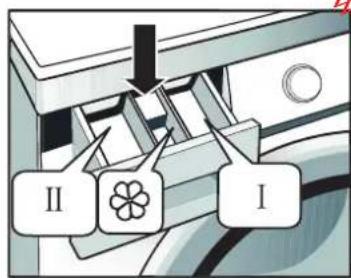

Putting detergent in the appliance

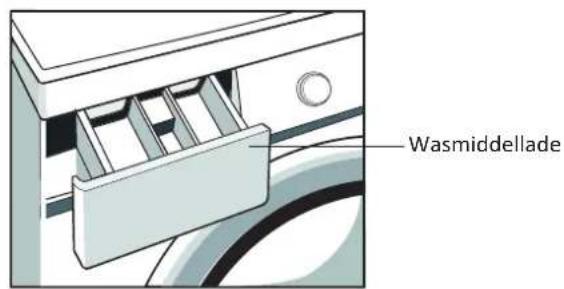

1.Pull out the detergent drawer.
2.Add laundry detergent into compartment II.
3.Add softener into Compartment as desired.
4.Add pre-wash detergent into compartment I as desired.

CAUTION: Concentrated detergent or additive shall be diluted with a little water before being poured into the compartment to prevent the overflow from becoming blocked.

Washing Clothes

1. Open the door to load the articles into the drum.

DO NOT OVERLOAD the appliance or your laundry may not wash properly.

Please refer to the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type	Load Capacity
Cotton	5kg
Synthetic	2.5kg
Wool	1.5kg

2.Close the door.
3.Put the detergent and, if required, softener or pre-wash detergent, in the appropriate compartments.
4. Turn the water supply on and press

Delay timer: You can start the programme 3 hours, 6 hours, 9 hours or 12 hours later.

Repeatedly press to set a delay timer. The selected delay hours indicator light will illuminate.

1. Turn the programme knob to select the desired programme.
2. Press repeatedly to select the desired temperature.

3. Press and the appliance will begin the cycle.

4. The start/pause indicator light will illuminate.

-To pause, press again but at the last 1 to 2 minutes before the end of a washing cycle, the pause function does not work.

1. When the cycle has finished, the start/pause indicator light will flash and the appliance will sound every 30 seconds for 5 minutes.
   9.Open the door.
   10.Remove the laundry.

Programme chart

Programme	Max Load (Kg)	Detergent Compartment			Default Temperature / Maximum temperature (°C)	Default Running Time (Min)	Default Spin Speed (rpm)
5KG		I II		⊗		5KG	5KG
Cotton	5	○	●	○	60/90	130	1000
Synthetic	2.5	○	●	○	40/60	105	700
Wool	1.5	○	●	○	40/40	85	500
Jeans	5	○	●	○	40/90	108	1000
Quick Change	1.5	○	●	○	N/A / 40	15	1000
Cotton Intensive	5	○	●	○	40/90	223	1000
Spin	5	×	×	×	N/A	15	1000
Drum Clean	0	×	×	×	90 only	90	500

• Optional

-Yes

X-No

NOTE:

The running time will vary depending on the water temperature and the load.

The standard 60^ cotton intensive programme and the standard 40^ cotton intensive programme are the standard washing programmes.

Washing Programme	Type of Laundry
Cotton	Bed sheets, quilt covers, pillowcases, gowns, underwear, etc.
Synthetic	Shirts, coats, curtains, laced textiles or similar other blends.
Wool	Only machine washable woollens.
Jeans	Jeans
Quick	Lightly soiled clothes
Cotton Intensive	Clothes for babies or people who have skin allergies

Temperature	Type of Laundry
90°C	Heavily soiled articles, pure white cotton or flax, e.g. coffee table cloths, canteen table cloths, towels, bed sheets.
60°C	Moderately soiled articles, colourful flax, cotton and synthetic articles with certain decolourising degree, e.g. shirts, pyjamas. Slightly soiled items, pure white flax, e.g. underwear
40°C, 20°C Cold water	Normally soiled articles, including synthetic and wool

Changing the programme and temperature during operation

1. Press and the start/pause indicator light will flash.
2. Turn the programme knob to select a new programme.
3. Press repeatedly to select the desired temperature.
4. Press to start washing. The start/pause indicator light will stop flashing.

Washing Tips and Hints

Sort your laundry according to the following characteristics:

-Type of fabric care label symbol: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayon.

-Colour: Divide whites and colours. Wash new, coloured items separately.

-Size: Placing articles of different sizes in the same load will improve the washing performance.

-Sensitivity: Wash delicate items separately. Check the labels on the items you are washing or refer to the fabric care chart below.

Graphic Symbol Illustration		Graphic Symbol Illustration
	Hand Wash	No Machine Wash
	Washing (including Machine Wash and Hand Wash)	Do not Wash
		No Dry Clean
	Dry Clean	No Wring
	Warmly Dry Clean	No Bleach
	Bleach	Do not Tumble Dry
	Tumble dry	Do not Iron
	Iron	Iron with Cloth
	Steam Iron	Dry after Wash
	Medium Temperature and Max. Temperature 150 C	Line Dry in Shade
	Line Dry

-Empty pockets (key, coins, etc) and remove the harder decorative objects (e.g. broches).

-Securing fasteners

Close zippers and fasten buttons or hooks; loose belts or ribbons should be tied together.

-Place small items such as socks, belts, etc. in a washing bag.

• When washing a single big and heavy dress such as Turkish towels, jeans, wadded jackets etc., it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

-Baby articles (baby clothes, towels and napkins) shall be washed separately.

If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.

-It is suggested that the items that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

• The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and thrum etc. Preferably, black clothes and cotton clothes shall be washed separately.

-Do not wash water-proof materials (ski suits, outside napkin pads, raincoats, umbrella, car covers, sleeping sacks, etc).

For fabrics that can not get soaked easily such as water-proof cushions and clothes, it is better not to wash in a washing machine. Otherwise there will be water bursting out or abnormal vibration to cause danger during rinsing and draining so that the clothes may be damaged.

-Detergent tips

The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, washing temperature, degree and type of soiling. Please use "low suds" laundry detergent.

NOTE: Do not add more detergent than needed. Please follow the usage recommendation on the detergent package.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, ask your water authority.

NOTE: Keep detergents and additives in a safe, dry place out of the reach of children.

CLEANING AND MAINTENANCE

Make sure that the appliance is unplugged from the mains socket.

Cleaning the exterior

Clean the appliance surface with a soft cloth dampened with soap liquid.

Do not use organic chemicals or corrosive solvents.

Cleaning the drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Repairing a frozen washing machine

If the temperature drops below freezing and your washing machine is frozen:

1.Unplug the washing machine.
2. Pour warm water on the tap to loosen the water supply hose.
3.Remove the inlet hose and soak it in warm water.
4. Pour warm water into the drum and wait for 10 minutes.
5.Reconnect the inlet hose to the tap and check if the water supply and drain operations are normal.

NOTE: When the appliance is operated after repair, please make sure that the ambient temperature is above 0^ .

Cleaning the detergent drawer and recess

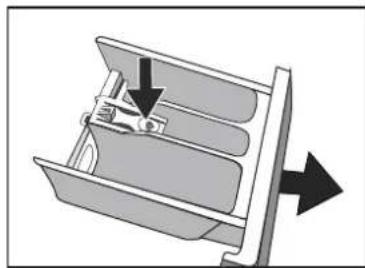

1. Press the release lever inside of the detergent drawer and pull it out.

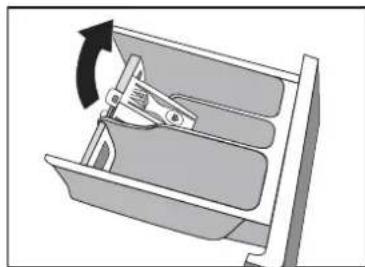

2.Remove the cap from compartment.

3.Clean all parts and drawer recess under running water.

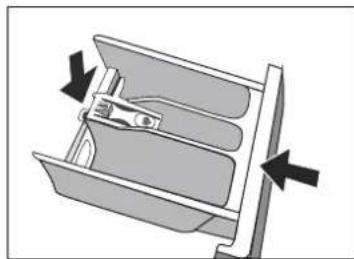

4.Reinsert the cap by pushing it firmly into place.
5.Push the drawer back into place.

Cleaning the inlet hose and the inlet filter

To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve filter regularly.

Cleaning the drain pump

Drain the water out of the machine and then clean the drain pump.

Please inspect and clean the drain pump regularly.

Never remove the pump cover during a wash cycle. When replacing the pump cover, ensure it is securely tightened so as to stop leaks.

TROUBLESHOOTING

Problems Possible	Cause Possible Solutions
The washing machine will not start.	The door is not properly closed.	Close the door properly.
	Poor connection to the power supply.	Check connection to the power supply.
	Power failure Check the power supply.	Power supply.
	Machine has not been switched on.	Switch the machine on.
The door does not open.	Machine safety protection is working.	Unplug the machine from the mains socket.
Detergent remains in the detergent drawer after the programme is complete.	The detergent is not a low suds type.	Check if the detergent is appropriate.
	Excessive use of detergent	Reduce amount of detergent in the detergent drawer.
Washing machine vibrates or is too noisy.	Not all transit bolts have been removed.	Remove all transit bolts.
	Washing machine is located on an uneven surface or is not level.	Make sure the washing machine is set on an even surface and levelled.
	Machine load is over 5kg.	Reduce amount of laundry in the drum.
The washing machine does not drain and/or spin.	Drain hose is blocked.	Unblock the drain hose.
	The filter is locked.	Unblock the filter.
	Drain hose end is higher than 100 cm above the floor.	Make sure the drain hose end is lower than 100 cm above the floor.
	Unbalance of the laundry	Add clothes or run a spinning programme again.

Error messages

Status of indicator light				Cause	Solution
90°C	60°C 40°C		20°C
Off	Off Off		Flash	Door is not properly closed.	Close the door properly.
Off Off		Flash	Off	Water inlet error	Make sure the tap is turned on. Check the water pressure. Clean the water inlet filter.
Off Off		Flash Flash		Drainage error	Make sure the drain hose is not twisted or blocked. Make sure the drain hose is installed correctly. Clean the drain pump.

If error still exists, please contact the maintenance personnel.

TECHNICAL DATA SHEET

Below is the sheet of household washing machine according to EU Directive 1015/2010.

Manufacturer	Proline
Type/Description	FP 105 E
Capacity	5 kg
Spin Speed	1000 rpm
Energy efficiency class 1	A+
Annual energy consumption 2	169 kWh
Power consumption of off-mode	0.5 W
Power consumption of left-on mode	0.5 W
Annual water consumption 3	8250 L
Spin-drying efficiency class 4	C
Standard washing cycle 5	Cotton intensive
Energy consumption of the standard 60° at full load	0.87 kwh
Energy consumption of the standard 60° at partial load	0.74 kwh
Energy consumption of the standard 40° at partial load	0.61 kwh
Programme duration of standard 60° at full load	223 min
Programme duration of standard 60° at partial load	182 min
Programme duration of standard 40° at partial load	179 min
Water consumption of the Standard cotton 60°C at full load	45 L
Water consumption of the Standard cotton 60°C at partial load	30 L
Water consumption of the Standard cotton 40°C at partial load	30 L
Remaining moisture content of the Standard cotton 60°C at full load	59%
Remaining moisture content of the Standard cotton 60°C at partial load	63%
Remaining moisture content of the Standard cotton 40°C at partial load	63%
Noise level of washing	58 dB
Noise level of spinning	74 dB
Mounting	Free standing
Height	850 mm
Width	595 mm
Depth	470 mm
Power consumption	2100 W
Rate voltage/frequency	220-240V/50 Hz
Water pressure	0.05-1 MPa

NOTE:

FP 105 E

1 A* (highest efficiency) to D (lowest efficiency)
Energy consumption 169 kWh per year, based on 220 standard washing cycles for standard programme at 60^ and 40^ at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Water consumption 18260 per year based on 220 standard washing cycles for standard programme at 60^ and 40^ at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class C on a scale from G (least efficient) to A (most efficient)
The standard 60^ cotton intensive programme and the standard 40^ cotton intensive programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

INHOUDSOPGAVE

WAARSCHUWINGEN 36
BELANGRIJKE VEILIGHEIDSVOORZORGEN 38
BESCHRIJVING VAN HET APPARAAT 38
INSTALLATIE 39
BEDIENINGSPANEEL 40

Signaalfunctie 40

BEDIENING 41

BESCHRIJVING VAN HET APPARAAT

Accessoires

RIESENIE PROBLEMOV 80

TECHNICÉ UDAJE 81

VAROVANIA

Darty Plc © UK: EC1N 6TE 20/11/2014
