USER MANUAL FP 612WE PROLINE

Line drawing of a front-loading washing machine with no text or symbols

TABLE DES MATIÈRES

AVERTISSEMENTS.... 3

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ....5

DESCRIPTION DE LA MACHINE.... 5

INSTALLATION.... 6

PANNEAU DE CONTRÔLE....7

FONCTIONNEMENT....9

Premier lavage....9

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)

Nos emballages /

Mechanical assembly diagram showing a wrench inserted into a component with a curved arrow indicating rotation (no text or symbols present)

Diagram of a pipe fitting with a coiled spring attached, showing no text or symbols

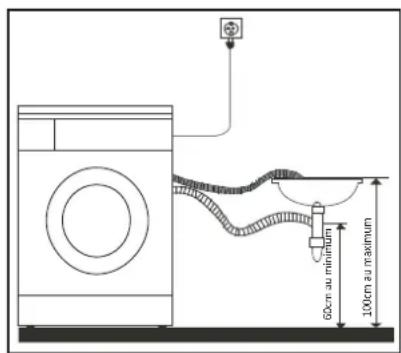

60cm au minimum 100cm au maximum

PANNEAU DE CONTRÔLE

FP 612 W

Pure geometric diagram with nested rectangles and a central rectangle, no text or symbols present

Prélavage

Pres. 3sec

Simple line drawing of a rectangular frame with a small rectangular cutout on top (no text or symbols)

Prewash

Pres. 3sec

Illustration of a bag with a bag inside, containing a small object and a striped pattern (no text or symbols)

Two circular icons with X and V symbols, one containing a cross and the other filled with food.

Diagram of a mechanical device with arrows indicating direction, no text or symbols present

Diagram of a mechanical device with a rotating lever and handle mechanism (no text or symbols)

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Illustration of a faucet with a hand holding a pipe, showing mechanical components and a magnified view (no text or symbols)

Mechanical pipe assembly diagram showing a valve inserted into a housing (no text or symbols visible)

Illustration of a faucet and drain valve being inserted into a sink, with hands holding the pipe (no text or symbols present)

Nettoyage de la pompe de vidange

Simple line drawing of a rectangular tray with a circular symbol and an arrow indicating rotation (no text or symbols)

GUIDE DE DÉPANNAGE

Hotline Darty France

DESCRIPTION OF THE APPLIANCE 26

INSTALLATION.... 27

CONTROL PANEL 28

OPERATION.... 30

Washing for the first time.... 30

Putting detergent in the appliance.... 30

Washing Clothes.... 31

Signal function.... 31

Additional functions.... 32

Child lock 3.3

Programme chart 34

Changing the programme 36

Bubble removal function 36

Washing Tips and Hints 36

CLEANING AND MAINTENANCE 38

Cleaning the exterior 38

Cleaning the drum 38

Repairing a frozen washing machine 38

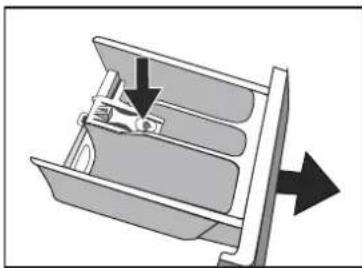

Cleaning the detergent drawer and recess 39

Cleaning the inlet hose and the inlet filter.... 39

Cleaning the drain pump 39

TROUBLESHOOTING 40

TECHNICAL DATA SHEET 41

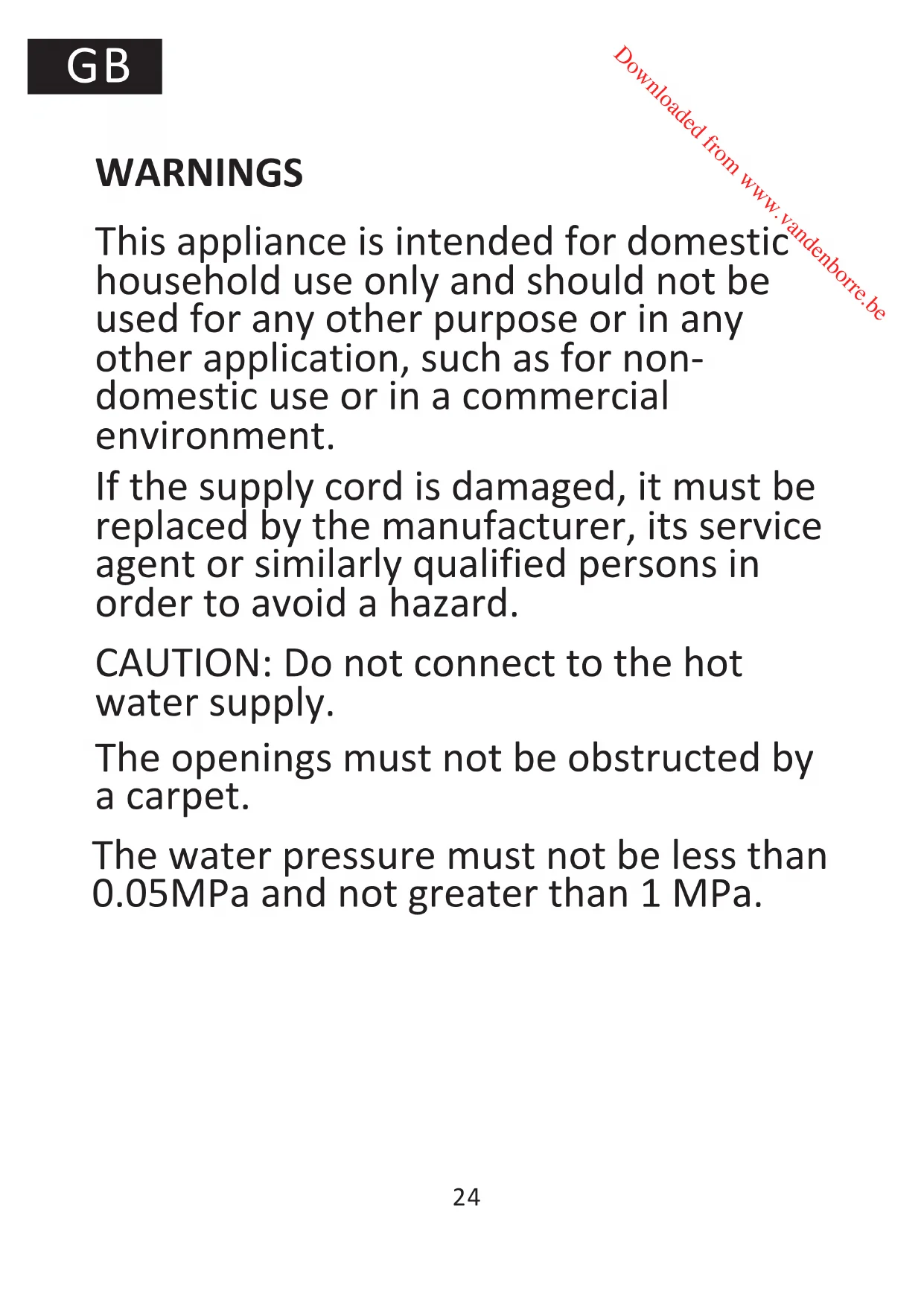

WARNINGS

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION: Do not connect to the hot water supply.

The openings must not be obstructed by a carpet.

The water pressure must not be less than 0.05MPa and not greater than 1 MPa.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.

The maximum mass of dry clothes to be used in the washing machine is 6kg.

For the details concerning the method of cleaning, please see section “Cleaning and Maintenance” on pages 38&39.

IMPORTANT SAFETY INSTRUCTIONS

• Keep the packing materials of the appliance away from children to avoid hazards.
  -Do not plug the appliance to the power supply with wet hands.
  -Never touch the appliance with wet hands or feet.
  -In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agent.
  -Do not exceed the maximum loading capacity.
  -The glass door becomes very hot during the washing cycle. Keep children and pets away from the appliance whilst it is in operation.
  -Never force the door to open when the appliance is running.
  -Do not leave children unattended near the appliance since they might lock themselves up into it.
  -Always unplug the appliance and turn off the water supply after use.

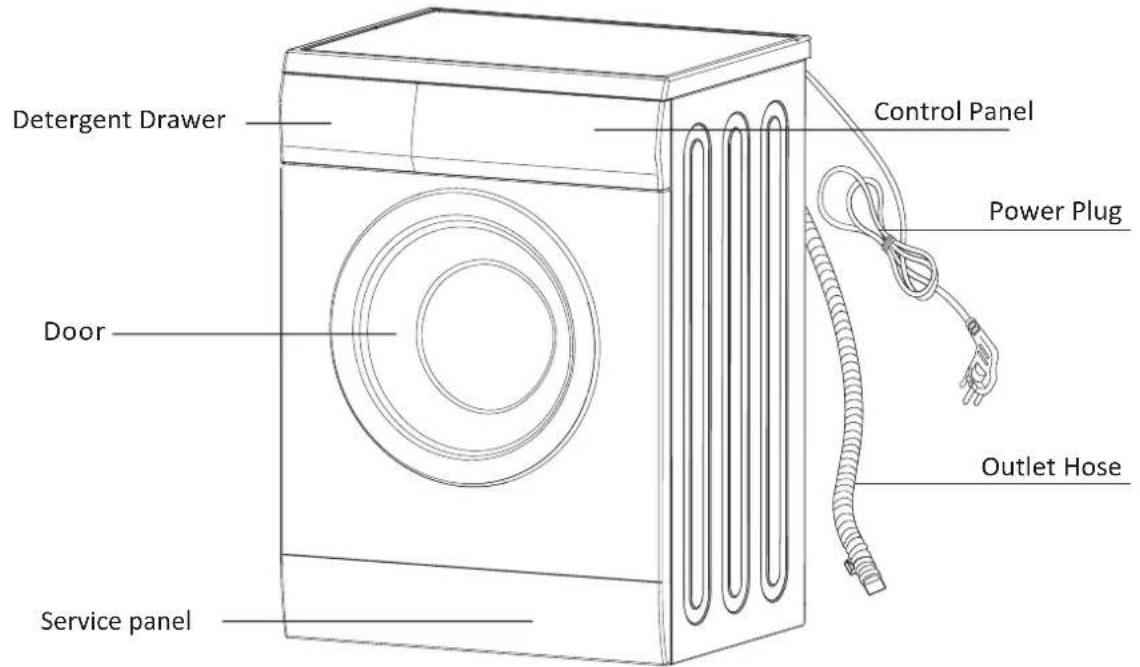

DESCRIPTION OF THE APPLIANCE

Detergent Drawer Control Panel Power Plug Door Outlet Hose Service panel

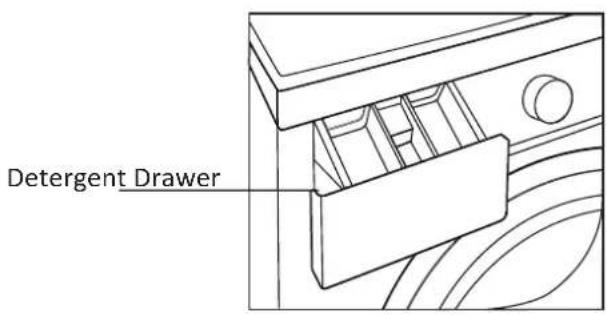

Detergent Drawer

Accessories

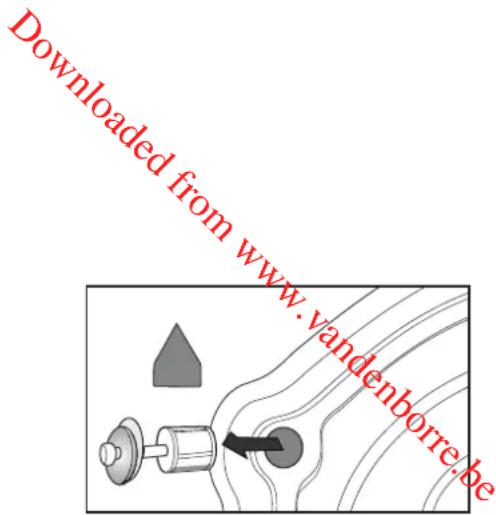

Screw hole plugs

Water inlet pipe

INSTALLATION

Unpacking

All transit bolts at the rear of the appliance and packing must be removed before using the appliance.

Keep all packaging away from children.

Keep all the transit bolts for re-use in case the appliance is to be transported again.

Positioning

Install the appliance on a flat hard floor.

Make sure that there is sufficient space for air circulation around the appliance.

Do not install the appliance on a carpeted floor.

Levelling

Level the appliance by raising or lowering the feet.

Loosen the lock nut using a spanner (not supplied) and turn the foot by hand until it contacts the floor.

Hold the foot with one hand and fasten the nut against the cabinet with a spanner.

Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

Accurate levelling prevents vibration, noise and displacement of the appliance during operation.

Water inlet

Screw one end of the inlet hose on the back of the appliance.

The appliance must be connected to a cold water supply.

Connect the other end of the inlet hose to a tap with a 3/4" thread.

Electrical connection

Your washing machine works with 220-240V and 50Hz.

Electrical connections must be carried out by a qualified technician in compliance with the current safety regulations.

Your washing machine must be properly earthed. We will not be held responsible for any damage that may occur as a result of usage without correct earth connection.

Do not use extension leads or multi-sockets.

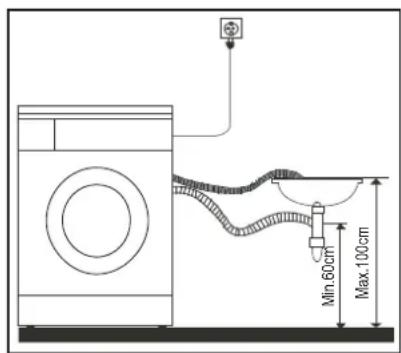

Water drainage

To plumb in the appliance, please use one of the following methods.

1. Push the hose firmly into a drainage standpipe.

OR

1. Connect the drain hose onto a sink outlet spigot securely.

Notes:

Make sure that the water discharge hose does not bend, buckle, is not crushed or extended.

The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.

Downloaded from www.vandenborre.be

Mechanical assembly diagram showing a wrench inserted into a component with a curved arrow indicating rotation (no text or symbols present)

Diagram of a pipe fitting with a coiled spring and connecting rod (no text or symbols)

Min 60cm Max 100cm

CONTROL PANEL

FP 612 W

1. Prewash/Signal button with indicator light
2. ☐ Extra Rinse button with indicator light
3. ☐ No Spin button with indicator light
4. Depart Pause ▶ Start/Pause button

OPERATION

Washing for the first time

Before washing clothes for the first time, you must run a complete cycle without clothes.

1. Pour a little detergent into compartment II in the detergent drawer.
2. Turn on the water supply to the appliance.
3. Press ▶ || . Départ/Pause

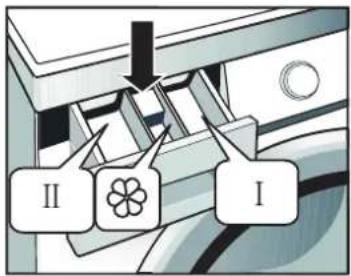

Compartment I: Detergent for pre-wash.

Compartment II: Detergent for main wash.

Compartment Additives, e.g. fabric softener.

Putting detergent in the appliance

1. Pull out the detergent drawer.
   2.Add laundry detergent into compartment II.
   3.Add softener into Compartment ✿ as desired.
   4.Add pre-wash detergent into compartment I as desired.

Note:

• Your detergent consumption will change according to the level of dirtiness of your clothes.
• For slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment II of the detergent drawer.
• To know what quantity of detergent you should use for your clothes, refer to the instructions on the packing of the detergents.
  -The amount of detergent to be used will also depend on the quantity of laundry and on the water hardness.

CAUTION: Concentrated softener or additive shall be diluted with a little water before being poured into the compartment, otherwise it may obstruct the siphon and prevent the flow of softener.

II I

Washing Clothes

1. Open the door to load the articles into the drum.

DO NOT OVERLOAD the appliance or your laundry may not be washed properly. Please refer to the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type	Load Capacity
Cotton 6 kg
Synthetic 3 kg

1. Close the door.
2. Put the detergent and, if required, softener or pre-wash detergent, in the appropriate compartments.
3. Turn the water supply on.
4. Turn the programme selection knob to select the desired programme.
5. Press ▶ and the appliance will begin the cycle.
6. When the cycle is finished, the appliance will sound.
7. Open the door and remove the laundry.

Signal function

You can use this function to turn on or off the sound made when pressing the buttons or turning the programme selection knob.

Press and hold Prélavage for about 3 seconds until a beep is heard indicate the signal function is activated. To deactivate this function, press and hold

Prélavage again for about 3 seconds until a beep is heard.

FP 612 W FP 612 WE

Simple line drawing of a rectangular frame with a small rectangular cutout on the top side (no text or symbols)

Prélavage

Pres. 3sec

Simple line drawing of a rectangular frame with a small rectangular cutout on top (no text or symbols)

Prewash

Pres. 3sec

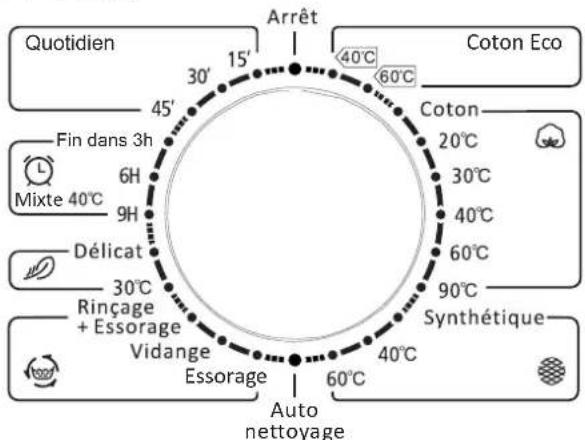

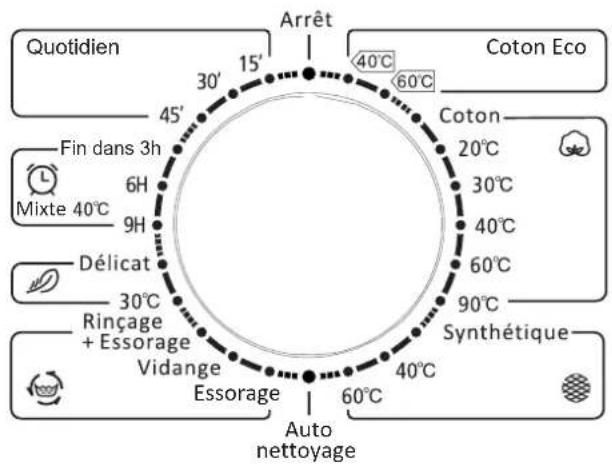

Additional functions

You can use the additional function buttons after selecting the desired programme.

FP 612 W FP 612 WE

Quotidien 30' 15' Arrêt 40°C 60°C Coton Eco 45' 60°C Coton 20°C 30°C 40°C 90°C Synthétique 40°C 30°C Rinçage + Essorage Vidange Essorage Auto nettoyage 9H Délicat 6H Fin dans 3h Mixte 40°C

STOP 40°C 60°C Eco 30' 15' 30' 45' 40°C Mix 3h 6H 9H 20°C 30°C 40°C 60°C 90°C 30°C & 60°C 40°C

Prewash

Press Poélakage this function. The machine will undergo an extra wash before main wash.

The indicator light will illuminate.

This function can only be used with the following programs.

FP 612 W FP 612 WE

Coton 20°C 30°C 40°C 60°C 90°C Synthétique 60°C 40°C

20°C 30°C 40°C 60°C 90°C 60°C 40°C

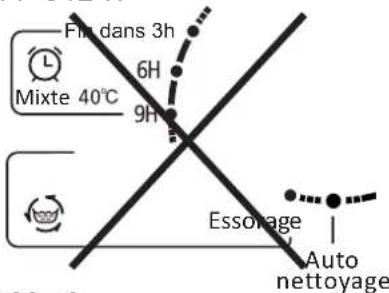

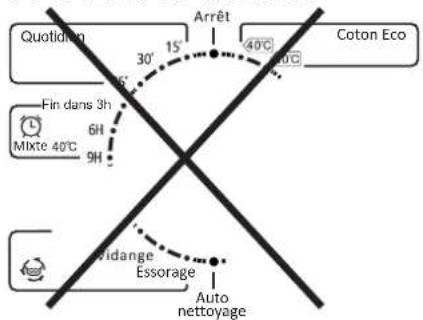

Extra rinse

Press Rinçage plus/ ⚙️ to select this function. The machine will go through extrarinse.

The indicator light will illuminate.

This function is not available with the following programs.

FP 612 W FP 612 WE

The indicator light will illuminate.

This function is not available with the following programs.

FP 612 W

The function is designed to prevent children from operating the washing machine

To activate the function:

Press and hold Rinçage plus / 📋 and No Essorage / Ⓤ at the same time for about 3 seconds until the indicator light 🌐 illuminates on the display. It can only be activated when the machine is in operation.

FP 612 W

Rinçage Plus No Essorage Pres. 3sec

FP 612 WE

Pres. 3sec

When the child lock function is activated, no button can work unless you turn the programme selection knob to the OFF position.

To deactivate the function:

Press and hold Rinçage plus/ 🔑 and No Essorage/ Ⓞ at the same time

for 3 seconds until the indicator light goes out.

This function will also be deactivated when the power supply is cut off.

Programme chart

Procedure Description	Load(kg)	Detergent Box			Default Temp.(°C)	Default Time (H)	Default Speed(rpm)
	6.0	Case I	Case II	Softener Case	6.0	6.0	6.0
						1200	1200
Cotton Eco 40 °C	6.0	×	●	○	40	3:45	1200
Cotton Eco 60 °C	6.0	×	●	○	60	3:19	1200
Cotton	6.0	○	●	○	0	1:35	1200
Cotton 20 °C	6.0	○	●	○	20	1:19	1200
Cotton 30 °C	6.0	○	●	○	30	1:20	1200
Cotton 40 °C	6.0	○	●	○	40	1:40	1200
Cotton 60 °C	6.0	○	●	○	60	1:45	1200
Cotton 90 °C	6.0	○	●	○	90	2:40	1200
Synthetic	3.0	○	●	○	0	1:18	1200
Synthetic 40 °C	3.0	○	●	○	40	1:33	1200
Synthetic 60 °C	3.0	○	●	○	60	1:43	1200
Drum Clean	—	×	×	×	90	1:21	400
Spin Only	6.0	×	×	×	—	0:12	1200
Drain Only	—	×	×	×	—	0:01	0
Rinse & Spin	6.0	×	×	○	—	0:31	1200
Delicate 30 °C	2.5	×	●	○	30	1:00	600
Delicate	2.5	×	●	○	0	0:55	600
Ends in 9H	6.0	×	●	○	40	1:13	1000
Ends in 6H	6.0	×	●	○	40	1:13	1000
Ends in 3H	6.0	×	●	○	40	1:13	1000
Daily Wash 45'	2.0	×	●	○	30	0:45	800
Daily Wash 30'	2.0	×	●	○	20	0:30	800
Daily Wash 15'	2.0	×	●	○	0	0:15	800

Note: the parameters in this chart are only for reference.
O - Optional
-Yes
× No

Energy test programme: Cotton ECO 60°C/40°C, Spin speed: 1200

Washing Programme	Type of Laundry
Cotton Bed sheets, quilt covers, pillowcases, gowns, underwear, etc.
Synthetic Shirts, coats, curtains, lace textiles or other similar blends.
Delicate Delicate articles such as silk
Cotton ECO Bed sheets, quilt covers, pillowcases, gowns, underwear, etc.

Temperature	Type of Laundry
90°C Heavily	soiled articles, pure white cotton or flax, e.g. coffee table cloths, canteen table cloths, towels, bed sheets.
60°C Moderately	soiled articles, colourful flax, cotton and synthetic articles with certain decolourising degree, e.g. shirts, pyjamas.Slightly soiled items, pure white flax, e.g. underwear
40°C, 30°C,20°C,Cold water	Normally soiled articles, including synthetic and wool

Changing the programme.

1. Turn the programme selection knob to the OFF position.
2. Turn the programme selection knob to select a new programme.
3. Press ▶ Start/Pause to start washing.

Bubble removal function

Excessive bubbles will form when there is too much detergent, which will affect wash and rinse performance. With this function, the machine will automatically remove bubbles when excessive bubbles are checked. It will also remind you of using less detergent during the next washing cycle.

Washing Tips and Hints

Sort your laundry according to the following characteristics:

-Type of fabric care label symbol: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayon.
-Colour: Separate whites and colours. Wash new, coloured items separately.
-Size: Placing articles of different sizes in the same load will improve the washing performance.
-Sensitivity: Wash delicate items separately. Check the labels on the items you are washing or refer to the fabric care chart below.

Graphic Symbol	Illustration	Graphic Symbol	Illustration
	Hand Wash		No Machine Wash
	Washing (including Machine Wash and Hand Wash)		Do not Wash
			No Dry Clean
	Dry Clean		No Wring
	Warmly Dry Clean		No Bleach
	Bleach		Do not Tumble Dry
	Tumble dry		Do not Iron
	Iron		Iron with Cloth
	Steam Iron		Dry after Wash
	Medium Temperature and Max. Temperature 150 C*		Line Dry in Shade
	Line Dry

-Empty pockets (key, coins, etc.) and remove the harder decorative objects (e.g. brooches).

-Securing fasteners

Close zippers and fasten buttons or hooks; loose belts or ribbons should be tied together.

Place small items such as socks, belts, etc. in a washing bag.

-Washing a single big and heavy item such as bath towel, jeans, wadded jacket etc. may unbalance the laundry in the drum. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

-Baby articles (baby clothes, towels and napkins) shall be washed separately.

If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning with no detergent residues left.

Simple line drawing of a bag with a bag inside, containing a small object (no text or symbols)

Two circular icons with X and V symbols, one containing a cross and the other filled with food.

-It is suggested that the items that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

-The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and lint particles. Preferably, black clothes and cotton clothes shall be washed separately.

-Do not wash waterproof materials (ski suits, outside napkin pads, raincoats, umbrella, car covers, sleeping bags, etc.).

It is recommended not to wash fabrics that cannot get soaked easily (such as waterproof cushions and clothes) in the washing machine. Otherwise there will be water bursting out or abnormal vibration to cause danger during rinsing and draining so that the clothes may be damaged.

-Detergent tips

The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, washing temperature, degree and type of soiling. Please use “low suds” laundry detergent.

NOTE: Do not add more detergent than needed. Please follow the usage recommendation on the detergent package.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, ask your water authority.

NOTE: Keep detergents and additives in a safe, dry place out of the reach of children.

CLEANING AND MAINTENANCE

Make sure that the appliance is unplugged from the mains socket.

Cleaning the exterior

Clean the appliance surface with a soft cloth dampened with soap liquid. Do not use organic chemicals or corrosive solvents.

Cleaning the drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Repairing a frozen washing machine

If the temperature drops below freezing and your washing machine is frozen:

1. Unplug the washing machine.
2. Pour warm water on the tap to loosen the water supply hose.
3. Remove the inlet hose and soak it in warm water.
4. Pour warm water into the drum and wait for 10 minutes.
5. Reconnect the inlet hose to the tap and check if the water supply and drain operations are normal.

NOTE: When the appliance is operated after repair, please make sure that the ambient temperature is above 0^ C.

Cleaning the detergent drawer and recess

1. Press the release lever inside of the detergent drawer and pull it out.

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

2.Remove the cap from compartment.

Diagram of a mechanical device with a rotating lever and handle, showing no text or symbols

3.Clean all parts and drawer recess under running water.
4.Reinsert the cap by pushing it firmly into place.
5.Push the drawer back into place.

Diagram of a mechanical device with arrows indicating force or movement (no text or symbols)

Cleaning the inlet hose and the inlet filter

To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve filter regularly.

Illustration of a faucet with a hand holding a pipe, showing a valve mechanism (no text or symbols present)

Pure mechanical diagram showing a pipe inserted into a housing (no text or symbols)

Illustration of a faucet and drain valve assembly (no text or symbols)

Cleaning the drain pump

Drain the water out of the machine and then clean the drain pump. Please inspect and clean the drain pump regularly.

1.Open the drain pump cover by pulling the tab on the top of the cover.
2.Turn the cap anticlockwise and pull it out.
3. Remove any foreign objects and fluff inside pump casing.
4. Replace the cap and pump cover.

-Never remove the pump cover during a wash cycle. When replacing the pump cover, ensure it is securely tightened so as to stop leaks.

Simple line drawing of a rectangular tray with a circular symbol and an arrow indicating rotation (no text or labels)

TROUBLESHOOTING

Problems	Possible Cause	Possible Solutions
The washing machine will not start.	The door is not properly closed.	Close the door properly.
	Poor connection to the power supply.	Check connection to the power supply.
	Power failure	Check the power supply.
	Machine has not been switched on.	Switch the machine on.
The door does not open.	Machine safety protection is working.	Unplug the machine from the mains socket.
Detergent remains in the detergent drawer after the programme is complete.	The detergent is not a low suds type.	Check if the detergent is appropriate.
	Excessive use of detergent	Reduce amount of detergent in the detergent drawer.
Washing machine vibrates or is too noisy.	Not all transit bolts have been removed.	Remove all transit bolts.
	Washing machine is located on an uneven surface or is not level.	Make sure the washing machine is set on an even surface and levelled.
	Machine load is over the maximum capacity.	Reduce amount of laundry in the drum.
The washing machine does not drain and/or spin.	Drain hose is blocked.	Unblock the drain hose.
	The filter is blocked.	Unblock the filter.
	Drain hose end is higher than 100 cm above the floor.	Make sure the drain hose end is lower than 100 cm above the floor.
	Unbalance of the laundry	Add clothes or run a spinning programme again.
The washing result is not good.	Your laundry was too dirty for the programme you selected.	Select a suitable programme.
	The amount of detergent used is not appropriate.	Use more or less detergent following the manufacturer's instructions.
	Clothes exceeding the maximum capacity have been filled in your machine.	Do not exceed the maximum capacity of your machine.

Error messages

Status of indicator light		Cause Solution
	Off	Water inlet error	Open the water tap to check if the inlet hose is squashed or kinked; check if the inlet valve is blocked or not; check if the water pressure is too low.
	Off
Départ/Pause ▶||	Off
Sans Essorage ☎	Flash
Rinçage Plus 📋	Off
Prélavage	Off
	Off	Drainage error	Make sure the drain hose is not twisted or blocked.Make sure the drain hose is installed correctly.Clean the drain pump.installé.Nettoyez la pompe de vidange.
	Off
Départ/Pause ▶||	Flash
Sans Essorage ☎	Flash
Rinçage Plus 📋	Off
Prélavage	Off
	Flash	The door is not closed.	Close the door properly.
	Off
Départ/Pause ▶||	Flash
Sans Essorage ☎	Off
Rinçage Plus 📋	Off
Prélavage	Off

If error still exists, please contact the maintenance personnel.

TECHNICAL DATA SHEET

Below is the sheet of household washing machine according to EU Regulation No 1015/2010.

Brand	Proline
Type/Description	FP 612 W FP 612 WE
Capacity	6 kg
Spin Speed	1200 tr/min
Energy efficiency class 1	A++
Annual energy consumption 2	173 kWh/an
Power consumption of off-mode	0,5 W
Power consumption of left-on mode	1W
Duration of the left-on mode	1 minute
Annual water consumption 3	9240L/an
Spin-drying efficiency class 4	B
Standard washing cycle 5	Coton ECO
Energy consumption of the standard 60°C at full load	0,90 kWh/cycle
Energy consumption of the standard 60°C at partial load	0,65 kWh/cycle
Energy consumption of the standard 40°C at partial load	0,62 kWh/cycle
Programme duration of standard 60°C at full load	239 min
Programme duration of standard 60°C at partial load	210 min
Programme duration of standard 40°C at partial load	204 min
Water consumption of the standard 60°C at full load	48L/cycle
Water consumption of standard 60°C at partial load	37L/cycle
Water consumption of the standard 40°C at partial load	37L/cycle
Remaining moisture content of the standard 60°C at full load	50%
Remaining moisture content of the standard 60°C at partial load	55%
Remaining moisture content of the standard 40°C at partial load	55%
Noise level of washing	59dB (A)
Noise level of spinning	76dB (A)
Mounting	Free standing
Height	850 mm
Width	595 mm
Depth	470 mm
Power consumption	1950W
Rate voltage/frequency	220-240V~/ 50Hz
Water pressure	0,05-1 MPa

NOTE:

① A ^++ (highest efficiency) to D (lowest efficiency)
② Energy consumption 173 kWh per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption 9240 litres per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class A on a scale from G (least efficient) to A (most efficient)
5 The standard 60°C cotton ECO programme and the standard 40°C cotton ECO programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature.

Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

DISPOSAL

Simple line drawing of a trash bin with no text or symbols

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

INHOUDSOPGAVE

WAARSCHUWINGEN.... 45

BELANGRIJKE VEILIGHEIDSINSTRUCTIES....47

BESCHRIJVING VAN HET APPARAAT....47

INSTALLATIE.... 48

BEDIENINGSPANEEEL....49

WERKING.... 51

PROBLEEMOPLOSSING....61

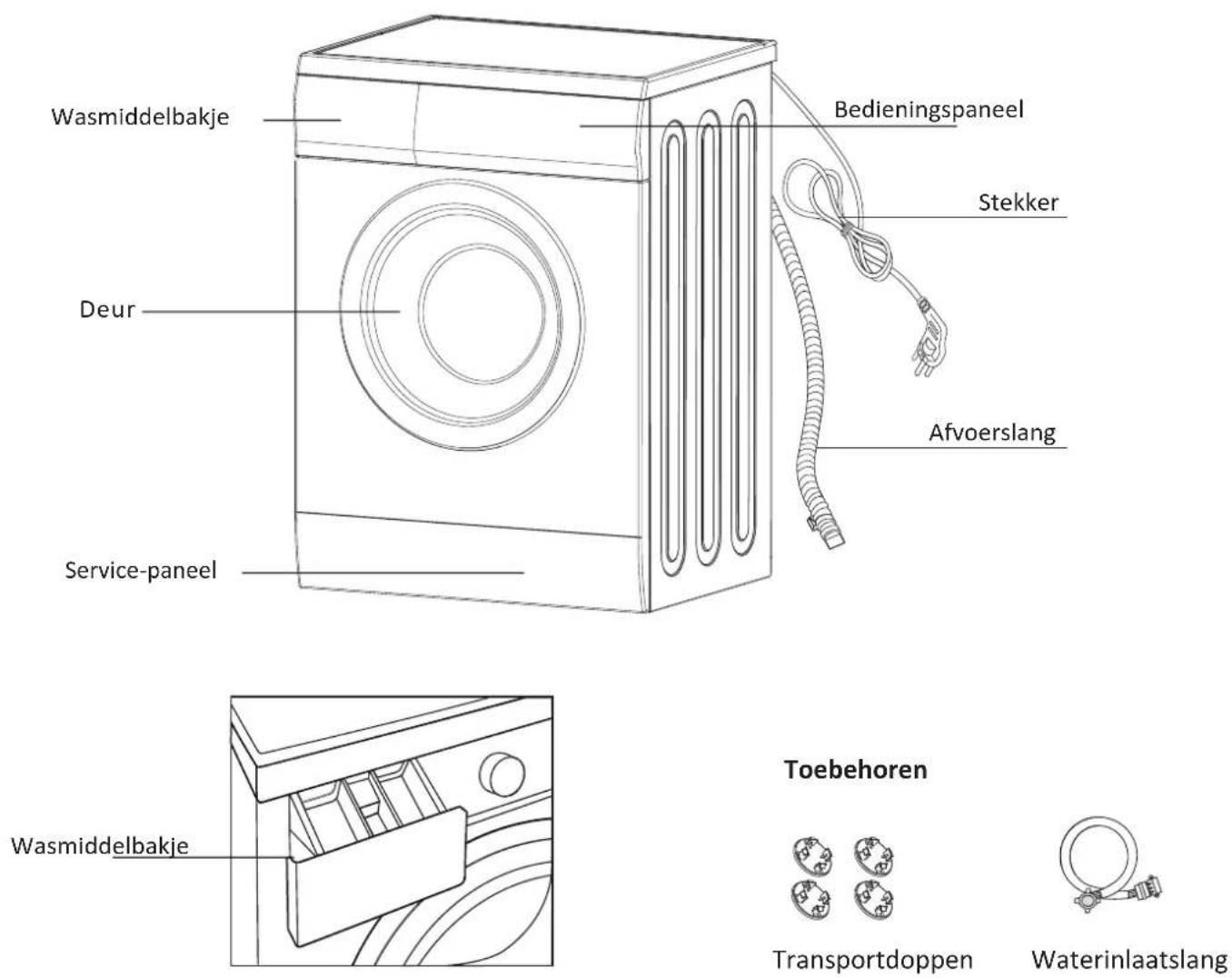

BESCHRIJVING VAN HET APPARAAT

INSTALLATIE

Uitpakken

Mechanical assembly diagram showing a wrench inserted into a nut, with a curved arrow indicating rotation (no text or symbols present)

Diagram of a pipe fitting with a coiled spring and connecting rod (no text or symbols)

Min. 60cm Max. 100cm

Opmerking:

Prélavagepnieuw circa 3 seconden

FP 612 W FP 612 WE

Simple line drawing of a rectangular frame with a small rectangular cutout on the top side (no text or symbols)

Prélavage

Pres. 3sec

Simple line drawing of a rectangular frame with a small rectangular cutout on top (no text or symbols)

Prewash

Pres. 3sec

Extra functies

Simple line drawing of a bag with a bag inside, containing a small object inside (no text or symbols)

Two circular icons with X and V symbols, one containing a cross and the other filled with food.

Diagram of a mechanical device with arrows indicating direction, showing internal components and movement (no text or symbols)

Diagram of a mechanical device with a lever mechanism and rotation arrow (no text or symbols)

Diagram of a mechanical device with arrows indicating force or movement (no text or symbols)

Illustration of a faucet with a hand holding a pipe, showing a valve mechanism (no text or symbols present)

Pure mechanical diagram showing a pipe fitting with arrows indicating direction (no text or symbols)

Illustration of a faucet and drain valve assembly (no text or symbols)

Diagram showing a circular symbol with an arrow inside a rectangular box, no text or labels present

PROBLEEMOPLOSSING

Simple line drawing of a trash bin with no text or symbols

Downloaded from www.vandenborre.be
