Brand	SilverCrest
Model	SDLT 1500 A2
Product type	Double toaster (2 slots)
Supply voltage	220-240 V ~, 50 Hz
Power consumption	1300-1500 W
Browning level adjustment	7 levels (1 light to 7 dark)
Main functions	Toasting, defrosting, reheating, manual stop (Cancel)
Automatic bread centering	Yes
Bun warmer	Yes, foldable
Crumb tray	Removable
Automatic shut-off	Yes, at end of cycle
Cleaning	Exterior with damp cloth; crumb tray
Safety	Automatic shut-off, do not immerse, do not leave unattended
Warranty	3 years

Frequently Asked Questions - SDLT 1500 A2 SILVERCREST

How to use the defrost function?

Insert the bread, lower the control lever, then press the 'Defrost' button. The indicator lights up. The toaster defrosts and then toasts automatically. When finished, it turns off and the slices pop up.

How to use the reheat function?

Insert the bread, lower the control lever, then press the 'Reheat' button. The indicator lights up. The bread is warmed without toasting. The appliance stops automatically.

How to stop toasting mid-cycle?

Press the 'Cancel' button. The toaster turns off immediately and the slices pop up.

What to do if the toast is too dark or too light?

Adjust the browning control (1 to 7). For lighter toast, reduce the level; for darker, increase it. Consider the type of bread and its moisture content.

How to clean the toaster?

Unplug it and let it cool down. Clean the exterior with a dry or slightly damp cloth. Regularly empty the crumb tray by sliding it out. Never immerse the appliance.

Why won't the control lever stay down?

Make sure the power plug is properly inserted. If it still does not stay down with power, the appliance may be defective; contact customer service.

How to use the bun warmer?

Lower the bun warmer lever (8) to extend it. Place the rolls on the warmer, ensuring they don't fall off. Set the browning level to a maximum of 3. Turn them halfway through. After use, push the warmer back.

What to do if there is smoke or odor during first use?

This is normal. The appliance may emit a slight odor or smoke during initial uses. Ensure good ventilation (open a window). Run three empty cycles at level 7 before first use.

What are the important safety instructions?

Never immerse the appliance in water. Do not use near water. Do not insert metal objects into the slots. Do not cover the toaster while operating. Supervise the appliance during use. Unplug before cleaning.

How to store the toaster?

Clean it, then wind the power cord around the storage underneath the appliance. Store it in a dry place.

USER MANUAL SDLT 1500 A2 SILVERCREST

Operating instructions

SE

BRODROST MED LÁNGA, DUBBLA ROSTFACK

Bruksanvisning

FR BE

GRILLE-PAIN DOUBLE

Mode d'emploi

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

F

GB/IE Operating instructions Page 1

FI	Käytöohje	Sivu	13
SE	Bruksanvisning	Sidan	25
DK	Betjeningsvejledning	Side	37
FR/BE Mode d'emploi Page 49
NL/BE Gebruiksaanwijzing Pgina 61
DE/AT/CH	Bedienungsanleitung			Seite	73

Contents

Introduction 2

Copyright 2

Limitation of liability. 2

Intended use 2

Package contents 3

Disposal of packaging materials 3

Appliance description 3

Technical data 4

Safety guidelines 4

Tips for use 6

Before first use 6

Operation 7

Adjusting the browning level 7

Toasting 7

Stopping the toasting process 7

Reheat function 7

Defrost function 8

Warming up crusty bread rolls 8

Crumb tray 9

Cleaning 9

Storage 9

Troubleshooting 10

Disposal 10

Warranty and service 11

Importer 11

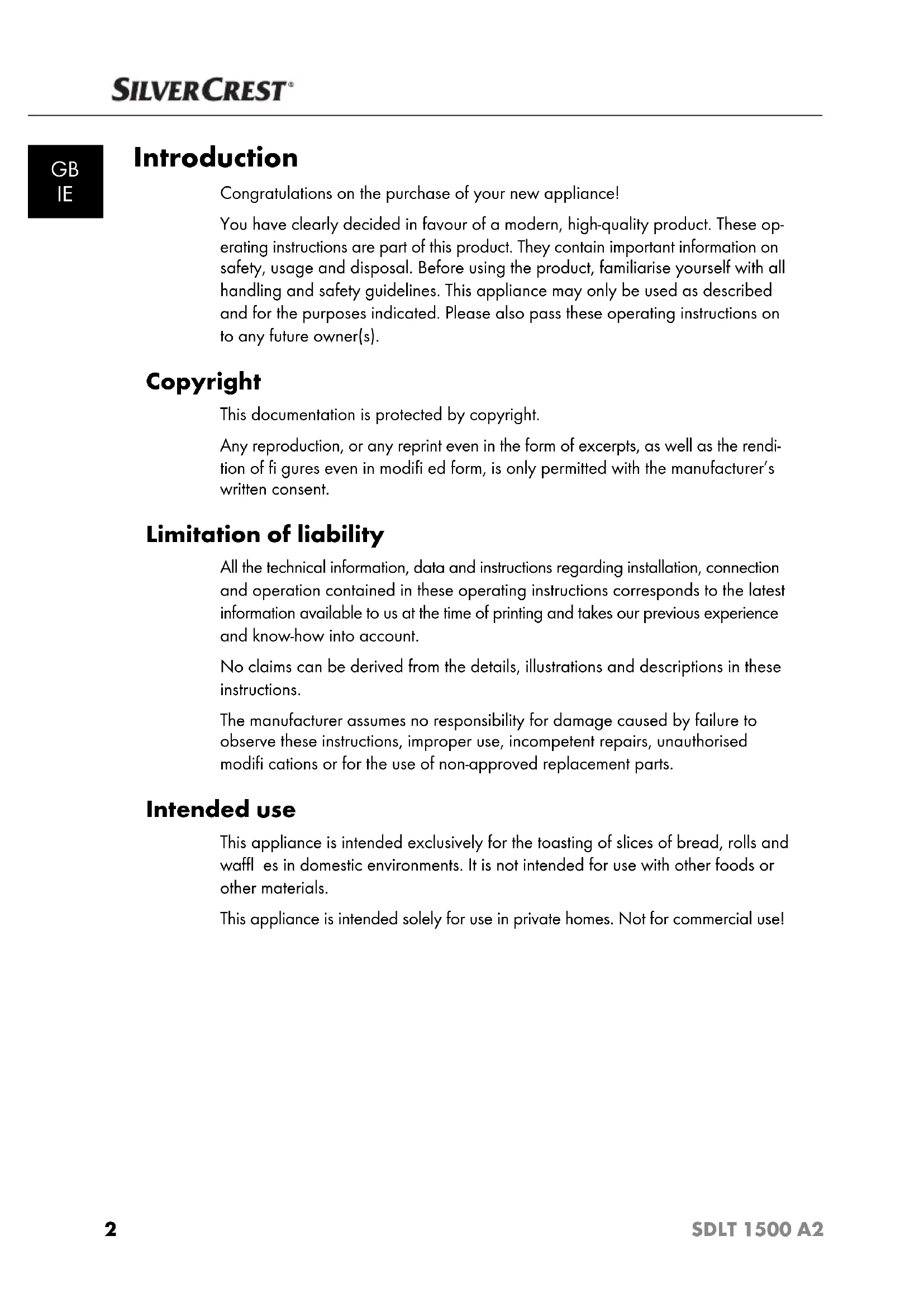

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high-quality product. These operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is protected by copyright.

Any reproduction, or any reprint even in the form of excerpts, as well as the rendi tion of figures even in modifi ed form, is only permitted with the manufacturer's written consent.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifi cations or for the use of non-approved replacement parts.

Intended use

This appliance is intended exclusively for the toasting of slices of bread, rolls and waffles in domestic environments. It is not intended for use with other foods or other materials.

This appliance is intended solely for use in private homes. Not for commercial use!

Package contents

The appliance is supplied with the following components as standard:

Double Long Slot Toaster
- Operating instructions

1) Take the appliance and the operating instructions out of the packaging
2) Remove all packaging material.

NOTE

Check the package for completeness and for signs of visible damage.
If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Warranty and Service).

Disposal of packaging materials

The packaging protects the appliance from damage during shipment.

The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging materials which are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging of the appliance during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

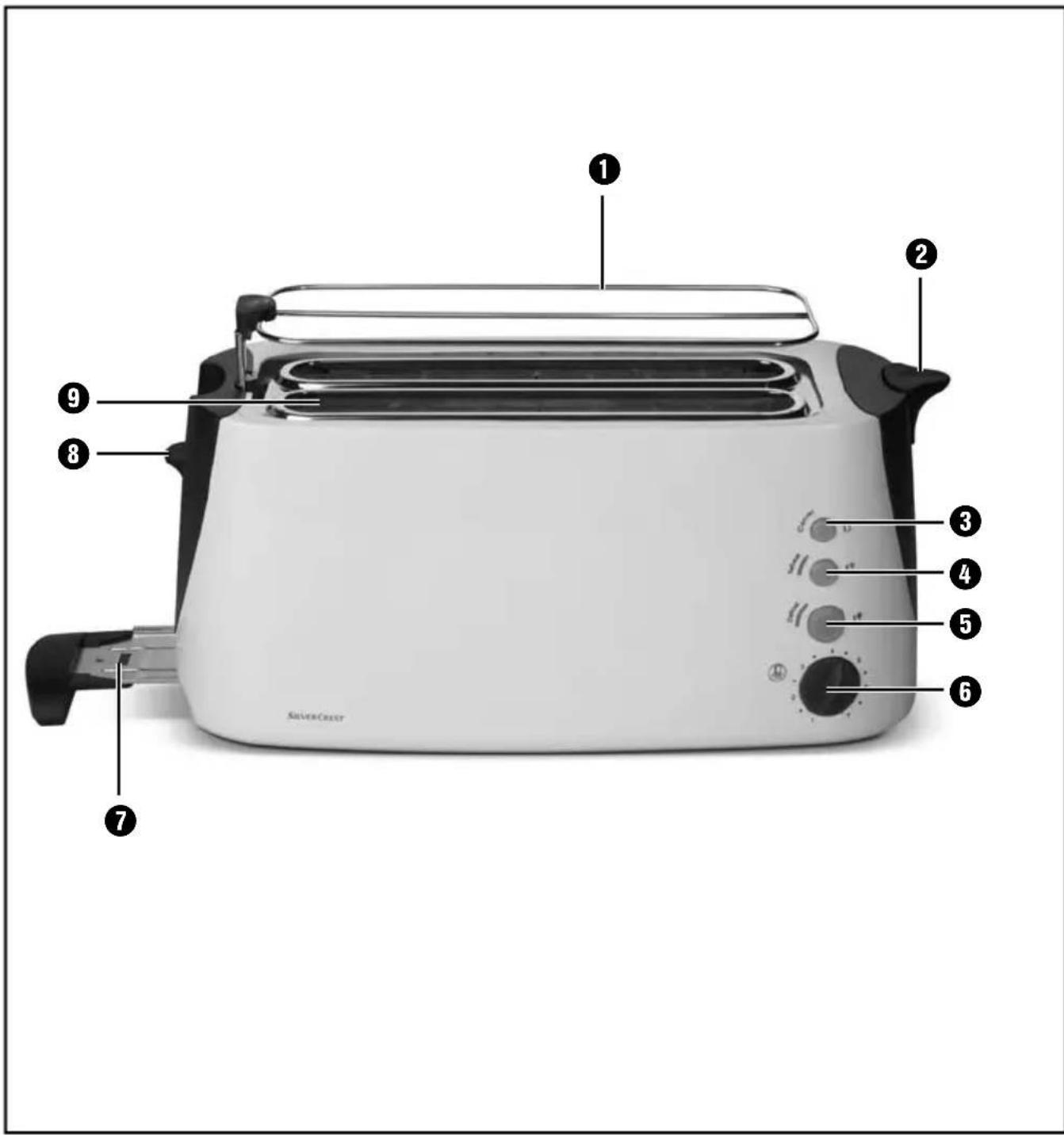

Appliance description

Warming rack
Toasting lever
"Cancel" button
"Reheat" button
"Defrost" button
6 Toasting dial
7 Crumb tray
Lever for warming rack
9 Toasting slots

Technical data

Voltage 220-240 V

,50 Hz

Power consumption 1300-1500 W

Safety guidelines

RISK OF ELECTRIC SHOCK

• Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualified specialist or by Customer Services.
  Use the appliance only in dry indoor areas, not outdoors.

NEVER submerse the appliance in water or other liquids! Otherwise there is a risk of an electric shock.

• NEVER insert cutlery or other metallic objects into the toaster slots.
• Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids.
• Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
  After use, always remove the plug from the mains power socket, this prevents the unintentional switching on of the appliance.
• Avoid using slices that are too big or too thick as these can easily become jammed in the appliance. If slices of bread become jammed, first disconnect the plug from the mains power socket. Release jammed slices of bread with a blunt wooden object (e.g. a wooden spatula or spoon). Do NOT touch the heater elements.

WARNING! RISK OF INJURY!

• This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.
  Children must not use the appliance as a plaything.
• Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised. Children younger than 8 years of age must be kept away from the appliance and the power cable.
  The appliance can become hot when it is in use. Therefore, only touch the operating elements.
• Use the appliance only on a stable, non-slippery and level surface.
• Do not use an external timer switch or a separate remote control system to operate the appliance.
  Unwind the power cable completely from the cable retainer before using the appliance.
• When toasting very small bread slices, take extreme care when removing them from the toaster! Risk of burns!

CAUTION - RISK OF FIRE!

• Bakery products can burn! You should therefore NEVER locate the appliance close to or underneath infl ammable objects, especially not under curtains or suspended cupboards.
  This appliance may not be used in close vicinity to flammable material.
  NEVER cover the toaster when it is in use.
  The appliance must always be supervised during use.
  To avoid the risk of fire, empty the crumb tray at regular intervals.

Tips for use

Diff erences in bread sorts, moisture content and the thickness of individual slices have an effect on the browning of the toast. Therefore the bread for toasting should be kept in sealed packaging until required. Always start by trying out a lower browning level.
Use a lower browning level if you are toasting dry bread since dry bread browns faster than fresh bread.
Set a lower browning level if you are toasting less than 4 bread slices.
■ Select a higher browning level for dark bread than for light bread, for example, white bread.
To prevent the toaster from overheating and to obtain an even browning of bread, wait for about 15 seconds between twoasting processes.
You should only use the highest level on the toasting dial for large slices of dark bread. With this browning level light bread will scorch and become inedible. In addition, it may cause the generation of smoke. If this occurs, press the "Cancel" button immediately and disconnect the power cable from the mains power socket.

Before first use

Operate the toaster without bread 3 times at the maximum browning level (7).
■ Afterwards, clean the toaster as described in the chapter "Cleaning".

NOTE

The toasting lever 2 only engages when the cable is connected to a mains power socket.

• With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Ensure sufficient ventilation. For example, open a window.

Operation

Adjusting the browning level

The desired browning level can be adjusted infinitely from "light" (1) to "dark" (7) using theasting dial 6.

NOTE

Note that, subject to the thickness of the bread in the toaster, the level of browning can vary somewhat even if the toasting dial 6 has not been adjusted! The fewer the number of slices inserted, the higher the browning level. Thus, if you are not intending to toast many slices, always set the toasting dial 6 a little lower.

Toasting

CAUTION - RISK OF FIRE!

• When the appliance is in operation, do NOT cover the toasting slots 9. There will be a risk of fire! The appliance could be irreparably damaged!

1) After setting the desired browning level, insert the bread into the toasting slots 9.
2) Press the toasting lever ② downwards. The automatic bread centring device centres the inserted bread in the toasting slots ⑨.
3) When the desired level of browning has been reached, the toaster automatically switches itself off and the slices are ejected upwards.

Stopping the toasting process

If you wish to stop toasting, press the "Cancel" button ③. The toaster switches itself off and the bread slices are ejected upwards.

Reheat function

The reheat function enables you to warm bread without browning it. As an example, for toast that has gone cold. The bread is only briefly warmed.

1) Insert the bread and press the toasting lever ② down.
2) Press the "Reheat" button. During the heating process, the indicator lamp on the "Reheat" button lights up.
3) Once the bread has warmed up again, the toaster switches itself off automatically, the indicator lamp on the "Reheat" button goes out and the bread slices are ejected upwards.

GB IE

Defrost function

By pressing the "Defrost" button frozen bread can also be thawed and toasted. In this mode, the toaster slowly warms the bread.

1) After setting the desired browning level, insert the bread into the toaster slots.
2) Press the toasting lever ② downwards.
3) Press the "Defrost" button ⑤. The indicator lamp on the "Defrost" button ⑤ lights up.
4) When the defrosting and toasting process is finished, the toaster switches itself off automatically, the indicator lamp in the "Defrost" button goes out and the bread slices are ejected upwards.

Warming up crusty bread rolls

NEVER place bread rolls directly on the toaster, ALWAYS use the warming rack 1.

1) Press the lever for the warming rack ⑧ down until it is completely extended.
2) Place the bread rolls onto the rack and start the toasting procedure. Set the toasting dial 6 to a maximum of level 3. The browning can, however, vary, depending on the composition and type of bread roll.

NOTE

• Place the rolls onto the warming rack ① in such a manner that they cannot fall through the rack ①.
  After toasting, the rolls will be very hot.

3) As soon as the toaster switches itself off, turn the rolls over to toast the other side and then switch the toaster back on.
4) If you no longer need the warming rack ① return the rack ① to its starting position by pushing the lever for the warming rack ⑧ back upwards.

Crumb tray

When toasting, crumbs that fall from the bread are collected in the crumb tray 7.

1) To empty crumbs from the crumb tray 7, simply pull it out to the side.
2) Tip out the crumbs.
3) Slide the crumb tray ⑦ back into the toaster.

Cleaning

RISK OF ELECTRIC SHOCK

• Disconnect the plug from the mains power socket before cleaning the appliance.

NEVER submerse the appliance in water or other liquids! Otherwise there is a risk of an electric shock.

WARNING! RISK OF INJURY!

Allow the toaster to cool before cleaning it. Risk of burns!

UTION - PROPERTY DAMAGE!

• Do not use aggressive or abrasive cleaning agents. These can damage the surfaces of the appliance.

Clean the appliance housing using only a dry or lightly moistened cloth.
To avoid the risk of fire, empty the crumb tray 7 at regular intervals.

Storage

Store the toaster in a dry location.
Clean the toaster as described in the chapter "Cleaning".
Wrap the power cable around the cable retainer on the underside of the toaster.

Troubleshooting

Malfunction Cause Solution
The appliance is not working.	The plug is not inserted into a mains power socket.	Connect the plug to the power supply.
	The appliance is defective.	Contact the Customer Service department.
The slices of toast are too dark.	The browning level is set too high.	Set the toasting dial ⑥ somewhat lower.
The slices of bread are not toasted.	The browning level is set too low.	Set the toasting dial ⑥ somewhat higher.
The toasting lever ② does not engage when it is pressed down.	The plug is not inserted into a mains power socket.	Insert the plug into a mains power socket.
	The appliance is defective.	Contact the Customer Service department.

Disposal

Under no circumstances should you dispose of the appliance in normal household waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Warranty and service

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or batteries.

This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in the case of misuse or improper handling, use of force and interventions which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.

Repairs effected after expiry of the warranty period shall be subject to charge.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 270660

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 270660

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sisällysluettelo

Johdanto 14

Tekijänoikeus 14

Vastuurajoitus. 14

Maaraystenmukainen kaytio 14

Toimitussisälto 15

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

SE

Indholdsfortegnelse

Introduktion 38

Ophavsret 38

Ansvarsbegransing 38

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matieres

Introduction 50

Droits d'auteur 50

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 62

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 74

Urheberrecht 74

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

07/2015·Ident-No.:SDLT1500A2-062015-1
