| Brand | SilverCrest |
| Model | DB 1400 A1 BL |
| Product type | Steam iron |
| Mains voltage | 220 - 240 V ~ / 50 Hz |
| Max. power consumption | 1400 W |
| Water tank capacity | Approx. 200 ml (up to MAX mark) |
| Temperature settings | 3 positions: ● (acrylic, rayon), ●● (silk, wool, polyester), ●●● (cotton, linen, viscose) |
| Steam setting | Continuous steam regulator |
| Steam functions | Steam ironing, steam shot, water spray |
| Soleplate | Suitable ironing soleplate (material not specified) |
| Power cord | With anti-kink protection, length not specified |
| Rest position | On the heel, stable flat surface |
| Cleaning | Housing with a soft dry cloth; soleplate with a slightly damp cloth and mild non-abrasive cleaner |
| Descaling maintenance | Mix tap water and distilled water according to water hardness (chart provided) |
| Child safety | Do not allow children under 8 years old to use the appliance; keep away when hot |
| Warranty | 3 years from date of purchase |
| Included accessories | Steam iron, measuring cup, instruction manual |
Frequently Asked Questions - DB 1400 A1 BL SILVERCREST
User questions about DB 1400 A1 BL SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Iron in PDF format for free! Find your manual DB 1400 A1 BL - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DB 1400 A1 BL by SILVERCREST.
USER MANUAL DB 1400 A1 BL SILVERCREST
FERÀ REPASSER VAPEUR DB 1400 A1 BL
FR BE
FERÄ REPASSER VAPEUR
Mode d'emploi
GB
STEAMIRON
Operating instructions
DE AT CH
DAMPFBÜGELEISEN
Bedienungsanleitung
IAN 88711
FR BE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
| GB | Operating | instructions | Page | 17 |
SOMMAIRE
PAGE
Introduction 2
Usage conforme 2
Accessoires fournis 2
Scope of delivery 18
Operating elements 18
Technical data 18
Safety instructions 19
Before initial use 21
Filling the water tank 21
Plugging in and ironing 22
Steam ironing 22
Ironing with steam blast 22
Temporarily setting the steam iron aside 22
Turning off the steam iron 22
Cleaning 23
Storage 23
Troubleshooting 23
Disposal 23
Warranty and service 24
Importer 24
Read the operating instructions carefully before using the device for the first time and keep this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.
Introduction
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product. These operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Please also pass these documents on to any future owner, together with the product.
Intended use
The steam iron is exclusively intended for ironing textiles. The iron may only be used indoors and in private households. Any other use is deemed improper. The apparatus is not intended for commercial use!
Scope of delivery
Steam Iron
Measuring beaker
Operating instructions

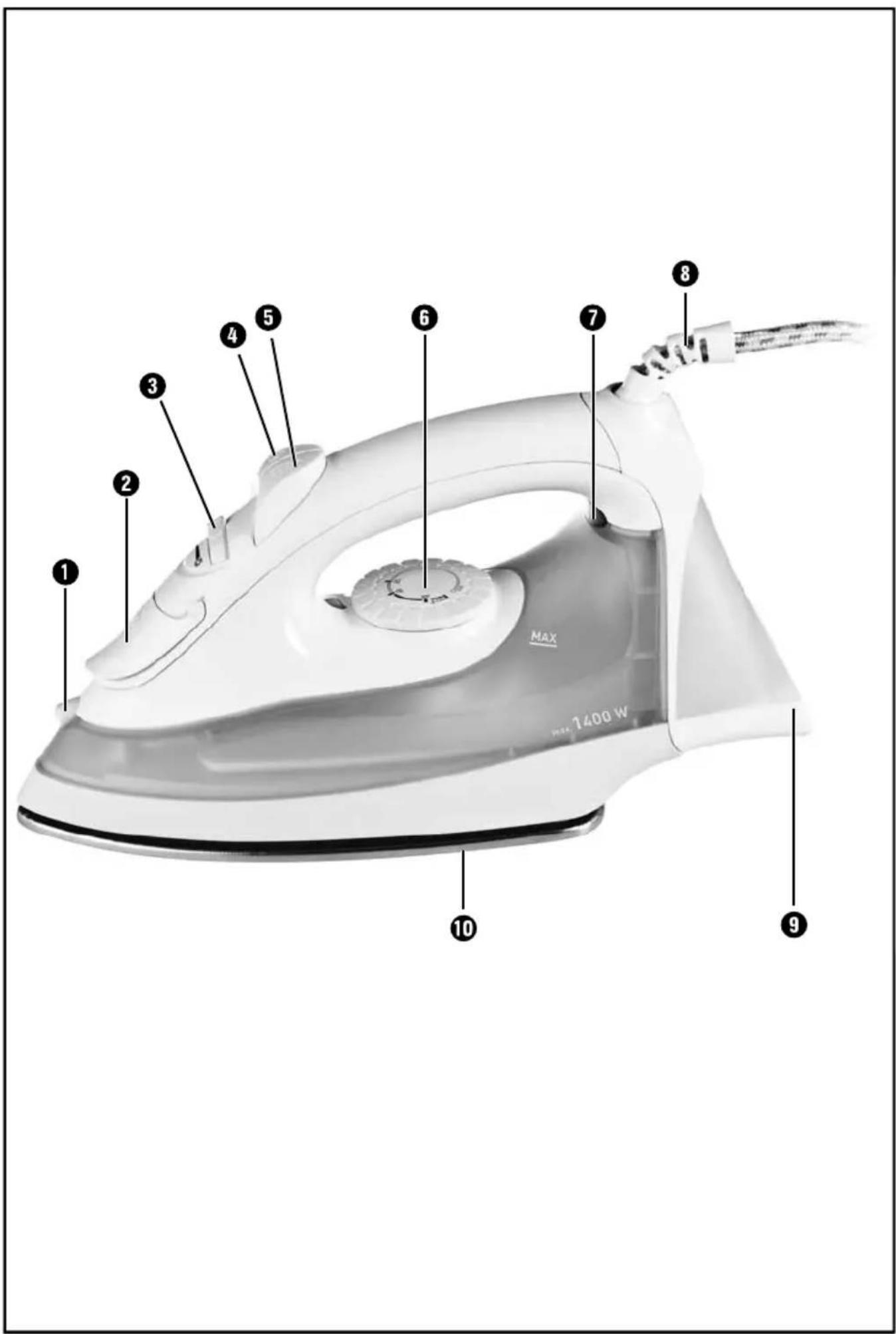

Operating elements
Water jet
2 Filler opening for the water tank
3 Steam regulator
4 Button for steam blast
5 Button
for fine water spray
6 Thermostat
Temperature control lamp
8 Power cable with anti-kink protection
Appliance base
10 Ironing sole
Technical data
Power supply voltage: 220 - 240 V \~ / 50 Hz
max. power consumption: 1400 W
Risk of Burns!
- Always hold the steam iron by the handle when it is hot.
Children should be supervised to ensure that they do not play with the appliance. - Never hold your hand over the steam spray or touch hot metal parts.
- The filler opening of the water reservoir must not be opened while the iron is in use. First allow the steam iron to cool down and remove the plug from the power socket.
- The iron and its connecting cable must be kept out of the reach of children younger than 8 years old when it is switched on or cooling down.
Risk of Injury! Risk of fire!
- Never leave a steam iron that is hot, switched on or connected to the mains power supply unattended.
- Do not put the steam iron into storage until it has cooled down completely.
- This steam iron must be used and placed on a stable surface.
- When ironing, only use the temperatures detailed in the garment care instructions, or those suitable for the material. Otherwise, you could damage the textiles. Should care instructions not be given or known, start with the lowest temperature setting.
- NEVER allow children to use the steam iron.
- Always put the iron on a level, heat-resistant surface. The iron must be in a stable position.
- Should you wish to put the steam iron down, always put it on the appliance base.
Risk of electric shock!
- The rating of the local power supply must correspond with the details given on the rating plate of the appliance.
- To avoid potential risks, arrange for defective appliances to be checked and possibly repaired by a qualified specialist workshop, or contact our Customer Service Department.
-
Arrange for defective power plugs and/or cables to be replaced immediately by qualified technicians or our Customer Service Department.
-
To disconnect from the power source, only pull the plug itself, not the cable.
- Never bend (kink) or crush the power cable. Arrange it in such a way that it cannot come into contact with hot surfaces and so that no-one can step on it or trip over it.
- Remove the plug from the power socket after every use, and before cleaning or filling with tap water.
- Always unwind the power cable fully before switching on, and do not use an extension cable.
- Never touch the power cable or the plug with wet hands.
- Never use the steam iron near a bath, shower, wash basin or other vessel containing water. The proximity of moisture presents a danger, even when the appliance is switched off.
- Under no circumstances should you submerge the steam iron in liquid or permit liquids to penetrate the casing of the steam iron. Do not expose the appliance to humidity and do not use outdoors. Should liquids enter the casing, unplug the appliance from the socket immediately and arrange for it to be repaired by a qualified technician.
- You may not open the casing of the steam iron. Should repairs be necessary, only allow authorised technicians to repair a defective appliance.
- Under NO circumstance should you use the appliance if it shows visible signs of damage, has fallen, or is leaking. Arrange for it to be repaired by qualified specialists.
- Do not use the appliance if the anti-kink protection on the power cable is damaged!
- This appliance may be used by children aged 8 years or over and by individuals with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge if they are supervised or have been instructed in the safe use of the appliance and have understood the potential risks. Children may not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.
Attention!
- Should the clothing care instructions forbid ironing, (symbol) the clothing item may not be ironed. If you do so, the clothing item could be permanently damaged.
- The water tank is to be filled exclusively with tap water or distilled water. Otherwise, you will damage the steam iron.
- Do not clean the steam iron with solvents, alcohol or abrasive cleaning agents, since these could cause damage.
Before initial use
- Remove the steam iron from the packaging.
- Remove all stickers and protective film from the steam iron and the ironing sole ⑩.
Risk of asphyxiation!
Plastic bags can be dangerous. To avoid the risk of asphyxiation, keep plastic bags out of the reach of toddlers and small children.
- Pour water into the water tank (see chapter "Filling the water tank").
- Insert the plug into a wall power socket supplying an electrical current as detailed on the rating plate.
- Move the thermostat to the "MAX" position.
- Heat the steam iron up for several minutes at the highest setting.
- Press the steam blast button a few times until steam exits from the ironing sole.
- Then iron a scrap piece of material to remove possible contamination from the ironing sole 10.
Filling the water tank
- Put the iron down on its soleplate 10.
- Open the cover of the filler opening for the water tank ②.
- Using the measuring beaker, fill the water tank to the "MAX" marking.
- Slide the cover of the filler opening for the water tank ② back to close it.
Note:
Should the tap water in your area be rated as hard, it is recommended that you mix tap water with some distilled water. Otherwise, the jets for the steam blast function could calcify (become blocked) prematurely.
To extend the optimal steam blast function, mix tap water with distilled water as follows.
| Water hardness | Ratios - distilled water to tap water |
| very soft / soft 0 | |
| medium 1 : 1 | |
| hard 2 : 1 | |
| very hard 3 : 1 |
The water hardness level can be queried at your local water works.
Plugging in and ironing
Dry ironing is possible at all temperatures, steam ironing is possible by adjusting to on the thermostat
- Insert the plug into a power socket.
Attention!
Should the clothing care instructions forbid ironing, (symbol) the clothing item may not be ironed. If you do so, the clothing item could be permanently damaged.
- Check the care instructions on the labels in the garment to see whether it is suitable for being ironed, and at which temperature setting.
| Symbol thermostat | Type of material |
| Acrylic, rayon | |
| Silk, wool, polyester blended fabrics | |
| Cotton, linen, viscose |
- Select the best suitable temperature setting with the thermostat 6.
The temperature control lamp ⑦ glows. When the set temperature has been reached, the temperature control lamp ① goes out.
- Wait until the temperature control lamp ⑦ switches off.
- To moisten the laundry, press the button for fine water spray.
This function is suitable for extremely dry and extremely crumpled garments.
Steam ironing
- Set the steam regulator ③ to the desired steam setting.
- The thermostat 6 must be moved to at least adjustment range. Otherwise it cannot produce any steam.
Ironing with steam blast
The steam blast is especially suitable for smoothing parts of a garment that are difficult to reach.
- Slightly raise the steam iron.
For a steam blast, press the steam blast button
Temporarily setting the steam iron aside
Risk of fire!
NEVER leave the hot, mains-connected or switched-on steam iron unattended.
- Set the thermostat 6 to the "MIN" position.
- Always put the steam iron on the appliance base ⑨
Turning off the steam iron
- Remove the plug from the wall socket.
- Empty the water tank and clean the ironing sole.
- Put the steam iron on the appliance base ⑨ after it has cooled down.
Potentially fatal danger!
Disconnect the plug before cleaning. Otherwise there is a risk of receiving a potentially fatal electric shock!
Risk of physical injury!
Allow the appliance to cool before cleaning it. If you do not, there is a risk of receiving burn injuries!
- Clean the casing with a soft, dry cloth only.
Attention!
Do not use aggressive, abrasive or chemical cleaning agents. These could attack the surfaces and cause irreparable damage to the appliance.
- Clean the soleplate using a damp cloth and a mild, non-scouring detergent.
Storage
Store the appliance in a clean, dust-free, and dry location after it has cooled down.
Troubleshooting
Steam iron producing little or no steam:
The reserves of water in the steam iron are depleted. Fill the water tank with tap water (See "Filling the water tank").
The steam iron does not get hot:
- The steam iron is not plugged in or is not switched on. Insert the plug into a wall power socket and adjust the thermostat to the desired ironing temperature.
- The steam iron is defective. Arrange for the steam iron to be repaired by qualified specialists.
Disposal
Do not dispose of the appliance in your normal domestic waste. This appliance is subject to the provisions of European Directive 2002/96/EC.
Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmentally friendly manner.
Warranty and service
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the event of a warranty claim, please telephone our
Service Department. This is the only way to ensure that your goods are dispatched free of charge.
The warranty only covers claims for material and manufacturing defects, but not for transport damage, wearing parts or damage to fragile components such as buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of incorrect and improper handling, use of force and internal manipulation that is not carried out by our authorised service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made under warranty. This also applies to replaced and repaired parts. Any damage and defects that are discovered immediately after purchase must be reported immediately after unpacking the appliance, no more than two days after the purchase date.
Repairs made after the expiration of the warranty period are subject to payment.
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-mail: kompernass@lidl.co.uk
IAN88711
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND/GERMANY
www.kompernass.com
Last Information Update:
02/2013·Ident.-No.:DB1400A1BL112012-2
