15. Garantie en Service

GB	INDEX OF CONTENTS	PAGE
1	Foreword	42
2	Intended use	42
3	Safety instructions	43
4	Contents of the box	45
5	Product overview and technical data	46
6	Steam ironing centre assembly	47
7	Tank filling	48
8	Before first use	49
9	Ironing	49
10	After ironing	53
11	Cleaning and care	54
12	Accessories and information	56
13	Problems solutions	57
14	Costumer service	59
15	Warranty and service	60
16	Disposal	60

1. Foreword

Congratulations on the purchase of your Silvercrest steam ironing centre SDBC 3.5 A1.

This steam ironing centre will make your ironing much easier.

Please read this instruction manual and especially the safety instructions completely and carefully before first use. The instruction manual will help

you to use your steam ironing centre correctly and to avoid problems. Keep this instruction manual for future reference and give it to other users of this steam ironing centre.

For further information or any problem not covered in this manual, get in touch with the nearest Service Centre.

The manufacturer reserves the right to make changes and/or improvements in designs & dimensions without notice and without incurring obligation.

The manufacturer will not be liable for damages occurring as a consequence of improper handling of the product, non-domestic use or failure to observe the information in the instruction manual.

Importer

Euroflex s.r.l., Via dei Colli 153, 31058 Susegana (TV), Italy

EC- Declaration of conformità and manufacturer

Name: Pressure steam iron system

SILVERCREST Model: SDBC 3.5 A1

The manufacturer Euroflex, via dei Colli, 153-31058 Susegana (TV) Italy herewith declares the conformity of the named steam iron with the following Standards and Directives:

- EC-Low Voltage Directive 2006/95/EEC 2006/95/EG

- EN 60335-1

- EN 60335-2-3

- EN 62233

- EC-Directives on Electromagnetic Compatibility 2004/108/EEC

- EN 55014-1

- EN 55014-2

-EN 61000-3-2

-EN 61000-3-3

Name and signature of authorized person

Mr. Pierantonio Milanese

dutoue

2. Intended use

This steam ironing centre is for domestic use only. Use it in closed rooms in due consideration of the instruction manual.

Any other use will invalidate the warranty (e.g. outdoor use, industrial, commercial or professional use, etc.).

3. Safety instructions

General safety instructions

- Check your steam ironing centre after unpacking. If there is any sign of physical damage to the product do not attempt to use it, and please contact your customer service centre.

- The packing materials (e.g. plastic bag) are potentially dangerous to children (potential choking hazard) and should be disposed of or stored safely.

- This appliance works on standard AC mains voltage (220 to 240 volt 50/60Hz). Do not connect the appliance to a power supply that does not conform to this standard.

- This steam ironing centre is not suitable for people (including children) who have reduced physical, sensory or mental capabilities, or who have no experience and knowledge of the product, unless they have been provided with the appropriate instructions to use the equipment by a person responsible for their safety.

- Children should be supervised in order to make sure they do not play with the steam ironing centre. They could hurt themselves or other people or cause damages to other items.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down

- Unplug the steam ironing centre after every use and before every cleaning, to avoid switching the unit on unintentionally.

- The steam ironing centre must not be used if it has been dropped, or if there are visible signs of damage. Inspect the steam ironing centre regularly for visible defects and contact your customer service centre if you suspect that there may be damage. Your safety will be assured if the product is in perfect condition.

- Plug the steam ironing centre only in an approved wall socket according to the supply voltage stated on the rating label, otherwise you may cause damages and hurt yourself and other users.

- If the plug does not fit in the socket, it must be changed by an expert to ensure that it is safe.

- The socket has to be secured by a 16A automatic circuit breaker, this protects you and the appliance.

- Preferably do not use any extension cable, multi plugs or adapter. If any of these devices are necessary, only use 3-core extension cables (with an earth wire) which are suitable for 16 A current. Please consider also the total power and follow the safety instruction to ensure your safety.

- All extension cables should be completely unrolled prior to use.

- Place the steam ironing centre near the socket, so that it can be easily unplugged in case of emergency.

- Always place the steam ironing centre on a flat, level, stable surface. Check if the mechanism for height adjustment is properly set in order to avoid any part of the steam ironing centre tilting or falling over.

- Do not expose the steam ironing centre to outdoor atmospheric conditions (e.g. rain, frost, sun, dampness or heat.) Only use the steam ironing centre in dry indoor conditions.

- Never store the steam ironing centre filled with water in rooms with a temperature of 0^ or lower, in order to avoid risk of freezing.

- Never stick any things into the holes of the steam ironing centre. Do not use it if the holes are blocked, it may overheat.

- Do not leave wet clothes to dry on the ironing surface, it may overheat.

- If the ironing centre has been used for purposes other than intended, or has been handled wrongly or improperly, it will not be considered responsible for any damage caused.

Danger of burning

• Check if the permanent steam function is switched off before use.
• Never use the steam ironing centre with a defect or without the safety cap 1. The steam ironing centre is ready for use only with an intact safety cap 1.
• Never open the safety cap ① during use. Let the steam ironing centre cool down for at least 15 min and unplug the unit before filling with water.
• Never direct the steam towards persons, animals or plants.
• Never put your hands under steam.
• Never touch the iron soleplate 13, only hold the iron by its handle.
• The bottom of the ironing board can become very hot, so avoid any contact.
• Never leave the iron unattended when switched on or still hot: it may fall and hurt or burn somebody.
• In case of any defects on the steam hose 21 or the steam station 23 contact your costumer service centre.
• Always place the iron on the rest pad 2, otherwise there is danger of fire.
• Never put the iron near flammable materials.
• Store the steam ironing centre only when it has cooled down.

Danger of electric shock

• If the power cord 15 is defective it has to be changed only by the costumer service technician or any other qualified person.
• The electrical parts (e. g. plug, switch, etc.) should never get in contact with water.
• Never touch the power cord 15 or the plug with wet hands.
• When unplugging the unit, always pull the power cord 15 by the plug, not by the cord 15 itself.
• Never put the steam ironing centre under water, even when filling the boiler.
• Never fold the power cord 15. Lay the power cable 15 so that it cannot reach any hot or sharp edges and nobody can stumble on it.
• Never use the steam ironing centre near liquid which is contained in showers, bathtubs, washbasins or any other container. The contact with liquids may be dangerous, even if the steam ironing centre is switched off.
• Never point the steam towards the socket, electrical appliances nor heat- or moisture-sensitive appliances or objects.

• Always unplug the steam ironing centre before filling the boiler, after every use and before any cleaning.

• Do not, in any circumstances, open the detachable boiler or the iron. Have defective parts repaired by a qualified workshop or costumer service centre only.

• The electrical safety of the steam ironing centre is ensured only if it has been properly earthed, according to current regulations. The manufacturer declines any responsibility for any defect, which can be the result of inadequate earthing of the equipment. In case of doubt please contact an expert.

ELECTRICAL CONNECTION (UK ONLY)

Warning: This appliance must be earthed.

The appliance must be connected to a 220-240 V 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a rewireable 13 amp 3 pin plug fitted with a 13 amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362. If the mains plug is unsuitable for the socket outlet in your home or is removed for any other reason, then the cut off plug should be disposed of safely to prevent the hazard of electric shock if the cut off plug is inserted into any 13 amp socket outlet.

GREEN/YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps Cord Clamp

4. Contents of the box

Warning:

Dispose of all plastic bags included in the packing, they may become a danger for children and other persons.

Check the completeness and intactness of the equipment after unpacking.

a. Active ironing board with steam station 23 (boiler, control elements, rest pad 2)

b. Iron

c. Iron cord holder 22

d. Filling bottle 19

e. Key for boiler drain-plug 18

f. Instruction manual

g. Instructions DVD 27

Note:

Keep the rest of the packaging for further use (e.g. house moving, repair, etc.).

Keep the instruction manual and give it to other users of this steam ironing centre.

5. Product overview and technical data

1 Safety cap
2 Iron rest pad
3 Auto-Shut-Off indicator
4 Steam-ready indicator
5 Water level warning indicator
6 Function switch (suction | - off 0 - blowing ||)
7 Main power switch
8 Steam quantity selection knob
9 Iron socket
10 Iron lamp indicator (red/green)
11 Temperature selection knob
12 Steam button with lock slider
13 Iron soleplate
14 Iron plug
15 Power cord
16 Power cord holder
17 Cover for drain-plug
18 Key for boiler drain-plug
19 Filling bottle
20 Ironing surface
21 Iron cord
22 Iron cord holder
23 Steam station
24 Wheels
25 Height adjustment lever
26 Eccentric rubber feet
27 DVD

Technical Data

Electric power supply: 220-240V \~ 50/60 Hz

Energy Consumption: 2300 W

Pressure: 3,5 bar

Water capacity: 1,2 l

6. Steam Ironing Centre assembly

- Choose an appropriate place for the steam ironing centre as described in the Safety instructions (chapter 3).

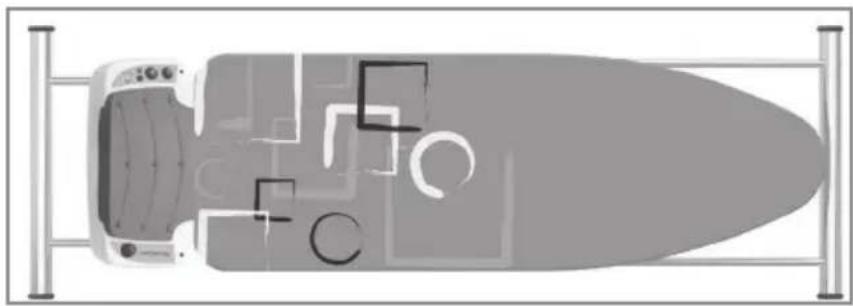

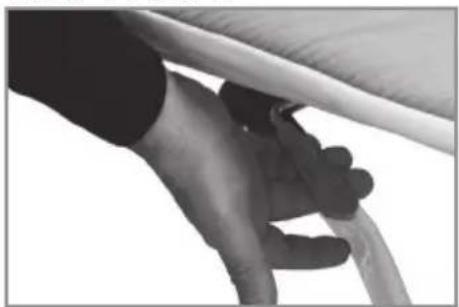

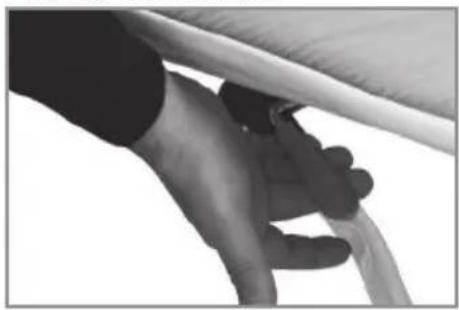

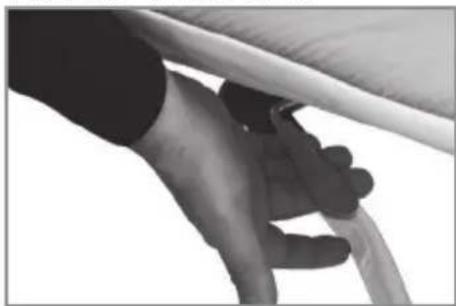

- Place the ironing board horizontally on the floor (picture 1).

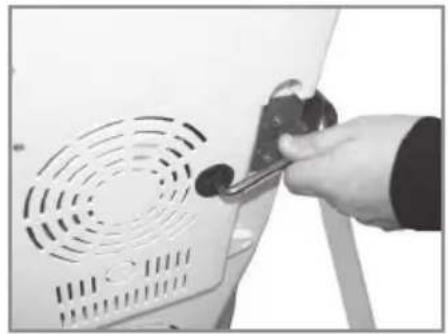

- Put one hand under the edge of the ironing board 20 and block the front leg of the steam ironing centre with one foot (picture 2).

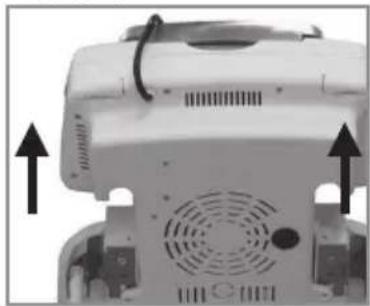

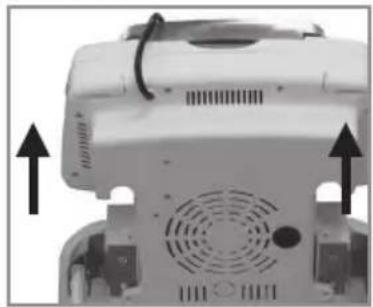

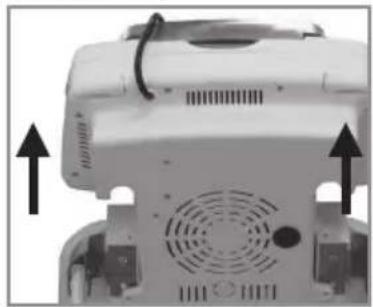

- Lift the ironing surface 20 slowly up, till the unit clicks in audibly and it is in the highest position (picture 3).

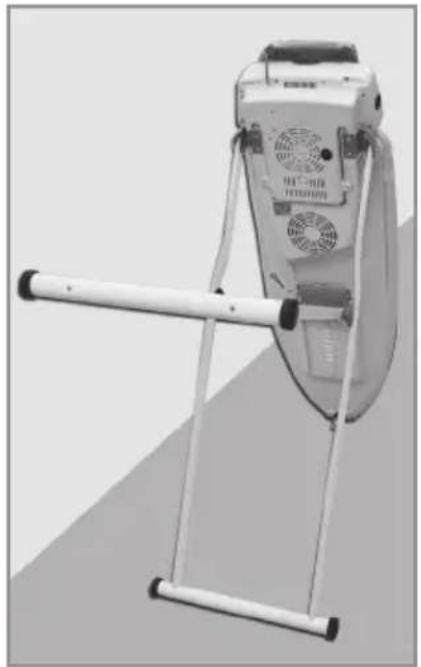

- Adjust the desired height with the height adjustment lever (picture 4).

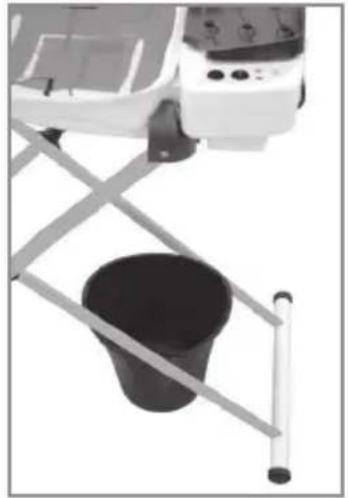

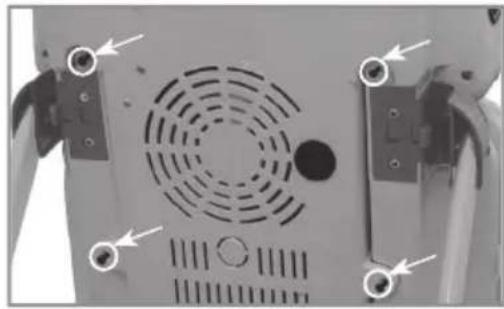

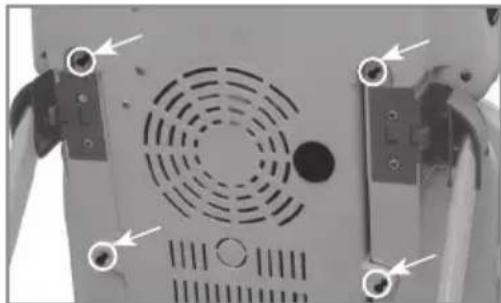

• Balance potential irregularities of the floor with the eccentric rubber feet 26 (picture 5). Due to differences in thickness of the eccentric rubber feey 26 a solid stand can be reached on irregular floors.

- Insert the iron cord holder ^22 in one of the special holes in the steam unit (picture 6).

- Plug the iron cord ^14 in the special socket on the steam unit ^9 .

- Hang the iron cord 21 on the iron cord holder 22, so that it will not move your clothes while ironing. Please always use the iron cord holder 22 to prevent the iron cord 21 from damages.

- Remove the protective film from the iron soleplate.

- Place the iron on the rest pad 2.

car floors. Picture 6

Picture 1 Picture 2

Top-down schematic of a boat hull with marked sections and control panels (no text or symbols)

Person using a tool to lift a large object, no visible text or symbols

Picture 3

Close-up of a mechanical component with a curved bracket and mounting bracket (no visible text or symbols)

Picture 4 Picture 5

Close-up of a hand gripping a flexible object, possibly a tool or device (no visible text or symbols)

Close-up of two hands exchanging a black cylindrical object, possibly a tool or device (no visible text or symbols)

7.Tank filling

Warning:

• Open the safety cap 1 when the steam ironing centre has cooled down for at least 15 minutes, otherwise outflowing hot steam may cause burning.
• Never use the steam ironing centre without any water otherwise the boiler may be damaged.
• The steam ironing centre is built to be used with tap water.
• Fill the boiler completely before every use, so you can avoid unnecessary pauses.

Note:

To avoid contamination and damage to the boiler follow these notes:

• Do not fill with water from the laundry dryer.
• Do not fill with chemical cleaned water.
• Do not put any additives into the water (e. g. scents, etc.).
• Do not fill with water from filter units (e.g. activated carbon filter).

Filling with water

• Unplug the unit.
• Slide the rest pad 2 laterally.
• Open the safety cap ① by pushing it down and turning it counter clockwise.
• Pour the desired quantity of water in the filling bottle 19 (max 1,2l).
• Turn the filler bottle 19 upside down and place it into the boiler opening.
• Press the filler bottle 19 down and hold, so that the valve in it opens and water can pour into the boiler. Overfilling is not possible, because the valve of the filler bottle 19 closes if the boiler is completely filled.
• Close the safety cap 1 by pushing it down and turning clockwise.
• Slide the rest pad 2 back to the basic position.

Hint:

Fill the boiler completely before every use, so you can avoid unnecessary pauses for cooling down and refilling.

8. Before first use

When using the unit for the first time it is possible that production residues may cause some smoke and smell. The smell is not injurious to health, but make sure you have sufficient ventilation.

- Assembly the steam ironing centre as described in chapter 6.

- Fill with water as described in chapter 7.

- Plug the unit in.

- Switch on the steam ironing centre by the ON-OFF switch 7.

- Turn the temperature selection knob 11 up to +MAX, the temperature indicator 10 turns red.

- Wait until the temperature indicator 10 and the steam-ready indicator 4 turn green, at this stage the iron has reached the MAX temperature and is ready for steaming. This may take 5-10 minutes, depending on the water level.

- At first you should iron a cloth or a hand towel (suitable to +MAX temperature) to remove any residue from the iron soleplate 13.

- Press the steam button 12 a few times for several seconds to remove any residue from of the iron cord 21, the iron and the sole plate holes. While doing this, hold the iron over a bucket or steam straight on an old piece of tissue to catch the residues.

9. Ironing

Note:

• If the care label on the textiles do not allow to iron you should not iron them, or they may get damaged.
• Avoid ironing over harsh objects like zips, fixing pins, blanks or similar things, because they may scratch the iron sole plate ^13 .
• Always iron printed textiles after turning them inside-out, printing may be damaged and the iron sole plate 13 gets dirty.

Some helpful tips for ironing:

• The iron soleplate 13 gets warm rapidly, but cools down very slowly.
• Sort your clothes according to the fabric they are made of.
  • Always start with the ones which need the lowest temperature.
• Always follow the care label. If you are not sure about the kind of fabric start ironing carefully on a little, invisible area (e.g. inner area). In case of doubt, start with the lowest temperature. If any wrinkles remain, increase the temperature slowly. If you have found the right temperature stop increasing it. Never increase temperature so high that the clothes may be damaged.

- Steam on knitted textiles keeping the iron a few centimetres away, without touching the textiles with the iron soleplate 13. Steaming on the fibres brings back their elasticity. You should never iron knitted textiles like you do on others.

• Always iron velvet textiles in the direction of the hair.

- Steam is more or less visible, depending on the room temperature. In rooms with a high temperature you will appear to see less steam but it is still being given out in the amount you have chosen.

Start ironing:

• Follow the steps in chapter 6.
• Plug the unit in.
• Switch on the steam ironing centre with main power switch ⑦.
• If the water level warning indicator 5 is red, switch off the steam ironing centre with the main power switch 7, unplug the power cable 15 and follow the steps in chapter 7. After filling the tank start again with the second step in this chapter.
• Choose the right temperature by turning the temperature selection knob 11, the iron lamp indicator 10 flashes red.
• Please wait until the steam-ready indicator 4 and the iron lamp indicator 10 flashes green. Now the iron has reached the chosen temperature and is ready for steaming. This may take 5-10 minutes depending on the water level.

Dry ironing:

Note:

If you do not push the steam button 12 for 11 minutes you will hear a warning signal. If the steam button 12 is not pushed for one more minute the Auto-Shut-Off function will be activated.

Dry ironing is possible by not pushing the steam button 12 after the heating-up time. For dry ironing you can start when the iron lamp indicator 10 flashes green, no matter how the steam-ready indicator 4 looks like.

Steam ironing

Temperature and steam selection

Fabric	Temperature adjustment Steam regulation
Linen/Cotton		turn until + stop
Silk/Wool		turn until the middle between + and -
Synthetic, Polyester, Polyamid, etc.		Do not use steam with this temperature setting.Water could drop out of the iron soleplate 13.

- Please consider the above table in which you can find the recommended steam adjustment for each temperature setting.

- To get an ideal steam result select the “• • •” temperature.

- Push the steam button 12 for steaming.

• Usually ironing is done with the steam botton.

- Never point the first steam emission towards the garment you are ironing, it may happen that condensed water from the iron cord 21 will come out of the iron soleplate 13. After turning the appliance on or after a long pause, or after refilling the boiler direct the first steam jet toward the air or toward a piece of cloth but not on the garment to be ironed, so that any condensed water still in the iron may be expelled without staining the garment.

- If is not emitted check if the steam selection knob 8 is turned open.

Hint:

To get an ideal ironing result, iron with steam forwards and without steam backwards to fix the crease.

Ironing with permanent steam:

Warning:

The permanent steam function should not be used whilst the iron is heating up, otherwise hot water and steam will come out of the iron soleplate 13 and you may burn yourself.

- The permanent steam function is activated by pushing the steam button 12 and pulling the slider lock backwards, so the steam button is locked on.

- Permanent steam is used only for vertical ironing or very hard to iron textiles.

- Just use the permanent steam function for a few seconds. If you use it too long waterdrops can appear with steam on your textiles.

Vertical ironing:

Warning:

Never iron clothes which are being worn by persons, because you may cause scalding.

- When using the steam bottom or permanent steam, always iron from the top downwards.

- Touch the textiles very gently with the iron.

- If you iron delicate textiles keep the iron soleplate 13 a few centimetres far from the textile.

Water refilling:

Refilling during ironing is not possible.

When the water level warning indicator 5 flashes red you have to refill with water. Switch off the steam ironing centre with the main power switch 7 unplug the power cable 15 and follow the steps in chapter 7.

Functions of the active ironing board:

Note:

• If you have selected the suction or blowing function, this will work permanently. It can be switched off by selection the "0" position on the function switch 6.
• In order to avoid needless cooling of the ironing surface, select the “0” position whenever you have ironing breaks (i.e. for moving or replacing the clothes)

Heated ironing surface:

The heated ironing surface 20 dries your clothes during the ironing and also any condensation inside the ironing board so the ironing time gets shorter and the economic lifetime of the board gets longer.

Suction:

Turn the function switch 6 to position "I" to activate the suction mode.

The suction function allows the following:

• fixing textiles on the ironing surface 20
  → flat clothes do not slide off the ironing surface 20.
• takes steam out of the textiles and the cover of the ironing board.
  → faster drying and shorter ironing time.
  • cools the cloth and fixes the fibres.
  → faster drying and better ironing result.

Close-up of a device control panel with buttons and a labeled 'Suction' text (no other readable symbols or text)

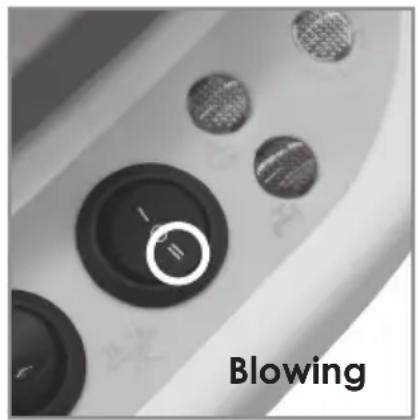

Blowing:

Turn the function switch 6 to position "II" to activate the blowing mode.

The blowing function allows:

• ironing on an air cushion
→ crease-free ironing of delicate and difficult ironing textiles.
→ no marks from the lower to the upper layer when ironing a doubled textile (i.e. embroidery, seams, wrinkles, ...).

Close-up of a computer control panel with a highlighted button and 'Blowing' text (no other symbols or labels visible)

“O”- Position:

When the function switch 6 is set on the "0" position, only the heating is on. The suction and blowing function are off.

Auto-Shut-Off function

Note:

Do not use the Auto-Shut-Off function to switch the steam ironing centre off after an ironing session. For that purpose use the main power switch ⑦ only.

The steam ironing centre has an Auto-Shut-Off function to save energy.

If you do not push the steam button 12 for 11 minutes you can hear a warning signal. If you do not push the steam button 12 for one more minute the steam ironing centre will automatically switch off. The Auto-Shut-Off indicator 3 flashes blue. If you want to restart the steam ironing centre, switch the unit off and on again by pushing the main power 7. When the iron lamp indicator 10 and the steam-ready indicator 4 flash green the unit is ready for use.

10. After ironing

Disassembly:

• Put the iron on the rest pad 2.
• Leave the equipment switched on for a few minutes after the ironing session in order to dry the residual condensed steam inside the ironing board 20.
• Switch off the steam ironing centre with the main power switch ^7 , unplug the power cord ^15 and wait until it has completely cooled down at least 30 minutes).
• When the iron is completely cold (after at least 30 minutes) unplug the iron cord ^14 . Now you can store it.
• Turn the power cord holder 16 outwards and wind the power cable 15 round it.
  • Take off the iron cord holder ^22 .
• Lower the ironing board carefully to the floor while pushing the height adjustment lever 25. Block the wheels with a foot to prevent rolling away. Pay attention not to clamp the power cord 15.

Storage:

• The steam ironing centre can be easily moved on the wheels when it is folded
• It can be stored vertically, with the wheels on the upper side to prevent rolling away.

11. Cleaning and Care

Warning:

Unplug the power cord 15 and wait until the steam ironing centre has completely cooled down before doing any cleaning.

Cleaning:

• Clean the steam ironing centre with a soft and dry cloth.
• Do not use any cleaner.
• Never put the steam ironing centre into water or any other liquids.

Boiler cleaning:

Note:

After cleaning, steam several times over a bucket before next ironing session to get rid of any residual limestone parts in the steam circuit.

You should clean the boiler at least every 4 weeks to remove deposits. For this purpose follow below steps:

• Assembly the steam ironing centre and put it to the highest position. The iron has not to be conneted.
• Place a bucket under the drain-plug on the bottom of the ironing board (picture 7).

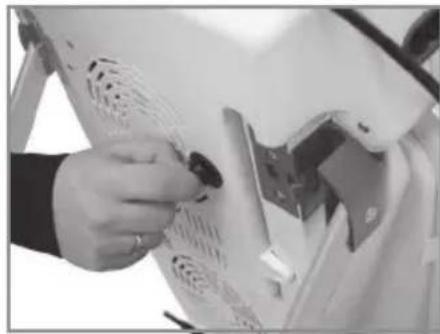

• Remove the cover for the drain-plug 17 (picture 8).

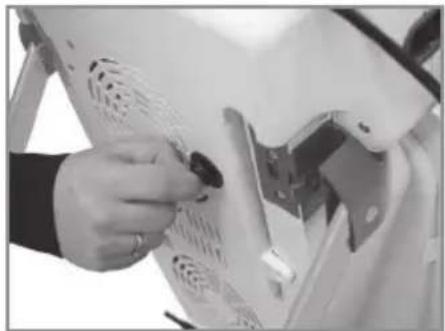

• Open and remove the drain-plug with the special key 18 (picture 9). Removing it, water may come out.
• Slide the iron rest pad 2 outwards.
• Open the safety cap 1.
• Pour water in the boiler.
• Pour water in it until clear water comes out of the drain-plug.
• Dry the thread of the drain-plug and screw it.
• Mix 0,5l tap water with a decalcifier in a container according to the instructions given with the decalcifier itself.
• Pour the solution into the boiler.
• Wait 30 minutes. During this time shake the steam ironing centre several times carefully to dissolve the limescale deposits.
• Open the drain-plug again.
• Pour water in the boiler until clear water comes out of the drain-plug.
• Dry the thread of the drain-plug and screw it. Place the cover of the drain-plug 17 in its place.
• Close the saftey cap ① and slide the rest pad ② towards the ironing board.

Picture 7

Exterior view of a portable kitchen appliance with a bucket and ladder (no visible text or symbols)

Picture 8 Picture 9

Close-up of a hand adjusting a white mechanical component with a clip (no visible text or symbols)

Hand holding a tool interacting with a circular vented fan (no text or symbols visible)

Iron cleaning:

The iron should be cleaned at least every 3 months. For this purpose follow below steps:

• Check if there is water in the boiler, if not, refill.
• Switch on the steam ironing centre with the main power switch ⑦.
• Turn the temperature selection knob 11 to "MIN" position.
• Wait until he steam ironing centre is ready for steaming (steam-ready indicator 4 flashes green).
• Hold the iron horizontally over a bucket.
• Push continuously the steam button 12 or activate the permanent steam mode.
• If you do not get steam check if the steam selection knob 8 is turned open.
• A steam and water mix comes out of the iron soleplate 13.
• The cleaning is finished, when only clear steam and water mix comes out of the iron soleplate 13.
• Switch off the steam ironing centre and unplug the power cord 15.
• Wait until the iron soleplate 13 has completely cooled down before cleaning the iron soleplate 13 with a clean cloth if necessary.

12. Accessories and informations

Tipp:

Machine wash at 40°C

Do not bleach

Do not tumble dry

Iron at max temperature

No dry cleaning

Due to the pressure put on the board with the iron, dust and other particles the permeability of the cover to air and steam can be reduced. This reduces the quality of your steam ironing centre performances significantly. It is advisable to wash the cover 4 times a year. Wash at 40^ C without softener.

The cover shall be substituted if the old one is damaged or if after washing the original performances of the ironing board are not resumed.

Covers with metal parts are not suitable to this ironing centre, since they could heat up and be dangerous.

Only original covers allow quality ironing.

If you need some accessories or more information please contact us at:

Customer Service: 00800 387 693 539

13. Problems solutions

If you experience any anomalous functioning of the steam ironing centre please check the following table before contacting the costumer service. A variety of possible problems and relevant solutions can be found here with explanations.

PROBLEM	REASON SOLUTION
The steam ironing centre does not show any function.	The steam ironing centre is not connected to the wall-socket.The Auto-Shut-Off function is activated.	Plug it in and switch the steam ironing centre on by pushing the main power switch7.Switch the steam ironing centre off and on again by pushing the main power switch7.
The iron does not show any function.	The iron plug14is not connected to the iron socket9.	Put the iron plug14in the iron socket9.
The iron soleplate13does not heat up.	The electric power supply is disconnected.The steam ironing centre is switched off.The temperature adjustment knob11is turned on “MIN”.	Plug the steam ironing centre in.Switch it on by pushing the main power switch7.Turn the temperature adjustment knob11to a higher setting.
You get no or little steam.	There is not enough water in the boiler.The steam ironing centre is not yet ready for steamingThe steam setting is not high enough.	Fill up the tank with water.Wait until the steam ready indicator4flashes.Turn the steam selection knob8to a higher setting.
Water drops from the iron soleplate13.	The temperature of the soleplate is too low or the steam setting too high.Condensed water remained in the iron cord21, because you are using the ironing centre for the first time or after a long break.The steam button12has been pressed for a long time or permanent steam has been used for a long time.	Check steam and temperature settings with table in chapter 9.Press the steam supply button12till you get steam.Press the steam button12only for a short time when needed.
The iron soleplate13is dirty or it stains the clothes.	The temperature setting is too high.	Turn the temperature adjustment knob11to a lower setting.
Steam comes out of the iron permanently.	The lock slider on the steam button12is activated.	Release the lock slider on the steam button12.
Dirty water comes out of the iron.	There is too much lime-scale in the boiler or the iron.Some kind of addictive has been mixed to the water.	Decalcify the boiler and the iron.Contact the costumer service.
Steam comes out of the saftey cap1.	The safety cap1is not firmly closed.The o-ring is faulty.	Close the safety cap1correctly.Contact the costumer service.

14. Costumer service:

If you cannot solve the problem you are experiencing on your own, based on above table, please contact the costumer service centre:

00800 387 693 539

If you have been given instructions by the costumer service centre, please follow the steps below to remove the faulty part. The steam ironing centre can be divided into 3 parts:

• Iron
• Ironing board
• Steam unit

The iron is connected to the boiler only by the iron plug ^14 and can been easily disconnected. The boiler is firmly fixed to the ironing board, to remove it follow below steps:

• Provide yourself with a screwdriver.
• Unplug the power cord ^15 and make sure that the steam ironing centre has completely cooled down.
• Assembly the steam ironing centre.
• Turn the ironing board 20 to let the edge of the ironing surface lay on the floor (picture 10).
• Unscrew the detachable boiler (as shown in picture 11).
• Pull the boiler out (as shown in picture 12).

When you get a new or repaired steam unit from the customer service you need to replace it as described below:

• Provide yourself with a screwdriver.
• Assembly the steam ironing centre.
• Turn the ironing board 20 to let the edge of the ironing surface lay on the floor (picture 10).
• Let the detachable boiler slide into its slot.
• Place the screws back in their original position to fix the detachable boiler (as shown in picture 11).

Picture 10

Exterior view of a medical or laboratory device with adjustable arms and control panel (no visible text or symbols)

Picture 11

Close-up of a mechanical component with circular vent and mounting holes (no text or symbols visible)

Picture 12

Close-up of a white industrial robotic device with ventilation grilles and mounting brackets (no visible text or symbols)

15. Warranty and Service

Warranty informations:

This steam ironing centre is covered by a 3-year warranty from the date of purchase. The steam ironing centre was tested carefully and properly produced. Please keep your receipt as proof of purchase.

If repair is needed during the warranty period please contact our costumer service centre.

Warranty terms and conditions:

The warranty is valid for material faults and manufacturing mistakes only, not for parts which are subject to wear and tear or faults to fragile parts, e. g. switches or colour change in the iron rest pad 2.

Any fault that may be present at purchase has to be claimed within 2 weeks.

Excluded from warranty are:

• industrial / professional used steam ironing centre
• transport damages
• Damages caused by non-observance of instructions given in this manual
  • Damages caused by improper use
  • Damages caused by limescale

16. Disposal

This steam ironing centre can not be disposed of with regular garbage. Please check the disposal law currently in force.

In case of doubt contact your disposal office, e.g. your local authority.

Take the packing materials, correctly sorted, to the recycling centre.
