USER MANUAL SFE 1500 A1 SILVERCREST

ID: SFE 1500 A1_13_V1.3

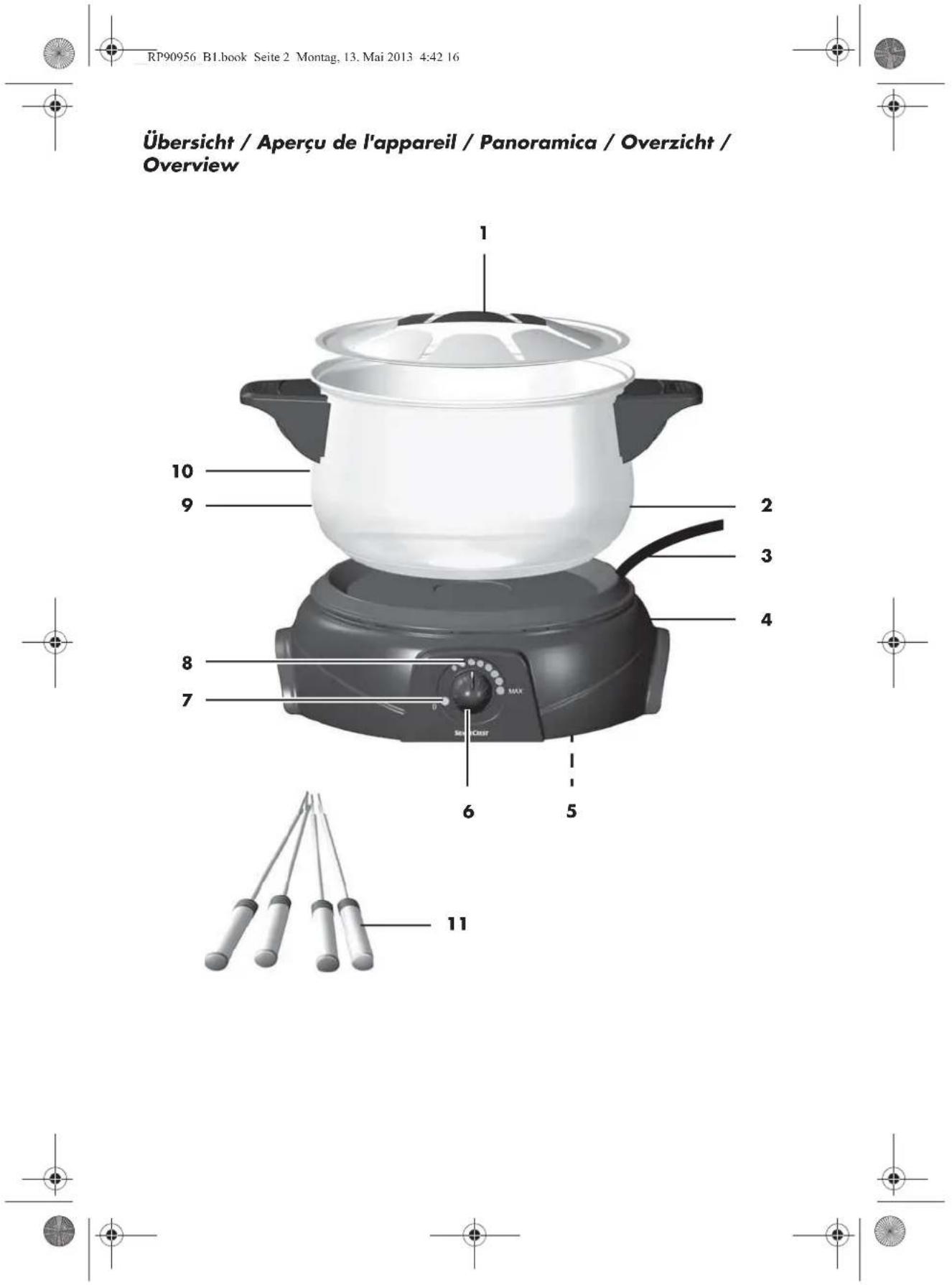

Overview 1 Splash guard with fork holders 2 Stainless steel pot 3 Power cable 4 Heating unit 5 Take-up for winding power cable into housing base 6 Temperature controller 0 - MAX 7 Green indicator LED lights up when you insert the power plug into the wall socket 8 Red indicator LEDs light up when you turn the temperature controller 9 Mark indicating the minimum filling level 10 Mark indicating the maximum filling level 11 Fondue forks Thank you for your trust! Congratulations on your new electric fondue set. For a safe handling of the product and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commis- sioning.

• Above all, observe the safety instructions!

• The device should only be used as described in these instructions.

• Keep these instructions for reference.

• If you pass the device on to someone else, please include these instruc- tions. We hope you enjoy your new electric fondue set! __RP90956_B1.book Seite 42 Montag, 13. Mai 2013 4:42 1643

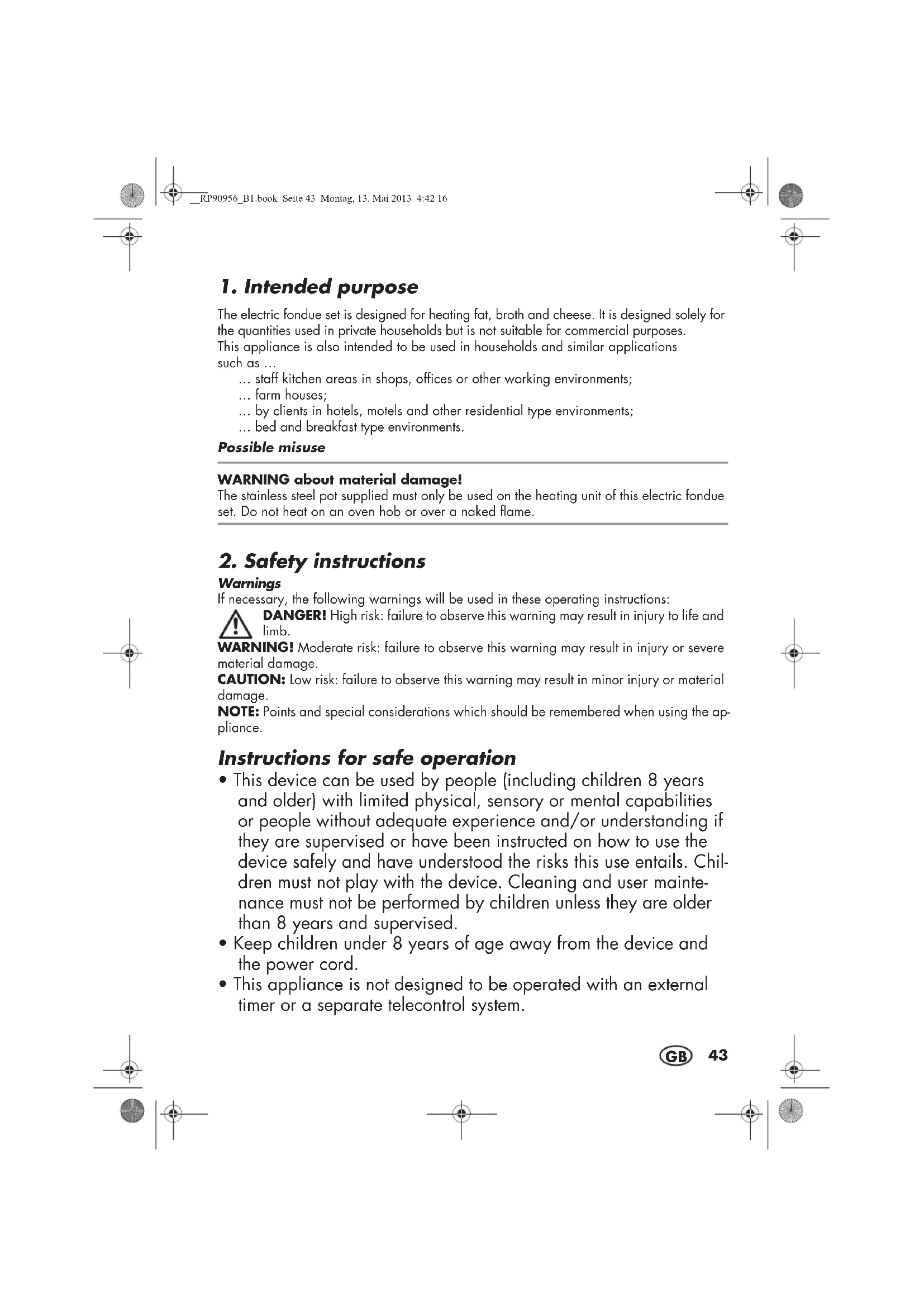

The electric fondue set is designed for heating fat, broth and cheese. It is designed solely for the quantities used in private households but is not suitable for commercial purposes. This appliance is also intended to be used in households and similar applications such as … … staff kitchen areas in shops, offices or other working environments; … farm houses; … by clients in hotels, motels and other residential type environments; … bed and breakfast type environments. Possible misuse WARNING about material damage! The stainless steel pot supplied must only be used on the heating unit of this electric fondue set. Do not heat on an oven hob or over a naked flame.

2. Safety instructions

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or severe material damage. CAUTION: Low risk: failure to observe this warning may result in minor injury or material damage. NOTE: Points and special considerations which should be remembered when using the ap- pliance. Instructions for safe operation

• This device can be used by people (including children 8 years and older) with limited physical, sensory or mental capabilities or people without adequate experience and/or understanding if they are supervised or have been instructed on how to use the device safely and have understood the risks this use entails. Chil- dren must not play with the device. Cleaning and user mainte- nance must not be performed by children unless they are older than 8 years and supervised.

• Keep children under 8 years of age away from the device and the power cord.

• This appliance is not designed to be operated with an external timer or a separate telecontrol system. __RP90956_B1.book Seite 43 Montag, 13. Mai 2013 4:42 1644

• Packaging material is not a toy. Chil- dren must not play with the plastic bags. There is a risk of suffocation. DANGER of electric shock due to moisture

• Protect the heating unit from moisture, dripping and splashes.

• Do not use the appliance in the open air or near containers filled with water, e.g. sinks.

• Do not immerse the heating unit, the power cable or the power plug in water or any other liquid.

• If the heating unit has fallen into water, remove the power plug immediately. Do NOT take out the appliance before un- plugging. In this case, do not use the appliance any more, but have it checked by a specialist.

• Never touch the heating unit with wet hands. DANGER of electrocution

• Do not operate the appliance if it or the power cable show signs of damage or the appliance has been dropped.

• Extension cables must be designed for min. 10 amp.

• Arrange the power cable and any ex- tension cable so that nobody can tread on them, trip or catch their foot.

• Before connecting the appliance, check that the temperature controller is set to the “0” mark.

• Connect the power plug only to a cor- rectly installed, easily accessible socket with an earthing contact with voltage corresponding to the rating plate. The wall socket must also be easily accessi- ble after connection.

• Take care that the power cable is not damaged by sharp edges or hot surfac- es. Do not wind the power cable around the appliance but into the base of the heating unit.

• Even after it has been switched off, the appliance has not been completely dis- connected from the mains. To do this, re- move the power plug.

• When setting up the appliance, make sure that the power cable is not trapped or crushed.

• When removing the power plug from the wall socket, always pull the plug, never the cable.

• Disconnect the power plug from the wall socket … …if there is a fault, … when you are not using the appliance, … before you clean the appliance and … during thunder storms.

• Do not connect another appliance with a high power consumption to a socket on the same circuit. This way you will avoid overloading the power network.

• To avoid any risk, do not make modifi- cations to the product. The power cable must not be replaced by a non-special- ist. Repairs must be carried out by a specialist workshop or at the Service Center. DANGER of injury from burns

• Danger to life from burns. Make sure that children cannot pull the appliance off the work surface by the power ca- ble.

• Danger from explosive deflagration. Make sure you use oil that is fresh, clean and suitable for a fondue. Old, used or unsuitable oil may ignite even at low temperatures. Should the oil catch fire during the fondue, do not try to put it out with water under any cir- cumstances. Smother the fire with a saucepan lid of appropriate size or a woollen blanket. __RP90956_B1.book Seite 44 Montag, 13. Mai 2013 4:42 1645

• Warning about burns caused by splash- es of hot liquid when dipping food into the pot: dry food off beforehand and protect hands and forearms with oven gloves.

• The stainless steel pot, splash guard and fondue forks become very hot during a fondue. Make sure you protect your hands, e.g. with oven gloves, and only grasp the fondue forks by the handle.

• To prevent it from overflowing during heating, the stainless steel pot should not be filled beyond the upper mark in- dicating the maximum filling level.

• Leave all parts to cool down fully before emptying, cleaning or moving the pot.

• Never move the heating unit while the stainless steel pot is standing on it. The pot might slip off. DANGER of injury from cuts

• Do not eat directly from the fondue forks as they are very sharp. WARNING about material damage

• The stainless steel pot must be filled at least up to the lower mark indicating the minimum filling level, as less content can quickly overheat.

• Only use genuine accessories.

• The appliance is fitted with non-slip rub- ber feet. As furniture is coated with vari- ous varnishes and plastics and may be treated with different cleaning products, it cannot be completely ruled out that some of these substances contain com- ponents which may attack and soften the rubber feet. If necessary, place a non-slip mat under the appliance.

• Oil may splash out when the electric fondue is in use. You should therefore place the appliance on a surface that is resistant to both heat and grease.

• Do not pour liquid fat down the sink: when it cools, it may block the drains (see “Emptying the stainless steel pot” on page 47).

• Make sure that the surface under the ap- pliance is dry.

• Never place the heating unit on hot sur- faces (e.g. hotplates) or near sources of heat or open flame.

• Do not use any astringent or abrasive cleaning agents.

4. Using for the first

• Check whether all accessories are pre- sent and undamaged.

• Rinse the stainless steel pot2, the splash guard1 and the fondue forks11 with a mild detergent and dry all parts with great care.

• Place the appliance on a dry, flat, non- slip surface. This surface should also be heat-resistant and not liable to be dam- aged by splashes of hot oil. NOTE: When being used for the first time, a small amount of smoke and a slight odour may occur. This is due to the assembly mate- rials used for the heating element and is not a fault in the product. Ensure sufficient venti- lation. __RP90956_B1.book Seite 45 Montag, 13. Mai 2013 4:42 1646

DANGER TO LIFE from scalding! Make sure that children cannot pull the appliance off the work surface by the power cable3.

1. Before connecting the appliance, check

that the temperature controller6 is set to the “0” mark.

2. Plug the appliance into a socket whose

voltage matches the rating plate.

DANGER of injury from burns!

• Danger from explosive deflagration. Make sure you use oil that is fresh, clean and suitable for a fondue. Old, used or unsuitable oil may ignite even at low temperatures. Should the oil catch fire during the fondue, do not try to put it out with water under any cir- cumstances. Smother the fire with a saucepan lid of appropriate size or a woollen blanket.

• The stainless steel pot2, splash guard1 and fondue forks11 become very hot during a fondue. Make sure you protect your hands, e. g. with oven gloves, and only grasp the fondue forks11 by the handle.

• Danger of burns caused by splashes of hot liquid when dipping food into the pot: dry food off beforehand and protect hands and forearms with oven gloves.

• To prevent it from overflowing during heating, the stainless steel pot2 should not be filled beyond the upper mark in- dicating the maximum filling level10.

1. Add oil, stock or cheese to the pot de-

pending on the intended use. The con- tents must come between the two filling level marks9 +10 in the pot.

2. Place the splash guard1 on the pot.

3. Oil and stock: turn the temperature con-

troller6 clockwise to the end stop to heat the pot and its contents. All of the red indicator LEDs8 light up. The appli- ance will now heat up. Cheese: turn the temperature control- ler6 to one of the first red indicator LEDs8 to melt the cheese carefully, stir- ring as it melts. Increase or reduce the setting depending on the way in which the cheese you are using melts. NOTE: The temperature controller6 allows you to freely select a lower temperature after initially heating up the pot. This is advisable, for example, in order to keep the tempera- ture of the contents at just below boiling point.

4. Push the dried pieces of food onto the

fondue forks11 and place in the oil, stock or cheese.

5. Oil and stock: take the fondue forks11

out when the food has cooked as far as you require. Cheese: drag the fondue forks11 through the melted cheese, turning them as you do so to coat the food in cheese.

6. At the end of the fondue, switch the tem-

perature controller6 to the green indi- cator LED7, unplug the appliance and wait until all parts have cooled down before starting cleaning. __RP90956_B1.book Seite 46 Montag, 13. Mai 2013 4:42 1647

• Remove the plug from the socket before cleaning the electric fondue.

• Do not immerse the heating unit4, the power cable3 or the power plug in wa- ter or any other liquid. DANGER of injury from burns! Leave all parts to cool down fully be- fore emptying the pot and cleaning. DANGER of injury from cuts! The fondue forks11 are very sharp. WARNING about material damage!

• Do not use any astringent or abrasive cleaning agents.

• Do not pour liquid fat down the sink: when it cools, it may block the drains. Heating unit

• Clean the heating unit4 with a soft, damp cloth using a mild soap solution. Accessories

• Clean the stainless steel pot2, splash guard1 and fondue forks11 with a mild detergent. Emptying the stainless steel pot Fat which becomes hard when cooled down can be easily removed en bloc using a scraper. Liquid fat can best be poured back into a container, e.g. the original container, using a funnel. Dispose of old fat via your lo- cal disposal facility or discard with house- hold waste. NOTE: Food or fat that has got burnt on is often easier to remove if you fill the pot with water, add a sachet of baking soda and leave to stand overnight.

DANGER for children! The electric fondue should be kept out of the reach of children. WARNING about material damage! Do not wind the power cable3 around the appliance but into the base5 of the heating unit4.

• Clean all parts and make sure they are properly dry before putting away the electric fondue.

The symbol showing a wheelie bin crossed through indicates that the product re- quires separate refuse collec- tion in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a col- lection point for recycling electric and elec- tronic appliances. Recycling helps to reduce the consumption of raw materials and pro- tect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country. __RP90956_B1.book Seite 47 Montag, 13. Mai 2013 4:42 1648

If your appliance fails to function as re- quired, please try this checklist first. Perhaps there is only a minor problem and you can solve it yourself. DANGER of electrocution! Do not attempt to repair the appliance yourself under any circumstances.

Subject to technical modifications.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. This warranty does not include prod- uct parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- Fault Possible causes/Action

• Is the power supply reliable?

• Check the connection.

rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 90956 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie IAN: 90956 Supplier Please note that the following address is no service address. First contact the afore- mentioned Service Centre. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
