USER MANUAL CH 2750 EINHELL

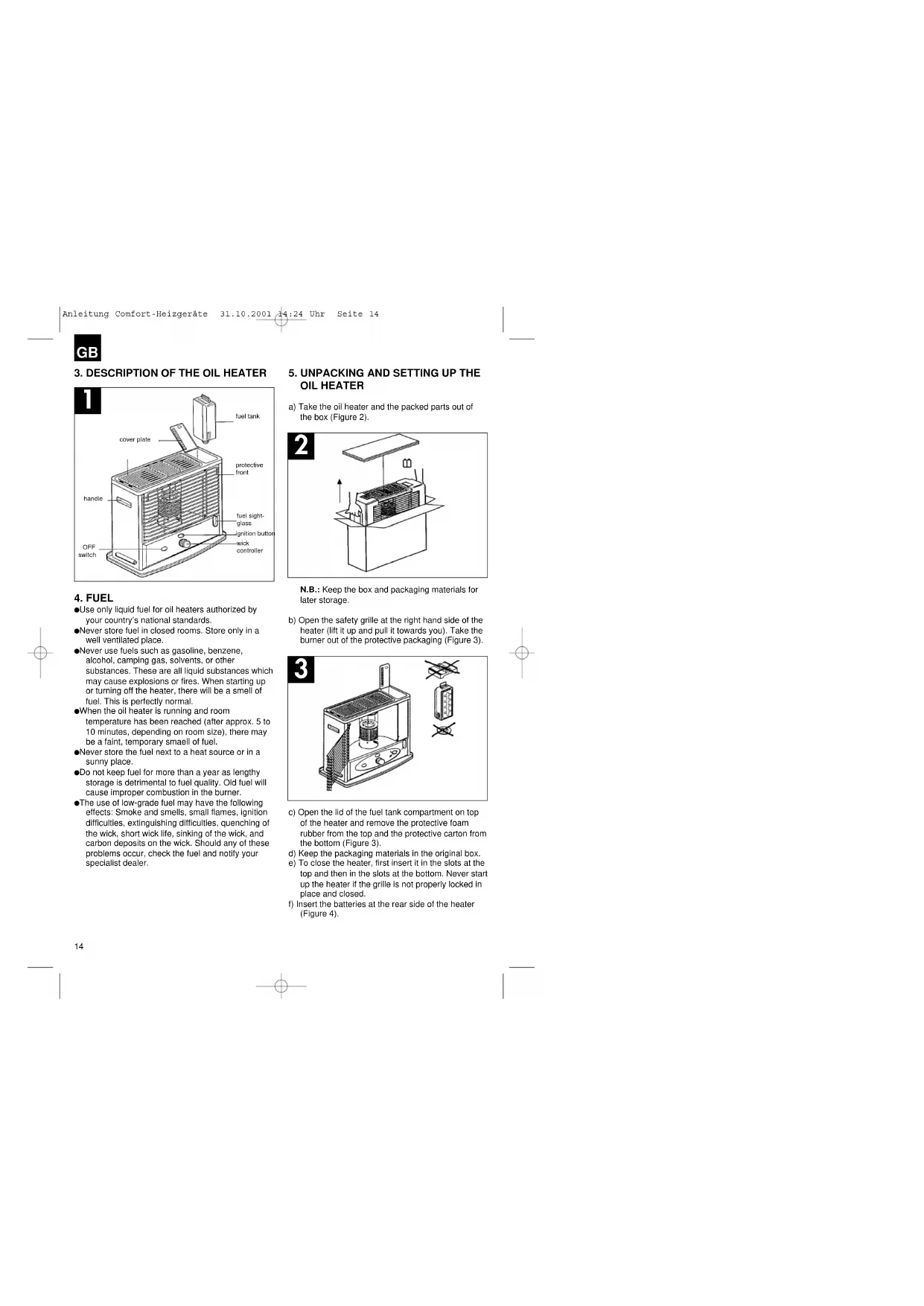

3. Description of the oil heater 14

5. Unpacking and setting up 14

6. Filling in the fuel 15

7. Automatic ignition 16

8. Turning off the oil heater, servicing the wick 17

9. Cleaning the wick (soot and carbon deposits) 17

12. Storing the oil heater for extended

14. What to do in case of a trouble 20

befolgen. Der Ofen brennt: Die Feuerwehr verständigen. Die Flammen mit einem Feuerlöscher löschen. Ansonsten Decken benutzen und Wasser auf die Decken schütten. Niemals direkt Wasser auf den Ofen schütten. Anleitung Comfort-Heizgeräte 31.10.2001 14:24 Uhr Seite 11Read the operating instructions carefully before starting up your Comfort Heater for the first time. The instructions will tell you how to set up, operate, and service your heater, and - most importantly - how to use it safely and efficiently. Keep the operating instructions in a safe place to have them handy in case of any trouble. Important information Caution ! Risk of explosion! Risk of fire! Never use any fuel other than liquid fuel for mobile heaters authorized by your country’s national standards. Never fill this type of oil heater with fuels such as gasoline, benzene, solvents, or other substances. Never refill your oil heater with liquid fuel while it is still in operation or while it is still hot. Never use the oil heater in rooms which pose a fire or gas explosion hazard. Never refill the oil heater in closed rooms. Always refill it outdoors. Store and transport the fuel only in metal or plastic canisters which... - are specially designed for fuels. - are marked with a label identifying the contents as „Liquid Fuel for Mobile Heaters“ in accordance with your country’s national standards. Never store fuel in your living quarters. All fuel must be stored in a cool place outside any living quarters. The oil heater gets extremely hot during operation. Keep children, clothes, furniture and other objects away at a distance of at least 1 meter. Never use gasoline (fire hazard). Beware of fires and air pollution. Restrict your use of the oil heater to rooms with good air circulation. Never use the oil heater in small or windowless rooms. Each room in which the oil heater will be used must have sufficient air inflow and outflow (an inlet and an outlet opening with a minimum cross section of 50 cm

Never use the oil heater in rooms with insufficient air circulation or in basement rooms. Never use the oil heater for heating or boiling water or for cooking food. Never lift out the refill tank while the heater is still in operation or while it is still hot. Never use the cartridge to transport or store fuel or other flammable substances. During start-up, you may notice an odd sound coming from the refill tank: This sound is caused by fuel running from the tank into the bottom container to saturate the wick. This sound is perfectly normal. Important! Failure to comply with the installation, maintenance or operating instructions may lead to burns and/or injuries. In this case, the manufacturer shall not be held liable for any damages. N.B.: The warnings and instructions contained in this operating manual cannot possibly cover all situations imaginable. The use of any type of heater, especially oil heaters, requires a sensible and careful approach and compliance with the safety precautions. Risk- free operation of this heater is subject to the observation of these rules. In the event of problems, we advise you to notify your specialist dealer, salesperson, or customer service department. Never leave the oil heater burning if you plan on leaving for longer or even brief periods of time. Make sure that the heater is really turned off before leaving the room. Never leave the heater unsupervised during operation. Never use the heater to dry objects. Never place objects on top or in front of the heater. Never use the convection heater on a boat, in a camping trainer, or a cockpit. Caution! Risk of burns! Do not use the heater unless the safety grille is completely closed. To close the grille, insert the pin in the housing frame. Room temperature control The room temperature should be comfortable. If it gets too warm, ventilate the room by opening a window. Do not manipulate the wick knob. Trying to reduce the heat by manipulating the wick knob will only lead to insufficient combustion which may cause unpleasant odors and health hazards.

Read the operating instructions carefully. They contain all the information you need for correct operation and safe and efficient set-up of the oil heater. Only a thorough knowledge of the operating instructions will allow you to enjoy all the advantages this heater has to offer.

Model number CH 2750 CH 2850 G CH 3600 GC Convector type Reflector Reflector Reflector Filament wattage 2,750 W 2,850 W 3,600 W Fuel consumption 230 g/h 235 g/h 300 g/h Daily capacity approx. 12 hours approx. 12 hours approx. 12 hours Fuel tank removable removable removable Fuel tank capacity 3.81 liters 3.81 liters 3.81 liters Ignition 2 x R20 batteries 2 x R 20 batteries 2 x R 20 batteries Air exhaust control included included included Dimensions 48 x 32 x 53 cm 48 x 32 x 53 cm 67 x 33 x 53 cm Weight 11 kg 11.5 kg 13.5 kg Area of room min. 30 m

Use only liquid fuel for oil heaters authorized by your country’s national standards. Never store fuel in closed rooms. Store only in a well ventilated place. Never use fuels such as gasoline, benzene, alcohol, camping gas, solvents, or other substances. These are all liquid substances which may cause explosions or fires. When starting up or turning off the heater, there will be a smell of fuel. This is perfectly normal. When the oil heater is running and room temperature has been reached (after approx. 5 to 10 minutes, depending on room size), there may be a faint, temporary smaell of fuel. Never store the fuel next to a heat source or in a sunny place. Do not keep fuel for more than a year as lengthy storage is detrimental to fuel quality. Old fuel will cause improper combustion in the burner. The use of low-grade fuel may have the following effects: Smoke and smells, small flames, ignition difficulties, extinguishing difficulties, quenching of the wick, short wick life, sinking of the wick, and carbon deposits on the wick. Should any of these problems occur, check the fuel and notify your specialist dealer.

5. UNPACKING AND SETTING UP THE

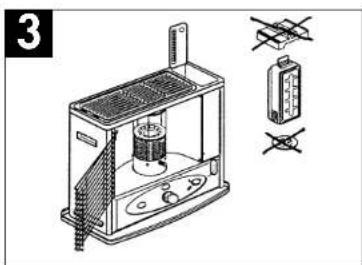

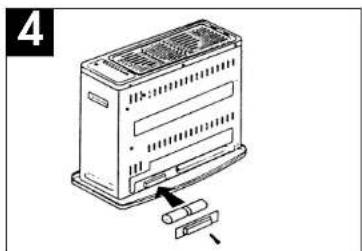

OIL HEATER a) Take the oil heater and the packed parts out of the box (Figure 2). N.B.: Keep the box and packaging materials for later storage. b) Open the safety grille at the right hand side of the heater (lift it up and pull it towards you). Take the burner out of the protective packaging (Figure 3). c) Open the lid of the fuel tank compartment on top of the heater and remove the protective foam rubber from the top and the protective carton from the bottom (Figure 3). d) Keep the packaging materials in the original box. e) To close the heater, first insert it in the slots at the top and then in the slots at the bottom. Never start up the heater if the grille is not properly locked in place and closed. f) Insert the batteries at the rear side of the heater (Figure 4).

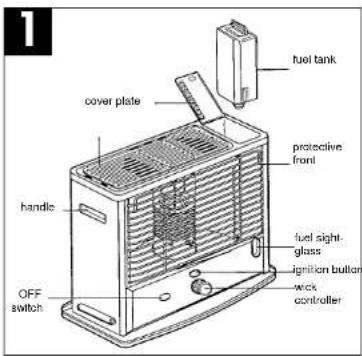

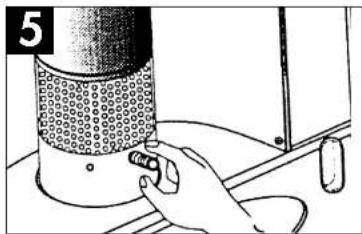

handle OFF switch cover plate fuel tank protective front wick controller fuel sight- glass ignition button Anleitung Comfort-Heizgeräte 31.10.2001 14:24 Uhr Seite 14Unscrew the recessed head screw and remove the battery compartment lid. – Insert the two R 20 batteries (supplied with the heater) in the battery compartment located on the rear side of the appliance. Watch out for the (+) and (-) polarities of the batteries. – Whenever the heater is not in use, or when its operation is interrupted for an extended period of time, be sure to take out the batteries. g) Burner position (Figure 5) - Position the burner on top of the wick controller. - To make sure that the burner is in the right place, turn the burner knob back and forth three or four times until the burner settles properly on the wick controller. h) Check the automatic cut-out - Using the wick controller, turn the wick all the way to the top. - Press the OFF button. The wick must now move all the way to the bottom. - To check if the wick has really gone all the way down, test whether the wick can be lowered any further with the wick controller. The automatic cut-out is working correctly if it is impossible to move the wick down any further. Never start up the heater if this safety system is not working properly.

6. FILLING THE HEATER WITH FUEL

CAUTION: Never lift out the fuel tank or fill it while the heater is in operation or still hot. Never fill the fuel tank in your living quarters. This should be done strictly out of doors. To fill the oil heater with fuel, first take the removable tank, the fuel, and the manual pump outdoors. How to use the manual pump: Insert the rigid tube in the fuel storage canister and the flexible tube in the tank opening (Figure 6). Squeezing the bellows of the manual pump will transport the fuel from the canister into the tank. During the filling operation, always keep an eye on the fuel gauge to check the fuel level. When the tank is full, unscrew the cap on the siphon pump. This will interrupt the fuel flow. Then re-close. Do not allow the fuel tank to overflow. The manual pump must be completely drained before pulling the pipes out of the tank and fuel canister. Make sure that the screw caps of the tank and fuel storage canister are properly closed. Insert the tank into the fuel compartment. The fuel gauge must be visible at the front side of the heater. (If the tank is not inserted correctly, the tank compartment lid will not close. Figure 7) N.B.: Do not wait until the tank is completely empty before refilling it. Do not take the tank out for refilling if the heater is still in operation or while it is still hot.

fuel storage container manual pump pump tube pump valve fuel tank pump valve flexible pump tube

Anleitung Comfort-Heizgeräte 31.10.2001 14:24 Uhr Seite 15 Important note for filling in fuel for the first time: When starting up the heater for the first time, make sure that at least two hours elapse between filling in the fuel and igniting the heater. This waiting period is necessary to allow the wick to be become saturated with fuel. Important note for igniting the convection heater for the first time: We strongly advise you to start up the convection heater for the first time outdoors so that the oils used during the manufacturing process are combusted out of doors and not inside your living quarters. N.B.: Switch off the heater and refill the tank before it is completely empty.

7. AUTOMATIC IGNITION

The convection heater is equipped with an automatic ignition system for added safety and comfort. Two (2) R 20 batteries are included with the heater to supply the automatic ignition system with the power required to light up the wick. For this purpose, the wick must be in its uppermost position. Start-up - Make sure that the batteries are properly in place. (Figure 4) - Turn the wick controller in clockwise direction until the wick has moved all the way to the top. (Figure 9) - Press the ignition button so that the ignition touches the wick and lights it. - Once the wick starts to burn, release the ignition button. This will cause the combustion chamber to be lowered automatically onto the wick. - Turn the burner back and forth a few times to ensure that the burner is seated correctly on top of the wick. (Figure 5) - Then follow the steps outlined in the next section.

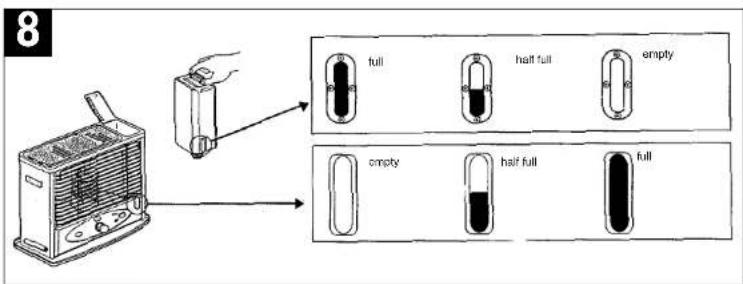

full half full empty full half full empty

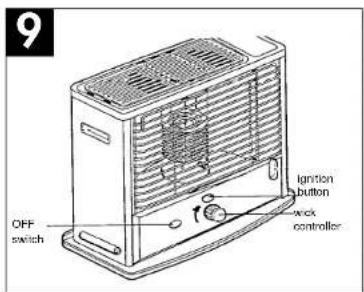

OFF switch wick controller ignition button Anleitung Comfort-Heizgeräte 31.10.2001 14:24 Uhr Seite 168. TURNING OFF THE OIL HEATER To turn off the heater, press the left-hand button (Figure 9). This will cause the wick to be lowered. If this fails to lower the wick completely, turn the wick in counterclockwise direction with the wick controller until it is fully lowered. After about 2 or 3 minutes, lift the burner by the burner handle and check that the burner has indeed gone out. Inspection and regular maintenance of your heater Important! Never manipulate any of the following parts: - Automatic cut-out - Fuel gauge - Check to make sure that the oil heater is clean. All parts of the oil heater must be cleaned of lubricants and oil residues. To avoid smells, be sure to remove any fuel residues spilled when inserting the fuel tank. - Inspect the fuel tank on a regular basis. Lift out the tank and check it to make sure that it is not dented or leaking and that it is in perfect condition. Also, inspect the tank for rust spots. If the tank is damaged in any way, it must be replaced immediately. - Inspect the wick control system for soot deposits. Scrape off any soot or carbon deposits on the wick ring with a flat screwdriver. Do not allow any carbon deposits to drop onto the burner. - Check the automatic ignition system. If the automatic ignition system fails to work correctly, check to see whether the ignition wire is fractured or bent. Minor deformations can be corrected with a small nail. If the ignition wire is pulled apart or fractured, it must be replaced. CAUTION: Take out the batteries prior to replacing the wire. - Check the batteries. If, during ignition of the wick, the ignition wire fails to heat up sufficiently to produce a normal flame, the batteries must be replaced. - Check the wick ring. Check the wick prior to every use. Make sure that the wick is free of soot and carbon deposits. If the wick is soiled with soot or carbon, it must be cleaned promptly. If you encounter any problems with the wick:

9. CLEANING THE WICK (SOOT AND

CARBON DEPOSITS) Carbon and soot deposits accumulate on the top of the wick ring when the heater has been in operation a certain time. It is important to remove these deposits in order to ensure good combustion and correct extinguishing. Check the upper part of the wick once the heater has consumed 2 or 3 tanks of fuel. If it is rigid and brittle, this is a sign of carbon deposits. In some instances, soot will also have accumulated on the wick’s tip. The wick is in perfect condition if its upper tip is flexible. Other signs indicating carbon deposits on the wick: - the wick control knob is hard to turn - the heater is difficult to start up IMPORTANT: Carbon deposits must be removed out of doors. The oil heater will not function perfectly unless the wick is tended to on a regular basis. For this purpose, the carbon deposits which accumulate on the upper part of the wick must be removed. Cleaning the wick is accompanied by an unpleasant smell. It is essential, therefore, to take the heater out of doors, e.g. under a canopy or a similar well ventilated place. Removing the carbon deposits Keep the oil heater going, even if the tank is practically empty. Alternatively you can remove the tank cartridge and let the residual oil in the wick container burn away completely. Once the wick container is completely empty, the flames will go out slowly. Now turn the wick up all the way and let it continue to burn until it goes out completely. Wait for 30 minutes after the flame has gone out. Re-light the wick and again let it burn until it goes out completely. Once the wick has cooled down completely, remove any residual ash using a small brush or an old toothbrush. All the carbon deposits which have accumulated on the wick will be removed by this brushing. When you are finished brushing, the wick should have regained its original flexibility and look like new. If you find that certain areas on the upper part of the wick are still rigid, bend these areas of the wick with pliers, which will break up the residual carbon into small particles. After you have cleaned the wick once, check to see if you need to repeat the cleaning procedure in order to get completely rid of all the carbon deposits. If it turns out that the wick needs to be cleaned another time, fill the container with a small

Anleitung Comfort-Heizgeräte 31.10.2001 14:25 Uhr Seite 17amount of fuel and repeat the above procedure. When you are finished with the cleaning, fill the tank and wait another 30 minutes before turning the heater back on. We recommend you to clean the heater one week after starting it pu for the first time. Thereafter you should repeat this cleaning procedure on a regular basis to prevent the wick from getting hard again and to avoid new carbon deposits. During the winter heating season, the wick should be cleaned at least once a week, if possible. Be sure to inspect the wick frequently in order not to miss an essential cleaning interval.

10. CHECKING THE AUTOMATIC

IGNITION SYSTEM Observe the following instructions to ensure proper operation: R 20 batteries: The battery compartment is located on the rear side of the heater. Replace the batteries. Flame spark plug: Should the automatic ignition still not work, even after the batteries have been replaced, take out the flame spark plug. If the wire is fractured or bent, or if it does not ignite while the ignition button is being pushed, the spark plug needs to be replaced. IMPORTANT: Be sure to use a 2.5 V DC, 1 A spark plug. Replacing the flame spark plug (Figure 10) Remove the batteries. Open the safety grille and take out the burner. Press the ignition button in order to raise the flame spark plug. Press the flame spark plug and turn it in counterclockwise direction. Insert a new spark plug (2.5 V DC, 1 A only) and turn it in clockwise direction. Reinsert the burner, close the saftey grille, and replace the batteries. Lowering the wick by hand Pressing the OFF button while holding the wick control knob and then releasing it slowly will decrease the combustion speed of the wick. This way, fuel smells can be avoided if the OFF button of the oil heater was pushed inadvertently.

11. CHECKING THE AUTOMATIC

CUT-OUT During the oil heater’s main season in use, the automatic cut-out must be checked at least once a week. After turning off the heater, use the wick controller to turn the wick all the way to the top. Take the heater by the safety grille and shake it vigorously. If the automatic cut-out is working correctly, you will hear a loud sound as the clamping device unsnaps and the tension spring lowers the wick into the housing. To make sure that the wick is fully lowered, turn the wick controller in clockwise direction. If the system is working properly, the wick must be fully lowered. If it is not possible to lower the wick any further with the wick controller, you need to have it replaced by your specialist dealer.

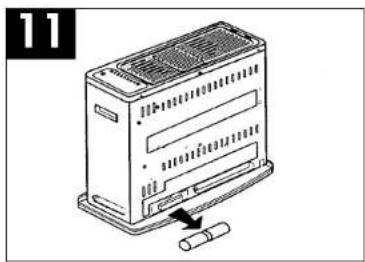

If you follow the following instructions exactly, your oil heater will continue to work just as efficiently and reliably during the next heating season (Figure 11 / Figure 12). Swill a small amount of fuel around in the tank and rinse it out. Never mix any water with the fuel as this will cause the tank to rust on the inside. Remove the last traces of fuel from the heater (by burning away the fuel). Once the tank is empty, re-light the heater. Turn the wick all the way to the top and allow it to burn down completely (this takes about 1 hour). This procedure must be done outdoors. Take out the batteries. Allow the fuel tank to dry well on the inside. Remove any traces of carbon or soot which may have accumulated on the wick controller, the wick guide or the burner with a screwdriver and/or a small brush. To avoid corrosion, remove the batteries before putting the oil heater away for storage. Before putting the heater away for storage, make sure that the wick is in the lowest possible position and that the automatic cut-out is unlocked.

Where is it safe to use the comfort heater? The oil heater must be set up only on level, horizontal surfaces. Do not set up the oil heater in passageways such as entrances or exits, and do not expose it to drafts. Do not set up the oil heater underneath a fireplace. Do not use the heater in rooms which are already warmer than 30°C. Never place the heater in close proximity to curtains or other flammable objects of any sort. Do not use the heater in campers, on boats, or in cockpits. Never leave the oil heater unsupervised during operation. How to operate the comfort heater? Read the operating instructions carefully before using the heater. After igniting the wick in accordance with the operating instructions, inspect it to make sure that it is burning properly. If the wick is too high or if the burner is too far up, combustion may be abnormal and even dangerous. An incorrectly adjusted wick may cause the smoke, smells, insufficient combustion and the accumulation of carbon deposits on the wick, and it may even shorten wick life. Use the heater only in well ventilated rooms. Never use the heater in rooms which contain flammable vapors or gases. Never use the heater to dry clothes. Never transport the heater while it is still in operation. Never use the heater to heat up or cook food. Never touch the top plate or the safety front grille while the heater is still in operation as these surfaces become burning hot. Never leave the heater unsupervised during operation. Make sure that the heater is really off before retiring for the night. If it is impossible to turn off the heater with the automatic cut-out, take out the tank immediately. If the flame keeps on burning in a normal way, the heater can be kept going until the fuel has burned away completely and the flame dies out. If the flames in the burner appear abnormal, i.e. if they are blazing out over the burner while it is impossible to turn of the burner with the automatic cut-out, the fire must be extinguished with an „A- B-C“ powder fire extinguisher. After such an incident, the heater must not be started up again until it was inspected and repaired in a specialist workshop. Use only fuel types authorized by your country’s national standards. Never place the burner in water (risk of rusting). Inspection and maintenance of the comfort heater. Consult your specialist dealer if you encounter any problems!

Anleitung Comfort-Heizgeräte 31.10.2001 14:25 Uhr Seite 1914. WHAT TO DO IN CASE OF TROUBLE PROBLEM SOLUTIONS The heater suddenly stops generating heat. Ventilate the room and lower the room temperature. Wait for about 10 or 15 minutes, then restart the heater. The automatic cut-out is activated. Never attempt to restart the heater immediately after switching it off. The heater does not start up:

1. The tank is empty. 1. Fill the tank with authorized fuel.

2. The fuel contains water. 2. Empty the tank. Have the wick replaced by your

specialist dealer. Then refill the tank with authorized fuel.

3. The automatic ignition system is not working. 3. Replace the batteries. Replace the flame spark

plug. Check to see if the ignition wire is torn or disconnected. See section 12.

4. The ignition is touching the side of the wick. 4. Turn the wick all the way down with the wick

controller until the spark plug touches the tip of the wick. Smoke and odor formation:

1. The flame is burning too high. 1. Turn the wick down with the wick controller to

2. Excessive air intake in the heater. 2. Remove the heater from the draft.

3. The burner is not completely horizontal. 3. Turn the burner back and forth with the burner

knob until it settles in a proper horizontal position above the wick.

4. Soot or tar deposits on the wick. 4. See section 11.

5. Old fuel. 5. Empty the tank. Have the wick replaced by your

specialist dealer . Then refill the tank with authorized fuel. The flame is flickering or going out:

1. The fuel contains water. 1. Empty the tank. Have the wick replaced by your

specialist dealer . Then refill the tank with authorized fuel.

2. Soot or tar deposits on the wick. 2. Have the wick replaced by your specialist dealer.

See section 11. The wick is burning down too fast:

1. Caution! The fuel you are using is mixed with 1. Empty the tank and clean it out.

unauthorized, liquid, and dangerous fuel. Have the wick replaced by your specialist dealer. Fill the tank with authorized fuel. The wick is difficult to adjust:

1. The fuel contains water. 1. Empty the tank. Have the wick replaced by your

2. Carbon or tar deposits. 2. Follow the instructions in the operating manual.

The heater is on fire: Empty the tank. Have the wick replaced by your specialist dealer. Call the fire brigade. Extinguish the flames with a fire extinguisher. Altenatievly, use blankets and pour water on top of the blankets. Never pour water directly onto the heater.
