USER MANUAL Cafe Perfetto CP 2200 AEG-ELECTROLUX

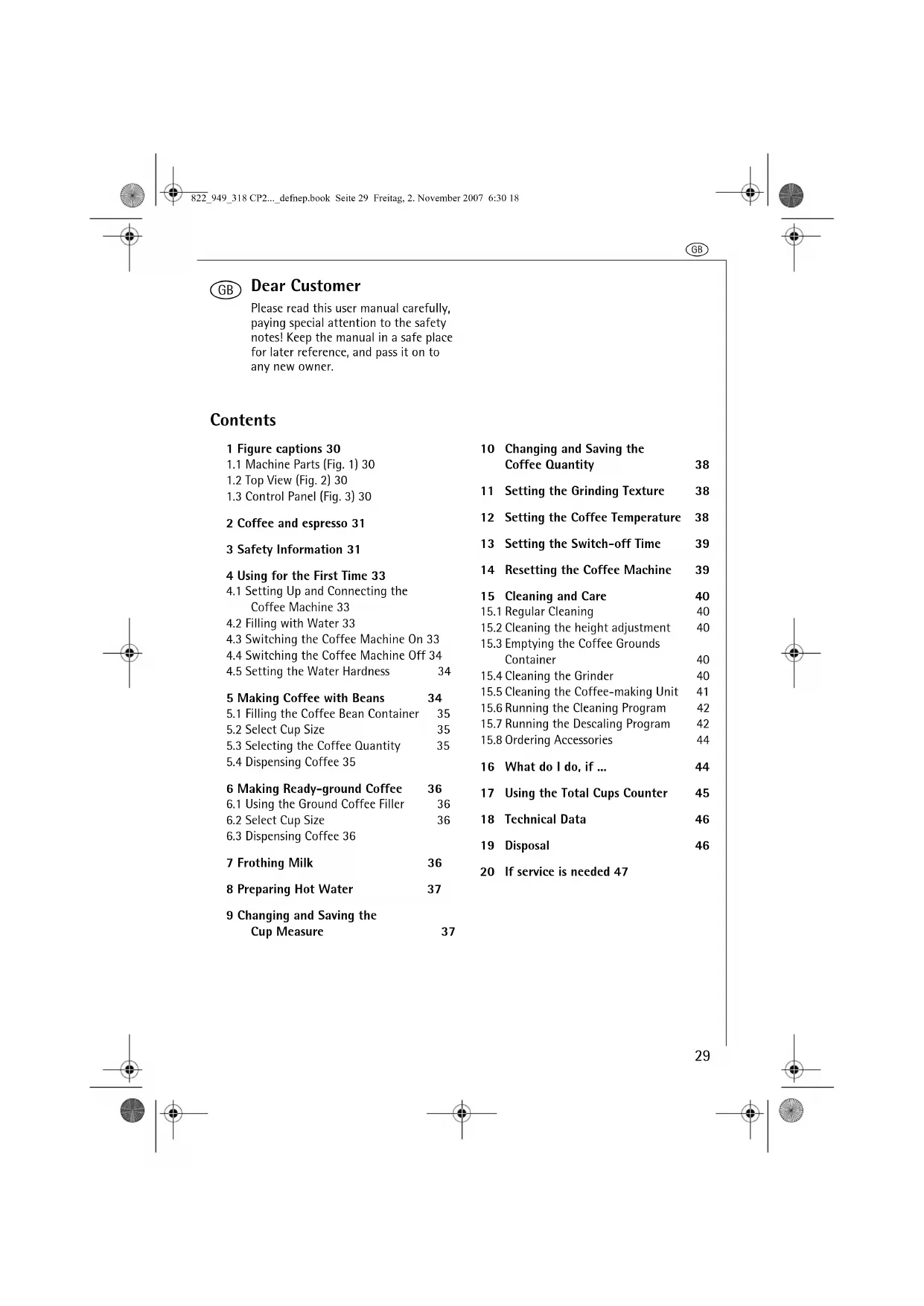

Please read this user manual carefully, paying special attention to the safety notes! Keep the manual in a safe place for later reference, and pass it on to any new owner.

Contents

1 Figure captions 30
1.1 Machine Parts (Fig. 1) 30
1.2 Top View (Fig. 2) 30
1.3 Control Panel (Fig. 3) 30

2 Coffee and espresso 31
3 Safety Information 31

4 Using for the First Time 33

4.1 Setting Up and Connecting the Coffee Machine 33
4.2 Filling with Water 33
4.3 Switching the Coffee Machine On 33
4.4 Switching the Coffee Machine Off 34
4.5 Setting the Water Hardness 34

5 Making Coffee with Beans 34

5.1 Filling the Coffee Bean Container 35
5.2 Select Cup Size 35
5.3 Selecting the Coffee Quantity 35
5.4 Dispensing Coffee 35

6 Making Ready-ground Coffee 36

6.1 Using the Ground Coffee Filler 36
6.2 Select Cup Size 36
6.3 Dispensing Coffee 36

7 Frothing Milk 36
8 Preparing Hot Water 37

9 Changing and Saving the

Cup Measure 37

10 Changing and Saving the Coffee Quantity 38
11 Setting the Grinding Texture 38
12 Setting the Coffee Temperature 38
13 Setting the Switch-off Time 39
14 Resetting the Coffee Machine 39

15 Cleaning and Care 40
15.1 Regular Cleaning 40
15.2 Cleaning the height adjustment 40
15.3 Emptying the Coffee Grounds Container 40
15.4 Cleaning the Grinding 40
15.5 Cleaning the Coffee-making Unit 41
15.6 Running the Cleaning Program 42
15.7 Running the Descaling Program 42
15.8 Ordering Accessories 44

16 What do I do, if ... 44
17 Using the Total Cups Counter 45
18 Technical Data 46
19 Disposal 46
20 If service is needed 47

GB

1 Figure captions

1.1 Machine Parts (Fig. 1)

A Top view (see Fig. 2)
B Bean container with lid
C Service cover
D Selection dial for steam and hot water
E Height-adjustable dispenser with outlets
F Swivel nozzle for steam and hotwater with removable frothing aid
6 Coffee grounds container (removable)
H Drip grille
I Drip tray float
J Drip tray
K Type plate (at top behind service cover)
L Control panel (see Fig. 3)
M Water tank with fill level indicator (removable)
N Test strip for water hardness
0 Measuring spoon with cleaning brush

1.2 Top View (Fig. 2)

P Cup rack
Q Opening for ground coffee with lid (ground coffee filler)
R Bean-container position setting
S Service cover release button
T Release catch for removing grinding ring
U Lever for setting grinding texture

1.3 Control Panel (Fig. 3)

a Key for 2 cups of coffee (with indicator)
b Key for 1 cup of coffee (with indicator)
c "Coffee Quantity" key (with indicator)
d "Cup Size" key (with indicator)
e "Descale" key (with indicator)
f "Clean" key (with indicator)
g "Steam Pre selector" key (with indicator)
h "On/Off" key (with indicator)
i "Coffee machine heating" indicator
j "Empty grounds container" indicator
k "Fill water tank" indicator

2 Coffee and espresso

Your fully automated coffee machine guarantees you
- Absolute ease of operation, both in making coffee and in maintenance and care

The excellent, individual taste is achieved by

The pre-brewing system: before the coffee is brewed, it is first moistened to extract its full aroma
The individually controllable amount of water per cup, from a short espresso to a "long" milky coffee
The individually controllable temperature, at which the coffee is made
- The choice between a normal or a strong cup of coffee
The grinding texture - adjustable to the roast of the coffee beans, and
- Last, but not least, the guaranteed crème, that small crown of froth that makespresso-coffee so unmatched able for connoisseurs

Did you know? The time the water is in contact with the ground coffee is considerably less for espresso coffee than conventional filter coffee. As a result, less bitterness is released from the ground coffee- making espresso-coffee that much milder!

3 Safety Information

This appliance corresponds to accepted technological standards with regards to safety and to the German Appliance Safety Law. As the manufacturer, we nevertheless wish to familiarise you with the following safety information.

General safety

The coffee machine must be connected only to a mains power supply of which the voltage, type of supply and frequency conform with the details shown on the type plate (this can be found on the upper part, behind the service cover)!
- Never allow the mains lead to come into contact with hot parts of the appliance.
- Never use the mains lead to pull the plug out of the mains socket!
- Do not use the coffee machine, if: - the mains lead is damaged, or - the case shows visible signs of damage.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety.

Child safety

• Do not leave the coffee machine running unattended, and take special care when children are about!
  Children should be supervised to ensure that they do not play with the appliance.

Safety in operation

• Caution! The coffee dispenser, swivel nozzle and cup rack become hot in operation. Keep children at a safe distance!

GB

• Caution! Danger of scalding when the steam nozzle is activated! Hot water or steam output can cause scalding. Activate the steam nozzle only when you are holding a container under the nozzle.
• Do not use steam to heat inflammable liquids!
  Only use the coffee machine with water in the system! Fill the water tank with cold water. Do not use hot water, milk or other liquids. Do not exceed the maximum fill level of 1.5 litres.
• Do not put frozen or caramelised coffee beans in the bean container. Use only roast coffee beans! Remove any foreign bodies from the coffee beans. Failure to do this invalidates the guarantee.
• Spoon only ground coffee into the ground coffee filler.
• Do not leave the coffee machine switched on unnecessarily.
• Do not expose the coffee machine to the weather.
• When using an extension lead, use only a commercially available cable with a conductor cross-section of at least 1.5mm^2 .
• To avoid injury, persons with motor system disorders should never use the machine without an accompanying person.
• Operate the machine only when the drip tray, container and the drip grille are installed!

Safety in cleaning and care

• Follow the cleaning and descaling instructions.
• Switch off the coffee machine and unplug from the mains socket before carrying out any maintenance or cleaning!

• Do not immerse the coffee machine in water.
  Only clean the steam nozzle when the machine is switched off, cold and not under pressure!

• Do not clean coffee machine parts in the dishwasher.

• Never put water in the grinder. This would damage the grinder.

Never open or repair the coffee machine. Faulty repairs can result in considerable hazard to the user.

Repairs to electrical appliances must be carried out only by qualified service engineers.

If a repair becomes necessary - including replacement of the mains lead, please contact

the dealer where you bought the coffeemachine,or
- the AEG Serviceline. If the coffee machine is used incorrectly, or for a purpose other than its intended purpose, we cannot accept any liability for damage caused or any guarantee claims. This provision also applies if the cleaning and descaling programs are not run in accordance with the instructions in this manual, immediately after illumination of the "Clean" key (Fig. 3, f) or the "Descale" key (Fig. 3, e).

GB

4 Using for the First Time

4.1 Setting Up and Connecting the Coffee Machine

Place machine on a suitable horizontal, stable, unheated, dry and water-resistant surface. Ensure good air circulation.

Important! If the coffee machine is brought into a warm room from a cold environment, wait about two hours before switching on!

We advise you to place the coffee machine on a suitable mat to prevent damage being caused by spray and splashes.

Hold the bean container with the marking on the "Unlock container" position, and set it in place (Fig. 4). The bottom opening of the bean container must be closed (Fig. 4,a). If it is not closed (Fig. 4,b), insert the tip of a ballpoint pen in the small oval hole (arrow) of the black ring with the marking "TOP" and turn opening clockwise as far as the stop.
Now turn the bean container anticlockwise to the position "Coffee beans" (Fig. 10) or further on to the position "Powder" (Fig. 14).
Push the drip tray in, until it engages on the right under the water tank (Fig. 5).
Plug the coffee machine into an earthed mains socket. Do not use a socket that is not earthed!
If you do not need the full length of the mains lead, open the cable compartment on the back of the coffee machine, and tidy away the unused lead (Fig. 6).

4.2 Filling with Water

Each time before switching on the coffee machine, check that there is water in the water tank and refill if necessary. The coffee machine requires water for the automatic rinsing processes each time the machine is switched on or off.

Remove the water tank from the coffeemachine (Fig.7).
Fill the water tank with fresh cold water (Fig. 8).

Pour only fresh cold water in the water tank. Never put in other liquids, e.g. mineral water or milk.
Replace the water tank (Fig. 7). Press the tank firmly in, to ensure that the water-tank valve opens.
If water must be refilled during the use of the coffee machine, the "Fill water tank" indicator (Fig. 3, k) flashes. Coffee resp. hot water/steam preparation is interrupted. Fill the water tank!
To always be sure of a rich coffee, full of aroma, you should:

• change the water in the water tank daily
• wash the water tank at least once per week in normal washing-up water (not in the dishwasher). Then flush with fresh water.

4.3 Switching the Coffee Machine On

Switch the coffee machine on by means of the "On/Off" key (Fig. 3, h) (Fig. 9). The red indicator light comes on. While the water is being heated (approx. 60 seconds) the "Coffee machine heating" indicator (Fig. 3, i) flashes.
Once the operating temperature has been reached, the coffee machine carries out an automatic flushing cycle. The water flows out into the drip tray. The "Coffee machine heating indicator (Fig. 3, i) remains constantly on. The coffee machine is now ready to use.
i Immediately after being switched on the coffee machine runs through a setup cycle. The noises this creates are completely normal.

GB

4.4 Switching the Coffee Machine Off

If you switch the coffee machine off with the "On/Off" key (Fig. 3, h) after you have finished making coffee, the machine carries out a flush program, during which time the "Empty grounds container" indicator (Fig. 3, j) flashes for about 1 minute as a reminder. If you switch the coffee machine off with the "On/Off" key (Fig. 3, h) while a function is running, all functions are immediately switched off.

4.5 Setting the Water Hardness

After first placing the machine in use or when using a different water quality you should set the machine to the water hardness level corresponding to the local water hardness. You can use the included test card to determine the water hardness, or contact your local water supply company.

Determining water hardness

Dip the test strip in cold water for around 1 second. Shake off the excess water, and gauge the hardness by means of the pink bands.

No pink bands or one pink band:
Hardness 1, soft
up to 1.24 mmol/l, or
up to 7^ German hardness, or
up to 12.6^ French hardness

Two pink bands:

Hardness 2, medium hard up to 2.5mmol / l or up to 14^ German hardness, or up to 25.2^ French hardness

Three pink bands:

Hardness 3, hard up to 3.7mmol / l or up to 21^ German hardness, or up to 37.8^ French hardness

Four pink bands:

Hardness 4, very hard over 3.7mmol / l or over 21^ German hardness, or over 37.8^ French hardness

Setting and saving the water hardness level

You can set 4 hardness levels. The coffee machine is factory-set to hardness level 4.

With the machine switched on, turn the bean container to the "Coffee Beans" position (Fig. 10).

With the machine switched on, press and hold the "Clean" key (Fig. 3, f)

Now repeatedly press the "Coffee Quantity" key (Fig. 3, c) until you have selected the required hardness level. Release the "Clean" key. The selected value is now saved. The indication changes back to the Coffee Quantity.

The hardness levels are indicated as follows:

Hardness level 1

Hardness level 2

Hardness level 3

Hardness level 4

Interrogate the set water hardness level: With the machine switched on, turn the bean container to the "Coffee Beans" position Press and hold the "Clean" key (Fig. 3, f) The set water hardness level is now indicated.

5 Making Coffee with Beans

The following process for making coffee with beans runs completely automatically: Grinding, portioning, pressing, pre-brewing, brewing, ejection of the coffee grounds.

The facility to select the grinding texture and the coffee quantity allows you to individually set up the coffee machine to your own personal taste.

Ensure that you use only pure coffee beans with no caramelised or aromatised additives. Do not use frozen beans.

5.1 Filling the Coffee Bean Container

Turn the bean container to the "Coffee Beans" position (Fig. 10). The mechanism sets to the required function.
Set the grinding texture (Fig. 11). Using the grinding texture adjustment (Fig. 2, bottom) you can set the grinding texture of the grinder.
! Note! Before putting beans into the coffee machine for the first time, you can set the grinding texture once with the grinder stationary. Once the grinder has been filled with beans, the setting can be changed only while grinding is proceeding. Otherwise the coffee machine could be damaged.
The grinder is factory-set at a medium grinding texture. Notes on changing the grinder setting can be found in "Setting the Grinding Texture" page 38.
Raise the lid of the coffee bean container, and fill the container with fresh coffee beans (Fig. 12). Then reclose the lid.
Note! Make sure that no foreign bodies, such as stones, enter the coffee bean container. Damage caused by foreign bodies in the grinder is excluded from the guarantee.

5.2 Select Cup Size

Depending on your taste, select a "short" espresso or a "long" milky coffe.

The selection is made by repeatedly pressing the "Cup Size" key (Fig. 3, d) until the desired cup symbol is indicated. The cup sizes are indicated as follows:

Espresso cup
Coffee cup
Coffee mug

The coffee machine is factory-set to standard measures.

Notes on changing the cup measures can be found in Changing and Saving the Cup Measure" on page 37.

5.3 Selecting the Coffee Quantity

Repeatedly press the "Coffee Quantity" key (Fig. 3, c) until the desired coffee quantity is indicated. The coffee quantities are indicated as follows:

To save having to select the coffee quantity every time you switch on the coffee machine, you can save the coffee quantity in relation to the cup size. Notes on how to do this can be found in "Changing and Saving the Coffee Quantity" on page 38.

5.4 Dispensing Coffee

Place one or two cups under the coffee dispenser. The dispenser can be slid up or down to match the height of your cup/mug to reduce heat loss and coffee splashes (Fig. 13).
If the height adjuster is stiff, proceed as described under "Cleaning the height adjustment" page 40.
Press the Key for 1 cup of coffee (Fig. 3, b) the Key for 2 cups of coffee (Fig. 3, a) when you dispense 2 cups of coffee, the previously set "Coffee Quantity" is doubled and the "Cup Measure" is adjusted accordingly. The coffee is now made.
In the coffee-making process, the ground coffee is first of all wetted with a small quantity of water for pre-brewing. Following a short pause, the actual brewing process commences.
You can stop coffee being dispensed by briefly pressing the coffee dispensing key.

GB

6 Making Ready-ground Coffee

This function allows you to brew pre-ground coffee, e.g. decaffeinated coffe

Note that you must use only the supplied measuring spoon, and never put more than 2 level measuring spoons of ground coffee into the ground coffee filler.

Note! Make sure that no ground coffee has remained in the filler, and that no foreign bodies enter the filler. The ground coffee filler is not a storage container. The ground coffee must be fed directly into the coffee-making unit.
Do not put any water-soluble or freeze-dried instant powders or any other drink powder into the ground coffee filler. Coffee powder, which is too fine, can lead to blockages.

6.1 Using the Ground Coffee Filler

Turn the coffee bean container to the "Ground Coffee" position (Fig. 14). The mechanism sets to the required function.

When using ready ground coffee, the "Coffee Quantity" function is inactive. All coffee quantity indicator lamps (Fig. 3, c) are extinguished (Fig. 15).

Open the lid of the ground coffee filler, and spoon in the fresh ground coffee (Fig. 16).

Do not add coffee during the brewing process. Only put in ground coffee for the next cup when the brewing process has completely finished and the coffee machine is ready.

Close the lid.

6.2 Select Cup Size

Refer to "Select Cup Size" page 35.

6.3 Dispensing Coffee

Refer to "Dispensing Coffee" page 35.

7 Frothing Milk

The steam can be used to froth milk and to heat liquids. Since a higher temperature is needed to produce steam than to make coffee, the coffee machine has an additional steam mode.

To make a cappuccino, fill a large cup 1/2 to 2/3 full with espresso, and then add the frothed milk.
Caution! Danger of scalding when the steam nozzle is activated! Hot water or steam output can cause scalding. Do not activate the steam nozzle until it is immersed in the milk.
To produce steam, press the "Steam Pre selector" key (Fig. 3, g) The indicator illuminates, at the same time the "Coffee machine heating indicator (Fig. 3, i) flashes. When the heating process is finished, this indicator changes from flashing to constantly on. The coffee machine is now ready for frothing milk.
If the steam function is left unused for more than 1 minute, the coffee machine automatically changes back to coffee-making mode.
To avoid any residual water mixing in with the milk when frothing, the water should be drained off beforehand. To do this, place a container under the steam nozzle and turn the selection dial for steam and hot water (Fig. 1, d) to position on all steam emission stops. Then turn the selection dial back to position
Pour low-fat, cold milk into a mug which must be small enough to fit under the steam nozzle.
The milk should be cold. You should also use a cold mug, preferably a stainless steel one which should not be rinsed beforehand in hot water.
Swing out the steam nozzle and hold the mug under the steam nozzle so that the nozzle opening is just immersed in the milk.

Caution! Risk of impurities through dried on milk residues in the steam nozzle. Take care not to immerse the steam nozzle in the milk far enough to cover the air intake opening at the top of the steam nozzle. Otherwise milk can be sucked into the nozzle and cause impurities in the steam nozzle.
Turn the Selection dial for steam and hot water (Fig. 1, D) to the position (Fig. 17). The milk is now frothed up.
Hold the mug steady during the frothing. The nozzle should not be allowed to touch the bottom of the mug and cut off the steam supply. Froth the milk to at least twice its volume.
To stop frothing, turn the Selection dial for steam and hot water (Fig. 1, D) to the position and remove the jug (Fig. 17).
Caution! Danger of scalding from hot milk spray! Switch the steam off, before removing the jug with the frothed milk.
To finish steam mode, press the "Steam Pre selector" key (Fig. 3, g) or wait ca. 60 sec., for the machine to automatically return to the coffee mode. The indication is extinguished. The coffee machine is now ready for making coffee again.
Each time you have frothed milk, let off some hot water through the nozzle for a short time by setting the Selection dial for steam and hot water (Fig. 1, D) to the position. This is necessary to prevent milk residues drying inside the nozzle, and thereby blocking it. Use a suitable container to catch the water. Afterwards turn the Selection dial for steam and hot water (Fig. 1, D) back to the position
Remove the frothing aid after each use (Fig. 18). For this, take hold of the frothing aid by the black seal and disengage the bayonet connector by turning it slightly anticlockwise. Rinse off the milk residues under running water. Wipe the steam nozzle off with a damp cloth.

Caution! Danger of burns from the frothing aid! Hold the frothing aid only by the black seal.

8 Preparing Hot Water

The hot water can be used to pre-heat cups and for making hot drinks, e.g. tea or instant soups.

Caution! Danger of scalding when the hot water nozzle is activated! Hot water or steam output can cause scalding. Activate the hot water nozzle only when a container is under the hot water nozzle.
Place a container under the hot water nozzle. Set the Selection dial for steam and hot water (Fig. 1, D) to the position (Fig. 19). Hot water is now prepared.
After you have dispensed the hot water turn the Selection dial for steam and hot water (Fig. 1, D) back to the position (Fig. 19) and remove the container.

9 Changing and Saving the Cup Measure

The coffee machine is factory-set to standard measures. These measures can be individually changed to your own taste and saved for each cup size. The adjustment can take place in both bean and powder mode. The setting of "Cup Measure" is only possible for 1 cup. When dispensing 2 cups the "Cup Measure" is doubled.

Repeatedly press the "Cup Size" key (Fig. 3, d) until the cup symbol, for which you wish to change the measure, is illuminated.
Place the appropriate cup under the coffee dispenser (e.g. coffee mug).
Press and hold the Key for 1 cup of coffee (Fig. 3, b) until the cup/mug is filled to the desired measure. Release the key. Your new cup measure is now saved.

GB

Repeat the process if you would like to change the measures for the other cup symbols.
i The machine switches off automatically on reaching the max. Cup Measure. The saved measures remain stored when the coffee machine is switched off. If your coffee cups or your taste change, you can easily change the cup measure(s) to your new requirements, whenever you want.

10 Changing and Saving the Coffee Quantity

You can set and save a different coffee quantity for each cup symbol to your individual requirements. This can be done only for use with coffee beans, not for use with ground coffee.

Repeatedly press the "Cup Size" key (Fig. 3, d) until the desired cup symbol is indicated.
Then repeatedly press the "Coffee Quantity" key (Fig. 3, c) until the desired coffee quantity indicator is illuminated, and hold the key pressed (Fig. 20).

After the key has been held for a few seconds, all the coffee quantity indicators are briefly extinguished (Fig. 21). Now release the key. The coffee quantity is now saved.

Repeat the process if you would like to save coffee quantities for the remaining cup symbols.
The saved quantities remain stored when the coffee machine is switched off.

11 Setting the Grinding Texture

Note! The grinder settings must be changed only while coffee is being ground. Making adjustments to the stationary grinder can damage the coffeemachine.

Press the Key for 1 cup of coffee (Fig.

3,b) make one cup of coffee. While the coffee is being ground, use the Lever for setting grinding texture (Fig. 2, U) and (Fig. 22) to change the grinding texture.
The lever positions have the following effects:

Fine grade for intensive taste

Medium grade for normal taste

Coarse grade for mild coffee

Remove foreign bodies from the grinder

Foreign bodies, such as small stones, in the grinder can damage the grinder. The coffee machine includes a stone detector. A foreign body in the coffee causes a loud, even rattle. If you hear this noise while coffee is being ground, immediately switch off the coffee machine and remove the foreign body, as described in „Cleaning the Grinding" page 40.

12 Setting the Coffee Temperature

There are five temperature levels to choose from. In the "Set Coffee Temperature" mode, the coffee quantity indicator is illuminated, which now acts as the coffee temperature indicator.

The coffee temperature levels are indicated as follows:

GB

The factory setting is "normal". You can change this setting as follows:

Switch the appliance on and wait until it is in the base position.
Simultaneously press and hold the Key for 1 cup of coffee (Fig.3,b) and the "Steam Pre selector" key (Fig.3,g)
While still holding these keys, press the "On/Off" key (Fig. 3, h) ①
Keep all three keys pressed for around 1 second, until the "Coffee machine heating" indicator (Fig. 3, i) and one of the coffee temperature indicators are illuminated.
Now release all three keys.
Use the "Coffee Quantity" key (Fig. 3, c) (increase temp.) or the "Cup Size" key (Fig. 3, d) to select the temperature level you require.
When you have selected the temperature, press the "Clean" key (Fig. 3, f) to save and exit the "Set Coffee Temperature" mode.

13 Setting the Switch-off Time

If the coffee machine is not used for a set amount of time, it automatically switches off for economy reasons.

You can choose between five switch-off times (automatic switch-off after 1 to 5 hours).

In the "Set Switch-off Time" mode, the coffee quantity indicator is illuminated, which now acts as the switch-off time indicator.

The switch-off times are indicated as follows:

The switch-off time has been factory-set to 3 hours. You can change this setting as follows:

Switch the appliance on and wait until it is in the base position.
Simultaneously press and hold the Key for 2 cups of coffee (Fig. 3, a) and the "On/Off" key (Fig. 3, h) Keep both keys pressed for around 1 second, until the "On/Off" key (Fig. 3, h) indicator and one of the switch-off time indicators are illuminated.
Now release both keys.
Use the "Coffee Quantity" key (Fig. 3, c)
increase time) or the "Cup Size" key (Fig. 3, d) reduce time) to select the switch-off time you require.
When you have selected the switch-off time, press the "Clean" key (Fig. 3, f) to save the setting and exit the "Set Switch-off Time" mode.

14 Resetting the Coffee Machine

This function is used to reset any changes you have made to the factory settings. The following settings are affected:

Cup measures
- Coffee quantities
- Coffee temperatures
Water hardness

Switch the appliance on and wait until it is in the base position.

Simultaneously press and hold the "Descale" key (Fig. 3, e) and the "Clean" key (Fig. 3, f). Keep both keys pressed for around 3 seconds, until the coffee machine switches off for a short time, and then switches back on with the factory settings. The coffee machine is now reset.

GB

15 Cleaning and Care

To ensure consistent coffee quality and faultless operation, always keep your coffee machine clean.

15.1 Regular Cleaning

Caution! Before cleaning, switch off the coffee machine and allow it to cool down. Do not use any abrasive, scouring or corrosive cleaning materials. Wipe the inside and outside of the case only with a damp cloth.

Note! Never put the coffee machine or separate parts of the coffee machine in the dishwasher.

Note! Never put water in the coffee bean container, as this would damage the grinder.

Remove the water tank daily (Fig. 7) and empty any remaining water away. Rinse out the water tank with fresh water. Use fresh water every day.

Empty the coffee grounds container daily, see Emptying the Coffee Grounds Container page 40.

Regularly drain the drip tray. This can be done at any time, but must be done when the red Drip tray float (Fig. 1, I) appears through the opening in the drip grille.

Regularly (at least once per week) clean the Water tank (Fig. 1, M), Drip tray (Fig. 1, J), Drip grille (Fig. 1, H) and Coffee grounds container (Fig. 1, G) with warm water, a mild washing up liquid and possibly a brush.

From time to time, remove the coffee bean container and clear away any residues.

Each time the machine is used for frothing, remove the frothing aid and clean off any milk remains. The air intake opening under the seal must not become blocked. This can be cleaned out with a thin needle.

15.2 Cleaning the height adjustment

If the height adjustment of the coffee dispenser becomes stiff, remove the coffee grounds container, open the

service cover and remove it. Slide the height adjuster right down, and off the bottom. To do this, gently raise the inside catch. Use warm water to clean any coffee residues from both parts. Reassemble the two parts. To do this, gently pull up the catch. Check the ease of movement of the height adjuster. Refit the service cover and push the grounds container back in place.

15.3 Emptying the Coffee Grounds Container

At regular intervals, after every 16 coffee brews "1 cup" resp. 8 coffee brews "2 cups", the "Empty grounds container" indicator (Fig. 3, j) signals that the container has to be emptied and cleaned.

when the coffee machine is in daily use, empty the container daily. The indicator flashes for around 1 minute each time the machine is switched off, as a reminder to do this.

Always empty the grounds container with the coffee machine switched on, otherwise the coffee machine does not register that the container has been emptied.

15.4 Cleaning the Grinding

Use the supplied brush to remove ground coffee residues.

Note! Never put water in the grinder. This would damage the grinder.

press the "On/Off" key (Fig. 3, h) to switch off the coffee machine. Unplug from the mains socket.

urn the bean container so that the mark is at the "UnlockContainer" position and remove the container (Fig. 23).

remove any remaining coffee beans (you could use the vacuum cleaner with the hose or crevice tool attachment for this).

If a foreign body is impossible to remove, take off the grinding ring.

GB

To do this, proceed as follows (Fig. 24):

1. Push the Release catch for removing grinding ring (Fig. 2, T) forward toward the centre of the grinder.

2. Keep it in this position and turn the Lever for setting grinding texture (Fig. 2, U) approximately one full turn clockwise until it comes up against the stop.

You can continue to turn the Lever for setting grinding texture (Fig. 2, U) only if the Release catch for removing grinding ring (Fig. 2, T) is pressed.

Now release the grinding ring (Fig. 25) and remove the foreign body or bodies.

Caution! Risk of injury from the spinning grinder. Never switch the coffee machine on, when you are working on the grinder. This can lead to severe injuries. Before starting work, ensure that the machine is unplugged from the mains socket.

When refitting the grinding ring, ensure that both catches on the grinding ring holder engage in the corresponding slots (Fig. 25). Failure to do this can lead to damage to the grinder.

Turn the Lever for setting grinding texture (Fig. 2, U) approximately one full turn anticlockwise until it comes up against the stop.

Set the bean container in place at the UnlockContainer" position and turn it back to the "Coffee Beans" position.

Add a small quantity of coffee beans, and test the proper operation of the grinder by making a cup of coffee. The first time the grinder is used, or after cleaning, less ground coffee will enter the coffee-making unit, because the channel first has to be filled. This can influence the first cup of coffee.

15.5 Cleaning the Coffee-making Unit

We advise you to clean the coffeemaking unit regularly (depending on how frequently it is used). It should be cleaned before you start the cleaning

program. If your coffee machine is to be left unused for some time (e.g. holidays), empty the coffee grounds container and the water tank, and thoroughly clean the coffee machine, including the coffee-making unit.

Removing the coffee-making unit

Switch the coffee machine off with the "On/Off" key (Fig. 3, h) Wait until the coffee machine has reverted to the standby position and the automatic rinsing has ended. Then unplug from the mains socket.

Pull the coffee grounds container completely out of the coffee machine (Fig. 26).

Press the Service cover release button (Fig. 2, S) (Fig. 27).

The service cover opens at the front (Fig. 28).

Remove the service cover. The coffee-making unit is located behind the service cover (Fig. 29). The three red elements are used for latching and unlatching.

To remove the coffee-making unit, operate the latches in the following order (Fig. 30):

1. Push the latching lever up.
2. Press and hold the lock button.
3. Press and hold the latching button down and pull out the coffee-making unit (Fig. 31).

Cleaning the coffee-making unit

To clear coarse particles (contamination) from the coffee-making unit, pull the red service lever down to the stop and open the coffee-making unit (Fig. 32). The two strainers and now readily accessible, and the ejector lever drops down.
Rinse the coffee-making unit under warm, running water. It is essential to thoroughly flush the stainless steel strainers to remove all coffee residues (Fig. 33 and 34).
Dry the coffee-making unit off and push the service lever back up to the stop (Fig. 35).

GB

The ejector lever flips in and the coffee-making unit closes.

Inserting the coffee-making unit

Follow these steps to re-insert the coffeemaking unit:

1. Push the coffee-making unit onto the guide bar and then unit into the coffee machine as far as it will go (Fig. 36).

2. Press the latching button down and slide the coffee-making unit back for around another 1 cm until the latching button engages (Fig. 37).

3. Press the latching lever down to the stop (Fig. 37).

Replace and close the service cover, and re-insert the coffee grounds container.

The coffee machine can be switched on only when the service cover is closed. After the coffee machine has been switched on, the coffee-making unit runs through the set-up cycle, and this is followed by the normal heating process.

15.6 Running the Cleaning Program

The cleaning program permits the intensive cleaning of otherwise inaccessible locations. Run the cleaning program no later than when the "Clean" key (Fig. 3, f) Indicator flashes.

The cleaning process lasts around 8 minutes and should not be interrupted.

Use only original AEG-cleaning tablets! These can be obtained through the AEG Serviceline (ET No. 663 910 480) or your dealer (E No. 950 078 803).

Before starting the cleaning program, clean the coffee-making unit (refer to "Cleaning the Coffee-making Unit" page 41) and empty the coffee grounds container. Fill the water tank with at least 1 litre fresh water.

Press the "On/Off" key (Fig. 3, h) to switch the coffee machine on.

Turn the coffee bean container to the "Ground Coffee" position (Fig. 38). Wait until the mechanism has set up

and all the lights of the Coffee Quantity indicator are extinguished.

Pull the emptied grounds container out until it is under the coffee dispenser (Fig. 39).

It is used to collect the cleaning liquid. The "Empty grounds container" indicator (Fig. 3, j) comes on and remains illuminated for as long as the grounds container is pulled out.

Place a cleaning tablet in the ground coffee filler (Fig. 40).

Press the "Clean" key (Fig. 3, f) from around 3 seconds. The indicator changes from flashing to constantly on. The program starts. The cleaning program must not be interrupted.

During the cleaning process, the "Empty grounds container" indicator (Fig. 3, j) is illuminated, and the Coffee Quantity indicators are illuminated alternately. The program runs six cycles with cleaning liquid. The standing times are used to allow the cleaning tablet to penetrate. In the event of a power failure or interruption, the program must be restarted! The cleaning process finishes after approximately 8 minutes, when the Coffee Quantity indicators are extinguished and the "Empty grounds container" indicator (Fig. 3, j) flashes.

Empty the coffee grounds container and re-insert it. The indicator light now goes out.

Turn the coffee bean container to the desired position and fill the water tank. The coffee machine is now ready for use.

After running the cleaning program, you are advised to throw away the first cup of coffee from the machine.

15.7 Running the Dscaling Program

The descending program allows you to simply and effectively descale your coffee machine. The coffee machine must be descaled when the "Descale" key (Fig. 3, e) indicator flashes, at the latest however after 4 months.

GB

Important: Do not under any circumstances use descalers based on formic acid or vinegar or pure lemon juice, as these can damage the appliance. Powdered descalers are not recommended. Use only AEG descending tablets. If other descending agents are used, AEG accepts no liability for any damage. You can obtain descending tablets from specialist retailers (E-No. 900195537/7) or from the AEG Service Line. The descending process runs over two phases and should not be interrupted. Phase 1: descending phase, and Phase 2: flushing phase. In the event of a power failure or interruption, the program must be restarted!

Phase 1: Descaling

Before starting the descending program, switch the coffee machine off.
Remove and clean the coffee-making unit (refer to „Cleaning the Coffee-making Unit" page 41). The coffee-making unit is replaced not until after the descending.
Replace the service cover.
Empty the coffee grounds container and re-insert it.
Pour about 400 ml warm water into the water tank and place a bag (2 descaling tablets) in the water tank (Fig. 41).
Put the water tank back in place when the tablets have dissolved. This takes approximately 5-7 minutes.
Switch the appliance on and wait until it is in the base position.
Press the "Descale" key (Fig. 3, e) around 3 seconds.
During the descending process, the "Descale" key (Fig. 3, e) indicator is constantly illuminated, and the Coffee Quantity indicators are illuminated alternately. At the end of descending, the "Fill water tank" indicator (Fig. 3, k) flashes.

Phase 2: flushing

Rinse the water tank out, fill with a minimum of 1 litre fresh water and replace it.
Press the "Descale" key (Fig. 3, e). The automatic fresh-water flushing process starts now. The pump switches off automatically, after the flushing process to the coffee grounds container is finished. Then the indicator of the "Steam Pre selector" key (Fig. 3, g) flashes.
Place a suitable cup or jug with a capacity of at least 200 ml under the hot-water nozzle.
Turn the Selection dial for steam and hot water (Fig. 1, D) to the position (Fig 42). The indicator of the "Steam Pre selector" key (Fig. 3, g) illuminates. The pump stops automatically on completion of the rinsing process. The Coffee Quantity indicators are extinguished, the indicator of the "Steam Pre selector" key (Fig. 3, g) flashes.
Turn the Selection dial for steam and hot water (Fig. 1, D) back to the position (Fig. 42). The flushing process is finished. The appliance runs to the base position and then switches off. The "Empty grounds container" indicator (Fig. 3, j) flashes for about 1 minute.
Empty the coffee grounds container.
Thoroughly rinse the water tank, fill with fresh water and replace it.
Before placing the appliance back in operation, replace the cleaned coffeemaking unit (refer to „Cleaning the Coffee-making Unit" page 41). The coffee machine is now ready for use.
i After running the descending program, you are advised to throw away the first cup of coffee from the machine.

GB

15.8 Ordering Accessories

To ensure years of satisfaction with your coffee machine and prevent faults arising, it is very important to regularly clean and descale the coffee machine. The original cleaning tablets and descalant are obtainable direct from us.

If you live in Germany, please call our Order Hotline

Tel. [phone].

16 What do I do, if ...

... coffee-making is interrupted and the "Fill water tank" indicator (Fig. 3, k) flashes?
The water tank is empty. Fill the water tank and press the key or the key again.
- The water tank is not properly inserted. Check that the water tank is properly seated.
- The coffee is ground too finely. Clean the coffee-making unit and adjust the grinding texture.
The coffee-making unit is blocked. Refer to „Cleaning the Coffee-making Unit" page 41. Completely remove any encrusted coffee remains from the coffee-making unit, set a smaller coffee quantity.
... the "Fill water tank" indicator (Fig. 3, k) flashes, even though it is sufficiently filled with water?
- Vent the coffee machine: Place a container under the hot water nozzle. Then turn the Selection dial for steam and hot water (Fig. 1, D) for a few seconds to position soon as water is ejected, turn the selection dial back to position
... the coffee machine does not operate, and the "Empty grounds container" indicator (Fig. 3, j) flashes?
- Container is full: Empty container and clean thoroughly; see "Emptying the Coffee Grounds Container" page 40.

... the coffee machine does not operate, and all 5 indicator lights Coffee Quantity and or are ing?

• The coffee-making unit is overfilled. Refer to "Cleaning the Coffee-making Unit" page 41. Completely remove any encrusted coffee remains from the coffee-making unit.
• Reduce the amount of ground coffee spooned in.
• Set a small coffee quantity; see "Changing and Saving the Coffee Quantity" page 38.
• Check ejector.
  If you are unable to remedy the fault, please contact the AEG Serviceline.

... "Clean" key (Fig. 3, f) is flashing?

Number of coffees dispensed necessitates cleaning: Run cleaning program; see Running the Cleaning Program page 42.

... the cleaning program cannot be started?

Turn the bean container to the powder setting, then start the cleaning program.

... "Descale" key (Fig. 3, c) is flashing?

Number of coffees dispensed necessitates descending: Carry out descending: see „Running the Descaling Program" page 42.

... the espresso/coffee is not hot enough?

• Preheat the cups with hot water.
• Increase coffee temperature; see "Setting the Coffee Temperature" page 38.

... the espresso/coffee is too weak?

Not enough ground coffee. Increase the amount of ground coffee, max. 2 measuring spoons.
- The coffee bean container is empty.
Add coffee beans.
- The coffee quantity is set too low.

flash-

GB

Increase the coffee quantity, see "Changing and Saving the Coffee Quantity" page 38.

The grinding texture is set too coarse. Set the grinding texture to a finer grade, see Setting the Grinding Texture page 38.

...the crema is too weak?

• Use fresh water.

• Use fresh beans or fresh coffee powder.

Clean the coffee-making unit, see "Cleaning the Coffee-making Unit", page 41.

...milk is not frothy enough?

The milk is too hot or too old or the fat content is too high. Use suitable milk.

-Blocked steam nozzle. Clean the steam nozzle, see page 37.

• The air intake in the frothing aid is blocked. Clean the frothing aid, see page 37.

... the bean container will not locate on the grinder?

• Coffee bean residue on or around the grinder: Remove coffee bean residue from the grinder, see page 40.

• Coffee bean residue is jammed in the bean container lock. Clear the bean container lock of coffee bean residue.

... the grinder makes very loud noises when grinding?

The grinder is blocked by a foreign body. Remove the foreign body as described in this manual, refer to "Cleaning the Grinding" page 40. If necessary, have the coffee machine checked by the Customer Service Centre.

• You can continue to use your coffee machine with ground coffee.

... the coffee-making unit will not come out?

• The coffee-making unit is not in the base position.

-Re-assemble the appliance and switch on.

-Now switch the appliance off again in the normal way. The coffee-making unit runs to the base position.

-Remove the coffee-making unit, refer to "Cleaning the Coffee-making Unit", page 41.

... the coffee-making unit will not fit back in?

• The coffee-making unit is not closed.
  Turn the service lever to close the coffee-making unit.

• The latching lever is not up. Push the metal clip up, and insert the coffeemaking unit, see page 42.

... the coffee machine has to be transported?

• Keep the original packaging as transport protection. It is important to use the original film as a protection against scratches.

• Secure the coffee machine against jarring.

Empty the coffee machine tank and container and allow any remaining moisture in the system to steam off. This will protect your coffee machine from being damaged by freezing in cold weather.

To steam off the system, remove water tank and then select the steam function. When no more steam is released, turn off the steam tap and switch off the coffee machine. Allow the appliance to cool before packing.

• Care should also be taken with the location of the coffee machine - especially in cold weather, when damage can be caused by freezing.

17 Using the Total Cups Counter

The coffee machine has the facility to display the total number of cups of coffee made.

GB

If the Key for 2 cups of coffee (Fig.3,a) is used to make 2 cups of coffee at the same time, these are counted as 2 cups.

Switch the appliance on and wait until it is in the base position.

Simultaneously press and hold the "Steam Pre selector" key (Fig. 3, g) and the "On/Off" key (Fig. 3, h) Keep both keys pressed for around 1 second, until the Key for 1 cup of coffee (Fig. 3, b) Indicator and the Coffee Quantity indicator come on.

Now release both keys. Now individual indicator lights start to flash in sequence, showing the number of cups made:

1 x flash corresponds to 10,000 cups
1 x flash corresponds 1,000 cups
1 x flash corresponds 100 cups
1 x flash corresponds 10 cups
1 x flash corresponds 1 cup

The flashing sequence is continuously repeated. All the indicators are briefly illuminated at once before each repetition.

Count the number of individual flashes by each indicator.

Example: The following flashing sequence corresponds to 1,529 cups.

0xflash
1xflash
5xflashes
2 x flashes
9 x flashes

To exit this mode, press the "Clean" key (Fig. 3, f)

18 Technical Data

Mains voltage: 220-240 V

Power consumption: 1290-1400 W

This appliance conforms with the following EC Directives:

Low Voltage Directive 2006/95/EC
EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC

19 Disposal

Packaging material

The packaging materials are environ-. mentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose of the packaging materiRs in the appropriate container at the community waste disposal facili- ties.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

20 If service is needed

If repairs should become necessary, including replacement of the mains cable, please telephone in the first instance our AEG-Electrolux Service Line.

AEG

Electrolux

For Germany:01805-22 83 84*:from Deutsche Telekom's fixed-line network 0.14/min..

For Austria:

For Repairs service: 0810-955 400
For Product service: 0810-955 200
from TELEKOM AUSTRIA's fixed-line network 0.10/min.

Original packaging including expanded foam must be retained. To avoid damage in transport, the appliance must be packed securely. The warranty period runs for 2 years from the date of purchase. The warranty period is limited to 6 months, if the appliance is used commercially. More than 3,000 brewing cycles per year is understood as commercial use.

Geachte klant,

Copyright by Electrolux

822 949 318 -03- 1107

Thinking of you

Electrolux

Share more of our thinking at

www.electrolux.com

Subject to change without notice
