USER MANUAL KM 16 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/16

230 V ~ 1000 W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

9. Lid of the water tank

13. Green pilot light of the timer

6. Plaque chauffante

tijdschakelaar Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

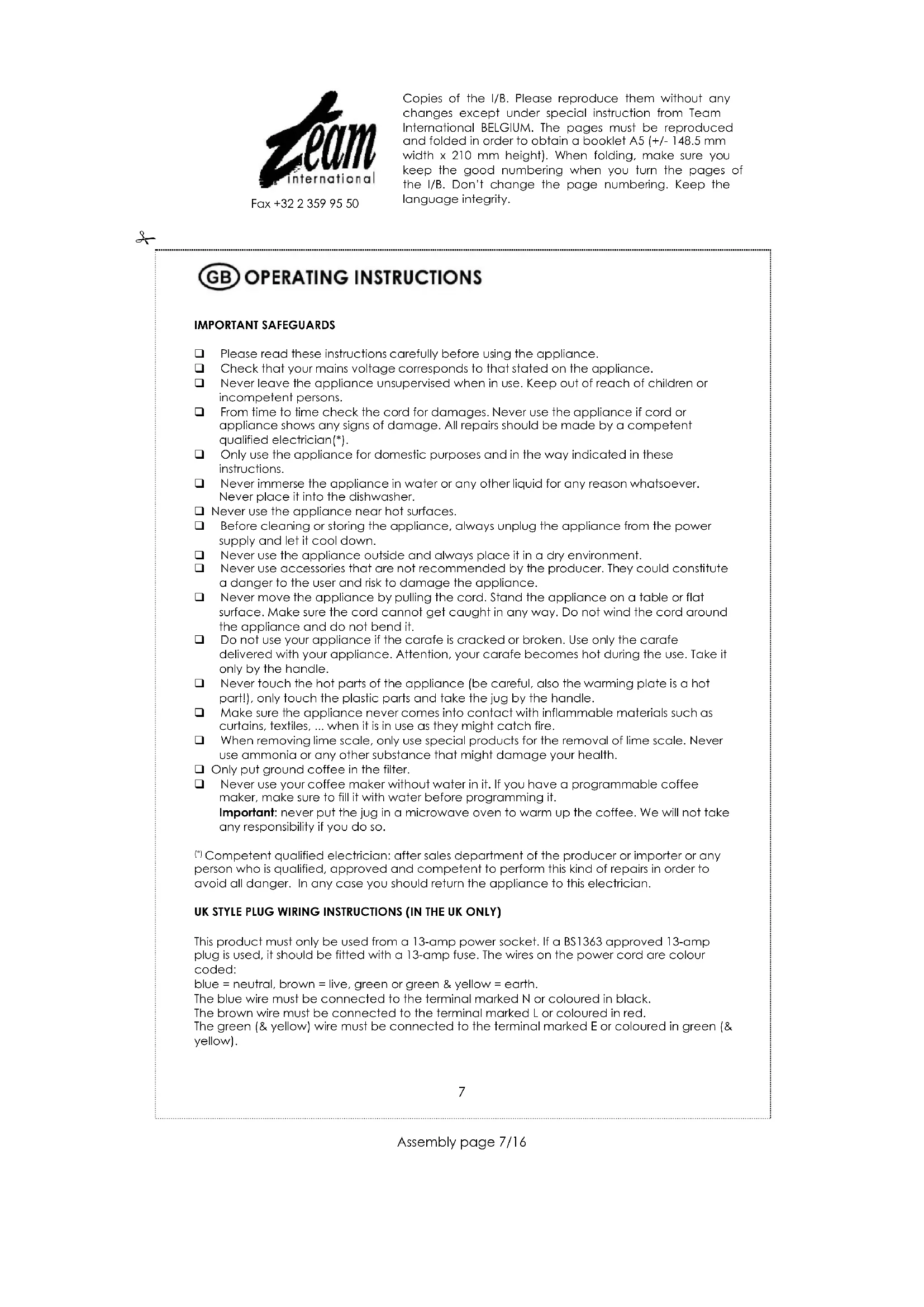

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician(*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Stand the appliance on a table or flat surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Do not use your appliance if the carafe is cracked or broken. Use only the carafe delivered with your appliance. Attention, your carafe becomes hot during the use. Take it only by the handle. Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle. Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles, ... when it is in use as they might catch fire. When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health. Only put ground coffee in the filter. Never use your coffee maker without water in it. If you have a programmable coffee maker, make sure to fill it with water before programming it. Important: never put the jug in a microwave oven to warm up the coffee. We will not take any responsibility if you do so.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY) This product must only be used from a 13-amp power socket. If a BS1363 approved 13-amp plug is used, it should be fitted with a 13-amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow). Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] INITIAL OPERATION When you use your appliance for the first time, pour fresh water into the water tank (without coffee) and switch on the appliance. Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough repeat the process with fresh water. Repeat this process 3 times.

Connect the plug to an outlet. The time "12:00" will flash on the display. To set the clock, press "PRO" once, "SET TIME" will appear on the left upper part of the display. Press several times on "HR" to set the hours and on "MIN" to set the minutes. After approximately 5 seconds the words "SET TIME" will disappear from the display, meaning that the clock is set. If you wish to change the setting, repeat the steps above. MANUAL OPERATION Open the lid of the water tank (9). Pour the desired amount of water into the water tank (7). Make sure not to overfill by respecting the maximum level indicated (8) on the water tank. Swing the filter holder (1), insert a paper filter or permanent filter (depending on the model) and add the desired quantity of ground coffee. Replace the filter holder, making sure it is placed correctly. Never forget to close the lid of the water tank before switching on your coffee maker. Switch on the coffee maker by pressing the on/off switch (10). The red pilot light will be illuminated, indicating that your appliance works. Your appliance has a hotplate (6) that allows keeping the coffee hot for maximum 2 hours. After 2 hours your appliance switches off automatically (the red pilot light switches off too). This is a safety device in order to avoid that your appliance works too long, which can damage it. When you remove the jug from the appliance, a non-drip valve (2) will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows remaining coffee to filter trough into the jug. When the water tank is empty, wait a few seconds before removing the carafe in order to let the water in the filter flow totally. To brew new coffee turn off the unit for 10 minutes, clean the carafe and the filter holder and restart the process. Attention: when you switch your coffee maker out, the hot plate will also cut out, but it will still stay hot for a short while. So pay attention wait until the hot plate has completely cooled down before cleaning or storing the appliance.

PROGRAMMING THE COFFEE-MAKER

Your coffee maker has a 24 hours timing, but the programmed clock remains in the memory as long as you don’t modify it. Check the time displayed on the clock. Open the lid of the water tank (9). Pour the desired amount of water into the water tank (7). Make sure not to overfill by respecting the maximum level indicated (8) on the water tank. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Swing the filter holder (1), insert a paper filter or permanent filter (depending on the model) and add the desired quantity of ground coffee. Replace the filter holder, making sure it is placed correctly. Never forget to close the lid of the water tank. Press the "PRO" button twice, "SET TIMER" will appear on the right upper part of the display. Set the desired switch-on time by pressing the "HR" and "MIN" buttons. After about 5 seconds the words "SET TIMER" will disappear from the display, meaning that the switch-off time is set. The current time will appear on the display. To activate the programmed setting, press the "AUTO" button. The green pilot light will come on. As soon as the preset switch-on time is reached, the appliance will start. The red pilot light will come on, indicating that the appliance is operating. You will then be able to switch the appliance on and off anytime by pressing the on/off switch. If you want to verify the preset switch-on time after having pressed "AUTO", press the "PRO" button twice. The programmed switch-on time will appear on the display. After a few seconds, the display will return to the current time. If you want to change the preset switch-on time after having pressed "AUTO", press "AUTO" again to stop the timer and proceed as described above to make the new setting.

DESCALING AND CLEANING

Decalcifying the coffee maker prolongs its life span. The frequency depends on the hardness of your water, which means on its minerals content. For decalcification only use products especially made for decalcification of electric coffee makers that you will find in shops and read their instruction books. We won’t be responsible for the repaired due to a bad maintenance of your appliance. Guarantee claims will not be accepted for the replacement of a heating element full of scale. Don’t place any part of your coffee maker in the dishwasher. Clean the plastic parts with a damp cloth. The filter holder of your coffee maker is removable in order to clean it more easily under a water pipe for example but also to avoid the manipulation of a dirty paper filter. Therefore pull it vertically. To clean the hot plate, use a non-abrasive sponge in order not to rasp it. To clean the carafe, use a classic cleaning agent and a sponge (avoid abrasive sponges too abrasive) and then rinse with clear water. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
