Operating instructions

Supremo HSL/XSL

Automatic coffee maker

A A3 A4 A5 A2 A1 A8 A10 A7 A6 A14 A13 A12 A18 A19 A15 A20 A16 A17 A21 A24 A23 A22 A11 A9 B1 B

B2 B3 B4 B5 B6 B7 B8 B9 B10

C C6 C1 C3 C5 C4 C2 C7

Diagram of a hand operating a refrigerator with a control panel and mechanical components, showing a black arrow indicating motion (no text or symbols present)

Simple diagram with a downward arrow and two icons: a trash bin and a cup (no text or symbols)

MAX 1 19 20

Simple diagram with a downward arrow, water droplet, and gear icons (no text or labels)

Line drawing of a mechanical device with a magnified inset showing a hand operating a tool (no text or symbols)

Diagram illustrating a mechanical process with labeled steps 1 and 2, showing tool insertion and pouring into a container.

Diagram of a mechanical component with a lever and pin, showing a cross-section view (no text or symbols)

Line drawing of a mechanical device with an arrow pointing to a component inside a housing (no text or symbols)

Diagram of a kitchen press mechanism with a kettle and mug, showing a rotary valve and directional arrows (no text or labels)

Line drawing of a hand using a screwdriver to adjust or install a component, with no visible text or symbols.

Diagram of a robotic device with a close-up inset showing mechanical components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a hand inserting a component into a device inside a cabinet (no text or symbols)

Line drawing of a hand using a tool to clean or store items inside a machine (no text or symbols visible)

31 3229

Simple diagram showing a trash bin and a coffee cup with a downward arrow (no text or symbols)

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarize yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to:

Type Product family Size system
CCSHSL 25001 55-381
CCSHSL60 25002 60-381
CCSXSL60 25003 60-450

Variations depending on the model are noted in the text.

CONTENTS

INTRODUCTION 7

Symbols used in these instructions ....7

Letters in brackets 7

Troubleshooting and repairs 7

SAFETY 7

Fundamental safety warnings....7

Designated use 8

Instructions....8

DESCRIPTION 8

Description of the appliance 8

Description of the control panel 8

Description of milk container and accessories ....9

PRELIMINARY CHECKS 9

Checking the appliance 9

Installing the appliance 9

Connecting the appliance 9

DISPOSAL 9

BUILT-IN INSTALLATION 9

USING THE APPLIANCE FOR THE FIRST TIME ....12

TURNING ON AND HEATING UP 12

MAKING COFFEE USING COFFEE BEANS 12

CHANGING THE QUANTITY OF COFFEE IN THE CUP....13

Programming quantity ....13

CHANGING THE QUANTITY OF HOT WATER 14

MAKING CAPPUCCINO 14

MAKING FROTHED MILK 15

CHANGING THE QUANTITY OF MILK AND COFFEE FOR

CAPPUCCINO 15

MAKING LATTE MACCHIATO OR CAFFE LATTE ....15

CHANGING THE QUANTITY OF COFFEE AND MILK FOR LATTE

MACCHIATO/CAFFE LATTE ....15

CLEANING 15

Cleaning the machine 15

Cleaning the grounds container 15

Cleaning the drip tray 16

Cleaning the water tank 16

Cleaning the spouts 16

Cleaning the pre-ground coffee funnel 16

Cleaning the inside of the coffee machine .....16

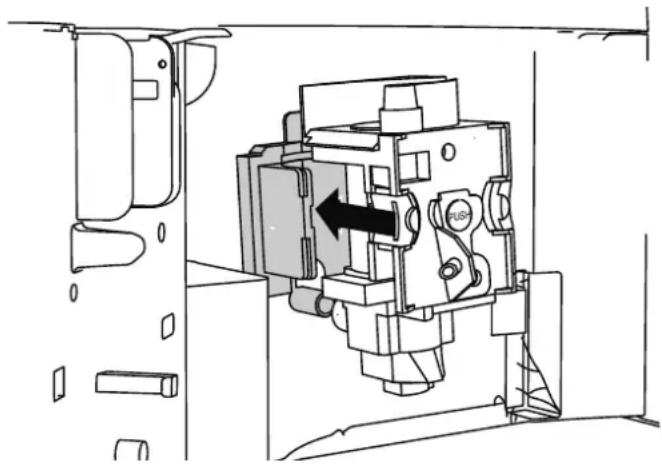

Cleaning the infuser 16

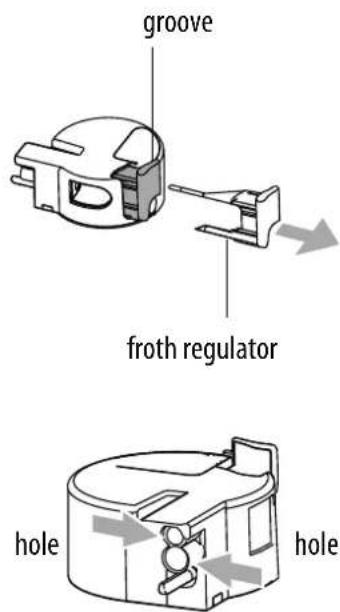

Cleaning the milk container 17

MENU SETTINGS ....17

Rinsing....17

Set language 17

Energy saving 18

Set time 18

Auto start 18

Auto off (Standby) 18

Set temperature 18

Water hardness 19

Contrast 18

Statistics 19

Default values 19

Descaling 19

TURNING THE APPLIANCE OFF 20

TECHNICAL DATA 20

DISPLAYED MESSAGES 21

TROUBLESHOOTING 22

SERVICE & SUPPORT 23

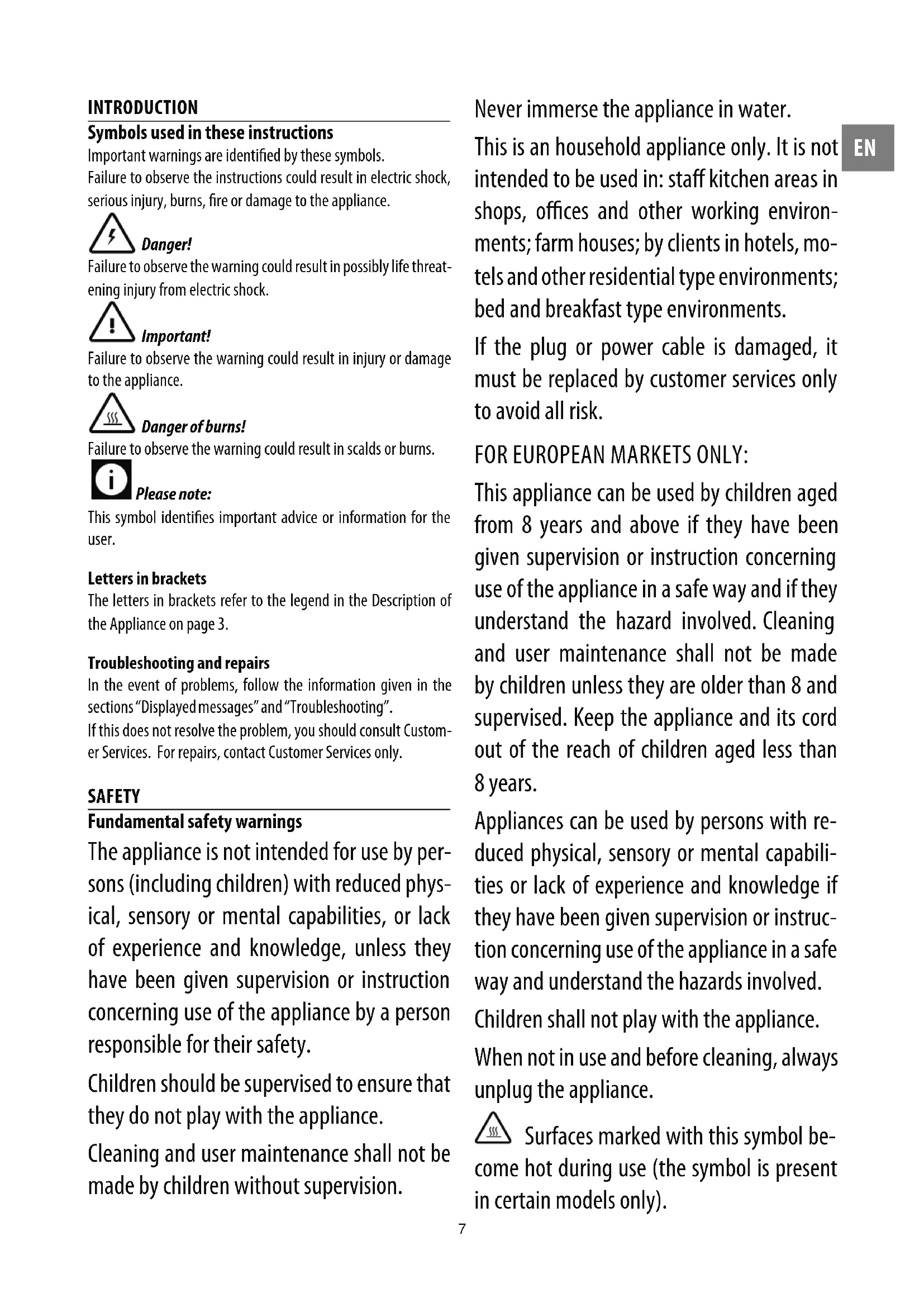

INTRODUCTION

Symbols used in these instructions

Important warnings are identified by these symbols.

Failure to observe the instructions could result in electric shock, serious injury, burns, fire or damage to the appliance.

Danger!

Failure to observe the warning could result in possibly life threatening injury from electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

Please note:

This symbol identifies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the legend in the Description of the Appliance on page 3.

Troubleshooting and repairs

In the event of problems, follow the information given in the sections "Displayed messages" and "Troubleshooting".

If this does not resolve the problem, you should consult Customer Services. For repairs, contact Customer Services only.

SAFETY

Fundamental safety warnings

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Never immerse the appliance in water.

This is an household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If the plug or power cable is damaged, it must be replaced by customer services only to avoid all risk.

FOR EUROPEAN MARKETS ONLY:

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazard involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

When not in use and before cleaning, always unplug the appliance.

Surfaces marked with this symbol be-hot during use (the symbol is present in tain models only).

Danger! This is an electrical appliance, it is therefore not to respect the following safety warnings:

• Never touch the appliance with damp hands.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.
• Unplug directly from the plug only.
• Never touch the appliance with damp hands.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.
• Unplug directly from the plug only.
  Never pull the power cable as you could damage it.
• To disconnect the appliance completely, place the main switch (A23) on the side of the appliance in the 0 position.
• If the appliance is faulty, do not attempt to repair.
  Turn it off using the main switch (A23), unplug from the mains socket and contact Customer Services.

Important! Keep all packaging (plastic bags, polysty-n) away from children.

Danger of burns! This appliance produces hot water m may form while it is in operation.

Avoid contact with splashes of water or hot steam. Use knobs and handles.

Important! Do not hold on to the coffee machine out of the cabinet.

Do not rest recipients containing liquids or inflammable or corrosive materials on top of the appliance. Place the accessories required to make the coffee (the measure for example) in the special holder. Do not rest large objects which could obstruct movement or unstable objects on the appliance.

Important! Do not use the appliance when extracted.

Make sure the appliance is inactive before extracting it. The only exception is adjusting the coffee mill which must be done with the machine extracted (see section "Adjusting the coffee mill").

Please note: Use original or manufacturer recommendations and spare parts only.

Designated use

This appliance is designed and made to prepare coffee and heat drinks. All other use is considered improper.

This appliance is not suitable for commercial use.

The manufacturer is not liable for damage deriving from improper use of the appliance.

This appliance can be installed over a built-in oven if the latter is fitted with a cooling fan at the rear (maximum microwave power: 3 kW).

Instructions

Read these instructions carefully before using the appliance.

• Keep these instructions.
• Failure to respect these instructions may result in burns or damage to the appliance.
  The manufacturer is not liable for damage deriving from failure to respect these instructions.

Please note: The appliance has a cooling fan.

This comes on whenever coffee, steam or hot water is delivered. After several minutes, the fan goes off automatically.

Important! Never turn off the machine during desca-

ling.

DESCRIPTION

Description of the appliance

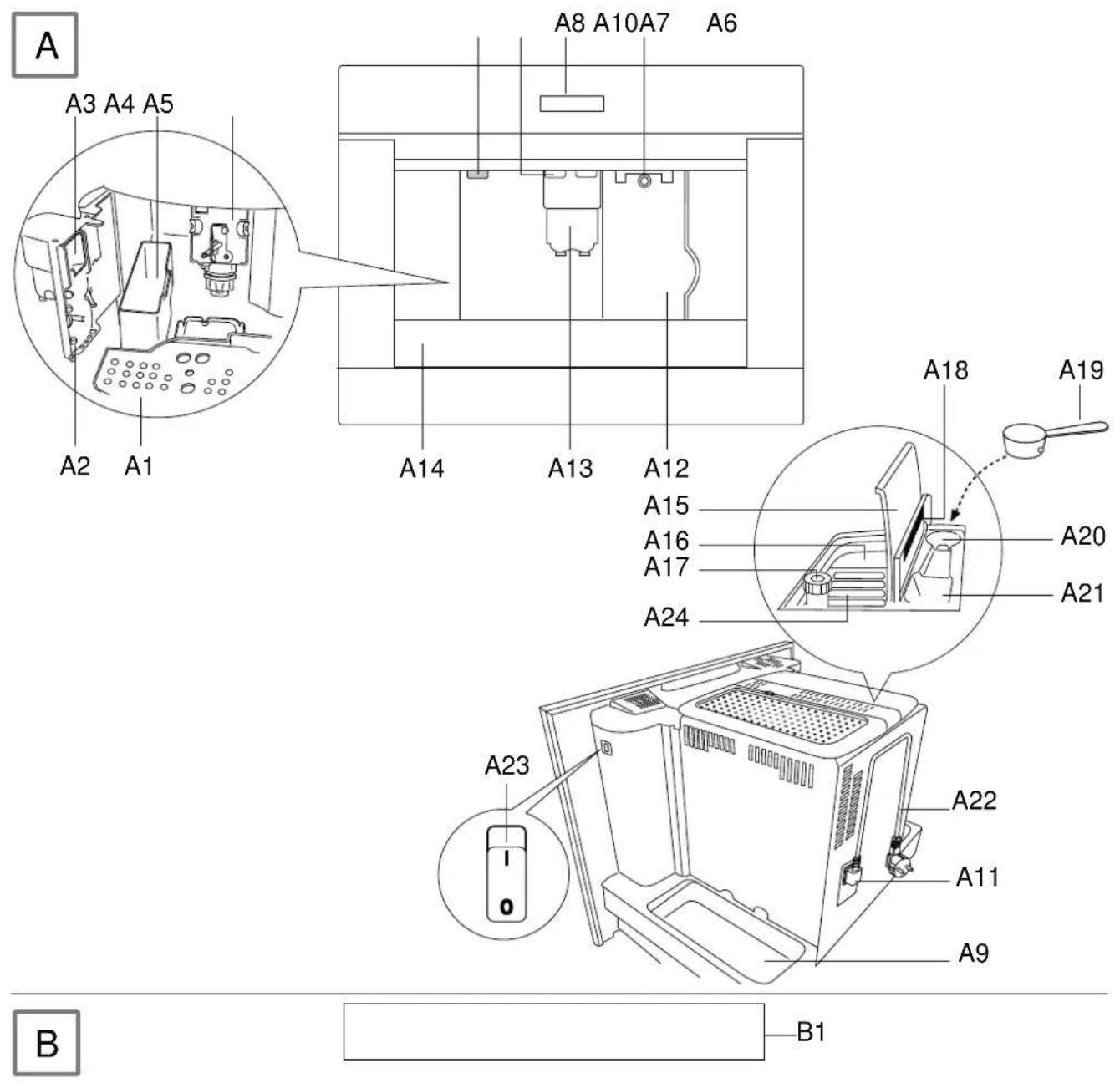

(page 2 - A)

A1. Cup tray
A2. Service door
A3. Coffee guide
A4. Waste coffee container
A5. Infuser
A6. Cup tray lights
A7. On/stand-by button
A8. Control panel
A9. Tray
A10. Hot water and steam nozzle
A11. IEC connector
A12. Water tank
A13. Coffee spout (adjustable height)
A14. Drip tray
A15. Bean container lid
A16. Bean container
A17. Grinding adjustment dial
A18. Pre-ground coffee funnel door

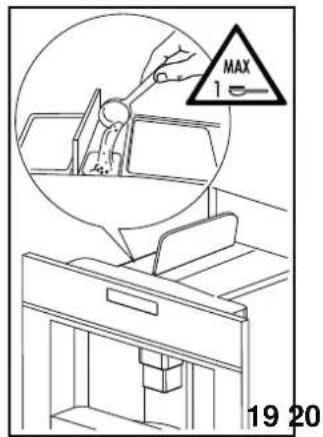

A19. Measure
A20. Measure compartment
A21. Pre-ground coffee funnel
A22. Power cable
A23. Main switch
A24. Safety grid

Description of the control panel

(page 2 - B)

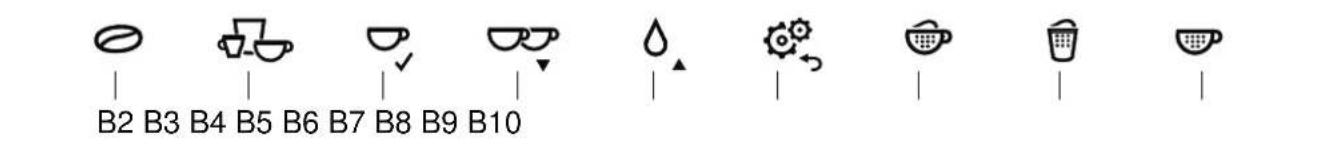

B1. Display: guides the user in using the appliance.

B2. 🔒 icon to select the coffee taste

B3. icon to select the type of coffee (espresso, coffee, long coffee)

B4. Icon to make one cup of coffee and confirm the selected function
B5. icon to make two cups of coffee and scroll backwards through the menu to display the various modes
B6. △ icon to deliver hot water and scroll forwards through the menu to display the various modes
B7. icon to enable or disable menu parameter setting mode and exit from the chosen mode
B8. 📋 icon to make cappuccino / frothed milk
B9. 📋 icon to make latte macchiato / frothed milk
B10. 📋 icon to make caffe latte / frothed milk (hot milk)

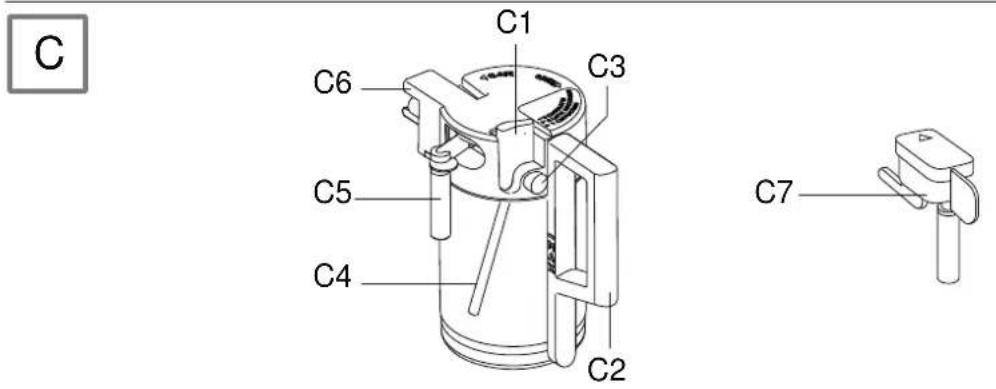

Description of milk container and accessories

(page 2 - C)

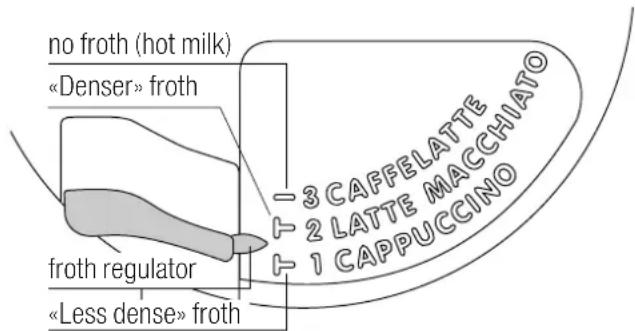

C1. Froth regulator
C2. Milk container handle
C3. CLEAN button
C4. Milk intake tube
C5. Frothed milk spout
C6. Milk frother
C7. Hot water spout

PRELIMINARY CHECKS

Checking the appliance

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present.

Do not use the appliance if it is visibly damaged.

Contact Customer Services.

Installing the appliance

Important!

• Installation must be performed by a qualified professional in compliance with legislation in force in the country of installation (see section "Built-in installation").
• The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children.
• Never install the appliance in rooms where the temperature may drop to 0°C or lower.
• Customise the water hardness as soon as possible following the instructions in the "Water hardness" section.

Connecting the appliance

Danger! Check that the mains power supply voltage ends to the value indicated on the rating plate on the of the appliance.

Connect the appliance to an efficiently earthed and correctly installed socket with a minimum current rating of 10A only.

If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified professional.

To comply with safety directives, an omnipolar switch with a minimum contact distance of 3 mm must be installed.

Do not use multiple sockets or extensions.

Important! Safety cutout devices must be included in the mains power supply in compliance with the installation regulations in the country concerned.

DISPOSAL

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

BUILT-IN INSTALLATION

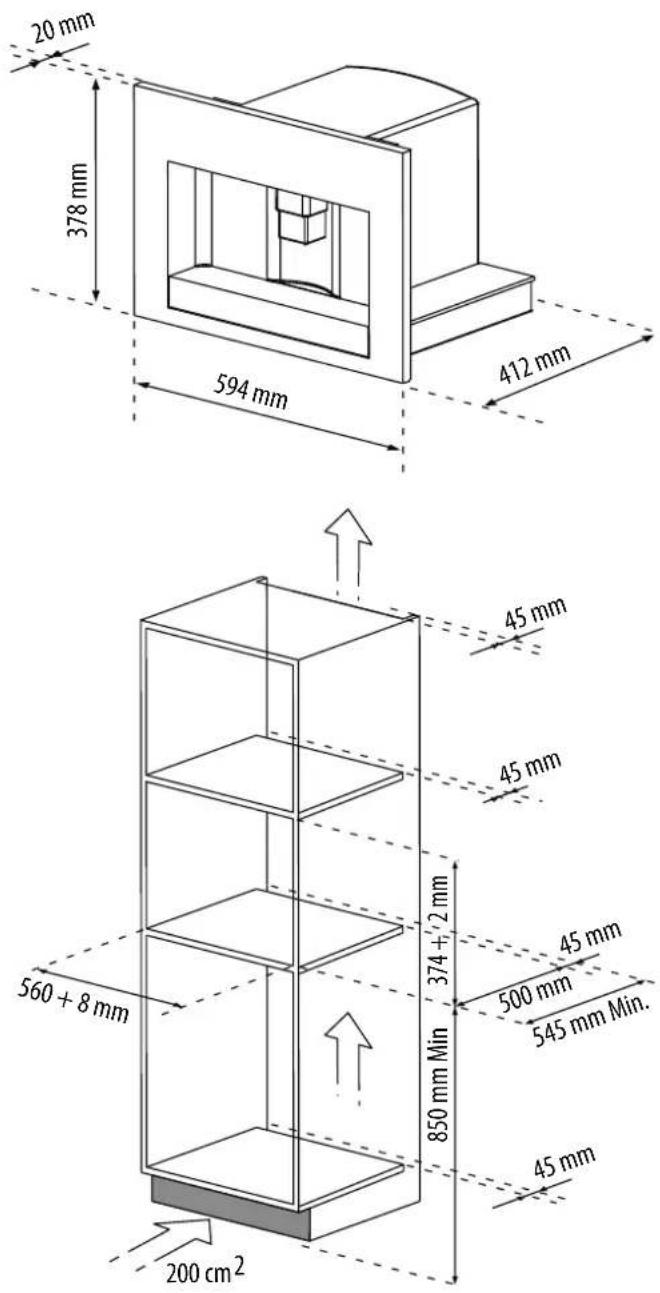

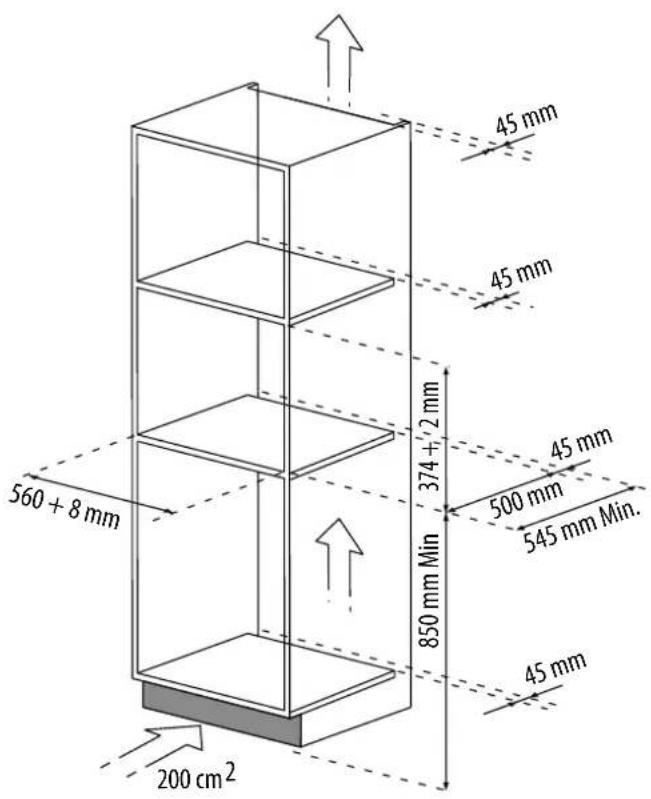

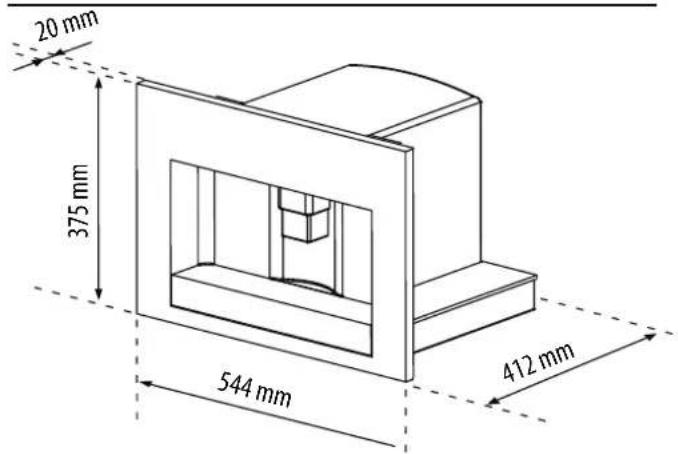

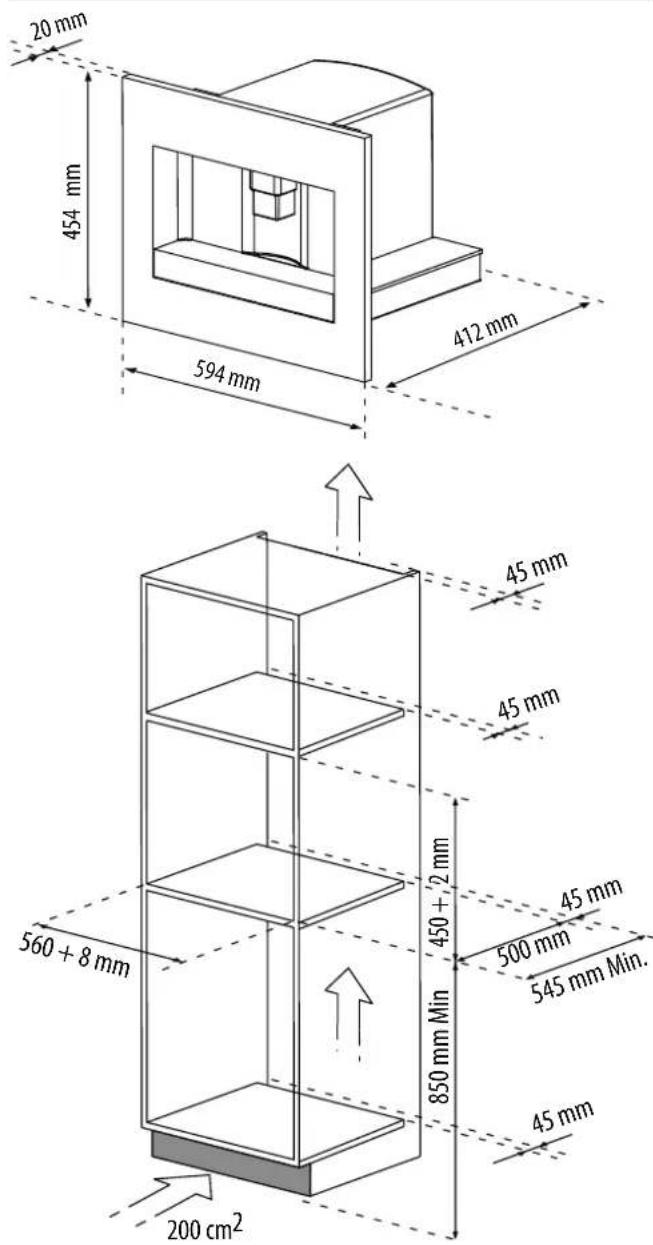

Verify the minimum measurements required for correct installation of the appliance.

The coffee machine must be installed in a column and the column must be firmly fixed to the wall with commercially available brackets.

Important!

• Important: all installation or maintenance operations must be performed with the appliance disconnected from the mains electricity supply.
• Kitchen furniture in direct contact with the appliance must be heat resistant (65°C min).
• To guarantee correct ventilation, leave a gap at the bottom of the cabinet (see measurements in figure).

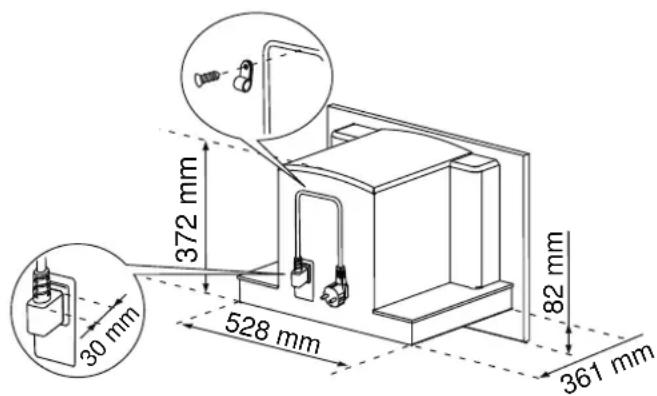

372 mm 30 mm 528 mm 82 mm 361 mm

H 454 MM

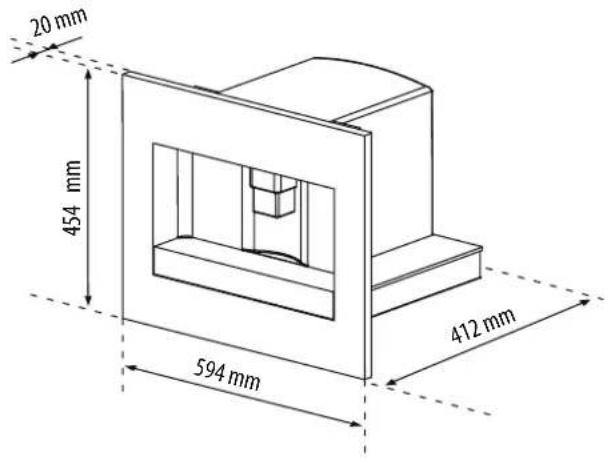

20 mm 454 mm 594 mm 412 mm

H 378 MM

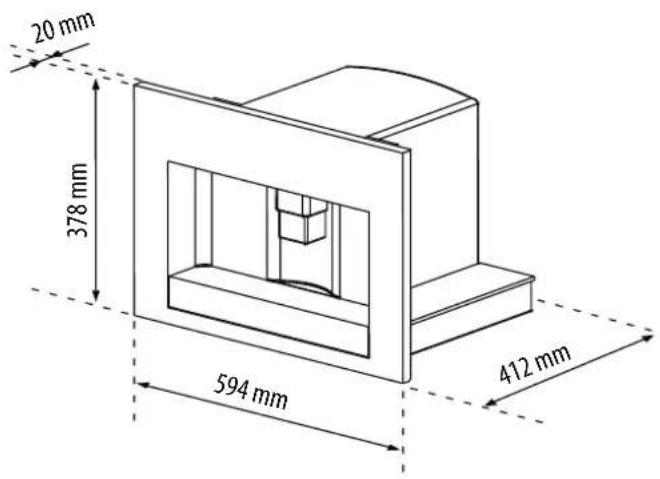

20 mm 378 mm 594 mm 412 mm

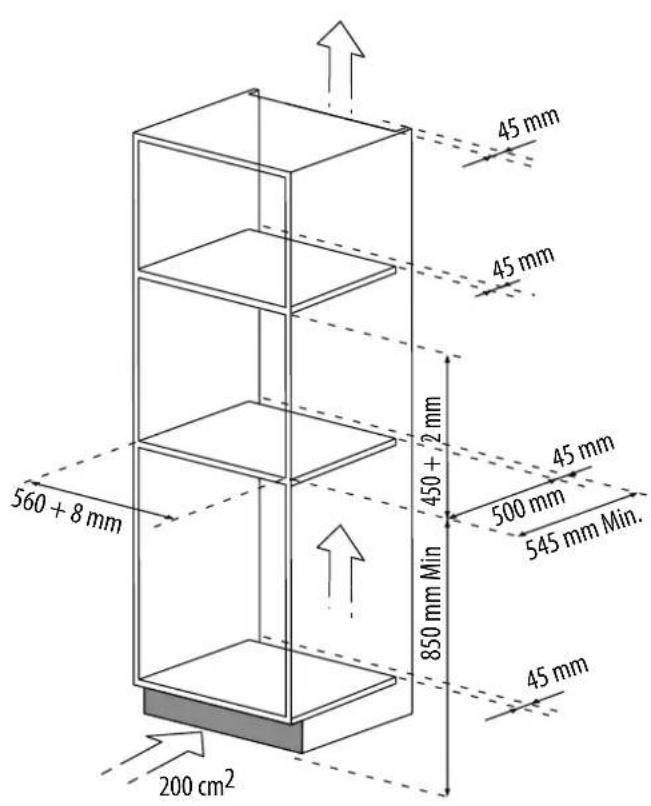

45 mm 45 mm 450 + 2 mm 560 + 8 mm 450 mm Min 500 mm 545 mm Min. 850 mm Min 45 mm 200 cm²

45 mm 45 mm 374 + 2 mm 500 mm 545 mm Min. 850 mm Min 560 + 8 mm 45 mm 200 cm²

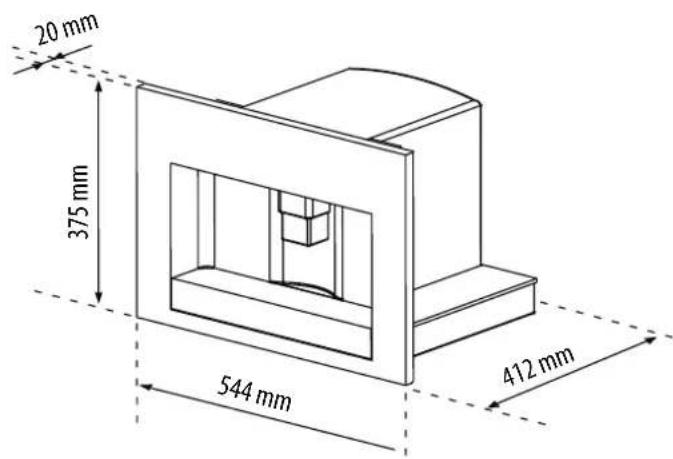

20 mm 375 mm 544 mm 412 mm

45 mm 45 mm 550 + 8 mm 381 + 2 mm 500 mm 545 mm Min. 850 mm Min 45 mm 200 cm²

x 16 x 2

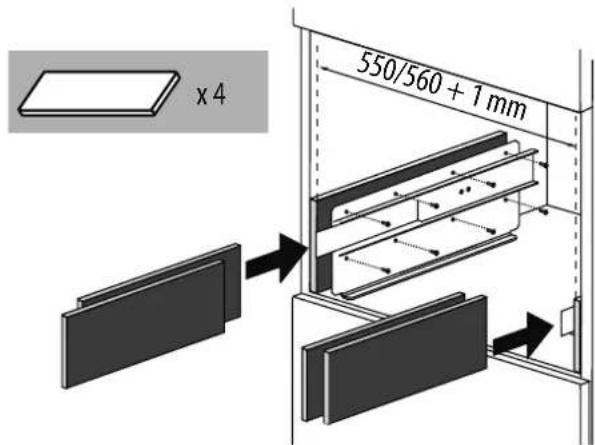

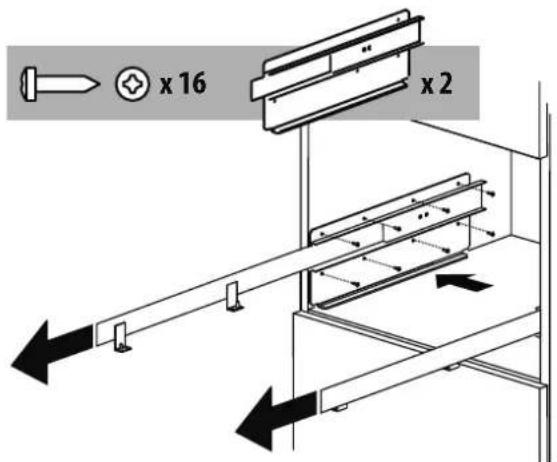

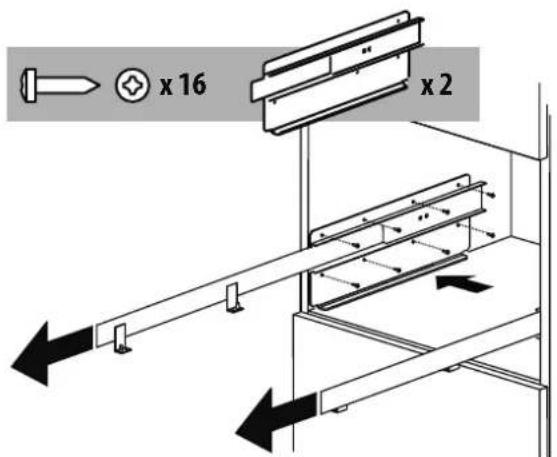

Position the rails on the sides of the cabinet as shown in the figure. Fix with the screws provided, then extract them completely. If the coffee machine is installed over a warmer drawer, use the top surface of this as a reference to position the rails. In this case, there will be no surface to rest the rails on.

x 1 approx. 350 mm

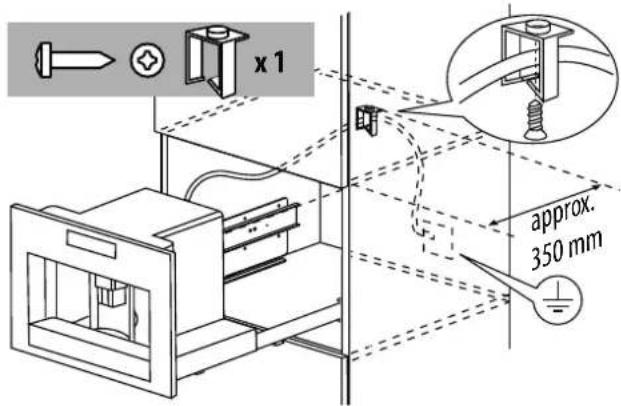

Fix the power cable with the clip.

The power cable must be long enough to allow the appliance to be extracted from the cabinet to fill the coffee bean container. The appliance must be earthed in compliance with legislation. Electrical connections must be performed by a qualified electrician following the instructions.

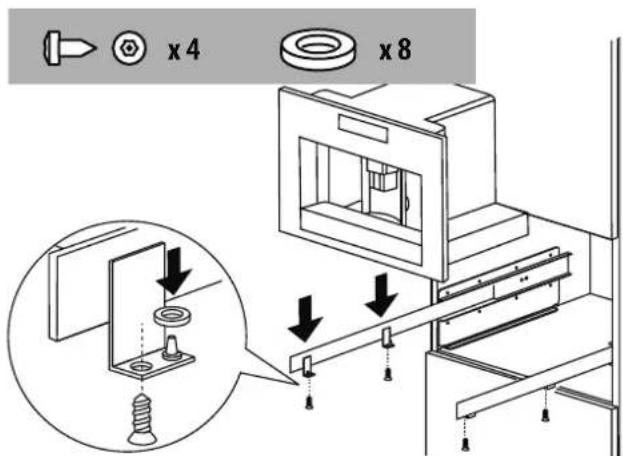

x 4 x 8

Position the appliance on the rails, making sure the pins are correctly inserted in the housings, then fix it with the screws supplied.

If the height of the appliance requires adjusting, use the spacer disks provided.

x 4 550/560 + 1 mm

If necessary, correct alignment of the appliance by positioning the spacers supplied under or at the sides of the support.

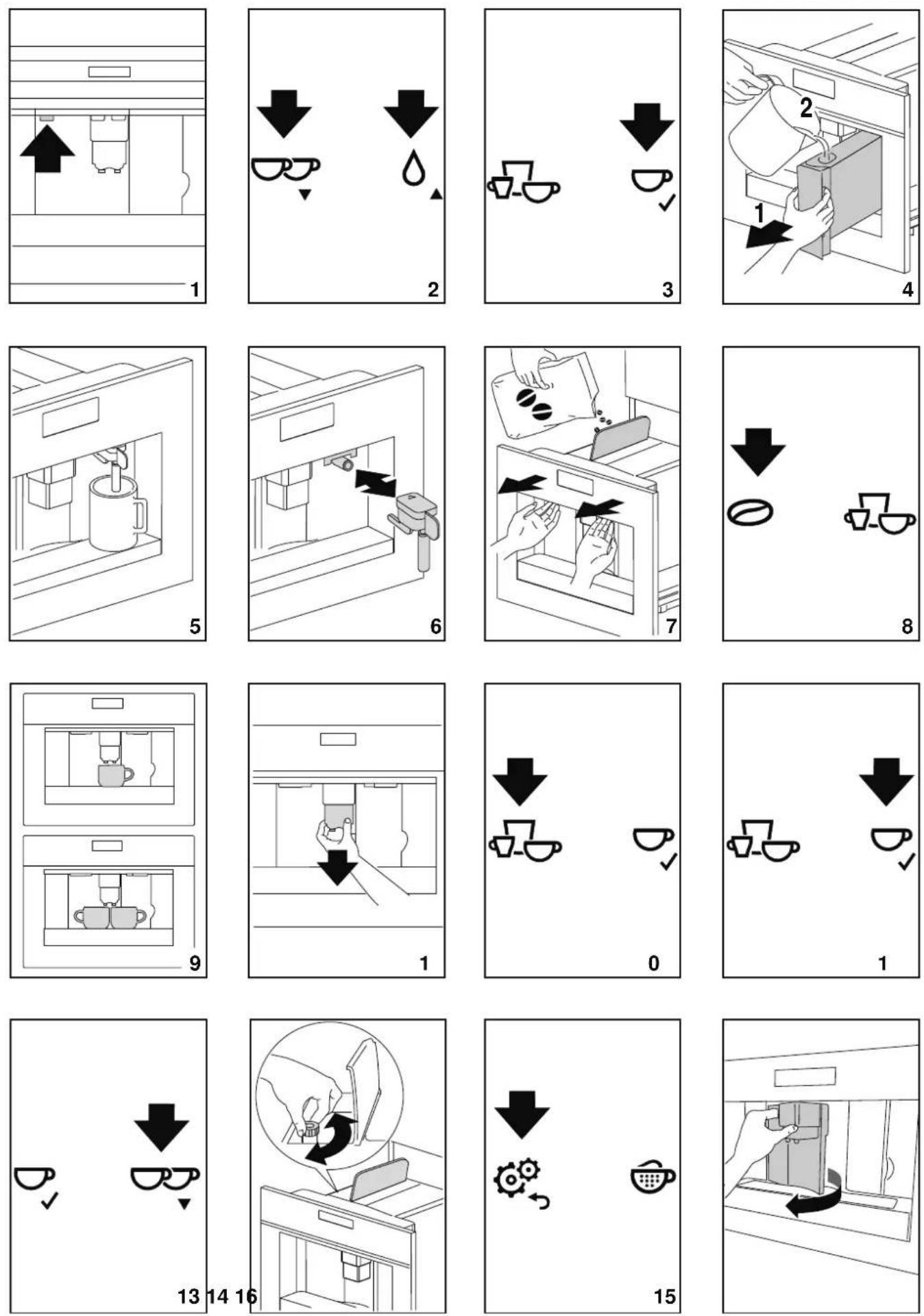

USING THE APPLIANCE FOR THE FIRST TIME

• Coffee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill.

• Customise water hardness as soon as possible following the instructions in the "Water hardness" section.

• Connect the appliance to the mains electricity supply and place the main switch (A23) in position I.

• The appliance displays "FILL TANK" in different languages.

Extract the water tank (fig. 4), rinse and fill with fresh water without exceeding the MAX line. Replace and push as far as it will go.

1. Choose the language (the languages scroll through at intervals of about 3 seconds):

When the message "PRESS √ TO SET TO ENGLISH" is displayed, press the icon (B4) (fig. 3) for 3 seconds until "ENGLISH SET" is displayed. If you set the wrong language, follow the instructions in the "Setting the language" section.

If your language is not available, select one from those displayed (the instructions refer to English).

Then follow the instructions displayed:

1. Place a cup under the hot water spout (fig. 5).

(If the hot water spout is not inserted, the appliance displays "INSERT WATER SPOUT". Attach the spout as shown in figure 6. The machine displays "HOT WATER PRESS". Press the icon (B4), a little water comes out of the spout.

1. After that the machine displays "TURNING OFF PLEASE WAIT" and goes off.

2. Extract the appliance by pulling it out using the handles (fig. 7).

Open the lid and fill the container with coffee beans, then close the lid and push the appliance in.

The coffee machine is now ready for normal use.

Important! Never introduce pre-ground coffee,

freeze dried coffee, caramelised beans or anything else which could damage the appliance.

Please note: When using the appliance for the first time, you need to make 4-5 cups of coffee and 4-5 cappuccinos before the appliance gives satisfactory results.

Please note: Each time you turn the coffee machine on by the main switch (A23), it performs an AUTO DIAGNOSTICS cycle and then goes off.

To turn it on again, press the ON/stand-by button (A7) (fig. 1)

TURNING ON AND HEATING UP

Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted.

The appliance is ready for use only after completion of this cycle.

Danger of burns! During rinsing, a little hot water

flows from the coffee spouts.

To turn the appliance on, press the ON/stand-by button (A7) (fig. 1). The message "HEATING UP PLEASE WAIT" is displayed.

When heating is complete, the message changes to "RINSING".

The appliance is at temperature when the message "COFFEE STANDARD" is displayed.

MAKING COFFEE USING COFFEE BEANS

1. The appliance is preset to make coffee with a standard taste. You can choose coffee with an extra mild, mild, standard, strong or extra strong taste. There is also a pre-ground coffee option. To choose the required taste, press the icon (B2) (fig. 8) a number of times. The required coffee taste is displayed.

2. Place 1 cup under the spouts to make 1 coffee (fig. 9) or 2 cups for 2 coffees (fig. 9).

Lower the spouts as near as possible to the cup for a creamier coffee (fig. 10).

1. Press the 📋 icon (B3) (fig. 11) to select the type of coffee (espresso, coffee, long coffee).

Now press the icon (B4) (fig. 12) if you want to make one coffee and the icon (B5) (fig. 13) if you want to make 2 coffees. The appliance now grinds the beans and starts delivering the coffee into the cup.

Once the set amount of coffee has been delivered, the machine stops delivery automatically and expels the exhausted coffee grounds into the grounds container.

1. After a few seconds, the appliance is ready for use again.

2. To turn the appliance off, press the ON/stand-by button (A7) (fig. 1).

(Before going off, the appliance performs an automatic rinse cycle. Take care to avoid scalds).

NOTE 1: If the coffee is delivered a drop at a time or not at all, see section "Adjusting the coffee mill".

NOTE 2: If the coffee is delivered too fast and the cream is not satisfactory, see section "Adjusting the coffee mill".

NOTE 3: Tips for a hotter coffee:

- Proceed as described in the section "Menu settings", "rinsing" function.

- Unless preheated, do not use excessively thick cups as they will absorb too much heat.

- Preheat the cups by rinsing them with hot water.

NOTE 4: Coffee delivery can be interrupted at any moment by re-pressing the previously selected icon which remains lit during the operation.

NOTE 5: As soon as delivery is finished, to increase the quantity of coffee in the cup, just keep pressing the previously selected icon within 3 seconds after delivery has finished.

NOTE 6: When the appliance displays "FILL TANK", fill the tank with water or the appliance will not deliver coffee. (It is normal for there to be a little water left in the tank).

NOTE 7: After about 14 single (or 7 double) coffees, the appliance displays "EMPTY GROUNDS CONTAINER".

Even if not full, the empty waste coffee container message is displayed 72 hours after the first coffee has been delivered.

For the 72 hours to be calculated correctly, the machine must never be turned off with the main switch in the 0 position.

To clean, open the service door on the front of the appliance by pulling the spout (fig. 16), extract the drip tray (fig. 17) and clean.

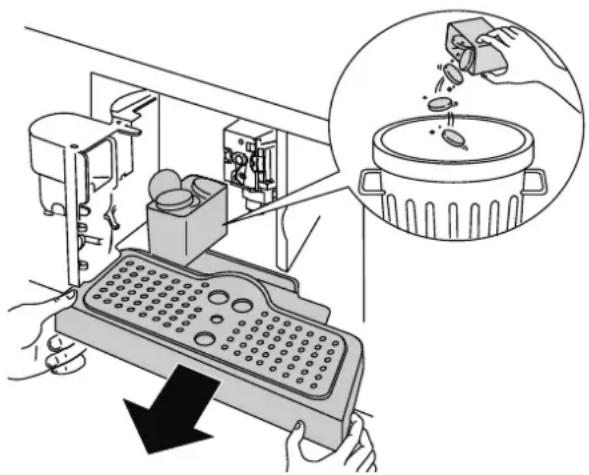

Illustration of hands operating a portable device with a magnified inset showing food being poured into a pot (no text or symbols)

When cleaning, always extract the drip tray completely.

Important! When extracting the drip tray, the container MUST always be emptied.

If this is not done, the machine may be clogged.

NOTE 8: Never extract the water tank while the machine is delivering coffee.

If it is removed, it will not be possible to make the coffee and the appliance will display some messages (see page 21).

CHANGING THE QUANTITY OF COFFEE IN THE CUP

The appliance is set by default to make a standard quantity of coffee.

To select the quantity of coffee, press the icon (B3) (fig. 11) repeatedly until the message corresponding to the required quantity of coffee is displayed:

Corresponding coffee quantity (ml)
ESPRESSO ≈ 30
COFFEE ≈ 110
LONG COFFEE ≈ 150

Programming quantity

To modify the quantity of coffee delivered, proceed as follows:

1. Place a cup under the coffee spouts (fig. 9).
2. Keep the icon (B4) (fig. 12) pressed until the message "PROGRAM QUANTITY" is displayed and coffee delivery begins. Then release the icon.
3. As soon as the coffee in the cup reaches the required level, press the same icon again.

The quantity set has now been programmed.

The coffee mill is preset in the factory and should not require adjusting.

However, if after making the first few coffees you find that delivery is either too fast or too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment dial (fig. 14).

Important! The grinding adjustment dial must only when the coffee mill is in operation.

7654321 7654322

For slower delivery and creamier coffee, turn one click anticlockwise (finer pre-ground coffee).

For faster delivery (not a drop at a time), turn one click clockwise (coarser pre-ground coffee).

MAKING ESPRESSO COFFEE WITH PRE-GROUND COFFEE (INSTEAD OF BEANS)

• Press the icon (B2) (fig. 8) and select the pre-ground coffee function.
• Extract the machine by pulling it outwards using the handles (fig. 7).
• Lift the central lid, place one measure of pre-ground coffee in the funnel (fig. 19), push the appliance in then proceed

as described in the section "Making coffee using coffee beans".

Please note: You can make just one coffee at a time by pressing the 📋 icon (B4) (fig. 12).

- After using the machine with pre-ground coffee, to go back to making coffee using beans, disable the pre-ground coffee function by pressing the icon (B2) (fig. 8) again.

NOTE 1: Never introduce pre-ground coffee when the machine is off or it could spread through the inside of the appliance.

NOTE 2: Never add more than 1 measure, otherwise the appliance will not make the coffee.

NOTE 3: Use the measure provided only.

NOTE 4: Introduce only pre-ground coffee for espresso coffee machines into the funnel.

NOTE 5: If more than one measure of pre-ground coffee is used and the funnel clogs, push the coffee down with a knife (fig. 21) then remove and clean the infuser and machine as described in the "Cleaning the infuser" chapter.

DELIVERING HOT WATER

• Make sure the water spout is in place (fig. 6).
- Position a container under the spout.
- Press the icon (B6) (fig. 20).

The message "HOT WATER" is displayed and hot water flows out of the hot water spout into the container below.

You should not deliver hot water for more than 2 minutes at a time.

To interrupt the flow, press the icon (B6).

The appliance stops delivery once the set quantity is reached.

CHANGING THE QUANTITY OF HOT WATER

The appliance is set by default to automatically deliver approx 300 ml.

To modify these quantities, proceed as follows:

1. Position a container under the spout.

2. Press the icon (B6) again until "HOT WATER PROGRAM QUANTITY" is displayed, then release the icon (B6).

3. When the hot water in the cup reaches the required level, press the △ icon (B6) again.

The machine is now reprogrammed with the new quantity.

MAKING CAPPUCCINO

• Select the taste of the coffee you want to use to make the cappuccino by pressing the 🔒 icon (B2).
• Remove the lid of the milk container.
• Fill the container with about 100 ml of milk for each cap-puccino to be prepared (fig. 23).

Never exceed the MAX level (corresponding to about 750 ml) marked on the container.

You should ideally use skimmed or semi-skimmed milk at refrigerator temperature (about 5°C).

- Make sure the intake tube is correctly inserted in the rubber washer (fig. 24) then replace the milk container lid.

Position the froth regulator between the words cappuccino and caffe latte printed on the milk container lid.

The quality of froth can be adjusted by moving the regulator towards the word “caffe latte” for a denser froth (hot milk). Moving it towards the word “cappuccino” obtains a less dense froth.

no froth (hot milk) «Denser» froth froth regulator «Less dense» froth - 3 CAFFELATTE - 2 LATTE MACCHIATO - 1 CAPPUCCINO

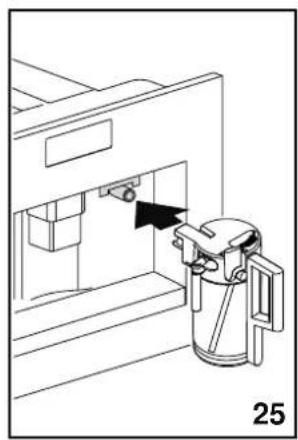

• Remove the hot water spout (fig 6) and attach the milk container to the nozzle (fig. 25).

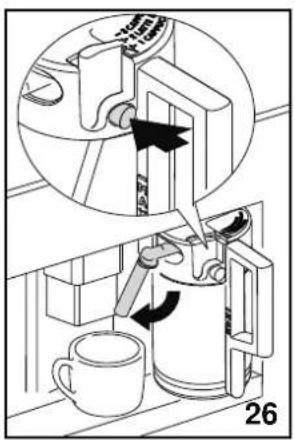

• Position the milk tube as shown in fig. 26 and then place a sufficiently large cup under the coffee and milk spouts.
• Press the 📋 icon (B8). "CAPPUCCINO" is displayed and after a few seconds, frothed milk flows out of the milk spout into the cup below. (Delivery stops automatically).
  • The appliance delivers coffee.
• The cappuccino is now ready. Sweeten to taste and, if desired, sprinkle the froth with a little cocoa powder.

NOTE 1: While making cappuccino, the flow of frothed milk or coffee can be interrupted by pressing the 📋 icon (B8).

NOTE 2: If the milk in the container finishes while delivering frothed milk, remove the container and add milk.

Reattach and press the 📋 icon (B8) to request a cappuccino again.

NOTE 3: To ensure the complete cleanliness and hygiene of the milk frother, always clean the circuits in the milk container lid after making cappuccino. "PRESS CLEAN" flashes on the display.

• Place a recipient under the milk spout (fig. 26).
- Press the CLEAN button on the lid (C3) and hold down for at least 5 seconds (fig. 26) to start the cleaning function.

The appliance displays the message "CLEANING UNDER-WAY" above a progress bar. You should not release the CLEAN button until the bar is complete indicating that cleaning is concluded. When the CLEAN button is released, the function stops. After cleaning, remove the milk container and place in the refrigerator. The milk should not be left out of the refrigerator for more than 15 minutes.

NOTE 4: To change the quantity of coffee or frothed milk the appliance delivers automatically into the cup, proceed as described in the section "Changing the quantity of milk and coffee for cap-puccino".

MAKING FROTHED MILK /HOT MILK

• Prepare the appliance as described to make cappuccino.
- Fill the container with about 100 ml of milk for each frothed milk or 300 ml of milk for each hot milk to be prepared (fig. 23).
- Before attaching the milk container to the nozzle, position the froth regulator between the words CAPPUCCINO and CAFFE LATTE printed on the milk container lid.
- If the froth is not satisfactory, move the regulator slightly until you obtain the required froth.

Select the frothed milk function by pressing either (B8) or 📋 (B9) (fig. 18) twice.

Select the hot milk function by pressing twice.

(B10) (fig. 32)

The quality of frothed milk delivered is equal to that of the selected drink (cappuccino: less dense froth, latte macchiato: denser froth and caffe latte: no froth/hot milk). The quantity of frothed milk cannot be set directly.

CHANGING THE QUANTITY OF MILK AND COFFEE FOR CAPPUCCINO

The appliance is set by default to automatically deliver standard quantities of coffee or milk.

To change these quantities, proceed as follows:

1. Prepare the appliance as described to make cappuccino.
2. Place a cup under the coffee spouts and milk spout.
3. Hold the icon (B8) until the message "MILK FOR CAPPUCCINO PROGRAM QUANTITY" is displayed.
4. Release the icon. The appliance starts delivering milk.
5. Once the required quantity of milk has been delivered into the cup, press the 🎨 icon (B8) again.
6. After a few seconds, the appliance starts delivering coffee into the cup and the message "COFFEE F. CAPPUCCINO PROGRAM QUANTITY" is displayed.
7. Once the required quantity of coffee has been delivered into the cup, press the 📋 icon (B8) again. Coffee delivery stops.

The machine is now reprogrammed with the new milk and coffee quantities.

MAKING LATTE MACCHIATO OR CAFFE LATTE

• Prepare the appliance as described to make cappuccino.

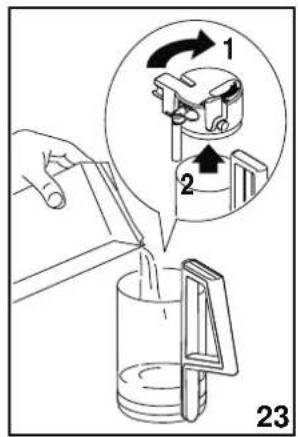

• Fill the container with about 100 ml of milk for each LATTE MACCHIATO or 300 ml of milk for each CAFFE LATTE to be

prepared (fig. 23).

• Before attaching the milk container to the nozzle, position the froth regulator between the words CAPPUCCINO and CAFFE LATTE printed on the milk container lid.
  If the froth is not satisfactory, move the regulator slightly until you obtain the required froth.

• Press the 📋 icon (B9) to request a latte macchiato. or

- Press the 📋 icon (B10) to request a caffe latte and after a few seconds, frothed milk flows out of the milk spout into the cup below. (Delivery stops automatically). Milk delivery stops and the appliance starts delivering coffee.

CHANGING THE QUANTITY OF COFFEE AND MILK FOR LATTE MACCHIATO/CAFFE LATTE

The appliance is set by default to deliver standard quantities of coffee or milk.

To change these quantities, proceed as follows:

1. Prepare the appliance as described to make latte macchiato or caffe latte.
2. Place a glass (or big cup) under the coffee spouts and milk spout.
3. Press the icon corresponding to the preparation you want to modify, latte macchiato (B9) or caffe latte (B10) for at least 8 seconds until the appliance displays "MILK FOR MACCHIATO PROGRAM QUANTITY" or "MILK FOR CAFFE LATTE PROGRAM QUANTITY"
4. Then release the icon. The appliance starts delivering milk.
5. Once the required quantity of milk has been delivered, press the icon selected previously. Milk delivery stops and the quantity is memorised.
6. After a few seconds, the appliance delivers coffee into the cup and displays "COFFEE FOR MACCHIATO PROGRAM QUANTITY" or "COFFEE FOR CAFFE LATTE PROGRAM QUANTITY".
7. Once the required quantity of coffee has been delivered, press the icon selected previously. Coffee delivery stops and the quantity is memorised.

CLEANING

Cleaning the machine

Do not use solvents or abrasive detergents to clean the coffee machine. A soft damp cloth will suffice.

NEVER wash any of the components of the coffee machine in the dishwasher.

The following parts of the machine must be cleaned regularly:

• coffee grounds container (A4),

- drip tray (A14),

• water tank (A12),
• coffee spouts (A13),
  • pre-ground coffee funnel (A21),
• inside of the machine, accessible after opening the service door (A2),
• infuser (A5).

Cleaning the coffee grounds container

When "EMPTY GROUNDS CONTAINER" is displayed, the grounds container must be emptied and cleaned.

To clean:

• open the service door on the front of the appliance (fig. 16), extract the drip tray (fig. 17) and clean.
• Clean the grounds container thoroughly.

Important! When extracting the drip tray, the grounds container must always be emptied.

Cleaning the drip tray

Important! If the drip tray is not emptied the water might overflow.

This could damage the machine.

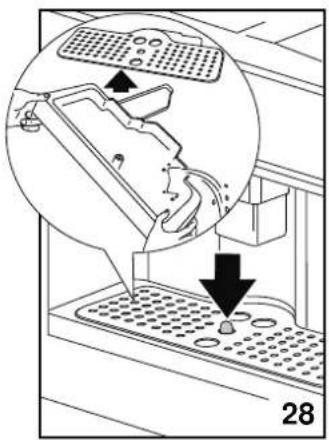

The drip tray is fitted with a level indicator (red) showing the level of water it contains (fig. 28).

Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned.

To remove the tray:

1. Open the service door (fig. 16).

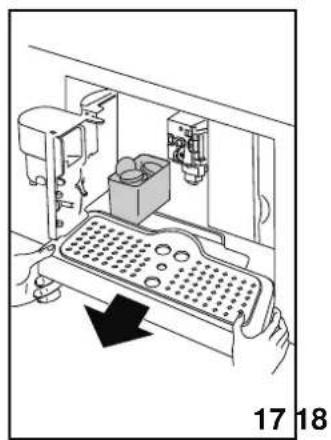

2. Remove the drip tray and the grounds container (fig. 17).
3. Empty the drip tray and grounds container (A4) and wash them.
4. Replace the drip tray complete with grounds container (A4).
5. Close the service door.

Cleaning the water tank

1. Clean the water tank (A12) regularly (about once a month) with a damp cloth and a little mild washing up liquid.
2. Remove all traces of washing up liquid.

Cleaning the spouts

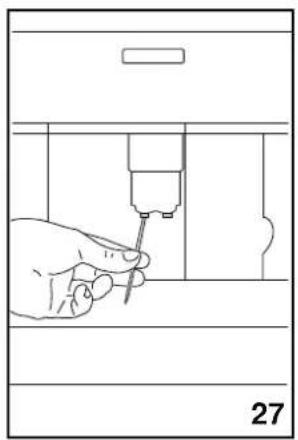

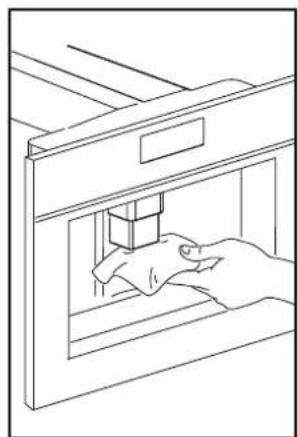

1. Clean the nozzles periodically using a sponge (fig. 29).
2. Check regularly that the holes in the coffee spout are not blocked. If necessary, remove coffee deposits with a tooth-pick (fig. 27).

Cleaning the pre-ground coffee funnel

Check regularly (about once a month) that the pre-ground coffee funnel is not blocked (fig. 21).

Danger! Before performing any cleaning operations, the machine must be turned off by pressing the main switch (A23) and unplugged from the mains power supply.

Never immerse the coffee machine in water.

Cleaning the inside of the coffee machine

1. Check regularly (about once a week) that the inside of the appliance is not dirty.
   If necessary, remove coffee deposits with a sponge.

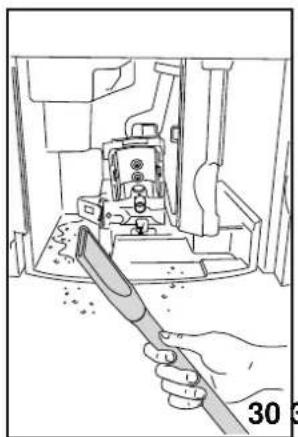

2. Remove the residues with a vacuum cleaner (fig. 30).

Cleaning the infuser

The infuser must be cleaned at least once a month.

Important! The infuser (A5) must not be removed when the appliance is on.

Do not use force to remove the infuser.

1. Make sure the machine is correctly turned off (see "Turning off").
2. Open the service door (fig. 16).
3. Remove the drip tray and grounds container (fig. 17).

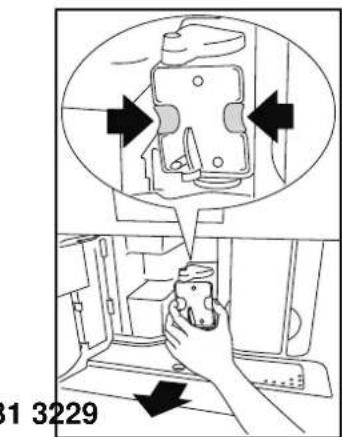

4. Press the two yellow release buttons inwards and at the same time pull the infuser outwards (fig. 31).

Important! Do not use washing up liquid to clean the infuser. It would remove the lubricant applied to the inside of the piston.

1. Soak the infuser in water for about 5 minutes, then rinse.

2. After cleaning, replace the infuser (A5) by sliding it onto the internal support and pin at the bottom, then push the PUSH symbol fully in until it clicks into place.

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols)

Please note: If you encounter difficulty inserting the infuser, before inserting it you must adapt it to the right dimension by pressing it forcefully from the bottom and top as shown in the figure.

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

1. Once inserted, make sure the two yellow release buttons have snapped out.

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

1. Replace the drip tray and grounds container.

2. Close the service door.

Cleaning the milk container

Important! Always clean the tubes inside the milk or (C) when you prepare milk.

If there is still milk in the container, do not leave it out of the refrigerator for longer than strictly necessary.

Clean the container each time you prepare milk as described in Note 3 in the section "Making cappuccino".

All components are dishwasher safe, placing them in the top basket of the dishwasher.

1. Turn the lid of the milk container clockwise then remove it.

2. Remove the milk spout and intake tube.

spout milk intake tube

1. Remove the froth regulator by pulling it outwards.

2. Wash all the components thoroughly with hot water and mild washing-up liquid.

Make sure there are no milk residues left inside the holes and the groove on the fine end of the froth regulator.

1. Check that the intake tube and spout are not clogged with milk residues.

2. Replace the froth regulator, milk spout and intake tube.

3. Replace the milk container lid.

groove froth regulator hole hole

MENU SETTINGS

When you access the settings menu by pressing the icon (B7) (fig. 15), the following menu items are available: Rinsing, Set language, Energy saving, Set time, Auto start, Auto off, Set temperature, Water hardness, Contrast Statistics, Default values, Descale.

Rinsing

This function enables you to obtain hotter coffee.

Proceed as follows:

- When you turn the appliance on, if you want to make a small cup of coffee (less than 60 ml), preheat the cup by rinsing it with hot water.

- If on the other hand more than 2/3 minutes have passed since the last coffee was made, before requesting another coffee, you must preheat the infuser by first pressing the

icon (B7) to enter the menu then the and icons (B5 and B6) to select the "RINSING" function. Press the icon (B4). "RINSING PRESS √" is displayed. Press the icon (B4) again.

Deliver the water into the underlying drip tray or alternatively use this water to fill (and then empty) the cup to be used for the coffee to preheat it.

Set language

To modify the language of the display, proceed as follows:

1. Press the icon(B7) to enter the settings menu.
2. Press the 🎨 and 🔊 icons (B5 and B6) until "SET LANGUAGE" is displayed;
3. Press the icon(B4);
4. Press the 📞 and 🔊cons (B5 and B6) until the required language is displayed;
5. Press the √ icon (B4) to confirm;
6. Press the icon (B7) to exit the menu.
   Alternatively, hold the icon (B7) down for 10 seconds. The languages scroll through.
   Hold the √ icon (B4) down for 5 seconds to confirm.

Energy saving

Use this function to enable or disable Energy saving.

When enabled, the function reduces energy consumption in compliance with European regulations.

To enable or disable the function, proceed as follows:

1. Press the icon (B7) to enter the settings menu.
2. Press the 🔍 and 🔊 icons (B5 and B6) until "ENERGY SAVING" is displayed;
3. Press the √ icon (B4). "DISABLE?" is displayed (or "ENABLE?" if the function has already been disabled).
4. Press the icon (B4) to enable or disable the function or the icon (B7) to exit the menu.

Please note: A few seconds may elapse between "EN-AVING ENABLED" mode and delivery of the first drink; RATION UNDERWAY" is displayed.

Set time

To adjust the time on the display, proceed as follows:

1. Press the icon (B7) to enter the settings menu.
2. Press the 🔔 and 🔊 icons (B5 and B6) until "SET TIME" is displayed;
3. Press the icon (B4). The hours flash on the display;
4. Press the hours; and Icons (B5 and B6) to change the
5. Press the icon (B4) to confirm. The minutes flash on the display;
6. Press the minutes; and Icons (B5 and B6) to change the
7. Press the icon (B4) to confirm;
8. Press the icon (B7) to exit the settings menu.

Auto start

You can set the auto start time in order to have the appliance ready at a certain time (for example in the morning) so you can make coffee immediately.

Please note:

To enable this function, the time must be set correctly.

To enable Auto start, proceed as follows:

1. Press the icon (B7) to enter the settings menu.

2. Press the 📄 and 🔊cons (B5 and B6) until "AUTO START" is displayed;

3. Press the icon (B4). "ENABLE?" is displayed;

4. Press the √ icon (B4). The hours flash on the display;

5. Press the hours; and icons (B5 and B6) to choose the

6. Press the icon (B4) to confirm. The minutes flash on the display;

7. Press the minutes; and icons (B5 and B6) to change the

8. Press the √ icon (B4) to confirm. "ENABLED" appears under "AUTO START".

9. Press the icon (B7) to exit the menu.

To disable the function:

1. Press the icon (B7) to enter the settings menu.

2. Press the a and cons (B5 and B6) until "AUTO START" is displayed;

3. Press the icon (B4). "DISABLE?" is displayed;

4. Press the Icon (B4) to confirm; "DISABLED" is displayed.

5. Press the icon (B7) to exit the menu.

Auto off (Standby)

The appliance is set by default to go off if not used for 30 minutes.

The time can be changed so that the appliance switches off after 15 or 30 minutes, or after 1, 2 or 3 hours.

To re-programme Auto off, proceed as follows:

1. Press the icon (B7) to enter the settings menu.

2. Press the 🔍 and 🔍cons (B5 and B6) until "AUTO OFF" is displayed;

3. Press the √ icon (B4);

4. Press the 📌 and 🔒 cons (B5 and B6) until the required time (15 or 30 minutes, or 1, 2 or 3 hours) is displayed;

5. Press the icon (B4) to confirm;

6. Press the 🎨iconn (B7) to exit the menu.

Auto off is programmed.

Set temperature

To modify the temperature of the water used to make the coffee, proceed as follows:

1. Press the icon (B7) to enter the settings menu.
2. Press the and icons (B5 and B6) until "SET TEMPERATURE" is displayed;
3. Press the icon (B4);
4. Press the and cons (B5 and B6) until the required temperature is displayed (I=low, III=high);
5. Press the √ icon (B4) to confirm;
6. Press the icon (B7) to exit the menu.

Water hardness

The operating period can be extended if required, making descaling less frequent by programming the machine on the basis of the real lime content in the water used.

Proceed as follows:

- Remove the "Total Hardness Test" strip (attached to page 2) from its packaging then dip it fully in the water for a few seconds.

Remove and wait about 30 seconds (until it changes colour and forms red squares).

- Turn the appliance on by pressing the ON/stand-by button (A7).

- Press the icon (B7) to enter the menu and then the and icons (B5 and B6) until "WATER HARDNESS" is displayed.

- Press the icon (B4);

- Press the and icons (B5 and B6) until the number coincides with the number of red squares on the test strip (for example, if there are 3 red squares on the test strip, select the message "WATER HARDNESS III".

- Press the icon (B4) to confirm.

The coffee machine is now programmed to provide the descale warning when actually necessary.

Contrast

To increase or reduce the contrast of the display, proceed as follows:

- Press the icon (B7) to enter the menu and then the and icons (B5 and B6) until "CONTRAST" is displayed.

- Press the icon (B4).

- Press the and cons (B5 and B6) until the required level of contrast is displayed: (I = low; IIIII = high)

- Press the icon (B4) to confirm.

- Press the ⚙️ icon (B7) once to exit the function or twice to exit the menu.

Statistics

This displays statistics relating to the machine.

To display, proceed as follows:

1. Press the icon (B7) to enter the settings menu.

2. Press the 📋 and Icons (B5 and B6) until "STATISTICS" is displayed;

3. Press the √ icon (B4);

4. By pressing the 🎨 and 🔊ons (B5 and B6), you can check:

- how many coffees have been made;

• how many milk drinks have been made;
• how many times the machine has been descaled.

• the total number of litres of water delivered.

• Press the 🎨 icon (B7) twice to exit the menu.

Default values (reset)

This resets all menu settings and programmed quantities back to the default values (with the exception of the language which remains as set).

To reset the default values, proceed as follows:

1. Press the icon (B7) to enter the menu;

2. Press the 📋 and 🐘 cons (B5 and B6) until "DEFAULT VALUES" is displayed;

3. Press the icon (B4);

4. "CONFIRM?" is displayed;

5. Press the √ icon (B4) to confirm and exit.

Descaling

Descale the machine when the message "DESCALE" flashes on the display.

Important!

Descaler contains acids which may irritate the skin and eyes.

It is vital to respect the manufacturer's safety warnings given on the descaler pack and the warnings relating to the procedure to follow in the event of contact with the skin and eyes.

Please note:

Use the descaler recommended by the manufacturer only.

Under no circumstances should you use sulphamic or acetic based descalers. Their use invalidates the guarantee.

Failure to descale the appliance as described above also invalidates the guarantee.

1. Turn the machine on.

2. Enter the settings menu by pressing the icon (B7). Press the and Icons (B5 and B6) until "DES-CALE" is displayed;

3. Press the icon (B4) and "CONFIRM?" is displayed.

4. Before confirming, empty the water tank completely (A12).

Pour the descaler diluted with water (respecting the proportions indicated on the descaler pack) into the water tank and put the water tank back in the appliance.

Danger of burns!

Hot water containing acid flows out of the hot water spout and coffee spout.

Avoid contact with splashes of water.

1. Place an empty container with a minimum capacity of 1.5 litres under the hot water spout and coffee spout.
2. Confirm with the √ icon (B4). The message "ADD DESCALER Press √" is displayed.
3. After confirming by pressing icon, the message "DESCALING IN PROGRESS" is displayed.

The descale programme starts and the descaler liquid is delivered first from the coffee spout and then from the hot water spout.

The descale programme automatically performs a series of rinses and pauses to remove limescale deposits from inside the machine.

After about 30 minutes, the message "RINSING FILL TANK" is displayed.

1. The appliance is now ready for rinsing through with clean water. Remove the water tank, empty, rinse under running water, fill with clean water and replace. "RINSING PRESS is displayed.
2. Empty the container used to collect the descaler solution and replace it under the coffee spout.
3. Press the √ icon (B4) to start rinsing.

Hot water flows out of the coffee spout and the message "RINSING PLEASE WAIT" is displayed.

Once the rinsing is finished, the message "RINSING FILL TANK" is displayed. Fill the water tank and press the icon (B4). Place the container under the hot water spout.

1. When the water tank is completely empty, the message "RINSING COMPLETE PRESS √" is displayed.
2. Press the icon (B4). The appliance goes off automatically.

Please note: If descaling is interrupted before comple-

tion, the process must be begun again from the beginning.

TURNING THE APPLIANCE OFF

Each time the appliance is turned off, it performs an automatic rinse cycle which cannot be interrupted.

Danger of burns! During rinsing, a little hot water

flows from the coffee spouts.

Avoid contact with splashes of water.

To turn the appliance off, press the ON/stand-by button (A7).

The appliance performs a rinse cycle then goes off.

Please note: If the appliance is not used for an extend-

ed period, place the main switch on the back of the appliance (A23) in the 0 position.

TECHNICAL DATA

Voltage: 220-240 V\~50/60 Hz max. 10A

Absorbed power: 1350W

Pressure: 15 bars

Water tank capacity: 1.8 litres

Size: LxHxD: 594x454x412 mm

594x378x412 mm

544x375x412 mm

Weight: 26 kg

The appliance complies with the following EC direc-

• Low Voltage Directive 2006/95/EC and subsequent amendments;
  • EMC Directive 2004/108/EC and subsequent amendments;
  • EC Regulation 1275/2008 for standby

Materials and accessories coming into contact with food conform to European regulation (EC) no. 1935/2004.

DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION
FILL TANK	The water tank is empty or positioned incorrectly.	Fill the tank with water and/or insert it correctly, pushing it as far as it will go.
GROUND TOO FINELY ADJUST MILL(alternating with)PRESS √	The grinding is too fine and the coffee is delivered too slowly.	Turn the grinding adjustment dial one click clockwise towards “7”.
GROUND TOO FINELY ADJUST MILL(alternating with)PRESS √(then)FILL TANK	The tank has been removed during delivery.There is air in the hydraulic circuit.	Insert the tank and press the √ icon (B4).“HOT WATER PRESS √” is displayed.Press the √ icon again.The appliance is once again ready for use.
EMPTY GROUNDS CONTAINER The grounds container (A4) is too full or more than three days have passed since you last made coffee (this guarantees correct hygiene of the machine).		Empty the grounds container and clean, then replace.Important: when removing the drip tray, the grounds container MUST be emptied, even if it contains few grounds.If this is not done, when you make the next coffees, the grounds container may fill up more than expected and clog the machine.
INSERT GROUNDS CONTAINER After cleaning, the grounds container has not been replaced.		Open the service door and insert the grounds container.
ADD PRE-GROUND COFFEE The “pre-ground coffee” function has been selected without placing any pre-ground coffee in the funnel.The funnel (A21) is blocked.		Extract the appliance and place pre-ground coffee in the funnel.Empty the funnel with the help of a knife as described in the section “Cleaning the pre-ground coffee funnel”.
DESCALE(alternating with)COFFEE STANDARD	The machine must be descaled. The descaling procedure described in the “Descaling” section needs to be performed as soon as possible.
LESS COFFEE	Too much coffee has been used.	Select a milder taste or reduce the quantity of pre-ground coffee, then make the coffee again.
FILL BEANS CONTAINER The coffee beans have run out. Fill the beans container
INSERT INFUSER ASSEMBLY	The infuser has not been replaced after cleaning.	Insert the infuser as described in the section “Cleaning the infuser”.
CLOSE DOOR	The service door is open	Close the service door.
GENERAL ALARM	The inside of the appliance is very dirty.	Clean the inside of the appliance thoroughly, as described in the section “Cleaning and maintenance”.If the message is still displayed after cleaning, contact a service centre.
WATER CIRCUIT IS EMPTYFILL WATER CIRCUITALternating withHOT WATER PRESS √	The water circuit is empty	Connect the hot water nozzle (A10) and press √ icon (B4) to deliver water from it, until it flows out normally.

EN

PROBLEM POSSIBLE	CAUSE SOLUTION
The coffee is not hot. The	cups were not preheated.The infuser has cooled down because 2/3 minutes have elapsed since the last coffee was made.The set temperature is too low.	Warm the cups by rinsing them with hot water.Before making coffee, preheat the infuser by selecting the RINSING function in the menu.Change the set temperature (see section “Changing coffee temperature”).
The coffee is not creamy enough.	The coffee is ground too coarsely.Wrong type of coffee	Turn the grinding adjustment dial one click anticlockwise towards “1” while the coffee mill is in operation (fig. 14).Use a type of coffee for espresso coffee machines.
The coffee is delivered too slowly or a drop at a time.	The coffee is ground too finely. Turn the	grinding adjustment dial one click clockwise towards “7” while the coffee mill is in operation (fig. 14).Continue one click at a time until coffee delivery is satisfactory.The effect is only visible after delivering 2 coffees.
The coffee is delivered too quickly.	The coffee is ground too coarsely. Turn the	the grinding adjustment dial one click anticlockwise towards “1” while the coffee mill is in operation (fig. 14).Avoid turning the grinding adjustment dial excessively otherwise when you select two cups, the coffee may be delivered a drop at a time.The effect is only visible after delivering 2 coffees.
Coffee does not come out of one of the spouts	The spouts are blocked. Clean the spouts	with a toothpick (fig. 27).
The coffee does not come out of the spouts, but from around the service door (A2).	The holes in the spouts are clogged with dry coffee dust.The coffee guide (A3) inside the service door is blocked.	If necessary, remove coffee deposits with a toothpick, sponge or stiff bristled kitchen brush (fig. 27-29).Thoroughly clean the coffee guide (A3), particularly near the hinges.
Water comes out of the spouts instead of coffee.	The pre-ground coffee may be blocked in the funnel (A21).	Clean the funnel (A21) with a wooden or plastic fork, clean the inside of the machine.

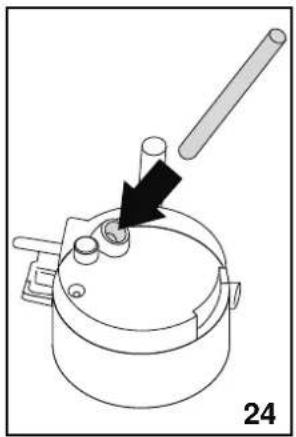

The milk does not come out of the milk spout (C5).	The intake tube is not inserted or is inserted incorrectly.	Insert the intake tube (C4) in the rubber washer in the milk container lid (fig. 24).
The milk is not well frothed.	The milk container lid is dirty.The froth regulator is not positioned correctly.	Clean the milk container lid as described in the section “Cleaning the milk container”.Adjust following the instructions in the section “Making cappuccino”.
PROBLEM POSSIBLE CAUSE SOLUTION
The milk contains bubbles or squirts out of the milk spout.	The milk is not cold enough or is not semi-skimmed.The froth regulator is incorrectly adjusted.The milk container lid is dirty.	You should ideally use skimmed or semi-skimmed milk at refrigerator temperature (about 5°C).If the result is not as you wished, try changing brand of milk.Move the froth regulator slightly towards the word “CAFFE LATTE” (see section “Making cappuccino”).Clean the milk container lid as described in the section “Cleaning the milk container”.

EN

SERVICE & SUPPORT

Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.

Please register your V-ZUG appliance online immediately at www.vzug.com →Service →Warranty registration. This will allow you to take advantage of the best possible support in the event of an fault in the appliance during the warranty period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on the identification plate for your appliance.

My appliance information:

FN: ____

Appliance: ____

Always have this appliance information to hand when you contact V-ZUG. Thank you.

Your repair order

At www.vzug.com →Service→Service number you will find the telephone number of your nearest V-ZUG service centre.

Technical questions, accessories, warranty extensions

V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.

x 1 approx. 350 mm

Illustration of hands operating a portable device with a magnified inset showing food being added (no text or symbols)

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

x 1 approx. 350 mm

Illustration of hands operating a portable device with a magnified inset showing liquid being poured into a pot (no text or symbols)

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Orifice Orifice

MENU PARAMÈTRES

Dimensions: L × H × P: 594 × 454 × 412 mm

$$ 5 9 4 \times 3 7 8 \times 4 1 2 \mathrm{mm} $$

$$ 5 4 4 \times 3 7 5 \times 4 1 2 \mathrm{mm} $$

Poids: 26 kg

Technical diagram showing various architectural or mechanical components with dimension annotations in millimeters.

H 454 MM

20 mm 454 mm 594 mm 412 mm 45 mm 45 mm 450 + 2 mm 500 mm 545 mm Min. 560 + 8 mm 850 mm Min 45 mm 200 cm²

H 378 MM

20 mm 378 mm 594 mm 412 mm 560 + 8 mm 200 cm² 45 mm 45 mm 45 mm 374 + 1/2 mm 500 mm 545 mm Min. 850 mm Min 45 mm

H 375 MM

20 mm 375 mm 544 mm 412 mm

45 mm 45 mm 381 + 2 mm 500 mm 545 mm Min. 45 mm 550 + 8 mm 850 mm Min 200 cm²

x 16 x 2

x 1 approx. 350 mm

Illustration of hands operating a portable device with a magnified inset showing liquid being poured into a pot (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Variations depending on the model are noted in the text.

INHOUDSOPGAVE

INLEIDING 7

INBOUW-INSTALLATIE ....10

HET APPARAAT VOOR DE EERSTE MAAL GEBRUIKEN ......13

x 1 approx. 350 mm

Illustration of hands operating a portable device with a magnified inset showing food being added (no text or symbols)

Circular dial indicator with three curved arrows indicating clockwise rotation (no text or symbols)

• waterreservoir (A12),

Technical line drawing of a mechanical device with a directional arrow indicating movement or force (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

x 1 approx. 350 mm

Illustration of hands operating a kitchen appliance with a magnified view showing food being added to a pot (no text or symbols present)

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

x 1 approx. 350 mm

Illustration of a kitchen appliance with a downward arrow indicating a drop, and an inset showing food being added to a large pot (no text or symbols present)

Circular dial indicator with directional arrows, no text or symbols present

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

x 1 approx. 350 mm

Illustration of hands operating a kitchen appliance with a magnified view of a pot and lid (no text or symbols)

Technical line drawing of a mechanical assembly with a directional arrow indicating motion (no text or symbols present)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

x 1 approx. 350 mm

用电缆夹固定电源线。

Illustration of hands operating a kitchen appliance with a magnified view showing food being added (no text or symbols present)

清洗时，必须总是将滴水盘完全取下。

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Illustration of two hands holding a mechanical device with arrows indicating direction (no text or symbols)

1. 插入之后，确认两个黄色解锁按钮已卡住。

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

孔道

菜单设置

Black and white barcode image with vertical lines on both sides

J25002010-R04
