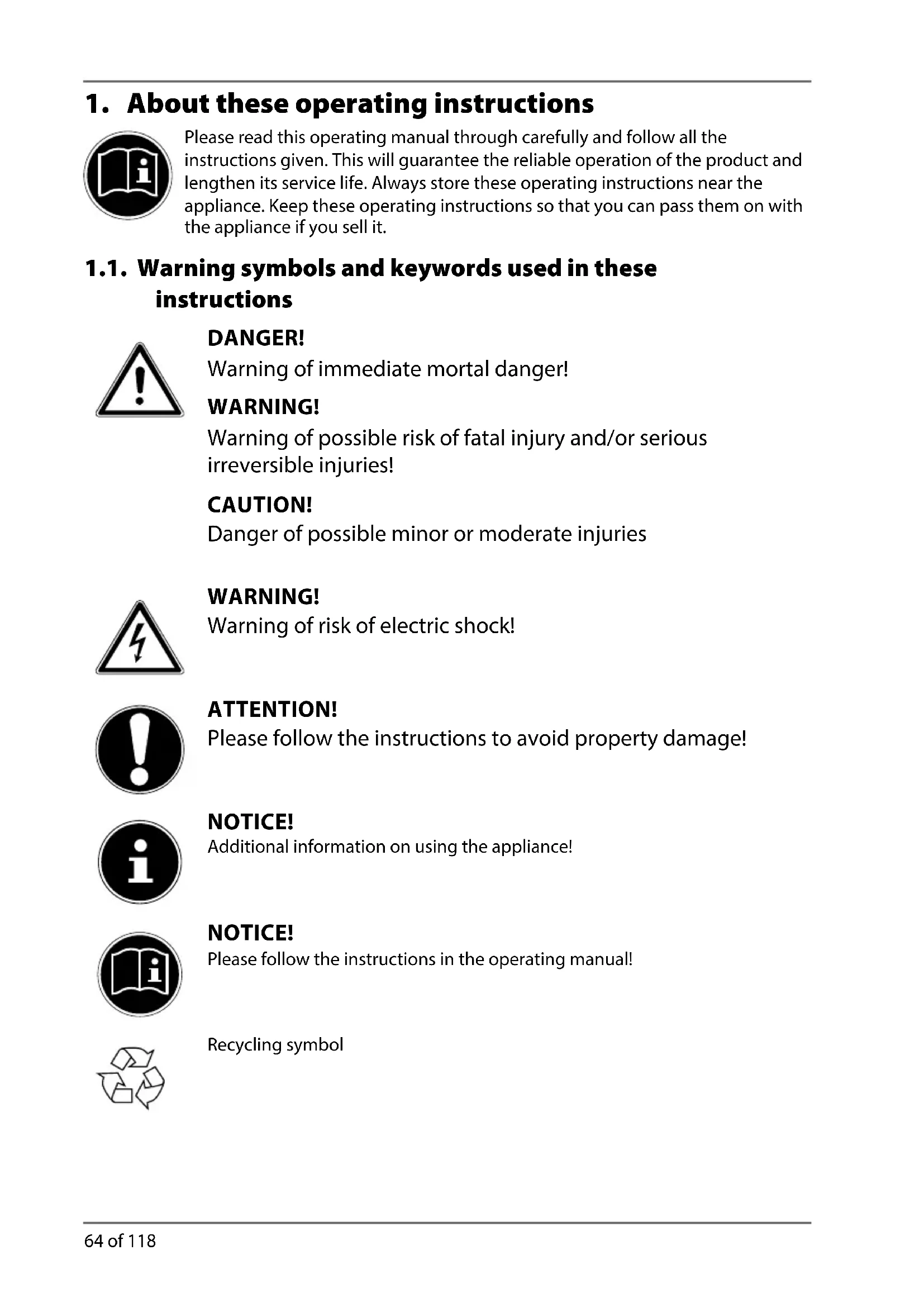

1. About these operating instructions

Please read this operating manual through carefully and follow all the instructions given. This will guarantee the reliable operation of the product and lengthen its service life. Always store these operating instructions near the appliance. Keep these operating instructions so that you can pass them on with the appliance if you sell it. 1.1. Warning symbols and keywords used in these instructions DANGER! Warning of immediate mortal danger! WARNING! Warning of possible risk of fatal injury and/or serious irreversible injuries! CAUTION! Danger of possible minor or moderate injuries WARNING! Warning of risk of electric shock! ATTENTION! Please follow the instructions to avoid property damage! NOTICE! Additional information on using the appliance! NOTICE! Please follow the instructions in the operating manual! Recycling symbolDE

65 of 118 WEEE symbol (in accordance with the directive on electrical waste) Declaration of conformity (see section entitled “Information on conformity”): Products that feature this symbol meet the requirements of the EC directives.

Bullet point / information on operating steps and results

Tasks to be performed

The machine is designed solely for the purpose of making espresso coffee. This appliance is intended to be used in private households and similar household applications, such as: − in kitchens for employees in shops, offices and other commercial areas; − on agricultural estates; − by customers in hotels, motels and other residential facilities; − in bed & breakfast accommodation. The appliance is not suitable for commercial or industrial use. Please note that we shall not be liable in cases of improper use:

• Do not modify the product without our consent and do not use any additional equipment which we have not approved or supplied.

• Use only spare parts and accessories that we have supplied or approved.

• Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.

• Do not expose the product to extreme conditions. The following should be avoided: − High levels of humidity or moisture − Extremely high or low temperatures − Direct sunlight − Naked flames66 of 118

3. Safety information

WARNING! Risk of injury for children or persons with limited physical, sensory or mental capabilities (for example partially disabled people or older persons with limited physical and mental capabilities) or no knowledge and experience (older children, for example). Keep the appliance and its accessories out of the reach of children. This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it. Do not allow children to play with the machine. Cleaning and user maintenance may not be carried out by children, unless they are aged 8 or over and are supervised. Children younger than 8 should be kept away from the appliance and the power cord. Do not store any of the packaging material used (bags, polystyrene, etc.) within the reach of children. 3.1. Setting up WARNING! Risk of fire/short circuit There is a risk of short circuit or fire if the appliance is set up incorrectly. Place the appliance on a heat-resistant, sturdy, level surface. Avoid the use of extension cables in order to prevent tripping. Never place the appliance on the edge of a table – it could tip over and fall. Do not position the appliance over a hotplate or other heat-generating appliances (grill, deep fat fryer); this applies even if an extraction fan is installed above it. Never set up the appliance near to a sink. Leave a little space between the machine and other appliances or the wall in order to allow the air to circulate freely. Do not cover the machine during operation. Do not use the appliance outdoors.DE

67 of 118 3.2. Mains connection Only connect the appliance to a properly installed 220–240 V ~, 50 Hz safety socket that is located close to the place where you have set up the appliance. The socket must be freely accessible so that you can unplug the machine from the mains quickly if necessary. Ensure that the mains cable has been completely unwound during operation. Always unplug the machine after use, before cleaning, when it is left unattended or if there is a fault. Always remove the mains cable from the socket by the plug – do not pull on the cable itself. Do not kink or crush the mains cable. 3.3. Faults DANGER! Risk of electric shock. There is a risk of electric shock due to live parts. If the plug, mains cable or appliance is damaged, immediately remove the plug from the socket. Never try to open and/or repair an appliance component yourself. There is a risk of electric shock. A damaged mains cable may only be replaced by an authorised repair workshop or customer services to avoid any risks. In the event of a fault, contact our Service Centre or another suitable professional repair workshop. 3.4. Handling the appliance safely WARNING! Risk of fire/short circuit. There is a risk of short circuit or fire if the appliance is set up incorrectly. Do not leave the appliance unattended during operation. DANGER! Risk of electric shock. There is a risk of electric shock due to live parts. Do not use the appliance under any circumstances if there is visible damage to the appliance, the mains cable or the plug.68 of 118 Never immerse the appliance in liquids! Never move the machine while it is in operation. CAUTION! Risk of injury. There is a risk of scalding from rising hot steam or hot liquid. Do not reach into or over hot steam. Never point the steam nozzle towards yourself or other persons. Always use the handle to move the steam nozzle. The steam nozzle gets hot during operation. Do not touch the steam nozzle. Do not remove the portafilter during operation. Check that the portafilter has been fitted correctly before operation. CAUTION! Risk of damage. Damage to the appliance caused by improper handling. Only pour cold water into the water tank. Do not add any other liquids except water to the water tank (except when descaling: see below). Do not leave any unused water in the water tank. Immediately remove any remaining water in order to avoid the formation of limescale or algae. 3.5. Cleaning the appliance Allow the coffee machine to cool down completely. DANGER! Risk of electric shock. There is a risk of electric shock due to live parts. The plug must be disconnected from the mains socket before cleaning (pull on the plug, not on the cable). Never immerse the coffee machine in water or other liquids! CAUTION! Risk of damage. Damage to the appliance caused by improper handling. Clean the appliance using only a damp cloth and a mild soap solution that cannot damage the surface of theappliance. Follow the special instructions inside the appliance for descaling.DE

69 of 118 Do not put the machine in the dishwasher or hold it under running water. CAUTION! Risk of injury. The steam nozzle gets hot during operation. There is a risk of scalding. Allow the machine to cool down before cleaning the steam nozzle and milk pitcher.

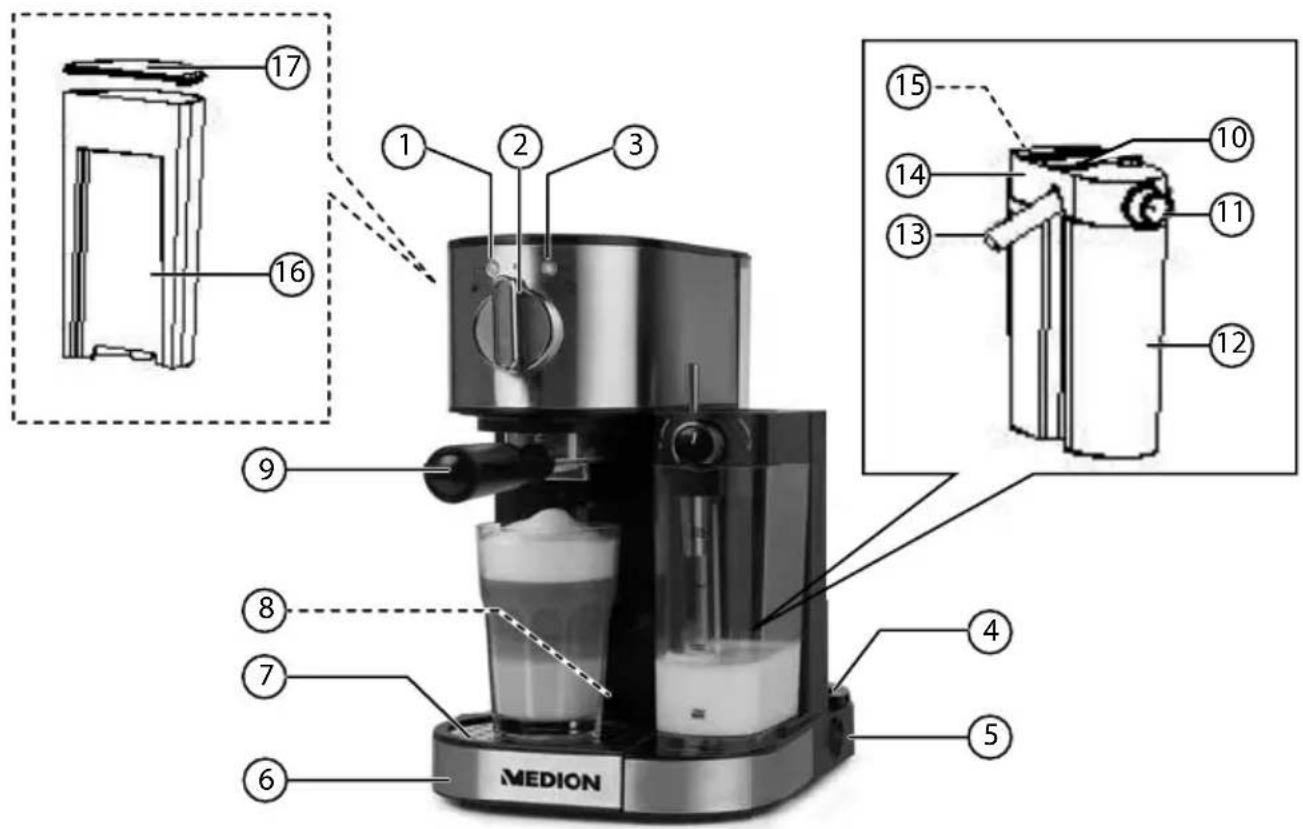

WARNING! Risk of suffocation. There is a risk of suffocation if plastic packaging or small parts are inhaled or swallowed. Keep plastic packaging out of the reach of children. When unpacking, ensure that the following parts are included:

3) Steam operation indicator

6) Removable drip tray

8) Pull-out shelf (for small cups)

10) Adjusting lever for steam nozzle

6. Preparing the appliance

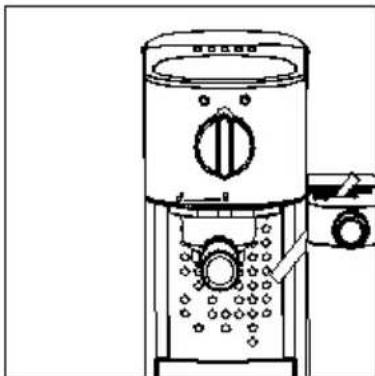

Remove all the packaging. Wash the water container, milk pitcher, milk pitcher lid, steam nozzle, wand and portafilter thoroughly with water and mild detergent (cf. also “If using a large cup, place it directly on the drip tray grating under the coffee spout on the portafilter. If using a small cup, pull out the shelf and place the cup on it. Do not pull the shelf out completely in order to maintain a firm surface.” on page 72). Rinse the parts well with clean water and dry them carefully. Place the appliance on a heat-resistant, sturdy, level surface. Run a machine cycle without coffee and milk in order to remove manufacturing residues. Fill both containers with water and follow the instructions below, then throw the water away.

7. Using the espresso machine

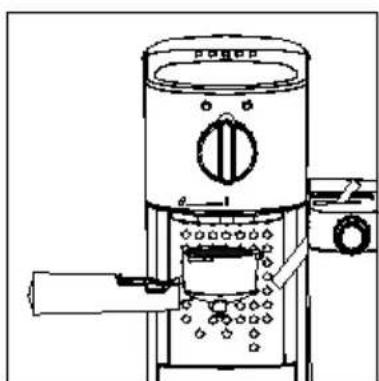

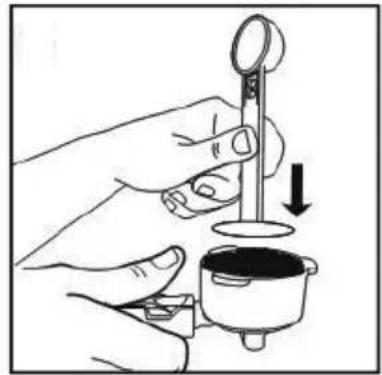

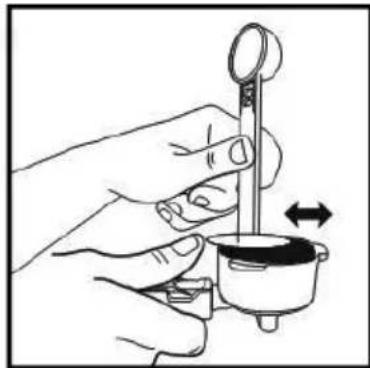

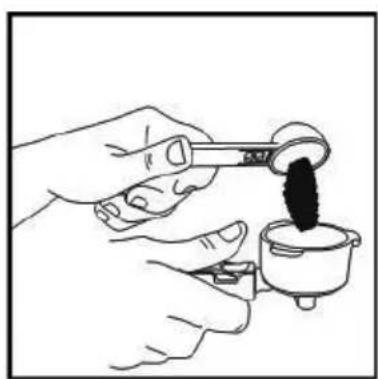

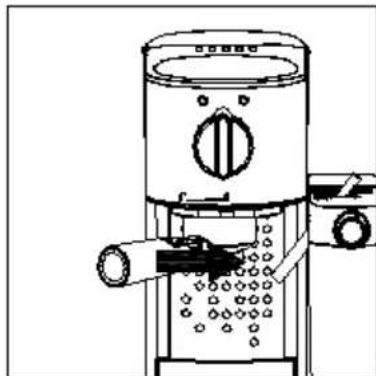

Fill the water container with fresh tap water to a level between the MIN and MAX marks. Fill the milk pitcher with milk (unskimmed, semi-skimmed, soya milk, etc. according to preference) to a level between the MIN and MAX marks. Place the required filter insert in the portafilter with the spout pointing forwards. Turn the filter insert to the right or left in order to clamp the filter insert in the portafilter. Alternatively, you can raise the filter holder and grip the filter with it, e.g. when removing the coffee grounds. Fill the filter with freshly ground espresso coffee up to the MAX mark. Press the coffee powder down into the filter, using the flat end of the measuring spoon to help (see diagrams below).72 of 118 NOTE! Alternatively you can put the pod holder in the portafilter with a coffee pod instead of the filter. Insert the portafilter in the machine with the handle pointing to the left. Turn the handle to the right until it is pointing forwards in order to fix it in position. If using a large cup, place it directly on the drip tray grating under the coffee spout on the portafilter. If using a small cup, pull out the shelf and place the cup on it. Do not pull the shelf out completely in order to maintain a firm surface. CAUTION! Risk of injury. There is a risk of scalding from hot steam. When making caffè latte or cappuccino, make sure that the steam nozzle reaches into the cup. Connect the mains cable to a properly installed and earthed safety socket. Switch the machine on (switch position I). Initially the espresso operation indicator light will flash red and the machine will start heating up. The machine is ready for operation as soon as the espresso operation indicator light stops flashing and turns blue.DE

73 of 118 NOTE! If no buttons are pressed for 15 minutes, the machine will automatically switch to standby mode and will stop heating up. 7.1. Making espresso Turn the function switch to the left in order to start the espresso preparation process. After a few seconds the espresso coffee will start pouring out of the spout. As soon as the cup is full, turn the function switch back to the centre position (OFF) to stop the flow. NOTE! By turning the function switch to the centre position (OFF), you will switch off the two functions for making espresso and producing steam. Press the On/Off switch (position 0) if you want to turn off the appliance completely. 7.2. Making cappuccino/caff è latte In order to make a cappuccino, you need 1/3 espresso, 1/3 foamed milk and 1/3 steamed milk. The proportions for a caffè latte are 1/4 espresso with 3/4 steamed milk. Start by frothing the milk and then make the espresso. Place a large enough container under the steam nozzle. Turn the frother control to the right to the position in order to produce a large amount of froth. Turn the frother control to the left to the position in order to produce milk with a small amount of froth. Turn the function switch to the right in order to start the cappuccino or caffè latte preparation process. After a few seconds froth/milk will start flowing out of the steam nozzle. NOTE! Turn the frother control to the right to increase the amount of foam and to the left to decrease the amount. This setting can be changed during the preparation process. As soon as there is enough froth/milk in the receptacle, turn the function switch back to the centre position to stop the process. Now turn the function switch to the left in order to start the espresso preparation process. After a few seconds the espresso coffee will start pouring out of the spout into the frothed milk. As soon as the cup is full, turn the function switch back to the centre position (OFF) to stop the flow. 7.3. Frothing the milk If you just want to froth milk, e.g. for other drinks like latte macchiato or chai latte, follow the instructions above. In this case omit the espresso preparation step.74 of 118

8. After the preparation process

Take hold of the portafilter by the handle and turn it to the left to remove it from the machine. Lift up the filter holder and tap on the filter to remove the coffee grounds. To make another coffee, fill the filter again and proceed as instructed above. If you do not want to make any further drinks, switch the machine off (switch position 0) and unplug from the mains. If there is any milk left in the pitcher, remove the milk pitcher by pulling it forwards at a slight angle. Store the milk pitcher in the door of your refrigerator. The filter insert and portafilter can be stored on the back of the machine.

9. Cleaning the appliance

WARNING! Risk of electric shock. There is a risk of electric shock due to live parts. Never immerse the appliance in liquids! The plug must be disconnected from the mains socket before cleaning (pull on the plug, not on the cable). CAUTION! Risk of injury! There is a risk of scalding due to the hot surfaces. The outside of the machine will become hot during operation. Allow the machine to cool down completely before cleaning it. CAUTION! Risk of damage to the appliance. Property damage due to improper use. Do not use chemical solutions and cleaning products because these may damage the surface and/or the inscriptions on the product. Do not wash the machine parts in the dishwasher. Wash the water container, milk pitcher, milk pitcher lid, steam nozzle, wand, pull-out shelf, drip tray grate, drip tray and portafilter thoroughly with water and mild detergent. Rinse the parts well with clean water and dry them carefully. Wipe the surfaces of the machine with a soft and slightly damp cloth which has been soaked in a mild soap solution. Wipe the bottom of the brew head with a damp cloth or paper towel to remove any remaining coffee grounds.DE

75 of 118 9.1. Descaling/fl ushing the machine The frequency of the descaling process depends on the hardness of the water. The machine should be descaled after about 40 brewing operations in a hard water area and after about 80 brewing operations if the water is soft. Make sure that the product is switched off and unplugged. Descaling the espresso unit

1) Fill the water container with white household vinegar. Place it in the machine.

2) Leave the vinegar in overnight.

3) Pour out the vinegar and rinse out the water container thoroughly twice, filling the

container halfway up with fresh tap water each time and throwing the water away.

4) Fill the water container with white household vinegar up to the MIN mark.

5) Insert the portafilter (with filter but without coffee) and place a sufficiently large

receptacle underneath the coffee spout.

6) Insert the plug into the mains socket.

7) Switch the machine on (switch position I).

8) Once the machine has heated up, turn the function switch to the left in order to start

the espresso preparation process. After a few seconds the vinegar will start pouring out of the spout.

9) As soon as all the vinegar has run through, turn the function switch back to the centre

position (OFF) to stop the process. Repeat the steps with tap water as required to remove all remaining traces of vinegar from the machine. Cleaning the frother unit

1) Fill the milk pitcher with water, put the lid on it and place it in the machine. Set the

2) Place a large enough container under the steam nozzle (minimum capacity of 325

3) After the heating-up phase turn the function switch to the right in order to generate

steam. Steam will start to come out of the nozzle after a few seconds and this will clean the nozzle.

4) Continue for about 30 seconds and then turn the function switch back to the centre

position (OFF) to stop the process.

5) Throw the water away.

Repeat the steps with tap water as required until the unit is completely clean. If you do not want to make any drinks, switch the machine off (switch position 0) and unplug from the mains.76 of 118

Problem Cause Solution No espresso. No water in water container. Fill water container with fresh drinking water. Coffee powder too finely ground. Use medium-fine ground coffee. Portafilter too full. Use less coffee powder. Machine not switched on/ plugged in. Plug in and switch on machine. Coffee powder too compressed. Do not press the coffee powder down so hard in the portafilter. Water leaking out from portafilter. Portafilter not inserted properly. Turn the portafilter to lock it in the correct position. Coffee powder on edge of filter. Clean edge of filter. Portafilter too full. Use less coffee powder. Milk not frothy enough/no milk. No steam to froth the milk. Fill water container. Milk too warm. Use cold milk from the refrigerator. Steam nozzle blocked. Flush the machine. Brewing time too short/ coffee pouring out too fast. Ground coffee powder too coarse. Use medium-fine ground coffee. Not enough coffee powder. Use more coffee powder. Espresso too weak. Ground coffee powder too coarse. Use medium-fine ground coffee. Wrong filter. Use the large filter for large cups and the small filter for small cups. Indicator lamps flashing. No water in water container. Fill water container.DE

Packaging The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. Appliance Old appliances should not be disposed of with the normal household rubbish. In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life. This involves separating the materials in the appliance for the purpose of recycling and avoiding any impact on the environment. Take old appliances to a collection point for electrical scrap or a recycling centre. Contact your local waste disposal company or your local authority for more information on this subject.

Power supply 220-240V ~ 50 Hz Output: 1230–1470 W Water container capacity 1.2 l Max. steam pressure 15 bar Milk pitcher capacity 700 ml Dimensions approx. 343 x 211 x 325 mm Length of power cable (excl. plug) approx. 80 cm Subject to technical modifications!
