USER MANUAL Brett Topmark

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be aected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

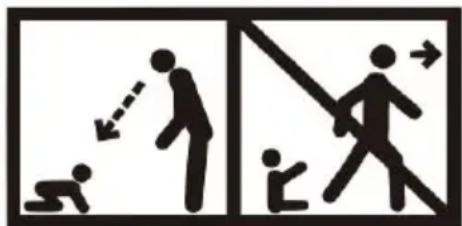

• Never leave your child unaended.
  This seat is not suitable for children under 6 months.
• The use of this stroller is recommended for children from 6 months to 4 years. The maximum weight is up to 15kg .
• Do not overload the basket with more than 2kg .
• Any load aached to the handle and/or on the back of the backrest and/or on the sides of the stroller acts the stability of the stroller. The stroller may become unstable and p over and can injure your child.
• This product is not suitable for running or skang.
• The product must be assembled by an adult.
  Always use the restraint system.
• To avoid serious injury from falling or sliding out always use the 5 point safety harness.

WARNING

Always use the crotch strap in combinaon with the waist belt.

• This stroller is designed for one child only.
• Pay special aenon when manoeuvring the stroller up or down the pavement, it is best to do it backwards.
• Be aware of the risk of open re and other sources for strong heat, such as electric bar res, gas res... in the vicinity of the stroller.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not use this stroller if any parts are broken, torn or missing.
• Ensure stroller is completely erected and check all locks are engaged before placing child in stroller.
• Before making adjustments to stroller ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not use on stairs or escalators, fold stroller and carry.
• Put on all the brakes whenever you park the stroller.
• Always apply the brakes when ever the stroller is staonary.
• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• Do not allow more children, as stroller may become unstable.
• The parking device shall be engaged during the loading and unloading of children.
• Do not allow objects on top of canopy as this stroller may become unstable.
• Keep plasc rain cover away from children to avoid suocaon. Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon. To prevent the risk of suocaon, never leave the stroller with child in it under the sun, with the rain cover ed to it.
• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Do not use accessories which are not approved by the manufacturer.
• Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
• Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• 1 stroller frame with 1 basket and rear wheels
• 2 sets (4 pcs.) front wheels
• Canopy

Note that the fabric paerns, colour pictures and stroller accessories on the stroller in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent suocaoon.

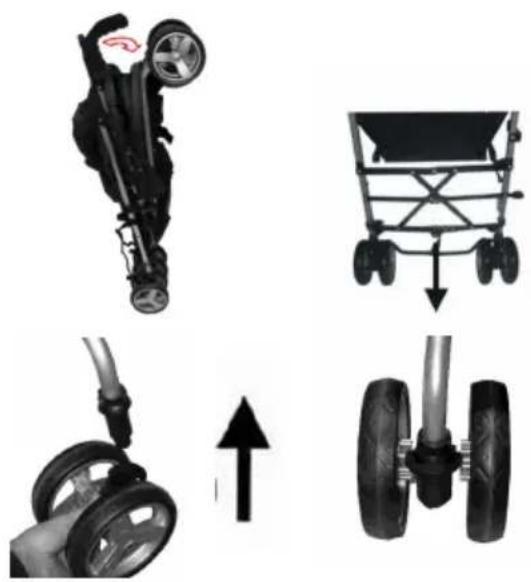

TO OPEN STROLLER

Release folding latch and open the frame, then step down the base lock unl it is fully locked.

FRONT WHEEL ASSEMBLY

Before assembly to the front legs, make sure that the lock mechanism is well aached each of the front wheel before assembly. Hold one front frame leg, push the whole of front wheel set unl covered with front leg tube and the wheels

come to a stop. Repeat on the other side of front wheels.

FITTING CANOPY

Put canopy hoop front into posion and buckle both sides onto handle tube and also buckle the Velcro on both handle tubes behind canopy.

USING

ADJUSTMENTS

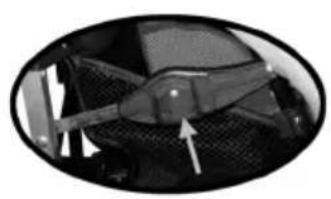

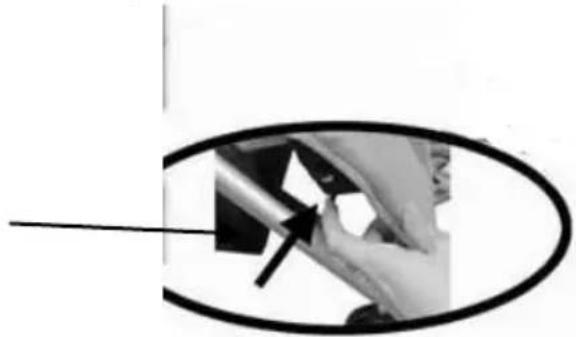

A. Backrest adjustment

Press up the second parts and adjust to desired posion both side simultaneously, total 5 posions.

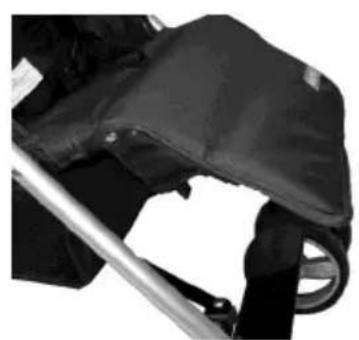

B. Adjustable leg rest

Pull the plasc parts of the adjustable leg rest forwards to change posion of the leg rest. The leg rest can be adjusted to 2 posions.

Make sure the backrest is in upright position, footrest is up and canopy is closed when folding the stroller.

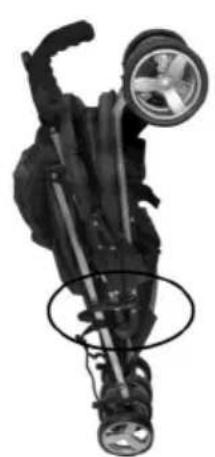

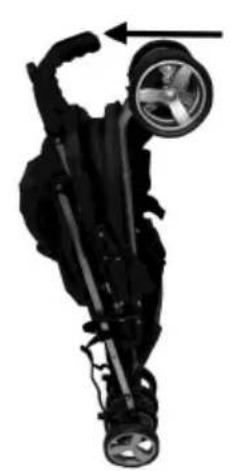

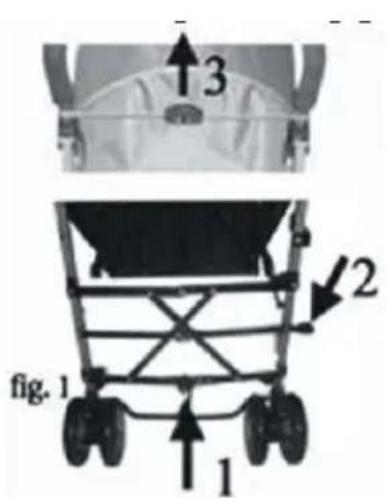

Li up the hook on the back frame (1 of g.1) and step down the second lock (2 of g.1). Then li the upper lever. Squeeze the stroller and lock the folding latch.

USING

FUNCTIONS

A. Brake funcon

To apply brakes, press down link-brake lever on rear wheels and roll stroller back and forth uncl levers lock into place.

Release the link-brake by pushing the brake levers upwards.

EN

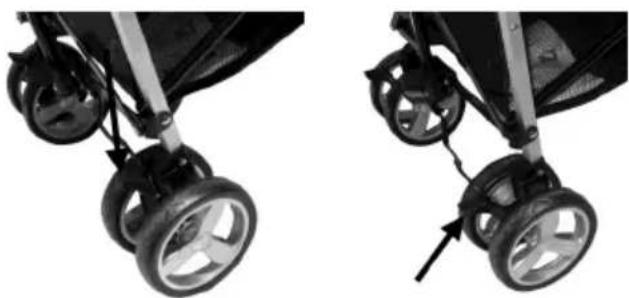

B. Front swivel wheels

To unlock the swivel wheels, lower the lever located between the two wheels. To lock the wheels, push the lever in an upward direcon.

Lock Unlock

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) uncl secure click is heard.

Adjust shoulder, hip and crotch belt in right length to t your child. To release belt just press the buon.

TO OPEN

TO CLOSE

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with salt water, this causes the formaon of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible eect on the value or operaon of the product.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888
