USER MANUAL TTM450 KENWOOD

TTM440 series, TTM450 series TTM460 series, TTM470 series

instructions

istruzioni

instrucciones

Line drawing of a TTM450 toaster with handle and front panel (no text or symbols on device)

TTM440

Line drawing of a TTM470 toaster with cooling fins and ventilation slots (no text or symbols on the device itself)

TTM460

Line drawing of a toaster with grating and side buttons (no text or symbols)

English 2 - 4

Nederlands 5 - 8

Français 9 - 11

Deutsch 12 - 15

Italiano 16 - 19

Português 20 - 23

Español 24 - 26

Dansk 27 - 29

Svenska 30 - 32

Norsk 33 - 35

Suomi 36 - 38

Türkçe 39 - 41

Česky 42 - 44

Magyar 45 - 47

Polski 48 - 51

Русский 52 - 55

Ελληνικά 56 - 59

Slovenčina 60 - 63

Українська 64 - 67

عربي ٧٠-٦٨

HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Linn, Hacaul, Hemashire POG 2NH

kenwoodworld.com

KENWOOD

CREATE MORE

1211645

KENWOOD ① ② ③ ④ ⑤

Technical diagram of a toaster with numbered parts and labeled parts for assembly or maintenance reference.

Line drawing of a toaster with handle and tray (no text or symbols)

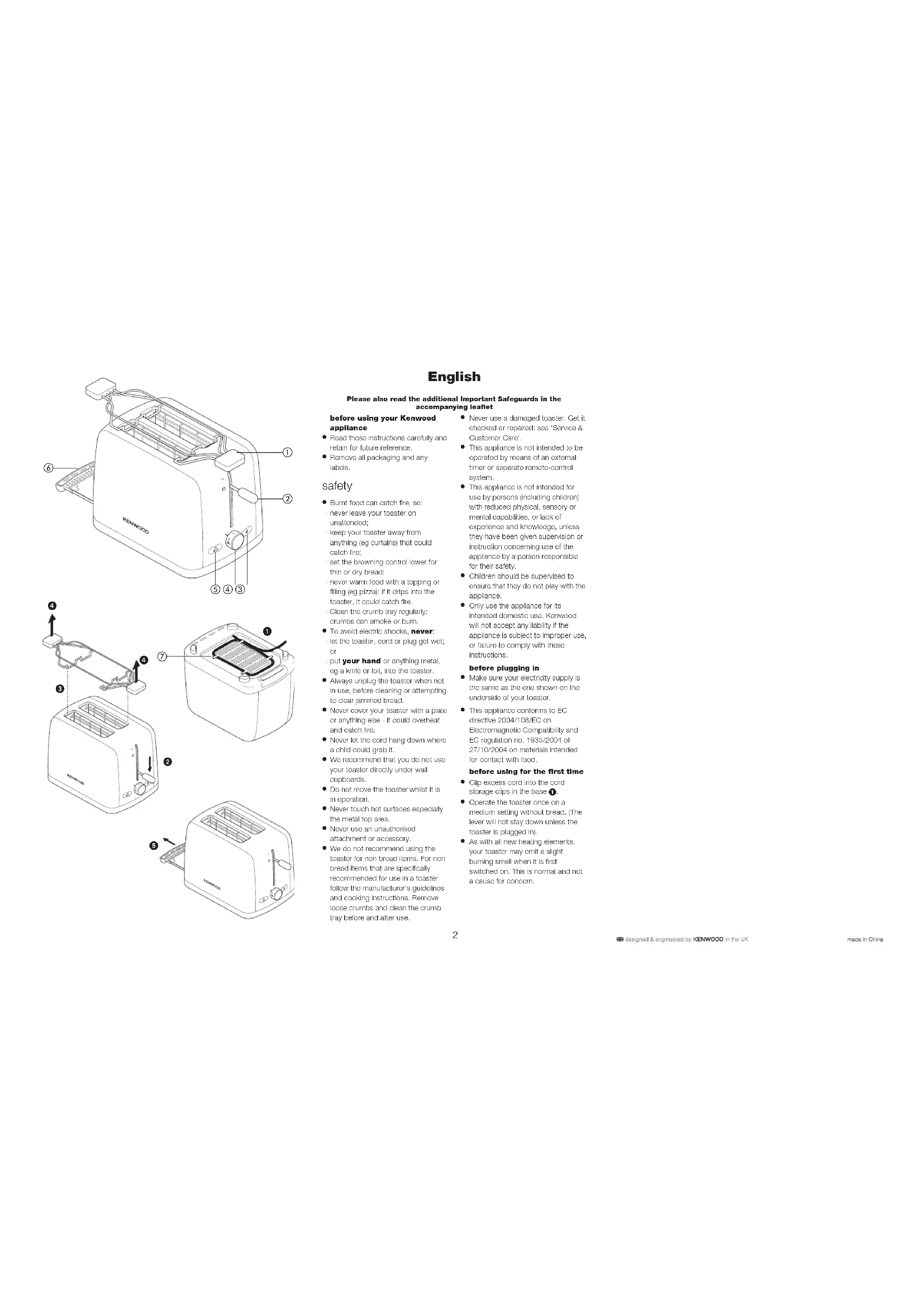

English

Please also read the additional Important Safeguards in the accompanying leaflet

before using your Kenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.

safety

• Bunt food can catch fire, so:
• never leave your toaster on unattended;
• keep your toaster away from anything (eg curtains) that could catch fire;
• set the browning control lower for thin or dry bred;
• never warm food with a topping or filling (eg pizza); if it drips into the toaster, I could catch fire.
• Clean the crumb tray regularly;
• crumbs can smoke or burn.
• To avoid electric shocks, never, let the toaster, cord or plug get wet; or put your hand or anything metal, eg a knife or toll, into the toaster.
• Always unplug the toaster when not in use, before cleaning or attempting to clear jammed bread.
• Never cover your toaster with a plate or anything else - it could overheat and catch fire.
• Never let the cord hang down where a child could grab it.
• We recommend that you do not use your toaster directly under wall cupboards.
• Do not move the toaster whilst it is in operation.
• Never touch hot surfaces especially the metal top area.
• Never use an unauthorised attachment or accessory.

• We do not recommend using the toaster for non bread items. For non bread items that are specifically recommended for use in a loaster follow the manufacturer's guidelines and cooking instructions. Remove loose crumbs and clean the crumb tray before and after use.

• Never use a damaged toaster. Get it checked or repaired: see 'Service & Customer Care'.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your toaster.
• This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

before using for the first time

• Clip excess cord into the cord storage clips in the base ①.
• Operate the toaster once on a medium setting without bread. (The lever will not stay down unless the toaster is plugged in).
• As with all new heating elements, your loaster may omit a slight burning smell when it is first switched on. This is normal and not a cause for concern.

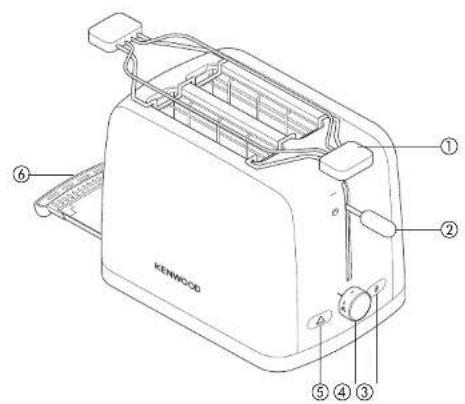

key

① removable warming rack (if supplied)
② lever (with 'Hi-Rise™' for extra lift)
③ defrost button with indicator light
④ browning control
⑤ cancel button with indicator light
⑥ crumb tray
⑦ cord storage

to use your toaster

1 Plug the toaster into the power supply.
2 Turn the browning control until the desired setting aligns with the line up mark on the body of the toaster. Use a lower setting for light toasting and for thin or dry bread.
3 Insert the bread, muffins, bagels etc.
4 Lower the lever ② until it locks. (The3 lever will not stay down unless the toaster is plugged in). The 'cancel' button will illuminate.
- To toast frozen bread, once the bread is lowered press the 'defrost' button. The 'defrost' button will illuminate.
- To stoptoasting during the cycle, press the 'cancel' button, the toast will pop up and the 'cancel' button light will go off.
5 Yourtoastwillpopup automatically, to raise it higher, lift the lever.

hints on using your toaster

• Select a lower setting for light browning or for dry bread.
• When toasting a single slice of bread, you may notice a variation in 5 toast colour from one side to the other - this is normal.
• Dry/stale bread toasts more quickly than fresh bread and thinly sliced bread toasts more quickly than thickly sliced bread. Therefore the browning control should be set at a lower setting than usual.

• For best results ensure that the bread slices are of an even thickness, freshness and size.

• In order to achieve uniform browning we recommend you wait a minimum of 30 seconds between each toasting so that the control can automatically reset. Alternatively select a lower setting when additional toasting is carried out.

• Model TTM460/TTM470 For best results larger slices of bread are best positioned long ways in the slot.

warming rack safety

- Never touch hot surfaces especially the metal top area.

9) Never set the browning control se higher than when using the warming rack.

2 Never completely cover the warming rack.
^23 When using the warming rack, never wrap the food up. Plastic wrapping will melt and could catch fire. Foil will reflect heat, damaging the toaster.
4 If you're using the toaster slots, always remove the warming rack so it can't burn you.

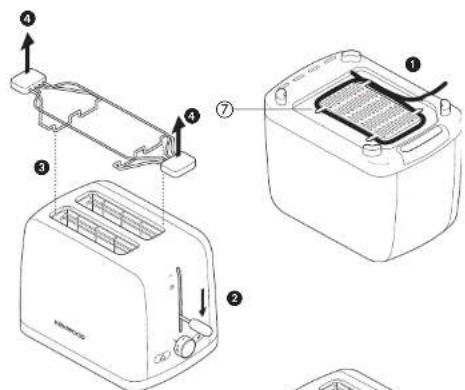

to use the warming rack (if supplied)

1 Place the warming rack on top of toaster ③.
2 Put your food on top of the rack (slicing thick items in half will speed up the warming process).
3 Set the browning control no higher than ... Lower the lever.
4 The lever will automatically rise at the end of the warming cycle. Turn the items over and repeat the operation. Watch to make sure they don't burn.

5 To remove the warming rack, allow the toaster to cool and unplug. Lift off the warming rack ④.

care and cleaning

1 Before cleaning, unplug your toaster and let it cool down.
2 Slide out the crumb tray 5. Clean, then replace. Do this regularly: crumbs can smoke or even burn.
3 Wipe the outside of the toaster and the warming rack with a damp cloth, then dry. Do not use abrasives.

service & customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your appliance or
- servicing or repairs
- Contact the shop where you bought your appliance.

- Designed and engineered by Kenwood in the UK.

- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
