USER MANUAL WT 3000 TECHNOLINE

Instructions manual....5

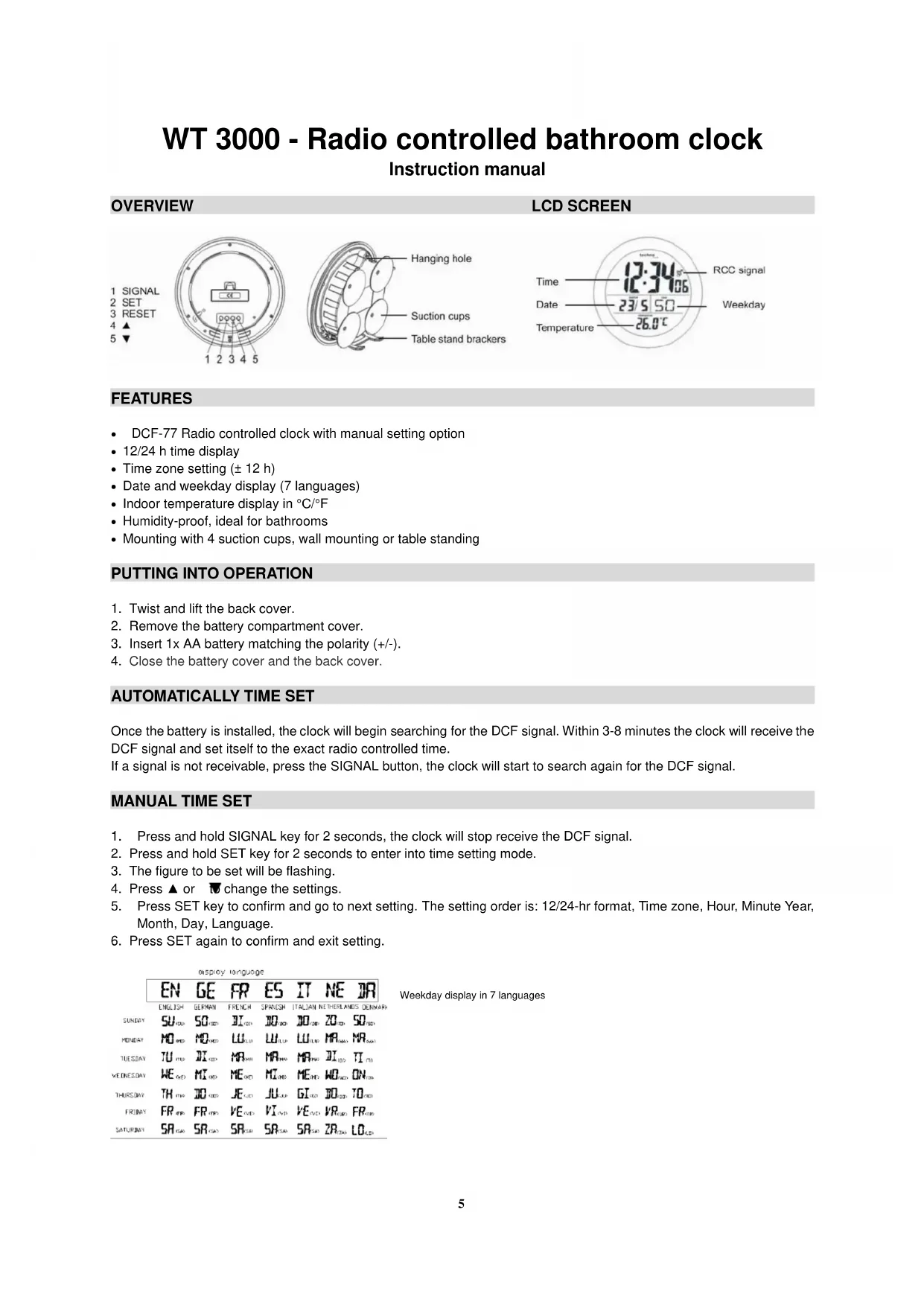

WT 3000 - Radio controlled bathroom clock

Instruction manual

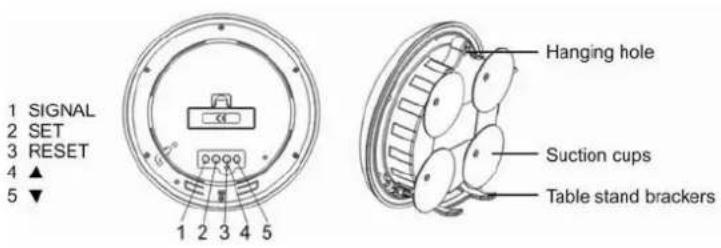

OVERVIEW

1 SIGNAL 2 SET 3 RESET 4 ▲ 5 ▼ 1 2 3 4 5 Hanging hole Suction cups Table stand brackers

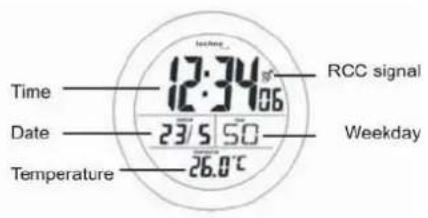

LCD SCREEN

Time Date Temperature 12:34 23/5 50 26.0°C RCC signal Weekday

FEATURES

• DCF-77 Radio controlled clock with manual setting option
• 12/24 h time display
• Time zone setting (± 12 h)
• Date and weekday display (7 languages)
- Indoor temperature display in °C/°F
• Humidity-proof, ideal for bathrooms
- Mounting with 4 suction cups, wall mounting or table standing

1. Twist and lift the back cover.
2. Remove the battery compartment cover.
3. Insert 1x AA battery matching the polarity (+/-).
4. Close the battery cover and the back cover.

AUTOMATICALLY TIME SET

Once the battery is installed, the clock will begin searching for the DCF signal. Within 3-8 minutes the clock will receive the DCF signal and set itself to the exact radio controlled time.

If a signal is not receivable, press the SIGNAL button, the clock will start to search again for the DCF signal.

MANUAL TIME SET

1. Press and hold SIGNAL key for 2 seconds, the clock will stop receive the DCF signal.
2. Press and hold SET key for 2 seconds to enter into time setting mode.
3. The figure to be set will be flashing.
4. Press ▲ or ▼ to change the settings.
5. Press SET key to confirm and go to next setting. The setting order is: 12/24-hr format, Time zone, Hour, Minute Year, Month, Day, Language.
6. Press SET again to confirm and exit setting.

display language

	EN	GE	FR	ES	IT	NE	JA
	ENGLISH	GERMAN	FRENCH	SPANISH	ITALIAN	NETHERLANDS	DENMARK
SUNDAY	SU	SO	II	JO	JO	ZO	SO
MONDAY	MO	MO	LU	LU	LU	MA	MA
TUESDAY	TU	JI	MA	MA	MA	II	TI
WEDNESDAY	WE	MI	ME	MI	ME	WO	ON
THURSDAY	TH	IO	JE	JU	GI	JO	TO
FRIDAY	FR	FR	VE	VI	VE	VR	FR
SATURDAY	SA	SR	SA	SR	SA	ZR	LO

TEMPERATURE DISPLAY

The indoor temperature will display within 3-8 minutes automatically after set up.

Press ▼ key to switch between the temperature display formats °C and °F.

POSITIONED METHOD

The bathroom clock can be positioned in 3 ways as desired:

A. Pull out the table stand brackets from the rear of the clock, place on table or desk as desired.
B. Hang on the wall by hanging hole.
C. Hang on the smooth place with suction cap.

RESET

Press RESET key to return to the default settings.

PRECAUTIONS

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
  • near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the station/ clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Batteries safety warnings

• Please read all instructions carefully before use.
• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to

distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

SPECIFICATIONS

Dimensions: ∅ 172 x 54mm

Power requirements: 1 x AA Mignon LR06 1.5V

Temperature measuring range: -9^ to +50^ (15,8°F to 122^ )

Resolution: 0.1°C/0.1°F

Accuracy: ±1^/1^

Dimensions: ∅ 172 x 54mm

Alimentation: 1 x AA Mignon LR06 1.5V

Résolution: 0.1°C/0.1°F

Précision: ± 1°C/1°F

Wymiary: ∅ 172 x 54mm

Zasilanie: 1 x AA Mignon LR06 1.5V

Zakres pomiaru temperatury: -9°C do +50°C (15,8°F do 122°F)

Rezolucja: 0.1°C/0.1°F

Precyzja: ± 1°C/1°F
