USER MANUAL Ladyshave HP6310 PHILIPS

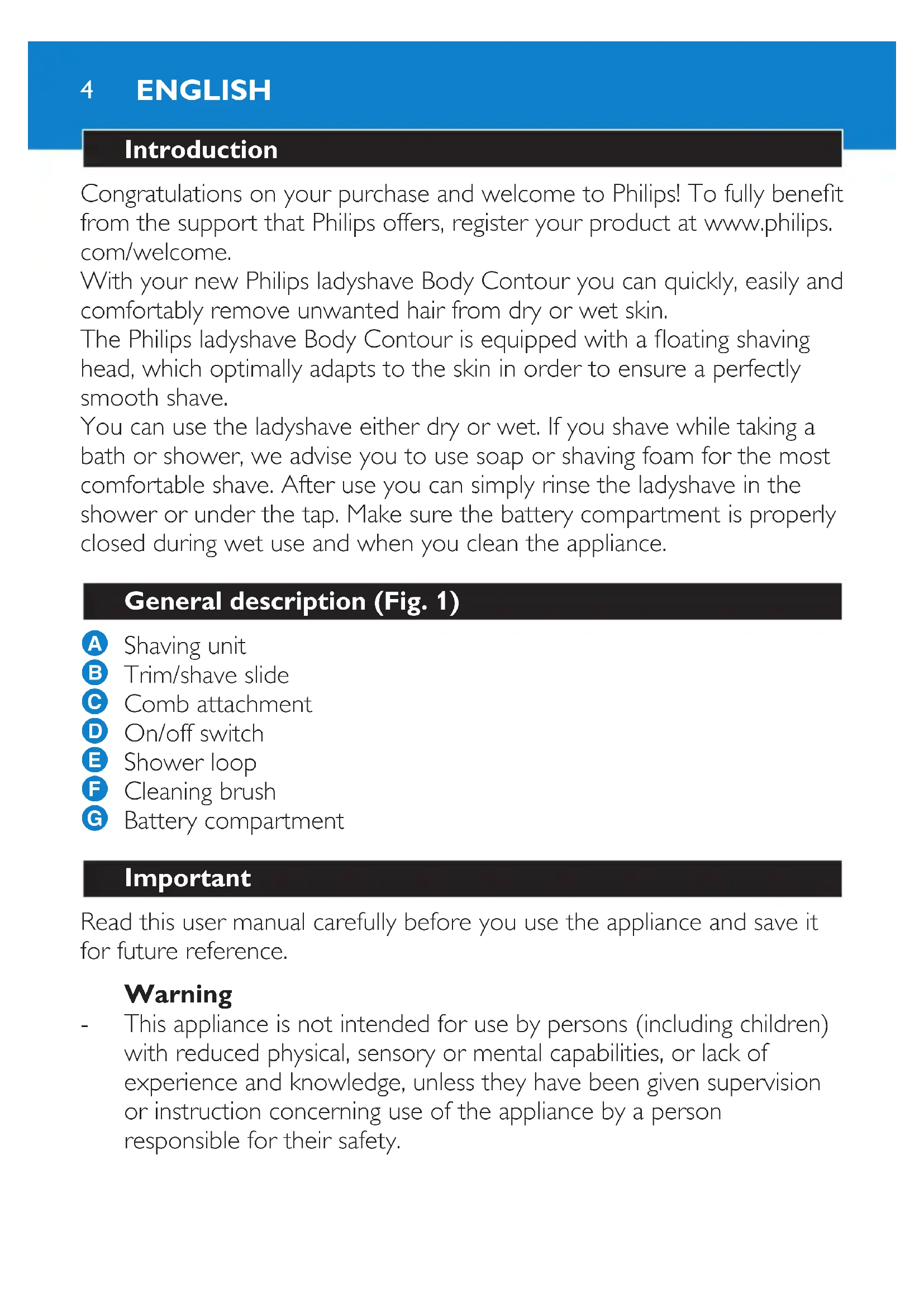

Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips. com/welcome. With your new Philips ladyshave Body Contour you can quickly, easily and comfortably remove unwanted hair from dry or wet skin. The Philips ladyshave Body Contour is equipped with a oating shaving head, which optimally adapts to the skin in order to ensure a perfectly smooth shave. You can use the ladyshave either dry or wet. If you shave while taking a bath or shower, we advise you to use soap or shaving foam for the most comfortable shave. After use you can simply rinse the ladyshave in the shower or under the tap. Make sure the battery compartment is properly closed during wet use and when you clean the appliance. General description (Fig. 1) A Shaving unit B Trim/shave slide C Comb attachment D On/off switch E Shower loop F Cleaning brush G Battery compartment Important Read this user manual carefully before you use the appliance and save it for future reference. Warning This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

ENGLISHChildren should be supervised to ensure that they do not play with the appliance. Caution Do not clean the appliance with water that is hotter than shower temperature. Use and store the appliance at a temperature between 15°C and 35°C. Make sure your hands and the appliance are dry when you insert the batteries. Do not use the shaving foils and/or the comb attachment if they are damaged or broken, as this may cause injury. Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. This appliance is only intended for shaving and trimming human hair. Do not use it for any other purpose. Compliance with standards This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today. This appliance complies with the internationally approved IEC safety regulations and can be safely used in the bath or shower and cleaned under the tap (Fig. 2). General This appliance can only be operated on batteries. Preparing for use Inserting batteries Insert two R6 AA 1.5-volt batteries. We strongly advise you to use Philips LR6 PowerLife batteries. They supply sufcient energy for approx. 40 minutes of shaving. To avoid damage due to battery leakage: do not expose the ladyshave to direct sunlight; do not expose the appliance to temperatures higher than 35°C.

ENGLISH 5Remove the batteries if you are not going to use the appliance for a month or more. do not leave empty batteries in the appliance. 1 Make sure that your hands and the appliance are dry when you insert the batteries. 2 Pull the upper part of the appliance off the lower part (Fig. 3). 3 Insert the two batteries into the battery compartment (Fig. 4). Note: Make sure the + and - marks on the batteries match those in the battery compartment. 4 Reattach the lower part of the appliance to the upper part. The ladyshave is now ready for use. Using the appliance Shaving 1 Set the Trim/Shave slide to the ‘Shave’ position (Fig. 5). 2 Put the desired shaving foil on the shaving head. Use the golden shaving foil to shave the underarms (Fig. 6). Use the golden shaving foil to shave the bikini zone (Fig. 7). Use the silver shaving foil to shave the legs (Fig. 8). Do not use the silver shaving foil to shave the underarms and the bikini line to prevent injuries. 3 Switch on the ladyshave (Fig. 9). 4 Place the shaving unit gently on the skin and move the ladyshave slowly against the direction of hair growth while pressing it lightly. The angle between the skin and the ladyshave should be 70° to get the best results (Fig. 8). Trimming Put the comb attachment onto the shaving head to trim the hairs to an even length (about 5mm), e.g. in the bikini zone (Fig. 10).

ENGLISH6The comb attachment can be put onto the shaving head in different positions, depending on the area to be trimmed. 1 Set the Trim/Shave slide to the ‘Trim’ position (Fig. 11). 2 To trim the bikini zone, place the comb attachment on the shaving head with the recess of the attachment on the front of the appliance (Fig. 12). 3 To trim the underarms, place the comb attachment on the shaving head with the recess of the attachment on the back of the appliance (Fig. 13). 4 Switch on the ladyshave. 5 Move the appliance against the direction of hair growth. Make sure the surface of the comb always stays in contact with the skin (Fig. 14). Shaping 1 Remove the comb attachment to shape precise lines and contours, e.g. in the bikini zone (Fig. 15). 2 Lock the long hair trimmer by setting the Trim/Shave slide to the ‘Trim’ position (Fig. 11). Cleaning and maintenance Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. After every use Clean the ladyshave every time you have used it. 1 Switch off the ladyshave. 2 Remove the shaving foil (Fig. 16). Do not exert any pressure on the shaving foil to avoid damage. 3 Gently shake the shaving foil to remove hairs or clean it with the brush supplied.

ENGLISH 74 Remove the cutter block (Fig. 17). 5 Clean the hair chamber with the brush supplied (Fig. 18). 6 For extra thorough cleaning, you can also rinse the ladyshave under the tap. Make sure the battery compartment is properly closed when you clean the appliance under the tap 7 After cleaning, always put the comb attachment on the appliance to protect the shaving foil (Fig. 10). Twice a year Lubricate the shaving foil with a drop of sewing machine oil twice a year (Fig. 19). Storage When you are not using the ladyshave you can store it in the shower by hanging it upside down from the shower loop. Attach the shower loop to the appliance as shown in the picture (Fig. 20). Replacement If you use the ladyshave two or more times a week, we advise you to replace the shaving foils and cutter block every one to two years. The silver shaving foil may only be replaced with an original Philips shaving foil (type HP6117/01). The golden shaving foil may only be replaced with an original Philips shaving foil (type HP6121). The cutter block may only be replaced with an original Philips cutter block (type HP6111). Environment Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ofcial collection point for

ENGLISH8recycling. By doing this, you help to preserve the environment (Fig. 21). Batteries contain substances that may pollute the environment. Do not throw away empty batteries with the normal household waste, but dispose of them at an ofcial collection point for batteries. Always remove the batteries before you discard and hand in the appliance at an ofcial collection point. Troubleshooting Problem Cause Solution Reduced shaving/ trimming performance. The shaving head is dirty. Remove the shaving foil and clean it with the brush supplied. Clean the cutter block with the brush supplied. Make sure that no hairs are stuck under the timmer. The batteries are running low. Replace the batteries (see chapter ‘Preparing for use’). The shaving head needs to be lubricated. Lubricate the shaving foils with a few drops of sewing machine oil twice a year. The appliance is being used in the wrong way. Make sure you move the appliance against the direction of hair growth.
