Product type	Range hood
Brand	Blaupunkt
Model	5DL69651
Minimum safety distance	650 mm (above the cooking surface)
Extraction diameter	120 mm minimum
Grease filter	Dishwasher safe, replace every 2 months
Odor filter	Not washable, replace every 4 months
Number of speeds	3 (normal) + 1 intensive (6 minutes)
Delayed shut-off function	Yes, 30 minutes
Intensive function	Yes, timed 6 minutes
Lighting	Maximum intensity
Surface cleaning	Damp cloth and neutral detergent
Power supply	Mains (voltage to be checked on rating plate)
Use	Domestic
Installation	Do not connect to combustion smoke ducts
Child safety	Do not let children under 8 years old use without supervision

Frequently Asked Questions - 5DL69651 BLAUPUNKT

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm for electric cooktops. For gas cooktops, check the specific instructions.

How to clean the grease filters?

The grease filters are dishwasher safe. It is recommended to wash them every 2 months, or more frequently with heavy use.

How often should the odor filter be replaced?

The odor filter is not washable and should be replaced every 4 months, or more often with intensive use.

What to do if the hood stops working?

First check the power supply and the circuit breaker. If the cord is damaged, have it replaced by the manufacturer or an authorized service.

Can the hood be installed without external extraction?

Yes, the hood can operate in recirculation mode with a charcoal filter (not supplied). For extraction mode, use a duct of at least 120 mm diameter.

How to use the intensive function?

Press the T4 button for 2 seconds to activate the intensive speed for 6 minutes. After that, the hood returns to the previous speed.

How to activate the delayed shut-off?

Press the T3 button for 2 seconds to activate the 30-minute delayed shut-off. The T1 and T2 or T3 or T4 buttons flash.

What to do in case of oil spill or fire under the hood?

Never leave a high flame under the hood. In case of fire, turn off the hood and use an appropriate extinguisher. Do not pour water on flaming oil.

How to dispose of the hood at end of life?

Do not throw the hood with household waste. Take it to a collection center for recycling of electrical and electronic appliances.

What is the warranty of the Blaupunkt 5DL69651 hood?

The standard warranty is generally 2 years. For more details, see the warranty certificate provided with the appliance or contact customer service.

USER MANUAL 5DL69651 BLAUPUNKT

Recommendations and Suggestions

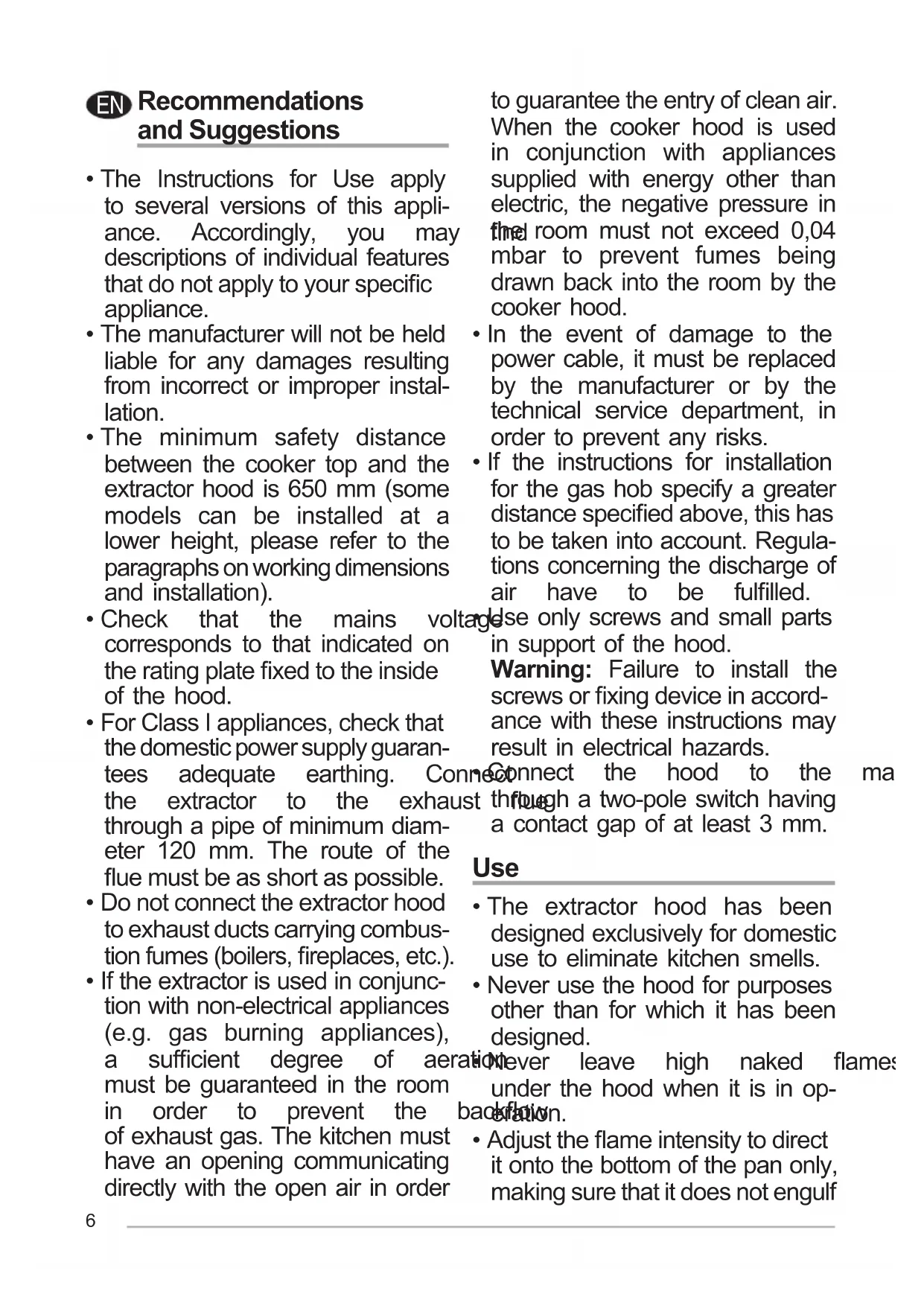

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains vo corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Co the extractor to the exha through a pipe of minimum diameter 120 ~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of a must be guaranteed in the room in order to prevent the of exhaust gas. The kitchen must have an opening communicating directly with the open air in order

to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

se only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

connect the hood to the st through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

ratorvever leave high naked flames under the hood when it is in opbackfation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf

the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into
• Do not flambé under the hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintain shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service

or the shop where you purchased the product.

• Switch off or unplug the appliance flares the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

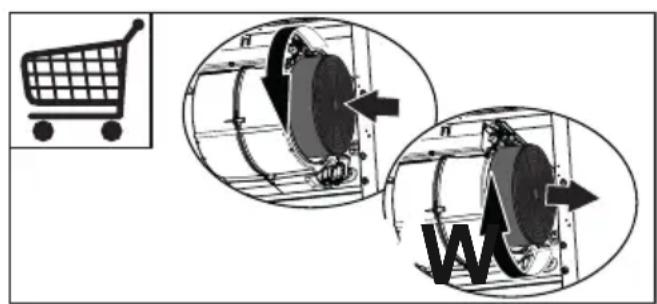

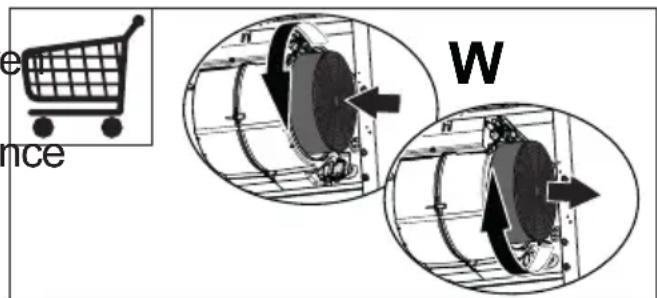

• Activated charcoal filter W these filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

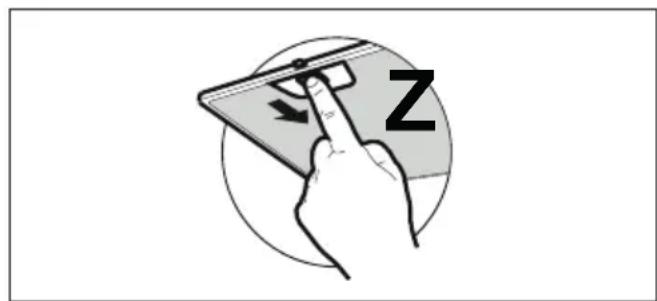

• Grease filters Z The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• Clean the hood using a dam cloth and a neutral liquid detergent.

Controls

1	2	3	※
|	|	|	|
T1LT4T3T2

Button	Function -
T1 Turns the Motor off.		-
T2	Turns the motor on at speed one	Buttons T1+T2 are on.
T3	Turns the Motor on at speed two	Buttons T1+T3 are on.
	Press and hold for 2 seconds to enable shutdown with a 30 minute delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.	The respective buttons T1+ (T2 or T3 or T4) will flas
T4	Turns the Motor on at speed three	Buttons T1+T4 are on.
	Press and hold for 2 seconds to activate Intensive speed, which is timed to run for 6 minutes. At the end of this time it will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes.	The button flashes.
L	Turns the Lighting System on and off at maximum intensity.	Button on

Lighting

For replacement contact technical support. ("To purchase contact technical support")

DE

• HnkaH He octaBbajTe OTbOpeH nIaMeH IcNoD yKbUyeHoR acnnpaTopa.

IIODECnTe INHTeH3nTeT PnAmHe CnppeaBaHy IOTeHcJiaJIHnx TaKo Da 6yde ycMepeH CaMOHeBHBHX IOcJIeDnca Po DHO TnRaHa, a He Da 6bYXBmBOTHy CpeINHy N 3dpaBJIbe n HBeOBe 6OuHe cTpaHe. JbYdn, Do Yera 6n MoIIO

-Фптесе ce TOKOM ynoTpe6e Mopajy HePpeKnIHo Na3npaTN: nperpejaHo yJbe MoKe Da ce 3aapan.

He pfambupajTe HAMnPHnue nCnoJ acnnpaTopa; onaCHOCT Od BaTpe.

Obaj ypehaj mory da KopnCTe Kyni npOn3BOJ.
Deza y3pacta od 8 roDInHa . NckbYuHte ypehaj nIra
HaBnIe n ocObe ca CMaHbeHnBDOjTe oN3BOPa HanaJaBa
Pn3nKIM, YyINHM nII npe 6nlo KaKBor paDa Ha
MeHTaJIHm cNoC06HOCTnMa, OdpXkABaHy.

Kao N Oco6e Koje HEmajy . DOBOJbHO NCKyCTBa N 3HaHba, aKO cy NOd HaI3OpOM IJIY Cy ynyhene y 6e36eAn HauHH ynoTpe6e ypehaja n pa3ymejy moryhe onaChocTN. Manoj Deu He Do3BOJnTe Da ce nrpajy ca ypehajem. YnshneB e N OdpXkABaHBe He Tpe6a da oablbajy Deca 6e3 HAd30pa.

"ONPE3:Пристусян DeJOBIMOry NOCTaTN BpeN KaI CeKOpINcTe 3ajeIDHO ca anapatima 3a KyBaHbe."

OdpkaBaHbe

Cm60n Ha npOn3BOy nHBeOBoj am6aJaxn 03HaayBa Da ce OH He

CMaTpaTn 0bHnM KyHnM OTnaDom. UMeCTo Tora Mopa

pe npedatnHa odroBapajyhem Meay cnyx6n 3a peuNKlaJky eJIeKtpuHnx IeJIeKTPoHcKnx

ypehaja.Obe36eHnBaHbEm npaBnIHOr yKnaHbHaOBOR npOn3BOda dOpnpHeheTe

CnpeuaBbU y nToHnjuJIHnx HEnaIBHIX nOcIeNua nO JHBOTHy CpeINHy I 3dpaBBeJbYdn, Do Yera 6n MoIOn Dohy Cnyajy HberOBor HeoIroBapajyHer yKnaHaBa.

3a DeTaIbHnJe INHΦOpMaζnJe O peUKNJaxN OBOr IPOUN3BODa O6paTInTe ce JOKaJIHOJ ynpaBV, ClyXb 3a ODHOWeHBe cMeHa INIIN PpOJaBHNz N y Kojoj CTe KypNIIN pON3BOD.

IckbyuHTe ypehaj nIIra IaBIOBJTe OJ n3Bopa HapajaHa nppe 6nlo KaKBor paDa Ha OdpkaBaHbY.

OuHCTIte n/IIn 3aMeHnte
ΦHITepeHaKOH OdpeJehor
BpeMeHcKOr nepNoDa (OnaCHoCT
Od BaTpe).

-ObajФнтep He moKe da ce nepe n pereHepnIe BeH Mopa Da Ce MeHa Ha OTnpnInke CbaKnx 4 Mecea paDa, a y CnyaJy BeOMa INHTeH3NBHe ynoTpe6e n yeWhe (W).

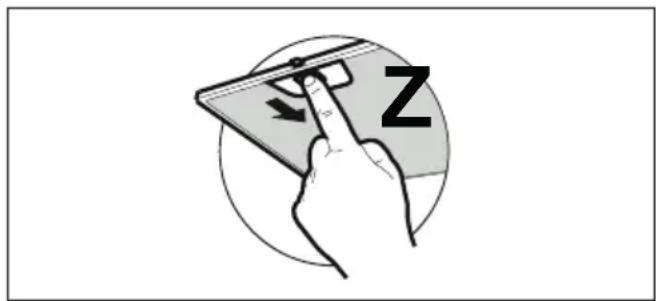

-ФиNTepn 3a mact mopajy da
