USER MANUAL Multigroom MG5720 PHILIPS

Black cylindrical hairbrush with textured grip and white cap (no visible text or symbols)

Illustration of an open book with a grid and arrow indicating rotation (no text or symbols)

English 6

Dansk 21

Deutsch 36

Español 54

Français 70

Italiano 87

Nederlands 105

Norsk 122

Português 137

Suomi 154

Svenska 170

Türkçe 185

Ελληνικα 201

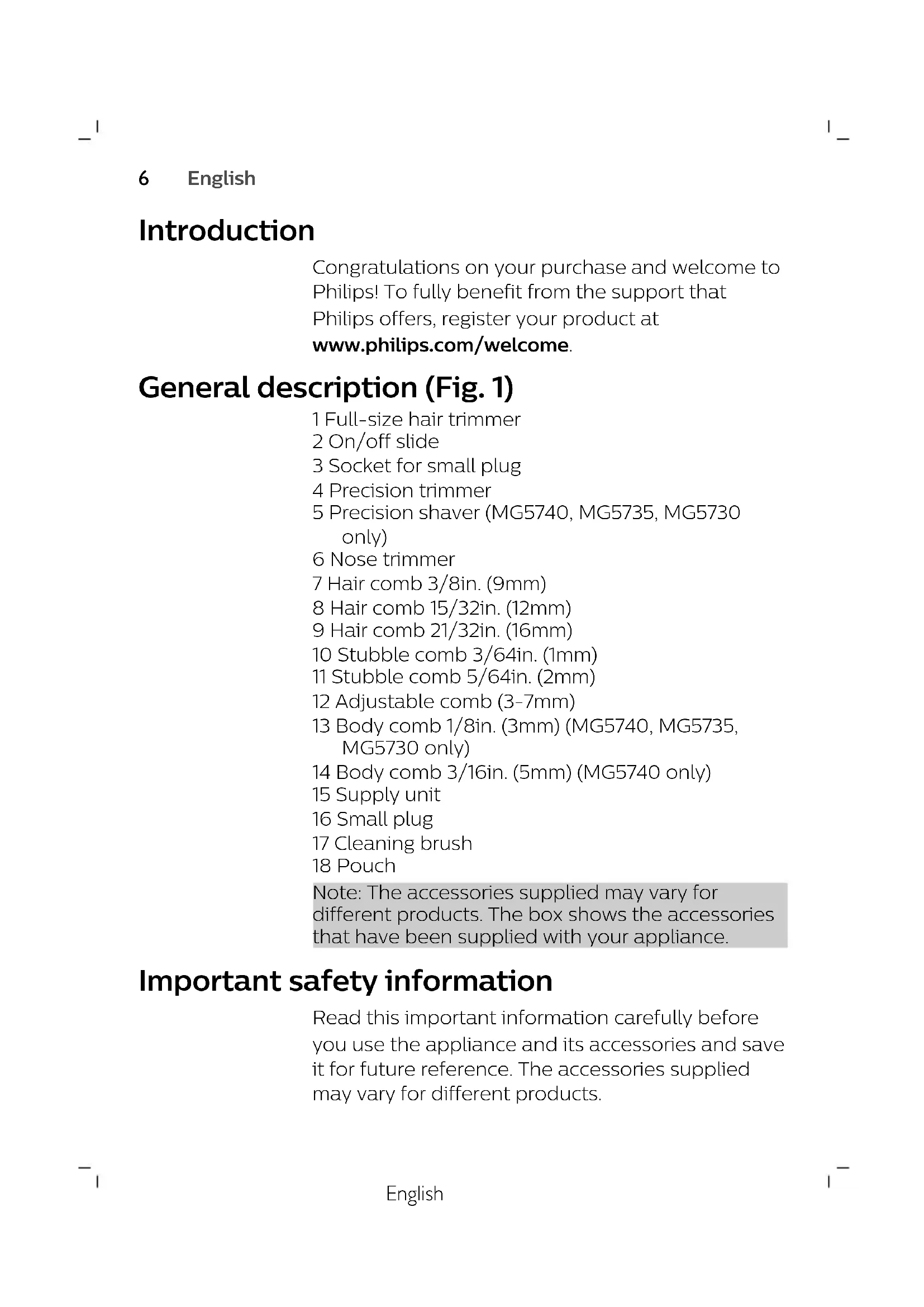

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Full-size hair trimmer
2 On/off slide
3 Socket for small plug
4 Precision trimmer
5 Precision shaver (MG5740, MG5735, MG5730 only)
6 Nose trimmer
7 Hair comb 3/8in. (9mm)
8 Hair comb 15/32in. (12mm)
9 Hair comb 21/32in. (16mm)
10 Stubble comb 3/64in. (1mm)
11 Stubble comb 5/64in. (2mm)
12 Adjustable comb (3-7mm)
13 Body comb 1/8in. (3mm) (MG5740, MG5735, MG5730 only)
14 Body comb 3/16in. (5mm) (MG5740 only)
15 Supply unit
16 Small plug
17 Cleaning brush
18 Pouch

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

- Keep the supply unit dry.

Warning

- To charge the battery, only use the detachable supply unit (A00390) provided with the appliance.

- The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always unplug the appliance before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
• Do not open the appliance to replace the rechargeable battery.

Caution

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

• Never immerse the charging stand in water and do not rinse it under the tap.
• Never immerse the appliance in water. Do not use the appliance in the bath or shower.
• Never use water hotter than 60°C to rinse the appliance.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.

- Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

- This appliance can be safely cleaned under the tap.

- The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

- The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Charging with the supply unit

When the appliance has charged for 16 hours, it has a cordless operating time of up to 80 minutes.

1 Make sure the appliance is switched off.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

2 Insert the small plug into the appliance and put the supply unit in the wall socket.
3 After charging, remove the supply unit from the wall outlet and pull the small plug out of the appliance.

Using the appliance

Note: This appliance can only be used without cord.

Note: Switch off and clean the appliance after each use.

Detaching and attaching cutting elements

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols)

1 To detach a cutting element, push upwards against the teeth of the cutting element and take it off the handle.

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

2 To attach a cutting element, insert the lug of the cutting element into the guiding slot at the front and push the back of the cutting element onto the appliance ('click').

Detaching the precision shaver and nose trimmer

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

1 Place your finger on the arrow at the back of the attachment and push it off the handle in the direction of the arrow.

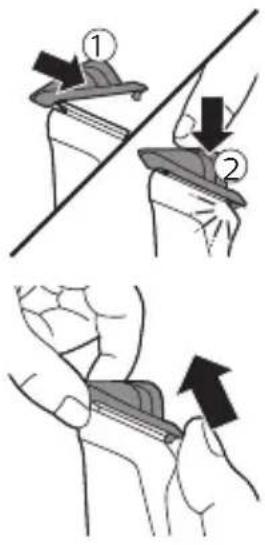

Attaching and detaching combs

Illustration showing two-step instructions for using a tool to adjust the blade, with numbered steps and directional arrows.

1 To attach any type of guard onto a cutting element, slide the front part of the guard onto the teeth of the cutting element. Then push down the center of the guard with your fingers or the palm of your hand ('click').

2 To detach any type of comb from the cutting element, carefully pull its back part off the appliance and then slide it off the cutting element.

Note: When trimming for the first time, start by using the comb with the maximum trimming length setting to familiarize yourself with the appliance.

Switching the appliance on and off

Simple line drawing of a container with an upward arrow and a warning symbol (no text or labels)

- To switch on the appliance, push the on/off slide upwards. - To switch off the appliance, push the on/off slide downwards.

Attachments for use on beard

Full-size hair trimmer

Use the full-size hair trimmer without a comb to trim hair close to the skin (to a length of 1/32in (0.5mm) or to create clean lines around your beard, neck and sideburns.

Illustration of a person's face with a finger pointing to the ear area (no text or symbols)

1 To trim hair close to the skin, place the flat side of the cutting element against your skin and make strokes against the direction of hair growth.

12 English

Illustration of a person neck with a downward arrow indicating pressure or direction (no text or symbols)

2 For contouring, hold the cutting element perpendicular to the skin and move it upwards or downwards with gentle pressure.

Beard combs

Attach a beard comb to the full-size hair trimmer to trim your beard and moustache evenly. The appliance comes with 5 beard combs. The hair length settings are indicated on the combs. The settings correspond to the remaining hair length after trimming.

Comb inch mm

Stubble comb 3/64in. 1mm
Stubble comb 5/64in. 2mm
Adjustable beard comb	1/8in.- 9/32in. 3mm-7mm

= mm 3 4 5 6 7

1 Attach the comb to the full-size hair trimmer.
2 Adjustable comb: Push the length selector to the left or right to select the desired hair length setting.

Illustration of a person applying a cotton or cotton to their face, with an arrow indicating the direction (no text or symbols present)

3 To trim the most effective way, move the comb against the direction of hair growth. Make sure the surface of the comb always stays in contact with the skin.

Attachments for use on body

• Use the green body combs to trim body hair.

• When you trim for the first time, use the 5mm/3/16in. body comb to familiarize yourself with the appliance.

• Make sure hair is clean and dry as wet hair tends to stick to the body.

• When trimming sensitive areas, always use a body comb.
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• Always make smooth and gentle movements and be sure the surface of the comb always stays in contact with your skin.
• When too many hairs have accumulated on the appliance, blow the hairs out before use, for best trimming results.

Body combs

Attach a body comb to the full-size hair trimmer to trim hairs below the neckline. The appliance comes with 2 body combs. The hair length settings are indicated on the combs. The settings correspond to the remaining hair length after trimming.

Comb inch mm

Body comb (green) 1/8in. 3mm

Body comb (green) 3/16in. 5mm

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

1 Attach a body comb to the full-size hair trimmer.
2 To trim in the most effective way, stretch the skin with your free hand and move the comb against the direction of hair growth. Make sure the surface of the comb always stays in contact with the skin.

Attachments for use on head

Full-size hair trimmer

Use the full-size hair trimmer without a comb to clip the hair on your head very close to the skin (1/32in (0.5mm) or to contour the neckline and area around the ears.

1 To contour the hairline around the ears, comb the hair ends over the ears.
2 Tilt the appliance in such a way that only one edge of the cutter blades touches the hair ends when you shape the contours around the ears.
3 To contour the nape of the neck or sideburns, turn the appliance and make downward strokes.
4 Move the appliance slowly and smoothly following the natural hairline.

Illustration of a person's head and neck with a curved object inserted, showing a downward arrow (no text or symbols)

Hair combs

Attach a hair comb to the full size hair trimmer to evenly trim the hairs on your head. The appliance comes with 3 hair combs. The hair length settings are indicated on the combs. The settings correspond to the remaining hair length after trimming.

Comb inch mm

Hair comb 3/8in. 9mm

Hair comb 15/32in. 12mm

Hair comb 21/32in. 16mm

1 Attach a comb to the full size hair trimmer.

Illustration of a person applying eye care to their ear with a magnifying glass (no text or symbols)

2 Move the trimmer slowly over the crown from different directions to achieve an even result. Make sure the surface of the comb always stays in contact with the skin.

• Always move the trimmer against the direction of hair growth. Press lightly.
• Make overlapping passes over the head to ensure that all hair that should be cut has been cut.

Precision attachments for use on face

Precision trimmer

Use the precision trimmer to create fine lines and contours around your facial style, close to the skin (to a length of 1/32in./0.5mm).

Line drawing of a person's face with a stylized flower, no text or symbols present

1 Hold the precision trimming head perpendicular to the skin and move the trimming head upwards or downwards with gentle pressure.

Nose trimmer

Use the nose trimmer to trim your nose hair and ear hair.

• Make sure nasal passages are clean. Make sure outer ear channels are clean and free from wax.
• Do not insert the tip more than 3/16in./5mm.
• Always clean the attachment after each use.

Trimming nose hair

Illustration of a hand holding a tool interacting with two human faces (no text or symbols present)

1 Gently move the tip in and out of nose while turning it around to remove unwanted hairs.

Illustration of a hand holding a tool or device, showing a person's face and head with no visible text or symbols.

Trimming ear hair

1 Slowly move the tip round the ear to remove hairs that stick out beyond the rim of the ear.
2 Gently move the tip in and out of the outer ear channel to remove unwanted hairs.

Precision shaver

Use the precision shaver after trimming, to shave unwanted hairs on cheeks, chin and along the beard with precision. Make sure to pre-trim your beard first, with the full-size hair trimmer without comb, to obtain the best result.

Note: Use the precision shaver to remove remaining hairs and detailing your beard style. It is not suitable for a full face shave.

Illustration of two human faces facing each other with a diagonal line crossing (no text or symbols)

1 Gently press the precision shaver onto the skin and shave along contoured edges to remove any unwanted hairs.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product.

Never dry the trimmer teeth with a towel or tissue, as this may damage the trimmer teeth.

After every use: cleaning under the tap

1 Turn off the appliance and disconnect from the wall socket.
2 Remove any comb or cutting element from the appliance.
3 Rinse the hair chamber under a warm tap.

4 Clean the cutting element and comb under a warm tap.

5 Carefully shake off excess water and let all parts air dry completely.

Thorough cleaning

1 Turn off the appliance and disconnect from the wall socket

2 Wipe the handle of the appliance with a dry cloth.

3 Remove any comb or cutting element from the appliance.

4 Remove any hairs that have accumulated in the hair chamber with the cleaning brush supplied.

5 Remove any hairs that have accumulated in the cutting elements and/or combs with the cleaning brush supplied.

6 Clean the cutting elements under a warm tap.

7 Clean the combs under a warm tap.

8 Carefully shake off excess water and let all parts air dry completely.

Cleaning the nose trimmer

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Clean the nose trimmer immediately after use and when a lot of hair or dirt has accumulated on the nose trimmer head.

1 Rinse the nose trimmer head with hot water.

2 Turn on the appliance and rinse the nose trimmer head once more to remove any remaining hairs. Then turn off the appliance again.

For a thorough clean, immerse the nose trimmer head in a bowl with warm water for a few minutes

and then turn on the appliance to remove stubborn hair/debris.

3 Carefully shake off excess water and let all parts air dry completely.

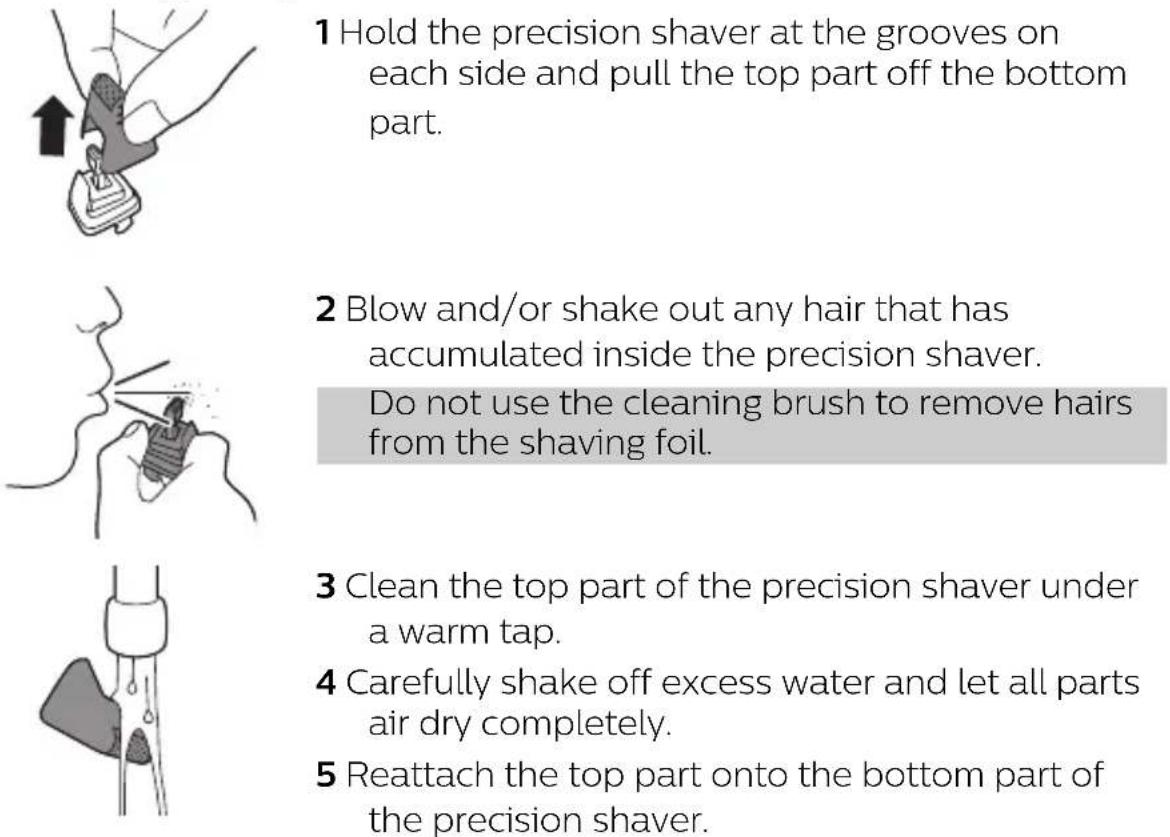

Cleaning the precision shaver

1 Hold the precision shaver at the grooves on each side and pull the top part off the bottom part.

2 Blow and/or shake out any hair that has accumulated inside the precision shaver.

Do not use the cleaning brush to remove hairs from the shaving foil.

3 Clean the top part of the precision shaver under a warm tap.

4 Carefully shake off excess water and let all parts air dry completely.

5 Reattach the top part onto the bottom part of the precision shaver.

Storage

- Store the appliance in the pouch supplied.

Note: Make sure the appliance is dry before you store it in the pouch.

Ordering accessories

To buy accessories or spare parts, visit

www.shop.philips.com/service or go to your

Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

1 Check if there are screws in the back or front of the appliance. If so, remove them.

2 Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery.

3 Remove the rechargeable battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

Cutting units are not covered by the terms of the international warranty because they are subject to wear.

Introduktion

No smoking sign with faucet symbol (no text)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a socket connected to a cylindrical device with labeled parts ① and ②.

Illustration of a hand holding a wrist with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and motion arrows indicating movement or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a device with labeled parts and directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a container with liquid and an arrow pointing to it (no text or symbols)

Illustration of a person applying a tool to their ear area, showing the application (no text or symbols present)

Illustration of a person applying a neck massage to their face (no text or symbols)

= mm 4 5 6

Illustration of a person applying a tool to their face, showing the arrow pointing upward (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's head with a downward arrow pointing to the neck area, no text or symbols present

Kam " mm

Hårkam 3/8" 9 mm

Hårkam 15/32" 12 mm

Hårkam 21/32" 16 mm

Illustration of a person applying facial hair to their ear with a tool (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a person performing a hand massage or acoustics technique (no text or symbols present)

Trimning af næsehår

Illustration of a person performing a hand massage or acupressure technique (no text or symbols present)

Trimning af ørehår

Illustration of a person's face with a diagonal line crossing another face (no text or symbols)

Diagram of a medical device with a bag attached to a tube, showing liquid levels and tubing (no text or labels)

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Line drawing of a hand holding a stylized object with motion lines, no text or symbols present

No sign depicting a faucet crossed out by a diagonal line, indicating no restrictions or leakage.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Illustration of a hand holding a wrist with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and motion arrows indicating movement or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a container with an arrow pointing upward (no text or symbols)

Illustration of a person applying a hair accessory to the ear area (no text or symbols)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

= mm 1 4 5 6 7

Illustration of a hand holding a pen with an upward arrow, pointing to a textured surface (no text or symbols)

Side profile illustration of a person's head with a downward arrow indicating pressure or airflow (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a beard and eyebrow, no text or symbols present

Illustration of a person performing a hand gesture with a triangular motion line (no text or symbols)

Illustration of a person performing a neck massage technique with a hand gesture (no text or symbols)

Illustration of a person's face with a diagonal line dividing the face (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a funnel and bulb (no text or symbols)

Illustration of hands using a tool to lift a small object, with an upward arrow indicating motion (no text or symbols)

Line drawing of a human face with a hand holding an object, no text or symbols present

No sign depicting a faucet with a diagonal line, indicating no restrictions or prohibition (no text present)

Prohibition sign of a faucet without any text or symbols

Diagram showing a plug inserted into a device with labeled parts and directional arrows indicating connection or movement.

Illustration of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a container with an arrow pointing upward (no text or symbols)

Illustration of a person applying facial massage to the ear with a tool (no text or symbols)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

Illustration of a person applying a tool to their face, showing the arrow pointing upward (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head with a downward arrow indicating pressure or airflow (no text or symbols)

Illustration of a person using a handheld device to interact with their ear (no text or symbols present)

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a person performing a medical or surgical procedure with a surgical instrument (no text or symbols visible)

Illustration of a person performing a medical or therapeutic procedure on another person's face, with no visible text or symbols.

Illustration of a person's face with a diagonal line crossing another face (no text or symbols)

Diagram of a medical procedure showing a catheter inserted into a tube with liquid droplets (no text or labels)

Illustration of a hand using a tool to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a small object with an arrow pointing to it, no text or symbols present

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Illustration of a hand holding a wrist with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tool with labeled parts and directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container with an upward arrow and a circle inside, no text or symbols present.

Illustration of a person applying a hair accessory to the ear area (no text or symbols)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

= mm 1 4 5 6 7

Illustration of a hand holding a finger with an upward arrow indicating motion or pressure (no text or symbols)

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or airflow (no text or symbols)

Illustration of a person applying facial hair to their ear with a device (no text or symbols)

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a person performing a manual task with a tool, showing hand positioning and motion (no text or symbols)

Illustration of a person performing a manual task with a tool, showing hand positioning and motion (no text or symbols)

Illustration of a person's face with a diagonal line dividing the face (no text or symbols)

Simple line drawing of a medical device with a bulb and tubing (no text or symbols)

Illustration of a hand using a tool to press or install a small object, with an upward arrow indicating motion (no text or symbols present)

Illustration showing two-step medical procedure: nasal and oral surgical technique (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Simple line drawing of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen with an arrow indicating upward motion (no text or symbols)

Diagram showing two hands holding a tray with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container with an arrow pointing upward, no text or symbols present

Illustration of a person applying a tool to their ear area, showing the application (no text or symbols present)

Illustration of a person applying a neck massage to their face (no text or symbols)

= mm 1 4 5 6 7

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's head and neck with a downward arrow indicating pressure or airflow (no text or symbols)

Illustration of a person applying facial hair to their ear with a device (no text or symbols)

Line drawing of a person's face with a beard and eyebrow, no text or symbols present

Illustration of a hand holding a medical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a person performing a medical or surgical procedure on another person's neck (no text or symbols present)

Illustration of a person's face with a diagonal line crossing, no text or symbols present

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Diagram of a medical device with a bag attached to a rod, showing fluid flow (no text or symbols)

No sign depicting a faucet with a diagonal line, crossed out by a circle (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Illustration of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions on a tool, labeled ① and ②, with arrows indicating movement or force direction.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram showing a container with liquid and an upward arrow, indicating fluid flow or movement

Illustration of a person applying a tool to their face, showing the application area with an arrow (no text or symbols present)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

Illustration of a person applying a tool to their face, showing the brush tip and mouth area (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's neck and shoulder with a downward arrow indicating pressure or force (no text or symbols)

Haarkammen

Illustration of a person applying facial hair to their ear with a magnifying glass (no text or symbols)

Line drawing of a person's face with a beard and toothbrush, no text or symbols present

Illustration of a person performing a medical or anatomical procedure with directional arrows (no text or symbols)

Neushaar trimmen

Illustration of a person performing a hand massage or exercise on a diagonal line, with no visible text or symbols.

Oorhaar trimmen

Illustration of a person's face with a diagonal line dividing the face (no text or symbols present)

Simple line drawing of a medical procedure with a bulb, tubing, and a shaded area (no text or symbols)

Illustration of a hand using a tool to press or install a small object, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a small object with motion lines, possibly a device or tool, against a plain background (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Illustration of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and motion arrows indicating movement or force

2 For å sette på et klippeelement, sett tappen på klippeelementet inn i veiledningssporet foran og skyv på baksiden av klippeelementet til apparatet ("klikk").

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Illustration showing two-step instructions for using a tool to adjust the blade, with numbered steps and directional arrows.

1 For å sette på en hvilken som helst beskytter på et klippeelement, skyv fordelen av beskytteren inn på tennene på klippeelementet. Skyv deretter ned på midten av beskytteren med fingrene eller håndflaten ("klikk").
2 Hvis du vil ta av en hvilken som helst kam fra klippeelementet, drar du forsiktig tilbake baksiden av apparatet og skyver det deretter av klippeelementet.

Simple line drawing of a container with an upward arrow and a warning symbol (no text or labels)

Illustration of a person's face with a finger pointing to the ear area (no text or symbols)

Illustration of a person neck with a downward arrow indicating pressure or direction (no text or symbols)

"Tredagers"-kam 3/64 in 1 mm

"Tredagers"-kam 5/64in. 2 mm

Justerbar skjeggkam 1/8 in-9/32 in 3 mm-7 mm

= mm

1 Fest kammen til hårtrimmeren i full størrelse.

Illustration of a person applying a tool to their face, showing the brush and eye area (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Side profile illustration of a person's neck and neck with a downward arrow indicating pressure or movement (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

1 Fest en kam til hårtrimmeren i full størrelse.

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a hand holding a medical device over a human face, with no visible text or symbols

Illustration of a person performing a neck massage technique with a diagonal line (no text or symbols)

Trimme ørehår

Illustration of a person's face divided by a diagonal line, showing facial features (no text or symbols)

Diagram of a medical or laboratory procedure showing a syringe connected to a rod with liquid droplets (no text or labels)

Illustration of a hand using a tool to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person's face with a hand holding an object, possibly a device or tool, emitting particles (no text or symbols)

Oppbevaring

- Oppbevar apparatet i etuiet.

Prohibition sign showing a faucet with a diagonal line and raindrops (no text)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Diagram showing a plug inserted into a device with labeled parts ① and ②, indicating electrical or medical setup.

Illustration of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions with arrows indicating movement or force, labeled ① and ②.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Diagram showing a container with liquid and an upward arrow, indicating fluid flow or movement

Illustration of a person applying facial massage to the ear (no text or symbols present)

Illustration of a person neck with a downward arrow indicating pressure or direction (no text or symbols)

Illustration of a person applying a tool to their face, showing the arrow pointing upward (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, against a textured background (no text or symbols)

Illustration of a person's neck and shoulder with a downward arrow indicating pressure or force (no text or symbols)

Pentes

Illustration of a person applying a medical or cosmetic device to their ear (no text or symbols present)

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure with a surgical tool (no text or symbols visible)

Illustration of a person performing a hand massage or exercise on a diagonal line, with no visible text or symbols.

Illustration of a person's face with two hand gestures, one covering the other (no text or symbols)

Simple line drawing of a medical procedure with a funnel and catheter (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Line drawing of a human face with an object inside, possibly a device or tool, showing no text or symbols.

Encomendar acessórios

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops (no text or symbols)

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Diagram showing a plug connected to a cylindrical device with labeled parts ① and ②, indicating electrical or medical connection.

Anatomical illustration of a joint with a black arrow indicating a specific area (no text or labels present)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen with an arrow indicating upward motion (no text or symbols)

Diagram showing two mechanical components with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a pen or tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container with an arrow pointing upward (no text or symbols)

Illustration of a person applying a tool to the ear area (no text or symbols present)

Illustration of a person neck with a downward arrow indicating pressure or direction (no text or symbols)

Illustration of a person applying a cotton or cotton product to their face, with an arrow indicating the product's direction (no text or symbols present)

Illustration of a hand holding a finger with an upward arrow, no text or symbols present

Side profile illustration of a person's head with a downward arrow indicating pressure or force (no text or symbols)

Illustration of a person applying facial hair to their ear with a device (no text or symbols)

Line drawing of a person applying a toothbrush to their face (no text or symbols)

Illustration of a person performing a hand massage or exercise on another person's face (no text or symbols present)

Illustration of a person performing a hand massage or exercise on a curved line, with no visible text or symbols.

Illustration of a person's face with a diagonal line dividing the face (no text or symbols)

Simple line drawing of a medical procedure with a bulb and tubing (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a small object with a pointed tip, possibly a device or tool, against a plain background (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a socket connected to a cylindrical device with labeled parts ① and ②.

Illustration of a hand holding a rectangular object with an arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and motion arrows indicating movement or force

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Diagram illustrating two steps of a hand holding a device, with numbered instructions and directional arrows indicating action.

Diagram showing a container with liquid and an arrow pointing to it, indicating direction or flow.

Illustration of a person applying a tool to the ear area, showing the application (no text or symbols present)

Illustration of a person neck with a downward arrow indicating pressure or direction (no text or symbols)

= mm 1 4 5 6 7

Illustration of a person applying a toothpaste to their face (no text or symbols present)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's head with a downward arrow pointing to the neck area, no text or symbols present

Hårkammar

Illustration of a person applying facial hair to their ear with a magnifying glass (no text or symbols)

Line drawing of a person applying a toothbrush to their cheek (no text or symbols)

Nästrimmer

Illustration of a person performing a hand gesture with a device, showing facial features and motion (no text or symbols)

Illustration of a person performing a hand gesture with a tool, no text or symbols present

Trimma öronhår

Illustration of a person's face with two hand gestures, one facing forward and the other making a gesture (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a funnel and bulb (no text or symbols)

Illustration of a hand using a tool to lift a small object, with an upward arrow indicating motion (no text or symbols)

Line drawing of a human hand holding a small object, possibly a device or tool, with no visible text or symbols.

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Anatomical illustration of a joint with a black arrow indicating a specific area (no text or labels present)

Diagram showing a hairdryer with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions (① and ②) of a device with directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container with an arrow pointing upward, no text or symbols present

Illustration of a person applying facial massage to the ear with a tool (no text or symbols)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

Illustration of a person applying a tool to their face, showing the brush and arrow (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Side profile illustration of a person's neck and neck with a downward arrow indicating pressure or movement (no text or symbols)

Illustration of a person using a handheld device to interact with their ear (no text or symbols present)

Line drawing of a person's face with a toothbrush near the mouth (no text or symbols)

Illustration of a person performing a manual task with a tool, showing hand positioning and facial features (no text or symbols)

Illustration of a person performing a hand gesture with a tool, showing eye and face positions (no text or symbols)

Illustration of a person's face with a diagonal line crossing, no text or symbols present

Simple line drawing of a medical device with a bulb and tubing (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a small object with a pointed tip, possibly a device or tool, against a plain background (no text or symbols)

Prohibition sign showing a showerhead crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with a showerhead, no text or symbols present.

Diagram showing a plug inserted into a cable with labeled parts ① and ②, indicating electrical or medical device connections.

Illustration of a hand holding a finger with a black arrow indicating direction (no text or symbols)

Diagram showing a hairdryer with labeled parts and motion arrows indicating movement or force

Illustration of a hand holding a pen or stylus with an arrow indicating upward motion (no text or symbols)

Diagram showing two hand positions (① and ②) of a device with directional arrows indicating movement or force.

Illustration of a hand holding a tool with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container with an upward arrow and a circular mark inside (no text or symbols)

Illustration of a person applying a tool to the ear area (no text or symbols)

Illustration of a person's neck with a downward arrow indicating pressure or direction (no text or symbols)

= mm 4 5 6

Illustration of a person applying a tool to their face, showing the brush and eye area (no text or symbols)

Illustration of a hand holding a small object with an upward arrow, no text or symbols present

Illustration of a person's neck and shoulder with a downward arrow indicating pressure or force (no text or symbols)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with a beard and toothbrush, no text or symbols present

Illustration of a hand holding a medical device over a human face, with no visible text or symbols

Illustration of a person performing a hand massage on another person's face, with no visible text or symbols

Illustration of a person's face with a diagonal line dividing it, no text or symbols present

Καθάρισμα

Diagram of a medical procedure showing a catheter inserted into a tube with liquid droplets (no text or labels)

Illustration of a hand using a tool to lift a small object, with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a hand holding a small object with a pointed tip, no text or symbols present

75% recycled paper

75% papier recyclé
