USER MANUAL BT3205 PHILIPS

Black-and-white photo of a hairbrush with textured grille and control buttons (no visible text or symbols)

Illustration of an open book with a grid and arrow indicating direction (no text or symbols)

English 6

Dansk 16

Deutsch 26

Español 38

Français 48

Italiano 59

Nederlands 70

Norsk 81

Português 91

Suomi 102

Svenska 112

Türkçe 122

Ελληνικα 132

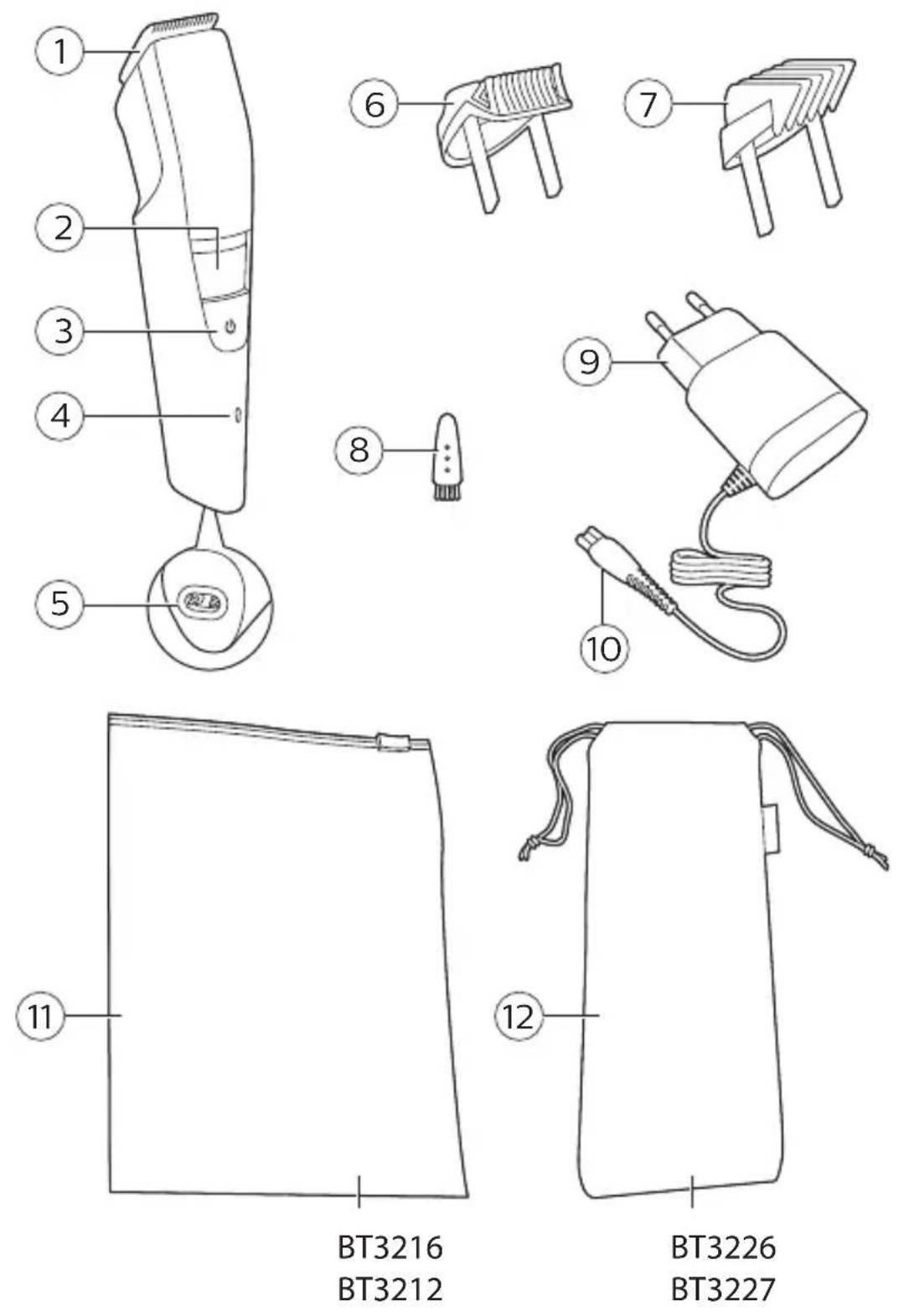

General description (fig. 1)

1 Cutting unit
2 Zoom wheel
3 On/off button
4 Battery status indicator
5 Socket for small plug
6 Beard comb
7 Long beard comb
8 Cleaning brush
9 Supply unit
10 Small plug
11 Large pouch
12 Small pouch

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

- Keep the supply unit dry.

Warning

- To charge the battery, only use the detachable supply unit (XXxxxx) provided with the appliance.

- To charge the battery, only use the detachable supply unit provided with the appliance.

- The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

- Do not open the appliance to replace the rechargeable battery.

Caution

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or barrier (no text present)

• This appliance is not washable. Never immerse the appliance in water and do not rinse it under the tap.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

- The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

- The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Charging

Charge the appliance fully before you use it for the first time and after a long period of disuse.

It takes approximately 10 hours (BT3205 BT3206 BT3211) or 1 hour (BT3212 BT3215 BT3216 BT3221 BT3226 BT3227 BT3236 BT3237) to fully charge the appliance.

When it is fully charged, the appliance has a cordless operating time of up to 45 minutes (BT3205), 60 minutes (BT3211 BT3212 BT3215 BT3216 BT3226 BT3236) or 90 minutes (BT3221 BT3227 BT3237).

1 Make sure the appliance is switched off.
2 Insert the small plug into the appliance.
3 Put the supply unit in the wall socket.
4 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Illustration of a plug inserted into a socket with an arrow indicating the insertion direction (no text or symbols present)

Optimizing the lifetime of the rechargeable battery

When you have charged the appliance for the first time, we advise you to use it until the battery is completely empty. Continue to use the appliance until the motor almost stops running during a session. Then recharge the battery. Follow this procedure at least twice a year.

Battery status indicator

Simple line drawing of a bottle and a starburst shape without any text or symbols

• Selected types (BT3205 BT3211 BT3212 BT3215 BT3216 BT3221 BT3227 BT3226) only.
• When the battery is almost empty, the battery charge indicator flashes orange.
• When the product is charging, the battery charge indicator flashes green.
• When the battery is fully charged, the battery charge indicator lights up green continuously.

Note: The lights switch off automatically after 30 minutes.

Using the appliance

Note: Switch off and clean the appliance and attachments after each use.

- Always comb your beard and/or moustache with a fine comb before you start trimming.

Be careful when you trim for the first time. Do not move the trimmer too fast. Make smooth and gentle movements.

Switching the appliance on and off

- Press the on/off button once to switch the appliance on or off.

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction or force application.

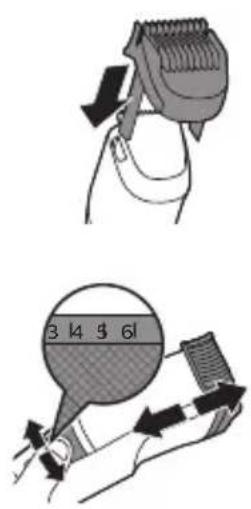

Trimming with comb

Note: When you trim for the first time, start at the highest length setting to familiarize yourself with the appliance.

Use the trimming comb attached to the cutting element to trim your beard and moustache in your preferred style. Turn the zoom wheel to choose from length settings ranging from 0.5mm to 10mm (1/32in. to 13/32in.). With the long beard comb you can choose from length settings ranging from 11mm to 20mm (BT3236 BT3237).

1 Slide the trimming comb straight into the guiding groove of the appliance.
2 Turn the zoom wheel to the desired setting. The desired hair length setting is shown in the center of the zoom wheel.

3 Switch the appliance on.

4 To trim most effectively, move the product against the hair growth direction. Make sure that the surface of the comb always stays in contact with the skin.

Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.

12 English

Diagram of a mechanical clamp or bracket with arrows indicating force direction (no text or symbols)

5 Regularly remove cut hair from the comb. If a lot of hair has accumulated in the comb, remove it from the appliance and blow and/or shake out the hairs. The selected hair length setting does not change when the comb is removed.

6 Switch off and clean the appliance after each use.

Trimming for 'stubble look'

1 Be certain trimming comb is on product and use setting 0.5mm (1/32in.) to create a 'stubble look' trim.

1 0.5

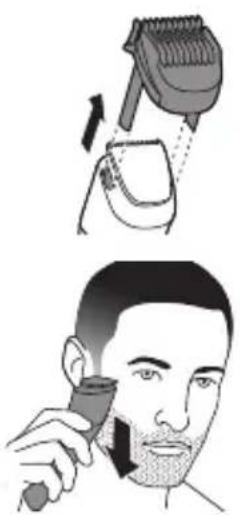

Trimming without comb

Use the trimmer without the trimming comb to trim the edges and single hairs.

Be careful when you trim without the comb as the cutting unit will remove every hair it touches.

1 Pull the trimming guard straight off the appliance.

Illustration showing a hairpin being brushed down and shaped like a man's face (no text or symbols present)

Cleaning

2 Switch the appliance on.
3 Make well-controlled movements. Touch the hair lightly with the trimmer.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the product.

Never dry the trimmer teeth with a towel or tissue, as this may damage the trimmer teeth.

1 Switch off the appliance and disconnect it from the power outlet.
2 Wipe the housing of the appliance with a dry cloth.

Caution: Never immerse the appliance in water, or rinse it under the tap. Only the cutting unit and guard can be rinsed under the tap.

3 Remove the comb and clean it with the cleaning brush and/or rinse it under the tap.

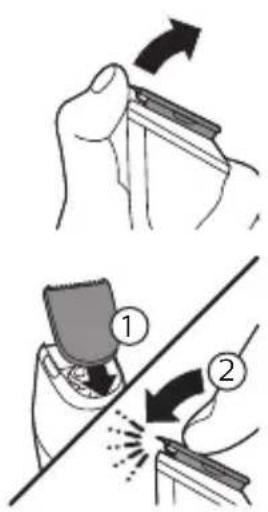

4 Remove the cutting unit by pushing against the teeth of the cutting unit and clean it with the brush or rinse it under the tap.

English

Diagram illustrating two steps of a hand turning a device, labeled ① and ②, with arrows indicating direction.

5 Carefully shake off excess water and let air dry completely.
6 Insert the lug of the cutting unit into the guiding slot and push the cutting unit back onto the appliance.

Storage

- Store the product in the pouch supplied. Make sure the product is dry before you store it in the pouch.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

- Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

Cutting units are not covered by the terms of the international warranty because they are subject to wear.

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet with a diagonal line and raindrops, no text present

Illustration of a medical procedure showing a tool inserted into a patient's ear with an inset showing a close-up of the ear (no text or symbols present)

Simple line drawing of a bottle and a starburst shape without any text or symbols

- Kun udvalgte typer (BT3205 BT3211 BT3212 BT3215 BT3216 BT3221 BT3227 BT3226).

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction

Trimming med kam

Diagram of a mechanical clamp or bracket with arrows indicating force direction (no text or symbols)

Illustration showing a hairpin being brushed down and a close-up of a person's face (no text or symbols present)

Rengøring

Diagram illustrating two steps of a hand turning a device, labeled ① and ②, with arrows indicating direction.

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Illustration of a plug inserted into a socket with an inset showing the socket plug (no text or symbols present)

Simple diagram showing a battery inside a wire and a star-shaped object with label '0' (no text or symbols on the diagram itself)

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction, likely illustrating a mechanical or electrical process.

Diagram of a mechanical clamp or bracket with force arrows indicating movement (no text or symbols)

Illustration showing two steps of hair styling: top shows a brush cutting the brush, bottom shows a person using a tool to trim the face (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating upward motion (no text or symbols)

Diagram showing welding process with labeled steps 1 and 2, indicating tool path and welding angle

Aufbewahrung

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Illustration of a plug inserted into a socket with an inset showing a close-up of the socket (no text or symbols)

Simple diagram showing a pencil inside a tube with an arrow pointing to the right side (no text or symbols)

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction, likely illustrating a manual or electrical operation.

Diagram of a mechanical clamp or clamp device with directional arrows indicating movement (no text or symbols)

Illustration showing two different techniques for hair styling: top shows a hairbrush cutting the brush, bottom shows a person using a tool to trim the face (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Illustration of a plug inserted into a socket with an inset showing the socket plug (no text or symbols present)

Simple line drawing of a pencil and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction

Tonte avec le sabot

Diagram of a mechanical clamp or bracket with directional arrows indicating movement (no text or symbols)

Illustration showing a person using a hairbrush to clean another's face (no text or symbols present)

Diagram illustrating three steps of hairpin cutting: opening, opening with brush, and cutting through a tool.

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Illustration of a plug inserted into a socket with an inset showing a small electrical outlet (no text or symbols)

Simple line drawing of a bottle and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating the action.

Diagram of a mechanical tool interacting with a surface, showing force direction and movement arrows (no text or symbols)

Illustration showing a person using a hairbrush to trim a man's face (no text or symbols present)

Diagram illustrating three-step hairpin tool application: cutting, opening, and cutting through a tool.

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an inset showing the socket (no text or symbols)

Simple line drawing of a bottle and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating the action.

Trimmen met kam

Diagram of a mechanical tool interacting with a surface, showing force application and movement direction (no text or symbols)

Illustration of a person using a handheld tool to brush or mark (no text or symbols present)

Reinigen

Diagram illustrating two steps of a hand turning a device, labeled ① and ②, with arrows indicating direction.

Opbergen

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Illustration of a medical procedure showing a tool interacting with an internal organ, with an inset showing a patient inside a device (no text or symbols present)

Forleng levetiden på det oppladbare batteriet

Simple line drawing of a bottle and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction

Trimming med kam

Diagram of a mechanical clamp or bracket with arrows indicating force direction (no text or symbols)

Diagram illustrating two steps of a hand turning a device, labeled ① and ②, with arrows indicating direction.

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an inset showing the socket plug (no text or symbols present)

Simple diagram showing a battery inside a wire with an arrow pointing to it, no text or symbols present.

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction

Aparar com pente

3 | 4 | 5 | 6 |

Diagram of a mechanical tool interacting with a surface, showing force direction and movement (no text or symbols)

Illustration of a person using a handheld device to apply a facial product (no text or symbols visible)

Limpeza

Illustration of a hand holding a device with an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a device with an arrow indicating upward motion (no text or symbols)

Diagram showing two steps of welding or cutting process with labeled arrows and motion indicators

Armazenamento

Encomendar acessórios

Prohibition sign of a faucet without any text or symbols

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Illustration of a plug inserted into a socket with an inset showing a plug inserted into a socket (no text or symbols present)

Simple line drawing of a pencil and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating the action.

Diagram of a mechanical clamp or bracket with arrows indicating force direction (no text or symbols)

Illustration showing two steps of hair styling: top shows a hairbrush cutting the brush, bottom shows a person using a tool to trim the face (no text or symbols present)

Puhdistus

Diagram illustrating three-step hairpin tool application: cutting, opening, and cutting through a tool.

Prohibition sign of a faucet without any text or symbols

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Illustration of a plug inserted into a socket with an inset showing the socket plug (no text or symbols present)

Simple line drawing of a bottle and a starburst shape without any text or symbols

- Endast valda typer (BT3205 BT3211 BT3212 BT3215 BT3216 BT3221 BT3227 BT3226).

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction

Trimma med kam

Diagram of a mechanical clamp or clamp device with a downward arrow indicating force or movement (no text or symbols present)

Illustration showing a hairpin being brushed down on a man's face, with no text or symbols present.

Rengöring

Prohibition sign showing a faucet without raindrops (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Illustration of a medical procedure showing a tool inserted into a device with an inset showing a child inside a mirror (no text or symbols present)

Simple line drawing of a bottle and a starburst shape without any text or symbols

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction, likely illustrating a mechanical or electrical process.

Tarakla düzeltme

Diagram of a mechanical tool interacting with ground, showing motion direction (no text or symbols)

Illustration showing a hairpin being brushed down and shaped like a man's face (no text or symbols present)

Temizlik

Diagram illustrating two steps of a hand turning a device, labeled ① and ②, with arrows indicating direction.

Prohibition sign showing a faucet with a diagonal line and a showerhead, no text present

Prohibition sign of a faucet without any text or symbols

Illustration of a tool inserting into a socket with an inset showing a socket (no text or symbols)

Diagram showing a pencil and a star-shaped object with label '0' inside a circle, likely illustrating a concept or concept.

Diagram showing a hand pressing a button labeled 'Power' with an arrow indicating direction, likely illustrating a mechanical or electrical process.

Τριμάρισμα με χτένα

Diagram of a mechanical tool interacting with ground, showing motion direction (no text or symbols)

Illustration showing two steps of hair styling: top shows a brush cutting the brush, bottom shows a person using a tool to trim the face (no text or symbols present)

Καθάρισμα

75% recycled paper

75% papier recyclé
